PARTS REFERENCE LIST
MODEL: PT-2420PC
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
[ Example ]
(4) (1) (2) (3)
REF. NO.
SYMBOL CODE Q’TY DESCRIPTION REMARKS
Revision No. : marked on the printed circuit board.
B55L115 - 2 01 A
Design change indication
Specification No.
Pattern alteration No.
Circuit board No.
2. Design-changed parts:
When the parts are changed, any one of the following symbols is indicated in the REMARKS column.
CHNG#A : compatible between old and new
CHNG#B : replaceable from old to new
CHNG#D : incompatible
ADD : newly established
3. The original of this list was made based on the information available in January, 2002.
4. Parts are subject to change in design without prior notice.
CONTENTS
1 . PRINT MECHANISM ................................................................................1
2 . COVERS .................................................................................................. 3
3 . MAIN PCB................................................................................................5
4 . SENSORS................................................................................................7
5 . SUB PCB ..................................................................................................7
6 . ATTACHMENTS.......................................................................................9
7 . PRINTED MATTER .................................................................................. 9
8 . PACKING MATERIALS........................................................................... 11
1 . PRINT MECHANISM
MODEL PT-2420PC 8V2-622-045
-1-
1 . PRINT MECHANISM
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LA4683001 1 CHASSIS SUB ASSY 240
2 LA4695000 1 DOUBLE GEAR 1
3 LA3193001 1 DOUBLE GEAR 2
4 LA3194001 1 DOUBLE GEAR 3
5 LA4696000 1 DOUBLE GEAR 4
6 LA3195001 1 IDLE GEAR
7 LA4697000 1 RIBBON DRIVE GEAR
8 LA4698000 1 RIBBON DRIVE CAM
9 UN3559001 1 RIBBON CLUTCH SPRING
10 LA5773001 1 TAPE IDLE GEAR
11 LA3197001 1 P IDEL GEAR
12 UB3733001 1 WASHER 2.6
13 LA3325001 2 WASHER 1.7
14 LA3963001 1 DC MOTOR ASSY F
15 UN3640001 2 SCREW, PAN 1.7X2.5
16 LA6426002 1 CUTTER LEVER 1500JPN
17 LA4700001 1 CUTTER RETURN SPRING
18 LA4701001 1 CUTTER ASSY 240
19 087320515 1 TAPTITE, CUP S M3X5
20 LA4704001 1 CUTTER DRIVE GEAR ASSY
21 LA4707000 1 CUTTER RACK GEAR
22 048025346 2 RETAINING RING, E2.5
23 LA4709001 1 HEAD ASSY, KV1801-25B
24 060300415 1 SCREW, BIND M3X4
25 LA4711001 1 ROLLER HOLDER ASSY 240
26 LA4721000 1 ROLLER RELEASE ROD
27 LA6608001 1 ROLLER RELEASE LEVER
28 LA4723001 1 RELEASE SPRING
29 048020346 2 RETAINING RING, E2
-2-
MODEL PT-2420PC 8V2-622-045
2 . COVERS
MODEL PT-2420PC 8V2-622-061
-3-
2 . COVERS PT2002034
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LA6811001 1 MIDDLE COVER 2420PC
2 LA6428002 1 BOTTOM COVER 1500PC JPN
3 LA6429002 1 CASSETTE COVER 1500PC JPN
4 LA6813001 1 TAPE PANEL 2420PC (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD
4 LA6430002 1 TAPE PANEL 1500PC JPN (HKG/AUS/ARE/CHN/TWN) ADD
5 LA6812001 1 TOP COVER 2420PC
6 LA6432002 1 POWER SUPPLY ACTUATOR JPN
7 LA6433001 1 LED COVER 1500PC JPN
8 085270817 7 TAPTITE, BIND B M2.6X8
9 085270615 3 TAPTITE, BIND B M2.6X6
10 LA6814001 1 CAUTION LABEL EC
11 LA5003001 1 CE LABEL (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD
12 LA4998001 1 C-TICK MARK (AUS)
12 LA8469001 1 EMI LABEL PT2420 TAIWAN (TWN) ADD
-4-
MODEL PT-2420PC 8V2-622-061
3 . MAIN PCB
If you replace the main PCB with a new one, you need to write the serial number of the machine to the
SOFTWARE.”
EEPROM of the new PCB. Refer to the SERVICE MANUAL, Appendix 1, “MAINTENANCE
MODEL PT-2420PC 8V2-622-101
-5-
3 . MAIN PCB
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 B55L115-300C LA5787001 1 MAIN PCB ASSY 1500PC
-6-
MODEL PT-2420PC 8V2-622-101
4 . SENSORS
MODEL PT-2420PC 8V2-622-100
5 . SUB PCB
MODEL PT-2420PC 8V2-622-102
-7-
4 . SENSORS
SYMBOL CODE DESCRIPTION REMARKS
1 LA4728001 1 SWITCH ASSY 240
MODEL PT-2420PC 8V2-622-100
5 . SUB PCB
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 B55L110-300A LA6434001 1 SUB PCB ASSY 1500 JPN
-8-
MODEL PT-2420PC 8V2-622-102
6 . ATTACHMENTS PT2002026
MODEL PT-2420PC 8V2-622-910
7 . PRINTED MATTER
-9-
MODEL PT-2420PC 8V2-622-920
6 . ATTACHMENTS PT2002034
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 LA3700001 1 USB I/F CABLE
2 LA4896001 1 PEELER-STICK
3 LA6829001 1 CD-ROM ASSY 2420EU (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD
3 LA7139001 1 CD-ROM ASSY 2420ASIA (HKG/AUS/ARE/CHN/TWN) ADD
4A LA6830001 1 ADAPTER MDL-J UK (GBR/IRL/HKG/ARE) CHNG#A
4B LA6831001 1 ADAPTER MDL-J EC (DEU/FRA/SWE/FIN/ESP) CHNG#A
4C LA7144001 1 ADAPTER AD-6000 (AUS)
4D LA8462001 1 ADAPTER AD-65 (TWN) ADD
MODEL PT-2420PC 8V2-622-910
7 . PRINTED MATTER PT2002034
REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS
1 LA6832001 1 USER’S MANUAL 2420EU (DEU/GBR/FRA/IRL/SWE/FIN/ESP ADD
/ZAF)
1 LA7140001 1 USER’S MANUAL 2420ASIA (HKG/AUS/ARE/CHN/TWN) ADD
2A B LA1661001 1 WARRANTY CARD EURO CH (DEU/GBR/FRA/IRL/SWE/ESP) CHNG
2B UH3662001 1 WARRANTY CARD UK-A (GBR)
2C A UH3663001 1 WARRANTY CARD UK-B (GBR)
2D UB3650001 1 WARRANTY CARD, FRENCH (FRA)
2E LE5115001 1 WARRANTY CARD SWE-A (SWE)
2F LA1757001 1 WARRANTY CARD, SPA (ESP)
2G LA4592001 1 WARRANTY CARD, HKG (HKG)
3A A UN4239001 1 TAPE CATALOG UK (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD
3B LA2895001 1 TZ TAPE CATALOG, AUS CH (HKG/AUS/ARE/CHN/TWN) ADD
4 LA6833001 1 UNPACKING INSTRUCTION 2420
-10-
MODEL PT-2420PC 8V2-622-920

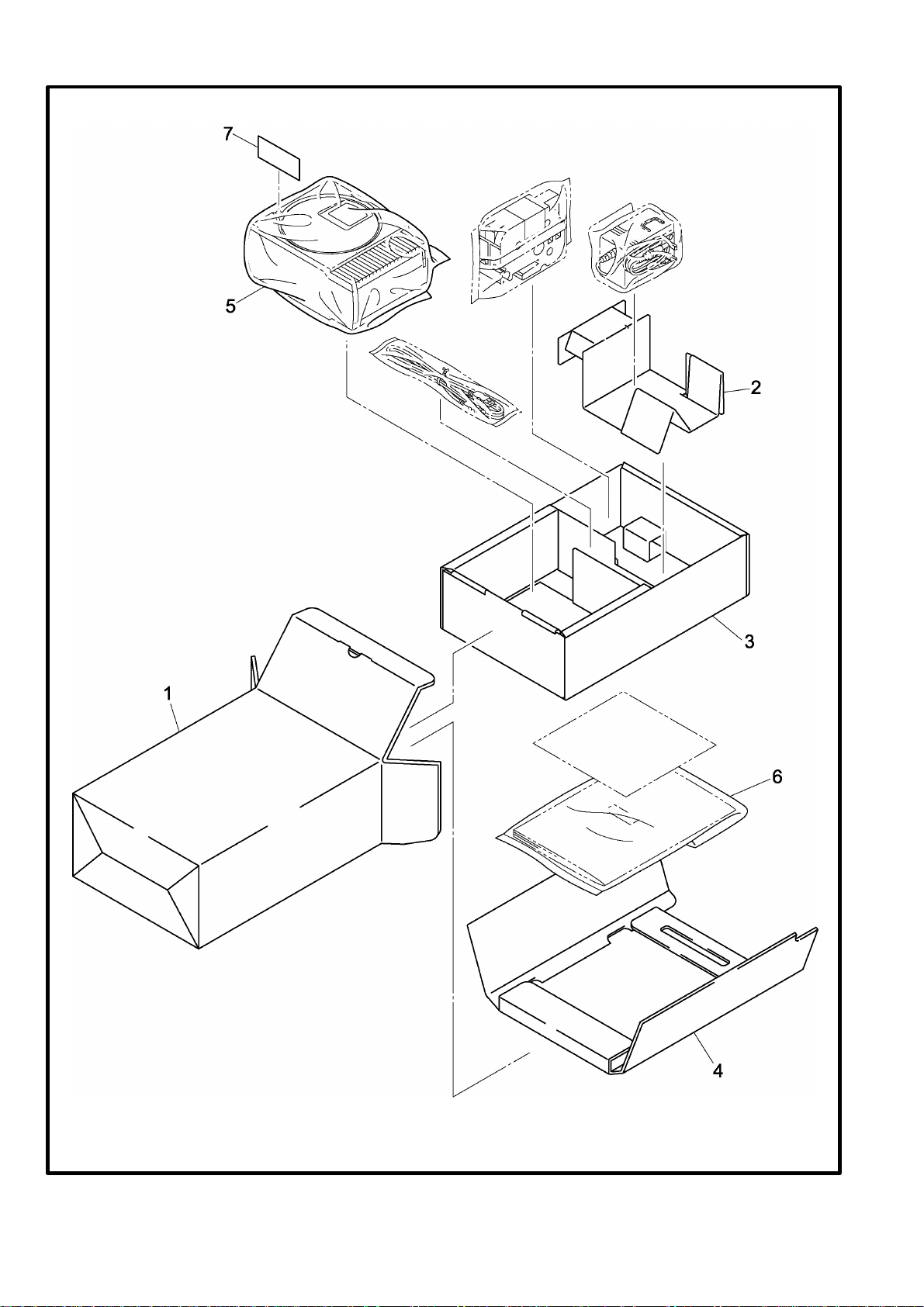

8 . PACKING MATERIALS
MODEL PT-2420PC 8V2-622-930
-11-
8 . PACKING MATERIALS PT2002034
REF.NO. CODE Q'TY DESCRIPTION REMARKS
1 LA6815001 1 CARTON 2420PC (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD
1 LA7141001 1 CARTON 2420PC ASIA (HKG/AUS/ARE/CHN/TWN) ADD
2 LA6816000 1 PAD UPPER 2420PC
3 LA6817000 1 PAD LOWER 2420PC
4 LA6834000 1 USER’S MANUAL PAD 2420PC (DEU/GBR/FRA/IRL/SWE/FIN/ESP/ZAF) ADD
5 LA6496001 1 BAG, 230X280 (BODY)
6 LA6867001 1 BAG, 215X360H (USER’S MANUAL)
7 LA6629000 1 PLATEN PROTECT PAD 2300
-12-
MODEL PT-2420PC 8V2-622-930
Jan., 2002
8V2028BE0
Printed in Japan
