Brother Multi-Protocol On-board Ethernet User Manual

Network User’s Guide

Multi-Protocol On-board Ethernet Multi-function Print Server and Wireless Ethernet Multi-function Print Server

This Network User's Guide provides useful information on wired and wireless network settings, security settings and Internet fax settings using your Brother machine. You can also find supported protocol information and detailed troubleshooting tips.

To download the latest manual, please visit the Brother Solutions Center at (http://solutions.brother.com/) latest drivers and utilities for your machine, read FAQs and troubleshooting tips or learn about special printing solutions from the Brother Solutions Center.

. You can also download the

Version 0

ENG

Applicable models

Note

This User’s Guide applies to the following models.

5-line LCD models: DCP-8110DN/8150DN/8155DN/MFC-8510DN/8520DN/8710DW/8910DW

Touchscreen models: DCP-8250DN/MFC-8950DW(T)

Definitions of notes

We use the following icons throughout this User’s Guide:

Important result in damage to property or loss of product functionality.

Notes tell you how you should respond to a situation that may arise or give tips about how the operation works with other features.

indicates a potentially hazardous situation which, if not avoided, may

IMPORTANT NOTE

 This product is approved for use in the country of purchase only. Do not use this product outside the

country of purchase as it may violate the wireless telecommunication and power regulations of that country.

 In this manual, the LCD messages of the MFC-8510DN, MFC-8520DN or MFC-8910DW are used unless

specified.

 Windows

Edition and Windows

 Windows Server

x64 Edition.

 Windows Server

R2.

 Windows Vista

 Windows

XP in this document represents Windows®XP Professional, Windows®XP Professional x64

XP Home Edition.

2003 in this document represents Windows Server® 2003 and Windows Server® 2003

2008 in this document represents Windows Server® 2008 and Windows Server® 2008

in this document represents all editions of Windows Vista®.

7 in this document represents all editions of Windows®7.

 Please go to the Brother Solutions Center at http://solutions.brother.com/

model page to download the other manuals.

 Not all models are available in all countries.

and click Manuals on your

Section I Network Operation

1 Introduction 2

Network features........................................................................................................................................2

Other Network features .......................................................................................................................3

2 Changing your machine’s network settings 5

How to change your machine’s network settings (IP address, Subnet mask and Gateway).....................5

Using the control panel........................................................................................................................5

Using the BRAdmin Light utility ...........................................................................................................5

Other Management Utilities .......................................................................................................................8

Web Based Management (web browser) ............................................................................................8

BRAdmin Professional 3 utility (Windows BRPrint Auditor (Windows

)................................................................................................................9

3 Configuring your machine for a wireless network

(For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 10

Overview..................................................................................................................................................10

Confirm your network environment..........................................................................................................11

Connected to a computer with a WLAN access point/router in the network (Infrastructure mode) ...11 Connected to a wireless capable computer without a WLAN access point/router in the network

(Ad-hoc mode)...............................................................................................................................12

Wireless configuration temporarily using a USB cable (Recommended) ................................................13

Configuration using the machine’s control panel Setup Wizard ..............................................................18

Manual configuration from the control panel .....................................................................................19

Configuring your machine when the SSID is not broadcast ..............................................................22

Configuring your machine for an enterprise wireless network...........................................................27

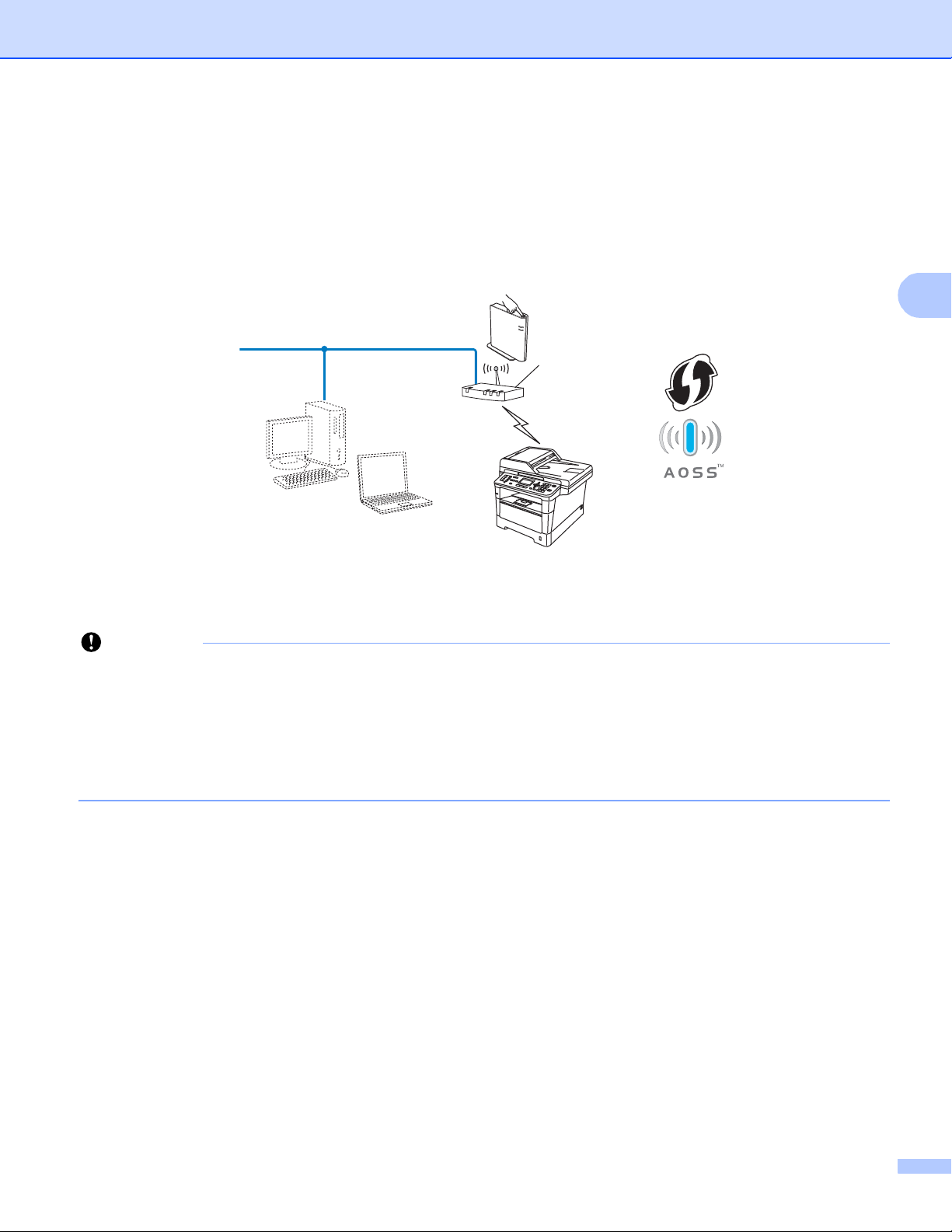

One push configuration using WPS (Wi-Fi Protected Setup) or AOSS™ ...............................................35

Configuration using the PIN Method of WPS (Wi-Fi Protected Setup)....................................................38

Configuration in Ad-hoc mode (For IEEE 802.11b) .................................................................................43

Using configured SSID ......................................................................................................................43

Using a New SSID.............................................................................................................................47

) ........................................................................................8

4 Control panel setup 50

Network menu..........................................................................................................................................50

TCP/IP...............................................................................................................................................50

Ethernet (wired network only)............................................................................................................53

Status (For DCP-8110DN, DCP-8150DN, DCP-8155DN, DCP-8250DN, MFC-8510DN and

MFC-8520DN)/Wired Status (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) ............53

Setup Wizard (wireless network only) ...............................................................................................53

WPS (Wi-Fi Protected Setup)/AOSS™ (wireless network only)........................................................53

WPS (Wi-Fi Protected Setup) w/PIN Code (wireless network only) ..................................................53

WLAN Status (wireless network only) ...............................................................................................53

MAC Address ....................................................................................................................................54

Set to Default (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) .......................................54

Wired Enable (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))........................................54

WLAN Enable (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)).......................................54

E-mail / IFAX (MFC-8910DW, MFC-8950DW(T) and DCP-8250DN (E-mail only): standard,

MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download)................................54

Fax to Server (MFC-8910DW and MFC-8950DW(T): standard,

MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download)................................58

How to set a new default for Scan to FTP .........................................................................................61

How to set a new default for Scan to Network (Windows

Reset the network settings to the factory default.....................................................................................62

Printing the Network Configuration Report .............................................................................................63

Printing the WLAN report (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) ...........................64

Function table and default factory settings ..............................................................................................65

DCP-8110DN, DCP-8150DN, DCP-8155DN, MFC-8510DN and MFC-8520DN ..............................65

MFC-8710DW and MFC-8910DW.....................................................................................................71

DCP-8250DN.....................................................................................................................................81

MFC-8950DW(T) ...............................................................................................................................84

) ..............................................................61

5 Web Based Management 91

Overview..................................................................................................................................................91

How to configure the machine settings using Web Based Management (web browser).........................92

Setting a password ..................................................................................................................................93

Gigabit Ethernet (wired network only) (For DCP-8250DN and MFC-8950DW(T)) ..................................93

How to configure the Gigabit Ethernet and Jumbo Frame settings using

Web Based Management (web browser) ......................................................................................94

Secure Function Lock 2.0........................................................................................................................95

How to configure the Secure Function Lock 2.0 settings using Web Based Management

(web browser)................................................................................................................................96

Synchronize with SNTP server................................................................................................................98

Store Print Log to Network.....................................................................................................................100

How to configure the Store Print Log to Network settings using Web Based Management

(web browser)..............................................................................................................................100

Error Detection Setting ....................................................................................................................102

Understanding Error Messages.......................................................................................................103

Using Store Print Log to Network with Secure Function Lock 2.0...................................................104

Changing the Scan to FTP configuration using a web browser.............................................................104

Changing the Scan to Network configuration using a web browser (Windows Changing the LDAP configuration using a web browser

(DCP-8250DN, MFC-8910DW and MFC-8950DW(T): standard,

MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download).....................................107

) ..................................106

6 LDAP operation

(DCP-8250DN, MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 109

Overview................................................................................................................................................109

Changing the LDAP configuration using a Browser ........................................................................109

LDAP operation using the control panel ..........................................................................................109

iii

7 Internet fax (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN,

MFC-8520DN and MFC-8710DW: available as a download) 112

Internet fax Overview.............................................................................................................................112

Important information on Internet fax...............................................................................................113

How to Internet fax.................................................................................................................................114

Sending an Internet fax ...................................................................................................................114

Receiving E-mail or Internet fax ......................................................................................................115

Additional Internet Fax options ..............................................................................................................117

Forwarding received E-mail and fax messages...............................................................................117

Relay broadcasting..........................................................................................................................117

TX Verification Mail..........................................................................................................................121

Error mail.........................................................................................................................................122

8 Security features 123

Overview................................................................................................................................................123

Managing your network machine securely using SSL/TLS ...................................................................124

Secure Management using Web Based Management (web browser) ............................................124

Secure Management using BRAdmin Professional 3 (Windows

To use the BRAdmin Professional 3 utility securely, you need to follow the points below ..............126

Printing documents securely using SSL/TLS.........................................................................................127

Sending or Receiving an E-mail securely ..............................................................................................127

Configuration using Web Based Management (web browser) ........................................................127

Sending an E-mail with user authentication ....................................................................................128

Sending or Receiving an E-mail securely using SSL/TLS...............................................................129

Using IEEE 802.1x authentication .........................................................................................................130

IEEE 802.1x authentication configuration using Web Based Management (web browser).............130

Using Certificates for device security.....................................................................................................132

Configure certificate using Web Based Management .....................................................................134

Creating and installing a certificate..................................................................................................135

Import and export the certificate and private key.............................................................................141

Managing multiple certificates ...............................................................................................................142

Import and export a CA certificate ...................................................................................................143

)........................................................126

9 Troubleshooting 144

Overview................................................................................................................................................144

Identifying your problem ..................................................................................................................144

Section II Network Glossary

10 Types of network connections and protocols 152

Types of network connections ...............................................................................................................152

Wired network connection example.................................................................................................152

Protocols................................................................................................................................................154

TCP/IP protocols and functions.......................................................................................................154

11 Configuring your machine for a network 158

IP addresses, subnet masks and gateways ..........................................................................................158

IP address .......................................................................................................................................158

Subnet mask....................................................................................................................................159

Gateway (and router).......................................................................................................................159

IEEE 802.1x Authentication...................................................................................................................160

12 Wireless network terms and concepts

(For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 162

Specifying your network.........................................................................................................................162

SSID (Service Set Identifier) and channels .....................................................................................162

Security terms........................................................................................................................................162

Authentication and encryption .........................................................................................................162

Authentication and Encryption methods for a personal wireless network .......................................163

Authentication and Encryption methods for an enterprise wireless network ...................................164

13 Additional network settings from Windows

Types of additional network settings......................................................................................................166

Installing drivers used for printing and scanning via Web Services

(Windows Vista

Uninstalling drivers used for printing and scanning via Web Services

(Windows Vista

Network printing and scanning installation for Infrastructure mode when using Vertical Pairing

(Windows

and Windows®7)....................................................................................................166

and Windows®7)....................................................................................................167

7)......................................................................................................................................168

14 Security terms and concepts 169

Security features....................................................................................................................................169

Security terms..................................................................................................................................169

Security protocols............................................................................................................................170

Security methods for E-mail Sending and Receiving ......................................................................171

Section III Appendixes

A Appendix A 173

Supported protocols and security features ............................................................................................173

166

B Appendix B 174

Using services .......................................................................................................................................174

Other ways to set the IP address (for advanced users and administrators) ..........................................174

Using DHCP to configure the IP address ........................................................................................174

Using RARP to configure the IP address ........................................................................................175

Using BOOTP to configure the IP address......................................................................................176

Using APIPA to configure the IP address........................................................................................176

Using ARP to configure the IP address ...........................................................................................177

Using the TELNET console to configure the IP address .................................................................178

CIndex 179

Section I

Network Operation I

Introduction 2 Changing your machine’s network settings 5

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Control panel setup 50 Web Based Management 91

LDAP operation (DCP-8250DN, MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download)

109

Internet fax (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download)

Security features 123 Troubleshooting 144

112

Note

Introduction 1

Network features 1

Your Brother machine can be shared on a 10/100 MB or 1GB (For DCP-8250DN and MFC-8950DW(T)) wired, or IEEE 802.11b/g/n wireless (For wireless models) Ethernet network using the internal network print server. The print server supports various functions and methods of connection depending on the operating system you are running on a network supporting TCP/IP. The following chart shows what network features and connections are supported by each operating system.

Although the Brother machine can be used in both a wired and wireless network, only one connection method can be used at a time.

Operating Systems

Printing rrr

Scanning

uu Software User's Guide

PC Fax Send

uu Software User's Guide

PC Fax Receive

uu Software User's Guide

BRAdmin Light

See page 5.

BRAdmin Professional 3

See page 8.

Web Based Management (web browser)

See page 91.

Remote Setup

uu Software User's Guide

Status Monitor

uu Software User's Guide

Driver Deployment Wizard rr

Windows® XP

Windows Vista

Windows®7

rrr

Windows Server® 2003/2008

Mac OS X 10.5.8 -

10.7.x

Introduction

Operating Systems

Vertical Pairing

See page 168.

Not available for DCP models.

BRAdmin Light for Macintosh is available as a download from http://solutions.brother.com/.

BRAdmin Professional 3 is available as a download from http://solutions.brother.com/.

Windows®7 only.

Windows® XP

Windows Vista

Windows®7

Windows Server® 2003/2008

Mac OS X 10.5.8 -

10.7.x

Other Network features 1

LDAP (DCP-8250DN, MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 1

The LDAP protocol allows you to search for information such as fax numbers and E-mail addresses from your server. (See LDAP operation (DCP-8250DN, MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) uu page 109.)

(For MFC-8510DN, MFC-8520DN and MFC-8710DW)

In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/

Internet fax (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 1

Internet fax (IFAX) allows you to send and receive fax documents using the Internet as the transport mechanism. (See Internet fax (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) uu page 112.)

(For MFC-8510DN, MFC-8520DN and MFC-8710DW)

In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/

. Before using this function, you have to configure the necessary machine settings by using the machine’s control panel, BRAdmin Professional 3 or Web Based Management. For details, please refer to the user’s guide for Internet fax on the web site listed above.

Security 1

Your Brother machine employs some of the latest network security and encryption protocols available. (See Security features uu page 123.)

Introduction

Fax to Server (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 1

The Fax to Server feature allows the machine to scan a document and send it over the network to a separate fax server. (See Fax to Server (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) uu page 58.)

(For MFC-8510DN, MFC-8520DN and MFC-8710DW)

In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/ to configure the necessary machine settings by using the machine’s control panel, BRAdmin Professional 3 or Web Based Management. For details, please refer to the user’s guide for Internet fax on the web site listed above.

. Before using this function, you have

Secure Function Lock 2.0 1

Secure Function Lock 2.0 increases security by restricting the use of functions. (See Secure Function Lock 2.0 uu page 95.)

Store Print Log to Network 1

The Store Print Log to Network feature allows you to save the print log file from your Brother machine to a network server using CIFS. (See Store Print Log to Network uu page 100.)

Changing your machine’s network

settings

How to change your machine’s network settings (IP address, Subnet mask and Gateway)

The machine’s network settings can be changed using the control panel, BRAdmin Light, Web Based Management, and BRAdmin Professional 3. Please read this chapter for details.

Using the control panel 2

You can configure your machine for a network using the Network control panel menu. (See Control panel setup uu page 50.)

Using the BRAdmin Light utility 2

The BRAdmin Light utility is designed for initial setup of Brother network connected devices. It also can search for Brother products in a TCP/IP environment, view the status and configure basic network settings, such as IP address.

Installing BRAdmin Light for Windows

a Please make sure that your machine is ON. b Turn on your computer. Close any applications running before configuration. c Put the installer CD-ROM into your CD-ROM drive. The opening screen will appear automatically. If the

model name screen appears, choose your machine. If the language screen appears, choose your language.

d The CD-ROM main menu will appear. Click Advanced, and then Network Utilities. e Click BRAdmin Light and follow the on-screen instructions.

Installing BRAdmin Light for Macintosh 2

You can download Brother's latest BRAdmin Light utility from http://solutions.brother.com/.

Changing your machine’s network settings

Note

Setting the IP address, Subnet Mask and Gateway using BRAdmin Light 2

• You can download Brother's latest BRAdmin Light utility from http://solutions.brother.com/.

• If you require more advanced machine management, use the latest version of BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com/

Windows

users.

. This utility is only available for

• If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, re-enable the application.

• Node name: The Node name appears in the current BRAdmin Light window. The default node name of the print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

• No password is required by default. Enter a password if you have set one and press OK.

a Start the BRAdmin Light utility.

 Windows

Click Start / All Programs / Brother / BRAdmin Light / BRAdmin Light.

 Macintosh

When the download has completed, double click the BRAdmin Light.jar file to start the BRAdmin Light utility.

b BRAdmin Light will search for new devices automatically.

Changing your machine’s network settings

Note

c Double-click the unconfigured device.

Windows

Macintosh

• If the print server is set to its factory default settings (if you do not use a DHCP/BOOTP/RARP server), the device will appear as Unconfigured in the BRAdmin Light utility screen.

• You can find the Node Name and MAC Address (Ethernet Address) by printing the Network Configuration Report (See Printing the Network Configuration Report uu page 63 ). You can also find the Node Name and MAC Address from the control panel. (See Chapter 4: Control panel setup.)

d Choose STATIC from Boot Method. Enter the IP Address, Subnet Mask and Gateway (if needed) for

your machine.

Windows

Macintosh

e Click OK. f With the correctly programmed IP address, you will see the Brother machine in the device list.

Changing your machine’s network settings

Note

Other Management Utilities 2

Your Brother machine has the following management utilities other than the BRAdmin Light utility. You can change your network settings using these utilities.

Web Based Management (web browser) 2

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol) or HTTPS (Hyper Text Transfer Protocol over Secure Socket Layer). (See How to configure the machine settings using Web Based Management (web browser) uu page 92.)

BRAdmin Professional 3 utility (Windows®) 2

BRAdmin Professional 3 is a utility for more advanced management of network connected Brother devices. This utility can search for Brother products on your network and view the device status from an easy to read Explorer style window that changes color identifying the status of each device. You can configure network

and device settings along with the ability to update device firmware from a Windows BRAdmin Professional 3 can also log activity of Brother devices on your network and export the log data in an HTML, CSV, TXT or SQL format.

computer on your LAN.

For users who want to monitor locally connected machines, install the Print Auditor Client software on the client PC. This utility allows you to monitor machines that are connected to a client PC via the USB or parallel interface from BRAdmin Professional 3.

For more information and to download the software, visit us at http://solutions.brother.com/

• Please use the latest version of the BRAdmin Professional 3 utility that is available as a download from

http://solutions.brother.com/

• If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, configure the software settings following the instructions.

• Node name: The Node name for each Brother device on the network appears in BRAdmin Professional 3. The default Node name is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

. This utility is only available for Windows® users.

Changing your machine’s network settings

BRPrint Auditor (Windows®) 2

The BRPrint Auditor software brings the monitoring power of Brother network management tools to locally connected machines. This utility allows a client computer to collect usage and status information from a Brother machine connected via the parallel or USB interface. The BRPrint Auditor can then pass this information to another computer on the network running BRAdmin Professional 3. This allows the administrator to check items such as page counts, toner and drum status and the firmware version. In addition to reporting to Brother network management applications this utility can E-mail the usage and status information directly to a predefined E-mail address in a CSV or XML file format (SMTP Mail support required). The BRPrint Auditor utility also supports E-mail notification for reporting warning and error conditions.

Note

Configuring your machine for a wireless

network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Overview 3

To connect your machine to your wireless network, we recommend following one of the setup methods outlined in the Quick Setup Guide.

The wireless setup method using the installer CD-ROM and a USB cable is the easiest method for setup.

For additional wireless configuration methods please read this chapter for more details on how to configure the wireless network settings. For information on TCP/IP settings, see How to change your machine’s network settings (IP address, Subnet mask and Gateway) uu page 5.

• To achieve optimum results with normal everyday document printing, place the Brother machine as close to the WLAN access point/router as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer, or USB for the fastest throughput speed.

• Although the Brother machine can be used in both a wired and wireless network, only one connection method can be used at a time.

• Before configuring wireless settings, you will need to know your Network name: (SSID) and Network Key. If you are using an enterprise wireless network you also need to know the User ID and Password.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Confirm your network environment 3

Connected to a computer with a WLAN access point/router in the network (Infrastructure mode) 3

1 WLAN access point/Router

If your computer supports Intel® MWT (My WiFi Technology), you can use your computer as a WPS (Wi-Fi Protected Setup) supported access point.

2 Wireless network machine (your machine)

3 Wireless capable computer connected to the WLAN access point/router

4 Wired computer which is not wireless capable connected to the WLAN access point/router with a

network cable

Configuration method 3

The following instructions will offer four methods for configuring your Brother machine in a wireless network environment. Choose the method you prefer for your environment.

 Wireless configuration temporarily using a USB cable (Recommended)

See Wireless configuration temporarily using a USB cable (Recommended) uu page 13.

 Wireless configuration using the Setup Wizard from the control panel

See Configuration using the machine’s control panel Setup Wizard uu page 18.

 One push wireless configuration using WPS (Wi-Fi Protected Setup) or AOSS™

See One push configuration using WPS (Wi-Fi Protected Setup) or AOSS™ uu page 35.

 PIN Method wireless configuration using WPS

See Configuration using the PIN Method of WPS (Wi-Fi Protected Setup) uu page 38.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Connected to a wireless capable computer without a WLAN access point/router in the network (Ad-hoc mode) 3

This type of network does not have a central WLAN access point/router. Each wireless client communicates directly with each other. When the Brother wireless machine (your machine) is part of this network, it receives all print jobs directly from the computer sending the print data.

1 Wireless network machine (your machine)

2 Wireless capable computer

We do not guarantee the wireless network connection with Windows Server set up your machine in Ad-hoc mode, see Configuration in Ad-hoc mode (For IEEE 802.11b) uu page 43.

products in Ad-hoc mode. To

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Important

Wireless configuration temporarily using a USB cable (Recommended) 3

It is recommended that you use a computer wirelessly connected to your network for this method.

You can remotely configure the machine from the computer on the network using a USB cable (A)

You can configure the wireless settings of the machine using a USB cable temporarily connected to a wired or wireless computer.

• The following instructions will install your Brother machine in a network environment using the Brother installer application found on the CD-ROM we have provided with the machine.

• If you have previously configured the wireless settings of the machine, you must reset the LAN settings before you can configure the wireless settings again.

To reset the LAN settings, see Reset the network settings to the factory default uu page 62.

• If you are using the Windows

Firewall or a firewall function of anti-spyware or antivirus applications,

temporarily disable them. Once you are sure that you can print please re-enable your firewall.

• You need to temporarily use a USB cable during configuration.

• You must know your wireless network settings before you proceed with this installation.

If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation.

• If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

For a personal wireless network configuration

If you are configuring your machine for a smaller wireless network, such as your home environment, record your SSID and the Network key.

If you are using Windows

XP, Macintosh or using a network cable to connect your computer with your wireless access point/router, you need to know the SSID and Network Key of your WLAN access point/router before you proceed.

Network name: (SSID) Network Key

For example:

Network name: (SSID) Network Key

HELLO 12345678

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

For an enterprise wireless network configuration 3

If you are configuring your machine for an IEEE 802.1x supported wireless network, record your Authentication method, Encryption method, User ID and Password.

Network name: (SSID)

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure LEAP CKIP

EAP-FAST/NONE AES

TKIP

EAP-FAST/MS-CHAPv2 AES

TKIP

EAP-FAST/GTC AES

TKIP

PEAP/MS-CHAPv2 AES

TKIP

PEAP/GTC AES

TKIP

EAP-TTLS/CHAP AES

TKIP

EAP-TTLS/MS-CHAP AES

TKIP

EAP-TTLS/MS-CHAPv2 AES

TKIP

EAP-TTLS/PAP AES

TKIP

EAP-TLS AES —

TKIP —

For example:

Network name: (SSID)

HELLO

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure EAP-FAST/MS-CHAPv2 AES Brother 12345678

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

• If you configure your machine using EAP-TLS Authentication, you must install the Client Certificate issued by a CA (Certificate Authority) before you start configuration. Contact your network administrator about the Client Certificate. If you have installed more than one certificate, we recommend you write down the certificate name you want to use. For details on installing the certificate, see Using Certificates for device security uu page 132.

• If you verify your machine using the Common Name of the Server Certificate, we recommend you write down the Common Name before you start configuration. Contact your network administrator about the Common Name of the Server Certificate.

b Turn on your computer and put the installer CD-ROM into your CD-ROM drive.

(Windows

1 The opening screen will appear automatically.

If the model name screen appears, choose your machine. If the language screen appears, choose your language.

2 The CD-ROM main menu will appear. Click Install MFL-Pro Suite and click Yes if you accept the

license agreements. Follow the on-screen instructions.

) 3

• If the Brother screen does not appear automatically, go to My Computer (Computer), double-click the CD-ROM icon, and then double-click start.exe.

• When the User Account Control screen appears,

(Windows Vista

(Windows

) click Allow.

7) click Yes.

3 Choose Wireless Network Connection and then click Next.

4 Choose the option of the Firewall setting in the Firewall/AntiVirus detected screen, and then click

Next.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

(Macintosh) 3

1 The opening screen will appear automatically. Click Start Here OSX. Choose your machine and click

Next.

2 Choose Wireless Network Connection and then click Next.

c Choose Yes, I have a USB cable to use for installation. and then click Next. d Follow the on-screen instructions to configure the wireless settings.

• When the Available Wireless Networks screen appears, if your access point is set to not broadcast the SSID, you can manually add it by clicking the Advanced button. Follow the on-screen instructions for entering the Name (SSID).

• If the wireless setup failure screen appears, click Retry and try again.

After you have completed the wireless setup, you can proceed to the drivers and software necessary for operating your device. Click Next in the installation dialog and follow the on-screen instructions.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Important

Configuration using the machine’s control panel Setup Wizard 3

You can use the machine’s control panel to configure your wireless network settings. By using the control panel Setup Wizard function, you can easily connect your Brother machine to your wireless network. You

must know your wireless network settings before you proceed with this installation.

• If you have previously configured the wireless settings of the machine, you must reset the LAN settings before you can configure the wireless settings again.

To reset the LAN settings, see Reset the network settings to the factory default uu page 62.

• If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

 If you are configuring your machine for a smaller wireless network, such as your home environment:

• To configure your machine for an existing wireless network using the SSID and Network Key (if

required), see Manual configuration from the control panel uu page 19.

• If your WLAN access point/router is set to not broadcast the SSID name, see Configuring your machine

when the SSID is not broadcast uu page 22.

• If you are configuring your machine for Ad-hoc mode, see Configuration in Ad-hoc mode (For IEEE

802.11b) uu page 43.

 If you are configuring your machine for an IEEE 802.1x supported wireless network, see Configuring your

machine for an enterprise wireless network uu page 27.

 If your WLAN access point/router supports WPS or AOSS™, see One push configuration using WPS

(Wi-Fi Protected Setup) or AOSS™ uu page 35.

 If you are configuring your machine using WPS (PIN Method), see Configuration using the PIN Method of

WPS (Wi-Fi Protected Setup) uu page 38.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Manual configuration from the control panel 3

For 5-line LCD models

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID) Network Key

For example:

Network name: (SSID) Network Key

HELLO 12345678

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

b Press Menu. c Press a or b to choose Network.

Press OK.

d Press a or b to choose WLAN.

Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for available SSIDs. If a list of SSIDs is displayed, use a or b to choose the SSID

you wrote down in step a and then press OK. Do one of the following:

 If you are using an authentication and encryption method that requires a Network Key, go to step h.

 If your authentication method is Open System and your encryption mode is None, go to step j.

 If your WLAN access point/router supports WPS, Selected access point supports WPS. Use

WPS? appears. To connect your machine using the automatic wireless mode, press 1 for 1.Yes. (If you choose 2 for 2.No(Manual), go to h to enter the Network Key.) When Start WPS on your wireless access point/router,then choose Next. appears, press the WPS button on your WLAN access point/router, and then press Next.. Go to step i.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

When the SSID is not broadcast, see Configuring your machine when the SSID is not broadcast uu page 22.

h Enter the Network Key you wrote down in step a. (For information on how to enter text: uu Quick Setup

Guide.) When you have entered all the characters press OK, and then press 1 for Yes to apply your settings. Go to step i.

i Your machine will now try to connect to your wireless network using the information you have entered. j If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Install MFL-Pro Suite from the CD-ROM menu.

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

For Touchscreen models

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration. Check and record the current wireless network settings.

Network name: (SSID) Network Key

For example:

Network name: (SSID) Network Key

HELLO 12345678

• If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

• If you see the button at the top right on the Touchscreen, you can easily configure the wireless settings by pressing the button. Go to step e.

b Press Menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

c Press Network. d Press WLAN. e Press Setup Wizard. f When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for available SSIDs. If a list of SSIDs is displayed, use a or b to choose the SSID

you wrote down in step a. Do one of the following:

 If you are using an authentication and encryption method that requires a Network Key, go to step h.

 If your authentication method is Open System and your encryption mode is None, go to step j.

 If your WLAN access point/router supports WPS, The selected access point / router

supports WPS. Use WPS? appears. To connect your machine using the automatic wireless mode, press Yes. (If you choose No (Manual), go to h to enter the Network Key.) When Start WPS on your wireless access point / router , then press Next. appears, press the WPS button on your WLAN access point/router, and then press Next. Go to step i.

h Enter the Network Key you wrote down in step a. (For information on how to enter text: uu Quick Setup

Guide.) Press OK. When you have entered all the characters, press Yes to apply your settings. Go to step i.

i Your machine will now try to connect to your wireless network using the information you have entered. j If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Configuring your machine when the SSID is not broadcast 3

For 5-line LCD models

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID)

Communication Mode Authentication method Encryption mode Network key

Infrastructure Open system NONE —

WEP

Shared key WEP

WPA/WPA2-PSK AES

TKIP

TKIP is supported for WPA-PSK only.

For example: 3

Network name: (SSID)

HELLO

Communication Mode Authentication method Encryption mode Network key

Infrastructure WPA2-PSK AES 12345678

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

b Press Menu. c Press a or b to choose Network.

Press OK.

d Press a or b to choose WLAN.

Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

Choose <New SSID> using a or b. Press OK.

h Enter the SSID name. (For information on how to enter text: uu Quick Setup Guide.)

Press OK.

i Using a or b, choose Infrastructure when instructed.

Press OK.

j Choose the Authentication method using a or b, and press OK.

Do one of the following: If you chose Open System, go to step k. If you chose Shared Key, go to step l. If you chose WPA/WPA2-PSK, go to step m.

k Choose the Encryption type None or WEP using a or b, and press OK.

Do one of the following: If you chose None, go to step o. If you chose WEP, go to step l.

l Enter the WEP key you wrote down in step a. Press OK. Go to step o. (For information on how to enter

text: uu Quick Setup Guide.)

m Choose the Encryption type, TKIP or AES using a or b. Press OK. Go to step n.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

n Enter the WPA key you wrote down in step a and press OK. Go to step o. (For information on how to

enter text: uu Quick Setup Guide.)

o To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step p. If you chose No, go back to step g.

p The machine will attempt to connect to the wireless device you have chosen. q If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

For Touchscreen models 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration. Check and record the current wireless network settings.

Network name: (SSID)

Communication Mode Authentication method Encryption mode Network key

Infrastructure Open system NONE —

WEP

Shared key WEP

WPA/WPA2-PSK AES

TKIP

TKIP is supported for WPA-PSK only.

For example: 3

Network name: (SSID)

HELLO

Communication Mode Authentication method Encryption mode Network key

Infrastructure WPA2-PSK AES 12345678

If your router uses WEP encryption, enter the key used as the first WEP key. Your Brother machine supports the use of the first WEP key only.

b Press Menu. c Press Network. d Press WLAN. e Press Setup Wizard. f When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs. Choose <New SSID>

using a or b.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

h Enter the SSID name. (For information on how to enter text: uu Quick Setup Guide.)

Press OK.

i Press Infrastructure when instructed. j Choose and press the Authentication method.

Do one of the following: If you chose Open System, go to step k. If you chose Shared Key, go to step l. If you chose WPA/WPA2-PSK, go to step m.

k Choose and press the Encryption type None or WEP.

Do one of the following: If you chose None, go to step o. If you chose WEP, go to step l.

l Enter the WEP key you wrote down in step a. Press OK. Go to step o. (For information on how to enter

text: uu Quick Setup Guide.)

m Choose and press the Encryption type, TKIP or AES. Go to step n. n Enter the WPA key you wrote down in step a and press OK. Go to step o. (For information on how to

enter text: uu Quick Setup Guide.)

o To apply the settings, press Yes. To cancel, press No.

Do one of the following: If you chose Yes, go to step p. If you chose No, go back to step g.

p The machine will attempt to connect to the wireless device you have chosen. q If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Configuring your machine for an enterprise wireless network 3

For 5-line LCD models

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID)

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure LEAP CKIP

EAP-FAST/NONE AES

TKIP

EAP-FAST/MS-CHAPv2 AES

TKIP

EAP-FAST/GTC AES

TKIP

PEAP/MS-CHAPv2 AES

TKIP

PEAP/GTC AES

TKIP

EAP-TTLS/CHAP AES

TKIP

EAP-TTLS/MS-CHAP AES

TKIP

EAP-TTLS/MS-CHAPv2 AES

TKIP

EAP-TTLS/PAP AES

TKIP

EAP-TLS AES —

TKIP —

For example:

Network name: (SSID)

HELLO

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure EAP-FAST/MS-CHAPv2 AES Brother 12345678

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

• If you configure your machine using EAP-TLS Authentication, you must install the Client Certificate issued by a CA before you start configuration. Contact your network administrator about the Client Certificate. If you have installed more than one certificate, we recommend you write down the certificate name you want to use. For details on installing the certificate, see Using Certificates for device security uu page 132.

b Press Menu. c Press a or b to choose Network.

Press OK.

d Press a or b to choose WLAN.

Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

You should see the SSID you wrote down earlier. If the machine finds more than one network use a or b key to choose your network, then press OK. Go to step k.

If your access point is set to not broadcast the SSID, you will have to manually add the SSID name. Go to step h.

h Choose <New SSID> using a or b.

Press OK. Go to step i.

i Enter the SSID name. (For information on how to enter text: uu Quick Setup Guide.)

Press OK. Go to step j.

j Using a or b, choose Infrastructure when instructed.

Press OK.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

k Choose the Authentication method using a or b, and press OK.

Do one of the following: If you chose LEAP, go to step q. If you chose EAP-FAST, go to step l. If you chose PEAP, go to step l. If you chose EAP-TTLS, go to step l. If you chose EAP-TLS, go to step m.

l Choose the Inner Authentication method NONE, CHAP, MS-CHAP, MS-CHAPv2, GTC or PAP using a or b,

and press OK. Go to step m.

Depending on your Authentication method, the Inner Authentication method selections differ.

m Choose encryption type TKIP or AES using a or b, and press OK.

Do one of the following: If your Authentication method is EAP-TLS, go to step n. For other Authentication methods, go to step o.

n The machine will display a list of available Client Certificates. Choose the certificate and go to step o. o Choose the verification method No Verification, CA or CA + Server ID using a or b, and press

OK. Do one of the following: If you chose CA + Server ID, go to step p. For other selections, go to step q.

If you have not imported a CA certificate in your machine, the machine will display No Verification. To import a CA certificate, see Using Certificates for device security uu page 132.

p Enter the server ID. (For information on how to enter text: uu Quick Setup Guide.) Go to step q.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

q Enter the user ID you wrote down in step a. Press OK. (For information on how to enter text: uu Quick

Setup Guide.) Do one of the following: If your Authentication method is EAP-TLS, go to step s. For other Authentication methods, go to step r.

r Enter the Password you wrote down in step a. Press OK. Go to step s. s To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step t. If you chose No, go back to step g.

t The machine will attempt to connect to the wireless network you have chosen. u If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

For Touchscreen models 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings.

Network name: (SSID)

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure LEAP CKIP

EAP-FAST/NONE AES

TKIP

EAP-FAST/MS-CHAPv2 AES

TKIP

EAP-FAST/GTC AES

TKIP

PEAP/MS-CHAPv2 AES

TKIP

PEAP/GTC AES

TKIP

EAP-TTLS/CHAP AES

TKIP

EAP-TTLS/MS-CHAP AES

TKIP

EAP-TTLS/MS-CHAPv2 AES

TKIP

EAP-TTLS/PAP AES

TKIP

EAP-TLS AES —

TKIP —

For example:

Network name: (SSID)

HELLO

Communication Mode Authentication method Encryption mode User ID Password

Infrastructure EAP-FAST/MS-CHAPv2 AES Brother 12345678

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

• If you configure your machine using EAP-TLS Authentication, you must install the Client Certificate issued by a CA before you start configuration. Contact your network administrator about the Client Certificate. If you have installed more than one certificate, we recommend you write down the certificate name you want to use. For installing the certificate, see Using Certificates for device security uu page 132.

b Press Menu. c Press Network. d Press WLAN. e Press Setup Wizard. f When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

You should see the SSID you wrote down earlier. If the machine finds more than one network use a or b key to choose your network. Go to step k.

If your access point is set to not broadcast the SSID, you will have to manually add the SSID name. Go to step h.

h Choose <New SSID> using a or b.

Go to step i.

i Enter the SSID name. (For information on how to enter text: uu Quick Setup Guide.)

Press OK. Go to step j.

j Choose Infrastructure when instructed.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

k Choose the Authentication method using d or c.

l Choose the Inner Authentication method NONE, CHAP, MS-CHAP, MS-CHAPv2, GTC or PAP.

Go to step m.

Depending on your Authentication method, the Inner Authentication method selections differ.

m Choose encryption type TKIP or AES.

Do one of the following: If your Authentication method is EAP-TLS, go to step n. For other Authentication methods, go to step o.

n The machine will display a list of available Client Certificates. Choose the certificate and go to step o. o Choose the verification method No Verification, CA or CA + Server ID.

Do one of the following: If you chose CA + Server ID, go to step p. For other selections, go to step q.

If you have not imported a CA certificate in your machine, the machine will display No Verification. To import a CA certificate, see Using Certificates for device security uu page 132.

p Enter the server ID. (For information on how to enter text: uu Quick Setup Guide.) Go to step q. q Enter the user ID you wrote down in step a. Press OK. (For information on how to enter text: uu Quick

Setup Guide.) Do one of the following: If your Authentication method is EAP-TLS, go to step s. For other Authentication methods, go to step r.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

r Enter the Password you wrote down in step a. Press OK. Go to step s. s To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step t. If you chose No, go back to step g.

t The machine will attempt to connect to the wireless network you have chosen. u If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Important

One push configuration using WPS (Wi-Fi Protected Setup) or AOSS™ 3

You can use WPS or AOSS™ from the control panel menu to configure your wireless network settings if your

WLAN access point/router (A) supports either WPS (PBC

) or AOSS™.

Push Button Configuration

• If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation. You must know your wireless network settings before you

proceed with this installation.

• If you have previously configured the wireless settings of the machine, you must reset the LAN settings before you can configure the wireless settings again.

To reset the LAN settings, see Reset the network settings to the factory default uu page 62.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

For 5-line LCD models

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose WLAN.

Press OK.

d Press a or b to choose WPS/AOSS.

Press OK.

e When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

f When the LCD shows Start WPS/AOSS on your wireless access point/router., press the

WPS or AOSS™ button on your wireless access point/router. See the user's guide for your wireless access point/router for instructions. Then press OK and your machine will now automatically detect which mode (WPS or AOSS™) your wireless access point/router uses and try to connect to your wireless network.

g If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

For Touchscreen models 3

a Press Menu. b Press Network. c Press WLAN. d Press a or b to display WPS/AOSS, and then press WPS/AOSS. e When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

f When the LCD shows Start WPS or AOSS on your wireless access point / router ,

then press OK., press the WPS or AOSS™ button on your wireless access point/router. See the

user's guide for your wireless access point/router for instructions. Then press OK and your machine will now automatically detect which mode (WPS or AOSS™) your wireless access point/router uses and try to connect to your wireless network.

g If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Configuration using the PIN Method of WPS (Wi-Fi Protected Setup) 3

If your WLAN access point/router supports WPS (PIN Method), you can configure the machine easily. The PIN (Personal Identification Number) Method is one of the connection methods developed by the Wi-Fi

Alliance manages the wireless LAN), you can setup the WLAN network and security settings. See the user’s guide supplied with your WLAN access point/router for instructions on how to access the WPS mode.

 Connection when the WLAN access point/router (A) doubles as a Registrar

. By inputting a PIN which is created by an Enrollee (your machine) to the Registrar (a device that

 Connection when another device (C), such as a computer is used as a Registrar1.

The Registrar is a device that manages the wireless LAN.

Routers or access points that support WPS have a symbol as shown below.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

For 5-line LCD models

a Press Menu. b Press a or b to choose Network. Press OK. c Press a or b to choose WLAN. Press OK. d Press a or b to choose WPS w/PIN Code. Press OK. e When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

f The LCD will show an 8 digit PIN and the machine starts searching for a WLAN access point/router. g Using a computer that is on the network, type “http://access point’s IP address/” into your browser.

(Where “access point’s IP address” is the IP address of the device that is used as the Registrar1) Go to the WPS setting page and input the PIN which the LCD shows in step f to the Registrar and follow the on-screen instructions.

The Registrar is normally the WLAN access point/router.

The setting page is different, depending on the brand of WLAN access point/router. See the instruction supplied with your WLAN access point/router.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Windows Vista®/Windows®7 3

If you are using your computer as a Registrar, follow these steps:

• To use a Windows Vista® or Windows®7 computer as a Registrar, you need to register it to your network in advance. See the instruction supplied with your WLAN access point/router.

• If you use Windows

7 as a Registrar, you can install the printer driver after the wireless configuration by

following the on-screen instructions. If you want to install the full driver and software package, follow the steps uu Quick Setup Guide for installation.

1 (Windows Vista

)

Click the button and then Network.

(Windows

Click the button and then Devices and Printers.

2 (Windows Vista

)

Click Add a wireless device.

(Windows

Click Add a device.

3 Choose your machine and click Next.

4 Input the PIN which the LCD shows in step f and then click Next.

5 Choose your network that you want to connect to, and then click Next.

6 Click Close.

h If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

For Touchscreen models 3

a Press Menu. b Press Network. c Press WLAN. d Press a or b to display WPSw/PINCode, and then press WPS w/PIN Code. e When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

f The LCD will show an 8 digit PIN and the machine starts searching for an access point. g Using a computer that is on the network, type “http://access point’s IP address/” into your browser.

(Where “access point’s IP address” is the IP address of the device that is used as the Registrar the WPS setting page and input the PIN which the LCD shows in f to the Registrar and follow the on-screen instructions.

The Registrar is normally the WLAN access point / router.

.) Go to

The setting page is different, depending on the brand of access point / router. See the instruction manual supplied with your access point / router.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Windows Vista®/Windows®7 3

If you are using your computer as a Registrar, follow these steps:

• To use a Windows Vista® or Windows®7 computer as a Registrar, you need to register it to your network in advance. See the instruction manual that came with your WLAN access point / router.

• If you use Windows

7 as a Registrar, you can install the printer driver after the wireless configuration by

following the on-screen instructions. If you want to install the full driver and software package, follow the steps uu Quick Setup Guide for installation.

1 (Windows Vista®)

Click the button and then Network.

(Windows

Click the button, and then Devices and Printers.

2 (Windows Vista®)

Click Add a wireless device.

(Windows

Click Add a device.

3 Choose your machine and click Next.

4 Input the PIN which the LCD shows in step f and then click Next.

5 Choose your network that you want to connect to, and then click Next.

6 Click Close.

h If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Configuration in Ad-hoc mode (For IEEE 802.11b) 3

Using configured SSID 3

If you are trying to pair the machine to a computer that is already in Ad-hoc mode with a configured SSID, you will need to complete the following steps:

For 5-line LCD models

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration.

Check and record the current wireless network settings of your computer you are connecting with.

The wireless network settings of the computer you are connecting with must be set to Ad-hoc mode with a SSID already configured. For instructions on how to configure your computer to Ad-hoc mode please see the information included with your computer or contact your network administrator.

Network name: (SSID)

Communication Mode Encryption mode Network key

Ad-hoc NONE —

WEP

For example: 3

Network name: (SSID)

HELLO

Communication Mode Encryption mode Network key

Ad-hoc WEP 12345

Your Brother machine supports the use of the first WEP key only.

b Press Menu. c Press a or b to choose Network.

Press OK.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

d Press a or b to choose WLAN.

Press OK.

e Press a or b to choose Setup Wizard.

Press OK.

f When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs.

If a list of SSIDs is displayed, press a or b to choose the SSID you wrote down in step a. Select the SSID you want to connect with. Press OK. Do one of the following: If you chose None, go to step j. If you chose WEP, go to step h.

h Enter the WEP key you wrote down in step a. Press OK. Go to step i. (For information on how to enter

text: uu Quick Setup Guide.)

i To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step j. If you chose No, go back to step g.

j The machine will attempt to connect to the wireless device you have chosen. k If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

For Touchscreen models 3

a Before configuring your machine we recommend you write down your wireless network settings. You will

need this information before you continue with the configuration. Check and record the current wireless network settings of your computer you are connecting with.

Network name: (SSID)

Communication Mode Encryption mode Network key

Ad-hoc NONE —

WEP

For example: 3

Network name: (SSID)

HELLO

Communication Mode Encryption mode Network key

Ad-hoc WEP 12345

Your Brother machine supports the use of the first WEP key only.

b Press Menu. c Press Network. d Press WLAN. e Press Setup Wizard.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

f When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

g The machine will search for your network and display a list of available SSIDs. Choose the SSID you

wrote down in step a using a or b. Do one of the following: If you chose None, go to step j If you chose WEP, go to step h

h Enter the WEP key you wrote down in step a. Press OK. Go to step i. (For information on how to enter

text: uu Quick Setup Guide.)

i To apply the settings, press Yes. To cancel, press No.

Do one of the following: If you chose Yes, go to step j. If you chose No, go back to step g.

j The machine will attempt to connect to the wireless device you have chosen. k If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

Using a New SSID 3

If you are using a new SSID then all other devices will connect using the SSID that you assign to the machine in the following steps. You will need to connect to this SSID from your computer when it is placed in Ad-hoc mode.

For 5-line LCD models

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose WLAN.

Press OK.

d Press a or b to choose Setup Wizard.

Press OK.

e When WLAN Enable ? is displayed, press a or b to choose On and press OK to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

f The machine will search for your network and display a list of available SSIDs.

Choose <New SSID> using a or b. Press OK.

g Enter the SSID name. (For information on how to enter text: uu Quick Setup Guide.)

Press OK.

h Using a or b, choose Ad-hoc when instructed.

Press OK.

i Choose the Encryption type None or WEP using a or b, and press OK.

Do one of the following: If you chose None, go to step k. If you chose WEP, go to step j.

j Enter the WEP key. Press OK. Go to step k. (For information on how to enter text: uu Quick Setup

Guide.)

Your Brother machine supports the use of the first WEP key only.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

k To apply the settings, choose Yes. To cancel, choose No.

Do one of the following: If you chose Yes, go to step l. If you chose No, go back to step f.

l The machine will attempt to connect to the wireless device you have chosen. m If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

For Touchscreen models

a Press Menu. b Press Network. c Press WLAN. d Press Setup Wizard. e When WLAN Enable? is displayed, press On to accept.

This will start the wireless setup wizard. To cancel, press Stop/Exit.

f The machine will search for your network and display a list of available SSIDs. Choose <New SSID>

using a or b.

g Enter the SSID name. (For information on how to enter text: uu Quick Setup Guide.)

Press OK.

h Press Ad-hoc when instructed.

Configuring your machine for a wireless network (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T))

Note

i Choose and press the Encryption type None or WEP.

Do one of the following: If you chose None, go to step k. If you chose WEP, go to step j.

j Enter the WEP key. Press OK. Go to step k. (For information on how to enter text: uu Quick Setup

Guide.)

Your Brother machine supports the use of the first WEP key only.

k To apply the settings, press Yes. To cancel, press No.

Do one of the following: If you chose Yes, go to step l. If you chose No, go back to step f.

l The machine will attempt to connect to the wireless device you have chosen. m If your wireless device is connected successfully, the display shows Connected.

The machine will print your machine's wireless status report. If the connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

(Windows®)

(Macintosh)

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Start Here OSX from the CD-ROM menu.

Note

Control panel setup 4

Network menu 4

The Network menu selections of the control panel allow you to set up the Brother machine for your network configuration. (For more information on how to use the control panel: uu Basic User's Guide.) Press Menu or Menu, then press a or b to choose Network. Proceed to the menu selection you wish to configure. (For additional information on the menu, see Function table and default factory settings uu page 65.)

Please note that the machine is supplied with the BRAdmin Light utility

Remote Setup Management Utilities uu page 8.)

For Macintosh users, you can download Brother's latest BRAdmin Light utility from http://solutions.brother.com/.

Not available for DCP models.

applications, which also can be used to configure many aspects of the network. (See Other

TCP/IP 4

If you connect the machine with a network cable to your network, use the Wired LAN menu selections. If you connect the machine to a wireless Ethernet network, use the WLAN menu selections.

, Web Based Management or

Boot Method 4

This selection controls how the machine obtains an IP address.

Auto mode

In this mode, the machine will scan the network for a DHCP server. If it can find one, and if the DHCP server is configured to allocate an IP address to the machine, then the IP address supplied by the DHCP server will be used. If no DHCP server is available, the IP Address is set using the APIPA protocol. After the machine is initially powered ON, it may take a few minutes for the machine to scan the network for a server.

Static mode

In this mode the machine’s IP address must be manually assigned. Once entered the IP address is locked to the assigned address.

If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the Boot Method to Static so that the print server has a static IP address. This will prevent the print server from trying to obtain an IP address from any of these systems. To change the Boot Method, use the machine’s control panel, BRAdmin Light utility, Web Based Management or Remote Setup.

Control panel setup

IP Address 4

This field displays the current IP address of the machine. If you have chosen a Boot Method of Static, enter the IP address that you wish to assign to the machine (check with your network administrator for the IP address to use). If you have chosen a method other than Static, the machine will attempt to determine its IP address using the DHCP or BOOTP protocols. The default IP address of your machine will probably be incompatible with the IP address numbering scheme of your network. We recommend that you contact your network administrator for an IP address for the network the unit will be connected on.

Subnet Mask 4

This field displays the current subnet mask used by the machine. If you are not using DHCP or BOOTP to obtain the subnet mask, enter the desired subnet mask. Check with your network administrator for the subnet mask to use.

Gateway 4

This field displays the current gateway or router address used by the machine. If you are not using DHCP or BOOTP to obtain the gateway or router address, enter the address you wish to assign. If you do not have a gateway or router, leave this field blank. Check with your network administrator if you are unsure.

Node Name 4

You can register the machine name on the Network. This name is often referred to as a NetBIOS name; it will be the name that is registered by the WINS server on your network. Brother recommends the name “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

WINS Config 4

This selection controls how the machine obtains the IP address of the WINS server.

Auto 4

Automatically uses a DHCP request to determine the IP addresses for the primary and secondary WINS servers. You must set the BOOT Method to Auto for this feature to work.

Static

Uses a specified IP address for the primary and secondary WINS servers.

WINS Server 4

Primary WINS Server IP Address 4

This field specifies the IP address of the primary WINS (Windows® Internet Name Service) server. If set to a

non-zero value, the machine will contact this server to register its name with the Windows Service.

Internet Name

Control panel setup

Note

Secondary WINS Server IP Address 4

This field specifies the IP address of the secondary WINS server. It is used as a backup to the Primary WINS server address. If the Primary server is unavailable, the machine still can register itself with a secondary

server. If set to a non-zero value, the machine will contact this server to register its name with the Windows

Internet Name Service. If you have a primary WINS server, but no secondary WINS server, simply leave this field blank.

DNS Server 4

Primary DNS Server IP Address 4

This field specifies the IP address of the primary DNS (Domain Name System) server.

Secondary DNS Server IP Address

This field specifies the IP address of the secondary DNS server. It is used as a backup to the Primary DNS server address. If the Primary server is unavailable, the machine will contact the Secondary DNS server. If you have a primary DNS server, but no secondary DNS server, simply leave this field blank.

APIPA 4

The setting of On will cause the print server to automatically allocate a Link-Local IP address in the range (169.254.1.0 - 169.254.254.255) when the print server cannot obtain an IP address through the Boot Method you have set. (See Boot Method uu page 50.) Choosing Off means the IP address does not change, when the print server cannot obtain an IP address through the Boot Method you have set.

IPv6 4

This machine is compatible with IPv6, the next generation Internet protocol. If you want to use the IPv6 protocol, choose On. The default setting for IPv6 is Off. For more information on the IPv6 protocol, visit http://solutions.brother.com/

• If you set IPv6 to On, turn off the power switch and then turn it back on to enable this protocol.

• After you choose IPv6 On, this setting will be applied to both the wired and wireless LAN interface.

Control panel setup

Note

Ethernet (wired network only) 4

Ethernet link mode. Auto allows the print server to operate in 1000BASE-T full duplex (For DCP-8250DN and MFC-8950DW(T)), 100BASE-TX full or half duplex, or in 10BASE-T full or half duplex mode by auto negotiation.

• If you set this value incorrectly, you may not be able to communicate with your print server.

• For details about 1000BASE-T full duplex operation, see Gigabit Ethernet (wired network only) (For DCP-8250DN and MFC-8950DW(T)) uu page 93.

Status (For DCP-8110DN, DCP-8150DN, DCP-8155DN, DCP-8250DN, MFC-8510DN and MFC-8520DN)/Wired Status (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

This field displays the current wired network status.

Setup Wizard (wireless network only) 4

The Setup Wizard guides you through the wireless network configuration. (For more information: uu Quick Setup Guide or Manual configuration from the control panel uu page 19.)

WPS (Wi-Fi Protected Setup)/AOSS™ (wireless network only) 4

If your WLAN access point/router supports either WPS (PBC1) or AOSS™ (Automatic Wireless mode), you can configure the machine easily. (For more information: uu Quick Setup Guide or One push configuration using WPS (Wi-Fi Protected Setup) or AOSS™ uu page 35.)

Push Button Configuration

WPS (Wi-Fi Protected Setup) w/PIN Code (wireless network only) 4

If your WLAN access point/router supports WPS (PIN Method), you can configure the machine easily. (For more information, see Configuration using the PIN Method of WPS (Wi-Fi Protected Setup) uu page 38.)

WLAN Status (wireless network only) 4

Status 4

This field displays the current wireless network status.

Signal 4

This field displays the current wireless network signal strength.

Control panel setup

Note

SSID 4

This field displays the current wireless network SSID. The display shows up to 32 characters of the SSID name.

Comm. Mode 4

This field displays the current wireless network communication mode.

MAC Address 4

The MAC address is a unique number assigned for the machine’s network interface. You can check your machine’s MAC address from the control panel.

Set to Default (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

The Set to Default allows you to reset each wired or wireless settings to the factory default. If you want to reset both wired and wireless settings, see Reset the network settings to the factory default uu page 62.

Wired Enable (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

If you want to use the wired network connection, set Wired Enable to On.

WLAN Enable (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

If you want to use the wireless network connection, set WLAN Enable to On.

If a network cable is connected to your machine, set Wired Enable to Off.

E-mail / IFAX (MFC-8910DW, MFC-8950DW(T) and DCP-8250DN (E-mail only): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 4

This menu has five selections: Mail Address, Setup Server, Setup Mail RX, Setup Mail TX and Setup Relay. As this section requires you to enter a lot of text characters, you may find that it is more

convenient to use Web Based Management and your favorite web browser to configure these settings. (see Web Based Management uu page 91) These settings must be configured for the IFAX feature to work. (For more details about Internet fax, see Internet fax (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) uu page 112.)

You can also access the character you want by repeatedly pressing the appropriate number key using the machine’s control panel. (For information on how to enter text: uu Basic User's Guide.)

Mail Address 4

You can set your machine’s E-mail address.

Control panel setup

Note

Setup Server 4

SMTP

 SMTP Server

This field displays the node name or IP address of an SMTP mail server (outgoing E-mail server) on your network.

(e.g. “mailhost.brothermail.net” or “192.000.000.001”)

 SMTP Port

This field displays the SMTP port number (for outgoing E-mails) on your network.

 Auth. for SMTP

You can specify the security method for E-mail notification. (For details on the security methods for E-mail notification, see Sending or Receiving an E-mail securely uu page 127.)

 SMTP SSL/TLS

You can choose the encryption method between the machine and the SMTP server.

 Verify Cert.

You can enable or disable the use of the security certificate between the machine and the SMTP server.

POP3

 POP3 Server

This field displays the node name or IP address of the POP3 server (incoming E-mail server) used by the Brother machine. This address is necessary for the Internet fax features to function correctly.

(e.g. “mailhost.brothermail.net” or “192.000.000.001”)

 POP3 Port

This field displays the POP3 port number (for incoming E-mails) used by the Brother machine.

 Mailbox Name

You can specify a mailbox name on the POP3 server where the Internet print jobs are to be retrieved.

 Mailbox Pwd

You can specify the password for the POP3 server account where the Internet print jobs are to be retrieved.

To set for no password, enter a single space.

 POP3 SSL/TLS

You can choose the encryption method between the machine and the POP3 server.

 Verify Cert.

You can enable or disable the use of the security certificate between the machine and the POP3 server.

 APOP

You can enable or disable the APOP (Authenticated Post Office Protocol).

Control panel setup

Setup Mail RX (For MFC-8510DN, MFC-8520DN, MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

Auto Polling

When set to On, the machine automatically checks the POP3 server for new messages.

Poll Frequency

Sets the interval for checking for new messages on the POP3 server (default is 10 minutes).

Header

This selection allows the contents of the mail header to be printed when the received message is printed.

Del Error Mail

When set to On, the machine automatically deletes error mails that the machine cannot receive from the POP3 server.

Notification

The notification feature allows a confirmation of receipt message to be transmitted to the sending station when the Internet Fax has been received.

This feature only works on Internet Fax machines that support the “MDN” specification.

Setup Mail TX 4

Sender Subject

This field displays the subject that is attached to the Internet fax data being sent from the Brother machine to a computer (default is “Scan to E-mail Server Job” for DCP-8250DN and “Internet Fax Job” for MFC-8510DN, MFC-8520DN, MFC-8710DW, MFC-8910DW and MFC-8950DW(T)).

Size Limit

Some E-mail servers do not allow you to send large E-mail documents (the system administrator will often place a limit on the maximum E-mail size). With this function enabled, the machine will display OutofMemory when trying to send E-mail documents over 1 Mbyte in size. The document will not be sent and an error report will be printed. The document you are sending should be separated into smaller documents that will be accepted by the mail server. (For your information, a 42 page document based on the ITU-T Test Chart #1 test chart is approximately 1 Mbyte in size.)

Control panel setup

Note

Notification

The notification feature allows a confirmation of receipt message to be transmitted to the sending station when the Internet Fax has been received.

This feature only works on Internet Fax machines that support the “MDN” specification.

Setup Relay (For MFC-8510DN, MFC-8520DN, MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

Relay Broadcast

This function allows the machine to receive a document over the Internet, and then relay it to other fax machines through conventional analog landlines.

Relay Domain

You can register the Domain Names (Max. 10) that are allowed to request a Relay Broadcast.

Relay Report

A Relay Broadcast Report can be printed at the machine that will act as a Relay Station for all Relay Broadcasts.

Its primary function is to print reports of any relayed broadcasts that have been sent through the machine. Please note: In order to use this function, you must assign the relay domain in the “Trusted Domains” section of the Relay function settings.

For more information on Relay Broadcast, see Relay broadcasting uu page 117.

Control panel setup

Note

Fax to Server (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 4

The Fax to Server feature allows the machine to scan a document and send it over the network to a separate fax server. The document will then be sent from the server as fax data to the destination fax number over standard phone lines. When the Fax to Server feature is set to On all automatic fax transmissions from the machine will be sent to the fax server for fax transmission. You can continue to send a fax directly from the machine using the manual fax feature.

To send a document to the fax server the correct syntax for that server must be used. The destination fax number must be sent with a prefix and a suffix that match the parameters used by the fax server. In most cases the syntax for the prefix is “fax=” and the syntax for the suffix would be the domain name of the fax server E-mail gateway. The suffix must also include the “@” symbol at the beginning of the suffix. The prefix and the suffix information must be stored in the machine before you can use the fax to server function. Destination fax numbers can be saved in the One Touch or Speed Dial locations or entered using the dial pad (up to 20 digit numbers). For example if you wanted to send a document to a destination fax number of 123-555-0001 the following syntax would be used.

Your fax server application must support an E-mail gateway.

Control panel setup

Setting Fax to Server to On 4

You can store the prefix/suffix address for the fax server in the machine.

For 5-line LCD models

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose FaxtoServer.

Press OK.

d Press a or b to choose On.

Press OK.

e Press a or b to choose Prefix.

Press OK.

f Enter the prefix using the dial pad. g Press OK. h Press a or b to choose Suffix.

Press OK.

i Enter the suffix using the dial pad.

j Press OK. k Press Stop/Exit.

Control panel setup

Note

For Touchscreen models 4

a Press Menu. b Press Network. c Press a or b to choose FaxtoServer. d Press to choose On. e Press to choose Prefix. f Enter the prefix using the on-screen keyboard. g Press OK. h Press to choose Suffix. i Enter the suffix using the on-screen keyboard. j Press OK. k Press Stop/Exit.

• You can enter the prefix and suffix address using up to a total of 40 characters.

• For information on how to enter text: uu Basic User's Guide.

Control panel setup

How to operate Fax to Server 4

For 5-line LCD models 4

a Place the document in the ADF or on the scanner glass. b Enter the fax number. c Press Start.

The machine will send the message over a TCP/IP network to the fax server.

For Touchscreen models 4

a Place the document in the ADF or on the scanner glass. b Enter the fax number. c Press Start.

The machine will send the message over a TCP/IP network to the fax server.

How to set a new default for Scan to FTP 4

You can choose the default color and file type for the Scan to FTP function. (For how to operate Scan to FTP: uu Software User's Guide: Network Scanning.)

How to set a new default for Scan to Network (Windows®) 4

You can choose the default color and file type for the Scan to Network function to scan a document directly to a server supporting CIFS on your local network or on the Internet. (For information about the CIFS protocol, see CIFS uu page 157.) (For how to operate Scan to Network: uu Software User's Guide: Network Scanning.)

Control panel setup

Note

Reset the network settings to the factory default 4

You can reset the print server back to its default factory settings (resetting all information such as the password and IP address information).

• This function resets all wired and wireless network settings to the factory default.

• You can also reset the print server back to its factory default settings using the BRAdmin applications or Web Based Management. (For more information, see Other Management Utilities uu page 8.)

For 5-line LCD models 4

a Press Menu. b Press a or b to choose Network.

Press OK.

c Press a or b to choose Network Reset.

Press OK.

d Press 1 to choose Reset. e Press 1 to choose Yes for reboot. f The machine will restart.

For Touchscreen models 4

a Press Menu. b Press Network. c Press a or b to display Network Reset and then press Network Reset. d Press Yes. e Press Yes for 2 seconds to confirm.

Control panel setup

Note

Printing the Network Configuration Report 4

Node name: The Node name appears on the Network Configuration Report. The default node name is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

The Network Configuration Report prints a report listing all the current network configuration including the network print server settings.

For 5-line LCD models 4

a Press Menu. b (For MFC models) Press a or b to choose Print Reports.

(For DCP models) Press a or b to choose Machine Info.. Press OK.

c Press a or b to choose Network Config.

Press OK.

d Press Start.

For Touchscreen models 4

a Press Menu. b Press a or b to display Print Reports and then press Print Reports. c Press Network Config. d Press Start.

If the IP Address on the Network Configuration Report shows 0.0.0.0, wait for one minute and try again.

Control panel setup

Printing the WLAN report (For MFC-8710DW, MFC-8910DW and MFC-8950DW(T)) 4

The WLAN Report prints your machine’s wireless status report. If the wireless connection failed, check the error code on the printed report and refer to uu Quick Setup Guide: Troubleshooting.

For 5-line LCD models

a Press Menu. b Press a or b to choose Print Reports.

Press OK.

c Press a or b to choose WLAN Report.

Press OK.

d Press Start.

For Touchscreen models

a Press Menu. b Press a or b to display Print Reports and then press Print Reports. c Press a or b to choose WLAN Report. d Press Start.

Control panel setup

Note

Function table and default factory settings 4

DCP-8110DN, DCP-8150DN, DCP-8155DN, MFC-8510DN and MFC-8520DN 4

The factory settings are shown in Bold with an asterisk.

(For MFC-8510DN and MFC-8520DN)

• LDAP, Internet Fax, Fax to Server and Scan to E-mail Server functions are available as a download.

• In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/

Main menu Submenu Menu selections Options

5.Network

1.TCP/IP 1.Boot Method Auto*

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Network

(MFC-8510DN and MFC-8520DN)

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how many times the machine tries to obtain the IP address.)

2.IP Address [000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

3.Subnet Mask [000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

4.Gateway [000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

5.Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

6.WINS Config Auto*

Static

7.WINS Server Primary

[000-255].[000-255].[000-255].[000-255]

Secondary

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Control panel setup

Main menu Submenu Menu selections Options

5.Network

1.TCP/IP

8.DNS Server Primary

[000-255].[000-255].[000-255].[000-255]

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Network

(MFC-8510DN and MFC-8520DN)

(continued)

Secondary

9.APIPA On*

Off

0.IPv6 On

Off*

2.Ethernet — Auto*

100B-FD

100B-HD

10B-FD

10B-HD

3.Status — Active 100B-FD

Active 100B-HD

Active 10B-FD

Active 10B-HD

Inactive

4.MAC Address

5.E-mail/IFAX

——

1.Mail Address

—— Name

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

(MFC-8510DN and MFC-8520DN only)

2.Setup Server

1.SMTP

1.SMTP Server

2.SMTP Port

3.Auth. for SMTP

4.SMTP SSL/TLS

5.Verify Cert.

(Up to 60 characters)

Name

(Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

00025*

[00001-65535]

None*

SMTP-AUTH

POP bef.SMTP

None*

SSL

TLS

Off*

Control panel setup

Main menu Submenu Menu selections Options

5.Network

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Network

(MFC-8510DN and MFC-8520DN)

(continued)

5.E-mail/IFAX

(MFC-8510DN and MFC-8520DN only)

(continued)

2.Setup Server

(continued)

3.Setup Mail RX

4.Setup Mail TX

5.Setup Relay 1.Rly Broadcast On

2.POP3

1.Auto Polling On*

2.Poll Frequency 10Min*

3.Header All

4.Del Error Mail On*

5.Notification On

1.Sender Subject (Up to 40 characters)

2.Size Limit On

3.Notification On

2.Relay Domain RelayXX:

3.Relay Report On

1.POP3 Server

2.POP3 Port

3.Mailbox Name

4.Mailbox Pwd

5.POP3 SSL/TLS

6.Verify Cert.

7.APOP On

Name

(Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

00110*

[00001-65535]

(Up to 60 characters)

(Up to 32 characters)

None*

SSL

TLS

Off*

Off

(01Min to 60Min)

Subject+From+To

None*

Off

MDN

Off*

Relay(01 - 10)

Off*

Control panel setup

Main menu Submenu Menu selections Options

5.Network

6.Scan To E-mail

— Color 100 dpi*

(If you choose Color option)

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Network

(MFC-8510DN and MFC-8520DN)

(continued)

(MFC-8510DN and MFC-8520DN only)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Color Auto

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

Gray Auto

B&W 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

Control panel setup

Main menu Submenu Menu selections Options

5.Network

5.Scan To FTP

— Color 100 dpi*

(If you choose Color option)

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Network

(MFC-8510DN and MFC-8520DN)

(continued)

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Scan To FTP

(MFC-8510DN and MFC-8520DN)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Color Auto

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

Gray Auto

B&W 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

Control panel setup

Main menu Submenu Menu selections Options

5.Network

6.ScanTo Network

— Color 100 dpi*

(If you choose Color option)

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

7.Network

(MFC-8510DN and MFC-8520DN)

(continued)

(DCP-8110DN, DCP-8150DN and DCP-8155DN)

8.ScanTo Network

(MFC-8510DN and MFC-8520DN)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Color Auto

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

Gray Auto

B&W 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

9.Fax to Server

(MFC-8510DN

—— On

Off*

and MFC-8520DN only)

0.Network Reset

— 1.Reset

2.Exit

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

Control panel setup

Note

MFC-8710DW and MFC-8910DW 4

The factory settings are shown in Bold with an asterisk.

(For MFC-8710DW)

• LDAP, Internet Fax, Fax to Server and Scan to E-mail Server functions are available as a download.

• In order to use this function, please download the necessary firmware from the “Downloads” page for your model on the Brother Solutions Center at http://solutions.brother.com/

Main menu Submenu Menu selections Options

7.Network

1.Wired LAN

1.TCP/IP 1.Boot Method Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how many times the machine tries to obtain the IP address.)

2.IP Address

3.Subnet Mask

4.Gateway

5.Node Name BRNxxxxxxxxxxxx

6.WINS Config Auto*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

(up to 32 characters)

Static

Control panel setup

Main menu Submenu Menu selections Options

7.Network

1.Wired LAN

1.TCP/IP

7.WINS Server Primary

(continued)

8.DNS Server Primary

9.APIPA On*

0.IPv6 On

2.Ethernet — Auto*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Off

Off*

100B-FD

100B-HD

10B-FD

10B-HD

3.Wired Status — Active 100B-FD

Active 100B-HD

Active 10B-FD

Active 10B-HD

Inactive

Wired OFF

4.MAC Address ——

5.Set to Default — 1.Reset

2.Exit

6.Wired Enable — On*

Off

Control panel setup

Main menu Submenu Menu selections Options

7.Network

2.WLAN 1.TCP/IP 1.Boot Method Auto*

(continued)

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how many times the machine tries to obtain the IP address.)

2.IP Address

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

3.Subnet Mask

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

4.Gateway

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

5.Node Name BRWxxxxxxxxxxxx

(up to 32 characters)

6.WINS Config Auto*

Static

7.WINS Server Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

8.DNS Server Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

9.APIPA On*

Off

0.IPv6 On

Off*

Control panel setup

Main menu Submenu Menu selections Options

7.Network

2.WLAN

2.Setup Wizard ——

(continued)

3.WPS/AOSS ——

4.WPS w/PIN Code ——

5.WLAN Status 1.Status Active(11n)

Active(11b)

Active(11g)

Wired LAN Active

WLAN OFF

AOSS Active

Connection Fail

2.Signal Strong

Medium

Weak

None

3.SSID —

4.Comm. Mode Ad-hoc

Infrastructure

6.MAC Address ——

7.Set to Default — 1.Reset

Wi-Fi Direct

2.Exit

8.WLAN Enable — On

Off*

1.Push Button ——

2.PIN Code ——

3.Manual ——

4.Group Owner — On

Off*

5.Device Info. 1.Device Name —

2.SSID —

3.IP Address —

Control panel setup

Main menu Submenu Menu selections Options

7.Network

(continued)

Wi-Fi Direct

(continued)

4.E-mail/IFAX

6.Status Info. 1.Status G/O Active(**)

** = number of devices

Client Active

Not Connected

Off

Wired LAN Active

2.Signal Strong

Medium

Weak

NONE

(When Group Owner is On, the signal is set to Strong.)

7.I/F Enable — On

Off*

1.Mail Address —Name

2.Setup Server

(Up to 60 characters)

1.SMTP 1.SMTP Server Name

(Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

2.SMTP Port 00025*

[00001-65535]

3.Auth. for SMTP

None*

SMTP-AUTH

POP bef.SMTP

Control panel setup

Main menu Submenu Menu selections Options

7.Network

4.E-mail/IFAX

2.Setup Server

1.SMTP

4.SMTP SSL/TLS

None*

(continued)

5.Verify Cert.

2.POP3 1.POP3 Server Name

2.POP3 Port 00110*

3.Mailbox Name

4.Mailbox Pwd (Up to 32 characters)

5.POP3 SSL/TLS

6.Verify Cert.

7.APOP On

SSL

TLS

Off*

(Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

[00001-65535]

(Up to 60 characters)

None*/SSL/TLS

On/Off*

Off*

Control panel setup

Main menu Submenu Menu selections Options

7.Network

4.E-mail/IFAX

3.Setup Mail RX

1.Auto Polling

On*

(continued)

4.Setup Mail TX

5.Setup Relay

Off

2.Poll Frequency

3.Header All

4.Del Error Mail

5.Notification

1.Sender Subject

2.Size Limit On

3.Notification

1.Rly Broadcast

2.Relay Domain

10Min*

(01Min to 60Min)

Subject+From+To

None*

On*

Off

MDN

Off*

(Up to 40 characters)

Off*

RelayXX:

3.Relay Report

Relay(01 - 10)

Off*

Control panel setup

Main menu Submenu Menu selections Options

7.Network

5.Scan To E-mail

— Color 100 dpi*

(If you choose Color option)

(continued)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Color Auto

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

Gray Auto

B&W 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

Control panel setup

Main menu Submenu Menu selections Options

7.Network

6.Scan To FTP

— Color 100 dpi*

(If you choose Color option)

(continued)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Color Auto

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

Gray Auto

B&W 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

Control panel setup

Main menu Submenu Menu selections Options

7.Network

7.ScanTo Network

— Color 100 dpi*

(If you choose Color option)

(continued)

Color 200 dpi

Color 300 dpi

Color 600 dpi

Color Auto

Gray 100 dpi

Gray 200 dpi

Gray 300 dpi

Gray Auto

B&W 300 dpi

B&W 200 dpi

B&W 200x100 dpi

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose Gray option)

PDF*

PDF/A

Secure PDF

Signed PDF

JPEG

XPS

(If you choose B&W option)

PDF*

PDF/A

Secure PDF

Signed PDF

TIFF

8.Fax to Server

——On

Off*

0.Network Reset

— 1.Reset

2.Exit

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

For details, please see the Wi-Fi Direct™ Guide located on the Manuals download page for your model on the Brother Solutions Center (http://solutions.brother.com/

Control panel setup

DCP-8250DN 4

The factory settings are shown in Bold with an asterisk.

Main menu Submenu Menu selections Options

Network Wired LAN TCP/IP

Boot Method

IP Address

Subnet Mask

Gateway

Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how many times the machine tries to obtain the IP address.)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

WINS Config

WINS Server

DNS Server Primary

APIPA On*

IPv6 On

Auto*

Static

Primary

Secondary

Off

Off*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Control panel setup

Main menu Submenu Menu selections Options

Network

Wired LAN

Ethernet — Auto*

(continued)

E-Mail

Wired Status

MAC Address

Mail Address

Setup Server

100B-FD

100B-HD

10B-FD

10B-HD

— Active 1000B-FD

Active 100B-FD

Active 100B-HD

Active 10B-FD

Active 10B-HD

InActive

——

Name (up to 60 characters)

SMTP SMTP Server Name (Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

SMTP Port 25*

[00001-65535]

Auth. for SMTP

None*

SMTP-AUTH

POP bef. SMTP

SMTP SSL/TLS None*

SSL

TLS

Verify SMTPCert.

Off*

Control panel setup

Main menu Submenu Menu selections Options

Network

E-Mail

Setup Server

POP3 POP3 Server Name (Up to 64 characters)

(continued)

Setup Mail TX

IP Address

[000-255].[000-255].[000-255].[000-255]

POP3 Port 110*

[00001-65535]

Mailbox Name (Up to 60 characters)

Mailbox Pwd (Up to 32 characters)

POP3 SSL/TLS None*

SSL

TLS

Verify POP3Cert.

Off*

APOP On

Off*

Sender Subject

— Scan to E-mail Server

Job*

(Up to 40 characters)

Size Limit — On

Off*

Notification

— On

Off*

Network Reset

——— Yes

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

Control panel setup

MFC-8950DW(T) 4

The factory settings are shown in Bold with an asterisk.

Main Menu Submenu Menu Selections Options

Network Wired LAN TCP/IP

Boot Method

IP Address

Subnet Mask

Gateway

Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how

many times the machine tries to obtain the IP address.)

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Node Name BRNxxxxxxxxxxxx

(up to 32 characters)

WINS Config

WINS Server

Auto*

Static

Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Control panel setup

Main Menu Submenu Menu Selections Options

Network

Wired LAN

TCP/IP

DNS Server Primary

(continued)

APIPA On*

IPv6 On

Ethernet — Auto*

Wired Status — Active 1000B-FD

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Off

Off*

100B-FD

100B-HD

10B-FD

10B-HD

Active 100B-FD

Active 100B-HD

Active 10B-FD

MAC Address ——

Set to Default — Yes

Wired Enable — On*

WLAN TCP/IP

Boot Method

Active 10B-HD

InActive

Wired OFF

Off

Auto*

Static

RARP

BOOTP

DHCP

(If you choose Auto, RARP, BOOTP or DHCP, you will be asked to enter how

many times the machine tries to obtain the IP address.)

Control panel setup

Main Menu Submenu Menu Selections Options

Network

(continued)

WLAN

(continued)

TCP/IP

(continued)

IP Address

Subnet Mask

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Gateway

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Node Name BRWxxxxxxxxxxxx

(up to 32 characters)

WINS Config

Auto*

Static

WINS Server

Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

DNS Server Primary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

Secondary

[000-255].[000-255].[000-255].[000-255]

[000].[000].[000].[000]*

APIPA On*

Off

IPv6 On

Off*

Setup Wizard ——

WPS/AOSS ——

WPS w/PIN Code ——

Control panel setup

Main Menu Submenu Menu Selections Options

Network

WLAN

WLAN Status Status Active(11n)

(continued)

Active(11b)

Active(11g)

Wired LAN Active

WLAN Off

AOSS Active

Connection Fail

Signal Strong

Medium

Weak

None

SSID —

Comm. Mode Ad-hoc

Infrastructure

None

MAC Address ——

Set to Default — Yes

WLAN Enable — On

Wi-Fi Direct

Off*

Push Button ——

PIN Code ——

Manual ——

Group Owner — On

Off*

Device Info.

Device Name

SSID —

IP Address —

—

Control panel setup

Main Menu Submenu Menu Selections Options

Network

(continued)

Wi-Fi Direct

(continued)

E-mail/IFAX

Status Info. Status G/O Active(**)

** = number of devices

Client Active

Not Connected

Off

Wired LAN Active

Signal Strong

Medium

Weak

None

(When Group Owner is On, the signal is set to Strong.)

I/F Enable — On

Off*

Mail Address — Name (Up to 60 characters)

Setup Server

SMTP

SMTP Server

Name (Up to 64 characters)

IP Address

[000-255].[000-255].[000-255].[000-255]

SMTP Port 25*

[00001-65535]

Auth. for SMTP

SMTP SSL/TLS

Verify SMTPCert.

None*

SMTP-AUTH

POP bef. SMTP

None*

SSL

TLS

Off*

Control panel setup

Main Menu Submenu Menu Selections Options

Network

E-mail/IFAX

Setup Server

POP3

POP3 Server

Name (Up to 64 characters)

(continued)

Setup Mail RX

IP Address

[000-255].[000-255].[000-255].[000-255]

POP3 Port 110*

[00001-65535]

Mailbox Name

Mailbox Pwd

POP3 SSL/TLS

Verify POP3Cert.

APOP On

Auto Polling

Header — All

— On*

Poll Frequency

(When

Auto Polling

is set to On.)

(Up to 60 characters)

(Up to 32 characters)

None*

SSL

TLS

Off*

Off

10 minutes*

(01 minute to 60 minutes)

Del Error Mail

Notification

Subject+From+To

None*

— On*

Off

— On

MDN

Off*

Control panel setup

Main Menu Submenu Menu Selections Options

Network

E-mail/IFAX

Setup Mail TX

Sender Subject

— Internet Fax Job*

(continued)

(Up to 40 characters)

Size Limit — On

Off*

Notification

— On

Off*

Setup Relay

Rly Broadcast

— On

Off*

Relay Domain

— RelayXX:

Relay(01 - 10)

Relay Report

— On

Off*

Fax to Server

———On

Off*

Network Reset

———Yes

On connection to the network, the machine will automatically set the IP address and Subnet Mask to values appropriate for your network.

For details, please see the Wi-Fi Direct™ Guide located on the Manuals download page for your model on the Brother Solutions Center (http://solutions.brother.com/

Note

Web Based Management 5

Overview 5

A standard Web Browser can be used to manage your machine using the HTTP (Hyper Text Transfer Protocol) or HTTPS (Hyper Text Transfer Protocol over Secure Socket Layer). You can perform the function listed or get the following information from a machine on your network using a web browser.

 Machine status information

 Change Fax configuration items, such as General Setup, Address Book settings and Remote Fax (For

MFC models)

 Change network settings such as TCP/IP information

 Configure Gigabit Ethernet and Jumbo Frame (For DCP-8250DN and MFC-8950DW(T)) (See Gigabit

Ethernet (wired network only) (For DCP-8250DN and MFC-8950DW(T)) uu page 93.)

 Configure Secure Function Lock 2.0 (See Secure Function Lock 2.0 uu page 95.)

 Configure Store Print Log to Network (See Store Print Log to Network uu page 100.)

 Configure Scan to FTP (See Changing the Scan to FTP configuration using a web browser uu page 104.)

 Configure Scan to Network (See Changing the Scan to Network configuration using a web browser

(Windows

) uu page 106.)

 Configure LDAP (See Changing the LDAP configuration using a web browser (DCP-8250DN,

MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) uu page 107.)

 Software version information of the machine and print server

 Change network and machine configuration details

We recommend Windows® Internet Explorer®7.0/8.0 or Firefox®3.6 for Windows® and Safari 4.0/5.0 for Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used, make sure it is compatible with HTTP 1.0 and HTTP 1.1.

You must use the TCP/IP protocol on your network and have a valid IP address programmed into the print server and your computer.

Web Based Management

Note

How to configure the machine settings using Web Based Management (web browser) 5

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol) or HTTPS (Hyper Text Transfer Protocol over Secure Socket Layer).

• We recommend to use HTTPS protocol for your security when configuring the settings using Web Based Management.

• When you use the HTTPS protocol for Web Based Management configuration, your browser will display a warning dialog.

a Start your web browser. b Type “http://machine’s IP address/” into your browser (where “machine’s IP address” is the machine’s IP

address).

 For example:

http://192.168.1.2/

• If you are using a Domain Name System or enable a NetBIOS name, you can enter another name such as “SharedPrinter” instead of the IP address.

• For example:

http://SharedPrinter/

If you enable a NetBIOS name, you can also use the node name.

• For example:

http://brnxxxxxxxxxxxx/

The NetBIOS name can be seen in the Network Configuration Report (See Printing the Network Configuration Report uu page 63).

• For Macintosh users, you can have easy access to the Web Based Management System by clicking the machine icon on the Status Monitor screen. For more information: uu Software User's Guide.

c No password is required by default. Enter a password if you have set one and press .

Web Based Management

Note

d You can now change the print server settings.

If you have changed the protocol settings, restart the machine after clicking Submit to activate the configuration.

Setting a password 5

We recommend setting a login password to prevent unauthorized access to the Web Based Management.

a Click Administrator. b Enter the password you want to use (up to 32 characters). c Re-enter the password in Confirm New Password box. d Click Submit.

From the next time you access the Web Based Management, enter the password in the Login box, and then click . After configuring the settings, logout by clicking .

You can also set a password by clicking Please configure the password on the machine’s web page if you are not setting a login password.

Gigabit Ethernet (wired network only) (For DCP-8250DN and MFC-8950DW(T))

Your machine supports 1000BASE-T Gigabit Ethernet. To connect to a 1000BASE-T Gigabit Ethernet Network, you must set the machine’s Ethernet link mode to Auto from the machine’s control panel or Auto from Web Based Management (web browser). 1000BASE-T Gigabit Ethernet Network also allows you to use the Jumbo Frame feature.

Jumbo frames are the data frames that are larger than the standard Ethernet frame size (maximum 1,518 byte). The Jumbo Frame feature offers the faster data transfer compared to the standard Ethernet frame. You can configure the machine’s frame size by using Web Based Management (web browser) or BRAdmin Professional 3.

• Use a straight-through Category 5e (or greater) Shielded Twisted-Pair (STP) cable for 10BASE-T, 100BASE-TX Fast Ethernet Network or 1000BASE-T Gigabit Ethernet Network. When you connect the machine to a Gigabit Ethernet Network, use the network devices complying with 1000BASE-T.

• To use the Jumbo Frame feature, you must confirm all of your devices on your network, including your computer, have been configured to use Jumbo Frame.

Brother Multi-Protocol On-board Ethernet User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Applicable models

Definitions of notes

IMPORTANT NOTE

Table of Contents

Introduction 1

Network features 1

Other Network features 1

LDAP (DCP-8250DN, MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 1

Internet fax (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 1

Security 1

Fax to Server (MFC-8910DW and MFC-8950DW(T): standard, MFC-8510DN, MFC-8520DN and MFC-8710DW: available as a download) 1

Secure Function Lock 2.0 1

Store Print Log to Network 1
