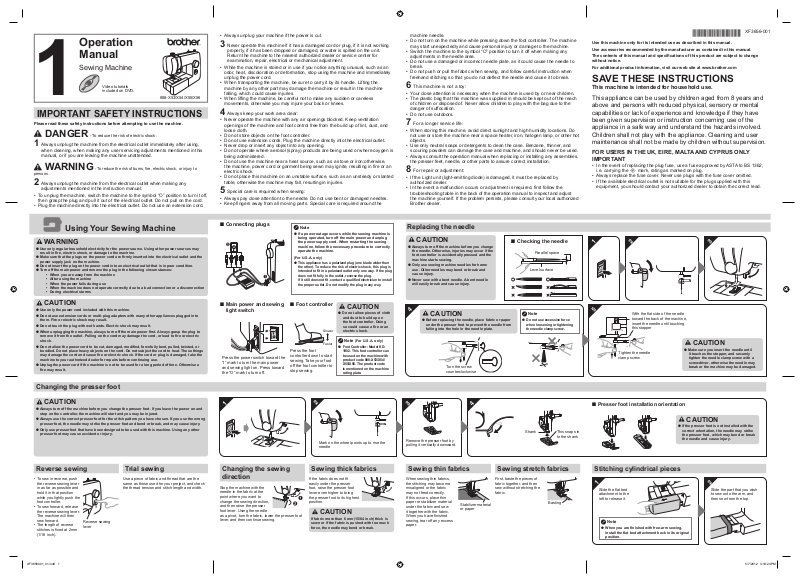

Operation
Manual
Sewing Machine
Video tutorials
1
IMPORTANT SAFETY INSTRUCTIONS
Please read these safety instructions before attempting to use the machine.
DANGER - To reduce the risk of electric shock:
Always unplug the machine from the electrical outlet immediately after using, 1
when cleaning, when making any user servicing adjustments mentioned in this
manual, or if you are leaving the machine unattended.
WARNING -
persons.
Always unplug the machine from the electrical outlet when making any 2
adjustments mentioned in the instruction manual:
To unplug the machine, switch the machine to the symbol “O” position to turn it off, •
then grasp the plug and pull it out of the electrical outlet. Do not pull on the cord.
Plug the machine directly into the electrical outlet. Do not use an extension cord.•
included on DVD.
888-X53/X54/X55/X56
To reduce the risk of burns, re, electric shock, or injury to
Always unplug your machine if the power is cut.•
Never operate this machine if it has a damaged cord or plug, if it is not working
3
properly, if it has been dropped or damaged, or water is spilled on the unit.
Return the machine to the nearest authorized dealer or service center for
examination, repair, electrical or mechanical adjustment.
While the machine is stored or in use if you notice anything unusual, such as an •
odor, heat, discoloration or deformation, stop using the machine and immediately
unplug the power cord.
When transporting the machine, be sure to carry it by its handle. Lifting the •
machine by any other part may damage the machine or result in the machine
falling, which could cause injuries.
When lifting the machine, be careful not to make any sudden or careless •
movements, otherwise you may injure your back or knees.
Always keep your work area clear:
4
Never operate the machine with any air openings blocked. Keep ventilation •
openings of the machine and foot control free from the build up of lint, dust, and
loose cloth.
Do not store objects on the foot controller.•
Do not use extension cords. Plug the machine directly into the electrical outlet.•
Never drop or insert any object into any opening.•
Do not operate where aerosol (spray) products are being used or where oxygen is •
being administered.
Do not use the machine near a heat source, such as a stove or iron;otherwise, •
the machine, power cord or garment being sewn may ignite, resulting in re or an
electric shock.
Do not place this machine on an unstable surface, such as an unsteady or slanted •
table, otherwise the machine may fall, resulting in injuries.
Special care is required when sewing:
5
Always pay close attention to the needle. Do not use bent or damaged needles.•
Keep ngers away from all moving parts. Special care is required around the •
machine needle.
Do not turn on the machine while pressing down the foot controller. The machine •
may start unexpectedly and cause personal injury or damage to the machine.
Switch the machine to the symbol “O” position to turn it off when making any •
adjustments in the needle area.
Do not use a damaged or incorrect needle plate, as it could cause the needle to •
break.
Do not push or pull the fabric when sewing, and follow careful instruction when •
freehand stitching so that you do not deect the needle and cause it to break.
This machine is not a toy:
6
Your close attention is necessary when the machine is used by or near children.•
The plastic bag that this machine was supplied in should be kept out of the reach •
of children or disposed of. Never allow children to play with the bag due to the
danger of suffocation.
Do not use outdoors.•
For a longer service life:
7
When storing this machine, avoid direct sunlight and high humidity locations. Do •
not use or store the machine near a space heater, iron, halogen lamp, or other hot
objects.
Use only neutral soaps or detergents to clean the case. Benzene, thinner, and •
scouring powders can damage the case and machine, and should never be used.
Always consult the operation manual when replacing or installing any assemblies, •
the presser feet, needle, or other parts to assure correct installation.
For repair or adjustment:
8
If the Light unit (light-emitting diode) is damaged, it must be replaced by •
authorized dealer.
In the event a malfunction occurs or adjustment is required, rst follow the •
troubleshooting table in the back of the operation manual to inspect and adjust
the machine yourself. If the problem persists, please consult your local authorized
Brother dealer.
XF3656-001
Use this machine only for its intended use as described in this manual.
Use accessories recommended by the manufacturer as contained in this manual.
The contents of this manual and specications of this product are subject to change
without notice.
For additional product information, visit our web site at www.brother.com
SAVE THESE INSTRUCTIONS
This machine is intended for household use.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY
IMPORTANT
In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, •
i.e. carrying the mark, rating as marked on plug.
Always replace the fuse cover. Never use plugs with the fuse cover omitted.•
If the available electrical outlet is not suitable for the plug supplied with this •
equipment, you should contact your authorized dealer to obtain the correct lead.
Using Your Sewing Machine
WARNING
Use only regular household electricity for the power source. Using other power sources may ●
result in re, electric shock, or damage to the machine.
Make sure that the plugs on the power cord are rmly inserted into the electrical outlet and the ●
power supply jack on the machine.
Do not insert the plug on the power cord into an electrical outlet that is in poor condition. ●
Turn off the main power and remove the plug in the following circumstances: ●
When you are away from the machine•
After using the machine•
When the power fails during use•
When the machine does not operate correctly due to a bad connection or a disconnection•
During electrical storms•
CAUTION
Use only the power cord included with this machine. ●
Do not use extension cords or multi-plug adapters with many other appliances plugged in to ●
them. Fire or electric shock may result.
Do not touch the plug with wet hands. Electric shock may result. ●
When unplugging the machine, always turn off the main power rst. Always grasp the plug to ●
remove it from the outlet. Pulling on the cord may damage the cord, or lead to re or electric
shock.
Do not allow the power cord to be cut, damaged, modied, forcefully bent, pulled, twisted, or ●
bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These things
may damage the cord and cause re or electric shock. If the cord or plug is damaged, take the
machine to your authorized dealer for repairs before continuing use.
Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a ●
re may result.
Connecting plugs ■
Main power and sewing ■
light switch
Press the power switch toward the
“I” mark to turn the main power
and sewing light on. Press toward
the “O” mark to turn off.
Note
If a power outage occurs while the sewing machine is ●
being operated, turn off the main power and unplug
the power supply cord. When restarting the sewing
machine, follow the necessary procedure to correctly
operate the machine.
(For U.S.A. only)
This appliance has a polarized plug (one blade wider than
●
the other). To reduce the risk of electric shock, this plug is
intended to t in a polarized outlet only one way. If the plug
does not t fully in the outlet, reverse the plug.
If it still does not t, contact a qualied electrician to install
the proper outlet. Do not modify the plug in any way.
Foot controller ■
Slower
Faster
Press the foot
controller down to start
sewing. Take your foot
off the foot controller to
stop sewing.
CAUTION
Do not allow pieces of cloth ●
and dust to build up on
the foot controller. Doing
so could cause a re or an
electric shock.
Note (For U.S.A. only)
Foot Controller: Model KD-
●
1902. This foot controller can
be used on the machine with
product code 888-X53/X54/
X55/X56. The product code
is mentioned on the machine
rating plate.
Replacing the needle
CAUTION
Always turn off the machine before you change ●
the needle. Otherwise, injuries may occur if the
foot controller is accidentally pressed and the
machine starts sewing.
Only use sewing machine needles for home ●
use. Other needles may bend or break and
cause injury.
Never sew with a bent needle. A bent needle ●
will easily break and cause injury.
4
CAUTION
Before replacing the needle, place fabric or paper ●
under the presser foot to prevent the needle from
falling into the hole in the needle plate.
Mark on the wheel points •
up to rise the needle
Turn the screw
counterclockwise
Checking the needle ■
Parallel space
Level surface
Note
Do not use excessive force
●
when loosening or tightening
the needle clamp screw.
1
5
2
With the at side of the needle
toward the back of the machine,
insert the needle until touching
this stopper
3
CAUTION
Tighten the needle
clamp screw
Make sure you insert the needle until ●
it touches the stopper, and securely
tighten the needle clamp screw with a
screwdriver, otherwise the needle may
break or the machine may be damaged.
Changing the presser foot
CAUTION
Always turn off the machine before you change the presser foot. If you leave the power on and ●
step on the controller, the machine will start and you may be injured.
Always use the correct presser foot for the stitch pattern you have chosen. If you use the wrong ●
presser foot, the needle may strike the presser foot and bend or break, and may cause injury.
Only use presser feet that have been designed to be used with this machine. Using any other ●
presser foot may cause accident or injury.
Trial sewing
To sew in reverse, push •
the reverse sewing lever
in as far as possible and
hold it in that position
while you lightly push the
foot controller.
To sew forward, release •
the reverse sewing lever.
The machine will then
sew forward.
The length of reverse •
stitches is xed at 2 mm
(1/16 inch).
Reverse sewing
lever
Use a piece of fabric and thread that are the
same as those used for your project, and check
the thread tension and stitch length and width.
1
Changing the sewing
direction
Stop the machine with the
needle in the fabric at the
point where you want to
change the sewing direction,
and then raise the presser
foot lever. Using the needle
as a pivot, turn the fabric, lower the presser foot
lever, and then continue sewing.
2
Mark on the wheel points up to rise the
needle
Sewing thick fabrics
If the fabric does not t
easily under the presser
foot, raise the presser foot
lever even higher to bring
the presser foot to its highest
position.
CAUTION
If fabric more than 6 mm (15/64 inch) thick is
sewn or if the fabric is pushed with too much
force, the needle may bend or break.
3
Remove the presser foot by
pulling it vertically downward.
Sewing thin fabrics
When sewing thin fabrics,
the stitching may become
misaligned or the fabric
may not feed correctly.
If this occurs, place thin
paper or stabilizer material
under the fabric and sew
it together with the fabric.
When you have nished
sewing, tear off any excess
paper.
Stabilizer material
or paper
4
Presser foot installation orientation ■
CAUTION
If the presser foot is not installed with the ●
Shank
Sewing stretch fabricsReverse sewing
First, baste the pieces of
fabric together, and then
sew without stretching the
fabric.
This snaps in
to the shank
Basting
Stitching cylindrical pieces
1
Slide the at bed
attachment to the
left to release it.
Note
When you are nished with free-arm sewing, ●
install the at bed attachment back in its original
position.
correct orientation, the needle may strike
the presser foot, which may bend or break
the needle and cause injury.
2
Slide the part that you wish
to sew onto the arm, and
then sew from the top.
1
Click!
1
2
3
4
5
11
Pull up the spool pin completely
2
3
Turn the power on Hold the end of the thread
4
Wind the thread few times around the
bobbin
Lower Threading
CAUTION
Be sure to use the correct bobbin.
11.5mm
7/16”
Actual Size
1
CAUTION
Wind the bobbin properly, or the thread tension may
loosen, and the needle may break.
CAUTION
If the spool is set incorrectly, the thread
may tangle and the needle may break.
5
Pull the thread completely
6
Turn off the power
7
Align the notch to
the projection
CAUTION
Slide the bobbin to
the right
Hold the bobbin down Pass the thread through the
Do not turn the power on
while pressing the foot
controller down, otherwise
your may be injured.
slit guide
7 – 10 cm
(3-4 inches)
1 cm (1/2 inch)
When the bobbin is
full, the bobbin will
spin slowly
8
With the end of the thread comes out
from the cover toward the rear of the
machine
Upper Threading
CAUTION
If the upper threading is not correct,
the thread may become tangled or the
needle may bend or break.
2
1
7
Thread the needle from
front to back
Turn off the power
Raise the lever to
raise the presser
foot
8
Hold the end of the upper
thread lightly
2
Mark on the wheel
points up to rise
the needle
3
Pull up the spool pin completely
CAUTION
If the spool is set incorrectly, the thread may
tangle and the needle breaks.
Slowly turn the
handwheel toward you
(counterclockwise) by
hand to lower and then
raise the needle
4
Spring
Make sure that the spring in the groove
catches the thread
Pull on the upper thread to
draw up the lower thread
5
Guide the thread
6
Pull the thread behind the guide above
the needle
9
5 cm (2 inches)
Start sewing
– Straight Stitch
3 4
CAUTION
To avoid being injured, watch the needle carefully while you are using the machine. Keep your ●
hands away from moving parts.
Do not stretch or pull the fabric during sewing, otherwise the needle may be damaged and you ●
may be injured.
Do not use bent or broken needles, otherwise you may be injured. ●
Take care that the needle does not hit basting pins or other objects during sewing. The needle ●
may break and you may be injured.
Always use the correct presser foot. If you use the wrong presser foot, the needle may hit the ●
presser foot and bend or break and you may be injured.
When you turn the handwheel by hand, always turn it toward you (counterclockwise). Turning it ●
the other way may cause the thread to tangle and damage the needle or fabric, and you may be
injured.
Do not start sewing without placing the fabric under the presser foot, otherwise the presser foot ●
may be damaged.
1
Turn the
power on
5
CAUTION
Do not turn the power on
while pressing the foot
controller down, otherwise
your may be injured.
Place the needle to the
starting point
2
Mark on the wheel
points up
Select a stitch
6
7
Gently press down
to start sewing.
Take off your foot to
stop sewing.
3
8
4
9
Find more
information
about your
sewing machine
Mark on the wheel
points up to rise the
needle
Cut the thread
in the included
instructional DVD.
Operation
1
2
3
4
6
7
8
5
0
9
D
C
F
A
E
B
Manual
Sewing Machine
2
XF4097-001
Video tutorials included on
DVD.
888-X53/X54/X55/X56
Included accessories
1 2 3 4 5 6 7
No. Part Name
1 Zigzag foot “J” (on machine) XC4901-121
2 Buttonhole foot “A” X59369-321
3 Zipper foot “I” XE9369-001
4 Bobbin (One is on machine) SA156 SFB:XA5539-151
5 Needle set (90/14 needle)
6 Screwdriver XF3557-001
7 Foot controller
Note
The included accessories vary depending on the machine model. ●
The foot controller part code differs depending on the country or region. Contact your ●
dealer or the nearest authorized service center.
Americas Others
Model KD-1902 for 110-120V area
KD-1902 for 110-127V area (Brazil only)
Model KD-2902 for 220-240V area
Part Code
3-piece set: XE5328-001
2-piece set: XE7064-001
Optional accessories
1 2 3 4 5 6 7 8
No. Part Name
1 Darning Plate XC6063-021
2 Button sewing foot “M” XE2137-001
3 Walking Foot SA107 F034N: XC2165-002
4 Quilting Foot SA129 F005N: XC1948-052
5 1/4-inch Quilting Foot SA125 F001N: XC1944-052
6 Narrow Hemmer Foot SA127 F003N: XC1945-052
7 Blind Stitch Foot SA134 F018N: XC1976-052
8 Quilting guide SA132 F016N: XC2215-052
Americas Others
Part Code
The main parts
Bobbin windera
This winds the thread onto the bobbin
for use as the lower thread.
Spool pinb
This holds the spool of thread.
Thread guidec
This is used when winding the thread
onto the bobbin and then threading the
machine.
Thread take-up leverd
Upper tension-control diale
This controls the tension of the upper
thread.
Thread cutterf
Pass the threads through the thread
cutter to cut them.
Flat bed attachment with accessory g
compartment
Presser footh
Reverse sewing leveri
Push this lever to stitch in the reverse
direction.
Flat bed attachment ■
The accessories can be stored in a compartment inside the at bed attachment.
Buttonhole ne-adjustment screwj
Pattern selection dialk
Rotate the dial in either direction to
choose the stitch you want.
Handwheell
Used to manually raise and lower the
needle.
Main power and sewing light switchm
You can turn the main power and sewing
light switch on and off.
Foot controller jack / socketn
Plug in the foot controller plug and
connect the machine to the power
supply.
Presser foot levero
Used to raise and lower the presser foot.
Foot controllerp
You can use this to control the sewing
speed, and to start and stop sewing.
Slide the
attachment to the
left to open.
Note
The optional accessories are to be purchased separately. Depending on the model you ●
purchased, some accessories may be included with your machine.
Thread tension
The tension of the thread will affect the quality of your stitches. You may need to adjust it when you change fabric or thread. We recommend that you do a
test sample on scrap of a fabric before you start to sew.
Correct tension ■
Correct tension is important as too much or too
little tension will weaken your seams or cause
puckers on your fabric.
Back of fabric
Surface of
fabric
Upper thread
Lower thread
Upper tension is too tight ■
Loops will appear on the surface of the fabric.
Note
If the bobbin thread was incorrectly ●
threaded, the upper thread may be too
tight. In this case, refer to “1 Lower
threading” of Sheet 1 to rethread the
bobbin thread.
Back of fabric
Surface
of fabric
Upper
thread
Solution: Reduce the tension by turning the
upper tension control dial to a lower number.
Lower
thread
Loops appear on
surface of fabric
Upper tension is too loose ■
Loops appear on the back of the fabric.
Note
If the upper thread was incorrectly ●
threaded, the upper thread may be too
loose. In this case, refer to “2 Upper
threading” on Sheet 1 and rethread the
upper thread.
Loops appear
Back of fabric
Surface
of fabric
Upper
thread
Solution: Increase the tension by turning the
upper tension control dial to a higher number.
on back of
fabric
Lower thread
Storage
compartment
Sewing Buttonholes and Buttons
Maintenance
CAUTION
Always turn off the machine before replacing the presser foot. Otherwise, injuries may occur
if the foot controller is accidentally pressed and the machine starts sewing.
Preparation
1
Securing the
3
Stitching and
Using tailor’s chalk, mark the
1
position and length of the buttonhole
on the fabric.
Buttonhole sewing
2
CAUTION
If the presser foot is not installed
with the correct orientation, the
needle may strike the presser
foot, which may bend or break the
needle and cause injury.
Attach the buttonhole foot.
Push the frame
back until it stops
with the plastic
insert at the front
of the frame.
Cutting the
Buttonhole
1
To secure the stitching, turn the
material 90 degrees counterclockwise
and sew straight stitches to the end of
the front bar tack of the buttonhole.
2
Remove the material from the
machine. We recommend that you
put pins across both ends of the
buttonhole to prevent the stitches from
being cut.
3
Cut an opening in the middle of the
buttonhole with the seam ripper tool.
Be careful not to cut through and
stitches.
Restrictions on oiling
In order to prevent damaging this machine, it must not be oiled by the user.
This machine was manufactured with the necessary amount of oil applied to ensure
correct operation, making periodic oiling unnecessary.
If problems occur, such as difculty turning the handwheel or an unusual noise,
immediately stop using the machine, and contact your authorized dealer or the nearest
authorized service center.
Precautions on storing the machine
Do not store the machine in any of the locations described below, otherwise damage to
the machine may result, for example, rust caused by condensation.
Exposed to extremely high temperatures•
Exposed to extremely low temperatures•
Exposed to extreme temperature •
changes
Exposed to high humidity or steam•
Note
In order to extend the life of this machine, periodically turn it on and use it. Storing this ●
machine for an extended period of time without using it may reduce its efciency.
Near a ame, heater or air conditioner•
Outdoors or exposed to direct sunlight•
Exposed to extremely dusty or oily •
environments
Cleaning
CAUTION
Make sure you unplug the machine before
you clean it, otherwise you risk getting an
electric shock or being injured.
7
3
Line the chalk
mark under the
center of the
presser foot.
Making a buttonhole
2
Step Sewn section Pattern
Step 1
(Front bar
tack)
1. Set the pattern selection dial to “a”.
2. Lower the presser foot and sew 5 to 6
stitches.
3. Stop the machine when the needle is
at the left side of the stitches and then
raise the needle from the material.
Step 2
(Left side)
Match up the
bar tack mark
to the two red
lines on the
presser foot.
CAUTION
When using the seam ripper to open the
buttonhole, do not put your hand or nger
in the path of the ripper. The seam ripper
may slip and you may be injured.
Adjusting buttonholes
After sewing the left side of the
buttonhole, stitch the right side and
observe the feeding.
1
2
Mark on the wheel points up to rise the
needle
3
8
Clean the race
9
10
1. Turn the pattern selection dial to “b”.
2. Sew the length of the tailor’s chalk line.
3. Stop the machine when the needle is at
the left side of the stitch and then raise
the needle.
Step 3
(Back bar
tack)
1. Turn the pattern selection dial to “c”
(same position as in step 1).
2. Sew 5 to 6 stitches.
3. Stop the machine when the needle is at
the right side of the stitch and then raise
the needle from the material.
Step 4
(Right side)
1. Set the pattern selection dial to “d”.
2. Sew the right side until the needle
reaches the stitches sewn in step 1.
If the left side is too open or tight
compared with the right side, adjust the
buttonhole ne-adjustment screw.
Left side
This
adjustment
ensures both
sides of the
buttonhole
are the same.
Turn the buttonhole ne-adjustment screw
with a large screwdriver as indicated in the
illustrations, according to the buttonhole
appearance.
4
CAUTION
Never use a bobbin case that is ●
scratched; otherwise the upper thread
may become tangled, the needle may
break, or sewing performance may
5
6
suffer. For a new bobbin case (part
code: XE9326-001), contact your nearest
authorized service center.
Make sure that you t the bobbin case ●
properly, otherwise the needle may
break.
Loading...
