FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: FAX-T78
(For Germany / United Kingdom / France /
Belgium / Netherlands / Switzerland /
Austria / Spain / Italy / European Generic )
© Copyright Brother 2001
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.
NOTES FOR USING THIS PARTS REFERENCE LIST
RECOMMEND
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example]
(1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION
REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMANY ---- GER
UNITED KINGDOM ---- UK
FRANCE ---- FRA
BELGIUM ---- BEL
SWITZERLAND ---- CHE
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
EUROPEAN GENERIC ---- GNR
LIST1 (DRIVING)
ORDER TO
1
LE5262001
1
DRIVE GEAR FRAME ASSY
1-1
LG2581001
1
ARM HP SWITCH ASSY
1-2
LE4028001
1
MOTOR WITH HARNESS
1-3
087310815
2
TAPTITE, CUP B M3X8
o
1-4
U09759001
1
SCREW, PAN (S/P WASHER) M3X6
o2087311016
2
TAPTITE, CUP B M3X10
REF No. CODE Q'TY DESCRIPTION REMARKS
BIUK
FAX-T78
LIST2 (SCANNING)
REF No. CODE Q'TY DESCRIPTION REMARKS
1 LG3076001 1 CIS UNIT
2 LE4029001 1 CIS HOLDER
3 LE4030001 1 CIS FILM (BLACK)
4 085310815 1 TAPTITE, BIND B M3X8
5 087310815 1 TAPTITE, CUP B M3X8 o
6 LG2557001 1 CIS-MAIN HARNESS
(7) UG3005000 1 FERRITE CORE:16X8X10
ORDER TO
BIUK
FAX-T78
LIST3 (RECORDING)
REF No. CODE Q'TY DESCRIPTION REMARKS
1 LE4031001 1 RECORDER FRAME
2 087310815 2 TAPTITE, CUP B M3X8 o
3 LE5406001 1 RECORDING HEAD ASSY
4 UF8072001 3 HEAD SPRING o
5 LG2558001 1 MAIN-HEAD HARNESS
6 LG2559001 1 HEAD-POWER HARNESS
7 UF9856001 1 HEAD PROTECTOR
8 LE4034001 1 GROUNDING SPRING
ORDER TO
BIUK
FAX-T78
LIST4 (COVER)
REF No. CODE Q'TY DESCRIPTION REMARKS
1 LE5405003 1 MAIN FRAME GREY(1267) o
2 LE4036001 1 RIBBON SHAFT STOPPER
3 LE4037001 1 RIBBON STOPPER SPRING
4 LE4038003 1 LOWER COVER
5 LE4039004 1 HANDSET MOUNT
6 LE4040001 1 HOOK SWITCH ACTUATOR
7 LE4041001 1 COVER SENCER ACTUATOR(BLACK)
8 LE4042001 2 ACTUATOR SPRING
9 LG2630001 1 SPEAKER
10 LG2576001 1 SENSOR PCB ASSY
11 LG2560001 1 SENSOR-MAIN HARNESS
12 UF9847001 1 SPEAKER SUPPORT SPRING
13 LE4043001 1 RIBBON SENCER ACTUATOR
14 LE4044001 1 DOCUMENT LF ROLLER
15 LE4047001 1 GEAR, 23
16 LE4501001 2 DOCUMENT PINCH ROLLER
17 LE4048001 2 PINCH ROLLER SPRING
18 LE4049001 1 DOCUMENT EJECTION ROLLER ASSY
19 LE4047001 1 GEAR, 23
20 UF9949001 2 ROLLER BUSHINGS
21 UL6244002 2 DOCUMENT PRESSURE ROLLER
22 UF6267000 2 PRESSURE ROLLER SHAFT
23 048050346 2 RETAINING RING
24 LE4051001 1 DOCUMENT PRESSURE ROLLER SPRING
25 LE4052001 1 PAPER EJECTION ROLLER
26 LE4054001 1 ROM COVER
27 LE4061001 1 COVER STOPPER LINK
28 LE4062001 1 BOTTOM PLATE
29 UF6761001 2 RUBBER FOOT o
30 LG2861001 1 BATTERY ASSY
31 LE4204001 1 CIS SPRING
32 LE4205001 1 SUPPORT PLATE
33 LE4214001 1 INSULATION FILM
34 087310815 10 TAPTITE, CUP B M3X8 o
35 U24014002 1 TAPTITE, CUP S M3.0X6
36 LE4199001 1 TAPTITE, PAN B M4X6D10
37 ---- NOT USED
38 ---- NOT USED
39 ---- NOT USED
40 ---- NOT USED
(41) UF5745000 1 MJ COVER FOR GER/UK/FRA/BEL/AUS/ITA
ORDER TO
BIUK
FAX-T78
LIST5 (CONTROL PANEL)
ORDER TO
1
LE5271001
1
CONTROL PANEL ASSY FOR GER/AUS [GERMAN]
o1LE4920001
1
CONTROL PANEL ASSY FOR UK/BEL/CHE/GNR [ENGLISH]
o1LE5278001
1
CONTROL PANEL ASSY FOR FRA [FRENCH]
o1LE5570001
1
CONTROL PANEL ASSY FOR NLD [DUTCH]
o1LE4924001
1
CONTROL PANEL ASSY FOR SPA [SPANISH]
o1LE4926001
1
CONTROL PANEL ASSY FOR ITA [ITALIAN]
o
1-1
LE4879008
1
CONTROL PANEL FOR UK/BEL/CHE/GNR [ENGLISH]
o
1-1
LE4879009
1
CONTROL PANEL FOR NLD [DUTCH]
o
1-1
LE4879015
1
CONTROL PANEL FOR SPA [SPANISH]
o
1-1
LE4879016
1
CONTROL PANEL FOR ITA [ITALIAN]
o
1-1
LE4879003
1
CONTROL PANEL FOR GER/AUS [GERMAN]
o
1-1
LE4879005
1
CONTROL PANEL FOR FRA [FRENCH]
o
1-2
LE4563003
1
CONTROL PANEL FRAME, SMOKED GREY(1561)
1-3
LE4927001
1
KEY, TEN, METALIC SILVER(1562)
o
1-4
UF9971001
1
BASE, TEN KEY
1-5
LE4575001
1
KEY, START
1-6
LE4576001
1
KEY, COPY
1-7
LE4577001
1
KEY, STOP
1-8
LE4578001
1
KEY, SPEAKER PHONE
1-9
LE4565001
4
BASE, CLEAR KEY
1-10
LE4579001
1
KEY, TAD
1-11
LE4566001
1
BASE, TAD KEY
1-12
LE4548001
4
KEY, MODE, WHITE(1522)
1-13
LE4549001
3
KEY, MENU, WHITE(1522)
1-14
LE4576012
3
KEY, HOLD, WHITE(1522)
1-15
LE4580002
1
DIAL, JOG, METALIC SILVER(1562)
1-16
LG2505001
1
BACKLIGHT PCB ASSY
1-17
LG2889001
1
PANEL PCB ASSY
1-18
LG3051001
1
LCDo1-19
LG2891001
1
FPC KEY
1-20
LG3483001
1
PANEL-MAIN HARNESS
1-21
LE4553001
1
DIFFUSION FILM
1-22
087310815
2
TAPTITE, CUP B M3X8
o
1-23
LE5784001
1
PANEL REAR COVER
1-24
LE4082001
1
ADF SEPARATION RUBBER
1-25
LE4190001
1
SEPARATION RUBBER FILM
1-26
LE4083001
1
ADF HOLDER
1-27
LE4084001
1
ADF SPRING PLATE
1-28
LE4085001
1
ADF SPRING
1-29
UF6116001
1
TAPTITE, PAN B M3X6
o
1-30
087310815
4
TAPTITE, CUP B M3X8
o
1-31
LE4556001
1
DOCUMENT GUIDE B-L, WHITE(1517)
1-32
LE4557001
1
DOCUMENT GUIDE B-R, WHITE(1517)
1-33
UF4417000
1
GUIDE GEAR
REF No. CODE Q'TY DESCRIPTION REMARKS
BIUK
FAX-T78
LIST5 (CONTROL PANEL)
ORDER TO
1-34
UF4418001
1
SPRING, COMPRESSION
1-35
UF6116001
1
TAPTITE, PAN B M3X6
1-36
UU0243001
1
ANTI-STATIC BRUSH
2
LE4092001
1
ACF SEPARATION RUBBER
3
LE4093001
1
ACF PLATE
4
LE4094001
1
ACF HOLDER
5
LE4187001
1
ACF LEAF SPRING
6
LE4096001
1
ACF SPRING
7
085310815
4
TAPTITE, BIND B M3X8
8
LE4098001
1
CHUTE COVER, WHITE
9
LE4102001
1
PLATEN
o10LE4104001
1
PLATEN SHAFT BUSHING L, BLACK
o11LE4105001
1
PLATEN SHAFT BUSHING R, WHITE
12
LE4111001
1
GEAR, 24
13
LE4047001
1
GEAR, 23
14
LE4106001
1
PAPER FEED ROLLER 32
15
LE4108001
1
PAPER FEED ROLLER GEAR 37
16
UF6613001
1
SEPARATION ROLLER
17
LE4109001
1
SEPARATION ROLLER GEAR 46
18
LE4147001
2
PAPER PRESSURE ROLLER
19
LE4110001
1
PRESSURE ROLLER SHAFT
20
UF9781001
2
PRESSURE ROLLER SPRING
o21LE4012001
2
GEAR, 32
22
LE4099001
1
REGISTRATION SENSOR ACTUATOR
23
LE4113001
1
LOCK BAR
24
LE4114001
1
LOCK LEVER L, WHITE
25
LE4115001
1
LOCK LEVER R, GRAY(1473)
26
LE4373001
1
LOCK SPRING
27
LE4117001
1
CHUTE FILM
28
LE4203001
1
ADF FILM
29
087310815
4
TAPTITE, CUP B M3X8
30
LE4087001
1
DOCUMENT PRESSURE BAR
31
LE4088001
1
WHITE FILM
32
UF9781001
3
SPRING
33
LE4856001
1
LCD SHEET FOR GER/AUS
o33LE4870001
1
LCD SHEET FOR UK/BEL/CHE/GNR
o33LE4875001
1
LCD SHEET FOR FRA
o33LE5571001
1
LCD SHEET FOR NLD
o33LE4901001
1
LCD SHEET FOR SPA
o33LE4902001
1
LCD SHEET FOR ITA
o
REF No. CODE Q'TY DESCRIPTION REMARKS
BIUK
FAX-T78

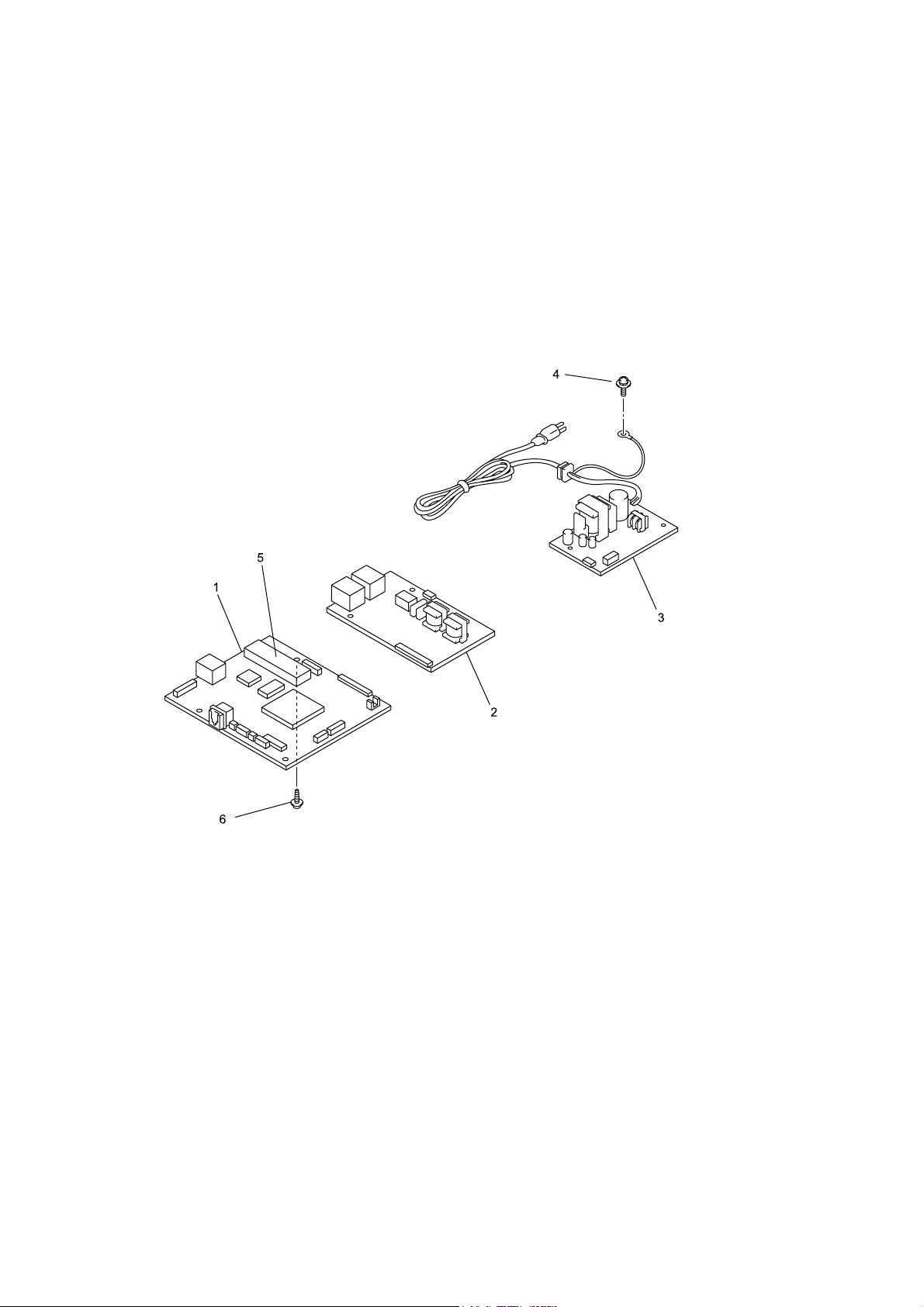

LIST6 (PCB)
ORDER TO
1
LG3052041
1
MAIN PCB ASSY
o2LG2878003
1
NCU PCB ASSY FOR GER/AUS
o2LG2726004
1
NCU PCB ASSY FOR UK
o2LG2726026
1
NCU PCB ASSY FOR NLD
o2LG3238005
1
NCU PCB ASSY FOR FRA
o2LG3238008
1
NCU PCB ASSY FOR BEL/
SPA/ITA/GNR
o2LG3238010
1
NCU PCB ASSY FOR CHE
o
POWER SUPPLY PCB ASSY (W/ AC CORD)
3
LG3495004
1
POWER SUPPLY PCB ASSY (W/ AC CORD) FOR UK
o3LG2863010
1
POWER SUPPLY PCB ASSY (W/ AC CORD) FOR CHE
o4UF4444001
1
SCREW, PAN(P WASHER) M4X6
o5LG0277003
1
OTPROM FOR GER/AUS
o5LG0277004
1
OTPROM FOR UK
o5LG0277005
1
OTPROM FOR FRA
o5LG0275008
1
OTPROM FOR BEL/CHE
o5LG0277009
1
OTPROM FOR NLD
o5LG0277015
1
OTPROM FOR SPA
o5LG0277016
1
OTPROM FOR ITA
o5LG0277054
1
OTPROM FOR GNR
o6087310815
1
TAPTITE, CUP B M3X8
o
REF No. CODE Q'TY DESCRIPTION REMARKS
3 LG3495003 1
FOR GER/FRA/BEL/NLD/AUS/SPA/ITA/GNR o
BIUK
FAX-T78
LIST7 (ACCESSORIES)
ORDER TO
1
LE5499009
1
HANDSET ASSY, WHITE(1517)
2
UG3625001
1
TELEPHONE LINE CORD FOR GER
o2UG3626001
1
TELEPHONE LINE CORD FOR UK
o2UG3627001
1
TELEPHONE LINE CORD FOR FRA
o2UG1575001
1
TELEPHONE LINE CORD FOR BEL
o2UG3469000
1
TELEPHONE LINE CORD FOR CHE
o2UG4205001
1
TELEPHONE LINE CORD FOR AUS
2
LG3077001
1
TELEPHONE LINE CORD FOR NLD/SPA/GNR
2
UG3634001
1
TELEPHONE LINE CORD FOR ITA
o3UG3543009
1
CURLED CORD ASSY
4
LE4375004
1
PAPER TRAY ASSY, SMOKED GREY(1561)
o
4-1
LE4234004
2
PAPER GUIDE, SMOKED GRAY(1561)
o5----
NOT USED
6
UF9869001
1
PAPER WIRE EXTENSION
7
----
NOT USED
8
----
NOT USED
9
LE4537001
1
PRINTING CARTRIDGE (10M)
o
(9-1)
LE4464001
1
PRINTING CARTRIDGE FRAME
o
(9-2)
LE4143001
1
REFILL ROLL (10M)
(10)
LG3622001
1
TELEPHONE PLUG FOR NLD
REF No. CODE Q'TY DESCRIPTION REMARKS
BIUK
FAX-T78
LIST8 (PRINTED MATERIAL)
)
)
)
)
)
)
)
)
)
)
REF No. CODE Q'TY DESCRIPTION REMARKS
1 LE5272003 1
1 LE5274004 1
1 LE5279005 1
1 LE4899008 1
1 LE5572009 1
1 LE5280010 1
1 LE5933014 1
1 LE4904015 1
1 LE4903016 1
1 LE4897054 1
(1-1) LE5273003 1 OWNER'S MANUAL FOR GER/AUS o
(1-1) LE4872004 1 OWNER'S MANUAL FOR UK/GNR o
(1-1) LE4872005 1 OWNER'S MANUAL FOR FRA o
(1-1) LE4878008 1 OWNER'S MANUAL FOR BEL (DUTCH) o
(1-1) LE4872008 1 OWNER'S MANUAL FOR BEL/CHE (FRENCH) o
(1-1) LE4872010 1 OWNER'S MANUAL FOR CHE (GERMAN) o
(1-1) LE4872009 1 OWNER'S MANUAL FOR NLD o
(1-1) LE4872015 1 OWNER'S MANUAL FOR SPA o
(1-1) LE4872016 1 OWNER'S MANUAL FOR ITA o
(2) UF8263001 1 TEST CHART-027
OWNER'S MANUAL ASSY FOR GER/AUS
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARD, START CARD
OWNER'S MANUAL ASSY FOR UK
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARDS, START CARD
OWNER'S MANUAL ASSY FOR FRA
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARDS, START CARD
OWNER'S MANUAL ASSY FOR BEL
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARD, START CARD
OWNER'S MANUAL ASSY FOR NLD
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARD, START CARD
OWNER'S MANUAL ASSY FOR CHE
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARD, START CARD
OWNER'S MANUAL ASSY FOR AUS
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARD, START CARD
OWNER'S MANUAL ASSY FOR SPA
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARDS, START CARD
OWNER'S MANUAL ASSY FOR ITA
(INCLUDING OWNER'S MANUAL(REF. No.(1-1),
WARRANTY CARD, START CARD
OWNER'S MANUAL ASSY FOR GNR
(INCLUDING OWNER'S MANUAL(REF. No.(1-1)), START CARD
ORDER TO
BIUK
o
o
o
o
o
o
o
o
o
o
FAX-T78
LIST9 (PACKING)
REF No. CODE Q'TY DESCRIPTION REMARKS
(1) LE4900001 1 CARTON, BROTHER, FAX-T78 o
(2) LE4864001 1 STYROFOAM ASSY o
(3) UE1172001 1 BAG, 570X650H
(3-1) 163528001 1 SUFFOCATION CAUTION LABEL FOR UK
(4) ---- NOT USED
(5) LE4219001 2 PANEL CUSHION
(6) LF1001001 1
(6) LF1002001 1 PROTECTION SHEET TAPE ASSY FOR UK o
PROTECTION SHEET TAPE ASSY EUR
FOR GER/FRA/BEL/NLD/CHE/IRE/AUS/SPA/ITA/GNR o
ORDER TO
BIUK
FAX-T78
5X4584
PL-FAX007
Ver. K
Loading...
