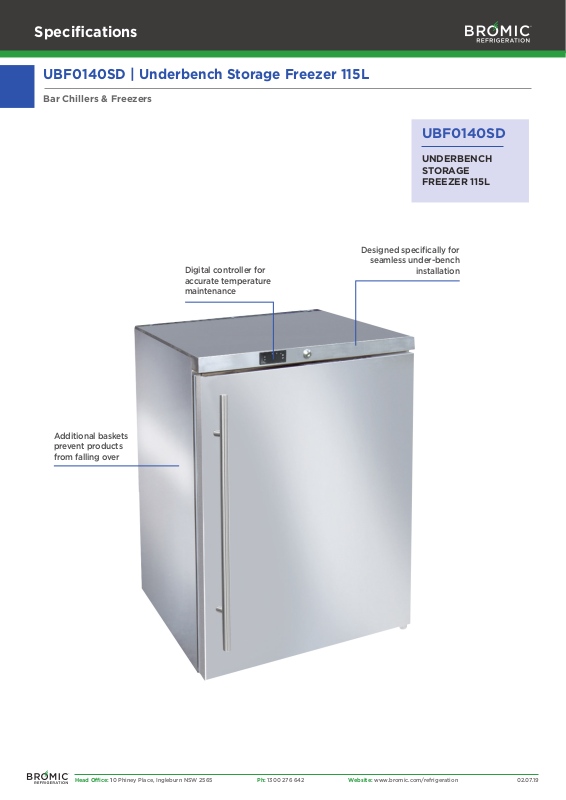

Specifications
UBF0140SD | Underbench Storage Freezer 115L
Bar Chillers & Freezers
Digital controller for
accurate temperature
maintenance
UBF0140SD
UNDERBENCH
STORAGE
FREEZER 115L
Designed specifically for
seamless under-bench
installation
Additional baskets
prevent products
from falling over
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Website: www.bromic.com/refrigeration
02.07.19
Specifications
SPECIFICATIONS
DIMENSIONS
UBF0140SD | Underbench Storage Freezer 115L
Bar Chillers & Freezers
Part Number 3736209
Capacity 115L
Temperature Range -24 to -16°C
Max Ambient Temp. 32°C
Refrigeration Capacity 130W
Energy Consumption 1.2Kwh/24h
Current 1.2A
Gross Weight 41kg
Packaged Dimensions 650 x 650 x 885 mm
Refrigerant R134a
Plug Supplied Yes, 1 x 10A
Plug Location Rear, bottom
Main Light N/A
Door Type Solid
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Door Swing Dimension 594mm
Total Depth of Door Open 1156mm
Door Shape Hinged
Self-Closing Door Yes
Door Lock Ye s
No. of Doors 1
Temp. Controller Digital
Castors No, Feet + Rollers
No. of Shelves inc. Base 3 (baskets)
Shelves Dimensions 510(w) x 360(d) mm
Narrow-Gauge Shelving No
Colour Stainless Steel
Warranty 1 Year, Parts & Labour
Warranty Service Bromic Extra Care
Website: www.bromic.com/refrigeration
External (mm)
Width
Depth
Height
Width
Depth
Height
All information is correct at the time of
publication. BROMIC PTY Ltd reserve the
right to alter specifications without notice.
598
643
824
Internal (mm)
490
400
680
02.07.19
