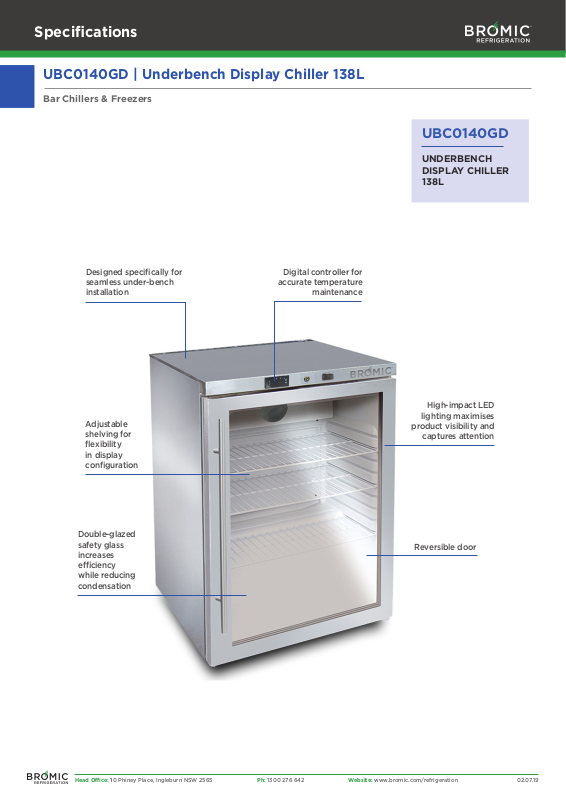

Specifications
UBC0140GD | Underbench Display Chiller 138L
Bar Chillers & Freezers
UBC0140GD
UNDERBENCH
DISPLAY CHILLER
138L
Designed specifically for
seamless under-bench
installation
Adjustable
shelving for
flexibility
in display
configuration
Double-glazed
safety glass
increases
efficiency
while reducing
condensation
Digital controller for
accurate temperature
maintenance
High-impact LED
lighting maximises
product visibility and
captures attention
Reversible door
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Website: www.bromic.com/refrigeration
02.07.19
Specifications
SPECIFICATIONS
DIMENSIONS
UBC0140GD | Underbench Display Chiller 138L
Bar Chillers & Freezers
Part Number 3736212
Capacity 138L
Temperature Range +1 to +10°C
Max Ambient Temp. 32°C
Refrigeration Capacity 150W
Energy Consumption 1.26Kwh/24h
Current 1.2A
Gross Weight 41kg
Packaged Dimensions 650 x 650 x 885 mm
Refrigerant R134a
Plug Supplied Yes, 1 x 10A
Plug Location Rear, bottom
Main Light LED
Door Type
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Double glazed safety glass
door
Door Swing Dimension 594mm
Total Depth of Door Open 1153mm
Door Shape Hinged
Self-Closing Door Yes
Door Lock Ye s
No. of Doors 1
Temp. Controller Digital
Castors No, Feet + Rollers
No. of Shelves inc. Base 4
Shelves Dimensions 510(w) x 360(d) mm
Narrow-Gauge Shelving Yes
Colour Stainless Steel
Warranty 1 Year, Parts & Labour
Warranty Service Bromic Extra Care
Website: www.bromic.com/refrigeration
External (mm)
Width
Depth
Height
Width
Depth
Height
All information is correct at the time of
publication. BROMIC PTY Ltd reserve the
right to alter specifications without notice.
598
635
824
Internal (mm)
490
400
680
02.07.19
