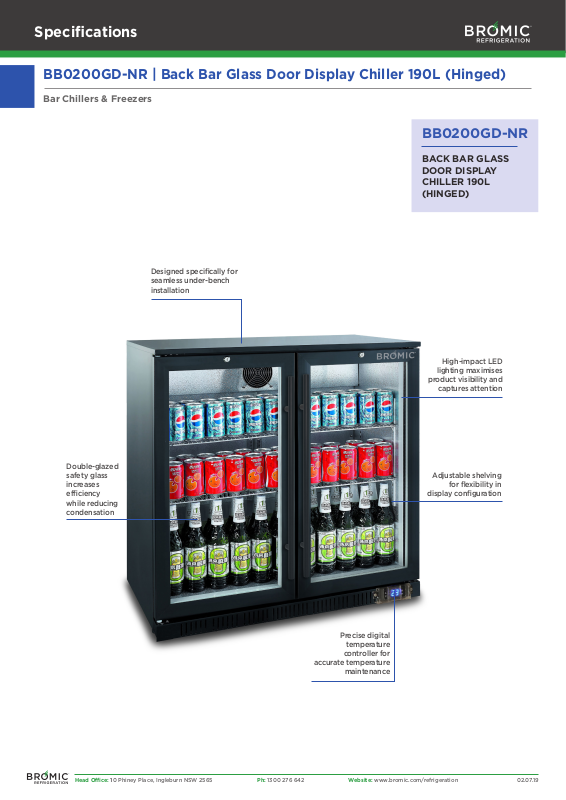

Specifications
BB0200GD-NR | Back Bar Glass Door Display Chiller 190L (Hinged)
Bar Chillers & Freezers
BB0200GD-NR
BACK BAR GLASS
DOOR DISPLAY
CHILLER 190L
(HINGED)
Designed specifically for
seamless under-bench
installation
Double-glazed
safety glass
increases
efficiency
while reducing
condensation
High-impact LED
lighting maximises
product visibility and
captures attention
Adjustable shelving
for flexibility in
display configuration
Precise digital
temperature
controller for
accurate temperature
maintenance
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
Website: www.bromic.com/refrigeration
02.07.19
2130mm
900mm520mm
Front View
Specifications
SPECIFICATIONS
DIMENSIONS
BB0200GD-NR | Back Bar Glass Door Display Chiller 190L (Hinged)
Bar Chillers & Freezers
520mm
Side View
870mm
865mm
870mm
Front View
Part Number 3736071
Capacity 190L
Temperature Range +1 to +10°C
Max Ambient Temp. 38°C
Refrigeration Capacity 213W
Energy Consumption 3.9kWh/24h
Current 1.2A
Gross Weight 72kg
Packaged Dimensions 915 x 564 x 895 mm
Refrigerant R600
Plug Supplied Yes, 1 x 10A
Plug Location Rear, bottom
Main Light LED
Door Type
Double glazed safety glass
door
Top View
520mm
Door Swing Dimension 424mm
Total Depth of Door Open 894mm
Door Shape Hinged
Self-Closing Door Yes
Door Lock Ye s
No. of Doors 2
Temp. Controller Digital
Castors No
No. of Shelves inc. Base 3
Shelves Dimensions 370(w) x 326(d) mm
Narrow-Gauge Shelving Yes
Colour Black
Warranty 1 Year, Parts & Labour
Warranty Service Bromic Extra Care
Width
Depth
Height
Width
Depth
Height
External (mm)
865
520
870
Internal (mm)
820
385
820
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Ph: 1300 276 642
All information is correct at the time of
publication. BROMIC PTY Ltd reserve the
right to alter specifications without notice.
Website: www.bromic.com/refrigeration
02.07.19
