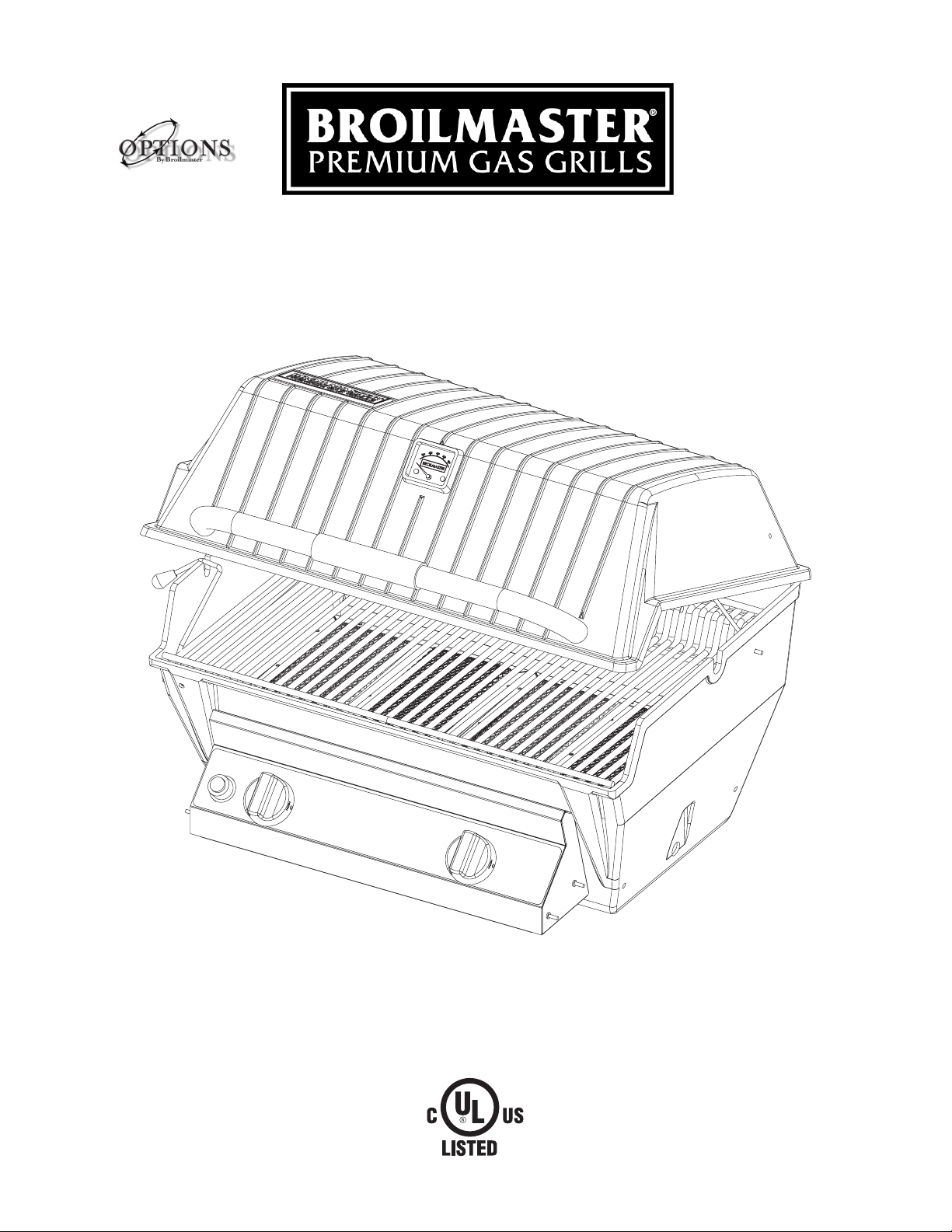

Broilmaster H4PK-1, H3X-1 User Manual

MODELS MODELS

H3X-1
H3XN-1
H3XPK-1 Series

MODELS MODELS

H4X-1
H4XN-1
H4PK-1 Series

P3X-1
P3SX-1
P3XF-1

P4X-1
P4XF-1

P3XN-1
P3SXN-1
P3XFN-1

P4XN-1
P4XFN-1

MODELS
R3-1 R3N-1
R3B-1 R3BN-1

GAS-FIRED

Page 1

IMPORTANT

This manual should be read thoroughly by the person installing the grill and all persons
who will use and maintain the grill. The installer should be sure the manual is left in the
possession of the user. The user should retain this manual for future reference when us­ing or cleaning the grill and to properly identify any repair parts that may be required.

WARNING

Reference this manual for proper installation and maintenance instructions. Improper
installation, adjustment, alteration, service or maintenance can cause personal injury or

property damage. For assistance or additional information consult a qualied installer,

service agency or the gas supplier.

DANGER: FOR YOUR SAFETY

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2. Extinguish any open ame.

3. Open the grill lid.

4. If odor continues, keep away from the appliance and imme-

diately call your gas supplier or your re department.

WARNING: FOR YOUR SAFETY

1. Do not store or use gasoline or other ammable vapors or liquids in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.

CAUTION:

Parts may have sharp edges. Wear leather work gloves and handle parts carefully dur­ing the unpacking, assembly and installation.

WARNING

Broilmaster® Gas Grills must ONLY use propane cylinders equipped with an Overll
Protection Device (OPD). Use only a reputable propane dealer when exchanging or

lling cylinders. An overlled or improperly lled propane cylinder can be dangerous.

B101623-2-0112Page 2

Congratulations!

Welcome to the beauty, durability, and prestige of a Premium Gas Grill

by Broilmaster®. With award-winning excellence built into every feature

and durability that surpasses other Premium gas grills, Broilmaster has

manufactured the ultimate gas grill for discriminating outdoor chefs for

over 30 years.

At Broilmaster, we continually strive to enhance the performance and

quality of our products for your grilling enjoyment. Every effort will be

made to ensure that Broilmaster continues to be your choice as the

Premium grill of the future.

Whether you are at the lake or in the privacy of your own backyard, the

Broilmaster® Premium Gas Grill performs far beyond the ordinary and is

designed to provide your family with years of outdoor cooking pleasure.

Thank You!

Broilmaster® is a registered trademark of

Empire Comfort Systems, Inc.

918 Freeburg Ave.

Belleville, Illinois 62220

Telephone [phone]

B101623-2-0112 Page 3

TABLE OF CONTENTS

Congratulations!

You have chosen the nest grill for your outdoor cooking pleasure. Please take time to read this entire

manual before assembling your Premium Broilmaster® gas grill.

Master Parts Distributor List ........................................................................................................... 5

How To Order Repair Parts ............................................................................................................5

P3X Series Parts Diagram..............................................................................................................6

P3X Series Parts List......................................................................................................................7

P4X Series Parts Diagram..............................................................................................................8

P4X Series Parts List......................................................................................................................9

H3X Series Parts Diagram ...........................................................................................................10

H3X Series Parts List ................................................................................................................... 11

H4X Series Parts Diagram ...........................................................................................................12

H4X Series Parts List ...................................................................................................................13

R3 Series Parts Diagram ..............................................................................................................14

R3 Series Parts List ...................................................................................................................... 15

Grill Assembly ............................................................................................................................... 16

Warranty Terms .......................................................................................................................16-17

Propane Gas Grills ..................................................................................................................18-20

Natural Gas Grills .........................................................................................................................21

Owner’s Manual for P and H Series Grills ............................................................................... 22-34

Hardware Pack ......................................................................................................................... 23

Grill Assembly ...................................................................................................................... 24-30

Operation - Propane & Natural Gas .........................................................................................31

Operation .................................................................................................................................. 32

Maintenance ............................................................................................................................. 33

Troubleshooting ........................................................................................................................ 34

Owner’s Manual for R Series Grills .........................................................................................35-52

Hardware Pack ......................................................................................................................... 36

Safety Precautions ...................................................................................................................37

Grill Assembly ...................................................................................................................... 38-41

Gas Conversion to Natural Gas...........................................................................................42-43

Infrared Cooking ..................................................................................................................44-46

Operation - Propane & Natural Gas Grills ...........................................................................47-48

Blue Flame Burner Maintenance .............................................................................................. 49

Infrared Burner Maintenance ............................................................................................... 50-51

Troubleshooting ........................................................................................................................ 52

Appliance Service History........................................................................................................23-55

B101623-2-0112Page 4

MASTER PARTS DISTRIBUTOR LIST

To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.com. To provide war­ranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below. This list changes
from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts
for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.

Dey Distributing

1401 Willow Lake Boulevard
Vadnais Heights, MN 55101

Phone: [phone]
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater, Hearth and Grills

East Coast Energy Products

10 East Route 36
West Long Branch, NJ 07764

Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater, Hearth and Grills

Victor Division of F. W. Webb Company

200 Locust Street
Hartford, CT 06114

Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater, Hearth and Grills

HOW TO ORDER REPAIR PARTS

Parts Not Under Warranty

Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distribu­tors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the

service person/dealer.

Warranty Parts

Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.

All parts listed in the Parts List have a Part Number. When ordering parts, rst obtain the Model Number and Serial Number from the

name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the fol­lowing illustration and part list. Be sure to give all this information . . .

Appliance Model Number Part Description

Appliance Serial Number Part Number

Type of Gas (Propane or Natural)

Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.

Shipments contingent upon strikes, res and all causes beyond our control.

B101623-2-0112 Page 5

P3X SERIES PARTS DIAGRAM

All repair part orders should be placed through your local Broilmaster® dealer. To locate a dealer in your
area visit www.broilmaster.com. To ensure prompt and accurate service, please provide the following
information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number,
and Quantity of parts needed.

2

3

1

4

12

10

5

6

7

8

9

27

26

25

11

24

34

28

29

17 or 18

14 or 15

22

35

23

19

21

16

32

20

B101623-2-0112Page 6

P3X SERIES PARTS LIST

Index

NS - Not Shown

*Valves are not convertible. To convert the unit to a different gas type, a new valve must be purchased.

Part Description

No.

1 Grill Body Top (with heat indicator, hinge, B100453 B100453 B100453 B100453 B100453 B100453

1 Grill Body Top (casting only) B100456 B100456 B100456 B100456 B100456 B100456

2 Heat Indicator (stainless) B101406 B101406 B101406 B101406 B101406 B101406

3 Lid Handle (stainless) B070486 B070486 B070486 B070486 B070486 B070486

4 Foam Grip B073097 B073097 B073097 B073097 B073097 B073097

5 Retract-A-Rack (stainless) B072695 B072695 B072695 B072695 B072695 B072695

6 Cooking Grid (2 piece Stainless Steel B101282 B101282 B101282 B101282 B101282 B101282

7 Briquette Bag N/A N/A B058122 B058122 N/A N/A

8 Briquette Rack B101061 B101061 B101061 B101061 B101061 B101061

9 Burner Assembly B101512 B101512 B101512 B101512 B101512 B101512

10 Radiation Shield (Heat & Wind Deector) B063065 B063065 B063065 B063065 B063065 B063065

11 Bridge Pin B057805 B057805 B057805 B057805 B057805 B057805

12 Hinge Pin B057804 B057804 B057804 B057804 B057804 B057804

13 Lid Stop Kit DPA106 DPA106 DPA106 DPA106 DPA106 DPA106

14 Orice - LPG (#54 drill) P204 P204 P204 P204 P204 P204

15 Orice - NAT (#48 drill) P300 P300 P300 P300 P300 P300

16 Electric Ignitor B072218 B072218 B072218 B072218 B072218 B072218

17* Valve - LPG B101420 B101420 B101420 B101420 B101420 B101420

18* Valve - NAT B101421 B101421 B101421 B101421 B101421 B101421

19 Shelf Pin B073963 B073963 B073963 B073963 B073963 B073963

20 Control Panel Assembly (with label) B101514 B101514 B101514 B101514 B101514 B101514

20 Control Panel Label (not shown) B101517 B101517 B101517 B101517 B101517 B101517

21 Valve Knob - Black B070084 B070084 B070084 B070084 B070084 B070084

22 Grill Body Bottom (casting only) B101418 B101418 B101418 B101418 B101418 B101418

23 Control Panel Shield B101622 B101622 B101622 B101622 B101622 B101622

24 Ignitor Ground Wire B072684 B072684 B072684 B072684 B072684 B072684

25 Ignitor Grounding Lug B069747 B069747 B069747 B069747 B069747 B069747

26 Collector Box Spacer B069743 B069743 B069743 B069743 B069743 B069743

27 Collector Box B100446 B100446 B100446 B100446 B100446 B100446

28 Flare Busters Kit DPA116 DPA116 N/A N/A DPA116 DPA116

29 Smoker/Shutter (includes Actuator Arm & Knob DPA100 DPA100 N/A N/A N/A N/A

32 Hose & LPS Regulator B069756 B069756 B069756 B069756 B069756 B069756

33 Hardware Package B101655 B101655 B101655 B101655 B101655 B101655

34 Griddle, Stainless Steel B101400 B101400 N/A N/A N/A N/A

35 Burner Bracket B101648 B101648 B101648 B101648 B101648 B101648

NS Actuator Arm - Smoker/Shutter B100408 B100408 N/A N/A N/A N/A

NS Knob - Smoker/Shutter Knob B100098 B100098 N/A N/A N/A N/A

P3SX P3SXN P3X P3XN P3XF P3XFN

Part Number

B101623-2-0112 Page 7

P4X SERIES PARTS DIAGRAM

All repair part orders should be placed through your local Broilmaster® dealer. To locate a dealer in your
area visit www.broilmaster.com. To ensure prompt and accurate service, please provide the following
information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number,
and Quantity of parts needed.

1

5

6

7

8

9

2

3

4

28

32

27

17 or 18

12

22

10

11

26

25

14 or 15

24

21

16

20

34 23

19

B101623-2-0112Page 8

P4X SERIES PARTS LIST

Index

*Valves are not convertible. To convert the unit to a different gas type, a new valve must be purchased.

Part Description

No.

1 Grill Body Top (with heat indicator, hinge, B073286 B073286 B073286 B073286

1 Grill Body Top (casting only) B076621 B076621 B076621 B076621

2 Heat Indicator (stainless) B101406 B101406 B101406 B101406

3 Lid Handle (stainless) B070486 B070486 B070486 B070486

4 Foam Grip B073097 B073097 B073097 B073097

5 Warming Rack (stainless) B072696 B072696 B072696 B072696

6 Cooking Grid (2 piece Stainless Steel B101321 B101321 B101321 B101321

7 Briquette Bag B058122 B058122 N/A N/A

8 Briquette Rack B067449 B067449 B067449 B067449

9 Burner Assembly B101513 B101513 B101513 B101513

10 Radiation Shield (Heat & Wind Deector) B063065 B063065 B063065 B063065

11 Bridge Pin B057805 B057805 B057805 B057805

12 Hinge Pin B057804 B057804 B057804 B057804

13 Lid Stop Kit DPA106 DPA106 DPA106 DPA106

14 Orice - LPG (#55 drill) P182 P182 P182 P182

15 Orice - NAT (#49 drill) P265 P265 P265 P265

16 Electric Ignitor B072218 B072218 B072218 B072218

17* Valve - LPG B101420 B101420 B101420 B101420

18* Valve - NAT B101421 B101421 B101421 B101421

19 Shelf Pin B073963 B073963 B073963 B073963

20 Control Panel Assembly (with label) B101515 B101515 B101515 B101015

20 Control Panel Label (not shown) B101518 B101518 B101518 B101518

21 Valve Knob - Black B070084 B070084 B070084 B070084

22 Grill Body Bottom (casting only) B101443 B101443 B101443 B101443

23 Control Panel Shield B101621 B101621 B101621 B101621

24 Ignitor Ground Wire B072684 B072684 B072684 B072684

25 Ignitor Grounding Lug B069747 B069747 B069747 B069747

26 Collector Box Spacer B069743 B069743 B069743 B069743

27 Collector Box B100446 B100446 B100446 B100446

28 Flare Busters Kit N/A N/A DPA117 DPA117

32 Hose & LPS Regulator B069756 B069756 B069756 B069756

33 Hardware Package - LPG & NAT B01655 B101655 B101655 B101655

34 Burner Bracket B101648 B101648 B101648 B101648

P4X P4XN P4XF P4XFN

Part Number

B101623-2-0112 Page 9

H3X SERIES PARTS DIAGRAM

All repair part orders should be placed through your local Broilmaster® dealer. To locate a dealer in your
area visit www.broilmaster.com. To ensure prompt and accurate service, please provide the following
information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number,
and Quantity of parts needed.

B101623-2-0112Page 10

H3X SERIES PARTS LIST

Index No. Part Description

1 Grill Body Top (with heat indicator, hinge, B100453 B100453

1 Grill Body Top (casting only) B100456 B100456

2 Heat Indicator (stainless) B101406 B101406

3 Lid Handle (stainless) B070486 B070486

4 Foam Grip B073097 B073097

5 Warming Rack (Chrome) B100594 B100594

6 Cooking Grid (2 piece Stainless Steel) B101397 B101397

7 Briquette Bag B058122 B058122

8 Briquette Rack B101061 B101061

9 Burner Assembly B101436 B101436

10 Radiation Shield (Heat & Wind Deector) B063065 B063065

11 Bridge Pin B057805 B057805

12 Hinge Pin B057804 B057804

13** Lid Stop Kit DPA106 DPA106

14 Orice - LPG (#55 drill) P182 P182

15 Orice - NAT (#49 drill) P265 P265

16 Electric Ignitor B072218 B072218

17* Valve - LPG B101420 B101420

18* Valve - NAT B101421 B101421

19 Shelf Pin B073963 B073963

20 Control Panel Assembly (with label) B101563 B101563

20 Control Panel Label (not shown) B101517 B101517

21 Valve Knob - Black B070084 B070084

22 Grill Body Bottom (casting only) B101418 B101418

23 Control Panel Shield B101622 B101622

24 Ignitor Ground Wire B072684 B072684

25 Ignitor Grounding Lug B069747 B069747

26 Collector Box Spacer B069743 B069743

27 Collector Box B100446 B100446

28 Hose & LPS Regulator B069756 B069756

29 Hardware Package B101656 B101656

30 Burner Bracket B101648 B101648

*Valves are not convertible. To convert the unit to a different gas type, a new valve must be purchased.
** Note: H3 Series grills do not come with a Lid Stop Kit. The Lid Stop Kit must be purchased separately.

H3X H3XN

Part Number

B101623-2-0112 Page 11

H4X SERIES PARTS DIAGRAM

1

5

6

7

8

2

3

4

32

12

22

10

11

9

27

26

25

24

17 or 18

14 or 15

21

16

34 23

20

19

B101623-2-0112Page 12

H4X SERIES PARTS LIST

Index

13** Lid Stop Kit DPA106 DPA106

*Valves are not convertible. To convert the unit to a different gas type, a new valve must be purchased.

** Note: H4 Series grills do not come with a Lid Stop Kit. The Lid Stop Kit must be purchased separately.

Part Description

No.

1 Grill Body Top (with heat indicator, hinge, B073286 B073286

1 Grill Body Top (casting only) B076621 B076621

2 Heat Indicator (stainless) B101406 B101406

3 Lid Handle (stainless) B070486 B070486

4 Foam Grip B073097 B073097

5 Warming Rack (stainless) B072696 B072696

6 Cooking Grid B101492 B101492

7 Briquette Bag B058122 B058122

8 Briquette Rack B067449 B067449

9 Burner Assembly B101618 B101618

10 Radiation Shield (Heat & Wind Deector) B063065 B063065

11 Bridge Pin B057805 B057805

12 Hinge Pin B057804 B057804

14 Orice - LPG (#122 mm) P312 P312

15 Orice - NAT (#50 drill) P245 P245

16 Electric Ignitor B072218 B072218

17* Valve - LPG B101420 B101420

18* Valve - NAT B101421 B101421

19 Shelf Pin B073963 B073963

20 Control Panel Assembly (with label) B101515 B101515

20 Control Panel Label (not shown) B101518 B101518

21 Valve Knob - Black B070084 B070084

22 Grill Body Bottom (casting only) B101443 B101443

23 Control Panel Shield B101621 B101621

24 Ignitor Ground Wire B072684 B072684

25 Ignitor Grounding Lug B069747 B069747

26 Collector Box Spacer B069743 B069743

27 Collector Box B100446 B100446

32 Hose & LPS Regulator B069756 B069756

33 Hardware Package - LPG & NAT B101656 B101656

34 Burner Bracket B101648 B101648

Part Number

H4X H4XN

B101623-2-0112 Page 13

R3 SERIES PARTS DIAGRAM

All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your
area, visit www.Broilmaster.com. To ensure prompt and accurate service, please provide the following
information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number,
and Quantity of parts needed.

1

2

25

24

3

4

7

9

15

8

5

6

12

22

21

20

19

10

11

16

18

17

13

14

23

B101623-2-0112Page 14

R3 SERIES PARTS LIST

Index

No.

10 Collector Box Assembly N/A N/A B101212 B101212

11 Ignitor Spacer N/A N/A B101082 B101082

12 Infrared Burner (1 required) N/A N/A B101269 B101269

12 Infrared Burner (2 required) B101269 B101269 N/A N/A

13 Radiation Shield B101045 B101045 B101045 B101045

14 Grill Body Bottom - Black B101313 B101313 B101313 B101313

15 Infrared Ignitor (1 Required) N/A N/A B101271 B101271

15 Infrared Ignitor (2 Required) B101271 B101271 N/A N/A

16 Control Panel Shield B101046 B101046 B101046 B101046

17 Pin, Shelf B073963 B073963 B073963 B073963

18 Manifold And Valve Assembly B101356 B101316 B101314 B101317

19 Electronic Ignitor B072218 B072218 B072218 B072218

20 Control Panel Assembly B101033 B101033 B101033 B101033

21 Control Panel Label B101272 B101272 B101272 B101272

22 Valve Knob R3918 R3918 R3918 R3918

23 Hose And LP Regulator B069756 N/A B069756 N/A

24* Control Housing - Stainless Steel B101121 B101121 B101121 B101121

25** Cover Plate - Black B101596 B101596 B101596 B101596

25a** Cover Plate - Black B101767 B101767 B101767 B101767

25** Cover Plate - Stainless Steel B101597 B101597 B101597 B101597

25b** Cover Plate - Stainless Steel B101768 B101768 B101768 B101768

N/S Char-Master Briquets N/A N/A B101323 B101323

N/S Hardware Pack B101274 B101275 B101309 B101310

N/S Bridge Pin B057805 B057805 B057805 B057805

N/S Hinge Pin B057804 B057804 B057804 B057804

N/S Natural Gas Conversion Kit B101276 N/A B101311 N/A

N/S Cast Stainless Steel Cooking Grids (Optional) DPA101 DPA101 DPA101 DPA101

N/S Ground Lug (2 Required) B069747 B069747 N/A N/A

N/S Ground Wire B072684 B072684 N/A N/A

N/S Hardware Pack, Adjustable Lid Stop B101097 B101097 B101097 B101097

N/S - NOT SHOWN

*Control Housing is used only when installing grill head onto cart. See the instructions that come with the cart for Control Housing
installation instructions.

** Cover Plate is used only when installing grill head onto post. See the instructions that come with the post for Cover Plate installation
instructions.

Description

1 Grill Body Top - Black B100456 B100456 B100456 B100456

2 Heat Indicator (Stainless) B101118 B101118 B101118 B101118

3 Lid Handle (Stainless) B070486 B070486 B070486 B070486

4 Foam Grip B073097 B073097 B073097 B073097

5 Stainless Steel Retract-A-Rack B072695 B072695 B072695 B072695

6 Stainless Steel Rod Cooking Grid B101282 B101282 B101282 B101282

7 Briquet Rack N/A N/A B101369 B101369

8 Burner N/A N/A B101030 B101030

9 Burner Shield N/A N/A B101154 B101154

R3 R3N R3B R3BN

Part Number

B101623-2-0112 Page 15

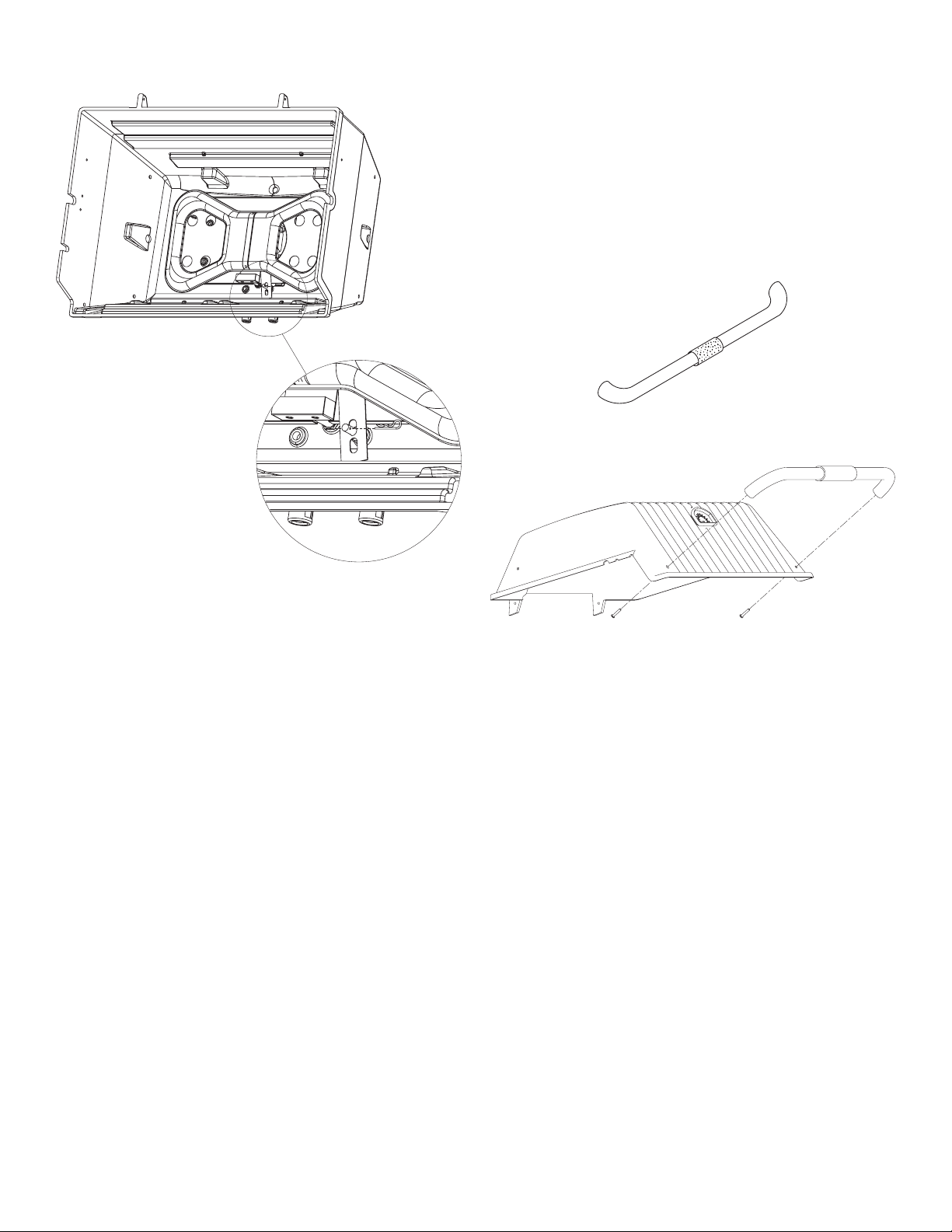

GRILL ASSEMBLY

Before You Begin

All Broilmaster grills require some assembly and installation. Follow

all instructions unless noted to apply only to other specic models.

If you purchased an accessory with your Broilmaster, follow
the instructions provided with the accessory for assembly and
installation. If an instruction refers to a step that is not required for
your grill model, please continue to the next step.

Compare the parts found in the shipping container to the parts list
provided. If any parts are missing contact your Broilmaster® dealer
before beginning assembly.

CAUTION: FOR YOUR SAFETY
Parts may have sharp edges. Wear leather work gloves and
handle parts carefully during the unpacking, assembly and
installation.

Recommended Tools

These items are recommended for the assembly of your grill:

Do NOT use power tools.

• Phillips screwdriver

• Adjustable wrench set

• Socket set

• Soapy water solution (to test for leaks)

• Liquid soap (for foam grip)

Grill Mountings

Assemble your base option before assembling your Broilmas­ter® grill head.

Refer to the Broilmaster® Cart, Base, and Post instructions
provided with each accessory for assembly, installation, and
mounting procedures.

WARRANTY TERMS

Empire Comfort Systems Inc. warranties this Broilmaster premium gas grill to be free from defects at the time of purchase and for the
periods specied below. Broilmaster Premium Gas Grills must be installed by a qualied technician and must be maintained and oper­ated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not

transferable. All warranty repairs must be accomplished by a qualied gas appliance technician.

Limited Lifetime Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.

• Aluminum Grill Housing (except paint)

• Stainless Steel Rod Cooking Grids and Stainless Steel Griddles

• Select Stainless Steel Components – Cart, Mounting, Bowtie Burner, Side Burner (DPSBSS), Side Burner Housing, and

Warming Rack

• Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Door Kit, Tilt-Out LP Tank Door, and Vent Register
Kit

Limited Ten-Year Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.

• H-Series and R3B Stainless Steel Burners

• Side Burner (DPASBC), Side Burner Housing (BSA)

B101623-2-0112Page 16

WARRANTY TERMS

Limited Five-Year Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.

• Infrared Burners on R3 or R3B

• Flare Buster™ Ceramic Flavor Enhancers

• Painted Electro-Galvanized Steel Components

• Stainless Steel Smoker Shutter

Limited Two-Year Parts Warranty – Against Rust-Through
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.

• Porcelain Coated Steel Briquette Racks

• Chrome-Plated Warming Rack

• Stainless Steel Flavor Screen

• Stainless Steel Heat Shield

Limited One-Year Parts Warranty
If the items listed below fail because of defective workmanship or material, Empire will repair or replace at Empire’s option.

• Valves, knobs, ignitors, labels, hoses, ttings and all other parts and accessories – including those made from stainless steel –
unless specied above

• Paint on Aluminum Grill Head

Duties Of The Owner
The appliance must be installed by a qualied installer and operated in accordance with the instructions furnished with the ap­pliance.
A bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period.
Ready access to the appliance for service.
What Is Not Covered
Damages that might result from the use, misuse, or improper installation or storage of this appliance.
Travel, diagnostic costs and freight charges on warranted parts to and from the factory.
Claims that do not involve defective workmanship or materials.
Unauthorized service or parts replacements.
Removal and reinstallation cost.
Inoperable due to improper or lack of maintenance.
The costs of a service call to diagnose a problem and labor for replacement or repairs.
How To Get Service
To make a claim under this warranty, please have your receipt available and contact your installing dealer. Provide the dealer

with the model number, serial number, type of gas, and purchase verication. The installing dealer is responsible for providing service

and will contact the factory to initiate any warranted parts replacements. Empire will make replacement parts available at the factory.
Shipping expenses are not covered.
If, after contacting your Empire dealer, service received has not been satisfactory, contact: Consumer Relations Department,
Empire Comfort Systems Inc., PO Box 529, Belleville, Illinois 62222, or send an e-mail to [e-mail] with “Consumer
Relations” in the subject line.
Your Rights Under State Law

This warranty gives your specic legal rights, and you may also have other rights, which vary from state to state.

Broilmaster is a Division of Empire Comfort Systems, Inc.

B101623-2-0112 Page 17
