FRONT SHELF KIT OWNER’S MANUAL
RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
B100638-0-1102
B100638-0-1102 Page 1
Page 2
CONGRATULATIONS!
You have chosen the finest accessory for your outdoor cooking pleasure.
Please take time to read this entire manual before installing your
premium Broilmaster
C22
IMPORTANT INFORMATION
®
Front Shelf Kit.
MPORTANT: THIS MANUAL SHOULD BE READ THOROUGHLY BY THE PERSON INSTALLING THE SHELF
I
AND ALL PERSONS WHO WILL USE AND MAINTAIN THE SHELF KIT. THE INSTALLER SHOULD BE SURE
KIT
MANUAL IS LEFT IN THE POSSESSION OF THE USER. THE USER SHOULD RETAIN THIS MANUAL FOR
THE
FUTURE
REPAIR
Before You Begin
This manual includes an illustration for each of the
five shelf kits available for your grill. Locate the
illustration that depicts the shelf kit you have and
then carefully follow all instructions pertaining to your
kit.
Each step of the installation is illustrated. In each
illustration parts are identified with “Index” numbers.
Index numbers appear in parenthesis after a part
name is mentioned for the first time in the
instructions and are labeled on the illustrations. Y ou
can reference each part by its key number on the
Parts List if you need help in identifying a part.
REFERENCE WHEN USING OR CLEANING THE SHELF KIT AND TO PROPERLY IDENTIFY ANY
PARTS THAT MAY BE REQUIRED.
Tools Required
These tools are required for the assembly of your
shelf kit:
• Phillips screwdriver
• Socket set or nut drivers
Compare the parts found in the shipping container
to the parts list. If any parts are missing contact
your Broilmaster
®
dealer before beginning assembly.
CAUTION: PARTS MAY HAVE SHARP EDGES.
WEAR LEATHER WORK GLOVES AND HANDLE
PARTS
ASSEMBLY AND THE INSTALLATION.
Page 2 B100638-0-1102
CAREFULLY DURING THE UNPACKING,
Page 3

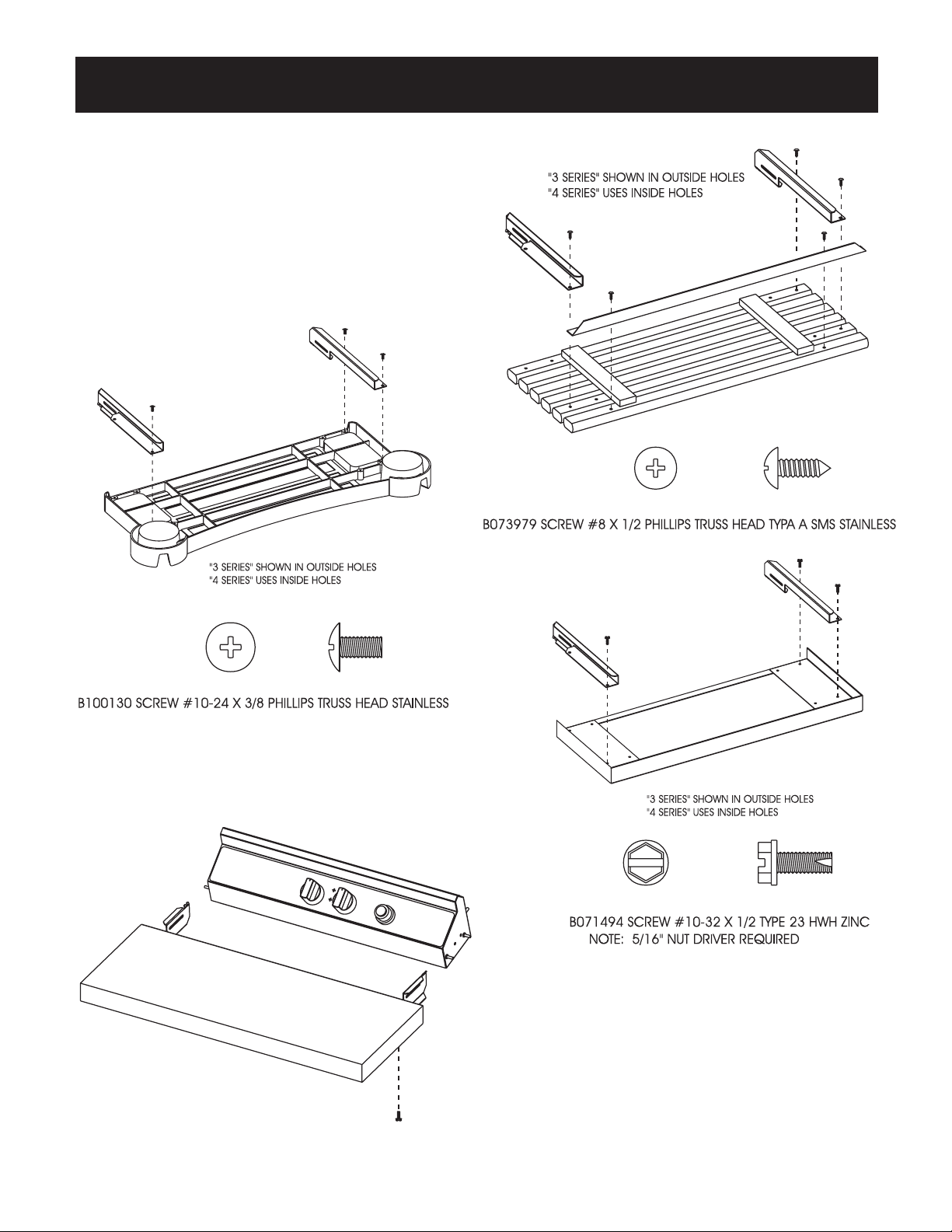

FRONT SHELF INSTALLATION
Front Shelf
Install the brackets using three of the four mount
screws provided as shown by the following figures.
Note: The remaining screw is left out to allow the
bracket to pivot during installation.
FKCHAR AND FKTAU
FKWOOD
FIGURE 2
FIGURE 1
FKSS
Insert the front control panel pin through the slots in the
bracket. Install the remaining bracket screw at this time.
B100638-0-1102 Page 3
Page 4

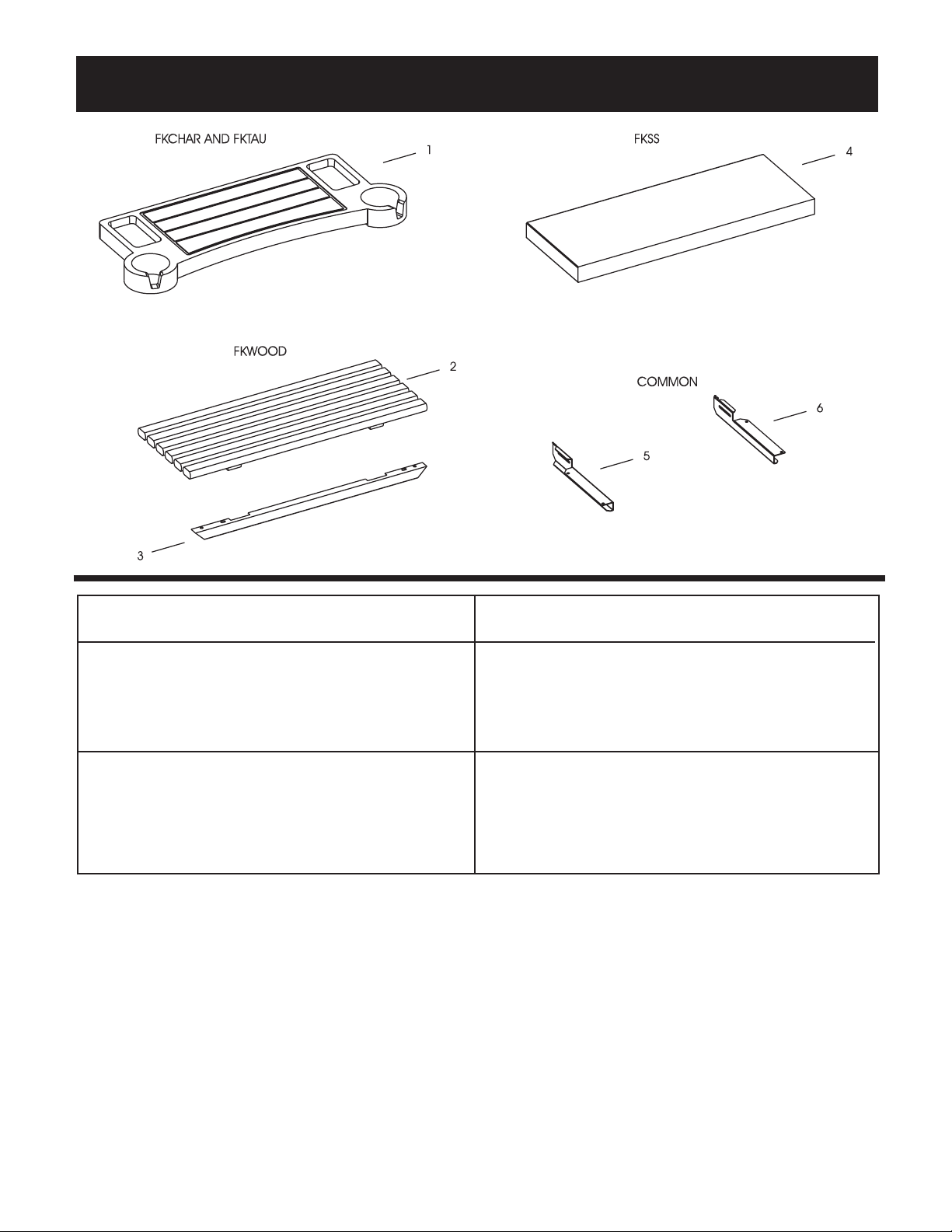

PARTS DIAGRAM & PARTS LIST - FRONT SHELF
Index Part
No. No. Description
FKCHAR AND FKTAU
1 B073261 FRONT SHELF (FKCHAR)
1 B073263 FRONT SHELF (FKTAU)
5 B100034 LEFT FRONT BRACKET
6 B100035 RIGHT FRONT BRACKET
B100020 HARDWARE PACKAGE
FKWOOD
2 B048423 FRONT SHELF
3 B063070 SHELF SKIRT
5 B100034 LEFT FRONT BRACKET
6 B100035 RIGHT FRONT BRACKET
B100022 HARDWARE PACKAGE
BROILMASTER
A Division of Empire Comfort Systems, Inc.
Belleville, Illinois 62220
Phone: 1-800-851-3153
FAX: 1-800-443-8648
Index Part
No. No. Description
FKSS
4 B076726 FRONT SHELF
5 B100034 LEFT FRONT BRACKET
6 B100035 RIGHT FRONT BRACKET
B100018 HARDWARE PACKAGE
®
918 Freeburg Ave.
VISIT OUR WEB SITE AT WWW.broilmaster.com
RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
Page 4 B100638-0-1102
