STAINLESS STEEL
RETRACT-A-RACK

Serves as an added cooking
level. Removes for additional
cooking space.

HEAT INDICATOR

Precision probe heat
indicator 100-700° F.

STAINLESS STEEL
SIDE BURNER

Choose conventional or
infrared for searing.

MULTI-POSITION
STAINLESS STEEL LID STOP

Lifts hood a little or a lot to
control heat and smoke.

THICK CAST ALUMINUM
GRILL HEAD

Lasts a lifetime, deep design,
heats uniformly, maintains its
temperature, and transmits
more heat to your food.

Broilmaster

Broilmaster

|

2

|

DUAL CONTROLS

Separate left/right control
for indirect cooking,
grilling, and roasting.

ELECTRONIC IGNITER

r year-round instant

Fo
lighting.

burner styles

what’s under the hood?

DELUXE SERIES GRILLS

H-Style Burner delivers great heat
distribution. Separate lef t/right
controls allow indirect cooking.

PREMIUM SERIES GRILLS

Broilmaster’s patented stainless
steel Bow Tie Burners deliver heat
distribution and precise control
at any setting. Separate left /right
controls for indirect cooking.

cooking grids and griddle

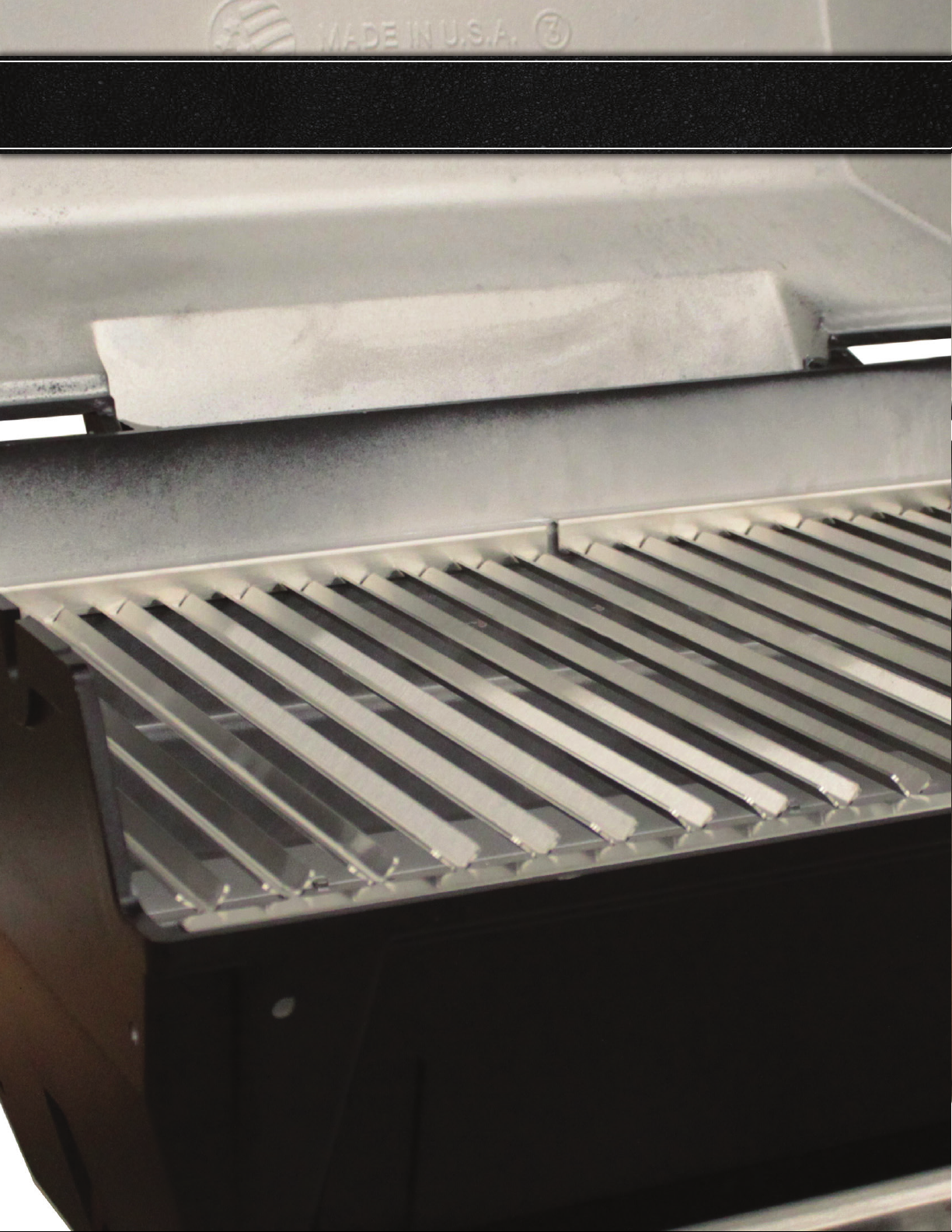

MULTI-LE VEL STAINLESS ST EEL GRIDS

Standard on all P3 X, P4X , and R3 Series
grills. Two-piece set with thick 5/16­inch bars to sear meats perfectly and
maintain their heat. Adjusts to three
levels on P3 X and R3/R3B grills, two
levels on P4X .

SINGL E-LEV EL STA INLESS S TEEL GRIDS

Standard on all H3X and H4X Series
grills. Two-piece set with 1/4-inch
bars, cross-braced for added strength.

INFRARED (IR) SERIES GRILLS
Twin Ceramic Plaque Infrared

burners turn 40,000 BTU of input
into 1,600 degrees F of searing
infrared energy. Separate lef t/right
controls for indirect cooking.

V-CHANNEL GRIDS

Standard on R Series Grills.
V-Channel cooking grids over the
IR burners capture the drippings
from your food.

INFRARED COMBO GRILLS

One ceramic plaque infrared burner
and one blue flame burner deliver
exceptional grilling versatility.
Separate left /right controls.

SINGLE-LEVEL STAINLESS STEEL GRIDDLE

Standard on all P3 SX ; optional for P3X,
H3X, and blue flame side of R3B Combo
Grill. Drop in place of one Cook ing Grid on
P3X or H3 X. Stainless steel construction
formed and welded wi th large cooking
surface and drip tray.

Flavor Enhancers

CHARMASTER BRIQUETS™

Proven technology and excellent qualit y
for economy and durability.

FLARE BUSTERS™

Uniform dimensions and thickness for
except ional heat dis tribution and burner
protection.

SMOKER SHUTTER SYSTEM

Fits P3X and P 3XF, Standard on P3 SX
and H3 X. Stainless Steel Blinds mounted
between the fire and the food. Leave
open for high-temp searing and grilling.
Close for slow roasting and smok ing.

Broilmaster

Broilmaster

|

3

|

Super Premium series

Broilmaster

|

4

|

Broilmaster

The P3SX grill arrives with every stainless steel option already checked – Multi-level
grids, griddle, smoker shutter, folding Retract-A-Rack, and adjustable lid stop. The P3X Bow
Tie Burner generates 40,000 BTU of corner-to-corner, meat-searing heat and maintains
a perfectly uniform output at any temperature setting. The Flare Buster™ ceramic flavor
enhancers keep unwanted flames under control while delivering unmatched heat distribution.

p3Sx

• 695 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

• 40,000 BTU

• Stainless Steel Bow Tie Burner

• Multi-Level Stainless Steel Cooking Grids

• Stainless Steel Smoker Shutter

• Stainless Steel Griddle

• Stainless Steel Control Panel

• Stainless Steel Folding Retract-A-Rack

• Flare Buster Ceramic Flavor Enhancers

• Fits all Broilmaster Mountings

AND

P3SXN

Closed

SMOKER SHUTTER

With one pull of the lever, you can convert your grill

to an indirect cooking system – for smoking, roasting,

slow cooking, baking and more! Fits P3X & H3X with

Multi-level grids only.

Open

Broilmaster

Broilmaster

|

5

|

Premium series

Broilmaster

|

6

|

Broilmaster

The P3X and P4X grills each feature the Bow Tie Burner for exceptional heat distribution
at any temperature setting. Both grills come with CharMaster™ Briquets (P3X and P4X).
Choose the size and features to suit your cooking style. Add the optional Smoker Shutter to
any P3X grill to double its versatility.

p3x

• 695 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

• 40,000 BTU Input

• Stainless Steel Bow Tie Burner

• Multi-level Stainless Steel Cooking Grids

• Stainless Steel Control Panel

• Stainless Steel Folding Retract-A-Rack

• Charmaster Briquets

• Fits all Broilmaster Mountings

p4x

AND

AND

P3XN

P4XN

• 473 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

• 40,000 BTU Input

• Stainless Steel Bow Tie Burner

• Multi-level Stainless Steel Cooking Grids

• Stainless Steel Control Panel

• Stainless Steel Retract-A-Rack

• Charmaster Briquets

Broilmaster

Broilmaster

|

7

|

Deluxe Series

Broilmaster

Broilmaster

|

8

|

H3X and H4X grills feature the legendary Broilmaster cast aluminum grill head outfitted
with a set of single-level stainless steel cooking grids, stainless steel H-style burner with
separate left/right controls, stainless steel control panel, chrome-plated steel Retract-A­Rack, and electronic ignition.

H3X

• 595 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

• 40,000 BTU

• Stainless Steel H-Style Burner

• Stainless Steel Cooking Grids

• Stainless Steel Control Panel

• Chrome Plated Steel Retract-A-Rack

• Charmaster

• Fits all Broilmaster Mountings

H4X

AND

™

Briquets

AND

H3XN

H4XN

• 473 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

• 36,000 BTU

• Stainless Steel H-Style Burner

• Stainless Steel Cooking Grids

• Stainless Steel Control Panel

• Chrome Plated Steel Retrack-A-Rack

• Charmaster™ Briquets

Broilmaster

Broilmaster

|

9

|

Infrared series

Broilmaster

|

10

Broilmaster

|

The R3 Infrared Grill provides a broader temperature range (Up to 1,600 degrees to as low as
350 degrees F). This cooking versatility lets you sear steaks, chicken or chops, indirect cook
a roast or turkey, and even bake pizza or cookies. Special V-Channel cooking grids over the IR
burners help capture the drippings from your food.

R3

• 695 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

• 40,000 BTU

• Two Infrared Burners

• Stainless Steel V-Channel Cooking Grids

• Stainless Steel Control Panel

• Stainless Steel Retract-A-Rack

R3B

• 695 Sq. In. of Total Cooking Area

• Heavy-Duty Cast Aluminum Construction

AND

AND

R3N

R3BN

• One Infrared Burner and One Blue Flame Burner
– 20,000 BTU Infrared Burner
– 20,000 BTU Blue Flame Burner (18,000 BTU on Propane)

• One Stainless Steel V-Channel Cooking Grid and
One Multi-level Stainless Steel Cooking Grid

• Stainless Steel Control Panel

• Stainless Steel Retract-A-Rack

Broilmaster

Broilmaster

|

|

11

SLOW COOKER series

Achieving traditional barbecue flavor demands a low temperature, lots of moisture, and a long
cooking time. Unlike cookers made with a stamped steel shell, the Q3 Grill’s thick aluminum
casting maintains a consistent cooking temperature all day.

The stainless steel drip pan eliminates flare-ups as drippings fall onto the pan and vaporize to
produce flavorful smoke. Excess fat and liquids flow down into the drain channel and out of the
grill to the external drip bucket.

Q3X

• 420 Sq. In. of Total Cooking Area

• Heavy Duty Cast Aluminum Construction

• 26,500 BTU to 7,500 BTU

• Stainless Steel Oval Burner

• Multi-level Stainless Steel Cooking Grids

• Full-area, Stainless Steel Drip Pan with Drain Valve

• External Drip Bucket

• Built-in Smoker Tray for Wood Chips or Pellets

Slow Cooking SMOKING

Broilmaster

|

12

Broilmaster

|

STEAMING

grilling

Broilmaster

|

13

Charcoal series

The C3 has a large grill head in cast aluminum, which heats quickly and evenly, and then helps
you maintain a consistent cooking temperature. This tall grill head, with its adjustable cooking
grids, maximizes the available volume to give you the freedom to tackle any size meal.

Twin air intakes on the front panel and a rotary dual-function top vent adjust from wide open
to fully closed – allowing precise control of temperature and smoke. The two front-loading doors
let you add charcoal or wood chunks or redistribute hot coals via the upper door without removing
a cooking grid. Ash falls into the pan which slides out through the lower door for easy disposal.

C3

• 442 Sq. In. of Total Cooking Area

• Heavy Duty Cast Aluminum Construction

• Stainless Steel Charcoal & Ash Doors

• Multi-level Stainless Steel Cooking Grids

• Lump Charcoal or Briquets (Lighter fluid not needed)

• Stainless Steel Charcoal Grates

• Optional Warming Rack

• Optional Stainless Steel Divider Plate

• Optional Ceramic Glass Infrared Panel (for Searing)

Broilmaster

Broilmaster

|

|

13

BUILD YOUR GRILL

MOUNTING OPTIONS:

PCB -1 C a rt

Stainless Steel Cart

SS48-G

DCB-1 Ca rt

Black Painted Steel Cart

BL48-G

PS CB-1 CA RT

Stainless Steel Storage Cart

(P3X and H3X Only)

SS26-P BL26-P

Package Cart

Painted Steel Cart

(Packages Only)

Stainless Steel
In-ground Post

Painted Steel

In-ground Post

SIDE & FRONT SHELF OPTIONS:

SKFPB2

Black Solid Surface Side Shelf

(Painted Support)

* Installing a front shelf with a PSCB-1 cart may limit access to cart interior.

Broilmaster

Broilmaster

|

14

|

Black Solid Surface Side Shelf

SKFB2

(Stainless Steel Support)

SKSS2

Stainless Steel Side Shelf

(Stationary)

Stainless Steel Patio Post

with Cast Iron Base

DPA 153

Stainless Steel

Drop Down Shelf

Painted Steel Patio Post

with Cast Iron Base

FKBLACK

Black Composite Surface

Front Shelf*

FKSS

Stainless Steel

Front Shelf*

AccessoriZE

Closed

SMOKER SHUTTER

Open

STAINLESS S TE EL SIDE BURNER GRILL COVER

STAINLESS S TE EL INFR ARED BURNER

STAINLESS S TE EL GRIDDL ESMOKER BOX

BUILT-IN GRILLS

In addition to carts and posts,
Broilmaster offers a stainless steel
surround that lets you install any P3,
H3, Q3, R3 or C3 grill into an island
of your own design. Complete your
outdoor kitchen with stainless steel
doors, drop-in side burner, tilt-out
Propane caddy (or can hold a small
waste container), and even matching
stainless steel registers (required
for Propane installations).

Broilmaster

Broilmaster

|

|

15

BROILMASTER WARRANTY

LIMITED LIFETIME
Against Rust-through

10 YE ARS
Against Rust-through

5 YEARS
Against Rust-through

2 YEARS
Against Rust-through

1 YEAR
Against Rust-through

Broilmaster

|

Aluminum Grill Housing (except paint) , Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart,
Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In
Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152) , Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit

Stainless Steel Burners for H-Series and R3B

Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancers, Painted Electro-Galvanized Steel Components,
Stainless Steel Smoker Shutter

Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield

Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other par ts and accessories – including those made from
stainless steel – unless specified above, paint on aluminum grill head
