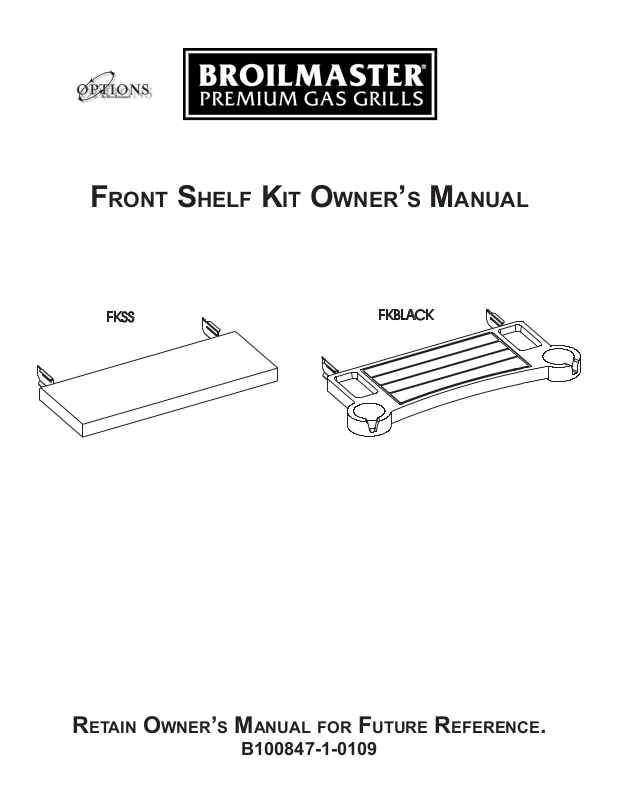

Fr o n t Sh e l F Ki t ow n e r ’S Ma n u a l
re t a i n ow n e r ’S Ma n u a l F o r Fu t u r e re F e r e n c e .
B100847-1-0109
co n g r a t u l a t i o n S !
You have chosen the nest accessory for your outdoor cooking pleasure.
Please take time to read this entire manual before installing your
premium Broilmaster® Front Shelf Kit.
iM P o r t a n t in F o r M a t i o n
iM P o r t a n t : th i S M a n u a l S h o u l d B e r e a d t h o r o u g h l y B y t h e P e r S o n i n S t a l l i n g t h e S h e l F K i t
a n d a l l P e r S o n S w h o w i l l u S e a n d M a i n t a i n t h e S h e l F K i t . th e i n S t a l l e r S h o u l d B e S u r e t h e
M a n u a l iS l e F t i n t h e P o S S e S S i o n o F t h e u S e r . th e u S e r S h o u l d r e t a i n t h i S M a n u a l F o r F u t u r e
r e F e r e n c e w h e n u S i n g o r c l e a n i n g t h e S h e l F K i t a n d t o P r o P e r l y i d e n t i F y a n y r e P a i r P a r t S
t h a t M a y B e r e q u i r e d .
Before You Begin
This manual includes an illustration for each of the
ve shelf kits available for your grill. Locate the
illustration that depicts the shelf kit you have and
then carefully follow all instructions pertaining to
your kit.
Each step of the installation is illustrated. In
each illustration parts are identied with “Index”
numbers. Index numbers appear in parenthesis
after a part name is mentioned for the rst time in
the instructions and are labeled on the illustrations.
You can reference each part by its key number
on the Parts List if you need help in identifying a
part.
Tools Required
These tools are required for the assembly of your
shelf kit:
• Phillips screwdriver
• Socket set or nut drivers
Compare the parts found in the shipping container
to the parts list. If any parts are missing contact your
Broilmaster® dealer before beginning assembly.
ca u t i o n : Pa r t S M a y h a v e S h a r P e d g e S . we a r
l e a t h e r w o r K g l o v e S a n d h a n d l e P a r t S c a r e -
F u l l y d u r i n g t h e u n P a c K i n g , a S S e M B l y a n d t h e
i n S t a l l a t i o n .
Page 2 B100847-1-0109
Fr o n t Sh e l F in S t a l l a t i o n
Front Shelf
Install the brackets using three of the four mount screws
provided as shown by the following gures.
Note: The remaining screw is left out to allow the
bracket to pivot during installation.
FKBlacK
Fi g u r e 1
FKSS
Fi g u r e 2
Insert the front control panel pin through the slots in
the bracket. Install the remaining bracket screw at
this time.
B100847-1-0109 Page 3
Pa r t S di a g r a M & Pa r t S li S t - Fr o n t Sh e l F
Index
No.
1 B100872 FRONT SHELF (FKBLACK)
5 B100034 LEFT FRONT BRACKET
6 B100035 RIGHT FRONT BRACKET
4 B100836 FRONT SHELF
5 B100034 LEFT FRONT BRACKET
6 B100035 RIGHT FRONT BRACKET
Part No. Description
FKBLACK
B100020 HARDWARE PACKAGE
FKSS
B100018 HARDWARE PACKAGE
BROILMASTER
A Division of Empire Comfort Systems, Inc.
Belleville, Illinois 62220
®
918 Freeburg Ave.
vi Si t o u r w e B S i t e a t w w w .broilmaster.com
re t a i n ow n e r ’S Ma n u a l F o r Fu t u r e re F e r e n c e .
Page 4 B100847-1-0109
