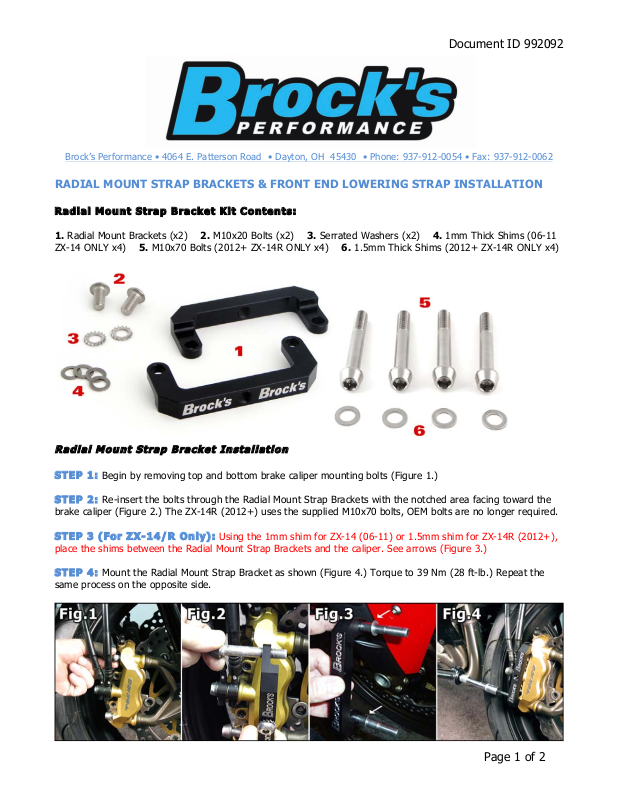

Document ID 992092
!
Page 1 of 2
!
!
!
!
!
!
Brock’s Performance • 4064 E. Patterson Road • Dayton, OH 45430 • Phone: 937-912-0054 • Fax: 937-912-0062
!
RADIAL MOUNT STRAP BRACKETS & FRONT END LOWERING STRAP INSTALLATION
!

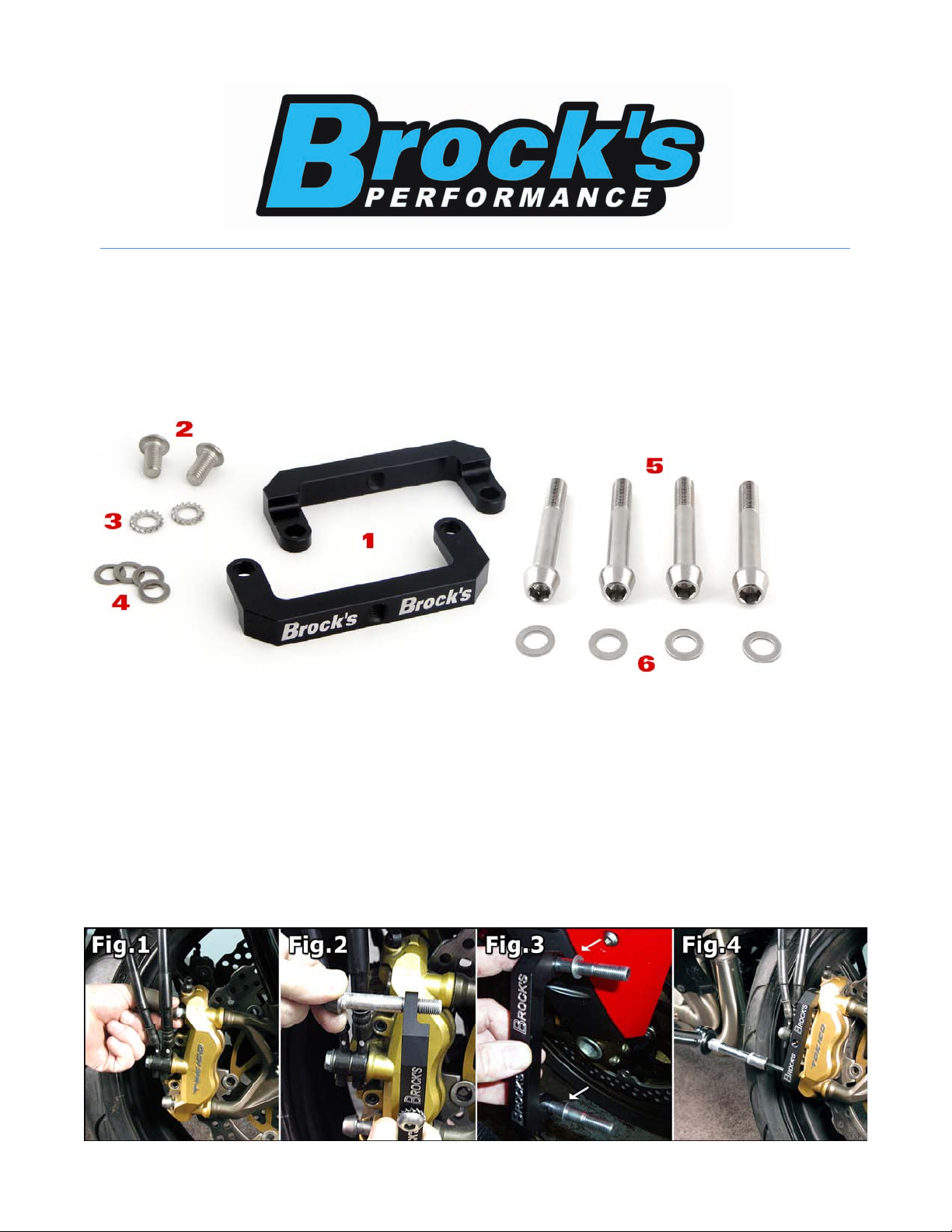

Radial Mount Strap Bracket K it Contents:
1. Radial Mount Brackets (x2) 2. M10x20 Bolts (x2) 3. Serrated Washers (x2) 4. 1mm Thick Shims (06-11
ZX-14 ONLY x4) 5. M10x70 Bolts (2012+ ZX-14R ONLY x4) 6. 1.5mm Thick Shims (2012+ ZX-14R ONLY x4)
Radial Mount Strap Bracket Installation
STEP 1: Begin by removing top and bottom brake caliper mounting bolts (Figure 1.)
STEP 2: Re-insert the bolts through the Radial Mount Strap Brackets with the notched area facing toward the
brake caliper (Figure 2.) The ZX-14R (2012+) uses the supplied M10x70 bolts, OEM bolts are no longer required.
STEP 3 (For ZX-14/R Only): Using the 1mm shim for ZX-14 (06-11) or 1.5mm shim for ZX-14R (2012+),
place the shims between the Radial Mount Strap Brackets and the caliper. See arrows (Figure 3.)
STEP 4: Mount the Radial Mount Strap Bracket as shown (Figure 4.) Torque to 39 Nm (28 ft-lb.) Repeat the
same process on the opposite side.
Document ID 992092
!
Page 2 of 2

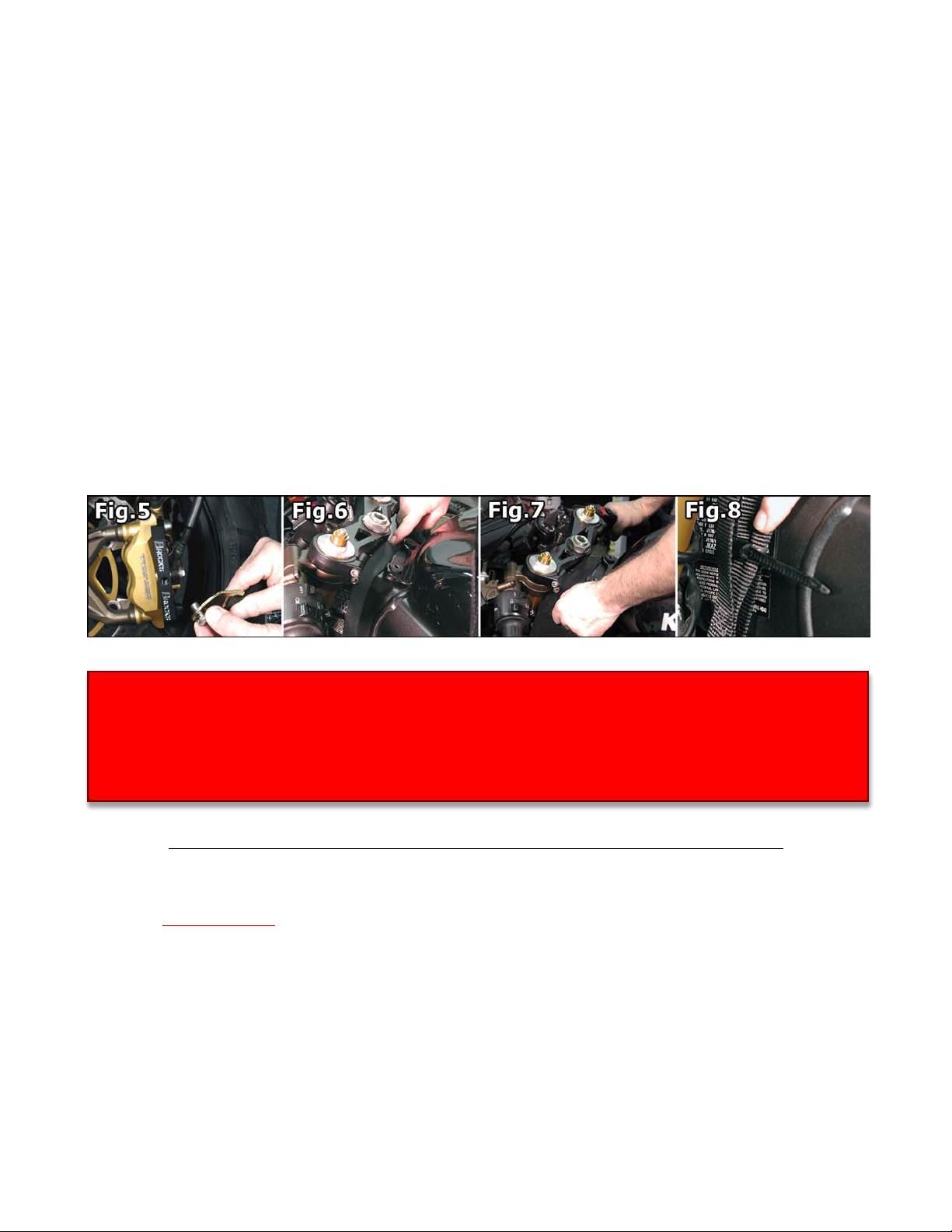

Front End Strap Installation
STEP 5: Install release buckle on left side of bike (clutch lever side) using M10x20 bolt and serrated washer
(Figure 5), hand-tighten.!
!
STEP 6: ALWAYS route strap UNDER any cables and wires to prevent pinching or damage. DO NOT ALLOW
STRAP TO TWIST. Route strap upward over steering neck, and down the other side (Figure 6.) Attach the
remaining end of strap as described in Step 5. Tighten strap slightly to remove slack. Torque M10x20 bolts on
both sides to 39 Nm (28 ft-lb.)!
!
STEP 7: To Lower Front End: Apply moderate pressure to front brake lever, lunge forward to compress front
forks while simultaneously pulling upward on strap handle (Figure 7.) ATTENTION: BIKE MAY FALL OVER! Short
kickstands are required on some models. Contact Brock’s Performance for details.!
!
STEP 8: DANGER: Strap handle MUST be securely fastened! A loss of control can occur if the strap handle
becomes tangled in the front wheel or brake assembly. Brock’s Performance recommends a reusable zip tie to
secure strap handle in a safe location (Figure 8.)!
!
To Raise Front End: Press release buckle.
!
!
TEST FOR FULL STEERING TRAVEL BEFORE MOVING THE BIKE
The front end should travel stop to stop the same as it would without the strap.
Additional steering tension will be noticed while lowered.
CONGRATULATIONS! THE INSTALLATION IS COMPLETE.
WARNING: Chassis adjustments can alter the handling
characteristics of any machine, and a lowered vehicle is more
likely to experience obstacle and/or cornering clearance contact
problems, especially with the addition of a passenger.
All Brock’s Performance products are designed for closed-course racetrack use ONLY!
For more information on Brock’s Performance Warranty and Terms and Conditions:
www.BrocksPerformance.com
> About Us > Terms and Conditions
For Questions and Comments:
www.BrocksPerformance.com > Customer Service > Contact Us
or call the Tech Line 937-912-0054
