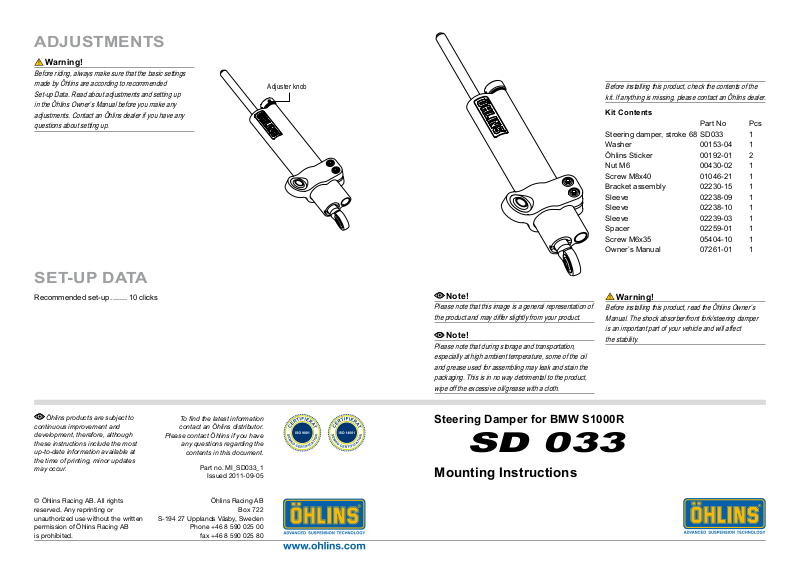

Page 1
ADJUSTMENTS
Warning!
Before riding, always make sure that the basic settings
made by Öhlins are according to recommended
Set-up Data. Read about adjustments and setting up
in the Öhlins Owner’s Manual before you make any
adjustments. Contact an Öhlins dealer if you have any
questions about setting up.
SET-UP DATA
Recommended set-up ........ 10 clicks

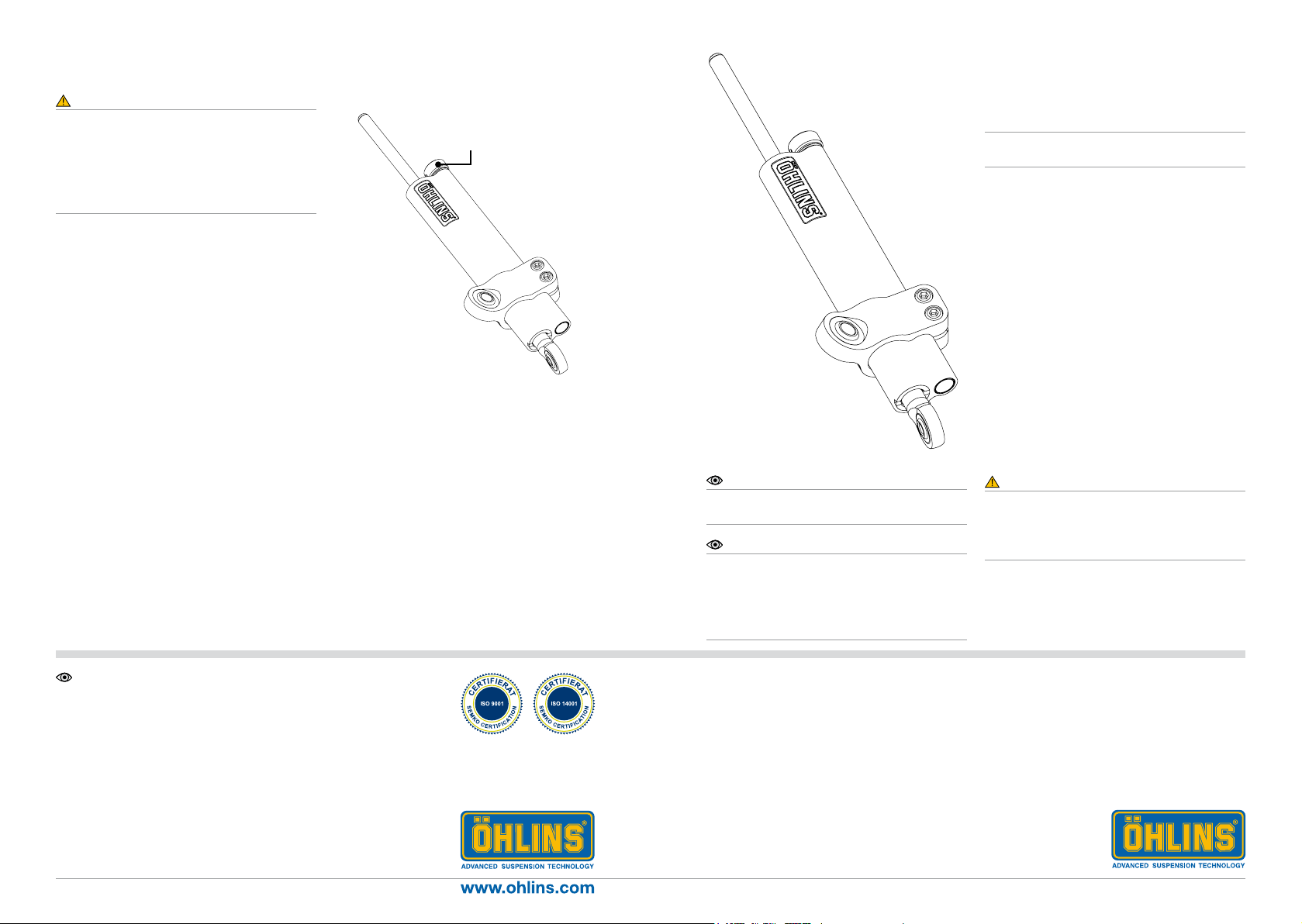

Adjuster knob
Note!
Please note that this image is a general representation of
the product and may differ slightly from your product.
Note!
Please note that during storage and transportation,
especially at high ambient temperature, some of the oil
and grease used for assembling may leak and stain the
packaging. This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.
Before installing this product, check the contents of the
kit. If anything is missing, please contact an Öhlins dealer.
Kit Contents
Part No Pcs
Steering damper, stroke 68 SD033 1
Washer 00153-04 1
Öhlins Sticker 00192-01 2
Nut M6 00430-02 1
Screw M8x40 01046-21 1
Bracket assembly 02230-15 1
Sleeve 02238-09 1
Sleeve 02238-10 1
Sleeve 02239-03 1
Spacer 02259-01 1
Screw M6x35 05404-10 1
Owner’s Manual 07261-01 1
Warning!
Before installing this product, read the Öhlins Owner’s
Manual. The shock absorber/front fork/steering damper
is an important part of your vehicle and will affect
the stability.
Öhlins products are subject to
continuous improvement and
development, therefore, although
these instructions include the most
up-to-date information available at
the time of printing, minor updates
may occur.
© Öhlins Racing AB. All rights
reserved. Any reprinting or
unauthorized use without the written
permission of Öhlins Racing AB
is prohibited.
To nd the latest information
contact an Öhlins distributor.
Please contact Öhlins if you have
any questions regarding the
contents in this document.
Part no. MI_SD033_1
Issued 2011-09-05
Öhlins Racing AB
Box 722
S-194 27 Upplands Väsby, Sweden
Phone +46 8 590 025 00
fax +46 8 590 025 80
Steering Damper for BMW S1000R
SD 033
Mounting Instructions
Page 2
MOUNTING INSTRUCTIONS MOUNTING INSTRUCTIONS
Warning!
It is advisable to have an Öhlins dealer install the shock
absorber/front fork/steering damper.
Warning!
If working on a raised vehicle, ensure it is securely
supported so that it will not tip.
Note!
Before mounting this product clean the vehicle thoroughly.
Note!
When working on this product, always see the Vehicle
Service Manual for vehicle specic procedures and
important data.
2
Loosen and remove the cover underneath the
lower triple clamp.
3
Remove the original steering damper.
4
Mount the Öhlins steering damper to Bracket
assembly (02230-15). Mount according to
gure.
5
Mount the steering damper to the frame.
Use Screw 01046-21
Sleeve 02238-10
Sleeve 02238-09
Spacer 02259-01
6
Fasten the end eye to the original triple clamp
bracket.
Use Screw 05404-10
Sleeve 02239-03
Washer 00153-04
Nut 00430-02
7
Loosen the screws to Bracket assembly
(02230-15) in step 4. Adjust the steering
damper by letting it slide in its bracket assembly so that the steering damper uses similar
stroke both ways.
Note!
Make sure that the steering has clearance for turning
both to the left and to the right end positions, and that the
damper is not used as a stop.
8
Remount all standard covers.
9
Read more about the steering damper and
its different settings in your Öhlins Owners
Manual.
Caution!
Make sure that all screws are tightened to the correct
torque and that nothing fouls or restricts movement of the
steering damper.

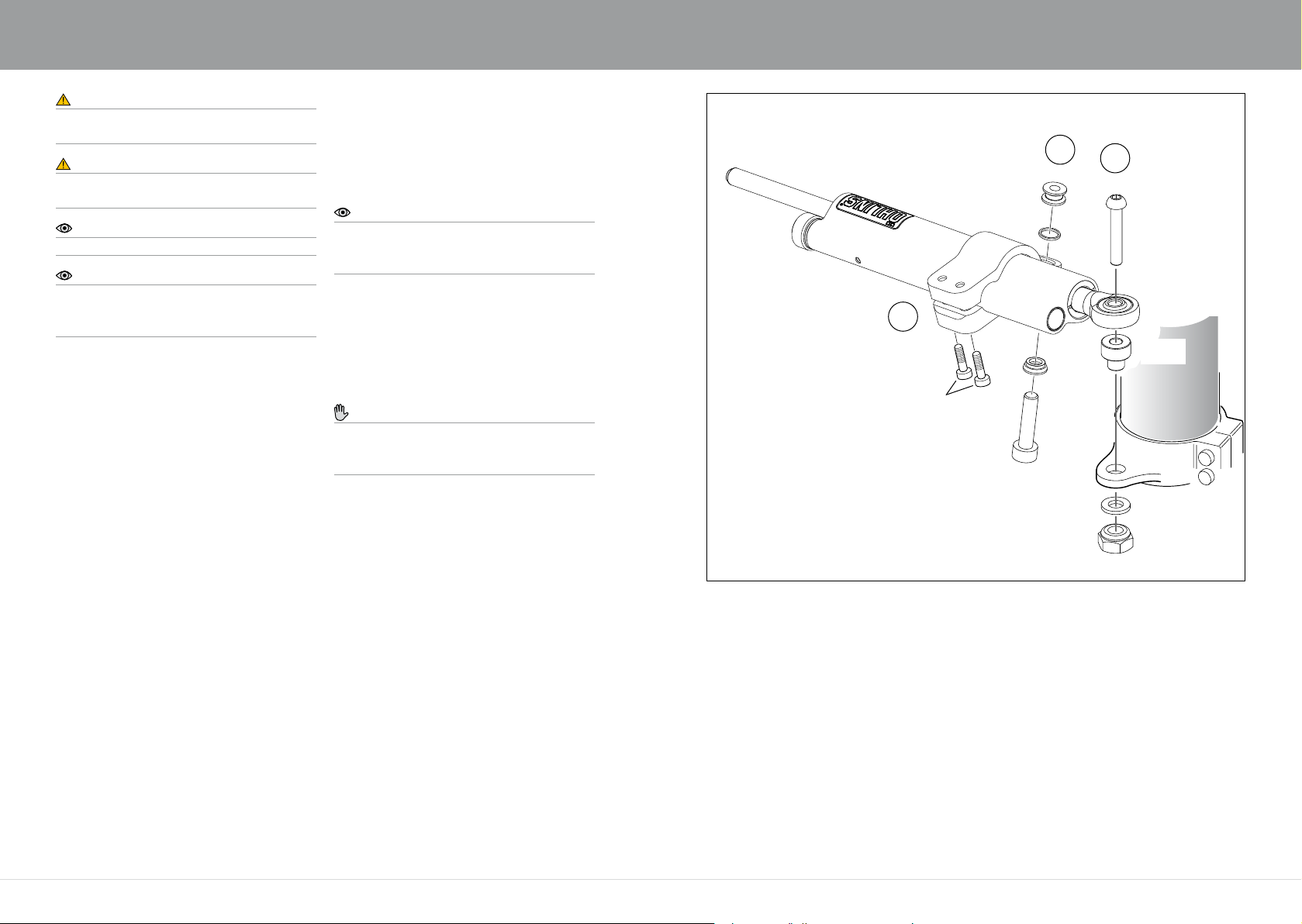

View from the front of the vehicle
4
Tightening torque 6Nm
Sleeve
02238-09
Spacer
02259-01
Tightening
torque
according to
vehicle manual
5
Sleeve
02238-10
Screw
01046-21
6
Screw
05404-10
Front fork leg - left
Sleeve
02239-03
Washer
00153-04
Nut
00430-02
1 2
