BROAN EC6230TSSL Installation guide

INSTALLATION INSTRUCTIONS

HB0091

EC62 SERIES

!

INTENDED FOR DOMESTIC COOKING ONLY

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

HOMEOWNER: USE AND CARE INFORMATION ON PAGES 11 & 12

Broan-NuTone Canada ULC; Mississauga, Ontario www.broan.ca 1-877-896-1119

REGISTER YOUR PRODUCT ONLINE AT: www.broan.ca

!

21240 Rev. 02

.

d

!

WARNING

!

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by

qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code
authorities.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vente

7. To reduce the risk of fire or electric shock, do not use this unit

with any additional solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

9. This unit must be grounded.

10. When applicable local regulations comprise more

restrictive installation and/or certification requirements,
the aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expenses.

d outdoors.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers

cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when

flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed

to accumulate on fan, filters or in exhaust ducts.

d) Use proper pan size. Always use cookware appropriate for the

size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or

metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned.

3. DO NOT USE WATER, including wet dishcloths or

towels — This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to

operate it.

B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power
unit.

4. Your power pack motor(s) has a thermal overload which will

automatically shut off the motor(s) if it overheats. The motor(s)
will restart when cooled down. If the motor(s) continues to shut
off and restart, have the power pack serviced.

5. The minimum hood distance above cooktop must not be

less than 24". A maximum of 30" above cooktop is highly
recommended for best capture of cooking impurities. For a
gas range, the bottom of the hood MUST NOT BE LESS
than 30” above cooktop.

6. Two installers are recommended because of the large size and

weight of this unit.

7. To reduce the risk of fire and to properly exhaust air, be sure to

duct air outside — Do not exhaust air into spaces within walls
or ceiling or into attics, crawl space or garage.

8. Because of the high exhausting capacity of this unit, you

should make sure enough air is entering the house to replace
exhausted air by opening a window close to or in the kitchen.

9. To reduce the risk of fire and electrical shock, the Broan Elite

EC62 Series models must be installed only with their own
built-in blower(s). Other blowers cannot be substituted.

10. Please read specification label on product for further

information and requirements.

2

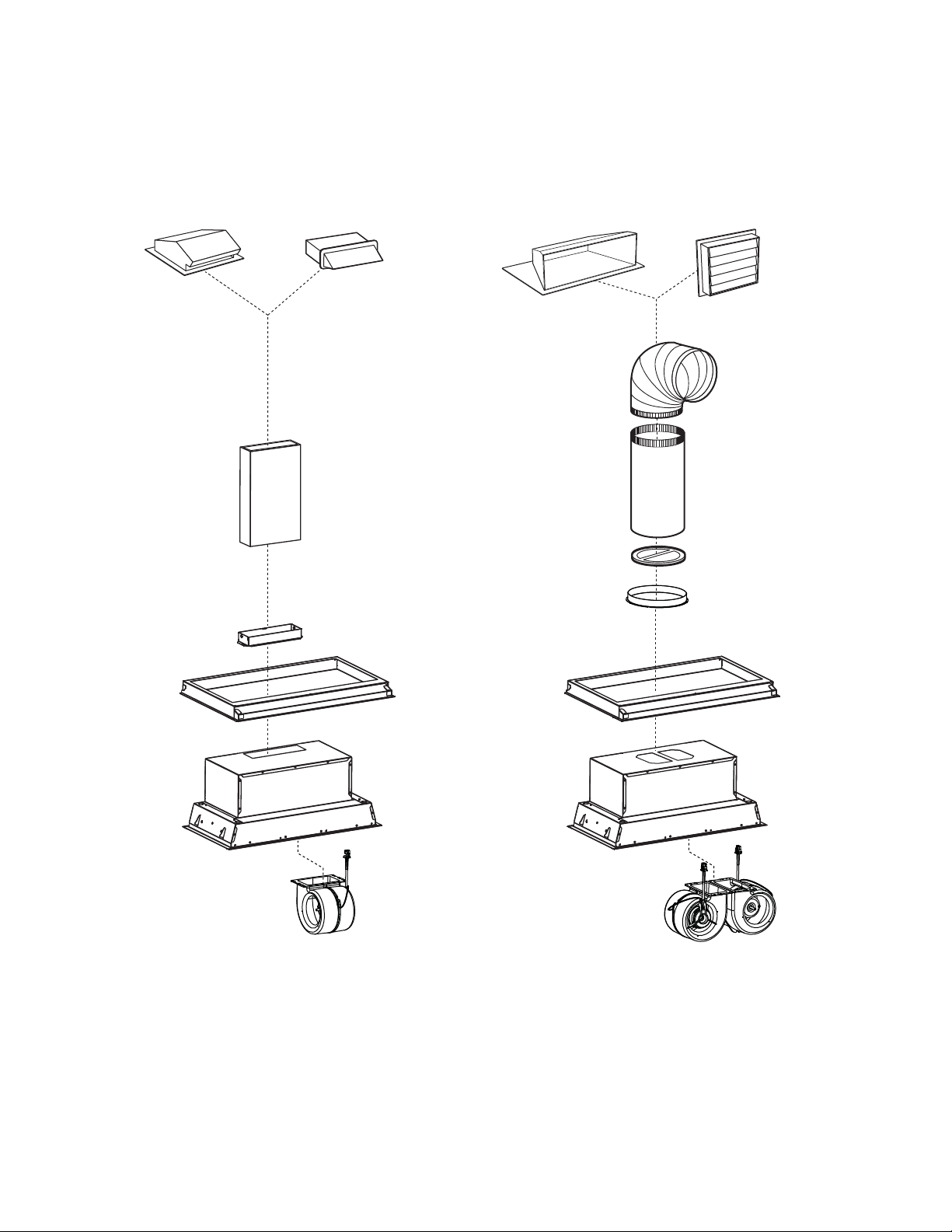

- EC62 SERIES POWER PACK SYSTEM -

STANDARD

3¼” X 10” ROOF CAP

(NOT INCLUDED)

TANDARD

S

3¼” X 10” DUCT

(NOT INCLUDED)

3¼” X 10” ADAPTER/

DAMPER

(SUPPLIED WITH SINGLE

BLOWER POWER PAC K)

STANDARD

3¼” X 10” WALL CAP

(NOT INCLUDED)

MODEL 437

HIGH CAPACITY ROOF CAP

(NOT INCLUDED)

10" ROUND ADAPTER

(SUPPLIED WITH

1000 CFM DUAL BLOWER

POWER PAC K )

MODEL 441

10" ROUND WALL CAP

(NOT INCLUDED)

MODEL 418

10" ROUND

ADJUSTABLE ELBOW

(NOT INCLUDED)

MODEL 410

10" ROUND DUCT

— 2 FT. SECTIONS

(NOT INCLUDED)

10" ROUND VERTICAL

IN-LINE DAMPER

(SUPPLIED WITH 1000 CFM

DUAL BLOWER POWER PAC K )

L6230SS,

L6236SS OR L6242SS

CUSTOM HOOD LINER

(OPTIONAL)

EC6230SSL

POWER PACK

HL0126

S

INGLE BLOWER

(600 CFM SUPPLIED WITH POWER PAC K )

L6230SS,

L6236SS OR L6242SS

CUSTOM HOOD LINER

(OPTIONAL)

EC6230TSSL

POWER PACK

D

UAL BLOWER

(1000 CFM, SUPPLIED WITH POWER PAC K )

3

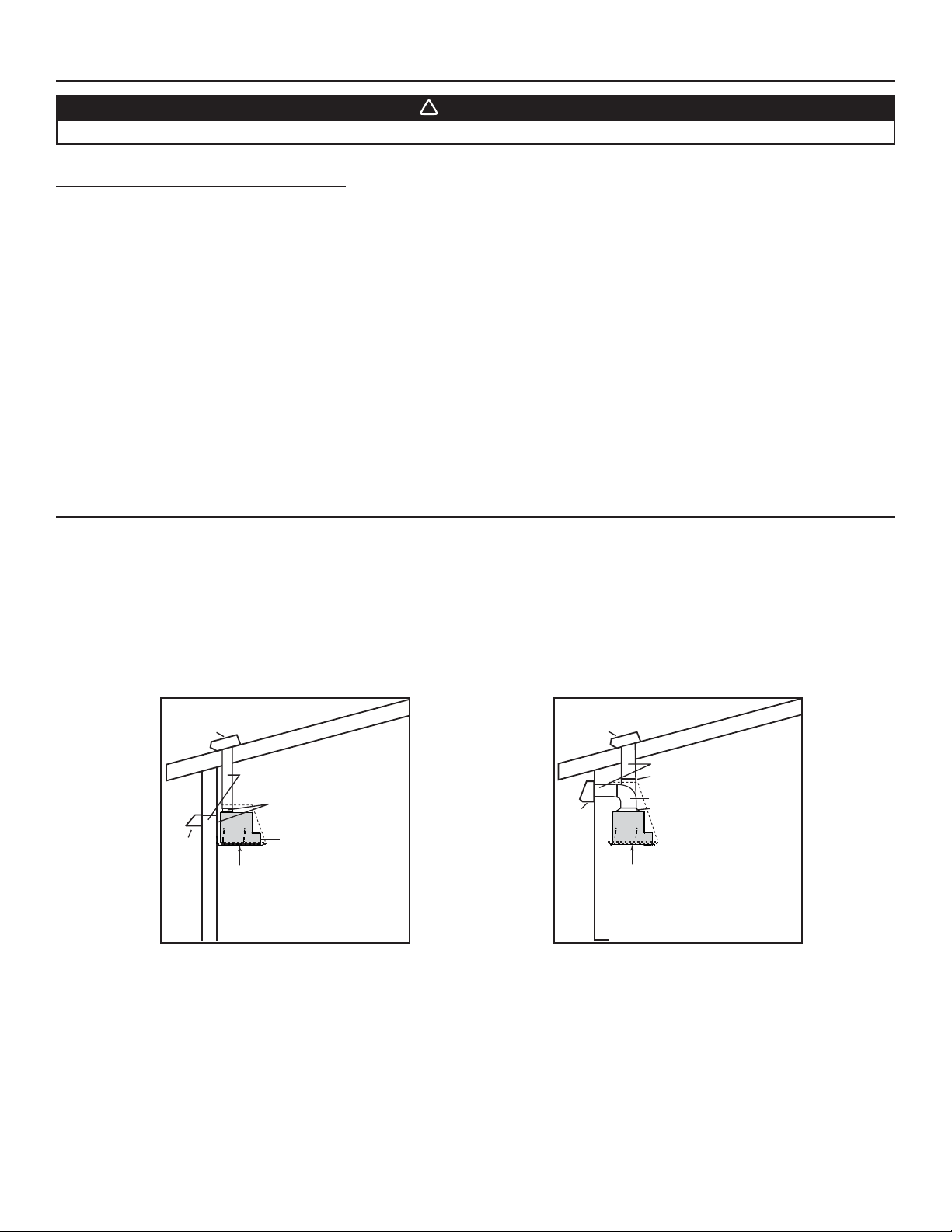

1. PREPARE THE INSTALLATION

!

WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:

- Power Pack

- Accessories: • 2 Filters

• 2 Filter knobs with screws, taped inside power pack

• 3¼” x 10” adapter/damper (supplied with 600 CFM single blower power pack)

• 10” round in-line vertical damper (supplied with 1000 CFM dual blower power pack)

• 10” round adapter (supplied with 1000 CFM dual blower power pack)

• Bag of parts including: 1 wire clamp, 2 wire connectors, 4 no. 8 x 3/8” screws, 9 no. 8 x 1/2” chrome plated screws,
10 no. 8-32 x 1/4” screws. If need be, discard extra hardware.

Parts sold separately:

- Custom hood liner model L6230SS, L6236SS or L6242SS (optional)

- Ducts, elbows, wall and roof caps. Refer to page 3 for a complete list of venting options and model numbers.
NOTE: During installation, protect countertop and/or cooktop.

2. INSTALL DUCTWORK AND ELECTRICAL WIRING

Plan where and how the ductwork will be installed. Access to the top of the power pack is preferred for connection of ductwork.
Install proper-sized ductwork, elbows and roof or wall cap for the type of power pack you are installing. If installing EC6230SSL single

blower power pack, use 3¼” x 10” ductwork. If installing EC6230TSSL double blower power pack, use 10” round ductwork. Use 2” metal
foil duct tape to seal duct joints.

We recommend to install the power pack at a minimum distance of 24” from an electric range and 30” from a gas range.

Distances over 30” are at the installer and users discretion.
Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet below the bottom of the custom hood

Roof cap

3¼” x 10” duct

3¼” x 10”
adapter & damper

Wall
cap

HH0116A

24” minimum above
cooking surface
(30” for gas range)

ODEL EC6230SSL

M

Power pack

(SINGLE BLOWER) TYPICAL DUCTWORK

Roof cap

10” round duct
10” in-line
vertical damper
10” round elbow

Wall
cap

HH0117A

10” round adapter

Power pack

24” minimum above
cooking surface
(30” for gas range)

MODEL EC6230TSSL

(DUAL BLOWER) TYPICAL DUCTWORK

NOTE: Although the horizontal discharge installation is feasible with EC6230SSL power pack model, this installation type should be
performed in specific situation only since it requires particular knowledge and technical skills from the installers.

4

3. PREPARE CUSTOM HOOD

!

WARNING

When building a custom hood, always follow all applicable construction codes and standards. The custom hood
must be positively secured to wall studs or other wooden framework behind the drywall. Make sure it is capable of
supporting its own weight and the weight of the power pack. Failure to do so may cause personal injury or damage
to countertop or cooktop.

The custom hood must be constructed to fit the shape and total weight of the EC62 power pack
model. The recommended minimum thickness for the custom hood base is 5/8”. If an optional custom
hood liner will be installed, we recommend the sides and front of the custom hood to be 3/4” thick. If
the optional custom hood liner will not be installed, the custom hood sides and front thickness are at
the installer’s discretion. See chart and illustration for details.

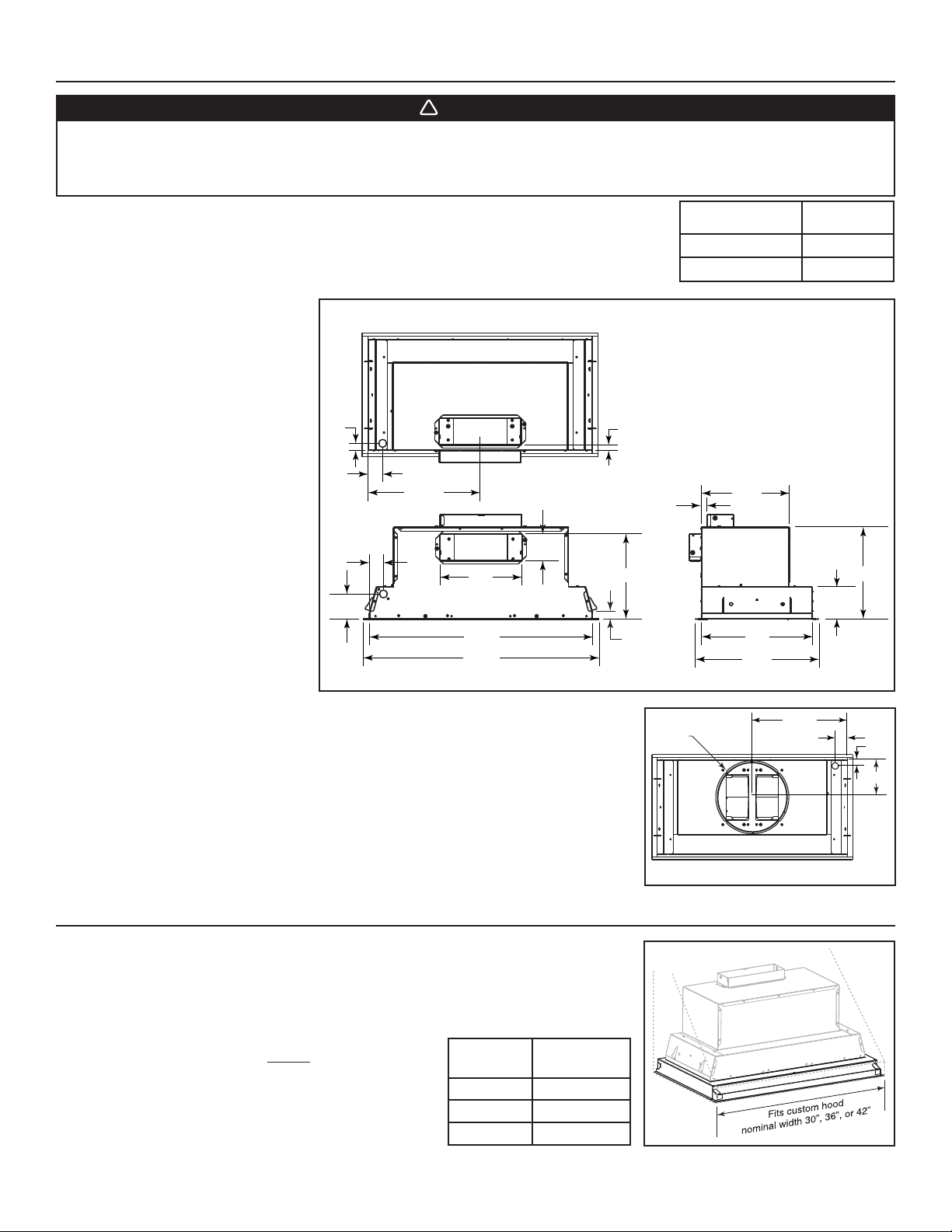

POWER PAC K TYPE TOTAL WEIGHT

SINGLE BLOWER 33 lb.

UAL BLOWER 45 lb.

D

SINGLE BLOWER POWER PACK

7/8”

1¾”

15

2

HK0104A

/16”

TOP VIEW

5/8”

1¾”
13 5/16”

16”

3 ³/

9¾”

5

/8”

26
28 1/8”

BACK VIEW SIDE VIEW

10 1/8”

11/16”

DUAL BLOWER POWER PACK

NOTE: The dual blower model has the same dimensions as the single blower model, but does
not have a horizontal discharge. Refer to single blower power pack illustration for back
and side views, and disregard horizontal discharge measurements.

ø10”

10½”

5/8”

13¼”
14¾”

13 5/16”

1¾”

3 ³/

16”

10

15

/16”

7/8”

5¼”

HK0114A

TOP VIEW

4. INSTALL CUSTOM HOOD LINER (OPTIONAL)

The liners are especially designed to protect the exterior base of the custom hood. Refer to
the table below to find the right liner model number according to the width of the custom hood
nominal width. To view specific model information, including depths for each liner model, visit
www.broan.ca or contact Technical Support (phone number listed on front cover).

To install, see instruction packed with custom hood liner.
NOTE: The liner must be installed before the insert.

LINER MODEL

L6230SS 30”
L6236SS 36”
L6242SS 42”

5

CUSTOM HOOD

NORMAL WIDTH

HA0067A

5. CUT THE HOLE IN CUSTOM HOOD BASE

If it is not done yet, cut a hole in the bottom of the custom hood, using the dimensions shown
at right.

NOTE: Keep in mind that the unit exterior flange is 3/4’’.

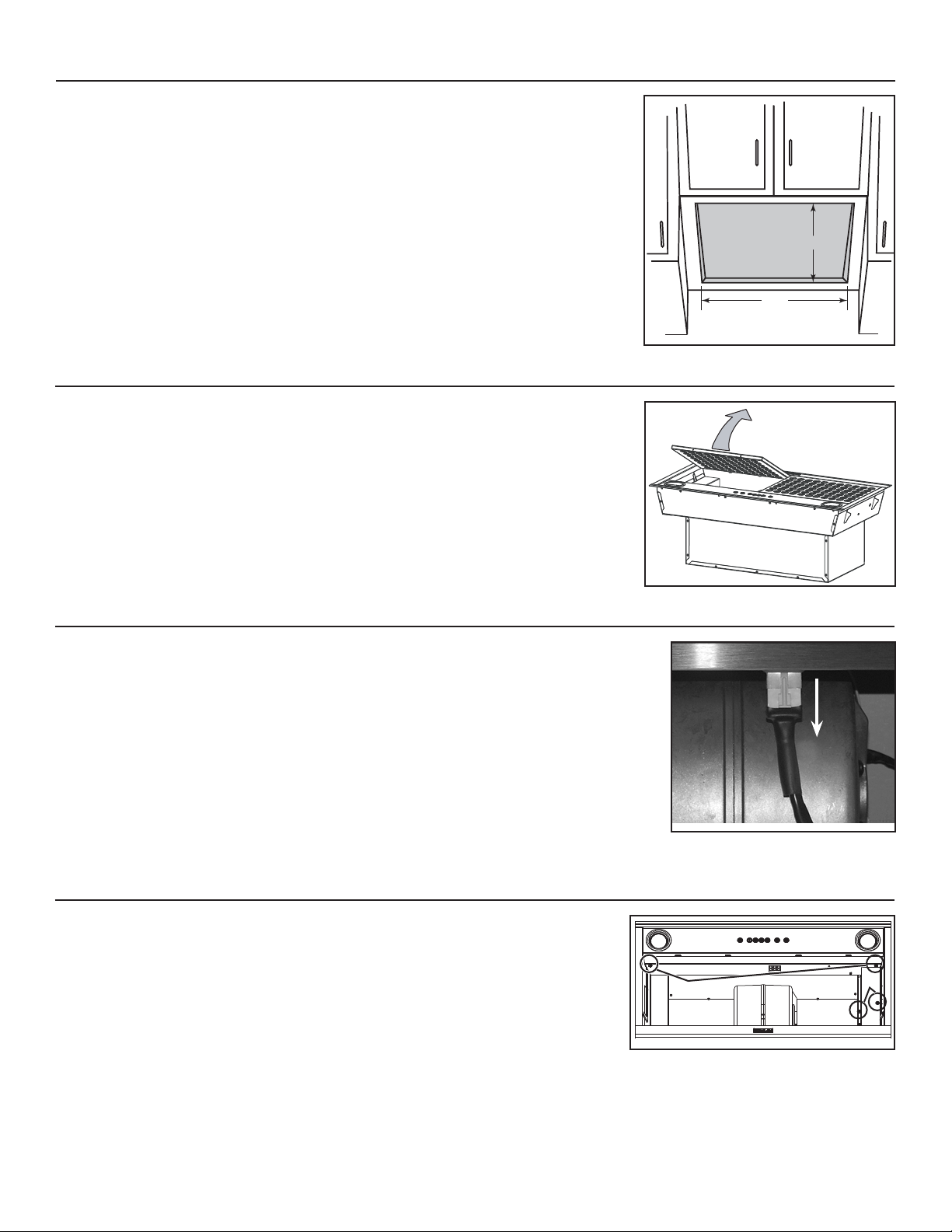

6. REMOVE FILTER

Rest the power pack on a table. Remove tapes on filters. Lift filters from power pack by pushing
them towards the back and rotate, then set filters aside.

13³/8”

26¾”

HD0340A

7. UNPLUG THE BLOWER(S)

Unplug the blower(s) (one or two, depending on model) from the front panel.

8. REMOVE WIRING COVER AND FRONT PANEL

Using a Robertson or a Phillips no. 2 screwdriver, remove both wiring cover retaining screws
(A). Detach it from the power pack and set aside with its screws. Then, remove both sides
screws (B) retaining the front panel to the power pack. Carefully detach the front panel from
the power pack and set aside with its screws.

HD0366

HE0105

B

A

HD0365

6

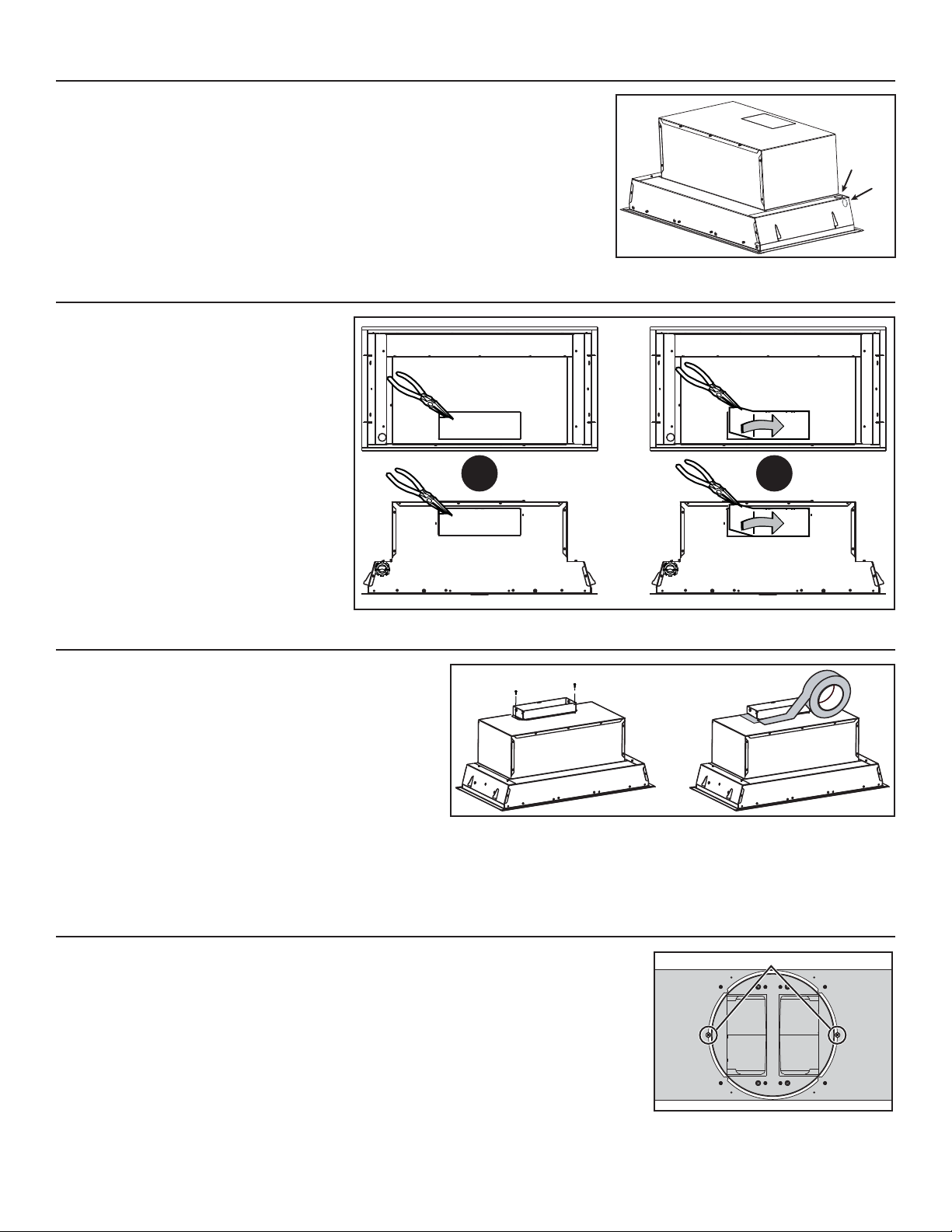

9. REMOVE THE ELECTRICAL KNOCKOUT

From inside the power pack, punch out the electrical knockout hole on top right side (C) OR
on back right side (D). Install the wire clamp (included in parts bag).

HR0030

10. REMOVE THE KNOCKOUT OPENING (SINGLE BLOWER MODEL ONLY)

Remove the knockout opening on top (vertical
discharge installation) or on back (horizontal
discharge installation) of the power pack.

HR0037

1

C

D

2

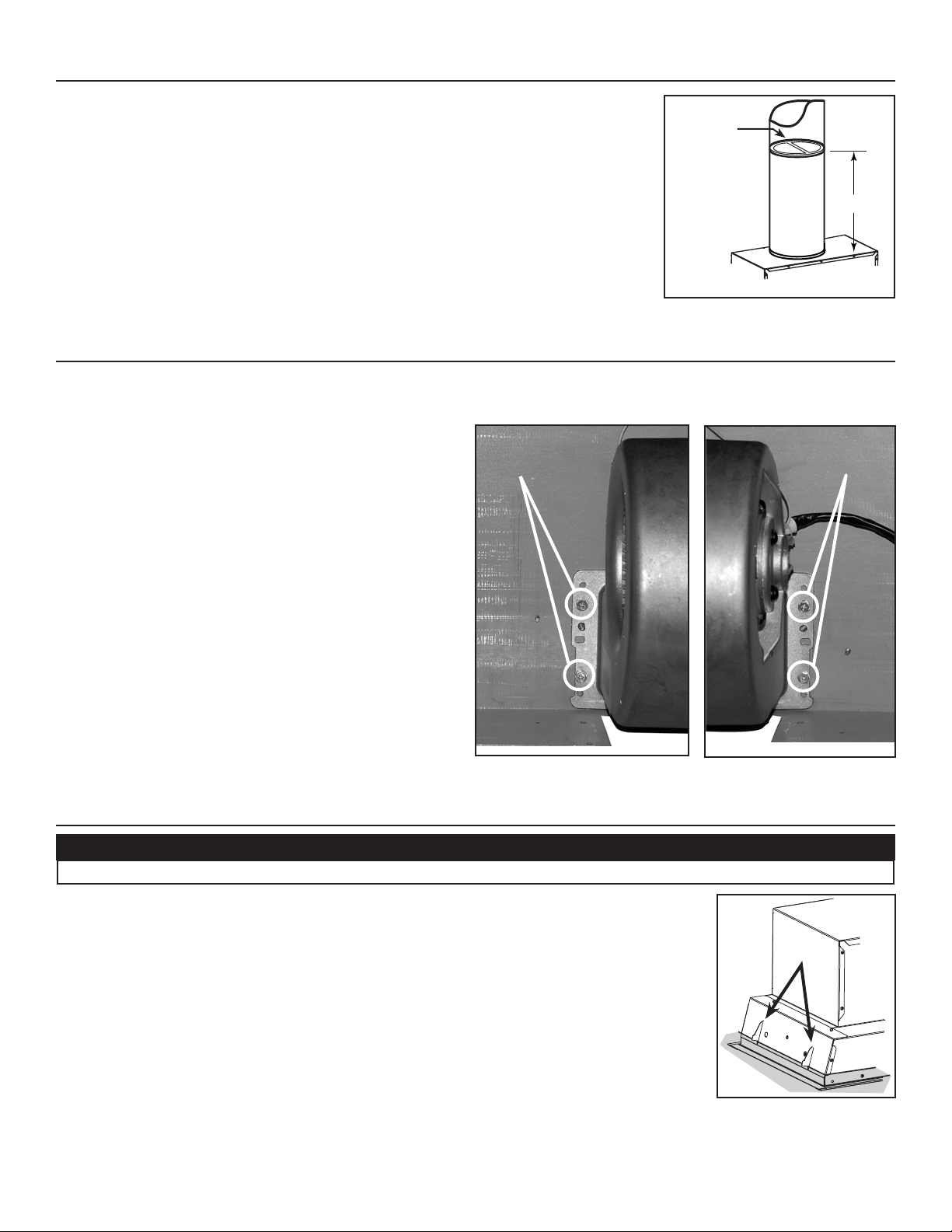

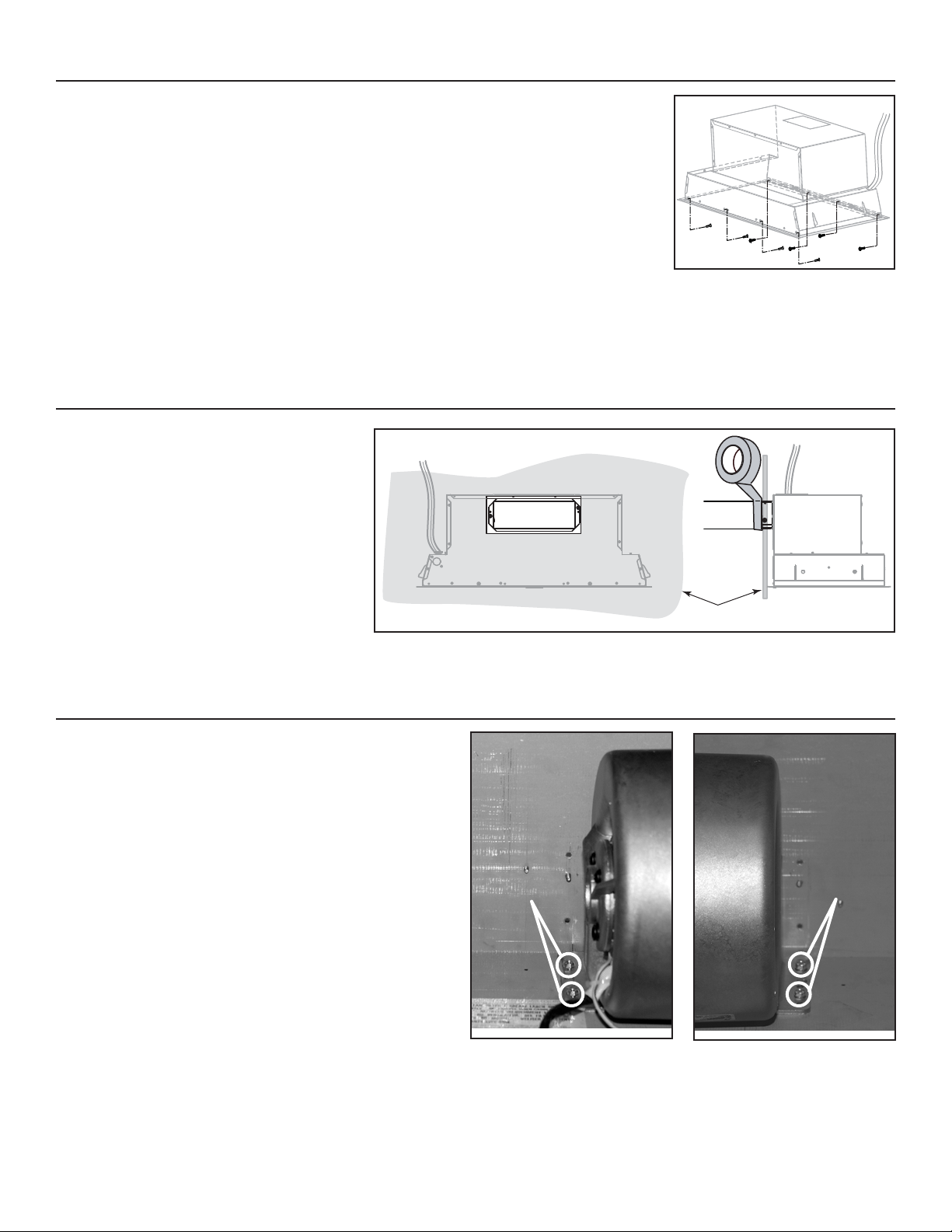

11. INSTALL THE ADAPTER/DAMPER (SINGLE BLOWER MODEL ONLY)

VERTICAL DISCHARGE INSTALLATION

Using 2 no. 8 x 3/8’’ screws provided in parts bag, secure the
adapter/damper to the top of the power pack. Remove tape from
damper flap. Seal the adapter to the power pack using metal foil
duct tape.

HO0137

HORIZONTAL DISCHARGE INSTALLATION

The adapter/damper will be installed on the back of the power pack once the power pack is mounted in the custom hood.
Refer to step 15.

12. INSTALL THE ADAPTER AND THE DAMPER (DUAL BLOWER MODEL ONLY)

MOUNTING SCREWS LOCATION

Using 2 no. 8 x 3/8’’ screws from parts bag, assemble the adapter on the top of the power pack.
Seal all joints with metal foil duct tape to eliminate air leaks.

HJ0035

7

12. INSTALL THE ADAPTER AND THE DAMPER (DUAL BLOWER MODEL ONLY) (CONT'D)

DAMPER HINGE

Install 10” damper inside the VERTICAL ductwork that will be attached to power pack. Do not install
in a horizontal ductwork or it will not open and close properly. Remove shipping tape if present.

PARALLEL TO
POWER PACK
SIDES

To optimize airflow and reduce noise, position the damper at least 17” above the top of the double
blower power pack; or as far as the duct run will allow. Also, ensure the damper hinge will be parallel
to power pack sides (see figure at right). Secure the damper to the duct with 3 no. 8 sheet metal

17” min.

screws (not provided). Ensure damper opens and closes freely. Seal all joints with metal foil duct
tape to eliminate air leaks.

HJ0036A

13. REMOVE THE BLOWER (SINGLE BLOWER MODEL, HORIZONTAL DISCHARGE ONLY)

In order to ease the power pack alignment with horizontal ductwork, disassemble the blower from the power pack before installing it in the
custom hood.

LEFT SIDE MOUNTING

SCREWS LOCATION

Using a 5/16” socket, or a Phillips no. 2 or a Robertson no. 2
screwdriver, remove all blower mounting screws from the inner top
of the power pack. Set blower and screws aside.

HD0368

14. INSTALL THE POWER PACK

CAUTION

Take care not to kink ducting or pinch electrical cable when installing the power pack.

RIGHT SIDE MOUNTING

SCREWS LOCATION

HD0369

Insert the power pack in the custom hood until the bottom of the clasping springs (2 per side) rests on the
top of the custom hood base (grey zone in illustration at right).

8

CLASPING

SPRINGS

HD0370

14. INSTALL POWER PACK (CONT'D)

From inside the power pack, using provided no. 8-10 x 1/2” screws, mount the power pack to the
custom hood base. To do so, raise the front until its flange rests on the outer side of the custom hood
base and use 2 screws to secure in place. Do the same for the back, then complete the installation
with 2 additional screws on the front and back. See figure at right for mounting screws locations.

VERTICAL EXHAUST INSTALLATION ONLY

Ensure the adapter/damper enters the ducting and the damper opens freely. Wherever it is possible,
seal connections with metal foil duct tape.

15. INSTALL THE ADAPTER/DAMPER ON BACK OF POWER PACK

(SINGLE BLOWER MODEL, HORIZONTAL DISCHARGE ONLY)

From the outside of the wall, using two no. 8 x 3/8’’
screws provided in parts bag, secure the adapter/
damper to the back of the power pack. Remove
tape from damper flap. Connect ducting to the
adapter/damper and seal the joint using metal foil
duct tape.

HH0126

HH0127A

BACK VIEW SIDE VIEW

WALL

16. REINSTALL THE BLOWER (SINGLE BLOWER MODEL, HORIZONTAL DISCHARGE ONLY)

The single blower power pack is factory shipped for a vertical
discharge installation. For a horizontal discharge installation,
the blower must be flipped. Using a 5/16” socket, or a Phillips or
Robertson no. 2 screwdriver, secure the blower to the inner back
of the power pack with all blower mounting screws (previously
removed in step 13).

LEFT SIDE MOUNTING

SCREWS LOCATION

HD0371

HD0372

RIGHT SIDE MOUNTING

SCREWS LOCATION

9

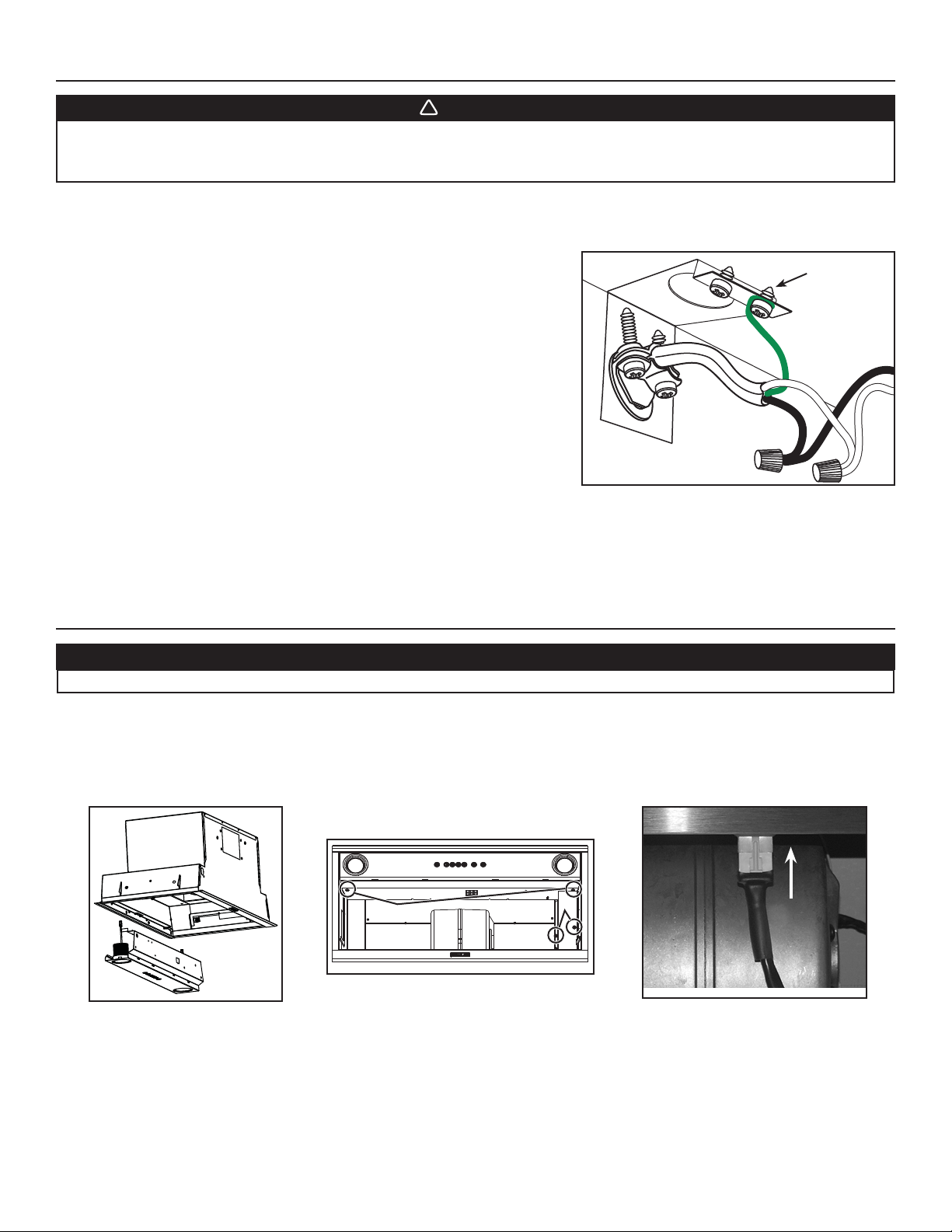

17. CONNECT WIRING (ALL MODELS)

!

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable
codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting
means to prevent power from being switched on accidentally.

Position the power pack below the installed custom hood. Insert the house wiring cable through the wire clamp previously
installed in step 9. Tighten the wire clamp to secure the cable.

A

Connect cable using provided wire connectors.
Connect wires as follows: BLACK to BLACK, WHITE to WHITE and GREEN

or BARE wire under ground screw. DO NOT FORGET TO CONNECT
THE GROUND.

HE0059

18. REINSTALL FRONT PANEL AND WIRING COVER

CAUTION

Take care not to pinch wiring when reinstalling the front panel and the wiring cover.

Carefully reassemble the front panel to the power pack by aligning the tabs with their corresponding slot. Using a Robertson or a Phillips
no. 2 screwdriver, secure the front panel to the power pack using its both retaining screws (A) previously removed in step 8. Reassemble
the wiring cover using its both retaining screws (B) previously removed in step 8. Plug the motor(s) (one or two, depending on model) to
the front panel.

A

HD0365

HO0260

B

HD0371

10

19. REINSTALL FILTERS

!

CAUTION

Remove protective plastic film covering filters before installing them.

1. Using a Phillips no. 2 screwdriver, assemble the knob to each filter.
NOTE: The screw MUST BE on filter tabs side. See illustration at right.

2. Rest rear filters edge on filter springs (B) in the power pack.

3. Using knob, tilt up the filters into position. Make sure filter tabs (C) are securely engaged in
power pack front edge after installation.

HD0373

HO0139

B

C

20. LED LIGHTING

The lighting of this hood is produced by two LED modules (included).

WARNING

Do not touch lamps during or soon after operation. Burns may occur. Cannot be replaced by any other type of light
bulb or LED module.

21. USE AND CARE

Filters

The filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates
more grease — like frying foods or wok cooking.
Remove filter by pushing it towards the back of power pack and rotating filter downward. Filters are dishwasher safe. Allow filters to dry
completely before reinstalling them in the power pack.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate de­tergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.

Blower(s) Cleaning

Remove the filters in order to access the blower(s). Use a shop vacuum to clean the blower(s).
Do not immerse in water.

11

21. USE AND CARE (CONT'D)

!

Power Pack Cleaning
Stainless steel cleaning:

Do:

• Regularly wash with clean cloth or rag soaked with warm water
and mild soap or liquid dish detergent.

• Always clean in the direction of original polish lines.

• Always rinse well with clear water (2 or 3 times) after cleaning.
Wipe dry completely.

• You may also use a specialized household stainless steel
cleaner.

Don’t:

• Use any steel or stainless steel wool or any other scrapers to
remove stubborn dirt.

• Use any harsh or abrasive cleansers.

• Allow dirt to accumulate.

• Let plaster dust or any other construction residues reach the
power pack. During construction or renovation, cover the power
pack to make sure no dust adheres to stainless steel surface.

Avoid when choosing a detergent:

- Any cleaners that contain bleach will attack stainless steel.

- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.

- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be

used close to a range.

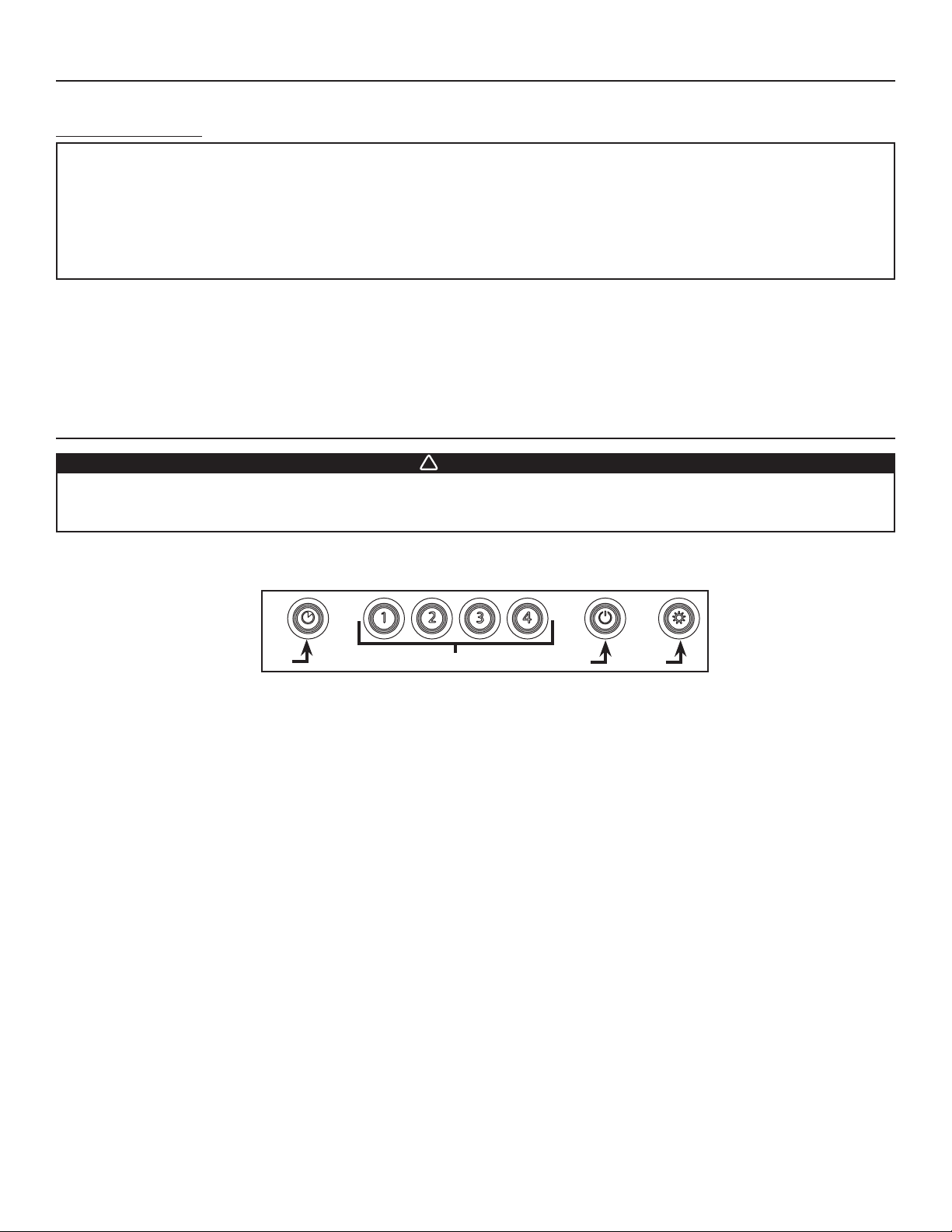

22. OPERATION

WARNING

When using a gas stove, always turn the power pack blower(s) on prior to begin cooking. In addition, the blower(s)
must be at least in third speed if three burners or more are turned on simultaneously. Failure to do so may lead the
surface of the power pack to become very hot.

Always turn your power pack on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to
clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.

HC0023

ABCD

A. DELAY SWITCH:

When a blower speed is selected, press this switch to activate the delay function. The corresponding blower speed switch will flash to
indicate this function is activated. The blower will continue to operate for 5 minutes and will stop automatically. To cancel the delay
function, press the delay switch once again.

B. STAR T/STOP/SPEED SELECTION SWITCHES:

Press the switch corresponding to the desired blower speed (from 1 for low speed to 4 for high speed). The chosen switch will light. To
turn off the blower, press once more on the corresponding blower speed switch; the switch light will shut off.

NOTE: When blower is off, pressing on blower speed 1 switch will cause the blower to start on high speed for a very short lapse of time,
and then resume on speed 1.

C. MASTER OFF/FILTER MAINTENANCE/HEAT SENTRY (TRIPLE FUNCTION SWITCH):

i. To turn off the blower(s) and the light simultaneously, press this switch once.
ii. After 25 hours of operation, this switch will light to indicate the filters and the blower wheel(s) need to be cleaned in order to maintain

efficient operation of the unit. The switch light will stay on until the function is reset by pressing this switch for 3 seconds.
iii. The light indicator is used for the Heat Sentry function as well.

HEAT SENTRY: The power pack is equipped with a protective device that activates when excessive heat is detected inside the power pack

and when it is set on speed 4. This device takes control of the blower and deactivates speed 4 for a 10-minute period and sets it on
speed 3. During the Heat Sentry activation, only speed 3 can be used; the Heat Sentry button (C) will flash while the speed 3 button
will light. The power pack can also be turned OFF.

D. LIGHT SWITCH:

This switch allows two different lighting levels according to your needs. Press once for full intensity, twice for nightlight. To shut off the
lights without turning off the blower, press once more.

12

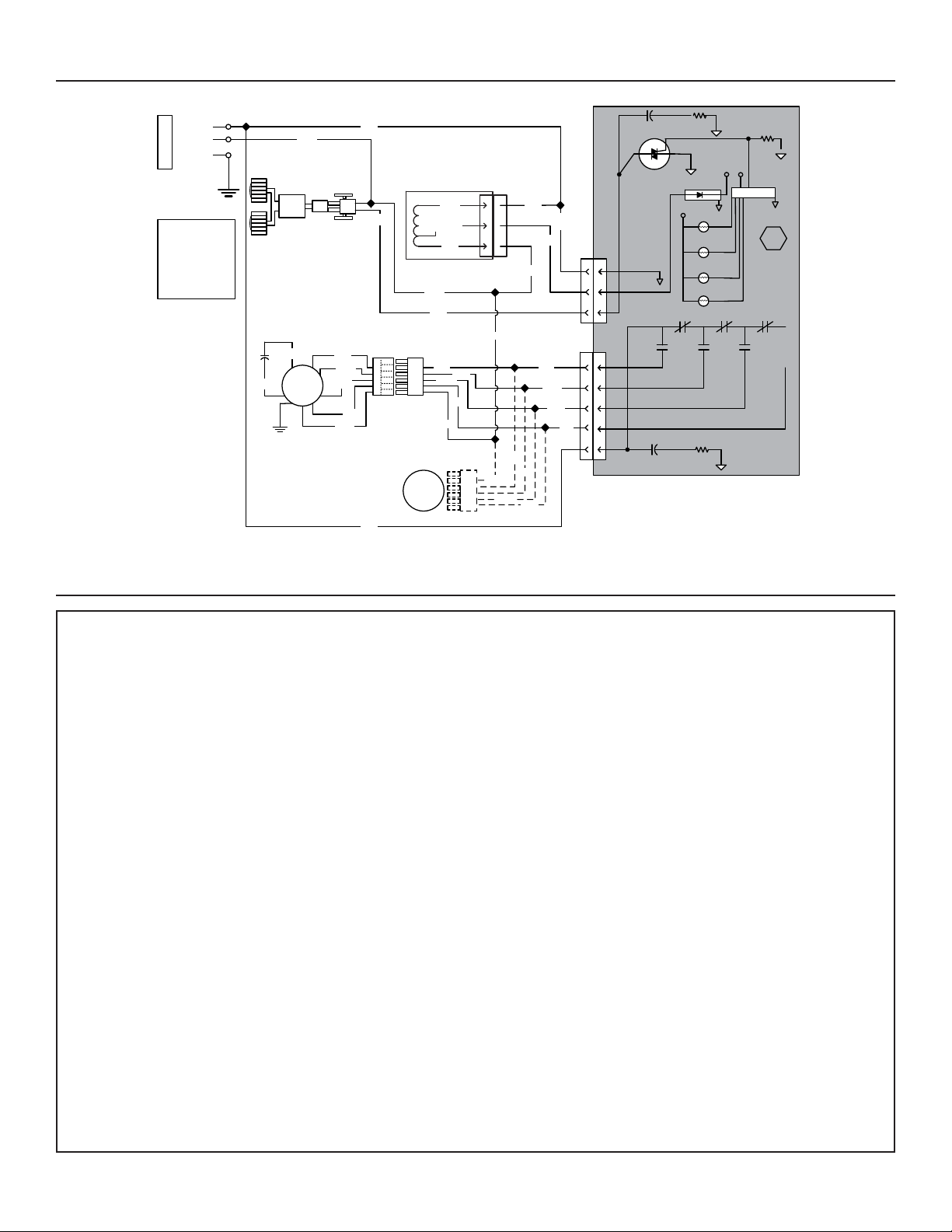

23. WIRING DIAGRAM

LINE
NEUTRAL

GROUND

120 VAC

COLOR CODE

BLK BLACK
BLU BLUE
BRN BROWN
GRY GREY
ORG ORANGE
RED RED
WHT WHITE
YEL YELLOW

HE0162A

LED

LED

BRN

WHT

LED

B

DRIVER

BLOWER MOTOR

GRY

BLU

WHT

ORG

M

RED

OPTIONAL SECOND

BLOWER MOTOR

BLK

BLK

BLK

YEL

TRANSFORMER

WHT

RED 9.5 V

BLK

WHT

YEL

BLU

WHT

ORG

BLK

WHT

M

WHT

WHT

ORG

BLU

WHT

WHT

BLK

BLK

BLU

YEL

WHT

ORG

BLK

BLK

Q1

LOGIC

K1

K1

J1

120 V L

INE

1

2

3

J2

1

2

3

4

5

REF

10 VAC

K1 NO K2 NO K3 NO K4 NO

K2

K3

K4

K1 NC K2 NC K3 NC

A1

ELECTRONIC

ASSEMBLY

24. WARRANTY

ONE YEAR LIMITED WARRANTY FOR BROAN ELITE PRODUCTS

Broan-NuTone Canada (Broan-NuTone) warrants to the original consumer purchaser of Broan Elite products that
such products will be free from defects in materials or workmanship for a period of one year from the date of original
purchase. LED modules and LED driver, are also covered by this warranty for a period of one (1) year. THERE
ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be
defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This
warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject
to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or
installation contrary to recommended installation instructions.

Warranty service is to be completed by an authorized Service Center designated by Broan-NuTone. Where applicable, in-home
service will be made available only in areas where a contracted service provider offers service. If in-home service is not available, the
product will be repaired or replaced, at Broan-NuTone’s discretion, by the nearest authorized service provider. The unit removal and
reinstallation works are under the customer responsibility, and Broan-NuTone cannot be charged for them.

The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some
provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR
PERFORMANCE. Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from province to another. This warranty
supersedes all prior warranties.

To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number stated below, (b) give the model
number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service,
you must present evidence of the original purchase date.

Broan-NuTone Canada ULC, 1140 Tristar Drive, Mississauga, ON L5T 1H9 www.broan.ca 1-877-896-1119

13

25. SERVICE PARTS

EC6230SSL

2

4

HL0234

EC6230TSSL

1

3

9

8

2

4

7

6

5

1

3

9

8

7

6

5

KEY NO.PART NO.DESCRIPTION

1 SV13296 ADAPTER/DAMPER 3¼” X 10” 1 -

SV08541 A
2 62248 LED DRIVER AND CONNECTION HARNESS 11
3 21244 ELECTRONIC CONTROL WITH CHROMED BUTTONS AND BLUE LEDS 11
4 62612 LED MODULE (1) 2 2
5 SV18428 THIN BAFFLE FILTER 22
6 SV08967 Filter Knobs (including Screws) (Qty.2) 1 PAIR 1 PAIR
7 SV08582 INTERNAL BLOWER 12
8 SV09022 TRANSFORMER 11
9 SV06750 BROAN ELITE LOGO 11

* 21240 I

* SV08545 PARTS BAG: 2 WIRE CONNECTORS, 1 WIRE CLAMP,

*Not shown

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only.
Broan-NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable
certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and
drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a
certified service depot for all replacement parts and repairs.

DAPTER 10” ROUND -1

NSTALLATION MANUAL 11

4 SCREWS NO. 8 X 3/8”, 9 CHROMED PLATED SCREWS NO. 8-10 X 1/2”,
10 MECHANICAL SCREWS NO. 8-32 X 1/4”

QTY. (POWER PACK MODEL)

EC6230SSL EC6230TSSL

11

14
