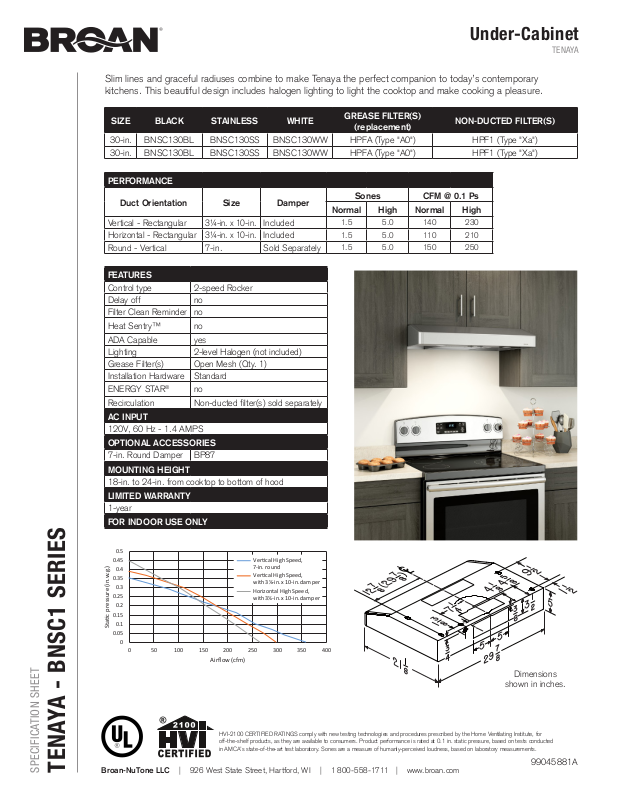

Broan BNSC136WW Specifications
Under-Cabinet
B1
Slim lines and graceful radiuses combine to make Tenaya the perfect companion to today’s contemporary
kitchens. This beautiful design includes halogen lighting to light the cooktop and make cooking a pleasure.
TENAYA
SIZE BLACK STAINLESS WHITE
GREASE FILTER(S)
(replacement)
NON-DUCTED FILTER(S)
30-in. BNSC130BL BNSC130SS BNSC130WW HPFA (Type "A0") HPF1 (Type "Xa")
30-in. BNSC130BL BNSC130SS BNSC130WW HPFA (Type "A0") HPF1 (Type "Xa")
PERFORMANCE
Duct Orientation Size Damper
Vertical - Rectangular
Horizontal - Rectangular
3¼-in. x 10-in.
3¼-in. x 10-in.
Included
Included
Round - Vertical 7-in. Sold Separately
Sones CFM @ 0.1 Ps
Normal High Normal High
1.5 5.0 140 230
1.5 5.0 110 210
1.5 5.0 150 250
FEATURES
Control type 2-speed Rocker
Delay off no
Filter Clean Reminder no
Heat Sentry™ no
ADA Capable yes
Lighting 2-level Halogen (not included)
Grease Filter(s) Open Mesh (Qty. 1)
Installation Hardware Standard
ENERGY STAR
®
no
Recirculation Non-ducted filter(s) sold separately
AC INPUT
120V, 60 Hz - 1.4 AMPS
OPTIONAL ACCESSORIES
7-in. Round Damper BP87
MOUNTING HEIGHT
18-in. to 24-in. from cooktop to bottom of hood
LIMITED WARRANTY
1-year
FOR INDOOR USE ONLY
0.5
0.45
0.4
0.35
0.3
0.25
0.2
0.15
0.1
Stac pressur e (in.w.g.)
0.05
0
0 50 100 150 200 250 300 350 400
SPECIFICATION SHEET
TENAYA - BNSC1 SERIES
Broan-NuTone LLC | 926 West State Street, Hartford, WI | 1 800-558-1711 | www.broan.com
Vercal High Speed,
7-in. round
Vercal High Speed,
with 3¼-in. x 10-in. da mper
Horizontal High Speed,
with 3¼-in. x 10-in. da mper
Airflow (cfm)
Dimensions
shown in inches.
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for
off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 in. static pressure, based on tests conducted
in AMCA’s state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.
99045881A
