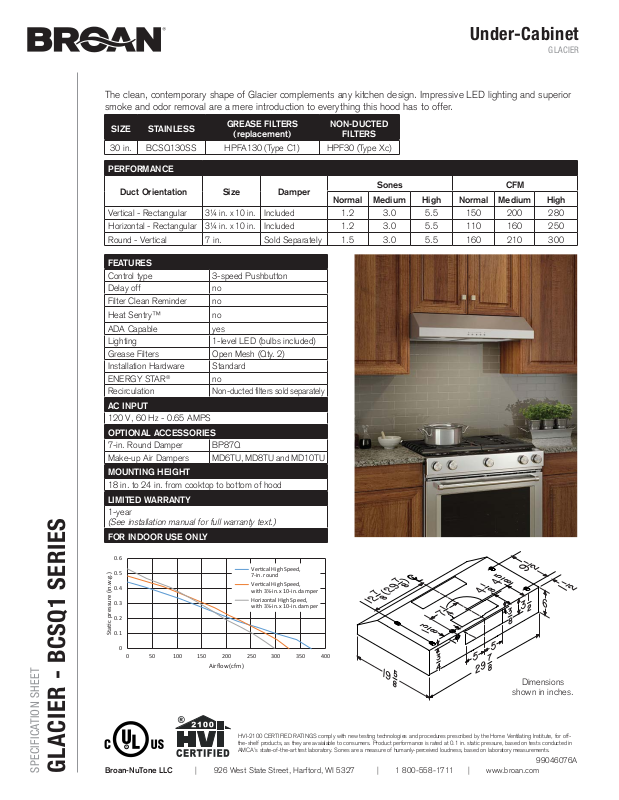

Broan BCSQ130SS Specifications
Under-Cabinet
GLACIER
The clean, contemporary shape of Glacier complements any kitchen design. Impressive LED lighting and superior
smoke and odor removal are a mere introduction to everything this hood has to offer.
SIZE STAINLESS
GREASE FILTERS
(replacement)
30 in. BCSQ130SS HPFA130 (Type C1) HPF30 (Type Xc)
PERFORMANCE
Duct Orientation Size Damper
Vertical - Rectangular
Horizontal - Rectangular
3¼ in. x 10 in.
3¼ in. x 10 in.
Included 1.2 3.0 5.5 150 200 280
Included 1.2 3.0 5.5 110 160 250
Round - Vertical 7 in. Sold Separately 1.5 3.0 5.5 160 210 300
FEATURES
Control type 3-speed Pushbutton
Delay off no
Filter Clean Reminder no
Heat Sentry™ no
ADA Capable yes
Lighting 1-level LED (bulbs included)
Grease Filters Open Mesh (Qty. 2)
Installation Hardware Standard
ENERGY STAR
Recirculation
®
no
Non-ducted filters sold separately
AC INPUT
120 V, 60 Hz - 0.65 AMPS
OPTIONAL ACCESSORIES
7-in. Round Damper BP87Q
Make-up Air Dampers MD6TU, MD8TU and MD10TU
MOUNTING HEIGHT
18 in. to 24 in. from cooktop to bottom of hood
LIMITED WARRANTY
1-year
(See installation manual for full warranty text.)
FOR INDOOR USE ONLY
NON-DUCTED
FILTERS
Sones CFM
Normal Medium High Normal Medium High
0.6
0.5
0.4
0.3
0.2
StaƟc pressure (in.w.g.)
0.1
0
0 50 100 150 200 250 300 350 400
AirŇow (cfm)
SPECIFICATION SHEET
GLACIER - BCSQ1 SERIES
Broan-NuTone LLC | 926 West State Street, Harftord, WI 5327 | 1 800-558-1711 | www.broan.com
VerƟcal High Speed,
7-in. round
ෆ
VerƟcal High Speed,
with 3¼-in. x 10-in. damper
Horizontal Hig h Speed,
with 3¼-in. x 10-in. damper
HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute, for offthe-shelf products, as they are avaialable to consumers. Product performance is rated at 0.1 in. static pressure, based on tests conducted in
AMCA’s state-of-the-art test laboratory. Sones are a measure of humanly-perceived loudness, based on laboratory measurements.
ෆ
Dimensions
shown in inches.
99046076A
