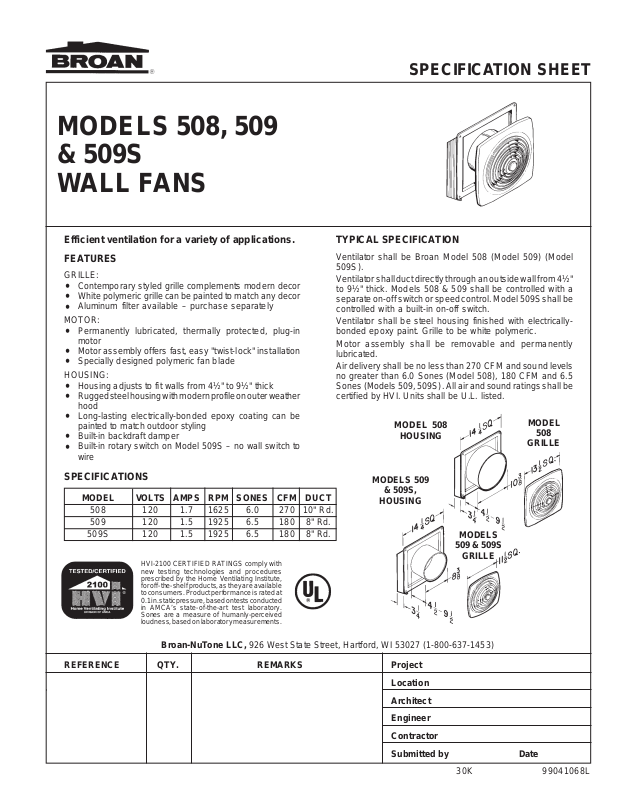

Broan 509S Specifications
MODELS 508, 509
& 509S
WALL FANS
SPECIFICATION SHEET
Efficient ventilation for a variety of applications.
FEATURES
GRILLE:
Contemporary styled grille complements modern decor
•
White polymeric grille can be painted to match any decor
•
Aluminum filter available – purchase separately
•
MOTOR:
Permanently lubricated, thermally protected, plug-in
•
motor
Motor assembly offers fast, easy "twist-lock" installation
•
Specially designed polymeric fan blade
•
HOUSING:
Housing adjusts to fit walls from 4½" to 9½" thick
•
Rugged steel housing with modern profile on outer weather
•
hood
Long-lasting electrically-bonded epoxy coating can be
•
painted to match outdoor styling
Built-in backdraft damper
•
Built-in rotary switch on Model 509S – no wall switch to
•
wire
SPECIFICATIONS
MODEL VOLTS AMPS RPM SONES CFM DUCT
508 120 1.7 1625 6.0 270 10" Rd.
509 120 1.5 1925 6.5 180 8" Rd.
509S 120 1.5 1925 6.5 180 8" Rd.
HVI-2100 CERTIFIED RATINGS comply with
new testing technologies and procedures
prescribed by the Home Ventilating Institute,
for off-the-shelf products, as they are available
to consumers. Product performance is rated at
0.1 in. static pressure, based on tests conducted
in AMCA’s state-of-the-art test laboratory.
Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
TYPICAL SPECIFICATION
Ventilator shall be Broan Model 508 (Model 509) (Model
509S).
Ventilator shall duct directly through an outside wall from 4½"
to 9½" thick. Models 508 & 509 shall be controlled with a
separate on-off switch or speed control. Model 509S shall be
controlled with a built-in on-off switch.
Ventilator shall be steel housing finished with electricallybonded epoxy paint. Grille to be white polymeric.
Motor assembly shall be removable and permanently
lubricated.
Air delivery shall be no less than 270 CFM and sound levels
no greater than 6.0 Sones (Model 508), 180 CFM and 6.5
Sones (Models 509, 509S). All air and sound ratings shall be
certified by HVI. Units shall be U.L. listed.
MODEL 508
HOUSING
MODELS 509
& 509S,
HOUSING
MODELS
509 & 509S
GRILLE
MODEL
508
GRILLE
