Brinno BCC2000 User manual
1

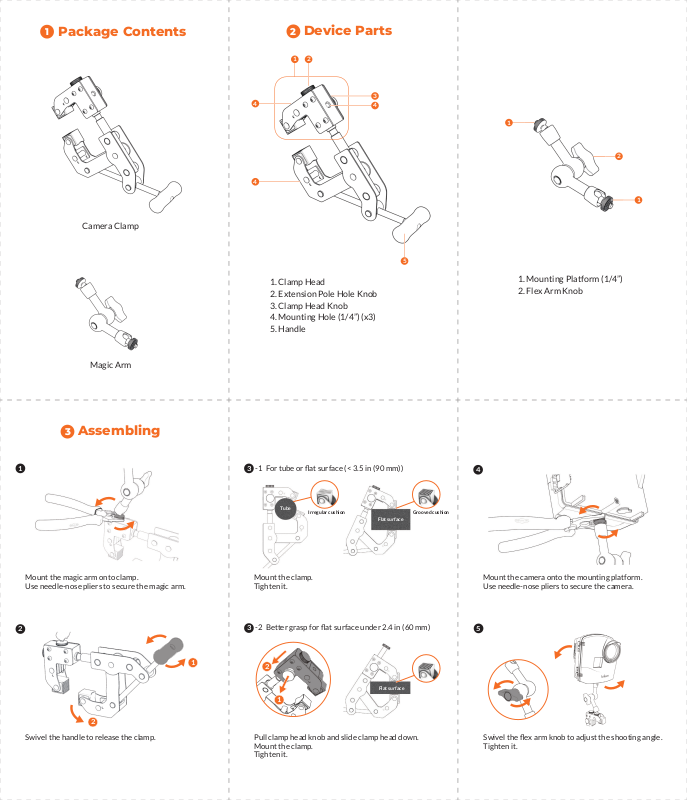

Package Contents
2
Device Parts
1
2
Camera Clamp
Magic Arm
4
4
1. Clamp Head
2. Extension Pole Hole Knob
3. Clamp Head Knob
4. Mounting Hole (1/4”) (x3)
5. Handle
3
4
1
2
1
5
1. Mounting Platform (1/4”)
2. Flex Arm Knob
3
Assembling
1
Mount the magic arm onto clamp.
Use needle-nose pliers to secure the magic arm.
2
3
-1 For tube or flat surface (< 3.5 in (90 mm))
Tub e
Irregular cushion Grooved cushion
Flat surface
Mount the clamp.
Tighten it.
3
-2 Better grasp for flat surface under 2.4 in (60 mm)
1
2
Flat surface
1
4
Mount the camera onto the mounting platform.
Use needle-nose pliers to secure the camera.
5
2
Swivel the handle to release the clamp.
Pull clamp head knob and slide clamp head down.
Mount the clamp.
Tighten it.
Swivel the flex arm knob to adjust the shooting angle.
Tighten it.
xtend Clamping Rang
e
pac
kag
*
.
.
a
amp
d p
.
.
Tigh
Extend Clamping Range
4
** Extension pole is not included in BCC2000 package **
** Extensionpole is not included in BCC2000
e *
1
Remove the extension pole hole knob.
emove the extension pole hole knob
2
Install extension pole.
Install extension
e
3
Pull out the clamp head knob.
4
e the cl
Slid
Slide the clamp head down to the desired position.
ten the extension pole hole knob
Tighten the extension pole hole knob.
head down to the desire
osition
Camera Clamp Kit
C
User Manual
5
Model
Contents
Camera Mount Screw
Clamping Range
Magic Arm Load Capacity
Clamp Load Capacity
Size (LxWxH)
Materials
Specifications
ACC1000
Camera clamp, magic arm
¼”
Tube: 0.4- 3.5 in (10 - 90 mm)
Flat surface: 0.04- 3.5 in (1 -90 mm)
6.6 lb (3 KG)
110 lb (50 KG) (without extension pole)
Folded: 8.2x 3.7x 1.5 in
Extended: 6.9x 7.1x 2.4 in
26.5 oz (750 g) (included Magic Arm) Weight
Clamp: Stainless, aluminum
Magic Arm: Stainless, metal, aluminum
(209x 94x 39 mm)
(176x 180x 60 mm)
For manuals in other languages, visit
www.brinno.com/support
The product features, specications sheets and instructions may
dier from actual products. Please refer to Brinno ocial site for
the latest version of user manual.
EN_A2 301-0133-00
