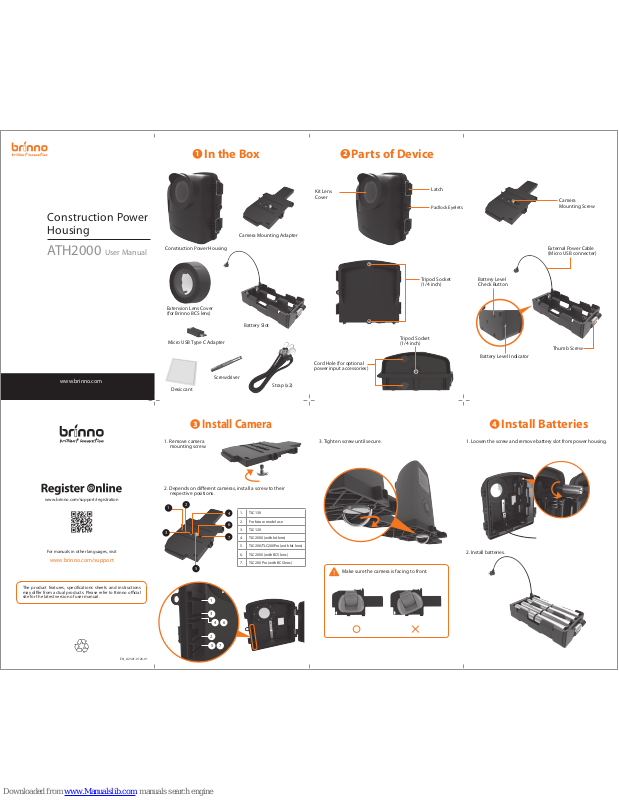

Brinno ATH2000 User Manual
1
2
4
3
5
6
7
1
2
4
3
5
6
7
Construction Power
Housing
www.brinno.com/support/registration
The product features, specications sheets and instructions
may dier from actual products. Please refer to Brinno ocial
site for the latest version of user manual.
For manuals in other languages, visit
Desiccant
Extension Lens Cover
(for Brinno BCS lens)
Camera Mounting Adapter
Construction Power Housing
Battery Slot
Screwdriver
Micro USB Type C Adapter
Strap (x2)
Kit Lens
Cover
Latch
Tripod Socket
(1/4 inch)
Battery Level
Check Button
Battery Level Indicator
Thumb Screw
External Power Cable
(Micro USB connecter)
Cord Hole (for optional
power input accessories)
Tripod Socket
(1/4 inch)
Camera
Mounting Screw
Padlock Eyelets
1. Loosen the screw and remove battery slot from power housing.
2. Install batteries.
3. Tighten screw until secure.
Make sure the camera is facing to front.
2. Depends on dierent cameras, install a screw to their
respective positions.
1. Remove camera
mounting screw.
EN_A2 301-0126-01
www.brinno.com/support
In the Box
Install Batteries
Parts of Device
Install Camera
ATH2000
User Manual
www.brinno.com
1. TLC130
2. For future model use
3. TLC120
4. TLC2000 (with kit lens)
5. TLC200/TLC200Pro (with kit lens)
6. TLC2000 (with BCS lens)
7. TLC200 Pro (with BCS lens)
1
3 4
2
1
1
2
2
3
4
2
3
3
4
2
1
1
ON
3
How to Change Lens Cover
Specications
Model NO. ATH2000
IP-Rating IPX5(weather resistant)
Compatible
Cameras
TLC200, TLC200Pro, TLC120, TLC130,
TLC2000
Battery Slot Room for up to 16 add’l AA batteries
Micro USB connecter (output 5V 2A)
Exchangeable
Lens Covers
Kit lens cover
Extension lens cover (for Brinno BCS
lens)
Size 6.6” x 6.1” x 4.5”
(167x156x115.5 mm)
Weight 14 oz (393 g)
In the Box
Construction power housing; Camera
mounting adapter; Battery slot;
Extension lens cover;Desiccant;
Screwdriver; USB-C Adapter; Strap*2
Green 100% - 20%
Orange 20% - 5%
Red < 5% (replace the batteries immediately)
1. Loosen screws.
2. Remove kit lens cover.
3. Mount extension lens cover.
4. Tighten screws.
Installation
3. Check battery level.
3-1. Plug the power cable into your camera.
3-2. Turn camera on.
3-3. Press battery level check button.
1. Install camera and battery slot into camera housing.
2. Tighten the screw to lock battery slot’s position in place.
3. Take out desiccant and pack it into power housing.
4. Close the power housing and lock the latch.
For TLC200, TLC200Pro (with kit lens) and TLC200Pro
(with BCS lens).
For TLC120, TLC130, TLC2000 (with kit lens) and TLC2000
(with BCS lens).
4. Battery indicator:
Regularly replace used desiccant can maintain the
long-term function of ATH2000.
5
6 7
