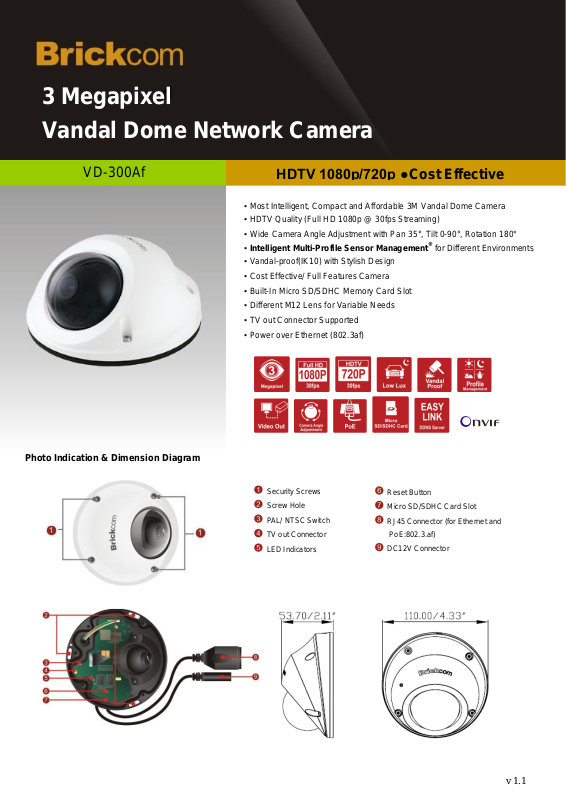

Brickcom VD-300Af-A1 Specsheet
Reset Button
Micro SD/SDHC Card Slot
RJ45 Connector (for Ethernet and
PoE:802.3.af)
DC12V Connector
3 Megapixel
Vandal Dome Network Camera
▪ Most Intelligent, Compact and Affordable 3M Vandal Dome Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Wide Camera Angle Adjustment with Pan 35°, Tilt 0-90°, Rotation 180°
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Vandal-proof(IK10) with Stylish Design
▪ Cost Effective/ Full Features Camera
▪ Built-In Micro SD/SDHC Memory Card Slot
▪ Different M12 Lens for Variable Needs
▪ TV out Connector Supported
▪ Power over Ethernet (802.3af)
Photo Indication & Dimension Diagram
VD-300Af
HDTV 1080p/720p ●Cost Effective
Security Screws
Screw Hole
PAL/ NTSC Switch
TV out Connector
LED Indicators
d
v 1.1
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2048x1536 pixel
Camera Angle
Adjustment
Pan ± 35°/ Tilt 0-90° / Rotation ± 180°
Local Storage
Built-in Micro SD/SDHC/SDXC Max.64G
Memory Card Slot
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
PoE 802.3af/ DC12V
Max. Power
Consumption
5.5 watts
Environment
Operating Temperature
-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
110(L) X110(W) X 53.7(H) mm
Weight
460g/1.02lb
Housing
Weather-proof (IP66)
Vandal-proof (IK10)
Certification
FCC, CE, IK10
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited One-year warranty
Events
Motion Detection
Schedule
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Sensor Management
Day/ Night / Sunset/ User 1/ User 2
Auto Exposure / Gain / White Balance Control
Manual Exposure Control:1/20000~1/5s
Manual Gain Control: 1X~32X
Manual White Balance Control: 2000K~7000K
Image Resolution
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Lens Spec
VD-300Af
f=4mm
f=6mm
f=8mm
f=3.6mm
Lens Type
Board Lens
Board Lens
Board Lens
Board Lens
F Number
F=1.6
F=1.6
F=1.6
F=1.6
FOV(H/V/D)
66°/49°/85°
43°/32°/53°
32°/23°/40°
71°/53°/90°
BNCMD-02
TV out Connector Line
LT
Lens Adjusting Tool
PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AT
24-port 10/ 100M High Power PoE+ Web
Smart Ethernet Switch
Camera
General
Video
info@brickcom.com
Events and Alarm Management
Product Distinction
Work Best With
Camera Accessories Options
Network Equipment Options
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
