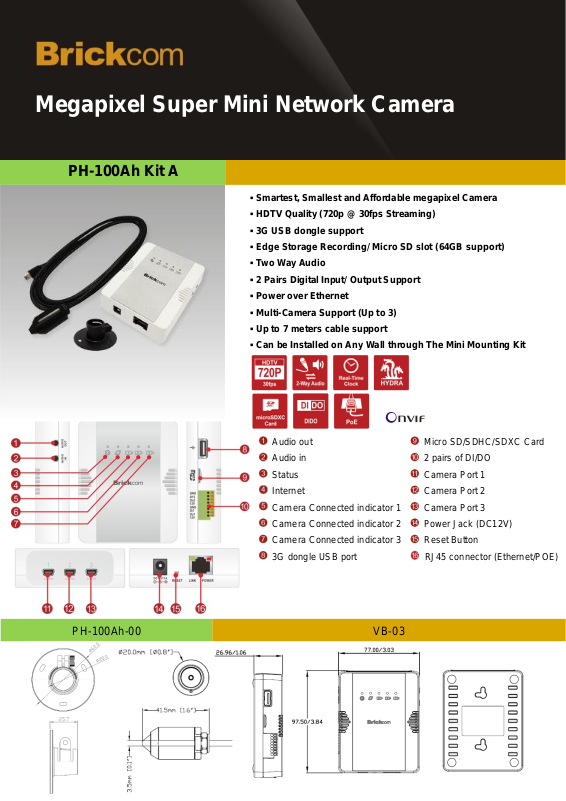

Brickcom PH-100Ah Kit-A, VB-03 Specsheet
Megapixel Super Mini Network Camera
▪ Smartest, Smallest and Affordable megapixel Camera
▪ HDTV Quality (720p @ 30fps Streaming)
▪ 3G USB dongle support
▪ Edge Storage Recording/ Micro SD slot (64GB support)
▪ Two Way Audio
▪ 2 Pairs Digital Input/ Output Support
▪ Power over Ethernet
▪ Multi-Camera Support (Up to 3)
▪ Up to 7 meters cable support
▪ Can be Installed on Any Wall through The Mini Mounting Kit
PH-100Ah Kit A
PH-100Ah-00
VB-03
Audio out
Audio in
Status
Internet
Camera Connected indicator 1
Camera Connected indicator 2
Camera Connected indicator 3
3G dongle USB port
Micro SD/SDHC/SDXC Card
2 pairs of DI/DO
Camera Port 1
Camera Port 2
Camera Port 3
Power Jack (DC12V)
Reset Button
RJ45 connector (Ethernet/POE)
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Interface &
Buttons
Ethernet RJ45 Socket
Power Connector
2 DIDO Terminal I/O Connectors
Reset Button
Micro SD Card slot
3 mini USB Camera connectors
USB port for 3G dongle
LED indicator
Internet
Status
3 USB Link (For camera 1, 2 & 3)
Power Input
PoE 802.3af/ DC12V 1A
Max. Power
Consumption
4.5 watts
Dimension
97.5 (L) x 77(W) x 26.96 (H) mm
Weight
408g
Environment
Operating Temperature
0°C ~ 50°C (32°F ~122°F),
Operating Humidity
10% ~ 80%
Certification
FCC, CE,
Warranty
Limited 2-year warranty
Viewing System
Requirement
OS: Microsoft Windows XP/server 2005 or above
Browser: Mozilla, Firefox, IE 7 or above, Safari,
Chrome.
Video player: Real Player 10.5 or above, Quick
time 6.6 or above, VLC player
Product name
PH-100Ah Kit A (VB-03 & PH-100Ah-00)
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/4“ CMOS sensor
Sensor Resolution : 1280x720 pixel
Lens
Lens type: Board Lens
Focal Length: 3.7mm
Iris: F2.5
View angel: (H):57°/ (V): 30°/ (D):66°
Minimum
Illumination
1.2 Lux (F2.5, Color)
1 Lux (F2.5, B/W)
Video Image
Compression
H.264
Simultaneous multiple streams
Image Resolution
1M: 720p @ 30fps (for H.264)
Events
Schedule/ Digital Input/Audio detection
Alarm
Stream/Snapshot to:
FTP/Email/Samba/SD-Card/Audio Clip
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Local Storage
MicroSD card support (up to 64G)
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line in/ out
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
BP-1000
UPS power pack (Edge Recording)
Video Setting
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
S/N Ratio
39 dB
EXCB-5M
Super Mini Extention Cable - 5M
Camera
General
General
Events and Alarm Management
Copyright 2014 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
Audio
