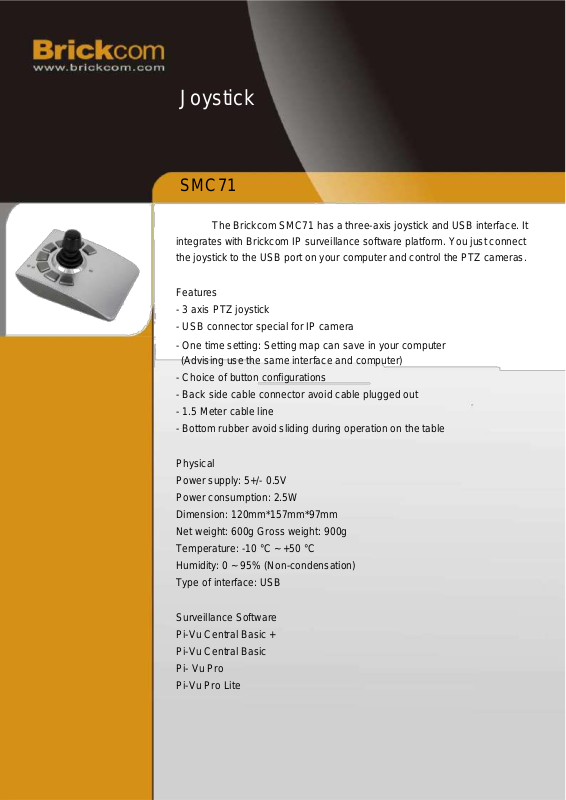

Brickcom SMC-71 Specsheet

Joystick

SMC71

The Brickcom SMC71 has a three-axis joystick and USB interface. It
integrates with Brickcom IP surveillance software platform. You just connect
the joystick to the USB port on your computer and control the PTZ cameras.

Features

- 3 axis PTZ joystick

- USB connector special for IP camera

- One time setting: Setting map can save in your computer

(Advising use the same interface and computer)

- Choice of button configurations

- Back side cable connector avoid cable plugged out

- 1.5 Meter cable line

- Bottom rubber avoid sliding during operation on the table

Physical
Power supply: 5+/- 0.5V
Power consumption: 2.5W
Dimension: 120mm*157mm*97mm
Net weight: 600g Gross weight: 900g
Temperature: -10 °C ~ +50 °C
Humidity: 0 ~ 95% (Non-condensation)
Type of interface: USB

Surveillance Software
Pi-Vu Central Basic +
Pi-Vu Central Basic
Pi- Vu Pro
Pi-Vu Pro Lite
