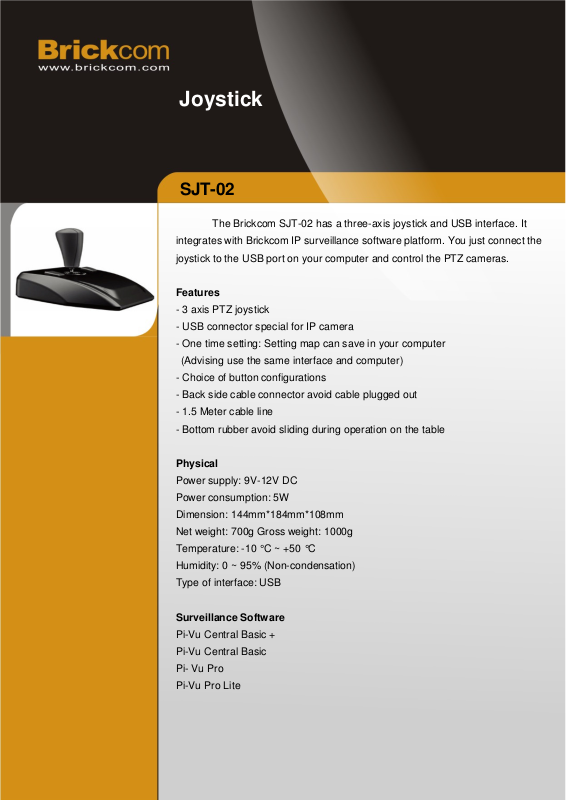

Brickcom SJT-02 Specsheet

Joystick

SJT-02

The Brickcom SJT-02 has a three-axis joystick and USB interface. It

integrates with Brickcom IP surveillance software platform. You just connect the

joystick to the USB port on your computer and control the PTZ cameras.

Features

- 3 axis PTZ joystick

- USB connector special for IP camera

- One time setting: Setting map can save in your computer

(Advising use the same interface and computer)

- Choice of button configurations

- Back side cable connector avoid cable plugged out

- 1.5 Meter cable line

- Bottom rubber avoid sliding during operation on the table

Physical

Power supply: 9V-12V DC

Power consumption: 5W

Dimension: 144mm*184mm*108mm

Net weight: 700g Gross weight: 1000g

Temperature: -10 °C ~ +50 °C

Humidity: 0 ~ 95% (Non-condensation)

Type of interface: USB

Surveillance Software

Pi-Vu Central Basic +

Pi-Vu Central Basic

Pi- Vu Pro

Pi-Vu Pro Lite
