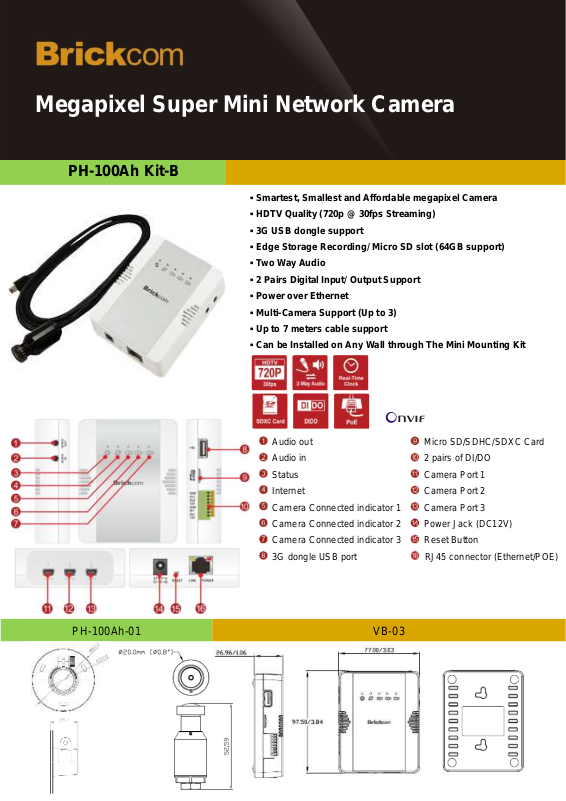

Megapixel Super Mini Network Camera
▪ Smartest, Smallest and Affordable megapixel Camera
▪ HDTV Quality (720p @ 30fps Streaming)
▪ 3G USB dongle support
▪ Edge Storage Recording/ Micro SD slot (64GB support)
▪ Two Way Audio
▪ 2 Pairs Digital Input/ Output Support
▪ Power over Ethernet
▪ Multi-Camera Support (Up to 3)
▪ Up to 7 meters cable support
▪ Can be Installed on Any Wall through The Mini Mounting Kit
PH-100Ah Kit-B
PH-100Ah-01
VB-03
Audio out
Audio in
Status
Internet
Camera Connected indicator 1
Camera Connected indicator 2
Camera Connected indicator 3
3G dongle USB port
Micro SD/SDHC/SDXC Card
2 pairs of DI/DO
Camera Port 1
Camera Port 2
Camera Port 3
Power Jack (DC12V)
Reset Button
RJ45 connector (Ethernet/POE)
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Interface &
Buttons
Ethernet RJ45 Socket
Power Connector
2 DIDO Terminal I/O Connectors
Reset Button
Micro SD Card slot
3 mini USB Camera connectors
USB port for 3G dongle
LED indicator
Internet
Status
3 USB Link (For camera 1, 2 & 3)
Power Input
PoE 802.3af/ DC12V 1A
Max. Power
Consumption
4.5 watts
Environment
Operating Temperature
0°C ~ 50°C (32°F ~122°F),
Operating Humidity
10% ~ 80%
Certification
FCC, CE,
Warranty
Limited 2-year warranty
Product name
PH-100Ah-01 Kit (VB-03 & PH-100Ah-01)
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/4“ CMOS sensor
Sensor Resolution : 1280x720 pixel
Lens
Lens type: Board Lens
Focal Length:2.3mm
Iris: F2.5
View angel: (H): 100°/ (V): 56°/ (D):128°
Minimum
Illumination
1.2 Lux (F2.5, Color)
1 Lux (F2.5, B/W)
Video Image
Compression
H.264
Simultaneous multiple streams
Image Resolution
1M: 720p @ 30fps (for H.264)
Events
Schedule/ Digital Input/Audio detection
Alarm
Stream/Snapshot to:
FTP/Email/Samba/SD-Card/Audio Clip
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Local Storage
MicroSD card support (up to 64G)
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line in/ out
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
BP-1000
UPS power pack (Edge Recording)
Video Setting
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
S/N Ratio
39 dB
EXCB-5M
Super Mini Extention Cable - 5M
Camera
General
info@brickcom.com
General
Events and Alarm Management
Copyright 2014 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
