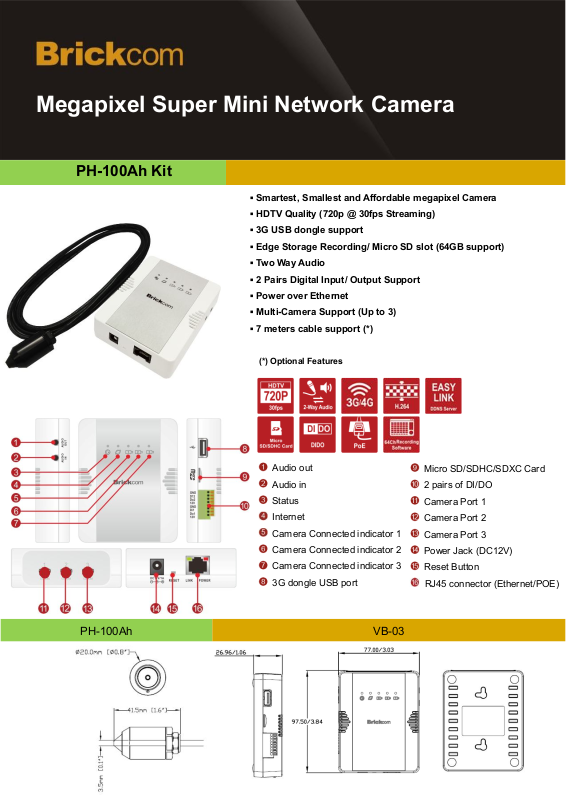

Brickcom PH-100Ah-00 Specsheet
Megapixel Super Mini Network Camera
▪
Smartest, Smallest and Affordable
megapixel
Camera
PH-100Ah Kit
▪ HDTV Quality (720p @ 30fps Streaming)
▪ 3G USB dongle support
▪ Edge Storage Recording/ Micro SD slot (64GB support)
▪ Two Way Audio
▪ 2 Pairs Digital Input/ Output Support
▪ Power over Ethernet
▪ Multi-Camera Support (Up to 3)
▪ 7 meters cable support (*)
(*) Optional Features
Audio out
Audio in
Status
Internet
Camera Connected indicator 1
Camera Connected indicator 2
Camera Connected indicator 3
3G dongle USB port
PH-100Ah VB-03
Micro SD/SDHC/SDXC Card
2 pairs of DI/DO
Camera Port 1
Camera Port 2
Camera Port 3
Power Jack (DC12V)
Reset Button
RJ45 connector (Ethernet/POE)
Copyright
2014
Brickcom Corporation. All rights reserved. All other company
Camera
Product name
Hardware System CPU: 533 MHz
Image Sensor Sensor Type : 1/4“ CMOS sensor
Lens Lens type: Board Lens
Minimum
Illumination
Video Image
Compression
Image Resolution 1M: 720p @ 30fps (for H.264)
Events and Alarm Management
Events Schedule/ Digital Input/Audio detection
Alarm
PH-100Ah Kit (VB-03 & PH-100Ah)
Flash: 32M
RAM: 256M DDR
Sensor Resolution : 1280x720 pixel
Focal Length: 3.7mm
Iris: F2.5
View angel: (H):57°/ (V): 30°/ (D):66°
1.2 Lux (F2.5, Color)
1 Lux (F2.5, B/W)
H.264 / MJPEG
Simultaneous multiple streams
Stream/Snapshot to:
FTP/Email/Samba/SD-Card/Audio Clip
HTTP/Email Notification/ Digital Output
Audio
Audio Streaming 2-way Audio Support
Local Storage
Audio Compression G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Video
MicroSD card support (up to 64G)
Line in/ out
General
Communication Ethernet : one 10/100Mbps RJ-45
Interface &
Buttons
LED indicator Internet
Power Input PoE 802.3af/ DC12V 1A
Max. Power
Consumption
Environment Operating Temperature
Certification FCC, CE,
Warranty Limited 2-year warranty
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Ethernet RJ45 Socket
Power Connector
2 DIDO Terminal I/O Connectors
Reset Button
Micro SD Card slot
3 Camera connectors
USB port for 3G dongle
Status
3 Camera Links (For camera 1, 2 & 3)
4.5 watts
0°C ~ 50°C (32°F ~122°F),
Operating Humidity
10% ~ 80%
Video Setting
S/N Ratio 39 dB
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
Network Equipment Options
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
BP-1000
UPS power pack (Edge Recording)
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
