Brickcom OSD-200A-KIT Specsheet

▪ 2 M

egapixel

High

Resolution

Outdoor Speed D

o

me Camera

2 Megapixel Day & Night

d

Sony 2M sensor ● HDTV 1080p/720p ● WDR Supported

▪ SONY 2M Progressive CMOS sensor

▪ 20x Optical Zoom, 10x Digital Zoom

▪ Preset speed Up to 400∘/s

▪ Brickcom WDR Enhancement® Technology inside

▪ Removable IR-Cut Filter for Day and Night Function

▪ H.264 HP/MP/BL&MJPEG compression, Quad stream support

▪ Electronic Image Stabilizer (EIS)

▪ Privacy Masks for Private Area Protection

▪ 4sets DI/ 2 sets DO for External Alarm and Sensor Device

▪ Built-In Micro SD slot/ 802.3at PoE

▪ Weather-Proof (IP66) Casing with Built-in Fan and Heater

Speed Dome Network Camera

OSD-200A 20xp

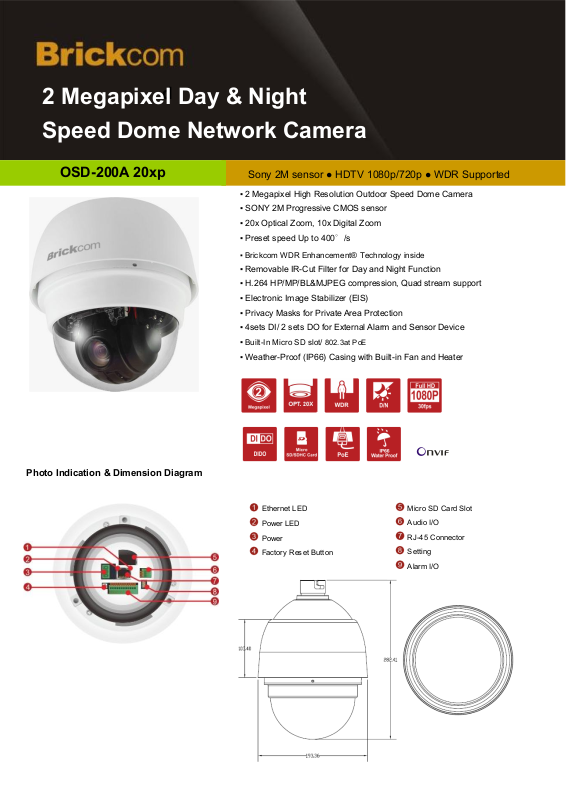

Photo Indication & Dimension Diagram

Ethernet LED

Power LED

Power

Factory Reset Button

Micro SD Card Slot

Audio I/O

RJ-45 Connector

Setting

Alarm I/O

Camera

Hardware System CPU: 528 MHz

Image Sensor Sensor Type : 1/2.8” Sony 2 Megapixel Sensor

Minimum
Illumination

Lens 20x Optical Zoom Lens

Day & Night ICR Triggered by Light sensor, Scheduling,

Local Storage

Video

Compression
Streaming

Video Setting

Image Resolution 2M (Full HD): 1920x1080

Frame Rate 2M (Full HD): 1920x1080 @30fps

Events and Alarm Management

Events

Alarm

Flash: 1GB
RAM: 2GB DDR

Sensor Resolution : 1920 x 1080 pixel

0.01 lux (F1.6, B/W)

0.05 lux (F1.6, Color)
SN Ratio: >50dB

Focal Length: f= 4.7 ~ 94 mm
F number: F1.6
View Angle:
(H): 55°~4°/ (V): 32°~2°/ (D): 62°~5°

Removable IR Cut Filter
Auto Iris/ Auto Focus/ Wide Dynamic Range/
AGC Control/ Backlight Compensation

Digital Input

Built-in micro SDHC 32GB Memory Card Slot

H.264 / MJPEG
Quad Streams H.264*4 / MJPEG + H.264*3

Auto / Indoor / Outdoor / ATW / Manual White
Balance
Exposure: Full Auto Mode/ Shutter Priority
Mode/ Iris Priority Mode/ Manual Mode
Electronic Shutter: 1/10000~1/1 s
BLC
Auto / Manual WDR

SXGA: 1280x1024
XGA:1280x768
1M (HDTV): 1280x720
SVGA: 800x600
D1: 720 x 576 (PAL)/ 720 x 480 (NTSC)
VGA: 640x480
CIF: 352 x 288 (PAL)/ 352 x 240 (NTSC)

1M (HDTV): 1280x720 @ 30fps
D1: 720 x 576 @ 30fps / 720 x 480 @ 30fps
CIF: 352 x 288@ 30fps / 352 x 240 @ 30fps

Motion Detection/ Alarm Input 4 Sets

Alarm Output 2 Sets
Alarm Reaction& Home Function: Preset /
Sequence / Auto Pan / Cruise

Audio

Audio Streaming 2-way Audio Support

Audio Compression G.711 / G.726 ADPCM / AAC

Audio
Input/ Output

General

Operation

Communication

Power Input/
Operating
Temperature

Max. Power
Consumption

Environment Water Proof: IP66

Dimension

Weight 2.3 kg (5.11 lb) w/ Sunshield

Housing Weather-proof (IP66)

Certification FCC, CE, IP66

Viewing System
Requirements

Warranty Limited 2-year warranty

Line In/ Out

Pan: 360°, 0.5°~90°/s
Tilt: -10°~190° , 0.5°~90°/s
Preset: 256 presets. Speed 5°~400°/s
Preset Accuracy: 0.225°
Zoom: 20x Optical Zoom

1~10x variable Digital Zoom
Sequence: 8
Auto Pan: 4
Cruise: 8
Privacy Mask: 16
Image Rotation: Flip / Mirror / Inverse / Portrait
Auto Flip: Image / Mechanical / Off

Ethernet : one 10/100Mbps RJ-451

Supported Protocols : IPv4/v6, TCP/IP, UDP,
RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, IEEE

802.1x, QoS, ONVIF

802.3at PoE (w/o Heater)

-7°C ~ 50°C (-19.4°F ~ 122°F)

AC 24V 3A

-40°C ~ 50°C (-40°F ~ 122°F)

20Watts (802.3at PoE, w/o Heater)
50Watts (AC 24V 3A)

Operating Humidity : 10%~80%

∅ 191.97 × 282.11 mm (∅ 7.55 × 11.1 in.) w/
Sunshield

OS: Microsoft Windows 7/Vista/XP/2000
Browser: Internet Explore (6.0+) / Chrome /
Firefox / Safari
Quick Time: 6.6 or above
VLC
