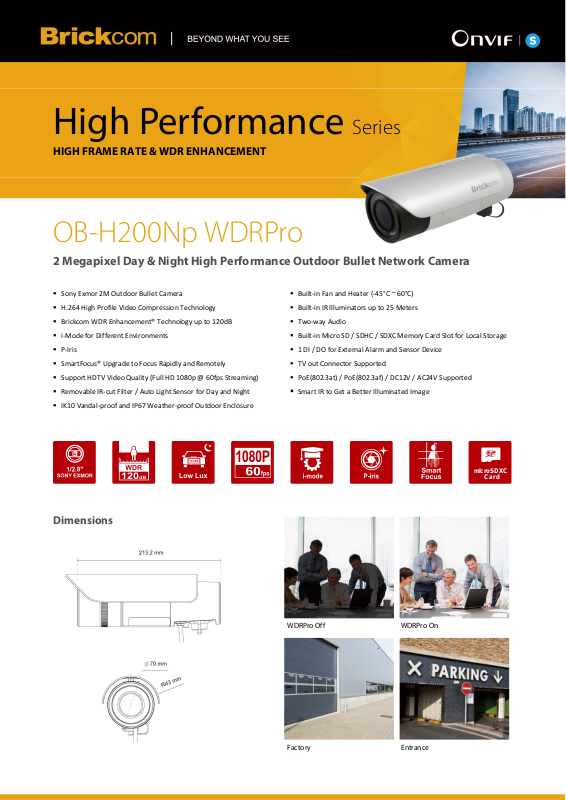

Brickcom OB-H200Np-WDRPro-KIT Specsheet

HIGH FRAME RATE & WDR ENHANCEMENT

2 Megapixel Day & Night High Performance Outdoor Bullet Network Camera

Sony Exmor 2M Outdoor Bullet Camera

Built-in Fan and Heater (

-45

°C ~ 60°C)

Dimensions

High Performance

OB-H200Np WDRPro

Series




 H.264 High Profile Video Compression Technology
 Brickcom WDR Enhancement® Technology up to 120dB
 i-Mode for Different Environments
 P-Iris
 SmartFocus® Upgrade to Focus Rapidly and Remotely
 Support HDTV Video Quality (Full HD 1080p @ 60fps Streaming)
 Removable IR-cut Filter / Auto Light Sensor for Day and Night
 IK10 Vandal-proof and IP67 Weather-proof Outdoor Enclosure


 Built-in IR Illuminators up to 25 Meters
 Two-way Audio
 Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
 1 DI / DO for External Alarm and Sensor Device
 TV out Connector Supported
 PoE(802.3at) / PoE(802.3af) / DC12V / AC24V Supported



Smart IR to Get a Better Illuminated Image

microSDXC

Card

WDRPro Off WDRPro On

Factory Entrance

V1.0

Brickcom

Audio

Audio Streaming

2-

way Audio Support

Audio Compression

G.711/AMR

Audio

Line input (Unbalanced, 1.4 Vp

-

p, 1 Vrms)

General

Communication

Ethernet : one 10/100Mbps RJ

-45

Power Input

DC12V 1A (*)

/ 802.3af PoE

Temperature/

Operating Temperature:

Max. Power

8.6 Watts (PoE 802.3af, IR on)

Dimension

70(D) * 166(H) mm

Weight

Net: 1100 g/2.43lb

Certification

FCC / CE / IP67 / IK10

Viewing System

OS: Microsoft Windows 7/Vista/XP/2000

Warranty

Limited 3

-

year warranty

Camera

Models

OB-

H200Np WDRPro

Hardware System

Flash: 32MB

Image Sensor

Sensor Type : 1/2.8" Sony Exmor CMOS Sensor

Lens Lens Type: Motorized Lens

Local Storage

Built-in Micro SD

/

SDHC / SDXC Max.64G Memory Card

Day & Night ICR

Triggered by Light S

ensor, Scheduling,

Minimum

0 Lux(IR On, B/W)

IR Illuminators

Built –In IR Illuminators

up to

25m

Video

Compression

H.264 / MPEG4 / MJPEG

Video Setting

i-

Mode Image Management:

S/N Ratio

Above 50dB

Image Resolution

2M (1920 x 1080)

● (60fps)

WDR 120dB

Events and Alarm Management

Events

Motion

Detection/ Schedule/ Audio Detection/ Digital

Alarm Stream/Snapshot to FTP/Email/Samba/SD

-

Card

RAM: 512MB DDR

Sensor Resolution : 2M (1920 x 1080)

| BEYOND WHAT YOU SEE

Input/ Output

/ Line output

Illumination

Streaming

P-IRIS: F1.4
Focal Length: f=2.8~12mm
View Angle: (H°/ V°/ D°)
(H )98°~34° / (V )52°~19° / (D) 110°~40°

Slot

Digital Input

0.0008 Lux (F1.4,B/W)

0.001 Lux (F1.4,Color)

IR LED: 20pcs

Simultaneous multiple streams

Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/120000~1s
Manual Gain Control: 1 ~ 48

Input/ Temperature Alarm/ Auto IR Focus for Day & Night

HTTP/Email Notification/ Digital Output

Environment

Consumption

Requirements

Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP,
RTCP, IPv6

802.3at PoE / DC48V 0.8A(*)
AC24V(*)
*with PB-03

-45°C ~ 60°C
(-49°F ~ 140°F)

Operating Humidity: 10% ~ 80%

8.4 Watts (PoE 802.3at, IR on)

18.2 Watts (PoE 802.3at, IR&Heater&Fan on)

Browser: Mozilla Firefox, Internet Explorer 6/7 or above,
Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Camera Accessories Options

CI-812

Camera Stand

© 2015 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.

Network Equipment Options

PS-7242IL-AT

24-port 10/ 100M High Power PoE+ Web Smart Ethernet
Switch

POE30U V2

High Power PoE Injector 48V

V4.0
