Brickcom OB-202Ne-V6, OB-502Ae V6 User Manual

Hardware User’s Manual

Megapixel Day & Night

Economy Bullet Network Camera

English

1

Product name:
Release Date:
Manual Revision:
Web site:

Email:

Network Camera (OB-502Ae/OB-302Ne/OB-500Af/OB-300Nf V5)

2015/09

V1.0

www.brickcom.com

[e-mail]

[e-mail]

©

2015 Brickcom Corporation. All Rights Reserved

Review History:

1. First release of hardware user's manual for the following models:

OB-502Ae/302Ae/202Ae Se ries

OB-500Af/300Af/200Af Series

OB-302Ne/202Ne Series

OB-300Nf/200Nf Series

1

Table of Contents

Before You Use This Product ........................................................................................ 3

Regulatory Information ................................................................................................. 4

Chapter 1 - Package Contents ...................................................................................... 5

Chapter 2 - Bullet Series Network Camera ................................................................ . 6

Chapter 3 - Device Appearance Description ............................................................... 7

Chapter 4 - Installation .................................................................................................. 9

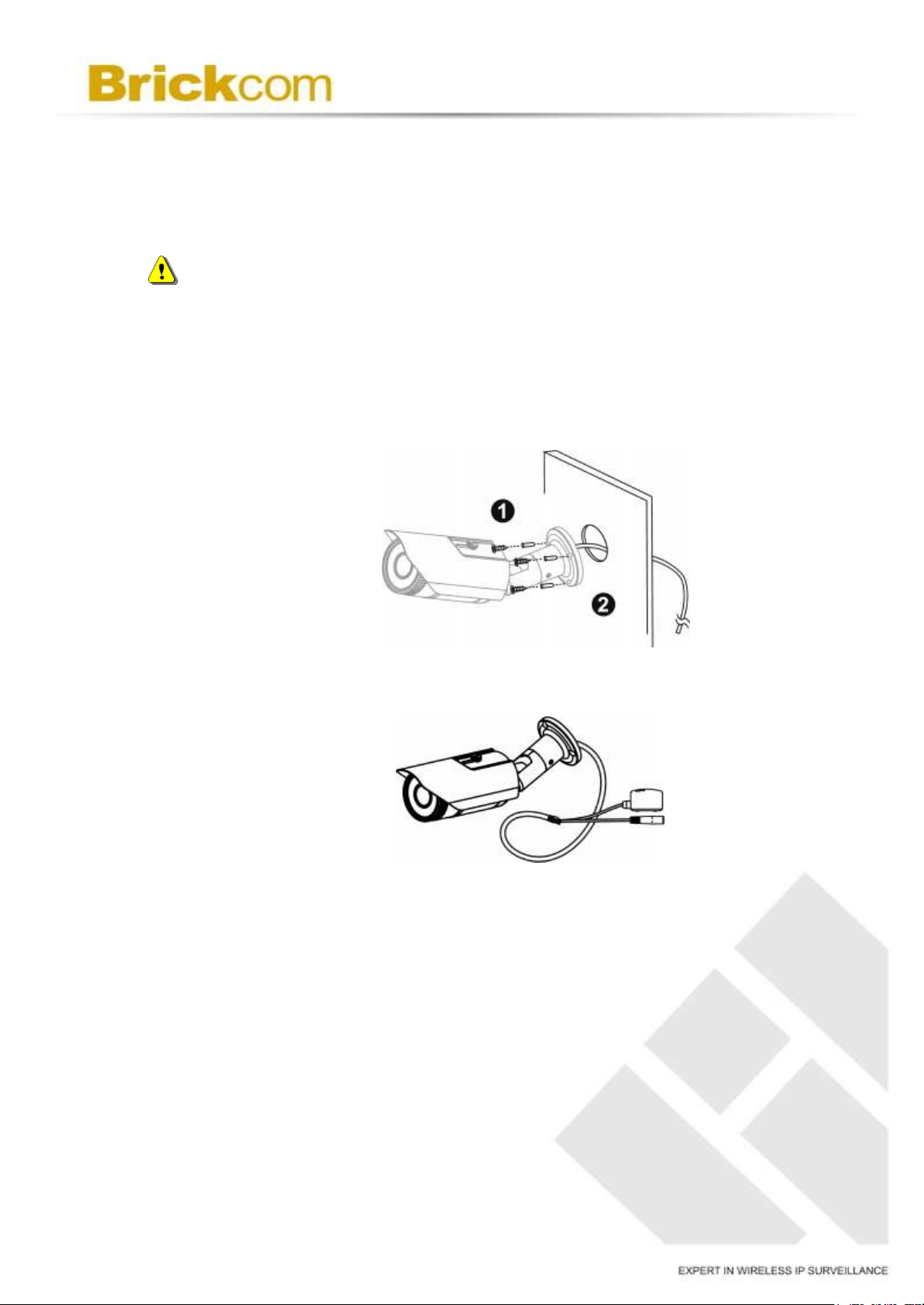

4.1 Hardware Installation

........................................................................................... 9

4.2. PoE Connection ................................................................................................ 10

4.3.Camera Connection ........................................................................................... 10

4.4 System Requirements ....................................................................................... 11

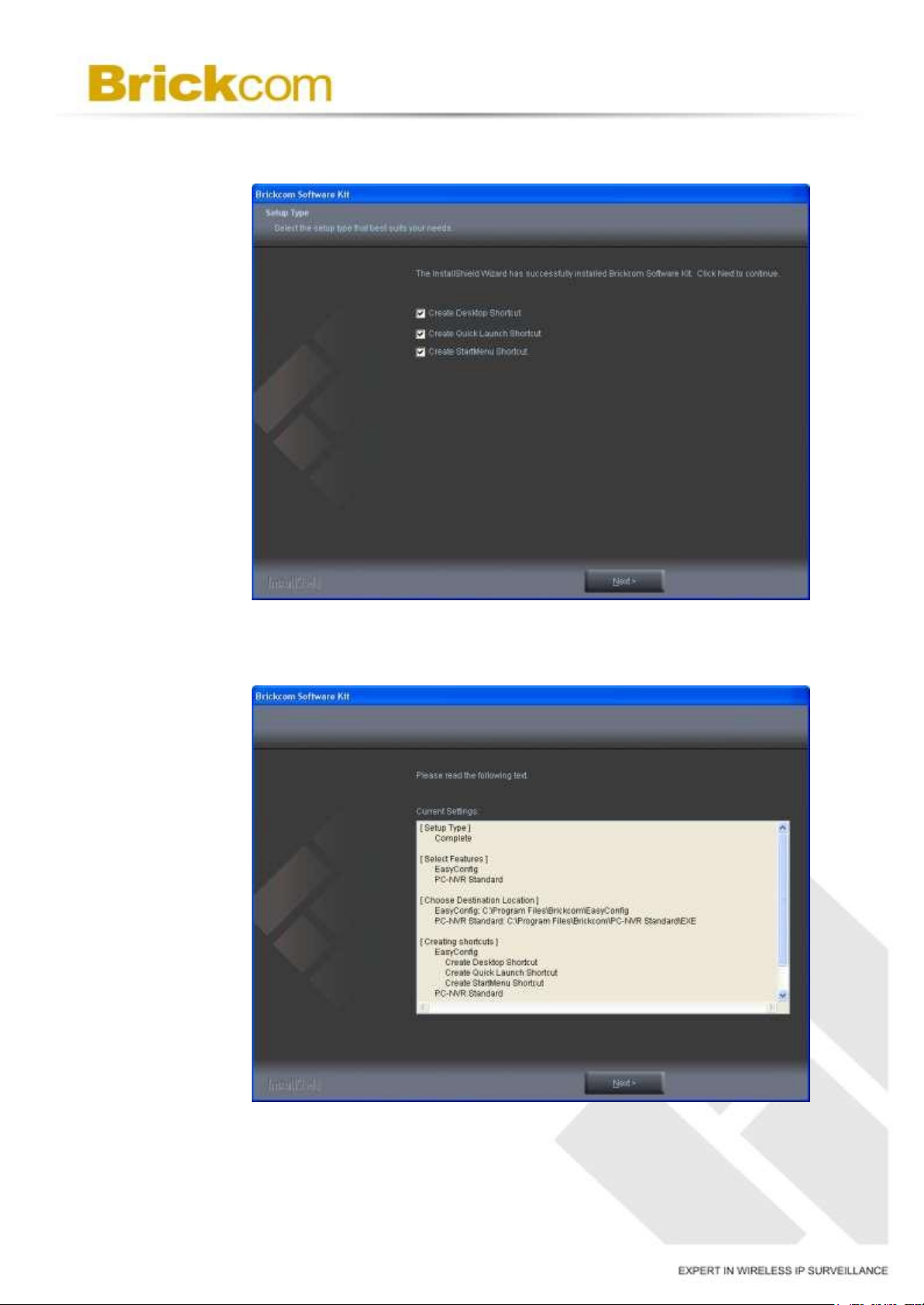

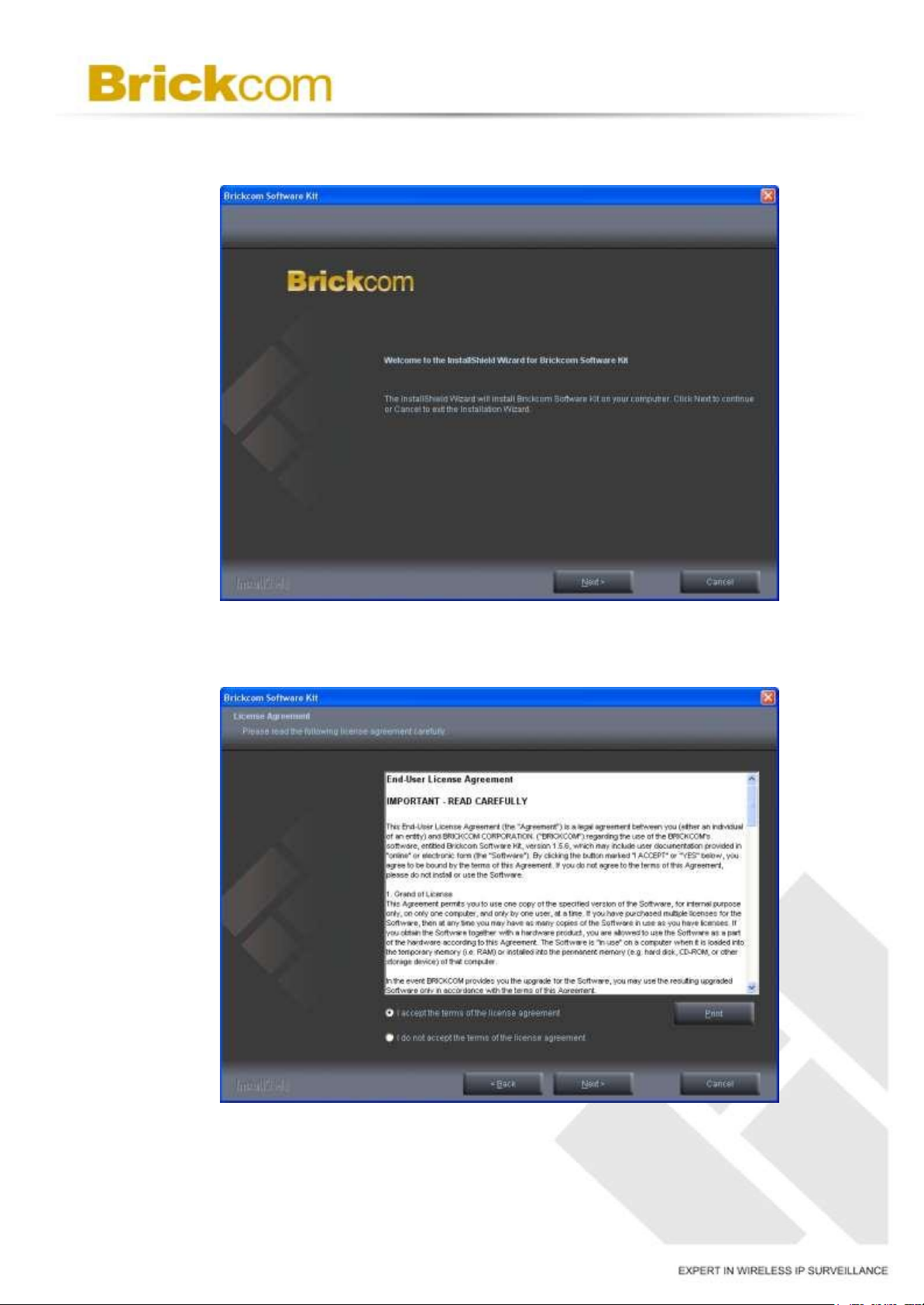

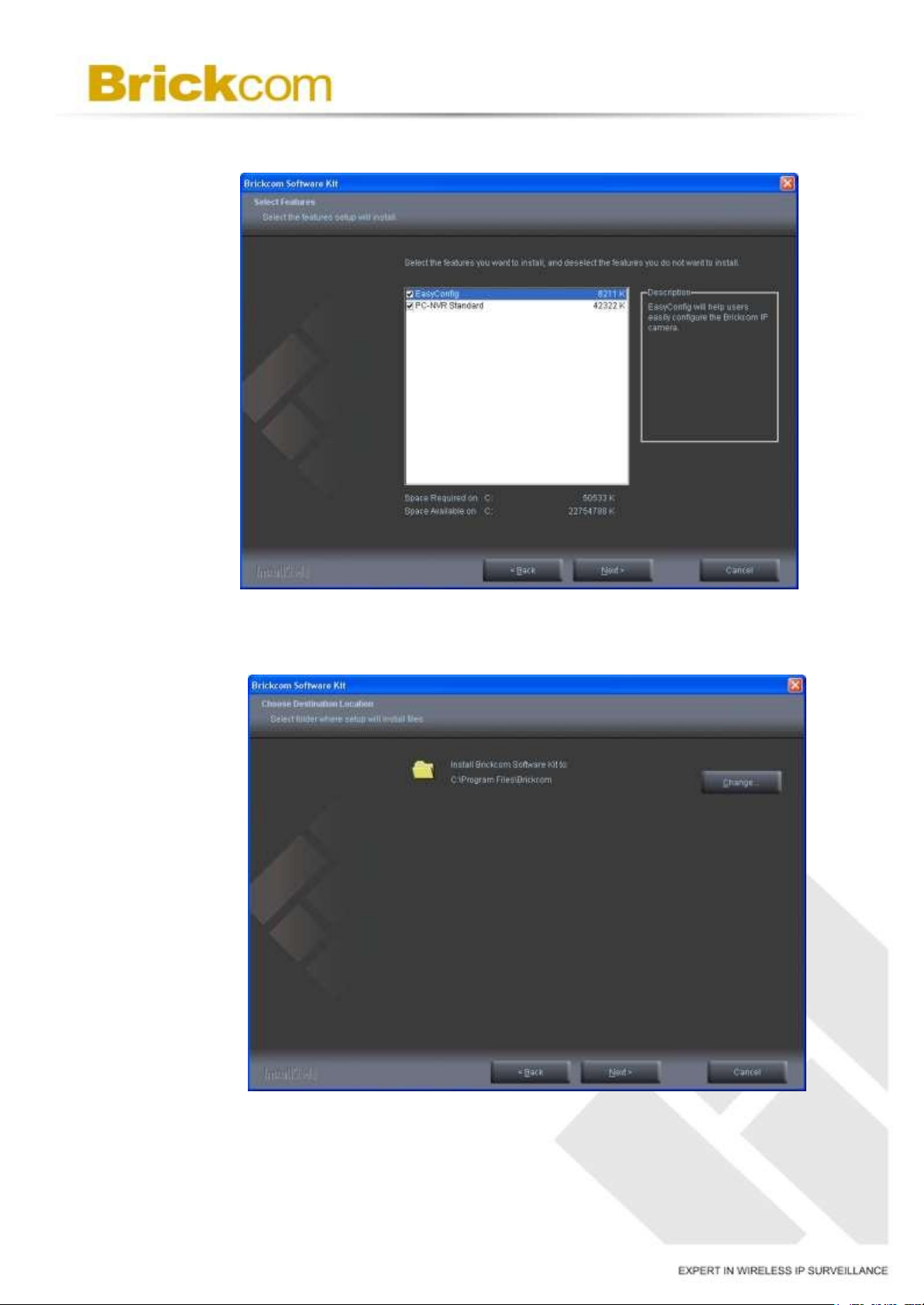

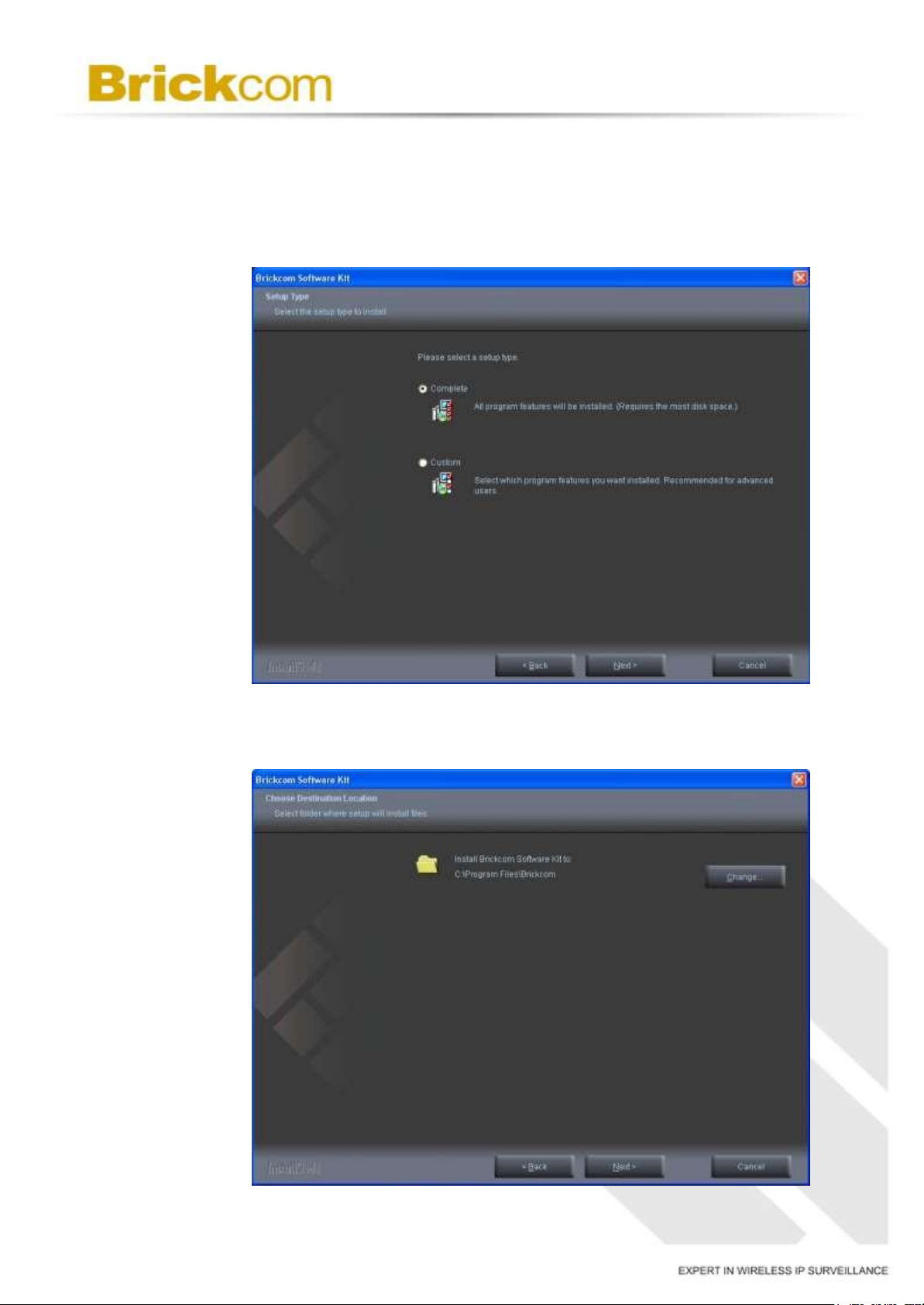

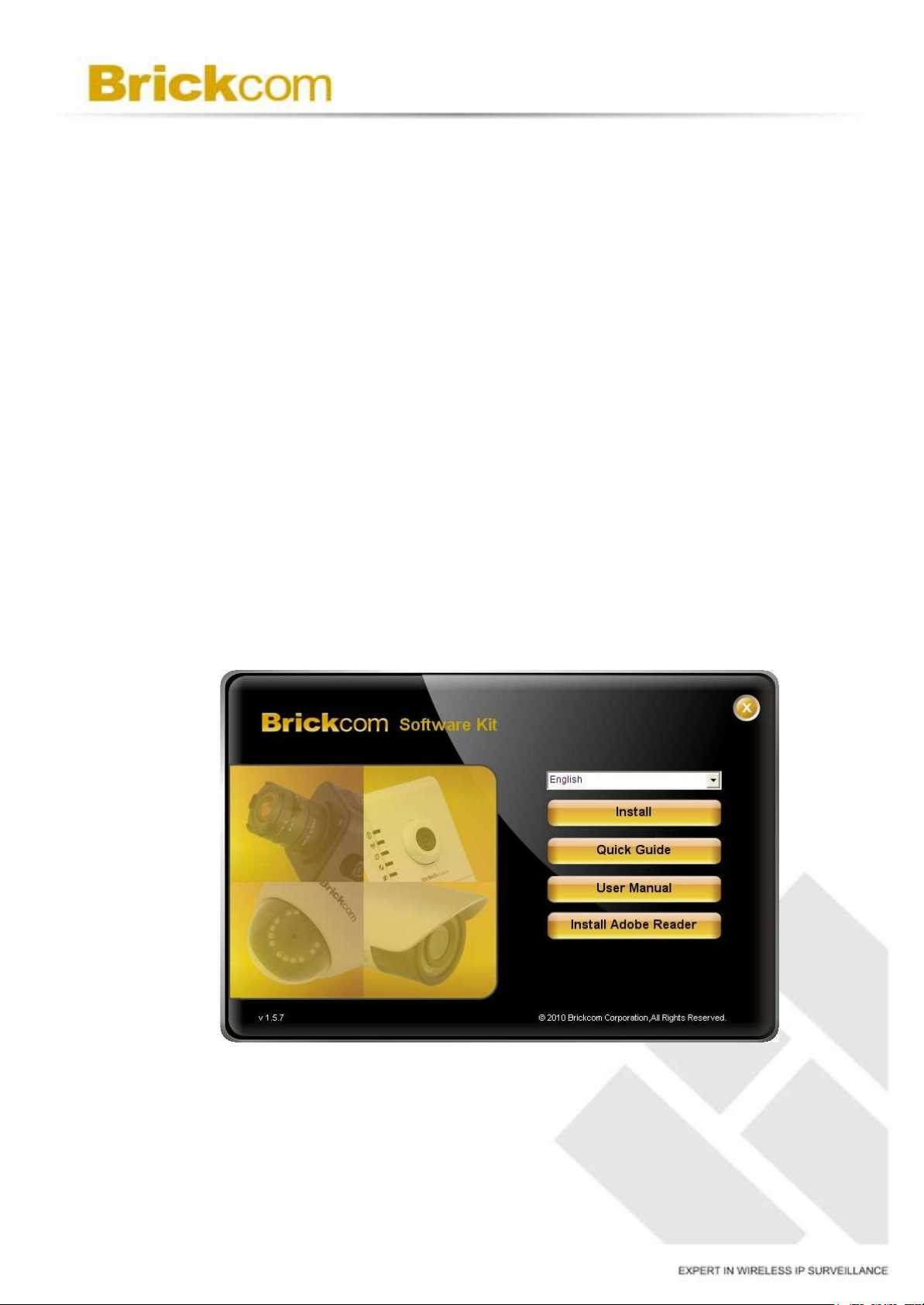

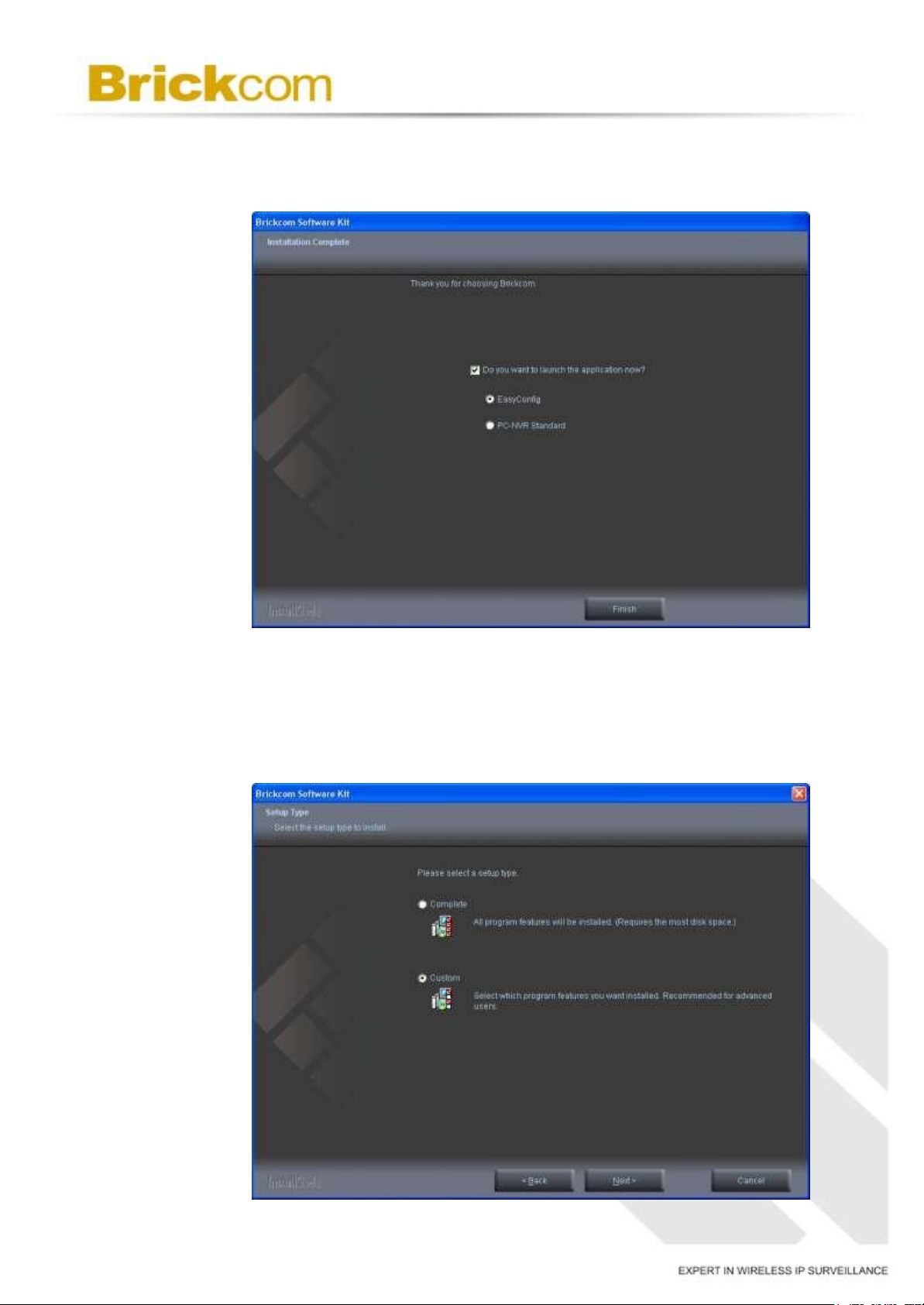

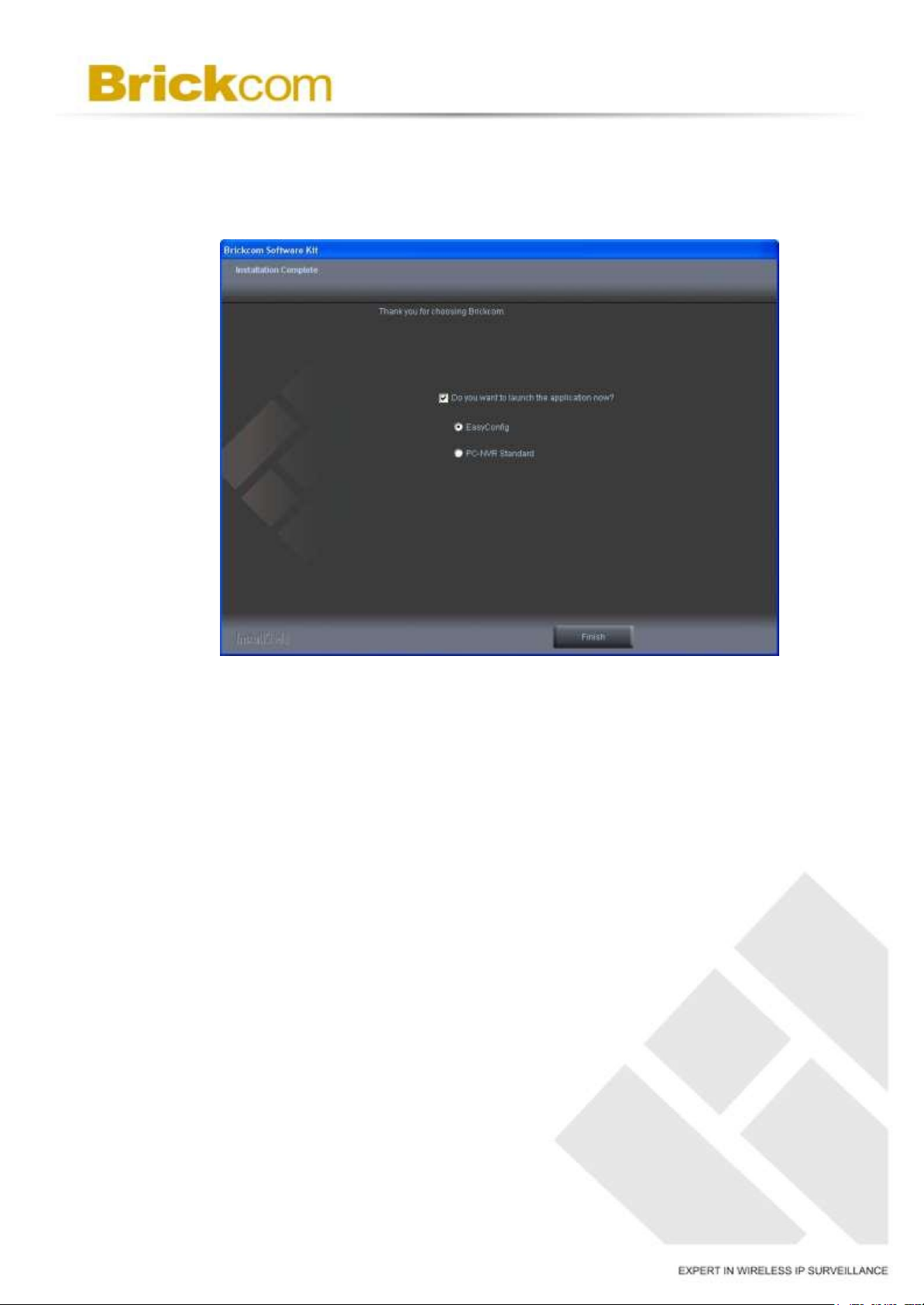

4.5 Software Installation .......................................................................................... 12

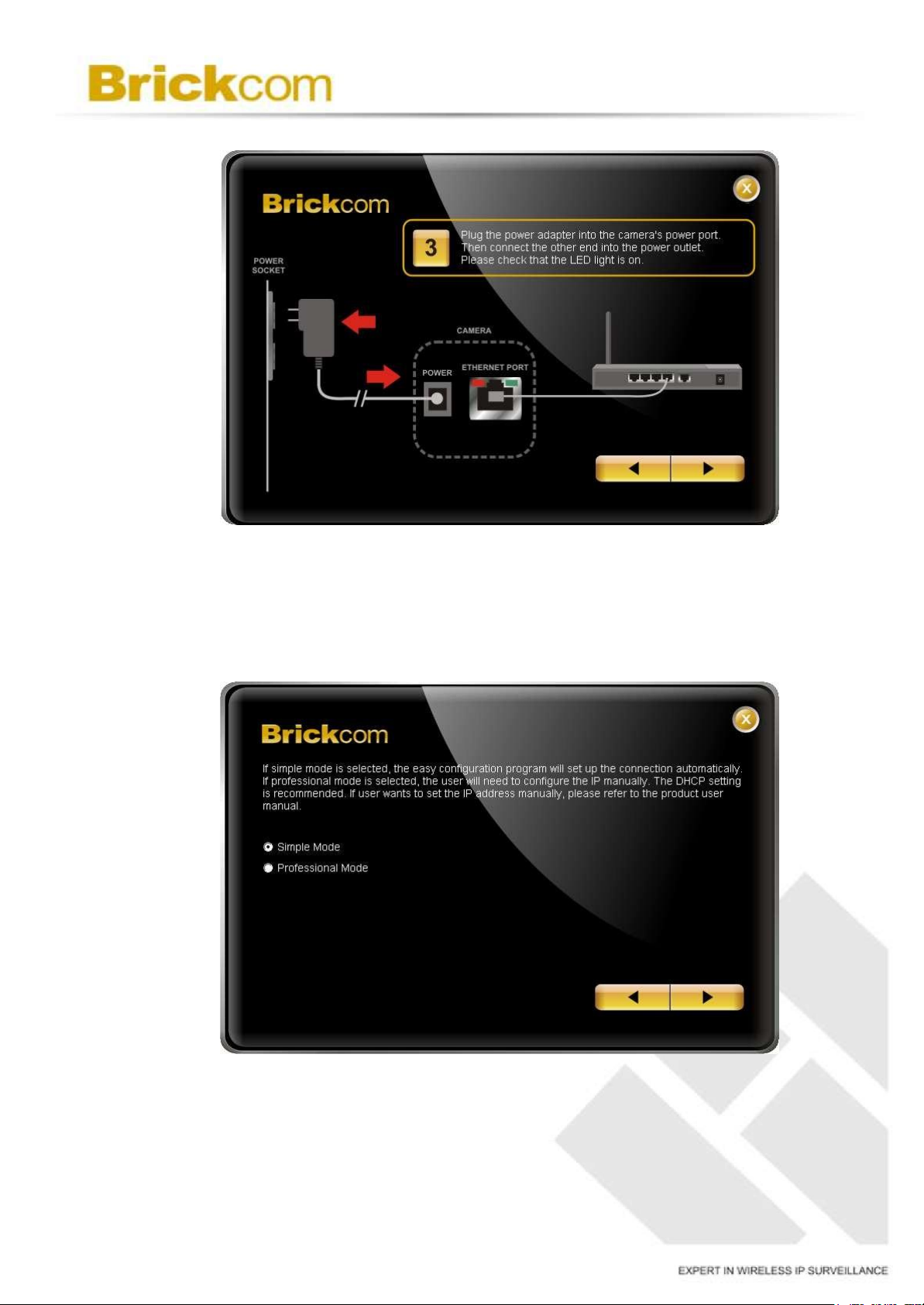

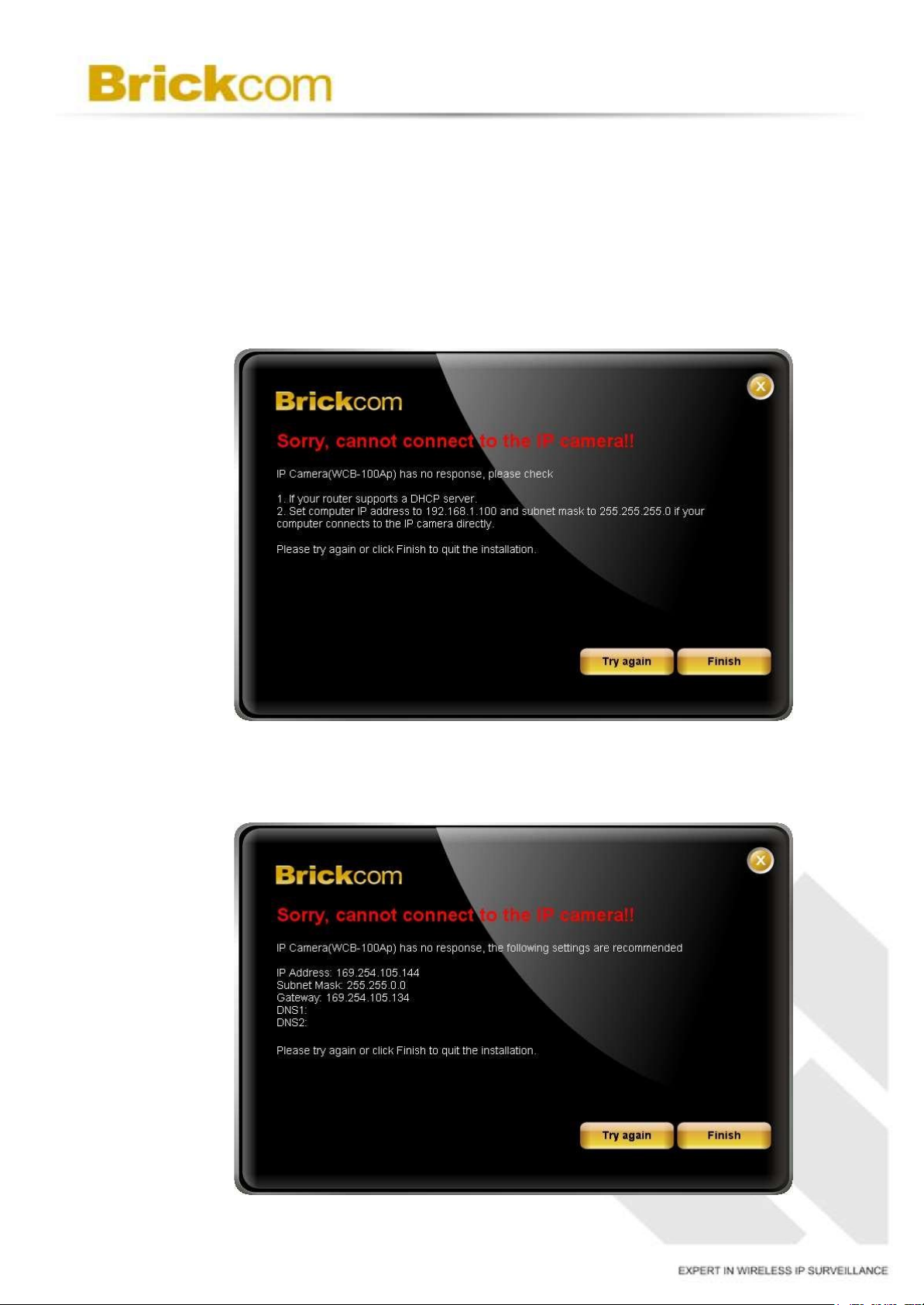

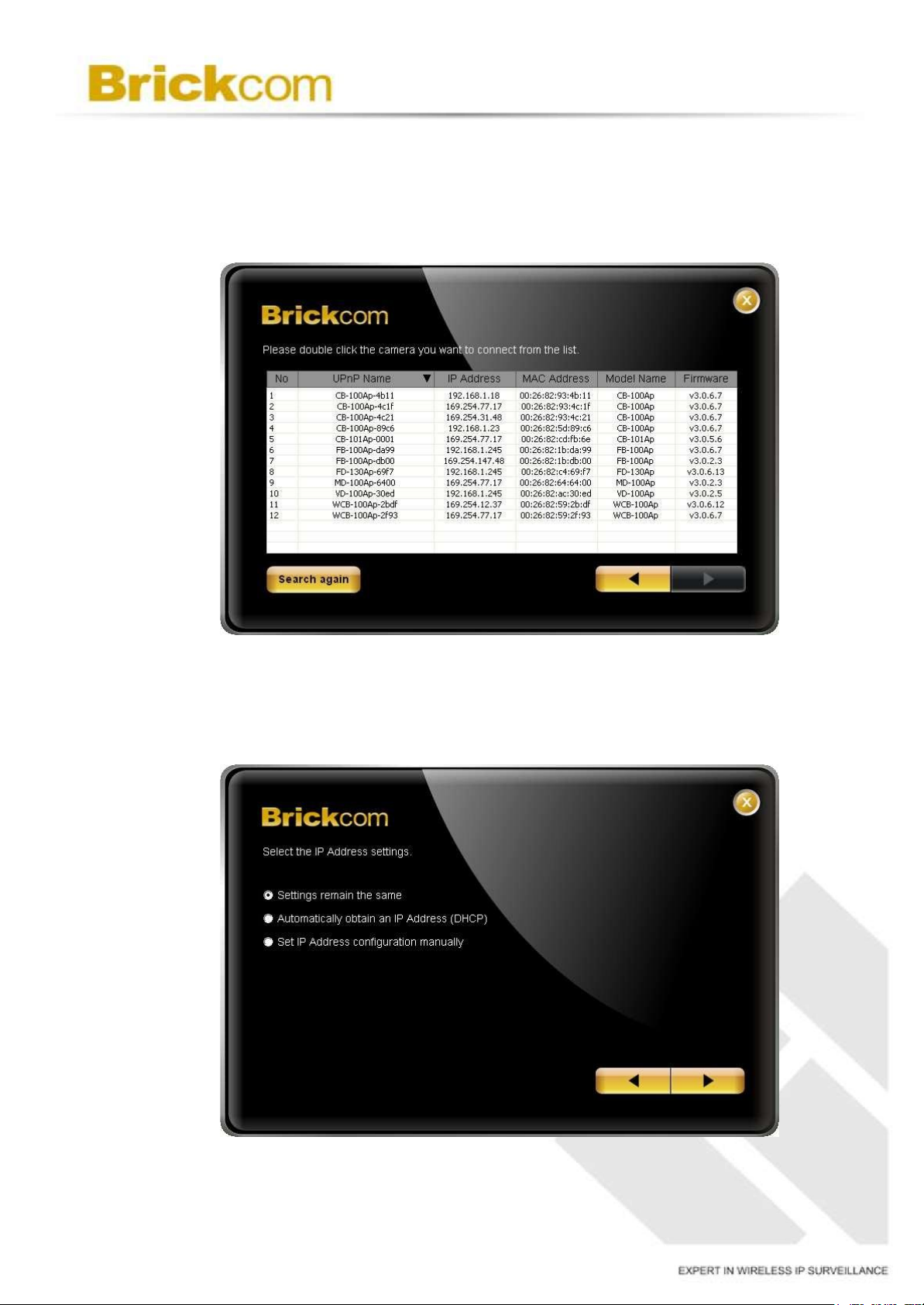

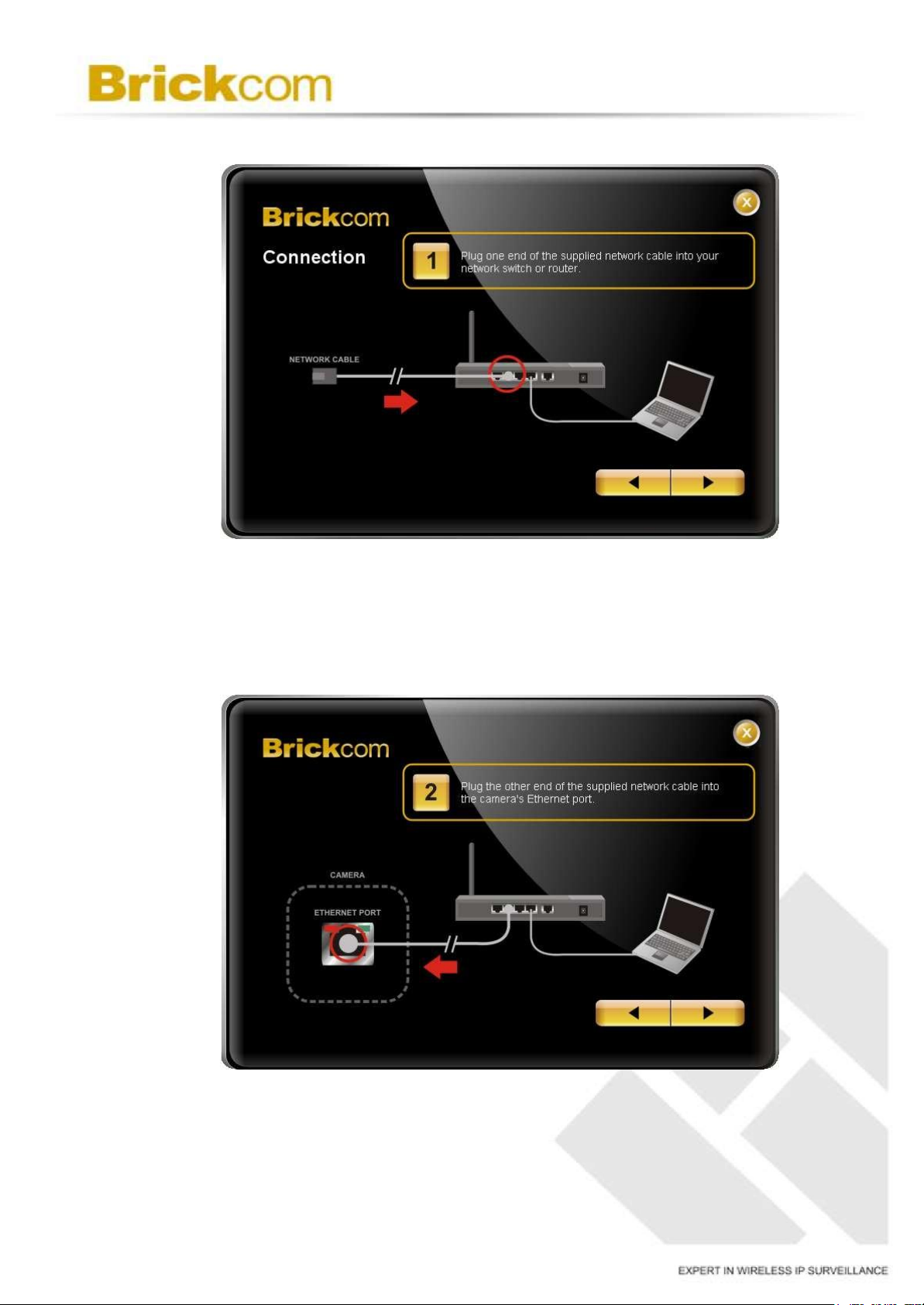

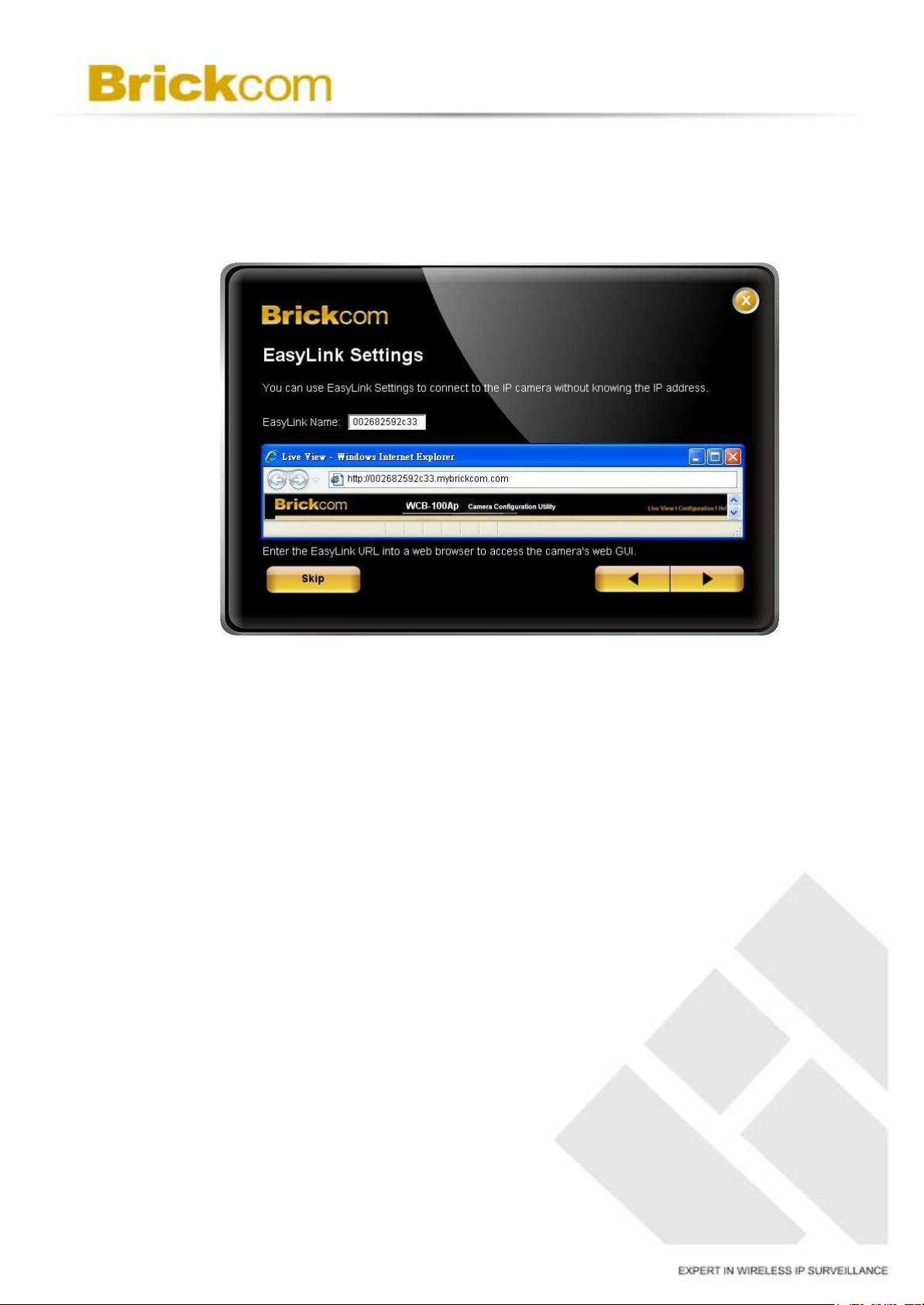

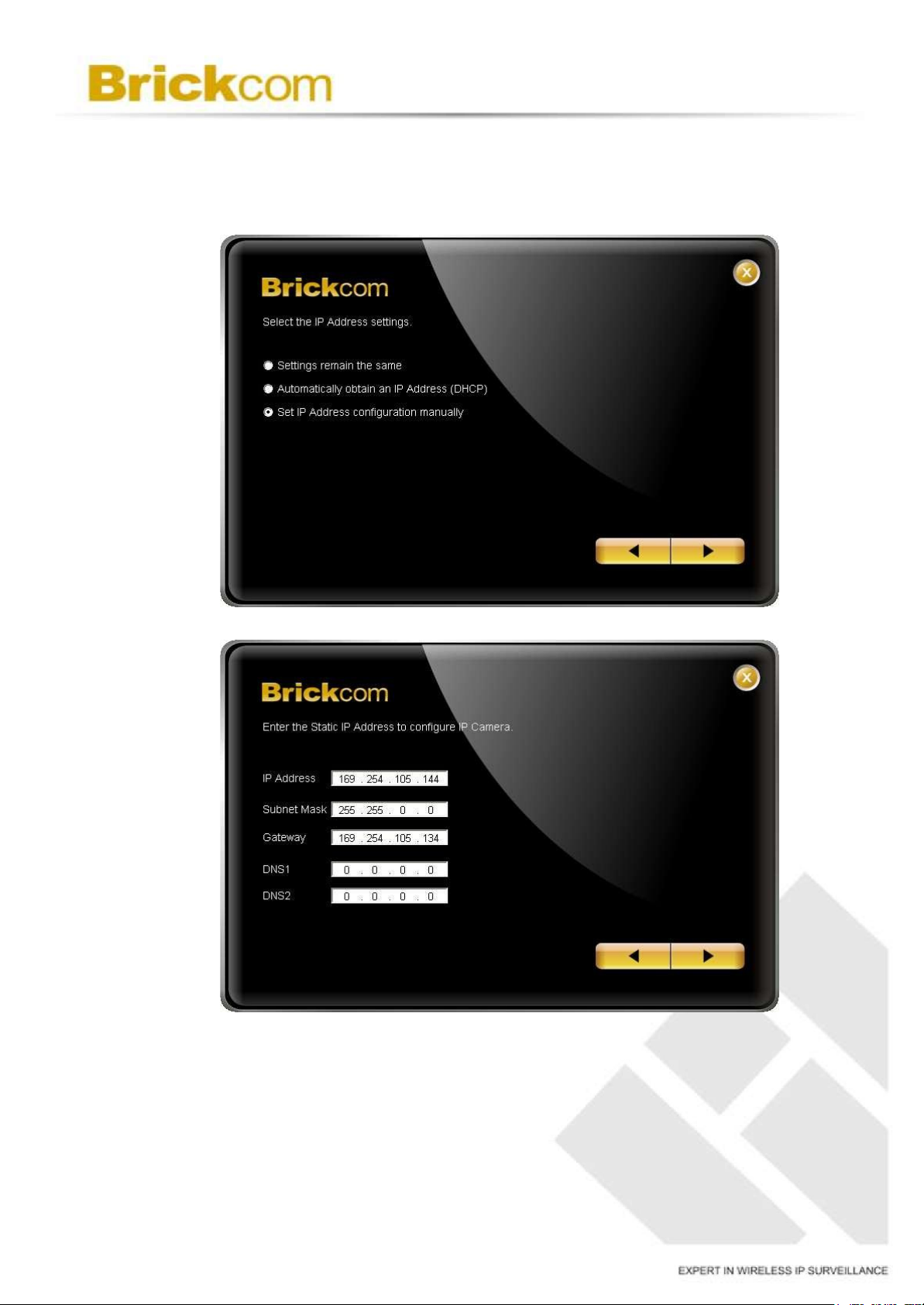

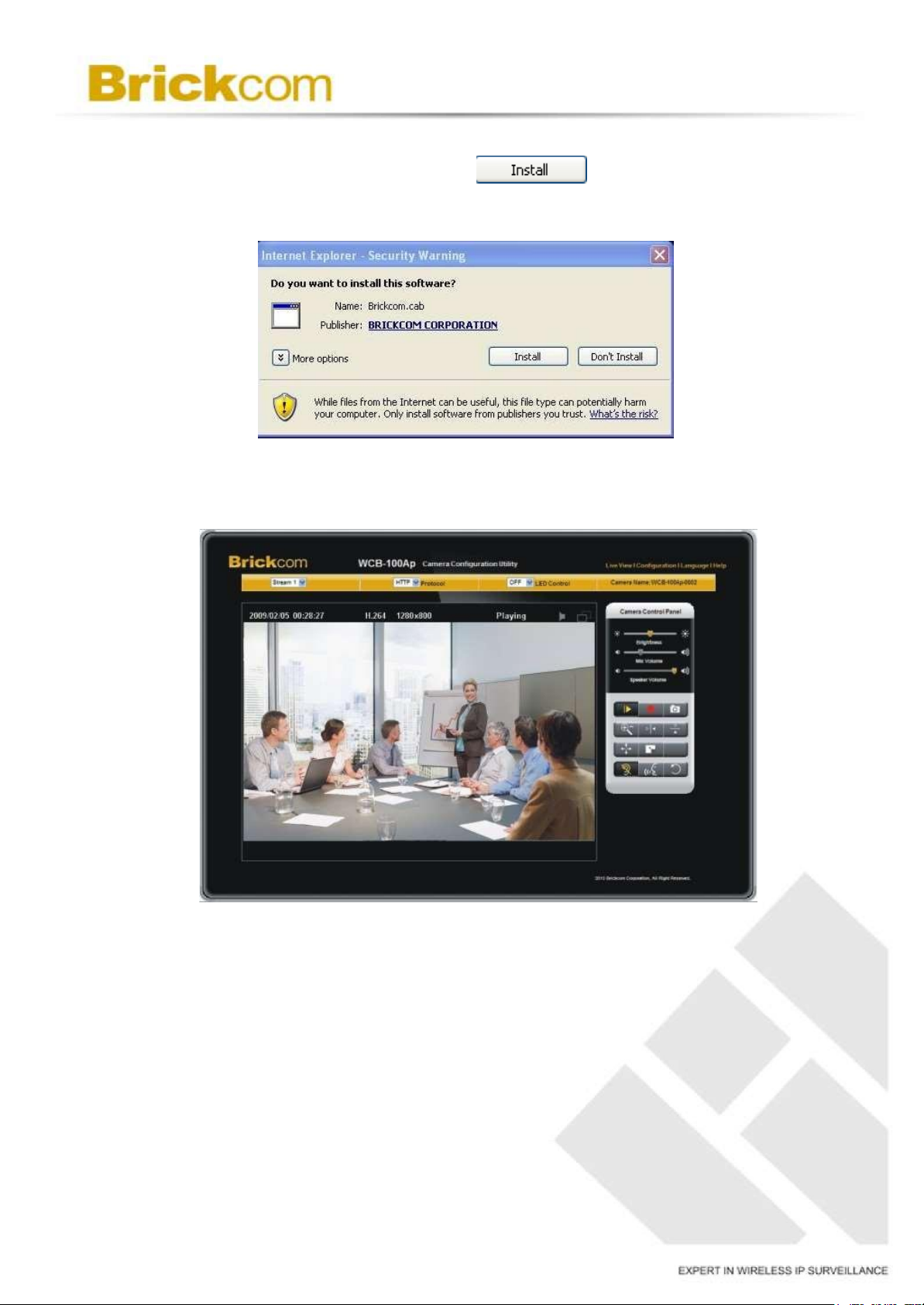

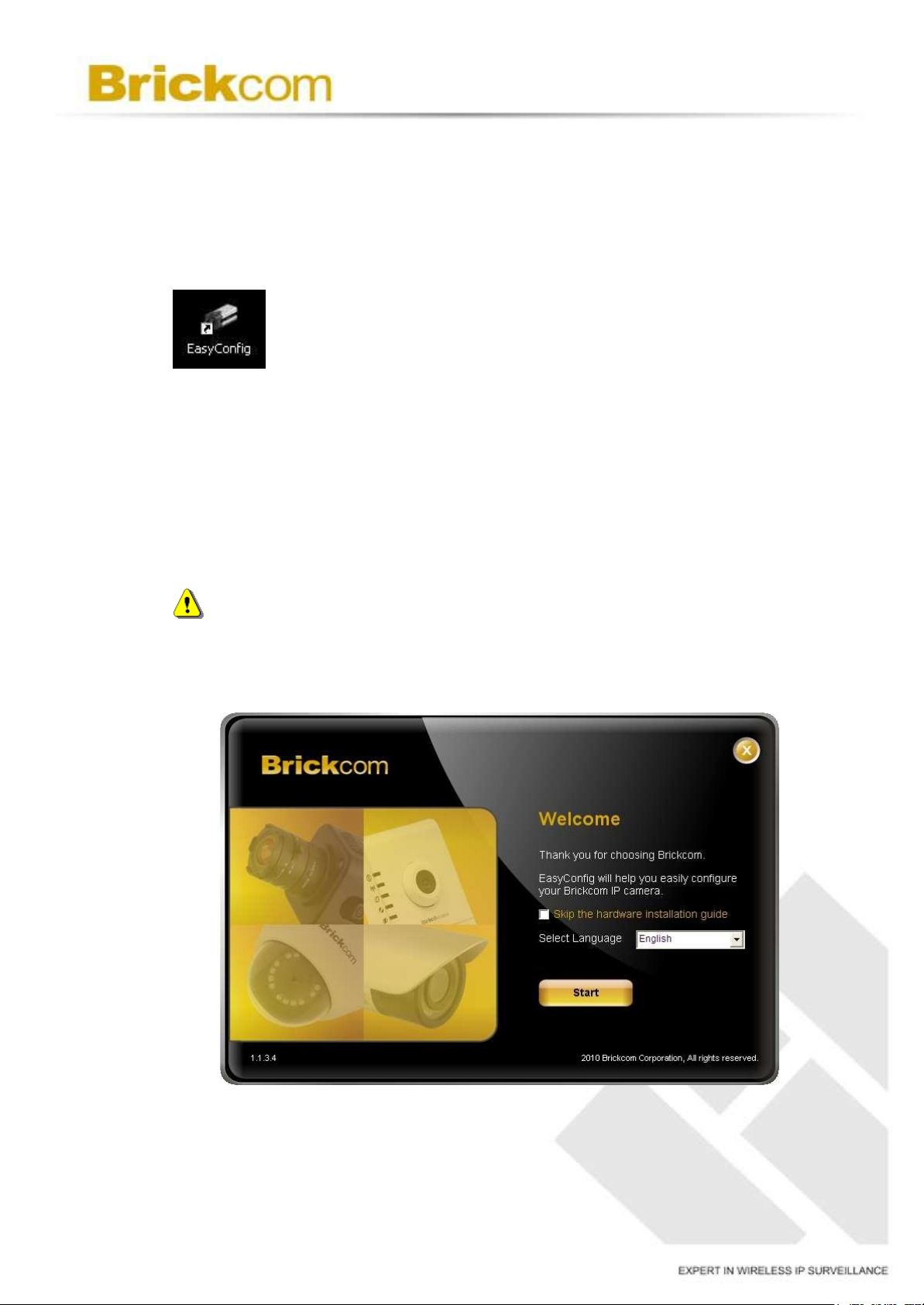

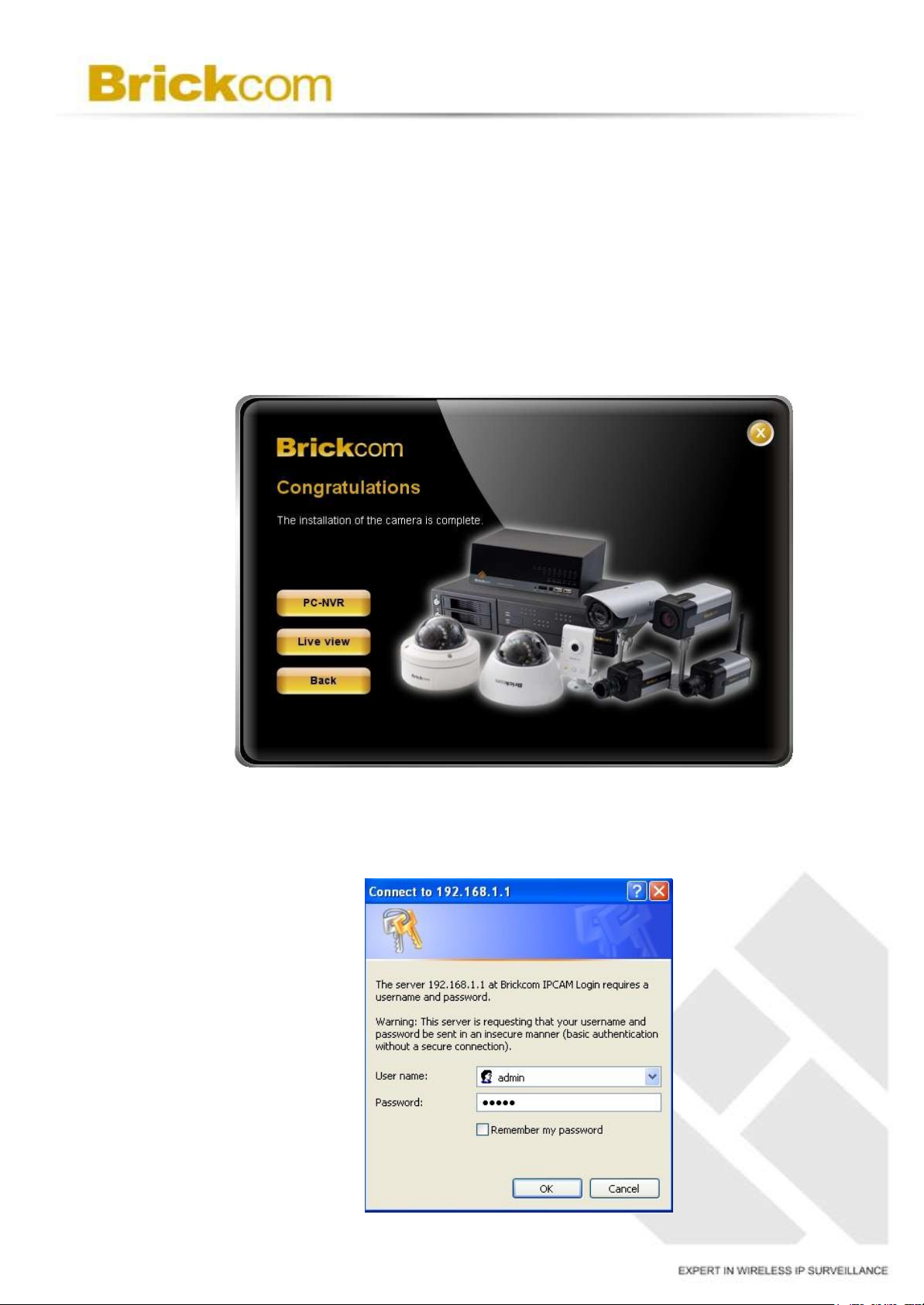

4.5.1 EasyConfig ............................................................................................... 20

2

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of
surveillance devices. This Network Camera is a high-performance, web-ready camera
which can be part of a flexible surveillance system. It is the user’s responsibility to
ensure that the operation of this camera is legal before installing th is unit for its
intended use.

Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Easy Installation Guide” to avoid misuse. When installing the Network
Camera, carefully read and follow the instructions in the “Installation” chapters to avoid
damages due to faulty assembly or installation.

3

Regulatory Information

Federal Communication Commission Interference Statement

This equipment ha s been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly app roved by the party
responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device
must accept any interference received, including interference that may cause
undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.

4

a. Network Camera

b. Screw bag

c. Warranty Card

d. Dry Bag

e. Power Adapter(Optional)

f. Product CD

g. PoE Injector (Optional)

h. Terminal Block

Chapter 1 - Package Contents

Please check to make sure the product package contains all the accessories
listed below.

5

Chapter 2 - Bullet Series Network Camera

Overview

The Brickcom Bullet Series is a Bullet network camera. It adopts a megapixel sensor
which allows the camera to deliver extremely clear and detailed images that CCTV
cameras cannot offer. To optimize use of the megapixel resolution, the Bullet Series
uses efficient H.264/ MJPEG/ MPEG-4 codec compression to deliver dual configurable
video streams simultaneously at up to 30 fps. These features make the Bullet Series
the perfect outdoor camera for neighborhood, school campus, and parking lot
surveillance.

The Bullet Series has many user friendly features, such as support for DC12V power
supply, and Power over Ethernet which enables the camera to use the same cable for
power and data transmission, eliminating the need to install an external power supply.

With an IP66 certified outdoor enclosure, the Bullet Series is not only water proof, but
also dust proof.

6

1.RJ45 Connector

2.Digital Power DC+12V (Green)

3.Digital Output (Orange)*

4.Digital Input (Yellow)*

5.Digital Ground (White)*

6.RS485+ (Purple)*

7.RS485- (Gray)*

8.Line out (Green black)*

9.Line out Ground (Gray Black)*

10.Line in (Blue black)*

11.Line in Ground (Brown Black)*

Chapter 3 - Device Appearance Description

< Front Panel >

< Rear Panel >

Lens

Light Sensor

IR LED

(*) These are optional features. Please refer to the datasheet for the full list
of optional features that are available for this product.

< Hardware Reset >

7

<Hardware Reset>

FocusEasy / reset button

Micro SD Card slot

The Reset Button can be used to reboot the camera, restore it to factory default settings,
or switch on FocusEasy. If the camera experiences a problem, rebooting the camera
may correct the problem. If the problem remains, please restore the camera to factory
default settings and reinstall the software.

To Start/Cancel FocusEasy

To Start FocusEasy, please press and hold the reset button for 2-3 seconds. The
camera will play the melody indicating FocusEasy is already started. Then follow the
beeps to adjust the focus. To cancel FocusEasy, please press and hold the reset button
again for 2-3 seconds. The camera will play another melody indicating FocusEasy is
already shut down.

NOTE -FocusEasy is supported only on the Specific professional manual-focal

To Reset

Press and hold the Reset Button for more than 10 seconds using a paper clip or thin
object. Wait for the camera to reset to default.

Micro-SD/SDHC/SDXC Card Capacity

The network camera is compatible with Micro-SD/SDHC/SDXC (Maximum 64GB) cards.

cameras, and is NOT supported on any moto-focal cameras.

NOTE - By resetting the camera, all settings will be restored to the factory

default settings.
