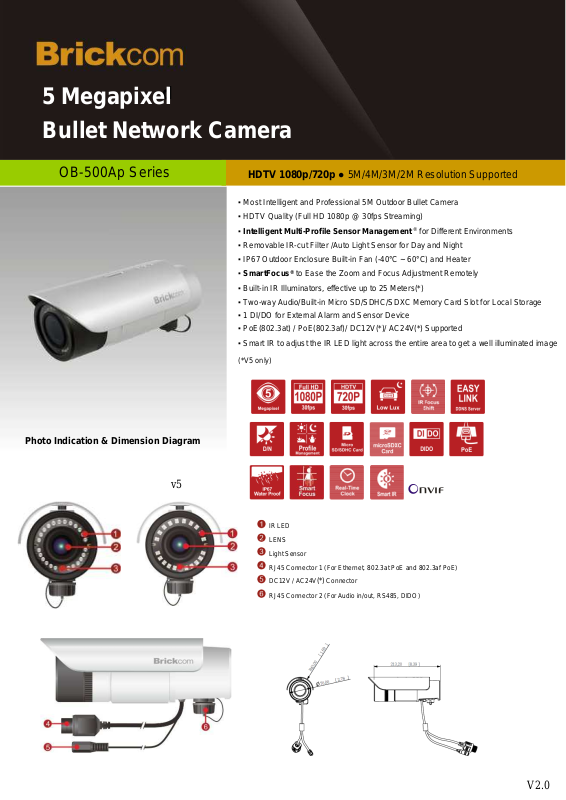

Brickcom OB-500Ap-KIT-V5 Specsheet
HDTV 1080p/720p ●
v5
5 Megapixel
d
Bullet Network Camera
OB-500Ap Series
▪ Most Intelligent and Professional 5M Outdoor Bullet Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management ® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ IP67 Outdoor Enclosure Built-in Fan (-40°C ~ 60°C) and Heater
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely
▪ Built-in IR Illuminators, effective up to 25 Meters(*)
▪ Two-way Audio/Built-in Micro SD/SDHC/SDXC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device
▪ PoE(802.3at) / PoE(802.3af)/ DC12V(*)/ AC24V(*) Supported
▪ Smart IR to adjust the IR LED light across the entire area to get a well illuminated image
(*V5 only)
5M/4M/3M/2M Resolution Supported
Photo Indication & Dimension Diagram
IR LED
LENS
Light Sensor
RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
DC12V / AC24V
RJ45 Connector 2 (For Audio in/out, RS485, DIDO)
(*)
Connector
V2.0
Models
OB-
500Ap
/OB-500Ap V5
:
Hardware System
Image Sensor
Lens
Local Storage
Day & Night ICR
IR Illuminators
Minimum
OB-500Ap:
Audio Streaming
Audio Compression
Audio
Communication
Power Input
Power Input
/
Max. Power
OB-500Ap&OB
-
500Ap
V5
Dimension
Weight
Housing
Certification
Viewing System
ox, Internet Explorer 6/7 or
Warranty
Compression
Video Setting
S/N Ratio
Image Resolution
5M :
Alarm
info@brickcom.com
Camera
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Sensor Type : 1/2.5” CMOS 5 Megapixel Sensor
Sensor Resolution : 2592 x 1944 pixel
Lens Type: Board Lens
Iris: F1.4
OB-500Ap:
Focal Length: f=3~10.5mm
View Angle: (H): 95°~33°/ (V): 70°~25°/
(D): 120°~41°
OB-500Ap V5:
Focal Length: f=3.3~10.5mm
Iris: F1.4
View Angle: (H): 90°~33°/ (V): 65°~25°/
(D): 115°~41°
Built-in Micro SD/SDHC/SDXC Memory Card Slot
(Max. 64G)
(*V5 only)
Triggered by Light sensor, Scheduling,
Digital Input
Built –In IR Illuminators,
OB-500Ap:
effective up to 15 meters
IR LED: 24pcs
OB-500Ap V5:
effective up to 25 meters
IR LED: 20pcs
Illumination
Video
Streaming
Events and Alarm Management
Events
0 Lux(IR ON,B/W)
0.01 Lux(IR OFF,B/W)
0.008Lux(F1.4,Color)
OB-500Ap V5:
0 Lux(IR ON,B/W)
0.02 Lux(IR OFF,B/W)
0.01 Lux(F1.4,Color)/
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
38.1 dB
(5M supports MJPEG only)
4M : 2304x1728 @ 15fps
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Motion Detection/ Schedule/ Audio Detection/
Digital Input/ Temperature Alarm(*)/ Auto Focus
Shift for Day & Night(*)
*OB-500Ap V5
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
2592x1944 @ 10fps
5M, Motorized Lens
Audio
Input/ Output
General
Temperature/
Environment
Consumption
Requirements
2-way Audio Support
G.711, AMR (8 kHz, Mono, PCM)
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Ethernet : one 10/100Mbps RJ-45
IEEE 802.11a/b/g/n compliance
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
DC12V 1A / 802.3af PoE
802.3at PoE/ DC48V 0.8A
AC 24V
Operating Temperature:
DC12V 1A / 802.3af PoE:
-20°C ~ 60°C (-4°F ~140°F)
802.3at PoE/ DC48V 0.8A:
(build in fan and heater):
-40°C ~ 60°C (-40°F ~140°F)
Operating Humidity: 10% ~ 80%
9 Watts (DC12V 1A / 802.3af)
11 Watts (DC48V 0.8A/PoE 802.3at)
70(D) * 166(H) mm
Net: 1100 g/2.43lb
Weather-proof (IP67)
FCC, CE
OS: Microsoft Windows 7/Vista/XP/2000/7
Browser: Mozilla Firef
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Limited 3-year warranty
V2.0
