Brickcom OB-302Ap-KIT Specsheet
3 Megapixel
Bullet Network Camera
▪ Most Intelligent and Professional 3M Outdoor Bullet Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ IP67 Outdoor Enclosure Built-in Fan (-40°C ~ 60°C) and Heater
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification (*)
▪ Varifocal Lens with FocusEasy™ (*)
▪ Built-in IR Illuminators, effective up to 25 Meters (*)
▪ Two-way Audio/Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device
▪ PoE(802.3at) / PoE(802.3af)/ DC12V (*)/ AC24V (*) Supported
▪ Smart IR to adjust the IR LED light across the entire area to get a well illuminated image
(*)- V5 only

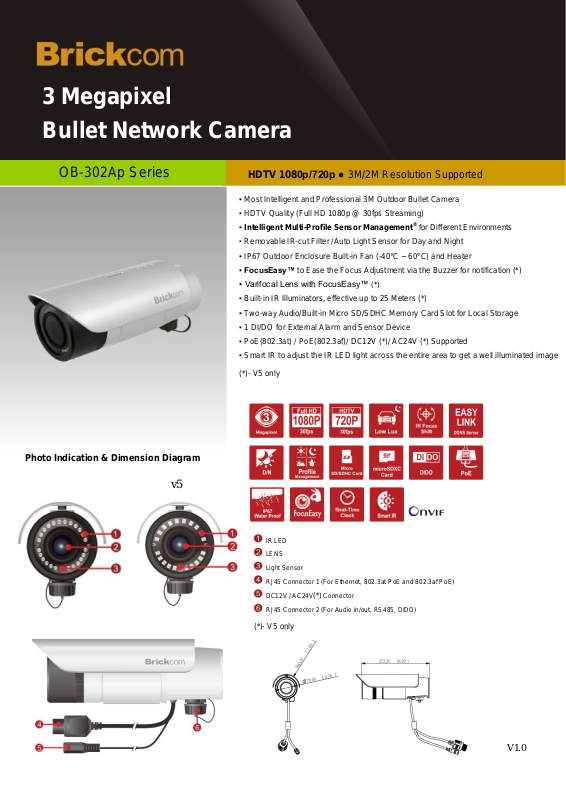

Photo Indication & Dimension Diagram
OB-302Ap Series
HDTV 1080p/720p ● 3M/2M Resolution Supported
v5
IR LED
LENS
Light Sensor
RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
DC12V / AC24V(*) Connector
RJ45 Connector 2 (For Audio in/out, RS485, DIDO)
(*)- V5 only
d
V1.0
Models
OB-302Ap/OB-302Ap V5:3M, Vari-Focal Lens
Hardware
System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2048 x 1536 pixel
Lens
OB-302Ap / OB-302Ap V5
Focal Length: f=3.3~10.5mm
Iris: F1.4
View Angle:
Normal (H): 70°~26°/ (V): 51°~20°/ (D): 88°~32°
Ultra wide(H):107°~33°/ (V):77°~22°/ (D): 114°~41°
Local Storage
Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot
Day & Night
ICR
Triggered by Light sensor, Scheduling,
Digital Input
IR
Illuminators
Built –In IR Illuminators,
OB-302Ap:
effective up to 15 meters
IR LED: 24pcs
OB-302Ap V5:
effective up to 25 meters
IR LED: 20pcs
Minimum
Illumination
OB-302Ap / OB-302Ap:
0 Lux(IR ON ,B/W)
0.001 Lux(IR OFF ,B/W)
0.002 Lux (F1.4,Color)
Audio
Streaming
2-way Audio Support
Audio
Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
DC12V 1A / 802.3af PoE
802.3at PoE/ DC48V 0.8A
AC 24V(*)
(*)- V5 only
Power Input/
Temperature/
Environment
Operating Temperature:
DC12V 1A / 802.3af PoE:
-20°C ~ 60°C (-4°F ~140°F)
802.3at PoE/ DC48V 0.8A:
(build in fan and heater):
-40°C ~ 60°C (-40°F ~140°F)
Operating Humidity: 10% ~ 80%
Max. Power
Consumption
OB-302Ap & OB-302Ap V5
8.6 Watts (PoE 802.3af, IR on)
8.4 Watts (PoE 802.3at, IR on)
16.3 Watts (PoE 802.3at, IR&Heater&Fan on)
Dimension
70(D) * 166(H) mm
Weight
OB-302Ap /OB-302Ap V5
Net: 1100 g/2.43lb
Housing
Weather-proof (IP67)
Certification
FCC, CE
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
S/N Ratio
38.1Db
Resolution
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Events
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm(*)
*OB-302Ap V5 Only
Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Camera
General
Audio
Video
