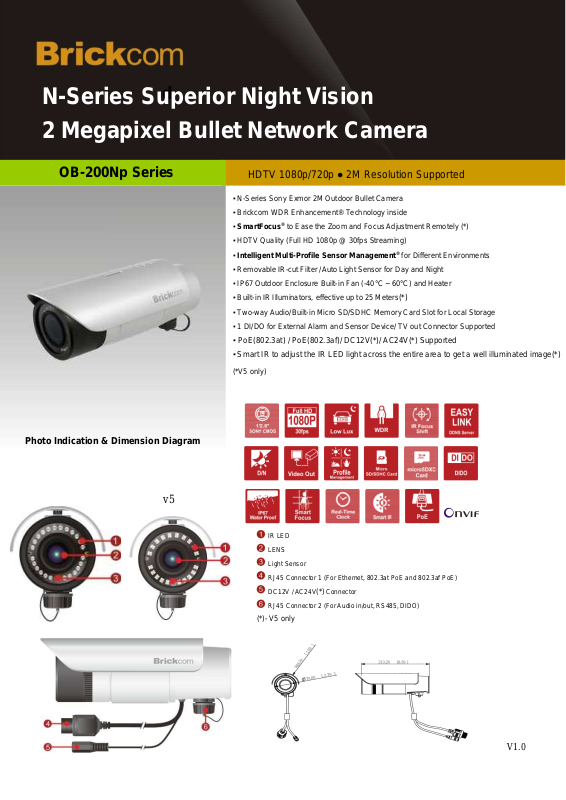

Brickcom OB-200Np-KIT-V5 Specsheet

v5

N-Series Superior Night Vision

d

2 Megapixel Bullet Network Camera

OB-200Np Series

HDTV 1080p/720p ● 2M Resolution Supported

▪ N-Series Sony Exmor 2M Outdoor Bullet Camera
▪ Brickcom WDR Enhancement® Technology inside
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely (*)
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ IP67 Outdoor Enclosure Built-in Fan (-40°C ~ 60°C) and Heater
▪ Built-in IR Illuminators, effective up to 25 Meters
▪ Two-way Audio/Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device/ TV out Connector Supported

▪ PoE(802.3at) / PoE(802.3af)/ DC12V(*)/ AC24V(*) Supported
▪ Smart IR to adjust the IR LED light across the entire area to get a well illuminated image(*)

(*)

Photo Indication & Dimension Diagram

(*V5 only)

(*)- V5 only

IR LED
LENS
Light Sensor
RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
DC12V / AC24V
RJ45 Connector 2 (For Audio in/out, RS485, DIDO)

(*)

Connector

V1.0

Models

OB-200Np

/OB-200Np V5

:

Hardware

Image Sensor

Lens

Local Storage

Day & Night ICR

Minimum

OB -

200Np & OB-

202N

p V5:

IR Illuminators

Events

Alarm

Audio

Audio

Audio

Communication

Power Input

Power Input

/

Max. Power

OB-200Np & OB-200Np V5

Dimension

Weight

OB-

200Np & OB-

200

Np V5

Housing

Certification

Viewing System

Warranty

Compression

Video Setting

S

/N Ratio


2M (Full HD):

Camera

System

Illumination

Video

Streaming

Resolution

2M, Motorized Lens

CPU: 533 MHz
Flash: 32M
RAM: 256M DDR

Sensor Type : 1/2.8” 2M Sony Exmor Megapixel
sensor
Sensor Resolution : 1920 x 1080 pixel

Lens Type: Board Lens

OB -200Np & OB-202Np V5:

Lens Type: Board Lens
Focal Length: 3mm~10.5mm
F value: F1.4
View Angle:
Normal :(H )90°~30°(V )49°~17°/(D) 103°~34°
Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot

Triggered by Light sensor, Scheduling,
Digital Input

0 Lux (IR ON, B/W)

0.001 Lux (IR OFF, B/W)

0.002 Lux(F1.4,Color)
Built –In IR Illuminators,

OB-200Np :

effective up to 15 meters
IR LED: 24pcs

OB -200Np V5:

effective up to 25 meters
IR LED:20pcs

H.264 / MPEG4 / MJPEG
Simultaneous multiple streams

Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 15X

Above 50dB

1920x1080 @ 30fps

1M (HDTV): 1280x720 @ 30fps

Events and Alarm Management

Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm(*)/ Auto Focus Shift for Day
& Night(*)
* V5 Only
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output

Audio

Streaming
Compression
Input/ Output

General

Temperature/
Environment

Consumption

Requirements

2-way Audio Support
G.711, AMR (8 kHz, Mono, PCM)
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)

/ Line output

Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
DC12V 1A / 802.3af PoE

802.3at PoE/ DC48V 0.8A*
AC24V*
*OB-200Np V5/OB-202Np V5 Only
Operating Temperature:
DC12V 1A / 802.3af PoE:

-20°C ~ 60°C (-4°F ~140°F)

802.3at PoE/ DC48V 0.8A:
(build in fan and heater):

-40°C ~ 60°C (-40°F ~140°F)
Operating Humidity: 10% ~ 80%

8.6 Watts (PoE 802.3af, IR on)

8.4 Watts (PoE 802.3at, IR on)

18.2 Watts (PoE 802.3at, IR&Heater&Fan on)
70(D) * 166(H) mm

Net: 1100 g/2.43lb
Weather-proof (IP67)

FCC, CE
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Limited 3-year warranty

V1.0
