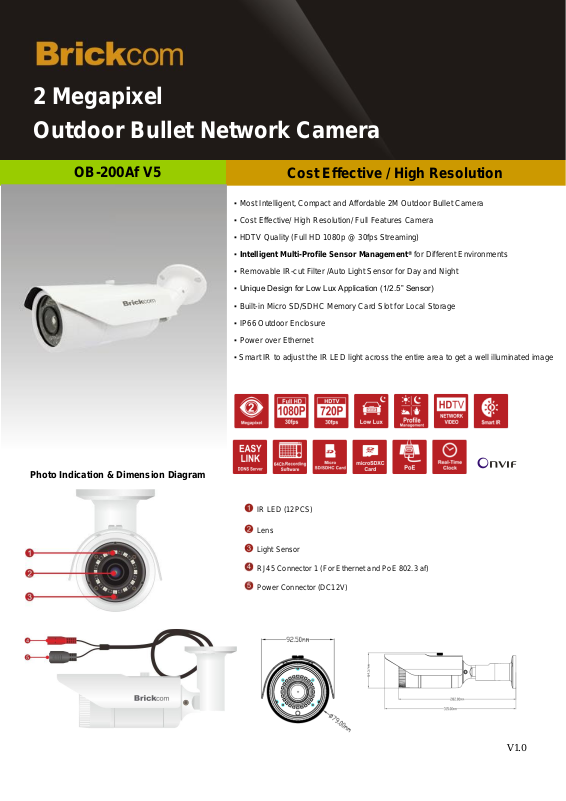

Brickcom OB-200Af-V5 Specsheet

2 Megapixel
Outdoor Bullet Network Camera

Photo Indication & Dimension Diagram

OB-200Af V5

Cost Effective / High Resolution

▪ Most Intelligent, Compact and Affordable 2M Outdoor Bullet Camera
▪ Cost Effective/ High Resolution/ Full Features Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ Unique Design for Low Lux Application (1/2.5” Sensor)
▪ Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ IP66 Outdoor Enclosure
▪ Power over Ethernet
▪ Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

IR LED (12PCS)

Lens

Light Sensor

RJ45 Connector 1 (For Ethernet and PoE 802.3 af)

Power Connector (DC12V)

V1.0

Events

Motion Detection
Schedule
Temperature Alarm

Alarm

Stream/Snapshot to FTP/Email/Samba/ SD-Card
HTTP/Email Notification

Compression
Streaming

H.264 / MPEG4 / MJPEG
Simultaneous multiple streams

Video Setting

Multi-Profile Sensor Management
Day/ Night / Sunset/ User 1/ User 2
Auto Exposure / Gain / White Balance Control
Manual Exposure Control:1/20000~1/5s
Manual Gain Control: 1X~32X
Manual White Balance Control: 2000K~7000K

S/N Ratio

38.1dB

Image Resolution

2M (1080p Full HD): 1920x1080 @ 30fps
1M (720p HDTV): 1280x720@ 30fps

Hardware System

CPU: 533 MHz
Flash: 32M
RAM: 256M DDR

Image Sensor

Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 1920x1080 pixel

IR Illuminators

Built –In IR Illuminators,
effective up to 15 meters
IR LED: 12pcs (850nm)

Day and Night

Removable IR-cut Filter /Auto Light Sensor for
Day and Night

Local Storage

Built-in Micro SD/SDHC/SDXC Max.64G
Memory Card Slot

Communication

Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6

Power Input

DC12V/ 1A(Power Supply)/PoE 802.3af

Max. Power
Consumption

8 watts

Environment

Operating Temperature:

-20°C ~ 50°C(-4°F ~122°F)

Operating Humidity :

10% ~ 80%

Dimension

288.6 (L) 122.9 (W) X 127.5 (H) mm

Weight

Net: 658g/1.45lb

Housing

Weather-proof IP66

Certification

FCC, CE

Viewing System
Requirements

OS: Microsoft Windows 7/Vista/XP/2000/7
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Warranty

Limited One-year warranty

Camera

Video

Events and Alarm Management

General

V1.0
