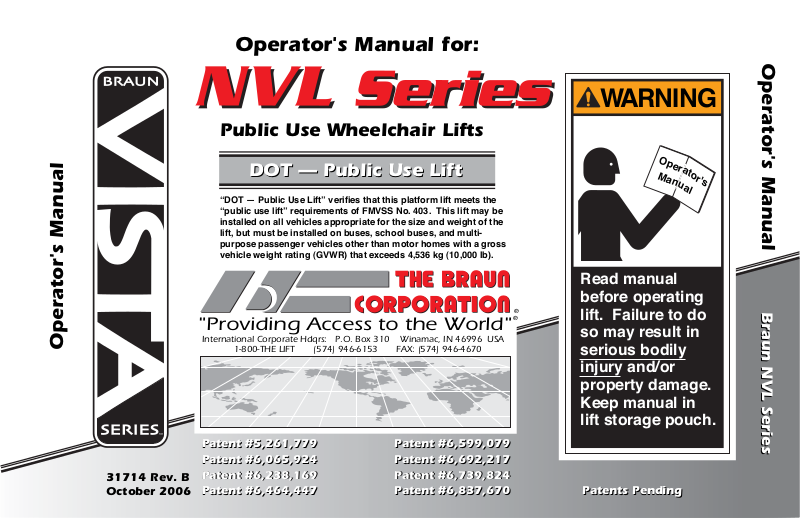

Braun NVL User Manual

Operator's Manual for:

Public Use Wheelchair Lifts

“DOT — Public Use Lift” verifies that this platform lift meets the
“public use lift” requirements of FMVSS No. 403. This lift may be
installed on all vehicles appropriate for the size and weight of the
lift, but must be installed on buses, school buses, and multi­purpose passenger vehicles other than motor homes with a gross
vehicle weight rating (GVWR) that exceeds 4,536 kg (10,000 lb).

"Providing Access to the World"

Operator's Manual

31714 Rev. B
October 2006

International Corporate Hdqrs: P.O. Box 310 Winamac, IN 46996 USA

1-800-THE LIFT [phone] FAX: [phone]

Patent #5,261,779

Patent #5,261,779

Patent #6,065,924

Patent #6,065,924

Patent #6,238,169

Patent #6,238,169

Patent #6,464,447

Patent #6,464,447

DOT — Public Use Lift

DOT — Public Use Lift

Patent #6,599,079

Patent #6,599,079

Patent #6,692,217

Patent #6,692,217

Patent #6,739,824

Patent #6,739,824

Patent #6,837,670

Patent #6,837,670

Operator's Manual

A

RNING

W

Oper

ator's

Man

ual

Read manual

®
®

lift. Failure to do
so may result in
serious bodily
injury and/or
property damage.
Keep manual in
lift storage pouch.

Patents Pending

Patents Pending

before operating

Braun NVL Series

Braun NVL Series

Congratulations

We at The Braun Corporation wish to express our fullest appreciation
on your new purchase. With you in mind, our skilled craftsmen have designed
and assembled the finest lift available.
This manual includes safety precautions, lift operating instructions, man­ual operating instructions, and instructions for maintenance and lubrication
procedures.
Your lift is built for dependability, and will bring you years of pleasure
and independence, as long as maintenance is performed regularly and the lift
is operated by an instructed person.

Sincerely,

THE BRAUN CORPORATION

Ralph W. Braun
Chief Executive Officer

Contents

Warranty/Registration Instructions .................. 2, 3

Lift Terminology

Lift Terminology Illustration ........................................ 4

Introduction ................................................................ 5

Direction .................................................................... 5

Lift Components .................................................... 6, 7

Vehicle and Lift Interlocks ......................................... 7

Lift Actions and Functions .......................................... 8

Lift Operation Safety

Safety Symbols ......................................................... 9

Lift Operation Safety Precautions ...................... 10-13

Operation Notes and Details

Introduction/Lift Access Doors and Interlocks ......... 14

General Safety ......................................................... 15

Hand-held Pendant Control .................................... 15

Lift Features

Lift-Tite Latches™ ....................................... 16, 17

Inner Roll Stop ............................................ 18, 19

Outer Barrier ............................................... 19, 20

Outer Barrier Operation .............................. 20, 21

Bridging ............................................................. 21

Handrails ........................................................... 21

Lift Passengers

Passenger Orientation (Boarding Direction) ..... 22

Standees ........................................................... 22

Yellow Boundaries ...................................... 22, 23

Vehicle (Floor Level) Loading and

Unloading .................................................... 23, 24

Wheelchair-Equipped Occupant Seat Belts ........... 25

Operation Procedure Review ........................... 25, 26

Preventive Maintenance ......................................... 26

Lift Operating Instructions ............................. 27-31

NHTSA Operations Checklist .............................. 32

Manual Operating Instructions ....................... 33-37

Decals and Antiskid ........................................ 38-40

Maintenance and Lubrication ......................... 41-49

Page 1

Warranty and Registration Instructions

Immediately upon receiving your
lift, examine the unit for any dam­age. Notify the carrier at once
with any claims.

Two warranty/registration cards
(shown below) are located in
the lift-mounted owner's manual
storage pouch. The sales repre­sentative must process one of the

FDUGV7KHFRQVXPHUPXVWÀOORXW

Series No. Pump Code

Serial No.Model No. Cylinder Code

OWNER'S WARRANTY REGISTRATION

NVL917IB-04-00392-55-14CG

PURCHASED FROM

NAME

ADDRESS

CITY

TELEPHONE

REGISTRATION CARDS MUST BE RETURNED TO THE BRAUN CORPORATION.

OWNER

STATE ZIP

TO VALIDATE WARRANTY

DATE INSTALLED

the other card and mail it to The
Braun Corporation. The warranty
is provided on the back cover of
this manual. The warranty cards

must be processed to activate
the warranty.

Two Braun Serial No./Series No.

LGHQWLÀFDWLRQWDJVDUHSRVWHG

on the lift. One I.D. tag (shown
below) is posted on the opposite

Sample

Warranty/Registration

Card

pump side vertical arm. A second
I.D. tag is located on the opposite
pump side tower. This I.D. tag

FRQWDLQVWKHSURGXFWLGHQWLÀFDWLRQ

information provided on the War­ranty/Registration card. Record
the information in the space
provided on the next page. This

information must be provided

ZKHQÀOLQJDZDUUDQW\FODLPRU

ordering parts.

The Braun Corporation

1-800-THE LIFT™

BRAUNLIFT.COM™

DOT Public Use Lift MODEL#

NVL917IB

Max. Lifting Capacity - 800 lbs.

SERIAL NUMBER

04-00392

PUMP CODE CYLINDER

55 14CG

MFG DATE

4/4/06

Sample

Serial No./Series No.

,GHQWLÀFDWLRQ7DJ

e5*72/245*95/54*0110*00

PATENT

5261779-6065924-6238169-646

PENDING-

4447-6599079-6692217-6739824-6837670

Page 2

Warranty and Registration Instructions

Model No.

Series No.

Serial No.

Pump Code

Cylinder Code

Date of Manufacture

Note: This information must
be providedZKHQÀOLQJD

warranty claim or ordering
parts. Keep for future use.

Page 3

Visual

19
8
2
3

DOWN

P
U

Threshold

LD
O
F

UN

0

D

2

8

2

L

3

FO

Warning

Hand-Held

Pendant

Control

Pump

Module

Base
Plate

Bottom Parallel

Arms (2)

Rotating Pivot
Slide Arms (2)

Platform Pivot Arms (2)

Pump Side Vertical Arm

Towers (2)

Audible

Threshold

Warning

Lift-Tite™ Latches (2)

Threshold

Warning

Plate

Top Parallel Arms (2)

Main Cylinders (2)

Unfold Assist Compression Springs (2)

Adjustable Quiet-Ride Stow Blocks (2)

Inboard

Platform

Platform Lights (2)

Outboard

Platform

Opposite Pump Side Vertical Arm

Vertical Arm Covers (4)

Handrails (2)

Lift Terminology

Illustration

Inner

Roll Stop

Inboard

Left

Outer Barrier

Pivot (2)

Right

Outboard

Page 4

Platform Side Plates (2)

Outer Barrier

(Automatic Outboard Roll Stop)

Roll Stop Activation Feet (2)

Lift Terminology

Introduction:

Braun NVL Vista Series lifts are
ADA compliant and comply fully

ZLWK1DWLRQDO+LJKZD\7UDIÀF

Safety Administration (NHTSA)
VSHFLÀFDWLRQV7KH19/LVFRP­mercial oriented (intended for
operation by an attendant).

Lift models vary per size (lift
model numbers indicate lift
dimensions). NVL Series lift
models can be equipped with
left or right side pump modules
as needed. A left side pump­equipped lift model is depicted
in the Lift Terminology Illustra­tion (NVL917IB). Right side
pump lift models are a mirrored
image of rear pump models
(pump module located on op-

posite end of base plate).

Refer to the Lift Terminology

,OOXVWUDWLRQIRULGHQWLÀFDWLRQRI

lift components.

Lift operation procedures are
identical for all NVL Series
lift models. The operating
instructions contained in this
manual and appearing on lift­posted operating instructions
decals address the lift control
switches and the correspond­ing lift functions. Instruc­tions are provided for manual
operation of the lift in event of
power or equipment failure.

Terminology: Become famil­iar with the terminology that
will be used throughout this
manual. Become familiar with
WKHLGHQWLÀFDWLRQRIOLIWFRP­ponents and their functions.
Contact your lift sales repre­sentative or call The Braun
Corporation at 1-800-THE

®

if any of this information

LIFT
is not fully understood.

Direction: The terms "left,"
"right," "inboard," and "out­board" will be used throughout
this manual to indicate direc­tion (as viewed from outside
the vehicle looking directly at
the lift). Refer to the Lift Termi­QRORJ\,OOXVWUDWLRQVIRUFODULÀFD­tion of direction terms.

Page 5

Lift TerminologyLift Terminology

Lift Components

Refer to the Lift Terminology Il­lustration on page 4.

Pump Module: The lift-mounted
pump module consists of the
hydraulic pump, the manual
hand pump, the electronic control
board and electrical components
that power the lift electric/hydrau­lic systems.

Hand-held Pendant Control:

The hand-held attendant's
pendant control is connected to
the pump module. The hand­held pendant is equipped with
two rocker switches, (UNFOLD,
FOLD, DOWN, and UP). The
momentary switches activate the
automatic lift functions.

Lift Frame: The lift frame con­sists of the base plate, threshold
warning plate, towers, parallel
arms, vertical arms, platform
pivot arms and handrails. Two
main hydraulic cylinders are
housed in the parallel arms.
The electrical/hydraulic powered
lift frame components mechani­cally unfold, lower, raise and fold
the lift platform assembly.

Platform Assembly: The lift
“stacking” platform assembly is
made up of an inboard platform
section and an outboard plat­form sections (each section con­sisting of a steel tubing frame
with grating surface). The inner
roll stop/bridge plate assembly
(IB) is mounted on the inboard
platform section. The outboard

platform section is equipped with
the outer barrier.

™

Lift-Tite

Latches: The spring-

loaded latches prevent the
platform from unfolding from the
stowed position in the event of
platform drift. Further details

™

regarding Lift-Tite

latches are

provided on pages 16 and 17.

Outer Barrier: The spring-loaded
automatic outer barrier (outboard
roll stop) provides a ramp for
wheelchair loading and unloading
at ground level. Photos and

Page 6

Lift Terminology

further details regarding the
outer barrier are provided in
the Operation Notes and De­tails section (pages 19-21).

Inner Roll Stop: NVL Series
lift models are equipped with
an automatic inboard roll stop
that also serves as the bridge
plate. The roll stop bridges the
gap between the lift platform
DQGWKHYHKLFOHÁRRU7KHLQ­ner roll stop/bridge plate auto­matically rotates from the hori­zontal position to the vertical
position as the lift lowers and
raises. Further details regard­ing the automatic mechanical
inboard roll stop are provided
on pages 18 and 19.

Vehicle and Lift Interlocks

Braun Corporation NVL Series
lifts comply fully with all NHTSA
vehicle and lift interlock speci-

ÀFDWLRQV9HKLFOHPRYHPHQWLV

prohibited unless the lift is fully
stowed and the lift will not func­tion unless the vehicle is parked
and secured.

The NVL features a visible
and audible threshold warning
system that will activate if the
threshold area is occupied when
the platform is one inch or more

EHORZÁRRUOHYHO

The inner roll stop and outer
barrier sense weight to prohibit
lift operation. The lift will not

function if the inner roll stop or
outer barrier are occupied. The
lift platform cannot be folded
(stowed) if occupied.

The inner roll stop features a
locking mechanism that prohibits
the platform from lowering if the
lock does not engage. The lift
platform cannot be raised more
than 3" above ground level un­less the outer barrier is in the
vertical position.

Page 7

Lift Terminology

Lift Actions and Functions

DEPLOY (A-C)

A. UNFOLD (Out) - Platform
Unfold: Unfold is the action

of the platform rotating out and
down from the fully-stowed

YHUWLFDOSRVLWLRQWRÁRRUOHYHO

(horizontal) position when the
UNFOLD switch is pressed.

B. DOWN - Platform Lower:

Down is the action of the platform

ORZHULQJIURPÁRRUOHYHOSRVLWLRQ

to fully-lowered (ground level)
position when the DOWN switch
is pressed.

C. DOWN - Outer Barrier
Unfold (Deploy) - When the

platform reaches the fully-low­ered (ground) position and the

DOWN switch is continued to be
pressed, the outer barrier rotates
downward from vertical position
to ramp position.

STOW (D-F)

D. UP - Platform Raise: Up is

the action of the platform raising

IURPJURXQGOHYHOWRÁRRUOHYHO

(fully-raised) position when the
UP switch is pressed. When the
lift is fully lowered, pressing the
83VZLWFKÀUVWUDLVHVWKHSODW­form.

E. UP - Outer Barrier Fold
(Raise): As the platform be-

gins to raise off the ground,
the spring-loaded outer barrier
rotates from the ramp position to
vertical position.

F. FOLD (In) - Platform Fold:

Fold is the action of the platform

URWDWLQJXSDQGLQIURPWKHÁRRU

level (horizontal) position to fully­stowed (vertical) position when
the FOLD switch is pressed.

Stowed Position: The lift is
stowed when the lift platform has
been fully raised and folded fully
(vertical position).

Floor Level: Floor level is the
position (height) the platform as­sembly reaches in order for the
wheelchair passenger to enter
and exit the vehicle (fully raised).
The platform automatically stops

DWÁRRUOHYHOZKHQXQIROGLQJIURP

the stowed position and when
raising from ground level.

Page 8

Safety Symbols

SAFETY FIRST! Know That....

Lift Operation Safety

All information contained

A

in this manual and
supplements (if included), is pro­vided for your safety. Familiarity
with proper operation instructions
as well as proper maintenance
procedures are necessary to en­sure safe, troublefree operation.
Safety precautions are provided
to identify potentially hazardous
situations and provide instruction
on how to avoid them.

Note:$GGLWLRQDOLQIRUPDWLRQSURYLGHGWRKHOSFODULI\RUGHWDLODVSHFLÀFVXEMHFW

D

These symbols will appear throughout this manual as well as on the labels posted on your lift. Recognize
the seriousness of this information.

B

This symbol indicates
important safety
information regarding
a potentially hazard­ous situation that
could result in serious
bodily injury and/or
property damage.

W

A

RNING

C

CAUTION

This symbol indicates
important information
regarding how to
avoid a hazardous
situation that could
result in minor per­sonal injury or prop­erty damage.

Page 9

Lift Operation Safety Precautions

Lift Operation Safety

A

RNING

W

If the lift operating
instructions, manual
operating instructions
and/or lift operation
safety precautions are
not fully understood,
contact The Braun
Corporation immedi­ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

W

W

Page 10

A

RNING

A

RNING

Inspect lift before operation. Do not operate lift if you suspect lift damage, wear or any
abnormal condition.

Keep operator and bystanders clear of area in which the lift operates.

W

W

W

W

A

A

A

A

RNING

RNING

RNING

RNING

Read manual and supplement(s) before operating lift.
Read and become familiar with all safety precautions,
pre-lift operation notes and details, operating instructions
and manual operating instructions before operating the
lift. Note: Wheelchair passengers and all transit agency
personnel (drivers and wheelchair lift attendants) must read
and become familiar with the contents of this manual and
supplement(s) before operation.

Load and unload on level surface only.

Engage vehicle parking brake before operating lift.

Provide adequate clearance outside the vehicle to accom­modate the lift before opening lift door(s) or operating lift.

Lift Operation Safety

W

W

W

W

W

W

W

W

A

A

A

A

A

A

A

A

RNING

RNING

RNING

RNING

RNING

RNING

RNING

RNING

Whenever a wheelchair passenger (or standee) is on the platform, the:

• Passenger must be positioned fully inside yellow boundaries

• Wheelchair brakes must be locked

• Inner roll stop and outer barrier must be up (vertical)

• Passenger should grip both handrails (if able).

/RDGDQGXQORDGFOHDURIYHKLFXODUWUDIÀF

Do not overload or abuse. The load rating applies to both the raising and lowering func­tions - continuous lifting capacity is 800 lbs.

Discontinue lift use immediately if any lift or vehicle interlock does not operate properly.

Do not operate or board the lift if you or your lift operator are intoxicated.

Do not raise front wheelchair wheels (pull wheelie) when loading (boarding) the platform.

Open lift door(s) fully and secure before operating lift.

Position and secure (buckle, engage, fasten, etc.) the wheelchair-equipped occupant
seat belt (torso restraint) before loading onto the wheelchair lift platform.

Page 11

Lift Operation Safety

Lift Operation Safety Precautions (continued)

A

RNING

W

If the lift operating
instructions, manual
operating instructions
and/or lift operation
safety precautions are
not fully understood,
contact The Braun
Corporation immedi­ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

A

RNING

W

Page 12

Outer barrier must be fully unfolded (ramp position) until front and rear wheelchair wheels
cross the

W

W

W

W

W

A

A

RNING

A

RNING

A

RNING

A

RNING

RNING

Lift attendants must ensure that lift occupants keep hands,
arms and all other body parts within the lift occupant area
and clear of moving parts.

3ODWIRUPPXVWEHSRVLWLRQHGDWÁRRUOHYHOEULGJHSODWH

height) when loading or unloading in and out of vehicle.

Do not use platform inner roll stop or outer barrier as a brake.
Stop and brake wheelchair when loading onto the platform
(manually stop and brake manual wheelchairs — stop pow­ered wheelchairs with the wheelchair controls).

Turn powered (electric) wheelchairs off when on lift platform.

Press the DOWN switch until the entire platform rests on
ground level (lowered fully) and the outer barrier is fully
unfolded (ramp position) before loading or unloading a pas­senger at ground level.

Lift Operation Safety

W

W

W

W

W

W

W

W

W

A

A

A

A

A

A

A

A

A

RNING

RNING

RNING

RNING

RNING

RNING

RNING

RNING

RNING

Accidental activation of control switch(es) may cause unintended operation(s).

0DLQWHQDQFHDQGOXEULFDWLRQSURFHGXUHVPXVWEHSHUIRUPHGDVVSHFLÀHGLQWKLVPDQXDOE\
DXWKRUL]HGFHUWLÀHGVHUYLFHSHUVRQQHO

Replace missing, worn or illegible decals.

Keep owner’s (operator's) manual in lift-mounted manual storage pouch at all times.

Never modify (alter) a Braun Corporation lift.

Do not use accessory devices not authorized by The Braun Corporation.

Do not remove any guards or covers.

Keep clear of any hydraulic leak.

Failure to follow these safety precautions may result in serious bodily injury and/or prop­erty damage.

Page 13

Operation Notes and Details

A

RNING

W

Read and become
familiar with all lift
operation safety
precautions, opera­tion notes and details,
operating instructions
and manual operat­ing instructions prior
to operating the lift.
If this information is
not fully understood,
contact The Braun
Corporation immedi­ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

NVL Series “Public Use” lift mod-

HOVDUHVSHFLÀFDOO\GHVLJQHGWREH

operated by an attendant. The Lift
Operating Instructions contained
in this manual and posted on the
lift provide instructions for op­eration of the lift only. Read and
become familiar with all lift opera­tion safety precautions, opera­tion notes and details, operating
instructions and manual operating
instructions before attempting lift
operation procedures.

Lift Access Doors and Inter­locks: Attendants must become

familiar with the vehicle lift access
door system and vehicle interlock
system(s). Transit vehicles and

OLIWDFFHVVGRRUFRQÀJXUDWLRQV

vary. Door securement devices
(latches, hooks, cables, etc.) and
procedures to operate them vary.

Instructions for operation of
vehicle interlocks and door
securement systems are not
addressed in this manual or on
lift-posted operating instructions
decals due to the variety of proce­dures required for operating them.
Braun Corporation NVL Series
lifts comply fully with all NHTSA
YHKLFOHDQGOLIWLQWHUORFNVSHFLÀFD­tions (detailed on pages 7 and 32).
Infringement of any lift interlock
will prohibit lift operation.

It is the responsibility of the lift
operator (attendant) to properly

open, secure and close the vehicle
lift door(s), to activate the vehicle
interlock(s), to load and unload the
wheelchair passenger (or standee)
on and off the lift platform, and to
properly activate all lift functions.

Page 14
