Branson 25 Operator Manual

Download

THANK YOU FOR PURCHASING A BRANSON 25 SERIES TRACTOR.

►

BEFORE USE, READ AND UNDERSTAND THIS MANUAL COMPLETE.

1. After reading this manual, keep it close to the tractor for immediate reference.

2. Any one operating this tractor should review this manual.

3. In case this manual is lost or damaged, please contact your nearest authorized dealer for a copy.

4. Some parts of this product may have been changed for the improvement of quality or for safety reason.

5. In this case, the photographs or drawings of such parts in this booklet may not be the same as the actual parts installed on this product.

6.Ifyoundanythinginthismanualunclearorinneedoffurtherexplanation,pleasecontactyourauthorized

dealer for inquiry.

PREFACE

BRANSON 25 SERIES 트랙터-영문판-00.ind1 1 2015-04-29 오후 1:41:58

SECTION

BRANSON 25 SERIES 트랙터-영문판-00.ind2 2 2015-04-29 오후 1:41:58



GENERAL PRECAUTIONS

...................................................



ABOUT WARRANTY

............................................................



OVERVIEW OF THE TRACTOR

............................................



FUNCTIONS

...........................................................................



OPERATION & WORK

...........................................................



MAINTENANCE AFTER WORK

............................................



PERIODIC MAINTENANCE AND ADJUSTMENT

.................



TROUBLE SHOOTING

..........................................................



SPECIFICATIONS

..................................................................



INDEX

.....................................................................................

SECTION

TABLE OF CONTENTS

BRANSON 25 SERIES 트랙터-영문판-00.ind3 3 2015-04-29 오후 1:41:59

TABLE OF CONTENTS

GENERAL PRECAUTIONS .........................1-1

TO ENSURE SAFE OPERATION

...............1-2

BEFORE USING THE MACHINE ......................... 1-2

WHILE WORKING .............................................. 1-11

AFTER USING THE MACHINE .......................... 1-13

PRECAUTION FOR PROLONGED STORAGE .. 1-15

PRECAUTIONS IN INCLINED AREA .................. 1-17

MAINTENANCE BEFORE OPERATING ............ 1-18

OTHERS ............................................................. 1-19

OVERVIEW OF SAFETY DECAL ..................1-30

ABOUT WARRANTY ...................................2-1

WARRANTY

...................................................2-2

TROUBLE SHOOTING

.................................2-2

OVERVIEW OF THE TRACTOR .................3-1

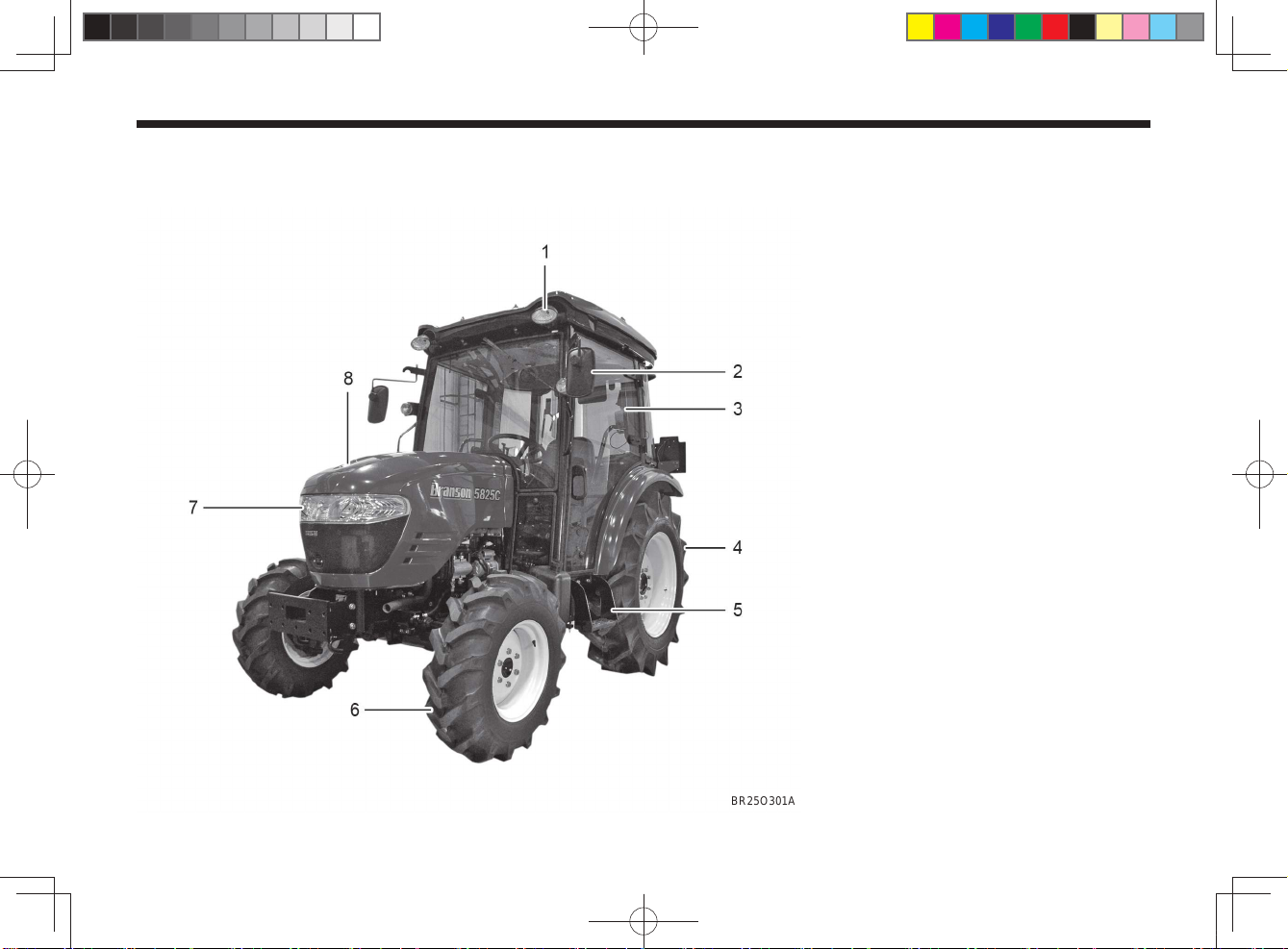

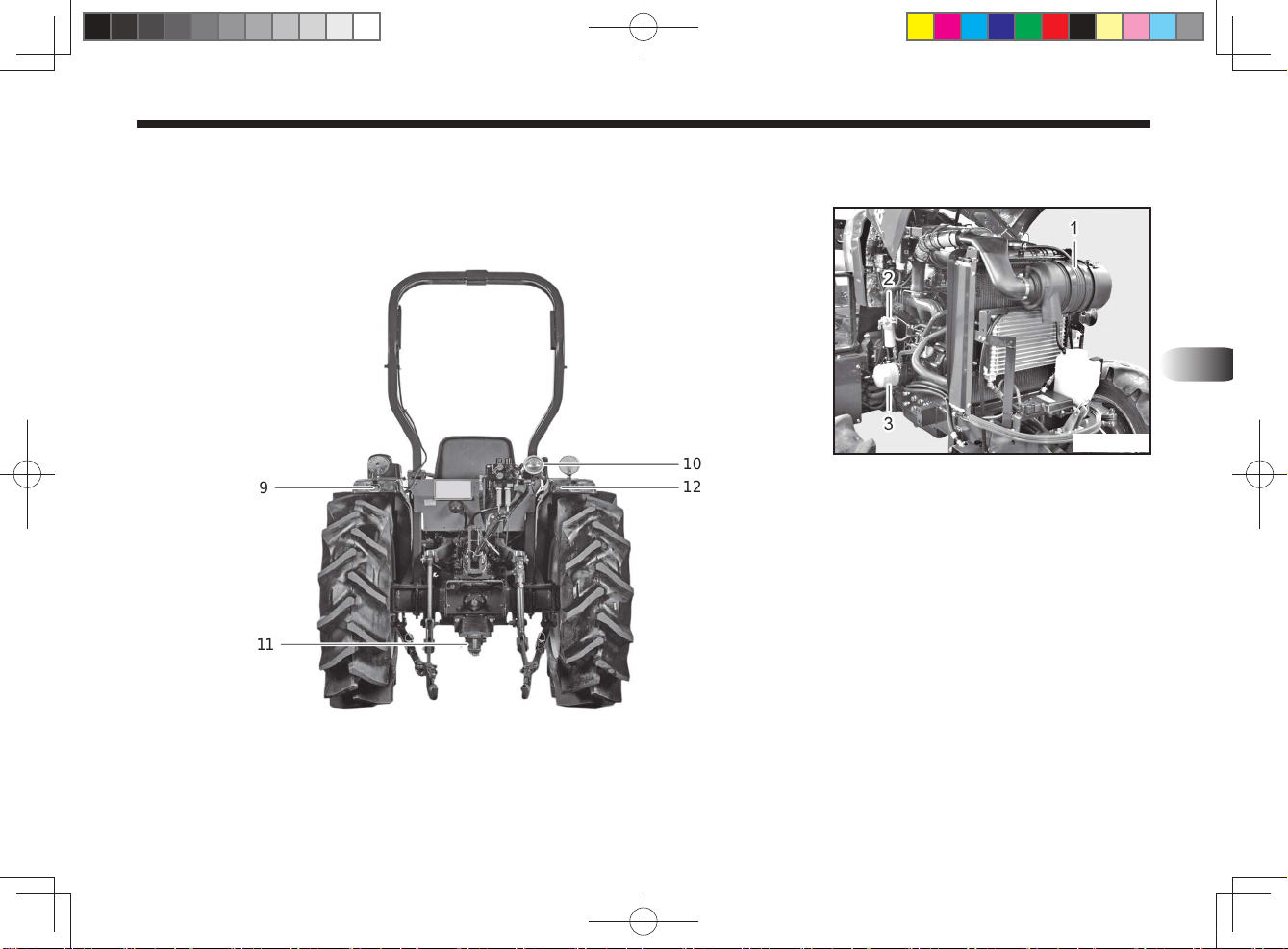

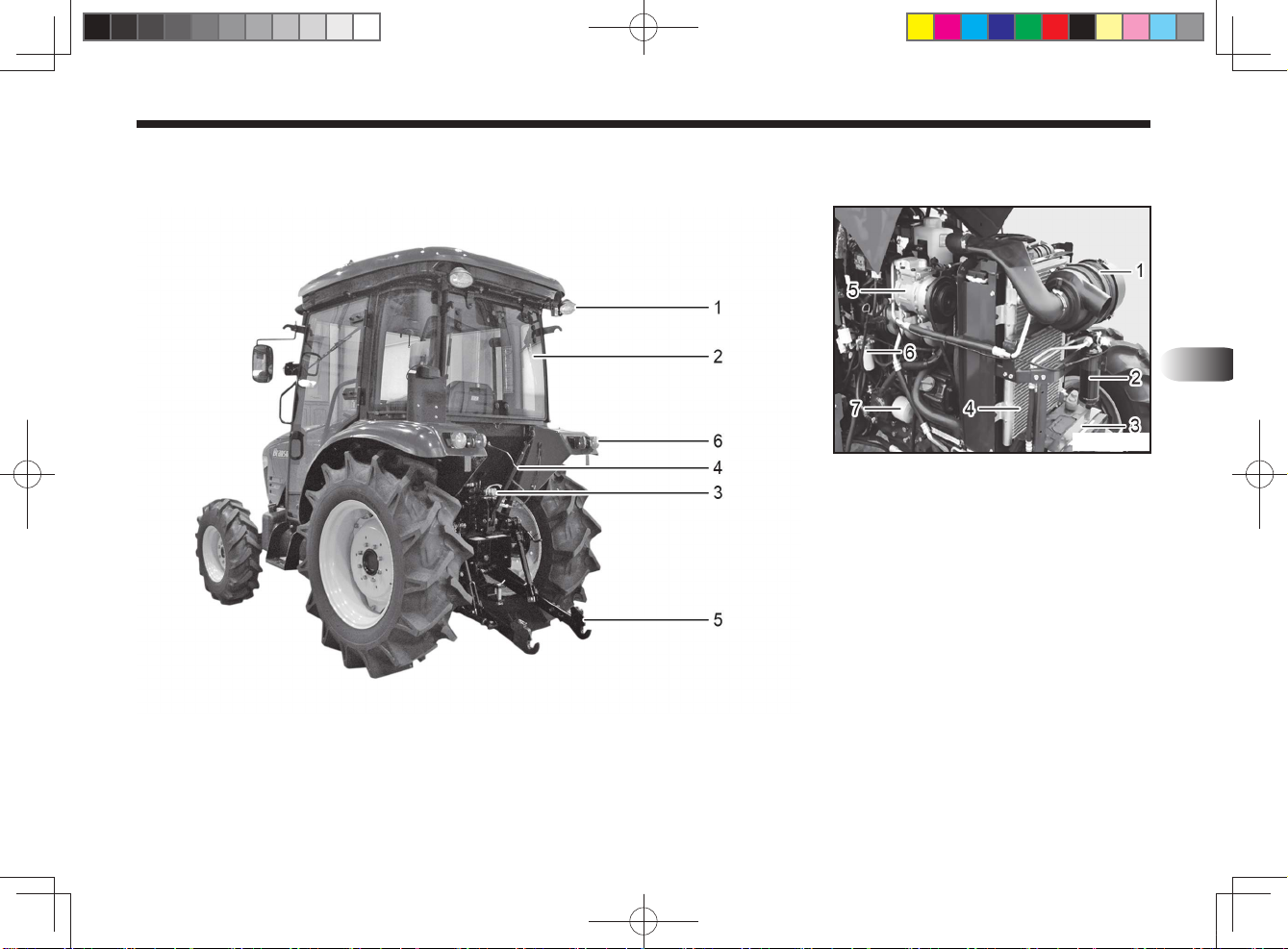

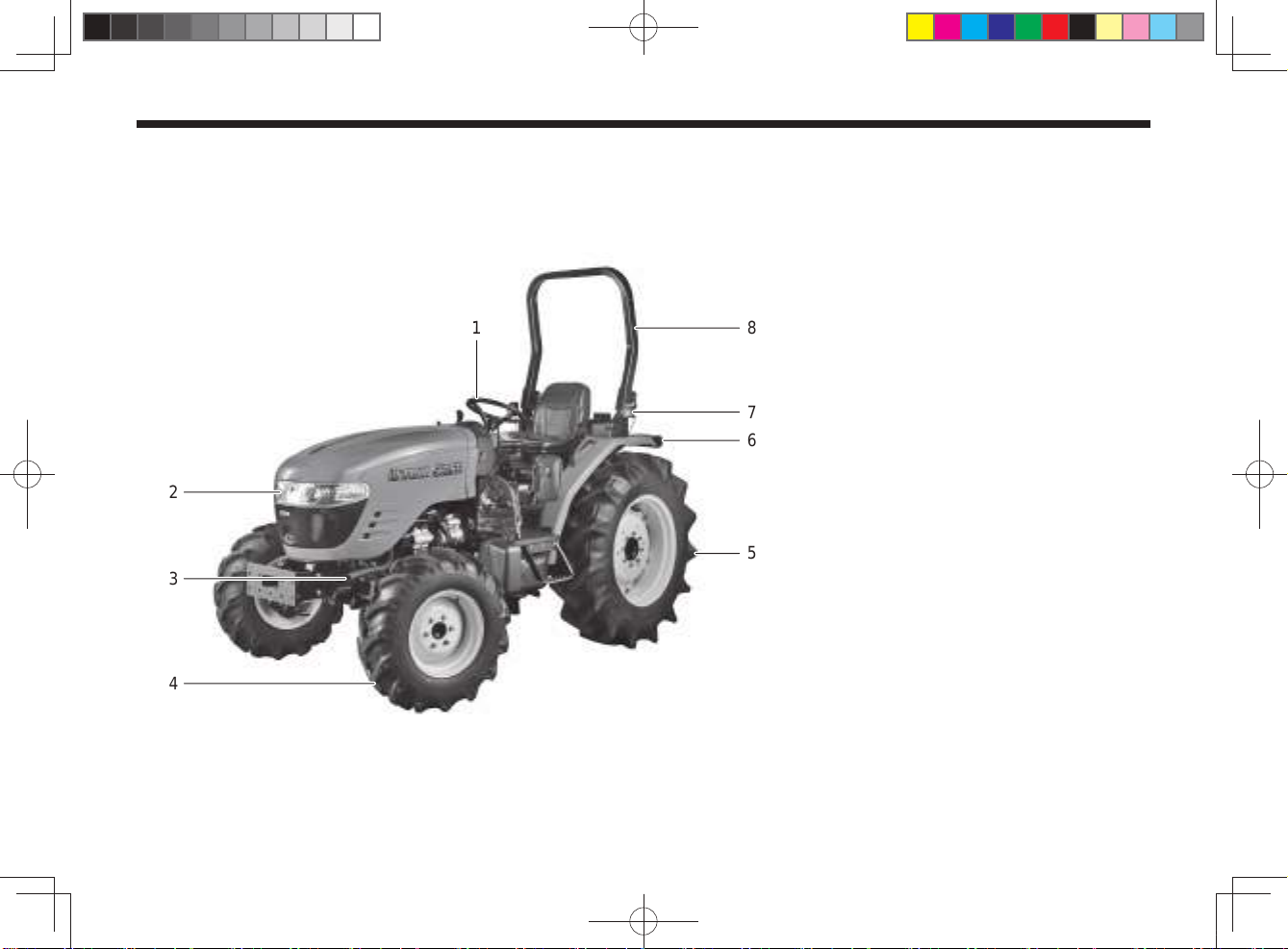

EXTERIOR VIEW ......................................3-2

FUCTION ......................................................4-1

SWITCHES AND LEVERS ...............................4-3

MAIN KEY SWITCH .............................................. 4-3

ACCELERATOR LEVER ....................................... 4-4

F/R SHUTTLE LEVER .......................................... 4-4

DIRECTOR LAMP S/W ......................................... 4-5

HEAD LAMP & HORN S/W ................................... 4-5

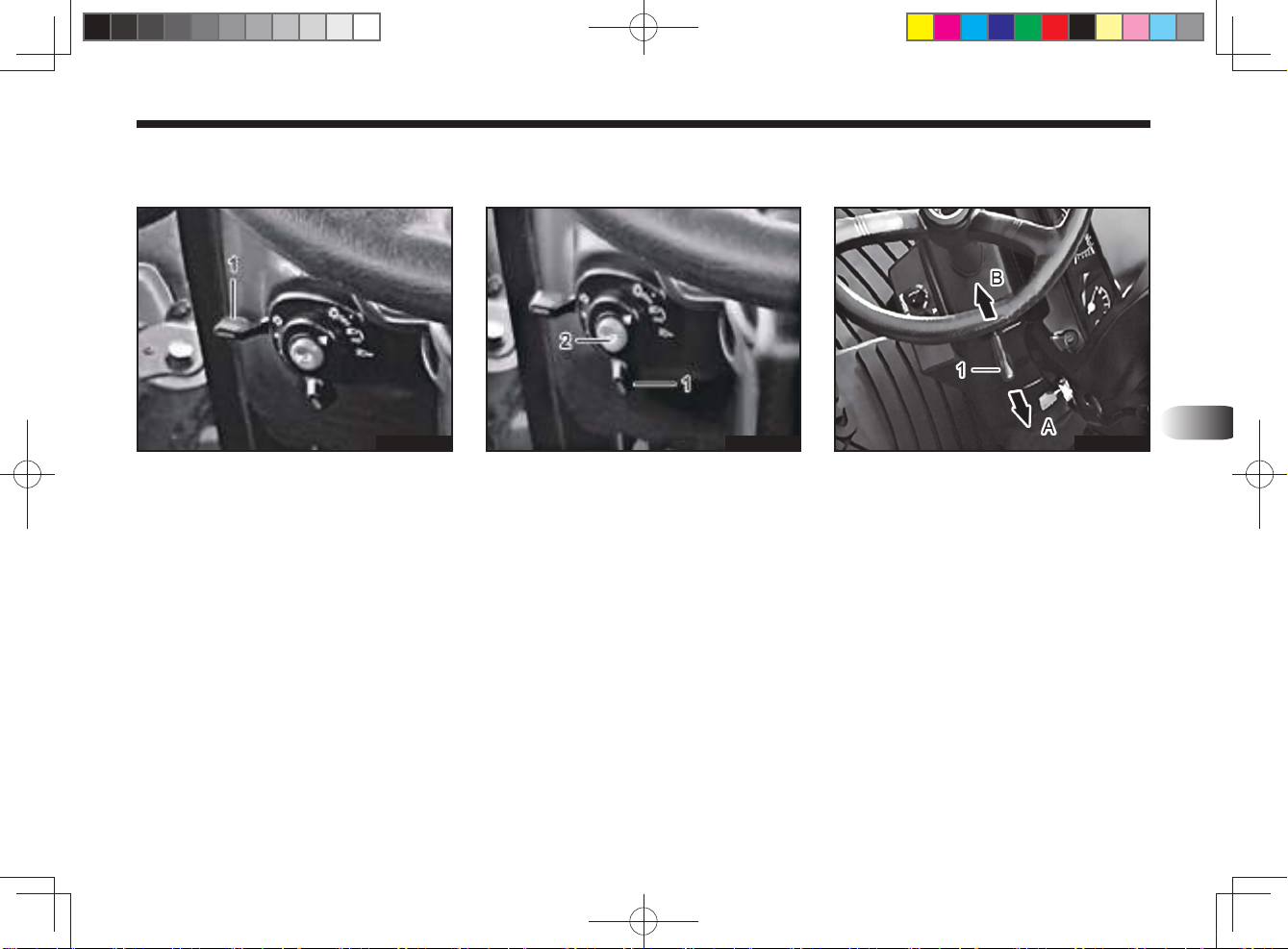

STEERING WHEEL TILT LEVER .......................... 4-5

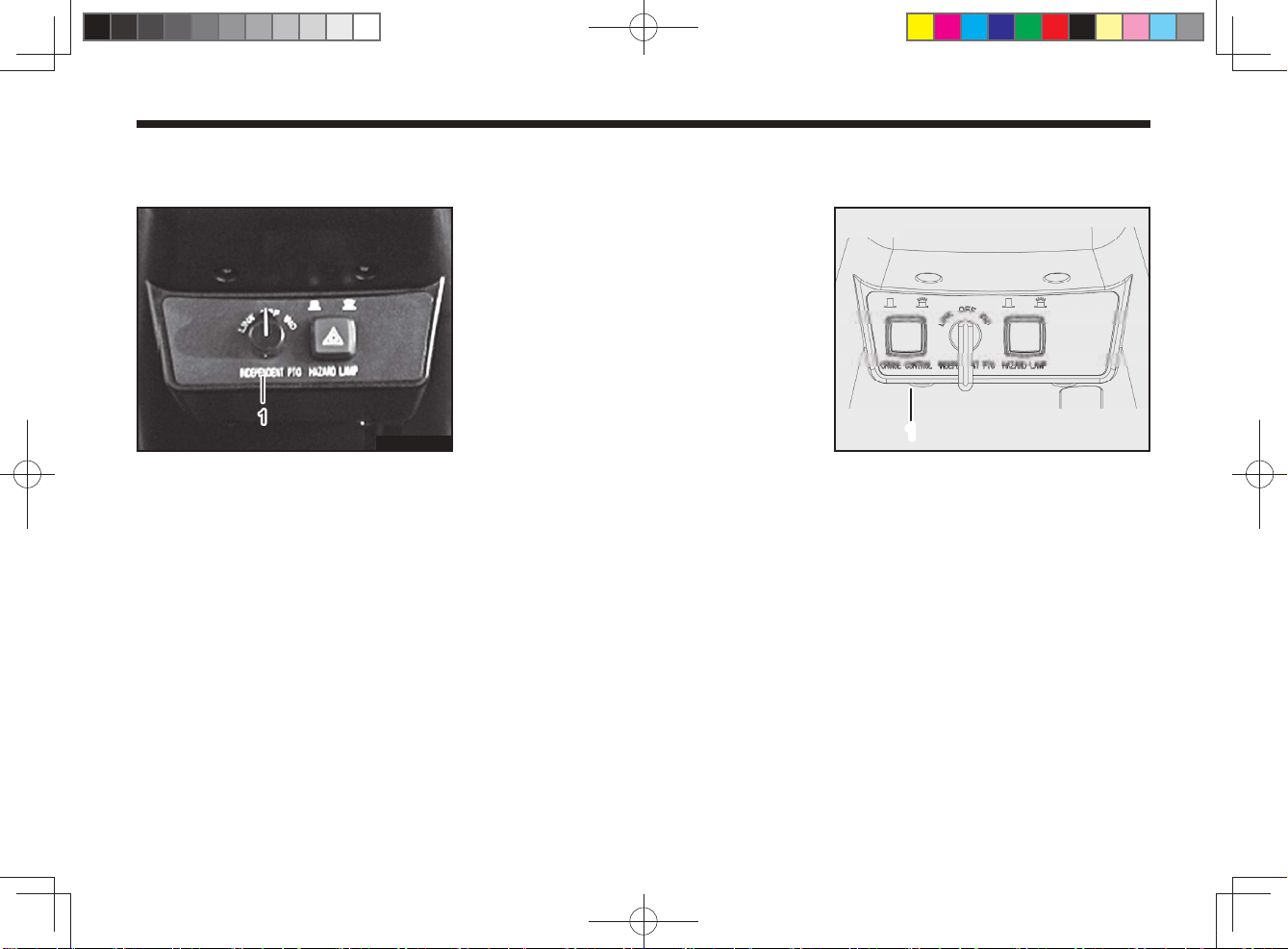

PTO SHIFT SWITCH ............................................. 4-6

CRUISE CONTROL SWITCH ............................... 4-6

EMERGENCY LAMP SWITCH ............................. 4-7

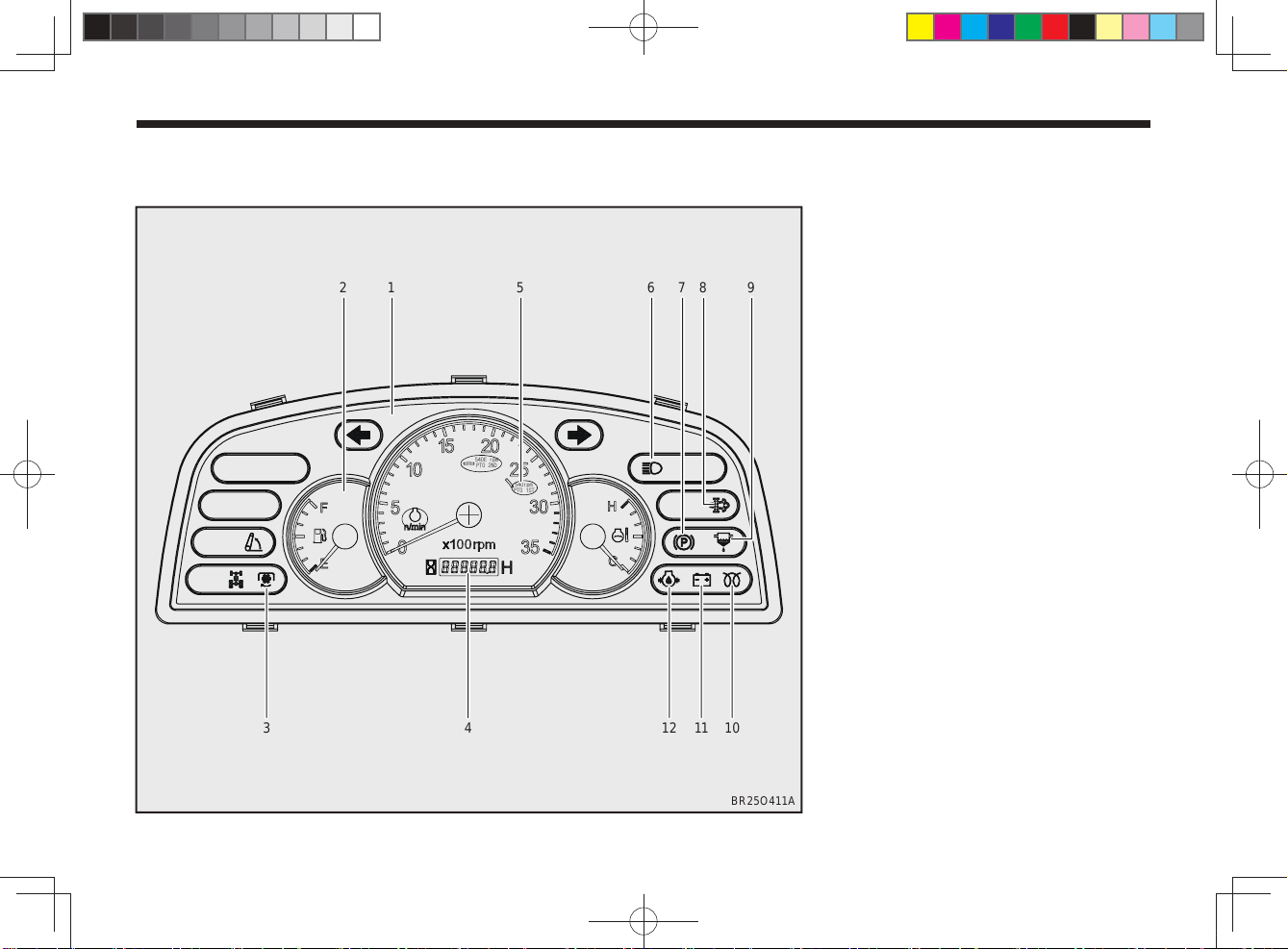

INSTRUMENT PANEL .....................................4-8

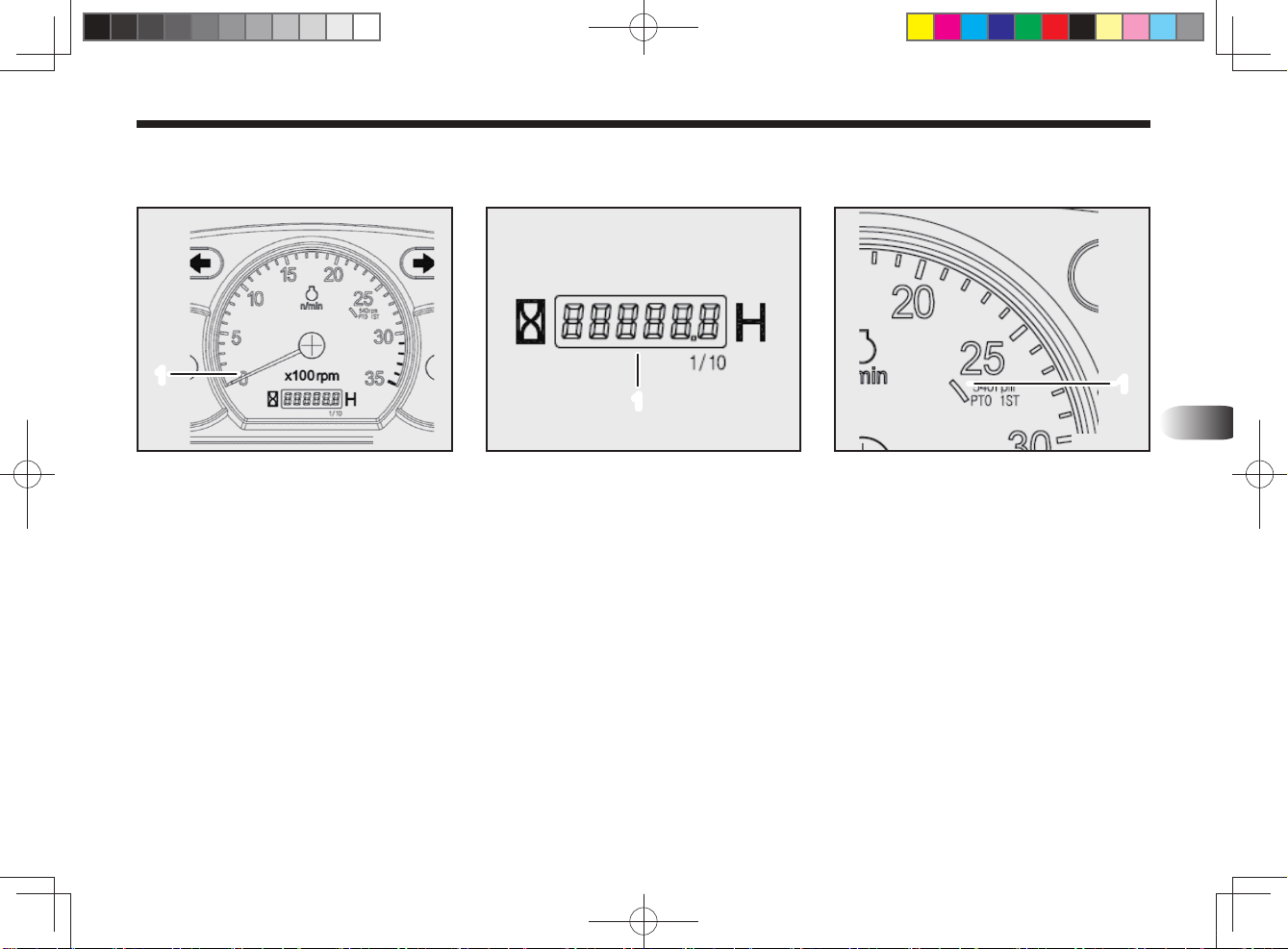

ENGINE RPM INDICATOR ................................... 4-9

ENGINE HOUR METER ....................................... 4-9

PTO POSITION ..................................................... 4-9

PTO LAMP .......................................................... 4-10

PRE-HEAT LAMP ................................................ 4-10

BATTERY CHARGING LAMP ............................. 4-11

ENGINE OIL PRESSURE LAMP ........................ 4-11

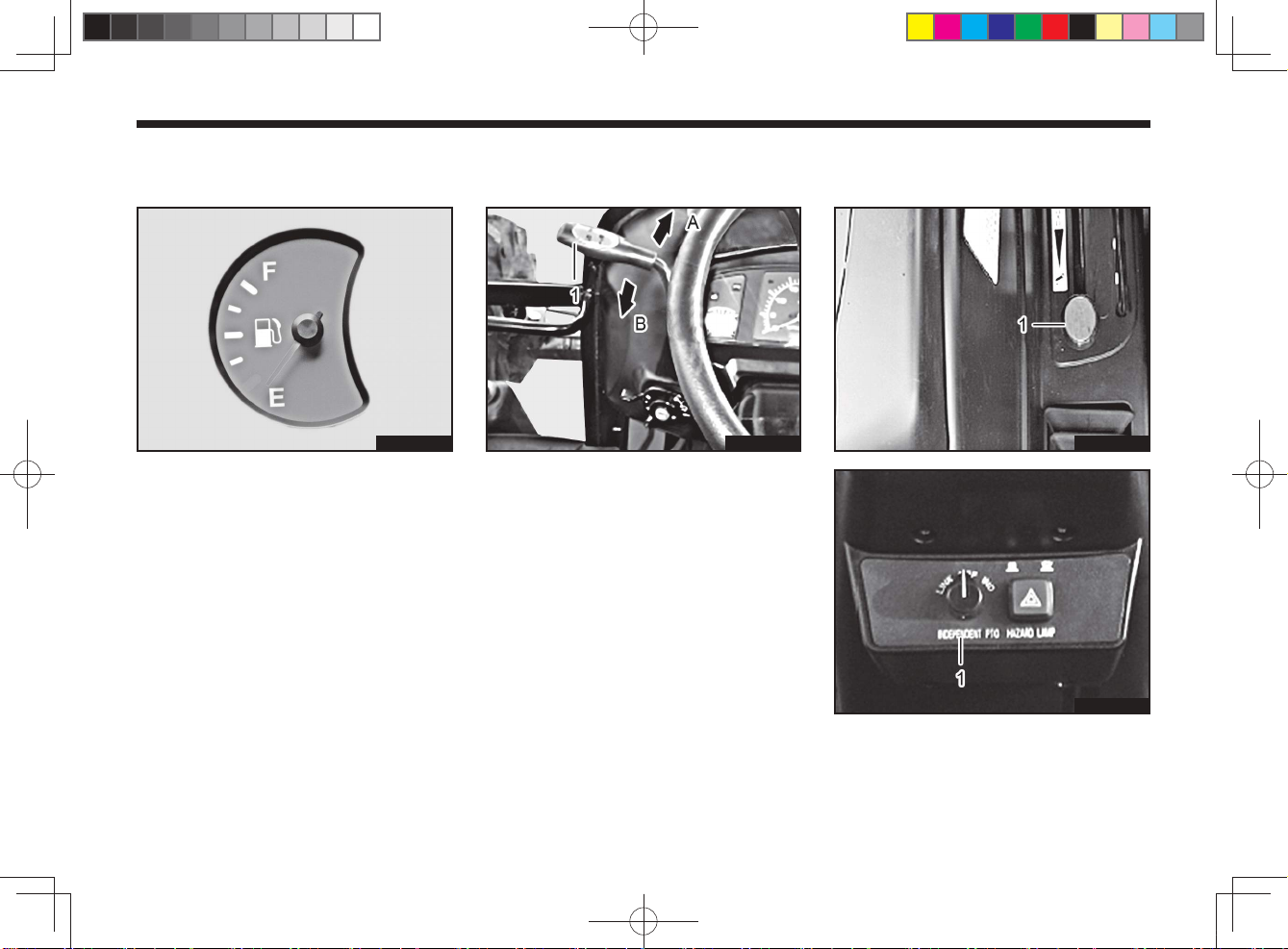

FUEL GAUGE .....................................................

4-11

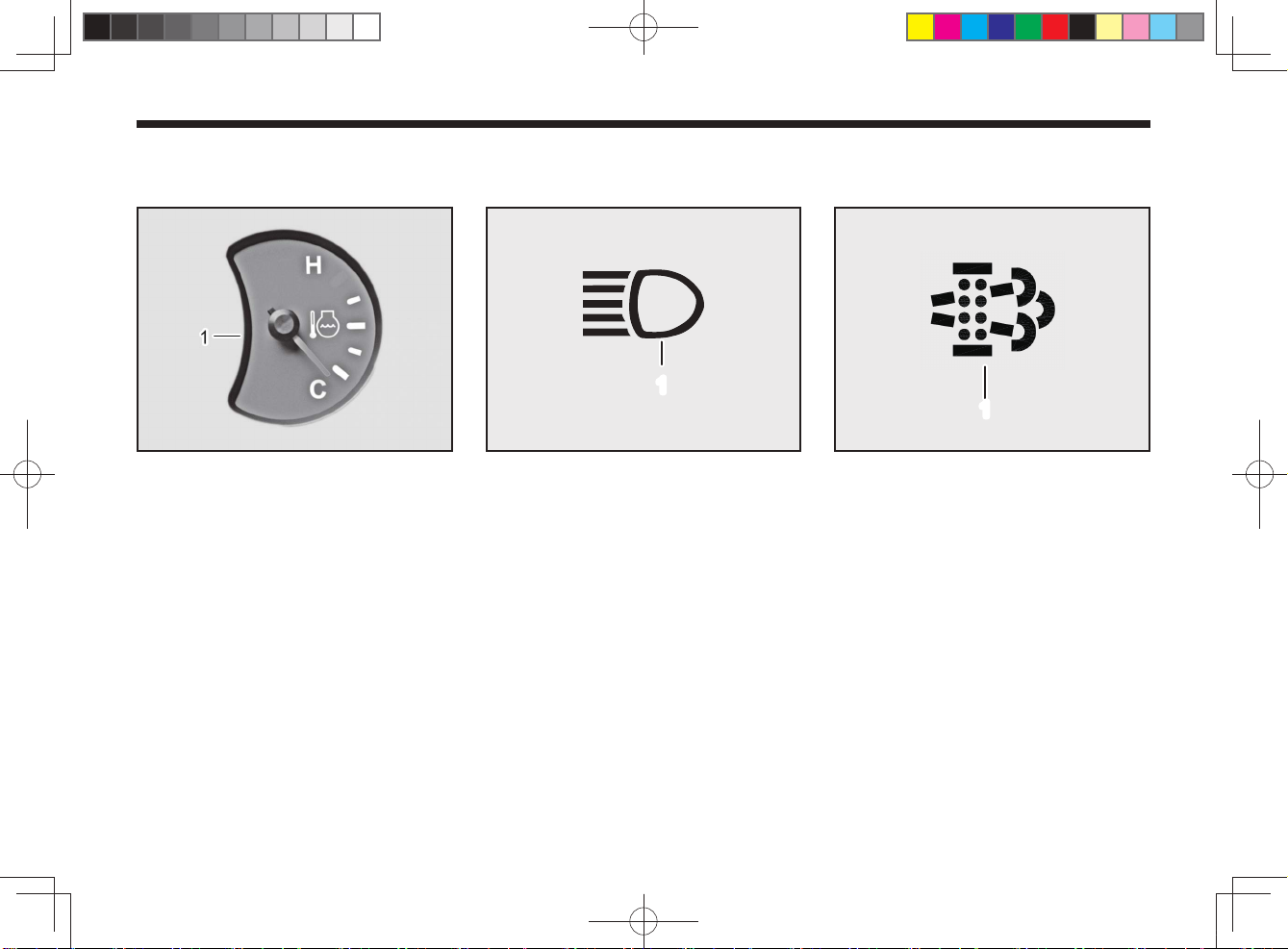

WATER TEMP GAUGE ....................................... 4-12

BRANSON 25 SERIES 트랙터-영문판-00.ind4 4 2015-04-29 오후 1:41:59

TABLE OF CONTENTS

HEAD LAMP (HIGH BEAM) ................................ 4-12

DPF LAMP .......................................................... 4-12

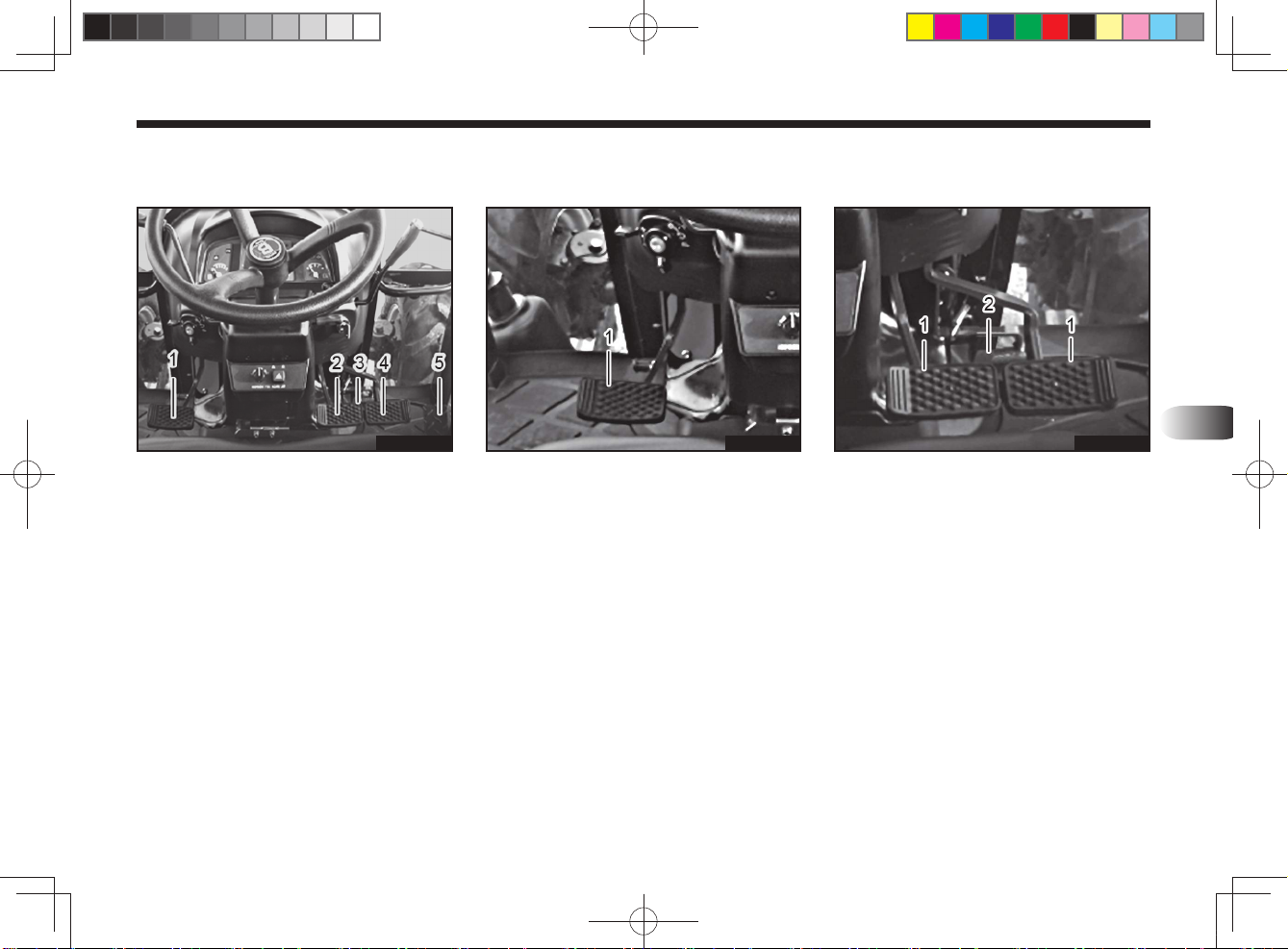

PEDALS .........................................................4-13

CLUTCH PEDAL ................................................. 4-13

BRAKE PEDALS AND COUPLER ...................... 4-13

ACCELATOR PEDAL .......................................... 4-14

F-R HST PEDAL (HST) ....................................... 4-14

LEVER OPERATION (R) ................................4-15

MID REMOTE VALVE JOYSTICK ....................... 4-15

MAIN GEAR SHIFT LEVER ................................ 4-15

3PT POSITION CONTROL LEVER .................... 4-16

RANGE SHIFT LEVER ....................................... 4-16

PARK BRAKE LEVER ......................................... 4-17

REAR REMOTE CONTROL LEVER (I,II) ........... 4-17

LEVER OPERATION (L) ...............................4-17

STOP/SLOW RETURN VALVE ........................... 4-18

MFWD LEVER ....................................................

4-18

PTO LEVER ........................................................

4-18

DIFFERENTIAL LOCK PEDAL ........................... 4-19

PARTS FOR OTHER ......................................4-19

WORK LAMP SWITCH ....................................... 4-19

POWER OUT 12V ............................................... 4-19

WIPER SWITCH ................................................. 4-20

CLIMATE CONTROL ........................................... 4-21

SEAT BELT .......................................................... 4-21

SEAT ADJUSTMENT .......................................... 4-22

TAIL LAMP .......................................................... 4-23

BRAKE LAMP ..................................................... 4-23

REVERSE DRIVE LAMP .................................... 4-23

WORK LAMP ...................................................... 4-24

OPERATION & WORK ................................5-1

CHECKING BEFORE OPERATION ................5-2

STARTING / STOPPING THE ENGINE ...........5-9

TO START THE ENGINE .................................... 5-10

BRANSON 25 SERIES 트랙터-영문판-00.ind5 5 2015-04-29 오후 1:41:59

TABLE OF CONTENTS

TO STOP THE ENGINE ...................................... 5-12

TO RAISE OR LOWER THE IMPLEMENT ......... 5-13

ADJUSTING THE LOWERING SPEED OF

THE IMPLEMENT .......................................... 5-13

DRIVING ON THE ROAD ...............................5-14

DRIVING ON THE SLOPE .............................5-14

ENTERING AND LEAVING THE PAVEMENT 5-15

TURNING ON THE PAVEMENT ....................5-16

DIFFERENTIAL GEAR LOCK .......................5-16

TRACTOR LOADING /UNLOADING .............5-17

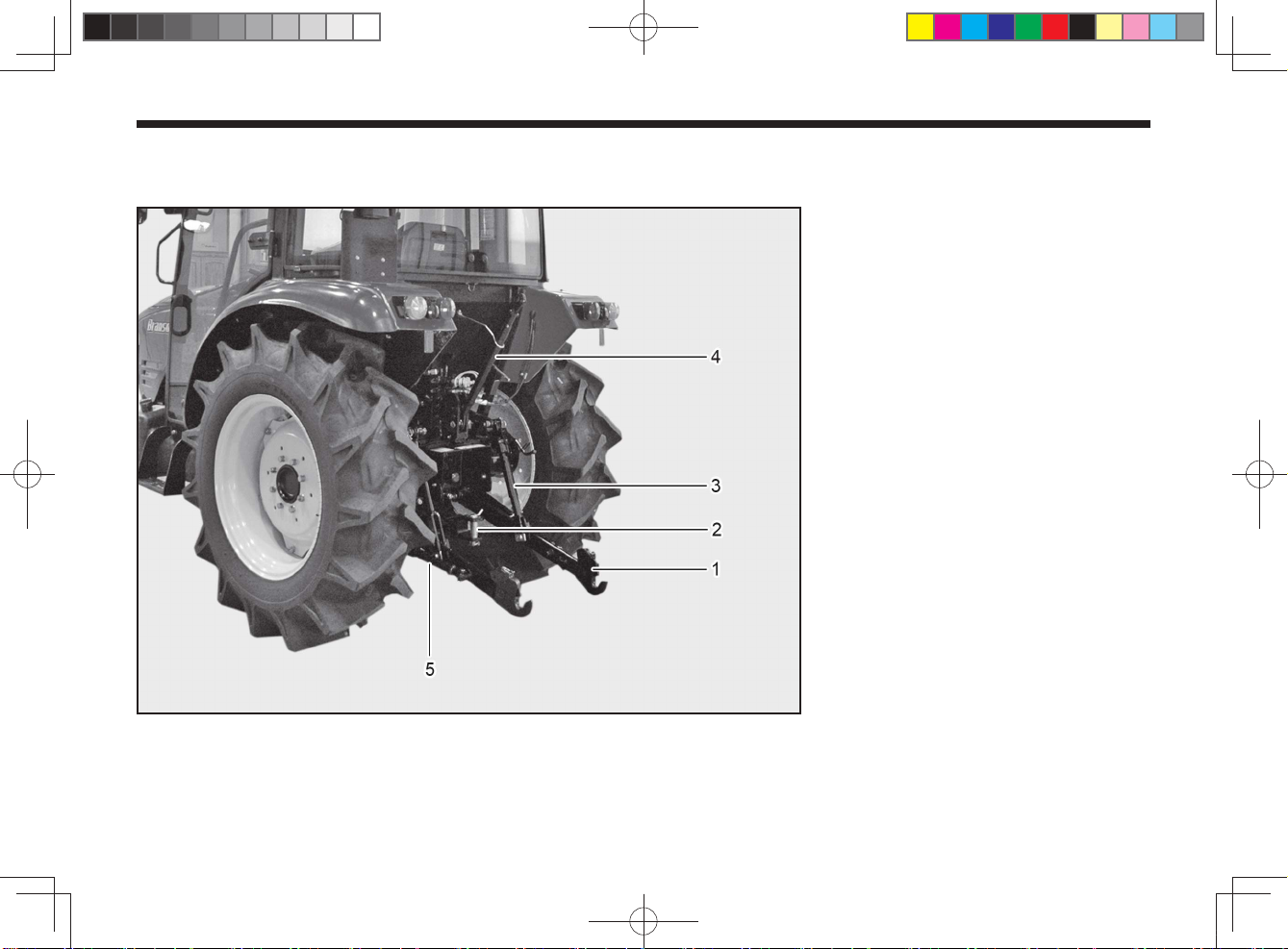

INSTALLING 3-POINT LINK ..........................5-18

PRECAUTIONS FOR

CONNECTING THE IMPLEMENT ............5-20

ADJUSTING WHEEL TREAD ........................5-20

POWER STEERING ........................................... 5-21

TOWING INSTRUCTIONS ..................................

5-22

PTO SPECIFICATIONS & PRECAUTIONS ....... 5-22

LOADER OPERATION ........................................ 5-23

CARRYING THE LOAD .................................5-24

HANDLING LARGE HEAVY OBJECTS ........5-25

ROPS FOLDING METHOD ............................5-26

HOW TO FOLD DOWN THE ROPS ................... 5-26

HOW TO FOLD DOWN THE ROPS ................... 5-27

MAINTENANCE AFTER WORK ..................6-1

MAINTENANCE AFTER WORK ......................6-2

MAINTENANCE FOR PROLONGED STORAGE ........6-2

PERIODIC MAINTENANCE AND

ADJUSTMENT ........................................7-1

PERIODIC MAINTENANCE SCHEDULE ........7-2

OIL, GREASE AND ANTI-FREEZE CHART ....7-4

BRANSON 25 SERIES 트랙터-영문판-00.ind6 6 2015-04-29 오후 1:41:59

TABLE OF CONTENTS

FUEL, OIL AND COOLANT CHART ...............7-5

CHECKING AND CHANGING OF OIL ............7-6

ENGINE OIL .......................................................... 7-6

TRANSMISSION / HYD OIL FLUID ...................... 7-7

FRONT AXLE FLUID ............................................. 7-8

FILTERS / COOLANT REPLACEMENT ..........7-9

ENGINE OIL FILTER ............................................. 7-9

TRANSMISSION OIL FILTER ............................... 7-9

FUEL FILTER ...................................................... 7-10

DRAINING AIR IN FUEL LINE ............................ 7-10

COOLANT ........................................................... 7-11

OTHERS .........................................................7-12

RADIATOR SCREEN AND AIR CLEANER ......... 7-12

BATTERY ............................................................ 7-13

ADJUSTING PARKING BRAKE .......................... 7-14

FUEL PIPES AND HOSES .................................. 7-14

ELECTRICAL CABLES .......................................

7-15

GREASING ......................................................... 7-15

CLUTCH .............................................................. 7-16

HST PEDAL ......................................................... 7-16

STEERING WHEEL ............................................ 7-17

BRAKE ................................................................ 7-17

FAN BELT ............................................................ 7-18

AIR COMPRESSOR BELT .................................. 7-19

TOE-IN ................................................................ 7-20

FUSE & FUSIBLE LINKS .................................... 7-20

COLOR OF EXHAUST GAS ............................... 7-21

TIRES PRESSURE ........................................7-21

TROUBLESHOOTING .................................8-1

TROUBLESHOOTING .....................................8-2

ENGINE ................................................................. 8-2

CLUTCH AND BRAKE .......................................... 8-4

HYDRAULIC SYSTEM .......................................... 8-5

ELECTRICAL SYSTEM ........................................8-6

SPECIFICATIONS ........................................9-1

BRANSON 25 SERIES 트랙터-영문판-00.ind7 7 2015-04-29 오후 1:41:59

TABLE OF CONTENTS

SPECIFICATIONS ............................................9-2

INDEX.........................................................10-1

INDEX .............................................................10-2

BRANSON 25 SERIES 트랙터-영문판-00.ind8 8 2015-04-29 오후 1:41:59

SAFETY AND VEHICLE DAMAGE WARNING

Failure to observe the instruction given with this mark may result in death or injury.

DANGER

NOTE

This instruction is to give additional description to operator so that he/she can operate the machine more effectively.

Read this Manual for correct and safe use of the product. Failure to use the product properly may result in an accident. Keep this Manual close to the tractor after you have read it.

IMPORTANT

The instructions given with the following marks are very important for your safety.

WARNING

Failure to observe the instruction given with this mark may expose you to the risk of death or injury.

Failure to observe the instruction given with this mark may expose you to injury.

• The section, “ To Ensure Safe Operation,” on the following pages details safety points to be observed to ensure safe operation of your tractor.

• Please make sure you read it carefully before operating the tractor.

CAUTION

BRANSON 25 SERIES 트랙터-영문판-00.ind9 9 2015-04-29 오후 1:41:59

This manual includes symbol marks of controller to ease tractor’s maneuverability and maintenance. These meanings are as below, so carefully read it for a proper function.

SYMBOL MARKS OF CONTROLLER

Direction Lamp (LH) DPF

Engine Oil Pressure Lamp

Direction Lamp (RH)

PTO Battery Charging Lamp

Low Beam Parking Brake 4WD

High Beam

Preheat

BRANSON 25 SERIES 트랙터-영문판-00.ind10 10 2015-04-29 오후 1:42:03

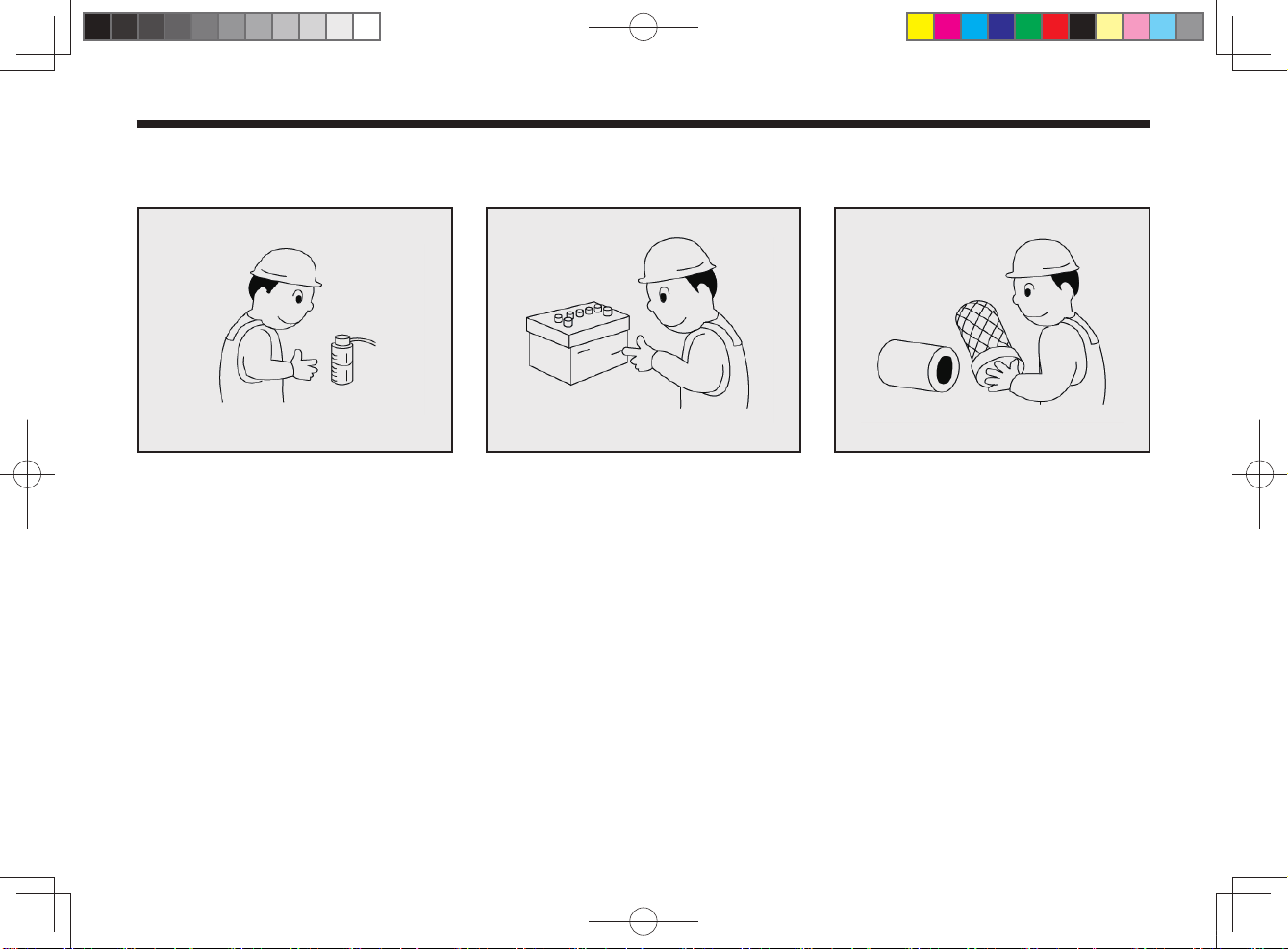

"USE AND DISPOSAL" POLICY CONCERNED WITH ENVIRONMENT PRESERVATION

We try our best to preserve the environment, always concerned about our environmental impact at each step of planning, development, production, distribution, use and disposal of products, and for our overall op

erations through “environmentally friendly” management system. We comply with international environmen

tal regulations, environmental regulations designated by country and local authorities and other require

ments with which we are in agreement, and we work towards the prevention of environmental pollution and the conservation of resources. We provide environmental education and have an awareness campaign to raise environmental awareness among all our employees and members of the supporting companies.

Here we introduce “Use and Disposal” policy concerned with environment preservation as follows.

1. Please read the operator’s manual though for global environment protection and avoid overload job. Overload on the

machineshortenstheproductlifeandincreasestheharmfulexhaustgaswhichcauseairpollutionduetotheincomplete combustion.

2.When replacing various uids (forengine,transmission,hydraulics,etc.)by yourself, don’t dispose the usedoilto

anywhere not recommended. It can pollute the ground and water seriously. Please contact our local dealer to dispose it legally.

3. Observe the operator’s manual and store or dispose the waste product properly. Rust, oil, etc leaked from waste

product improperly stored can pollute the ground and water. Accordingly for a waste product disposal, contact the necessarily “approved waste collection and recycling facility” to discard the used machinery legally.

BRANSON 25 SERIES 트랙터-영문판-00.ind11 11 2015-04-29 오후 1:42:03

BRANSON 25 SERIES 트랙터-영문판-00.ind12 12 2015-04-29 오후 1:42:03

1. GENERAL PRECAUTIONS

TO ENSURE SAFE OPERATION

........................................................1-2

BEFORE USING THE MACHINE ..................................................................................1-2

WHILE WORKING .......................................................................................................1-11

AFTER USING THE MACHINE ...................................................................................1-13

PRECAUTION FOR PROLONGED STORAGE ..........................................................1-15

PRECAUTIONS IN INCLINED AREA ..........................................................................1-17

MAINTENANCE BEFORE OPERATING .....................................................................1-18

OTHERS ......................................................................................................................1-19

OVERVIEW OF SAFETY DECAL .................................................1-30

BRANSON 25 SERIES 트랙터-영문판-01.ind1 1 2015-04-29 오후 1:42:42

BRANSON 25 SERIES

TO ENSURE SAFE OPERATION

BEFORE USING THE MACHINE

Make sure to observe the instruction given in this section to avoid equipment failure or personal injury or death.

LXN5O103ALXN5O102A

LXN5O101A

Beware of exhaust gas;

Start engine in a well ventilated area.

[Otherwise] The exhaust gas can cause in-

toxication and lead to fatal consequences.

•

WARNING

Ventilate the space!

Maintenance on a flat and safe place:

Select a flat and safe location to secure the tractor in place and will not cause a risk to people passing by. Before carrying out the maintenance. Block the front and rear tires to prevent

moving while servicing tracks. [Otherwise] An unexpected accident may oc-

cur, such as overturning of the tractor.

•

WARNING

Carry out maintenance in a welllit place:

Make sure work area is properly lighted.

Use safety work lights with

protection covering. [Otherwise] An unexpected accident may

occur, possibly fire or explosion.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind2 2 2015-04-29 오후 1:42:44

GENERAL PRECAUTIONS

LXN5O104A

LXN5O184A

LXN5O106A

Prepare for emergencies:

Keep a rst aid kit and re extinguisher handy at all times while operating equipment.

•

WARNING

Do not drive if you are:

Unable to concentrate because of fatigue, under treatment of medicine.

Under the influence on alcohol.

Pregnant. Under the age of 18.

•

WARNING

Wear the appropriate clothing when operating equipment

Do not wear loose fitting

clothes.

Do wear proper foot wear with

anti-slip soles, safety hel-

met and protective comfort-

able clothes to allow freedom

of movement. [Otherwise] You will be exposed to a risk of

being entangled will equipment resulting in injury.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind3 3 2015-04-29 오후 1:42:46

BRANSON 25 SERIES

LXN5O107A

LXN5O166A

Use only recommended implements:

Be sure to use only implements which are recommended by manufacturer.

[Otherwise] An un expected accident may

occur or tractor may not perform properly.

•

Fasten your seat belt at all times.

Keep your seat belt fasten at all times while operation tractor.

[Otherwise] You will be exposed to a risk

of death or serious injury if the tractor overturns.

•

WARNING

LXN5O108A

Check the safety of the tractor and start to move slowly:

Only operate tractor while

people or animals are at safe

distance away.

Check around the tractor, start

the engine, and move slowly. [Otherwise]

There is a risk of injury.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind4 4 2015-04-29 오후 1:42:48

GENERAL PRECAUTIONS

LXN5O109A

Pay attention to the shoulder of the road :

When moving along the unpaved road with ditches or slanted sides, pay attention to the shoulders.

[Otherwise] There is a risk of falling over.

•

WARNING

LXN5O173A

Connect the break pedals when driving on a road:

Make sure to connect the brake pedals when driving on a road.

[Otherwise] There is a danger of abrupt turn-

ing or overturning due to onesided braking when the brake pedal is depressed.

•

WARNING

LXN5O111A

Avoid braking, or turning at excessive Speed:

Reduce throttle speed when

making a turn, apply brake

when driving on a hilly or

curved roads. [Otherwise]

There is a risk of overturning.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind5 5 2015-04-29 오후 1:42:49

BRANSON 25 SERIES

LXN5O112A

Observe traffic regulations and drive safely:

When driving on the road, observe the traffic regulations and wear a helmet.

[Otherwise] There is a danger of accident or

injury.

•

WARNING

LXN5O115A

Only driver should be aboard the tractor while in operation:

This tractor is designed to allow only one operator. The driver must not allow anyone else to get on the tractor. (Especially, children).

[Otherwise] An un expected accident may

occur.

•

WARNING

LXN5O116A

Do not allow anyone near while operating the tractor or implement:

When engaging or disengag-

ing the implement by mov-

ing the tractor, make sure that

no one is allowed around the

tractor or between the imple-

ment or attachment and the

tractor. [Otherwise]

There is a danger of accident or injury.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind6 6 2015-04-29 오후 1:42:51

GENERAL PRECAUTIONS

LXN5O117A

Keep children away from the tractor:

Fully warn children and keep them away from the tractor at all times.

[Otherwise] There is a risk of injury.

•

WARNING

󱔷󱬴󱲏󱩛

󱰣 󱰈󰜟󰝯.

󱖯󰼐

󱖧

LXN5O118A

Read manual

before drive

Operator

manual

Properly train anyone operating:

Before allowing other people to use your tractor, explain how to operate and have them read this manual.

[Otherwise] There is a danger of death, se-

rious injury, or damage to the tractor.

•

WARNING

LXN5O189A

Treatment of hazardous materials

Properly discard hazardous materials.

Hazardous materials from tractor are the following: Coolant, brake

oil, oil lter elements, battery and

so on. When draining fuel, oil or other

liquids, use a container without holes. Do not dispose of chemicals on the ground or in rivers or waterways

•

BRANSON 25 SERIES 트랙터-영문판-01.ind7 7 2015-04-29 오후 1:42:53

BRANSON 25 SERIES

LXN5O121A LXN5O131A

No smoking or open ame when

fueling:

Absolutely no lit cigarettes, matches, or lighters anywhere near when fueling the tank.

[Otherwise] Fire or explosion may occur.

•

LXN5O130A

Every day before operating the tractor, check for straws, dust, fuel, or other residue on and around the mufer and the engine and remove them.

[Otherwise]

It may result in a re.

•

WARNING

Frequency inspects the electrical parts and wiring:

Inspect electrical wiring con-

tact insulation to avoid short-

ing or spark. [Otherwise]

There is a risk of re due to short

circuit.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind8 8 2015-04-29 오후 1:42:54

GENERAL PRECAUTIONS

󲇧󰞋 󰆀󰊻󱧠 󱯿󱕌 󱯇󰳧 󰆀󰊻󰸇 󰖮󱹋 󰹓󱝸󱝧󱪯.

LXN5O132A

Do not inate the

tire beyond the max air pressure

Do not over inate tires:

When filling tires with air, do not inate it beyond the maximum pressure stated in this booklet.

[Otherwise] The tire may blow out, causing

an injury.

•

CAUTION

󰆀󰇷󰜟 󱪷󱂟󰷿󰄗!

LXN5O133A

Use a correct tools

Use correct tools:

Use proper tools to carry out all maintenance procedure.

[Otherwise] There is a danger of accident

due to poor maintenance.

•

CAUTION

󱧢!

LXN5O134A

Oops!

Secure hood and side covers before operate tractor:

After opening the hood for

checking or maintenance,

make sure to put them in their

place. [Otherwise]

There is a risk that you may get entangled in the tractor or get injured.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-01.ind9 9 2015-04-29 오후 1:42:56

BRANSON 25 SERIES

LXN5O135A

Observe correct procedures when installing or removing the battery:

Connect the (+) terminal first when installing the battery, and disconnect the (-) terminal

rst when removing it.

[Otherwise]

There is a risk of burn or re due

to short circuit.

•

CAUTION

LXN5O110A

Connect dual brake pedal before moving tractor:

Check if the brakes work properly and evenly on both sides or if the steering wheel is loose.

[Otherwise] There is a risk of accident.

•

WARNING

LXN5O137A

Lock steering tilt before moving tractor:

Except when you adjust the

steering wheel, make sure that

the tilt lever is placed in the

<Lock> position. [Otherwise]

The tractor may not turn to the direction you want and may cause an accident.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind10 10 2015-04-29 오후 1:42:58

GENERAL PRECAUTIONS

LXN5O135A

Avoid contact with the battery solution:

Be careful that your body or your clothes do not come in contact with the battery solution. If you come in contact with the battery solution, rinse it off with water immediately.

[Otherwise] You may get burnt or your

clothes may be damaged.

•

DANGER

WHILE WORKING

󲫠󱝯󲧧 󱲛󰄋󱯏

LXN5O139A

Good Main-

tenance!

Perform periodic maintenance, keep each part of the tractor in normal condition.

Make sure to replace all hydraulic hoses and brake hoses once every two years.

[Otherwise] There is danger of accident or

equipment failure due to poor maintenance.

•

WARNING

LXN5O140A

Use the loading ramps when crossing a ditch or a dike:

Be sure to use the loading

ramps when crossing a ditch

or dike, or when passing

through soft land. The load-

ing ramps must be suitable for

the tractor in width, length and

strength. [Otherwise]

There is a risk of accident that the tractor may slip or turn over.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind11 11 2015-04-29 오후 1:42:59

BRANSON 25 SERIES

LXN5O141A LXN5O142A

Pay attention and keep hands on the steering wheel while driving.

[Otherwise] There is a risk of accident to in-

jury.

•

WARNING

Properly ventilate when working in a green house:

Ventilate the area to let out the exhaust gas.

[Otherwise] The exhaust gas can cause in-

toxication and lead to fatal consequences.

•

WARNING

LXN5O144A

Stop the engine when remov-

ing grass, etc. from the blades

of the cultivator. [Otherwise]

There is a danger that you will get entangled in the cultivator or sustain a serious injury.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind12 12 2015-04-29 오후 1:43:01

GENERAL PRECAUTIONS

AFTER USING THE MACHINE

󰞊 󱯇 󰻿 󱧓 󰢇

󱧢 󰮳󰃻!

󰆀

󰇷

󲧳

LXN5O155A

It's HOT

Don't touch!

During operation and right after the engine is turned off, the muffler is very hot. Avoid touching it, as you may get

burnt. [Otherwise] There is a risk of getting burnt.

•

CAUTION

LXN5O146A

Cover the PTO shaft when not in use.

When the PTO shaft is not in use, apply grease to it and keep it covered.

[Otherwise] There is a risk that you may get

entangled or get injured.

CAUTION

LXN5O149A

Be careful of high oil pressure:

Make sure that the hydraulic coupling or the hose is not loose or damaged. Before separating the hydraulic coupling or the hose, eliminate the high pressure inside the hydraulic system.

[Otherwise] The oil under high pressure may

cause damage to the skin or injury.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-01.ind13 13 2015-04-29 오후 1:43:02

BRANSON 25 SERIES

󱈋 󰷿 󰷿

LXN5O150A

Brrr

Make sure that you are seated in the driver’s seat with your seat belt fastened before start engine:

When starting the engine, make sure that you are seated in the driver’s seat with your seat belt fastened and the safety inspection has been performed.

[Otherwise] An unexpected accident may oc-

cur.

•

WARNING

LXN5O152A

Put tractor cover on only after tractor has cooled down:

Put tractor cover on only after parts such as the engine and

mufer cooled down.

[Otherwise]

There is a risk of re.

•

DANGER

LXN5O153A

Do not open the radiator cap when the radiator is hot:

Never open the radiator cap when the radiator is heated.

[Otherwise] Hot water may splash, causing

burns or damage.

•

DANGER

BRANSON 25 SERIES 트랙터-영문판-01.ind14 14 2015-04-29 오후 1:43:04

GENERAL PRECAUTIONS

LXN5O154A

Every day before operating the tractor, check if the electrical wiring is contact with other parts, or if the insulation is peeling off, or the contact points are loose.

[Otherwise]

There is a danger of re due to

short circuit.

•

WARNING

PRECAUTION FOR PROLONGED STORAGE

LXN5O157A

Disconnect the clutch when storing the tractor for a long time:

When storing the tractor for a

long period of time, make sure

to put the clutch pedal in the

“Disconnect” position. [Otherwise]

The tractor may move and cause injury or an accident.

•

CAUTION

󱫋

󰜟

󰩇󱨿󰔿󱖧 󱅿󰆋󲧣󱗃󱬟.

LXN5O158A

Remove from

tractor

Disconnect the Battery and the key when storing the tractor for a long period of time:

When storing the tractor without use for a long period of time, remove the battery and keep the key in a safe place.

[Otherwise] There is a risk of an accident.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind15 15 2015-04-29 오후 1:43:06

BRANSON 25 SERIES

LXN5O135A

Be sure to connect battery cable on the right side and sequence:

When connecting battery to

tractor, connect + terminal rst

then – terminal but when disconnecting battery from trac-

tor disconnect – terminal rst

then + terminal

[Otherwise]

There is a risk of re or injury

•

CAUTION

LXN5O163A

Confirm that the implement is down on the ground when starting the engine:

When starting the engine, con-

firm that the position lever is

on “Lowest” and that the auto

rotary lever is on “Release”. [Otherwise]

Implement may come down suddenly and cause an injury.

•

WARNING

LXN5O163A

Maintenance periodically:

After using tractor, visit your local dealer for maintenance,

such as oil change and lters.

[Otherwise] There is a risk of accident due to

poor maintenance.

•

CAUTION

Good

maintenance!

BRANSON 25 SERIES 트랙터-영문판-01.ind16 16 2015-04-29 오후 1:43:07

GENERAL PRECAUTIONS

PRECAUTIONS IN INCLINED AREA

󲡸, 󰋃󱯿 󰂠󰡏󰜟 󱩷󱮫󰸇...

LXN5O123A

Sufcient

Strength, length and width...!

󱝯󱯏󰧗(󲭏󱹏)

󰔿󰸿󰧗(󱲏󱹏)

LXN5O124A

(backward)

Loading (forward)

LXN5O177A

Use loading ramps with proper slope & loading capacity:

Loading or unloading must be done on a flat and safe place, the tractor engine switched off, and the parking brake engaged.

The loading ramps must be non-slip and have sufficient strength, length, and width for

the tractor. [Otherwise] The tractor may roll backward or

fall off causing accident or injury.

•

WARNING

Move the tractor backward when loading, and forward when unloading:

Move the tractor backward when loading it on the truck, and forward when unloading from the truck.

[Otherwise] The tractor may roll backward or

fall off causing accident or injury.

•

WARNING

Be careful when driving on the loading ramps.

[Otherwise] The tractor may roll backwards or

fall causing accident or injury.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind17 17 2015-04-29 오후 1:43:09

BRANSON 25 SERIES

LXN5O148ALXN5O126A

Do not shift gears on slopes or on the loading ramps:

When driving on slopes or on the loading ramps, select the proper gear and then do not shift the gear.

[Otherwise] There is a risk of slipping, rolling,

or overturning.

•

WARNING

MAINTENANCE BEFORE OPERATING

LXN5O151A

Stop the engine before maintenance:

Turn engine off before performing any maintenance on tractor.

[Otherwise] There is a risk of injury.

•

CAUTION

Fill the fuel tank only after the engine has cooled:

Never add the fuel while the engine is running or hot.

[Otherwise] The fuel may ignite and result in

re.

•

DANGER

BRANSON 25 SERIES 트랙터-영문판-01.ind18 18 2015-04-29 오후 1:43:10

GENERAL PRECAUTIONS

LXN5O129A

Use caution when checking the battery:

Avoid fire when checking or

charging the battery. [Otherwise]

You may get burnt due to ignition or explosion of the battery.

•

DANGER

OTHERS

󰂧󱳻󰊓󱹋

LXN5O162A

Don't modify!

Use only the genuine parts or other approved parts. Do not

modify the tractor. [Otherwise] There is a danger of accident

or injury or equipment failure. Please remember that the failure

due to modication may not be

covered by warranty.

•

CAUTION

LXN5O160A

Pay attention when turning with implement.

Depending on implements, the overall length may become very long. Pay particular attention to people or objects near-

by when making a turn. [Otherwise] There is a risk of person injury

or a collision of the implement.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind19 19 2015-04-29 오후 1:43:12

BRANSON 25 SERIES

LXN5O164A

󱊟󰲓󱯿󲓷󰸇 󱩻󰄻󱝧󲎧󱬟.

LXN5O165A

Con-

nect

brakes!

Do not shift gears on slopes or on the loading ramps:

When driving on slopes or on the loading ramps, select the proper gear and then do not shift the gear.

[Otherwise] There is a risk of slipping, rolling,

or overturning.

•

WARNING

Stop the engine before maintenance:

Turn engine off before performing any maintenance on tractor.

[Otherwise] There is a risk of injury.

•

CAUTION

LXN5O166A

Follow the instruction manual when engaging an implement:

When engaging an implement

to the tractor, follow the in-

struction manual for the im-

plement. [Otherwise]

There is a risk of personal injury or damage to the tractor.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind20 20 2015-04-29 오후 1:43:13

GENERAL PRECAUTIONS

LXN5O169ALXN5O167A LXN5O168A

Balance a heavy implement with weights:

When engaging a heavy implement or attachment, load the weight on the front to keep the balance of the tractor.

[Otherwise] There is a danger of accident or

injury due to loss of balance.

•

WARNING

Do not put hands or feet under or near implement:

Do not get under implement or

put your feet under it. [Otherwise]

The implement unit may fall down and there is a risk of injury.

•

WARNING

Pay attention to the balance between the front and rear side during loader operation:

During loader operation, apply weights or a implement to avoid loosing balance between the front and the rear side tractor.

[Otherwise] There is a risk of overturning ac-

cident due to loss of balance.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind21 21 2015-04-29 오후 1:43:15

BRANSON 25 SERIES

LXN5O170A

LXN5O142A

Do not substitute balance weights with a person or anything else:

Do not use a person on anything else in place of the balance weight. Use only recommended balance weight for the work.

[Otherwise] There is a danger of accident or

injury.

•

WARNING

Be careful of unexpected movement when using a the rotary:

When working with the rotary, put the rotary slowly on soft or rocky ground. The tractor may be pushed in an unexpected direction by the rotating force of the rotary.

[Otherwise] There is a risk of accident or in-

jury.

•

WARNING

Properly secure tractor during transports:

When transporting the tractor,

apply the parking brake with

gear engaged and fasten the

tractor to the truck securely

sufcient strength.

[Otherwise] There is a risk of accident that

the tractor may fall off the truck.

•

WARNING

LXN5O172A

BRANSON 25 SERIES 트랙터-영문판-01.ind22 22 2015-04-29 오후 1:43:16

GENERAL PRECAUTIONS

LXN5O110A

LXN5O174A

󰥧󰳧󱂟󰸇

󱔷󱬴󲧣󱗃󱬟.

LXN5O175A

Use draw-bar

Use the draw-bar when towing:

Make sure to use the draw-bar

when towing. Never tow any-

thing with the top link or the

lower link. [Otherwise]

Tractor may turn over.

•

WARNING

LXN5O173A

Make sure to connect the brakes on both sides when loading or unloading the trac-

tor. [Otherwise] The tractor may overturn due

to one-sided braking when the brake pedal is depressed in an emergency.

•

DANGER

Make sure to release the differential gear lock when making a turn.

[Otherwise] The tractor may not turn to the

direction you want and cause an accident and damage the tractor.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind23 23 2015-04-29 오후 1:43:18

BRANSON 25 SERIES

LXN5O187A

LXN5O178ALXN5O177A

Pay special attention when on a slope or loading ramps:

Pay special attention to driv-

ing on a slope or the loading

ramps. [Otherwise] There is a risk of accident that

the tractor may slip, roll, or overturn.

•

WARNING

Remove spilled excess fuel before starting engine:

After lling the fuel tank, close

the fuel filler cap completely and wipe off the excess fuel thoroughly.

[Otherwise]

It may result in a re accident or

environmental pollution.

•

DANGER

Turn off engine in a at area when

leaving the tractor:

When leaving the tractor, park the tractor on a flat and safe area, turn off the engine, and apply the parking brake. Also, let the implement rest on the ground.

[Otherwise] The tractor may move and cause

an accident.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind24 24 2015-04-29 오후 1:43:20

GENERAL PRECAUTIONS

LXN5O181A LXN5O182A LXN5O188A

Be aware of the PTO RPM requirements for the implements:

Do not use a low-revolution

implement at high revolution.

Be sure to the designated PTO

requirements for the imple-

ments. [Otherwise]

The performance of the implement may not properly work and there is a risk of accident or injury or damage to the tractor.

•

WARNING

Only engage or disengage imple-

ments on at, level area:

Engage or disengage the implement on a flat and safe place. Supply proper lighting at all times and especially night.

[Otherwise] There is a danger of accident.

•

WARNING

Engage the parking brake during warm of engine.

[Otherwise] The tractor may move and cause

an accident or injury.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind25 25 2015-04-29 오후 1:43:22

BRANSON 25 SERIES

LXN5O186A

Check carefully that the various safety lamps such as direction indication lamp works well before driving the tractor

[Otherwise] Because signal cannot be send

to nearby workers, agricultural equipment, automobiles, etc. It may result in a cause of accident.

•

WARNING

󱩻󰵗󰂋 󱕓󰅫 󱰓󱨿󱬟

LXN5O122A

Fuel is leaking!

If fuel pipe is damaged, fuel will leak. Make sure that you check for any leakage.

[Otherwise]

There is a danger of re.

•

DANGER

LXN5O190A

Check and perform maintenance to loader after lifting it. And x the joystick safety lever when dismantling .

[Otherwise] There is a danger of an unex-

pected death accident.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind26 26 2015-04-29 오후 1:43:24

GENERAL PRECAUTIONS

LXN5O191A

Check if the brakes work properly and evenly on both sides or if the steering wheel is loose.

[Otherwise] There is a risk of overturning.

•

WARNING

LXN5O142ALXN5O193A

Do not look away or take hands off the steering wheel while driving.

[Otherwise] There is a danger of accident or

injury.

•

WARNING

When entering or leaving the farming field, or moving across a dike or a raised ground, use the loading ramp and lower the implement as much as possible and so that it does not touch the ground.

[Otherwise] There is a danger that the tractor

may turn over due to loss of balance.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-01.ind27 27 2015-04-29 오후 1:43:25

BRANSON 25 SERIES

LXN5O192A

Every day before operating the

tractor, check for straw, dust

fuel, or other residue on and

around the mufer and the en-

gine and remove them. [Otherwise]

There is a danger of re.

•

WARNING

LXN5O194A

N῏ᤜ

Longer than 300’

Install the indication of disable car in accordance with the local regulation when a failure occurs during travelling at the 300’ rear place from the tractor.

[Otherwise] It may cause a danger of rear-

end accident.

•

WARNING

LXN5O195A

1. When the tractor has an implement attached or is moving slowly, you must often watch the rear side trafc status to avoid a collision accident when travelling on the road. In particular, be careful when you change directions. If necessary, the signal must be given by hand or direction indication lamp must be used.

2. Always turn on the head light, and/or emergency lamp at night and day as requested by the local

trafc regulation.

BRANSON 25 SERIES 트랙터-영문판-01.ind28 28 2015-04-29 오후 1:43:27

GENERAL PRECAUTIONS

3. Maintain the light and indication plate so it can be visible always. Immediately repair or attach the broken or missed light and indicating plates.

Item regarding lighting devices. (alarm lamp and safety device)

•

CAUTION

LXN5O196C LXN5O197C

1. Entanglement in rotating drive-line can cause serious injury or death.

2. Keep tractor master shield and drive-line shields in place at all times. Make sure rotating shields turn freely.

3. Understand service procedure before doing work. Keep area clean and dry.

4. Never lubricate, service, or adjust machine while it is moving. Keep

hands, feet , and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure. Lower equipment to the ground. Stop the engine. Remove the key. Allow machine to cool.

5. Securely support any machine elements that must be raised for service work.

6. Keep all parts in good condition

BRANSON 25 SERIES 트랙터-영문판-01.ind29 29 2015-04-29 오후 1:43:28

BRANSON 25 SERIES

The following items, maintenance and adjustment should not be attempted, but contact the nearest authorized dealer, if necessary.

1. Adjustment of engine injection pump

Adjustment of injection pump with-

out pre-approval may cause to deteriorate the durability and performance of the engine and may cause a fatal malfunction.

2. Adjustment of hydraulic pressure

Adjustment of hydraulic pressure

set at shipment may cause a fatal failure of related components and a subsequent accident.

3. If you intend to adjust the components that may deteriorate durability and performance, always contact your nearest authorized dealer or service department of the

head ofce.

[Otherwise]

Be careful it may cause a fatal error or may not be covered by the warranty.

and properly installed. Fix damage immediately. Replace worn or broken parts. Remove any buildup of grease, oil, or debris.

7. On self-propelled equipment, disconnect battery ground cable (-) before making adjustments on electrical systems or welding on machine.

8. On towed implements, disconnect wiring harnesses from tractor before servicing electrical system components or welding on machine.

BR25O101A

󳸟LOCATION AND METHOD OF

OPENING OF EMERGENCY EX

ITS

Removable rear cab window provides a large exit path if

the cab door is blocked in an emergency situation.

BRANSON 25 SERIES 트랙터-영문판-01.ind30 30 2015-04-29 오후 1:43:28

GENERAL PRECAUTIONS

Use agricultural chemicals in a safe manner.

1. Agricultural chemicals must be sprayed properly.

2. Spraying of agricultural chemicals must be noticed in advanced and damage to surroundings.

3. Do wear the protective clothing (mask, glove) for agricultural chemicals before spray work.

4. Clean the equipment and tractor just after spraying work.

[Otherwise]

You may be exposed to agricultural chemicals by wind.

BRANSON 25 SERIES 트랙터-영문판-01.ind31 31 2015-04-29 오후 1:43:29

BRANSON 25 SERIES

OVERVIEW OF SAFETY DECAL

[CABIN]

C A U T I O N

TO AVOID PRESONAL INJURY :

1.Read and understand the operator's manual before operation.

2.Before starting the engine, make sure that everyone is at a distance from the tractor and that the PTO is OFF.

3.Do not allow passengers on the tractor at any time.

4.before allowing other people to use the tractor, have them read the operator's manual.

5.Check the tightness of all nuts and volts regularly

6.Keep all shields in place and stay away from all moving parts.

7.Lock the two brake pedals together before driving on the rood.

8.Slow down for turns, or rough roads, or when applying individud brakes.

9.On public roads use SMV enblem and hazard lights, if required by local traffic and safety regulations.

10.Pull only from the drawbar.

11.Before dismountiog lower the implement, set the parking brake, stop the engine and remove the key.

TZE516000B3

TZE518000C4

WARNING

TZE510000B4

Start only from seat in park or neutral. strating in gear kills.

DANGER

BEFORE DISMOUNTING TRACTOR :

1. PARK ON LEVEL GROUND WHENEVER POSSIBLE. if parking on a gradient, position tractor at right angles to the stope.

2. ALWAYS SET PARKING BRAKE. Leaving transmission in gear with the engine stopped will not prevent tractor from rolling.

3. LOWER ALL IMPLEMENTS TO THE GROUND. Failure to comply to this warning may allow the wheels to slip, and could cause injury or death.

4.LOCK SHUTTLE SHIFT LEVER IN NEUTRAL POSITION AND STOP THE ENGINE.

WARNING

TZE514000B3

TZE513000C4

CAUTION

TZE4190000C4

CAUTION

DIESEL ONLY

Use seat belt

NTE5150000C4

WARNING

NTE5210000C4

DEATH OR INJURY MAY RESULT IF THE TRACTOR ROLLS OVER WITH THE ROPS IN THE FOLDED DOWN POSITION.

OPERATE THIS TRACTOR WITH THE ROPS FOLDED DOWN ONLY WHEN NECESSARY.

WARNING

This structure's protective capability may be inpaired by structural damage, overturn, or alteration, If any of these conditions occur, the structure must be replaced.

NTE5220000C4

WARNING

For the long storage, please lock clutch pedal in the both Traction and PTO clutch are disengaged position

C A U T I O N

locker

NTE4130000B4

stopper

clutch pedal

WARNING

TO AVOID PERSONAL INJURY OR DEATH FROM ROLL-OVER :

1.BRANSON recommends the use of a Roll-Over Protective Structures (ROPS) and seat belt in almost at applications

2.Remove the ROPS only when it substantialy interferes with operation or itself presents a safety risk, (Examples include work in orahards and vineyards) always renstall it before using the tractor in other applications.

3.Never use just the seat belt or just the ROPS. They must be used together. For further details, consult your Operator's Manual or your local dealer

TZE517000B3

No Part Code Part Description

TZE516000B3

CAUTION-SAFETY

TZE517000B3

ROPS

NTE5150000C4

SEAT

FTE4140000A4

CAUTION-GETTING OFF

TZE513000C4

CAUTION

NTE4130000B4

CLUTCH PEDAL

NTE5210000C4

CAUTION ROPS

NTE5220000C4

DANGER

TZE510000B4

START

TZE518000C4

CAUTION-ROTATION

TZE4190000C4

REFUEL

BRANSON 25 SERIES 트랙터-영문판-01.ind32 32 2015-04-29 오후 1:43:30

GENERAL PRECAUTIONS

TZE512000B4

TO AVOID PERSONAL INJURY :

1.Attach pulled or towed loads to the drawbar only.

2.Use the 3-point hitch only with equipement designed for 3-point hitch usage.

WARNING

1. Keep PTO shield in place at all times.

2. Do not operate the PTO at speeds faster than the speed recommended by the implement manufacturer.

3. For training PTO-driven implemets set drawbar at towing position. (see operator's manual)

4. Keep hands, feet and clothing away.

TO AVOID PERSONAL INJURY :

TA00015596A

Fix loader joystick safety lock during no use.

WARNING

TO AVOID PRESONAL INJURY(OPERATING ON SLOPES)

1.If descending a slope, never disengage the clutch or shift levers to neutral. Doing so could cause the tractor to speed up out of control.

2.Slow down for slopes, especially when transporting heavy, rear mounted equipment.

3.Before descending a slope, shift to a gear low enough to control speed without using brakes.

C A U T I O N

WARNING

Keep the starter relay, away from water while cleaning. If not followed, damage can occur by starter moter.

NTE5270000A4

TZE577000B3

Before operating this machine please read the operators manual so that you fully understand how to operate this machine. Always check the oil, coolant, and fuel levels before operating this unit.

Work in ventilated area. Do not work long hours air conditioner, because it make exhaust air. if you don't have an air cleaner, open the door and get outside air into the area.

Lock the joystick

Release joystick

Back

TA00028501A

WARNING

Left

Right

Front

CAUTION

WARNING

Starting

1. Do not use a screwdriver or any other tool to jump the starter as a means of cranking this unit.

2. The operator should only start this unit from the operators station. Starting this unit anywhere other than the operator's platform can cause serious injury.

3. When starting this unit it is critical to ensure that main shift lever, range shift lever, and pto shift lever are all in the

neutral position.

4. While operating this unit always ensure that safety devices are being used correctly. For example always wear your seat belt and ensure that the pto cover is installed.

5. Never start this unit while others are close by. Only crank and operate this unit once others are at a safe distance. This includes starting, operating implements, operating a loader, or using a backhoe.

6. After starting this unit allow the tractor to idle five minutes with the pto lever and the shift lever in the neutral position.

7. In cold weather allow the glow plugs to cycle through one time before trying to start this unit. Driving

1. When turning on a slope or uneven surface please reduce your speed.

2. When traveling downhill please shift into low range before you begin moving.

3. Do not operate this unit in narrow or unsafe places; the potential for roll over could exist in these conditions.

4. When climbing a steep slope, always do so in reverse.

5. While driving the tractor make sure that the two brake pedals are latched together, and do not engage differential

lock while moving.

6. The operator should be the only person on the tractor.

Carrying passengers on the tractor or implement can cause serious injury.

7. Do not step on, or stand on pto cover at anytime. 8. Do not

suddenly stop, turn, or jump the clutch on this unit at anytime. 9. While operating on a public road, always abide

by the law.

Operating

1. Use caution in wet conditions, turning suddenly can cause

the tractor to become stuck.

2. When operating this unit, always maintain a safe working

distance from others. Parking

1. When parking the tractor make sure all implements or attachments are on the ground before turning of the engine. This includes the front end loader.

2. When parking on a slope always apply the parking break and chock the tires.

Servicing

1. Before servicing this machine always turn the engine off

first.

2. When checking electrical components always disconnect the negative terminal of the battery.

3. For information regarding service issues or service help please contact you local dealer.

4. Always allow time for the radiator coolant to cool and relieve pressure before removing the radiator cap.

When the joystick is not being used, always put it in the locked position.

Warning when starting on a slope

When starting on a slope please ensure that both brake pedals are fully engaged. Once you have shifted the unit it gear, slowly release the brakes as the tractor begins to move in the forward position

Suddenly engaging or disengaging the shifting levers could cause sever damage to this unit and or harm to the operator.

Using the Parking Brake

When engaging or disengaging the parking brake please press the brake pedal fully before moving the parking brake lever.

Engine Oil

Before using this machine please check the engine oil level. If low please add oil before operating this unit. Do not mix oils. Only use oil from one manufacture at a time.

Coolant

Before using this machine please check the coolant level in the sub tank. If the Coolant level is below the bottom line, please add additional coolant. Only add coolant to the sub tank, do not pour directly into the radiator. During the winter time always use anti-freeze coolant.

Fuel Filter

If water is present in the fuel bowl, drain the water immediately.Clean filter element every one hundred hours.If any defect or damage is present, please replace the filter.

Air Cleaner

Before using this machine, please check the air filter and clean if necessary. Replace air filter every one-hundred to two-hundred hours.

Air Breather

Follow instructions listed in the operator manual.

TA00028504A

WARNING

Brake pedal

Parking Brake lever

WARNING

TA00026053A

Capable working hours under max. load operation and full tank fuel.

FUEL INDICATOR IN SLOPE

As fuel tanks being installed at right and left side both, tractor work on right side or left side sloping area may show different fuel indication in dash board from actually remaining fuel quantity in tanks.

Branson 5020R

Branson 4520R

Branson 4020R

Branson 3520R

Branson 4720(h)

Branson 3510(h)

Model

11.9

10.5

9.3

8.3

10.5

8.3

Working

hours

No Part Code Part Description

TZE577000B3

CAUTION-SAFETY

TA00028504A

WARNING CAUTION

TA00028501A

WARNING CAUTION

NTE5270000A4

STARTER RELAY

LOADER

TZE512000B4

CAUTION-CONNECTION

TA00015596A

PTO COVER

TA00026053A

CAUTION-FUEL

BRANSON 25 SERIES 트랙터-영문판-01.ind33 33 2015-04-29 오후 1:43:32

BRANSON 25 SERIES

[ROPS]

No Part Code Part Description

NTE5210000C4

CAUTION ROPS

FTE4140000A4

CAUTION-GETTING OFF 3 TZE513000C4 CAUTION 4

TZE4190000C4

REFUEL 5

NTE5220000C4

DANGER 6 TZE517000B3 ROPS 7 TZE516000B3 CAUTION-SAFETY 8 TZE510000B4 START 9 TZE518000C4

CAUTION-ROTATION

BRANSON 25 SERIES 트랙터-영문판-01.ind34 34 2015-04-29 오후 1:43:32

GENERAL PRECAUTIONS

No Part Code Part Description

10 TA00026053A CAUTION-FUEL 11 TZE577000B3 CAUTION-SAFETY 12

NTE5150000C4

SEAT

NTE5270000A4

STARTER RELAY

14 LOADER 15 TZE512000B4

CAUTION-CONNECTION

16 TA00015596A PTO COVER 17

TZE512000B4

CAUTION-CONNECTION

TA00015596A

PTO COVER

TA00026053A

CAUTION-FUEL

BRANSON 25 SERIES 트랙터-영문판-01.ind35 35 2015-04-29 오후 1:43:33

BRANSON 25 SERIES

Safety decals are provided to ensure safe operation.

Keep the safety decals clean at all times and protect them from damage.

In case of loss or damage, replace with a new decal.

BRANSON 25 SERIES 트랙터-영문판-01.ind36 36 2015-04-29 오후 1:43:33

2. ABOUT WARRANTY

WARRANTY

............................................................................................2-2

TROUBLE SHOOTING

..........................................................................2-2

BRANSON 25 SERIES 트랙터-영문판-02.ind1 1 2014-10-16 오후 3:38:20

BRANSON 25 SERIES

WARRANTY

Type of model and tractor s/n number.

In case of engine, the engine s/n number.

Circumstances of breakdown. (What kind of work, gear position, etc)

Amount of work done. (Square footage or number of hours)

Other information in as much detail as possible surrounding the circumstanced of the breakdown.

•

You will need the “Warranty paper work” when your tractor requires warranty service. Read it and keep in a safe place.

TROUBLE SHOOTING

In case of mechanical trouble, refer to “Trouble shooting” on end of this manual. If the problem cannot be corrected, please contact your nearest authorized dealer.

(1) Tractor Serial number.

(1) Engine Serial Number

BR25O202A

BR25O201A

BRANSON 25 SERIES 트랙터-영문판-02.ind2 2 2014-10-16 오후 3:38:21

3. OVERVIEW OF THE TRACTOR

EXTERIOR VIEW ............................................................................3-2

BRANSON 25 SERIES 트랙터-영문판-03.ind1 1 2015-04-29 오후 1:44:01

BRANSON 25 SERIES

EXTERIOR VIEW

(1) Work Lamp (F) (2) Side Mirror (3) Door Glass (4) Rear Tire (5) Step (6) Front Tire (7) Head Lamp (8) Hood

BR25O301A

[CABIN]

BRANSON 25 SERIES 트랙터-영문판-03.ind2 2 2015-04-29 오후 1:44:02

OVERVIEW OF THE TRACTOR

(1) Work Lamp (R) (2) Rear Window (3) Rear Remote Valve (4) Top Link

(5) Lower Link (6) Rear Combination Lamp

(1) Air Cleaner (2) Receiver Dryer (3) Battery (4) Condenser (5) Compressor (6) Fuel Filter (7) Engine Oil Filter

BR25O303A

BR25O302A

BRANSON 25 SERIES 트랙터-영문판-03.ind3 3 2015-04-29 오후 1:44:02

BRANSON 25 SERIES

[ROPS]

BR25O306A

(1) Steering Wheel (2) Head Lamp

(3)Mufer

(4) Front Tire (5) Rear Tire (6) Direction Lamp (7) Road Lamp (8) ROPS Frame

BRANSON 25 SERIES 트랙터-영문판-03.ind4 4 2015-04-29 오후 1:44:03

OVERVIEW OF THE TRACTOR

10 12

BR25O307A

(9) Back Up Lamp (10) Work Lamp

(11) Draw Bar (12) Brake Lamp

(1) Air Cleaner (2) Fuel Filter (3) Engine Oil Filter

BR25O308A

BRANSON 25 SERIES 트랙터-영문판-03.ind5 5 2015-04-29 오후 1:44:04

BRANSON 25 SERIES

[MANUAL]

(1) Combination Lamp Switch Horn Switch (2) F-R Shuttle Lever (3) Clutch Pedal (4) Hyd. Stop Valve (5) MFWD Lever (6) PTO Shift Lever (7) Range Shift Lever (8) Parking Brake Lever (9) Instrument Panel (10) Accelerator Lever (11) Main Key Switch (12) Steering Wheel Tilt Lever (13) PTO Switch (14) Hazard Lamp Switch (15) Brake Pedal (16) Accelerator Pedal (17) Main Gear Shift Lever (18) Diff. Lock Pedal (19) Position Control Lever (20) Work Lamp

5 6

11 12 13

16 17

7 8

BR25O305A

BRANSON 25 SERIES 트랙터-영문판-03.ind6 6 2015-04-29 오후 1:44:04

OVERVIEW OF THE TRACTOR

[HST]

BRA25O306A

(1) Control Panel (2) Combination S/W (3) Brake Pedals (4) Range Shift Lever (5) PTO Shift Lever (6) Seat Belt (7) MFWD Lever (8) Slow Return Valve (9) Instrument Panel (10) Steering Tilt Lever (11) Accelerator Lever (12) Key Switch (13) Emergency Lamp S/W (14) F-R HST Pedals (15) Position Lever (16) Draft Lever (17) Differential Lock Pedal

10 11 12

15 16 17

BR25O305A

BRANSON 25 SERIES 트랙터-영문판-03.ind7 7 2015-04-29 오후 1:44:05

MEMO

............................................................................................................................................................................

Branson Machinery LLC

BRANSON 25 SERIES 트랙터-영문판-03.ind8 8 2015-04-29 오후 1:44:05

4. FUNCTIONS

SWITCHES AND LEVERS .....................................4-3

MAIN KEY SWITCH ..................................................4-3

ACCELERATOR LEVER ...........................................4-4

F/R SHUTTLE LEVER ...............................................4-4

DIRECTOR LAMP S/W .............................................4-5

HEAD LAMP & HORN S/W .......................................4-5

STEERING WHEEL TILT LEVER ..............................4-5

PTO SHIFT SWITCH .................................................4-6

CRUISE CONTROL SWITCH ...................................4-6

EMERGENCY LAMP SWITCH ..................................4-7

INSTRUMENT PANEL ............................................4-8

ENGINE RPM INDICATOR .......................................4-9

ENGINE HOUR METER ............................................4-9

PTO POSITION .........................................................4-9

PTO LAMP ...............................................................4-10

PRE-HEAT LAMP ....................................................4-10

BATTERY CHARGING LAMP .................................4-11

ENGINE OIL PRESSURE LAMP .............................4-11

FUEL GAUGE ..........................................................4-11

WATER TEMP GAUGE ...........................................4-12

HEAD LAMP (HIGH BEAM) ....................................4-12

DPF LAMP ...............................................................

4-12

PEDALS ................................................................4-13

CLUTCH PEDAL .....................................................4-13

BRAKE PEDALS AND COUPLER...........................4-13

ACCELATOR PEDAL ..............................................4-14

F-R HST PEDAL (HST) ...........................................4-14

LEVER OPERATION (R) ......................................4-15

MID REMOTE VALVE JOYSTICK ...........................4-15

MAIN GEAR SHIFT LEVER ....................................4-15

3-PT POSITION CONTROL LEVER ........................4-16

RANGE SHIFT LEVER ............................................4-16

PARK BRAKE LEVER .............................................4-17

REAR REMOTE CONTROL LEVER (I,II) ................4-17

LEVER OPERATION (L) ......................................4-17

STOP/SLOW RETURN VALVE ...............................4-18

MFWD LEVER .........................................................4-18

PTO LEVER .............................................................4-18

BRANSON 25 SERIES 트랙터-영문판-04.ind1 1 2015-04-29 오후 1:44:31

4. FUNCTIONS

DIFFERENTIAL LOCK PEDAL ................................4-19

PARTS FOR OTHER ............................................4-19

WORK LAMP SWITCH ............................................4-19

POWER OUT 12V ...................................................4-19

WIPER SWITCH ......................................................4-20

CLIMATE CONTROL ...............................................4-21

SEAT BELT ..............................................................4-21

SEAT ADJUSTMENT ...............................................4-22

TAIL LAMP ...............................................................4-23

BRAKE LAMP ..........................................................4-23

REVERSE DRIVE LAMP .........................................4-23

WORK LAMP ...........................................................4-24

BRANSON 25 SERIES 트랙터-영문판-04.ind2 2 2015-04-29 오후 1:44:32

FUNCTIONS

(1) Dash Meter (2) Steering Wheel (3) Accelerator Lever (4) Main Key Switch (5) Steering Column Tilt Lever (6) Combination Lamp Switch (7) F/R Shuttle Lever (8) PTO Shift Switch (9) Emergency Lamp Switch

SWITCHES AND LEVERS

BR25O401A

MAIN KEY SWITCH



"OFF"

The engine is stopped, and current

does no ow. (The key can be taken

out)

BR25O402A

It is used to start the engine.



"ON"

Electric current ows to the switched

of all electrical parts. If the engine is stopped, the engine oil pressure pilot lamp and the battery charge pilot lamp are lit. Depending on the outside temperature, the thermostat pilot lamp may also be lit.



"START"

Starting motor turns and the engine is started.

Once the engine is started, take your hand off the key.

The key will return to the “ON” posi-

tion automatically and the engine will

keep running.

Turn engine off before performing any maintenance on tractor

When the tractor is not in use, take out the key and keep it in a safe place.

•

CAUTION

(1) Main Key Switch

BRANSON 25 SERIES 트랙터-영문판-04.ind3 3 2015-04-29 오후 1:44:32

BRANSON 25 SERIES

ACCELERATOR LEVER

BR25O403A

(1) Accelerator Lever (A) Decreases (B) Increases

It is used to make the engine run

faster or slower. It is also used when

working at a constant speed.

F/R SHUTTLE LEVER

It is used for shifting between “For-

ward” and “Reverse” drive. When

shifting the gear, depress the clutch fully.

(1) F/R Shuttle Lever (A) Forward (B) Reverse

BR25O404A

For safety, when shifting from “forward” to “reverse” or from “reverse” to “forward”, put the lever in the “neutral” position and wait for the tractor to stop moving before shifting the gear to the opposite direction. To ensure safety, the lever must first be pulled upward for shifting to another position.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-04.ind4 4 2015-04-29 오후 1:44:33

FUNCTIONS

DIRECTOR LAMP S/W

(1) Director Lamp S/W

With the key switch in the “ON” position, turn the direction

indicator switch to the right to turn on the direction indicator lamp in the right side, and turn the indicator switch to the left to turn on the lamp on the left.

HEAD LAMP & HORN S/W

BR25O406A

(1) Head Lamp (2) Horn

▶

HEAD LAMP S/W

With the main switch in the “ON” po-

sition, turn the light switch one click

to the right for high beam and two

clicks to the right for low beam.

▶

HORN S/W

With the main switch in the “ON” position, press the horn button to sound the horn.

STEERING WHEEL TILT LEVER

BR25O407A

(1) Steering Wheel Tilt Lever

(A) Lock (B) Release

Confirm that the steering wheel is

rmly xed.

BR25O405A

BRANSON 25 SERIES 트랙터-영문판-04.ind5 5 2015-04-29 오후 1:44:34

BRANSON 25 SERIES

BR25O409A

BR25O408A

PTO SHIFT SWITCH

(1) PTO Shift Switch

It is used for turning on or off the PTO clutch.

▶PTO CLUTCH SWITCH [IND]

PTO gets independent, and even when the lift arm is lifted, PTO continues to rotate and PTO lamp lights on the instrument panel.

▶PTO CLUTCH SWITCH [LINK]

PTO gets connected, and when the lift arm is lifted, PTO stops to rotate. And when the lift arm is lowered, PTO rotates and PTO lamp lights on the instrument panel.

▶PTO CLUTCH SWITCH [OFF]

PTO does not rotate. When not working, put to this position.

※

The engine does not start up,

when the PTO clutch is in “IND” or “LINK”. Put to “OFF” position for

starting up the engine.

CRUISE CONTROL SWITCH

1. When the machine has reached the desired speed, press cruise

control switch to “ON”. Release

the HST pedal and the machine will operate at the selected speed.

2. When applying full pressure to the

Brake pedals, the cruise control

will deactivated and it will be necessary to reset the cruise control to the desired speed.

[HST]

(1) Cruise Control Switch

BRANSON 25 SERIES 트랙터-영문판-04.ind6 6 2015-04-29 오후 1:44:35

FUNCTIONS

BR25O410A

(1) Emergency Lamp Switch

EMERGENCY LAMP SWITCH

Used to prevent accidents in an emergency. Activate by pressing switch as to warn other vehicles. Emergency lamp operates regardless of main switch and every direction lamp will cease at once. Press once again to cancel.

3. When applying light pressure to

the Brake pedals, the machine’s

ground speed will be reduced until

the Brake pedals released. At that

point the machine will continue at the previous setting.

4. To reset the desired speed, you should turn off the cruise control switch then increase machine speed to reach the desired speed push cruise switch to on.

When stop the machine cruise control keep machine stop status.

Make sure connecting the both Brake pedals when use cruise control function.

[Otherwise] There is a risk abrupt turning

or overturning due to onesided Braking when the Brake pedal is depressed.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-04.ind7 7 2015-04-29 오후 1:44:35

BRANSON 25 SERIES

INSTRUMENT PANEL

(1) Meter Panel (2) Fuel Gauge (3) PTO Lamp (4) Hour Meter (5) PTO Position (6) Head lamp High beam

(7) Park Brake Lamp

(8) DPF Lamp (9) Engine oil pressure Pilot lamp (10) Pre-heat Lamp (11) Battery Charge Lamp (12) Water Temp Gauge

BR25O411A

ڐڏڋۍۋۈ ګگڪٻڌڮگ

ڐڏڋڠٻۍۋۈ ګگڪٻڍکڟ

3 4 12 11 10

12 5 6 7 8 9

BRANSON 25 SERIES 트랙터-영문판-04.ind8 8 2015-04-29 오후 1:44:36

FUNCTIONS

The needle indicates the number of engine RPM.

ENGINE HOUR METER

It in dicates the trac tor ’s runn ing

hours. By multiplying the digit in the far right position by 6, you will get the time in minute.

BR25O413A

ENGINE RPM INDICATOR

BR25O414A

It indicates the position where PTO achieves 540 rpm when engine rpm is 2,600 rpm at PTO 1

stage.

It indicates the position where PTO achieves 1,000 rpm when engine rpm is 2,600 rpm or where PTO achieves 540 rpm when engine rpm is 1,000 rpm at PTO 2nd stage. (Econo-position).

PTO POSITION

(1) Engine Rpm Indicator (1) Engine Hour Meter (1) PTO Position

BR25O412A

BRANSON 25 SERIES 트랙터-영문판-04.ind9 9 2015-04-29 오후 1:44:36

BRANSON 25 SERIES

PTO LAMP

Lamp will come on when PTO is engaged. On the contrary, if PTO is disengaged, lamp will be turned off.

BR25O415A

PRE-HEAT LAMP

Lamp will come on when the ignition

switch is put into the “ON” position

with outside temperature of around 40°F, indicating that electricity is supplied to the heater or glow plugs.

Turn the ignition switch to “START”

after the lamp has been turned off (it is turned off automatically) then it will start the engine.

BR25O416A

The length of time the thermostat stays on will depend on the temperature of the engine coolant.

※

Coolant temp :

32°F ~ 60°F 10 sec

32°F ~ 5°F 20 sec

•

NOTE

(1) PTO Lamp (1) Pre-heat Lamp

BRANSON 25 SERIES 트랙터-영문판-04.ind10 10 2015-04-29 오후 1:44:37

FUNCTIONS

BATTERY CHARGING LAMP

It will be turned on when the key switch is put into the “ON” position,

and will be turned off when the battery starts being charged after engine is started and the engine revolution increases.

The battery will not be charged with the engine below 1,000 rpm. (The rpm should be 1,500 rpm or higher)

(1) Battery Charge Lamp

1 1

BR25O417A

Lamp will come on when the ignition

switch is put into the “ON” position. It

will turn off when the engine is started. If this lamp comes on while the engine is running, it indicates a problem in the engine oil system. Stop the engine im-

mediately and check for problems.

(1) Engine Oil Pressure Lamp

BR25O418A

ENGINE OIL PRESSURE LAMP FUEL GAUGE

Indicates the quantity of fuel remain-

ing in the tank. If the needle is in the red zone, rell immediately.

BR25O419A

(1) Fuel Gauge

BRANSON 25 SERIES 트랙터-영문판-04.ind11 11 2015-04-29 오후 1:44:38

BRANSON 25 SERIES

WATER TEMP GAUGE

The needle indicates the temperature of the engine coolant during running. If the needle is in the red zone, stop running the engine and check for problems.

BR25O420A

HEAD LAMP (HIGH BEAM)

Indicates the head lamps beam’s position. It will come on when the head lamps are on Hi beam. On the contrary, if the head lamps are in the low beam, this indicator will not be lit.

BR25O421A

DPF LAMP

Lamp will be turned on when DPF is forced to be operated.

BR25O422A

(1) Water Temp Gauge (1) High Beam Head Lamp (1) DPF Lamp

BRANSON 25 SERIES 트랙터-영문판-04.ind12 12 2015-04-29 오후 1:44:39

FUNCTIONS

PEDALS

(1) Clutch Pedal

(2) Brake Pedal (L) (3) Brake Pedal Coupler (4) Brake Pedal (R)

(5) Accelerator Pedal

It is used to transmit the engine power.

BRAKE PEDALS AND COUPLER

Brake pedals are independent of each other and can be used for making a

small turn on the pavement.

Depressing the Brake pedal on the side to which to make a turn, the rear

wheel on that side is stopped and the

tractor can make a small turn.

BR25O425A

CLUTCH PEDAL

BR25O424A

(1) Brake Pedal (2) Brake Pedal Coupler(1) Clutch Pedal

BR25O423A

BRANSON 25 SERIES 트랙터-영문판-04.ind13 13 2015-04-29 오후 1:44:40

BRANSON 25 SERIES

BR25O427A

Make sure to connect the Brake pedals with the coupler when driving on a road.

[Otherwise]

There is a risk of abrupt turn-

ing or overturning due to onesided Braking.

•

WARNING

ACCELATOR PEDAL

BR25O426A

It is used to make the engine run faster

or slower. It is usually used when driving on a road. (Manual transmission only)

(1) Accelator Pedal

[HST]

F-R HST PEDAL (HST)

It is used for shifting between “for-

ward” and “reverse” drive. And stay

pedals at neutral machine should be stopped.

For safety, do not shift quickly from “forward” to “reverse” or from “reverse” to “forward”. Engage Brake pedals when the machine for machine to stop quickly.

•

CAUTION

(1) HST Pedal Forward (2) HST Pedal Reverse

[MANUAL]

BRANSON 25 SERIES 트랙터-영문판-04.ind14 14 2015-04-29 오후 1:44:40

FUNCTIONS

MID REMOTE VALVE JOYSTICK

Front-loader exclusive joystick valve

is attached and control lever is at-

tached on right-front side of driver’s

seat. Loader will move up when pushed

forward and move down when pulled

backward. Bucket will move up when

pushed to the left and move down

when pushed to the right. Joystick lever must be locked when driving

while loader is lifted. Otherwise it may cause accident.

LEVER OPERATION (R)

MAIN GEAR SHIFT LEVER

The gear is shifted in four levels. When shifting the gears depress the clutch fully.

BR25O430A

(1) Mid Remote Valve Joystick

(2) Main Gear Shift Lever (3) 3-PT Position Lever (4) Range Shift

(5) Park Brake Lever

(6,7) Rear Remote Control Lever (I,II)

(1) Mid Remote Valve Joystick (A) Lock (B) Unlock

(1) Main Gear Shift Lever

BR25O428A

BR25O429A

BRANSON 25 SERIES 트랙터-영문판-04.ind15 15 2015-04-29 오후 1:44:41

BRANSON 25 SERIES

3-PT POSITION CONTROL LEVER

Conrm that no one or a foot

is under the implement before

operating the system. [Otherwise] There is a danger of injury.

•

WARNING

It is used to keep the implement constantly at a certain position. When the lift lamp is on, the implement cannot be lowered with position con-

trol lever. A stopper is used to x the

position control lever in the “UP” po-

sition while driving on a road. When lowering the implement, set

the position control lever, and the implement will go down to the set position.

(1) 3-PT Position Control Lever

BR25O431A

RANGE SHIFT LEVER

The range gear is shifted in three levels (A-B-C). The combination with the main gear provides 12 levels (3 levels: HST only) of gear shifting.

When shifting the range gear, stop tractor and depress clutch pedal fully.

(1) Range Shift Lever

BR25O438ABR25O432A

BRANSON 25 SERIES 트랙터-영문판-04.ind16 16 2015-04-29 오후 1:44:42

FUNCTIONS

PARK BRAKE LEVER

Pull the lever up while depressing

the Brake pedal fully to engage the

parking Brake. To release the park-

ing Brake, step on the Brake pedal

and push the lever down.

Connect both Brake pedals with the

connector.

(1) Park Brake Lever

BR25O438A

REAR REMOTE CONTROL LEVER (I, II)

It is used to for the rear implement hyd-function.

(1) Rear Remote Control Lever (Ⅰ) (2) Rear Remote Control Lever (Ⅱ)

BR25O438A

LEVER OPERATION (L)

(1) Stop / Slow Return Valve (2) MFWD Lever (3) PTO Lever

(4) Differential Lock Pedal

BR25O438ABR25O433A BR25O434A BR25O435A

LEVER #

I II

DETENT N/A REAR

BRANSON 25 SERIES 트랙터-영문판-04.ind17 17 2015-04-29 오후 1:44:43

BRANSON 25 SERIES

BR25O436A

STOP/SLOW RETURN VALVE MFWD LEVER

It is used to shift between 2-wheel drive and 4-wheel drive. Depress the clutch pedal when shifting the lever.

BR25O437A

It is used to regulate the lowering speed of the implement (slow return function). Also, if you wind the valve fully to the right, the hydraulic pressure to the device raising the implement is stopped.

PTO LEVER

BR25O438A

The revolution of the PTO shaft can be shifted in two levels. When shift-

ing level, shift PTO switch to “OFF”

position.

PTO 1

540 RPM

PTO 2 790 RPM (540E)

(1) Stop / Slow Return Valve (1) MFWD Lever (1) PTO Lever

Observe the PTO speed designated on the implement. Otherwise, the implement may be damaged and cause an accident.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-04.ind18 18 2015-04-29 오후 1:44:43

FUNCTIONS

DIFFERENTIAL LOCK PEDAL

It is used to transmit the same power to both rear wheels and serves to prevent slipping when one of the rear wheels is idling.

BR25O439A

WARNING

Release the differential gear lock when making a turn. Otherwise, the tractor may not turn in the direction you want and cause an accident..

•

(1) Differential Lock Pedal

PARTS FOR OTHER

WORK LAMP SWITCH

It is used to turn on work lamps on

the top roof.

Accessory 12-volt electrical outlet

is used when connect-ing auxiliary

equipment.

POWER OUT 12V

(1) Work Lamp Switch (FRT) (2) Work Lamp Switch (RR) (3) Work Lamp (R) (4) Work Lamp (L)

(1) Power Out 12V

BR25O440A

BR25O441A

BRANSON 25 SERIES 트랙터-영문판-04.ind19 19 2015-04-29 오후 1:44:44

BRANSON 25 SERIES

WIPER SWITCH

Wiper blades will operate when upper buttons of wiper switch are pressed.

Washer fluid is sprayed on to windshield and the wipers are operated when buttons are pressed once more.

Lower buttons will only spout wash

liquid. Wash liquid tank for cleaning

is located on rear left side of cab ex-

terior.

(1) Wiper Switch

Do not use the washers when the washer fluid reservoir is empty, otherwise you will damage the washer pump.

Do not use the washers if there is any danger that the fluid will freeze on the windshield. If you do, your vision could be ob-scured. For this reason, use antifreeze

•

CAUTION

BR25O442A

BR25O443A

(1) Wash Liquid Tank

BRANSON 25 SERIES 트랙터-영문판-04.ind20 20 2015-04-29 오후 1:44:45

FUNCTIONS

CLIMATE CONTROL

▶

COOLING FUNCTION

When the cooling function is on, the air compressor is worked then reheated according to the temperature setting.

▶

AIR FLOW RATE

Adjust the air flow rate. The higher

the rate, the more effective the heating or cooling will be.

▶

AIR CIRCULATE CONTROL

Used to shift the supply of outside air and re-cir-culates the inside air

▶

TEMPERATURE:

Red, to increase the temperature. Blue, to decrease the temperature.

(1) Cooling Function (2) Air Flow Rate (3) Air-conditioning Indicator (4) Heater Indicator (5) Air Circulate Indicator (6) Heater Control (7) Air Circulate Control (8) Temperature

SEAT BELT

BR25O445A

Do not wear the seat belt when the safety frame is folded down. With the frame folded down, it does not provide safety.

When operating the tractor, make sure to keep the safety frame in the upright position and wear the seat belt.

•

WARNING

(1) Seat Belt

BR25O444A

BRANSON 25 SERIES 트랙터-영문판-04.ind21 21 2015-04-29 오후 1:44:45

BRANSON 25 SERIES

SEAT ADJUSTMENT

▶

FORE AND AFT POSITIONING

Lift handle and move the seat forward or rearward. Release the handle at one of several positions.

▶

BACK CUSHION ANGLE AD-

JUSTMENT

Lift the handle and let the back cush-

ion spring forward, or lean backward

Never attempt to adjust your seat while the tractor is moving. The seat could respond with unexpected movement, and the ensuing loss of tractor control could lead to an accident.

•

CAUTION

into the cushion. Release the handle at desired position

▶

WEIGHT ADJUSTMENT

With seat in mid-position, extend the crank lever from knob and rotate mi-

nus(-) direction for less support or Plus(+) for more support. Use the in-

dicator for approximate weight set-

ting. Release crank lever

[Otherwise] There is a risk of death or injury

if the tractor turns over. Adjust the seat to the driver and keep the upper body upright. Wrap the seat belt around the waist and insert it into the buckle until the clicking sound is heard. When releasing the seat belt, use the “PRESS” button.

WARNING

BR25O446A

BRANSON 25 SERIES 트랙터-영문판-04.ind22 22 2015-04-29 오후 1:44:45

FUNCTIONS

BR25O449BBR25O448B

BR25O447B

TAIL LAMP

It is connected with the headlamp and is turned on when the headlamp is turned on.

BRAKE LAMP

It is turned on when the Brake pedal

is depressed.

REVERSE DRIVE LAMP

This lamp ashed on when connect-

ing the shuttle lever to R (backward).

[ROPS]

[ROPS] [ROPS]

(1) Tail Lamp (1) Brake Lamp (1) Reverse Drive Lamp

BRANSON 25 SERIES 트랙터-영문판-04.ind23 23 2015-04-29 오후 1:44:46

BRANSON 25 SERIES

BR25O450A

WORK LAMP

It is used for work at rear side at night. The work lamp has an on-off

switch itself.

[ROPS]

(1) Work Lamp (2) Work Lamp switch

BRANSON 25 SERIES 트랙터-영문판-04.ind24 24 2015-04-29 오후 1:44:46

5. OPERATION & WORK

CHECKING BEFORE OPERATION .......................5-2

STARTING / STOPPING THE ENGINE ..................5-9

TO START THE ENGINE ........................................5-10

TO STOP THE ENGINE ..........................................5-12

TO RAISE OR LOWER THE IMPLEMENT .............5-13

ADJUSTING THE LOWERING

SPEED OF THE IMPLEMENT ...........................5-13

DRIVING ON THE ROAD .....................................5-14

DRIVING ON THE SLOPE ....................................5-14

ENTERING AND LEAVING THE PAVEMENT .....5-15

TURNING ON THE PAVEMENT ...........................5-16

DIFFERENTIAL GEAR LOCK ..............................5-16

TRACTOR LOADING /UNLOADING ....................5-17

INSTALLING 3-POINT LINK .................................5-18

PRECAUTIONS FOR

CONNECTING THE IMPLEMENT ...................5-20

ADJUSTING WHEEL TREAD ..............................5-20

POWER STEERING ................................................5-21

TOWING INSTRUCTIONS ......................................5-22

PTO SPECIFICATIONS & PRECAUTIONS ...........5-22

LOADER OPERATION ............................................5-23

CARRYING THE LOAD ........................................5-24

HANDLING LARGE HEAVY OBJECTS ...............5-25

ROPS FOLDING METHOD ...................................5-26

HOW TO FOLD DOWN THE ROPS ........................5-26

HOW TO FOLD DOWN THE ROPS ........................

5-27

BRANSON 25 SERIES 트랙터-영문판-05.ind1 1 2015-04-29 오후 1:46:08

BRANSON 25 SERIES

CHECKING BEFORE OPERATION

Do not provide illumination with a lit cigarette or a lighter when fueling.

Never fill the fuel tank while the engine is running or hot.

After lling the fuel tank, close

the fuel filler cap completely and wipe off the excess fuel thoroughly.

If the fuel hoses are damaged,

fuel will leak. Make sure that you check for any leakage.

•

DANGER

Perform the maintenance on a

at and safe location that will

keep the tractor in place and

will not cause a risk to peo-

ple passing by. Before carry-

ing out the maintenance, place

blocks at the front tires to pre-

vent movement. [Otherwise]

An unexpected accident may oc-

cur, such as overturning of the

tractor.

When going under the imple-

ment, fully close the slow/stop

valve. [Otherwise]

There is a risk of injury due to implement falling.

•

WARNING

Stop the engine during check-

ing, maintenance, or repair

Carry out the maintenance work after heated area such as

the mufer or the engine have

fully cooled down.

[Otherwise] There is risk of burn.

After detaching the covers

for checking or maintenance,

make sure to put them back in their place.

[Otherwise] There is a risk that you may get

entangled in the tractor or get injured.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-05.ind2 2 2015-04-29 오후 1:46:08

OPERATION & WORK

To ensure a safe and comfortable operation, please carry out the routine check-up everyday before starting work. Correct any problem immediately, and also check for problems after work. This checking should be done in the following sequence.

1. Check the suspicious parts of the previous day.

• Check the parts that you thought

were not normal during the work of previous day.

BR25O501A

2. Check around the tractor.

• Parking deformation, damage or stains.

• Tire pressure and abrasion.

• Damage to the tractor, or loosened bolts.

• Loosening of wheel bolts.

• Fuel quantity, fuel leaks, or damage to the fuel hose.

BR25O502A

3. Open the engine hood.

• Engine oil level, contamination, or leakage.

BRANSON 25 SERIES 트랙터-영문판-05.ind3 3 2015-04-29 오후 1:46:10

BRANSON 25 SERIES

BR25O503A

• Engine coolant level, leakage, or damage to the hose.

BR25O504A BR25O505A

• Battery solution level. • Air cleaner.

BRANSON 25 SERIES 트랙터-영문판-05.ind4 4 2015-04-29 오후 1:46:12

OPERATION & WORK

BR25O506A

• Cooling fan belt tension, damage.

BR25O507A

• Dust or straw on the radiator grill or the engine.

BR25O508A

• Damage to the coating of the cables, or loosening of the contacts.

BRANSON 25 SERIES 트랙터-영문판-05.ind5 5 2015-04-29 오후 1:46:13

BRANSON 25 SERIES

BR25O509A

4. Check around the implement.

• Condition of the locking pin of the universal joint inserted in the PTO shaft.

• Condition of R pins in each part.

• Loosening of the bolts holding the blade.

• Quantity of oil in each part. For more details, please refer to the implement manufacturer’s instructions.

BR25O510A BR25O511A

5. Check on the driver seat.

• Operational condition and free play of the brake. (0.2~0.4 in)

• Free play of the steering wheel. (0.8~2.0 in)

(A) Free play 0.2 ~ 0.4 in (A) Free play 0.8 ~ 2.0 in

BRANSON 25 SERIES 트랙터-영문판-05.ind6 6 2015-04-29 오후 1:46:15

OPERATION & WORK

BR25O512A

• Operational condition and free play of the clutch pedal. (Manual transmission only)

BR25O513A BR25O514A

6. Start the engine.

• Abnormal noise from the engine.

• Color of the exhaust gas.

(A) Free play 1.0 ~ 1.4 in

BRANSON 25 SERIES 트랙터-영문판-05.ind7 7 2015-04-29 오후 1:46:19

BRANSON 25 SERIES

BR25O515A

• Operation of lamps and gauges

▶

Boarding And Leaving The Tractor

Use Steps and Hand-holds Correctly

1. Prevent falls by facing the machine when getting on and off. Maintain 3-point contact with steps and handrails. Never use machine controls as hand-holds.

2. Use extra care when mud, snow, or moisture present slippery conditions. Keep steps clean and free

Getting off the tractor, make

the implement descend.

[Otherwise]

The implement descends itself,

and then causes some unexpected accident.

•

DANGER

BRNO516A

of grease or oil. Never jump when exiting machine. Never mount or dismount a moving machine

BRANSON 25 SERIES 트랙터-영문판-05.ind8 8 2015-04-29 오후 1:46:20

OPERATION & WORK

▶Note: Breaking in your tractor

(First 50 hours)

The operation of a new tractor during the first 50 hours in very important,

as it will greatly inuence the life and

performance of the tractor. Pay attention to the following precau-

tions during the break-in period.

1. Avoid rapid accelerating and abrupt stopping.

2. Avoid over-speeding and over

loads.

3. Drive the tractor after the engine has been warmed up.

4. Reduce the speed while driving on a rough road or a slope.

5. At the rst 50th hour, carry out inspections of each part and replace the engine oil.

STARTING / STOPPING THE ENGINE

When start i n g th e e n gi n e,

make sure that you are seated in the driver’s seat and check position of the levers and the safety around the tractor.

[Otherwise] There is a risk of injury.

Do not start the engine in an enclosed space. You must start the engine outside where there is open air. If you should have to start the engine inside

a building, make sure that the

space is well ventilated. [Otherwise] The exhaust gas can cause in-

toxication and can lead to fatal consequences.

•

DANGER

Make sure to carry out checking and maintenance before and after the use of the tractor, pa rticula rly the ope rating devices such as the clutch and the brake lever.

[Otherwise] There is a risk of injury or machinery breakdown. Engage the parking brake during warming-

up. Otherwise, the tractor may

move and cause an accident.

Don’t crank engine unless hitch control lever is in the

lowest position. [Otherwise] Implement might rise quick-

ly and there is a risk of injury or machinery breakdown.

•

CAUTION

BRANSON 25 SERIES 트랙터-영문판-05.ind9 9 2015-04-29 오후 1:46:20

BRANSON 25 SERIES

TO START THE ENGINE

1. Check fuel.

• Check if there is enough fuel by observing fuel gauge.

BR25O517A

2. Shuttle lever into “Neutral” position.

BR25O518A

BR25O520A

BR25O519A

(1) Shuttle Lever (A) Forward (B) Reverse

(1) PTO Switch (2) PTO Shift Switch

BRANSON 25 SERIES 트랙터-영문판-05.ind10 10 2015-04-29 오후 1:46:23

OPERATION & WORK

3. Put the position control lever into the “lowest” position and PTO switch turn to OFF position.

Don’t crank engine unless position control lever is in the lowest position.

[Otherwise] Implement might rise quick-

ly and there is a risk of injury or machinery breakdown.

Check the safety around the tractor and start to move slowly.

[Otherwise] There is a risk of injury.

•

WARNING

BR25O521A

4. Put the acceleration lever to Min.

BR25O522A

5. Main shift lever / range shift lever into “NEUTRAL” position.

6. After the thermostat lamp has turned off, depress the clutch pedal fully and turn main key switch to start.

(1) Accereration Lever (A) Decrease (B) Increase

(1) Main Shift Lever

BRANSON 25 SERIES 트랙터-영문판-05.ind11 11 2015-04-29 오후 1:46:23

BRANSON 25 SERIES

BR25O523A

7. Once the engine has started, take your hand off the ignition switch.

8. Increase the engine to about 1,500

rpm and warm it up for about ve

minutes without a load.

(1) Range Shift Lever

1. Put the acceleration lever on LOW, and turn the main switch to “OFF”.

2. Put shuttle lever, main gearshift lever and PTO shift lever to “N”. put PTO ON/OFF switch in to the “OFF” position and front wheel lever to the “OFF”.

3. Put the hitch control lever on “DOWN”

TO STOP THE ENGINE

Whe n st oppin g th e eng ine,

never stop it with the reducer lever.

After s t o p ping the e n g ine,

make sure to apply the parking brake.

•

CAUTION

For warmin g -up o p eratio n ,

strongly step on the brake pedal and pull your parking brake.

•

NOTE

When leaving the tractor, park

the tractor in a flat and safe

pla ce, put t he s hutt le lever and the main shift lever to “N”,

and block the tires.

[Otherwise] The tractor may move and cause

an accident. Always set the parking brake.

•

WARNING

BR25O524A

Acceleration lever to LOW

Main switch to OFF and remove the key

BRANSON 25 SERIES 트랙터-영문판-05.ind12 12 2015-04-29 오후 1:46:25

OPERATION & WORK

BR25O526A

TO RAISE OR LOWER THE IMPLEMENT

BR25O525A

1. Move the position control lever forward or backward to lower or raise the implement.

(1) Position Control Lever (2) Draft Control Lever (3) Restriction Bracket (A) Down (B) Up

ADJUSTING THE LOWERING SPEED OF THE IMPLEMENT

Do not work under or put a

foot under the implement. [Otherwise] The implement may fall and

cause an injury.

•

WARNING

For adjusting the lowering speed, turn the stop/slow return valve (A) to the left for faster movement or to the right for slower movement. Turning the valve fully to the right will block the hydraulic pressure and will cause the implement to stop.

(1) Stop/Slow Return Valve (A) Fast (B) Slow

Trun fully to the right to stop

BRANSON 25 SERIES 트랙터-영문판-05.ind13 13 2015-04-29 오후 1:46:26

BRANSON 25 SERIES

DRIVING ON THE ROAD

When driving on a road or

crossing a dike, make sure to

connect the brake pedals. Oth-

erwise, the tractor may turn

abruptly or turn over due to one-sided braking.

Observe the trafc regulations

when driving on the road. Oth-

erwise, you may be involved

in an accident.

•

WARNING

BR25O527A

This tractor is designed to accommodate only one person. Do not allow anyone on the tractor

other than the driver. Otherwise,

you will be exposed to a risk of accident.

Put the PTO lever into “N” and connect the brake pedals.

When making a turn, turn on the

direction indicator lamp to inform other vehicles of your intention.

Pay particular cautions to narrow

farm roads, slopes, and grassy shoulders, and reduce the speed.

Put the position control lever to UP and lock it with the stopper.

Otherwise, you will be exposed

to a risk of an accident. Connect the brake pedals when

driving on a road. Otherwise,

there is a risk of abrupt turning or overturning due to one-sided braking.

Before every operation, make

sure that operator wears safety belt.

•

WARNING

DRIVING ON THE SLOPE

BR25O528A

Select a proper speed, and do

not shift the gear.

Do not park on a slope. Oth-

erwise, the tractor may slip or

overturn and cause an acci-

dent.

Reduce speed and pay special

attention to the speed.

•

WARNING

Do not put the gear in neutral on a slope!

BRANSON 25 SERIES 트랙터-영문판-05.ind14 14 2015-04-29 오후 1:46:28

OPERATION & WORK

Do not depress the clutch pedal when driving on a slope. The tractor may slide down and lead to a serious situation.

When starting the tractor upwards on a slope, start slowly in low gear with low engine

rpm. Otherwise, the front of

the tractor may be lifted and cause a very dangerous situation.

You may shift the gear when you are no longer on the

slope. If you stop on a slope,

apply the parking brake. Oth-

erwise, you may be exposed

to a risk of accident.

•

WARNING

Keep implement low until rear wheels are on the pavement

BR25O529A

ENTERING AND LEAVING THE PAVEMENT

Make sure to connect the

brake pedal. Otherwise, the

tractor may turnover due to one-sided braking.

•

WARNING

When you cross a dike or

raised ground to enter or leave

the p a v ement, u s e load i n g

ramps with sufcient strength,

and lower the implement to

achieve a lower center of grav-

ity.

Drive backward when climb-

ing up a steep slope, and drive

forward when climbing down.

•

WARNING

Enter or leave the pavement

in a perpendicular direction.

When climbing onto the pave-

ment, lower the implement to

achieve a lower center of grav-

ity. Once all wheels of the trac-

tor are on the pavement, raise

the implement.

•

NOTE

Perpen-

dicular to

pavement!

Keep implement

low until rear

wheels are on

the pavement

BRANSON 25 SERIES 트랙터-영문판-05.ind15 15 2015-04-29 오후 1:46:29

BRANSON 25 SERIES

BR25O530A

TURNING ON THE PAVEMENT

When making a turn, reduce the engine rpm and make a slow turn. When making a turn on the pavement, remove the connector of the brake pedals. Depress the brake pedal on the side to which to make a turn, while steering the wheel, this will allow the tractor to make the turn without moving ahead. Make sure to keep the implement in the up position when making a turn.

Make sure to release the differential gear lock before making a turn.

[Otherwise] The tractor will not turn in the in-

tended direction but may cause an accident.

•

WARNING

DIFFERENTIAL GEAR LOCK

BR25O531A

BR25O532A

(1) Diffrential Gear Lock

Depress the pedal while

steering the wheel!

BRANSON 25 SERIES 트랙터-영문판-05.ind16 16 2015-04-29 오후 1:46:30

OPERATION & WORK

Make sure to release the differential gear lock when making a turn.

[Otherwise] The tractor will not turn in the in-

tended direction and may cause an accident.

•

WARNING

Never lock the differential gear when driving on a road.

[Otherwise] Driving will be unstable and the

tractor may cause an accident.

•

CAUTION

Depressing the differential gear lock pedal will make both rear wheels roll at the same speed. Releasing the pedal will automatically unlock the differential gear..

TRACTOR LOADING /UNLOADING

Fix the direction so that the tractor will not have to modify its direction on the load-

ing bridge, and proceed at the

lowest speed. Never depress the clutch ped-

al to change direction or stop. [Otherwise] There is a danger that the tractor

may turn over.

•

DANGER

Loading and unloading must

be done on at and safe place,

with the engine turned off and the parking brake engaged. The loading lamp must be nonslippery and have sufficient

strength, length, and width for

the tractor. To avoid slipping of the loading lamp, latch it securely onto the truck. Move the

tractor backward when loading,

and forward when unloading. Fasten the tractor to the truck

securely with rope. [Otherwise] The tractor may fall off the truck

and cause an accident.

•

WARNING

BRANSON 25 SERIES 트랙터-영문판-05.ind17 17 2015-04-29 오후 1:46:30

BRANSON 25 SERIES

INSTALLING 3POINT LINK

(1) Lower Link (2) Draw Bar

(3) Lift Link (4) Center Link

(5) Stabilizer Link

BR25O533A

1. Attach the lower link to the link hook and insert pin into hook.

2. Connect Check chain to bracket & Lift link mounting hole and adjust length.

※

Refer to instruction of implement for adjusting swing clearance.

BRANSON 25 SERIES 트랙터-영문판-05.ind18 18 2015-04-29 오후 1:46:31

Branson 25 Operator Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
