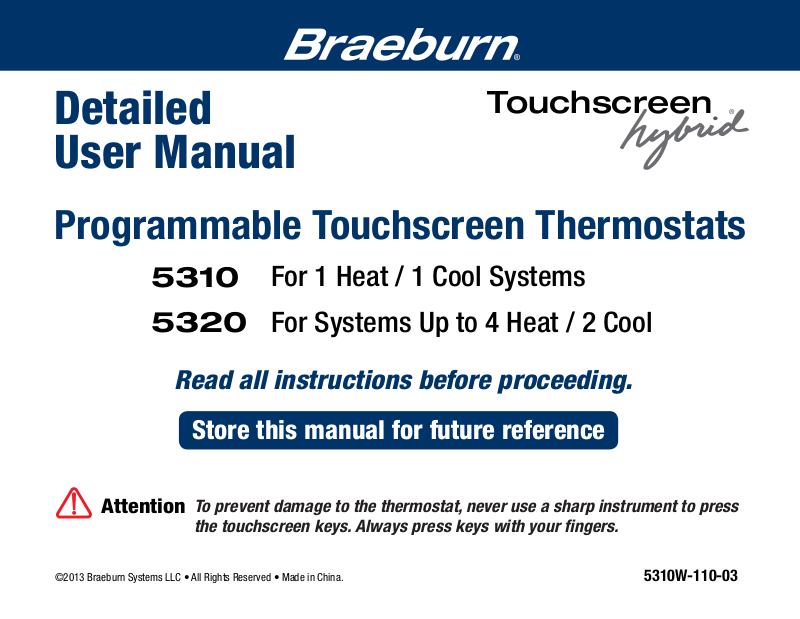

Braeburn 5320 User Manual
Touchscreen
®
Detailed
User Manual
Programmable Touchscreen Thermostats
5310
5320
Read all instructions before proceeding.
Store this manual for future reference
Attention
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
©2013 Braeburn Systems LLC • All Rights Reserved • Made in China. 5310W-110-03
For 1 Heat / 1 Cool Systems
For Systems Up to 4 Heat / 2 Cool
®
Contents
1 About Your Thermostat
Thermostat Features ................................................ 3
Thermostat and Display ........................................... 4
Thermostat TouchPadsTM........................................... 6
2 Setting User Options
Advanced User Options ............................................ 8
Table of User Options ............................................... 9
Audible Tone .......................................................... 10
Service Monitors (Filter, UV and Humidier Pad) ........ 10
Extended Hold Time Period ..................................... 10
Temporary Override Adjustment Limit ..................... 11
Program Override Time Limit .................................. 11
Thermostat Lock Code ........................................... 11
3 Setting Your Program Schedule
Setting the Time and Day ....................................... 12
Tips Before Setting Your Program Schedule ........... 13
Programming a 7 Day Residential Schedule ........... 16
Programming a 5-2 Day Residential Schedule ........ 18
Programming a 7 Day Commercial Schedule ......... 19
User Manual 2
4 Operating Your Thermostat
Setting the System Control Mode ......................... 21
Setting the Fan Control Mode ............................... 22
Setting the Temperature ....................................... 23
Status Indicators .................................................. 24
Program Event Indicator ....................................... 25
Resetting the Thermostat ..................................... 25
5 Additional Operation Features
Auto Changeover Mode ....................................... 26
Adaptive Recovery Mode ..................................... 27
Circulating Fan Mode .......................................... 27
Programmable Fan Mode ..................................... 28
Compressor Protection ........................................ 28
Locking and Unlocking the Thermostat................. 29
AC Power Monitor ............................................... 31
Indoor Remote Sensing ....................................... 31
Outdoor Remote Sensing .................................... 32
6 Thermostat Maintenance
Screen Cleaning .................................................. 35
Battery Replacement ........................................... 36
Congratulations! You are in control of one of the easiest-to-use touchscreen thermostats on the
market today. This thermostat has been designed to provide you with years of reliable performance
and comfort control.
Features
• SpeedBar® multi-function button simplies programming and setting changes.
• SpeedSet® programming gives you the option of programming all 7 days at once.
• Convenient HOLD feature lets you override the program schedule.
• Large 6.5 sq. in. bright blue backlit display is easy to read.
• Extra large display characters make viewing settings even easier.
• User selectable service monitors remind you of required system maintenance.
• Precise temperature accuracy keeps you in control of your comfort.
• Convenient programmable and circulating fan modes.
• Optional indoor or outdoor remote sensing.
3 User Manual
About Your Thermostat
1
Attention
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
1
2
3
4
User Manual 4
12
INSTRUCTIONS
5
14
13
8
9
10
11
6
7
Thermostat and Display
1
Room Temperature ...................... Displays the current room temperature
2
Lock Mode Indicator ................... Indicates if the thermostat is locked
3
Set Temperature .......................... Displays the current set point temperature
4
Reset Button ............................... Resets current time, program and user settings
5
Service Indicators ...................... Displays various service/maintenance information
6
Program Event Indicator.............. Displays the current program event
7
Time of Day ................................. Displays the current time of day
8
Hold Mode Indicator ................... Indicates if the thermostat is in HOLD mode
9
System Status Indicator ............. Displays information about the status of the system
10
Day of the Week ........................... Displays the current day of the week
11
SpeedBar® .................................... Increases or decreases settings (time, temperature, etc.)
12
Quick Reference Instructions ...... Stored in slot located at top of thermostat
13
Fan Indicator ................................ Indicates when the system fan is running
14
Low Battery Indicator .................. Indicates when the batteries need to be replaced
Battery Compartment ..........................Located in the back of thermostat
5 User Manual
About Your Thermostat
1
Attention
To prevent damage to the thermostat, never use a sharp instrument to press
the touchscreen keys. Always press keys with your fingers.
TouchPads
User Manual 6
TM
INSTRUCTIONS
Thermostat TouchPads
TM
NOTE: Thermostat TouchPads are located on the left, right and bottom portions of the display screen. They are
the “touch sensitive” segments used to adjust your thermostat. Depending on equipment installed, all touchpads
may not show.
SYSTEM..... Selects AUTO (Heat/Cool), COOL, OFF HEAT or EMER (Emergency Heat)
FAN............ Selects AUTO, ON, CIRC (Circulation) and PROG (Program) fan modes
PROG......... Selects programming mode or press for 3 seconds to select SpeedSet® mode
HOLD......... Enters/exits the HOLD mode (Program bypass)
DAY/TIME.. Sets the current time and day of the week
BACK......... Moves back in setting modes
NEXT.......... Moves forward in setting modes
RETURN..... Returns to normal mode from program or settings modes
CONFIG...... Enters the User settings mode
CLEAN....... Enters a brief screen cleaning mode
Outdoor Temperature
If a Braeburn® outdoor temperature sensor was connected, you may touch the room temperature area of the
screen to view the outdoor temperature.
7 User Manual
Setting User Options
2
Advanced User Options
User options allow you to customize some of your thermostat’s features.
Most users will not need to make any changes to the settings
in this section.
To access the User Options menu, touch and hold the CONFIG
TouchPad™ for approximately 1 second until the screen changes
and displays the rst User Option.
Press the SpeedBar® up or down to change the setting
displayed User Option. After you have changed your
setting, touch NEXT to advance to the next User Option. You may
also touch BACK to move backwards through the User Options.
When your changes are complete, touch RETURN to exit.
User Manual 8
for the
desired
Table of User Options
NOTE: Some user options may not be available, depending on how your thermostat was configured in the
Installer Settings (see Installer Manual). A detailed description of each User Option follows this table.
No. User Options Factory Setting Comments Pg.
Default Options
1 Audible Tone on BEEP on BEEP Enables an audible key press tone.
oF BEEP Disables an audible key press tone.
2 Filter Service OFF OFF Disables lter service monitor feature.
Monitor 30, 60, 90, Selects a number of days that must pass before the
in the display screen.
3 UV Light Service OFF OFF Disables UV service monitor feature.
Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service UV reminder in the display screen.
4 Humidier Pad OFF OFF Disables pad service monitor feature.
Service Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service Humid reminder in the display screen.
5 Extended Hold Period LONG LONG Selects long (permanent) hold mode.
24HR Selects 24 hour (temporary) hold mode.
6 Temporary Override 0 ADJ 0, 1, 2, or 3
Adjustment Limit ADJ 0 0 (disabled), 1˚, 2˚ or 3˚.
7 Program Override 4 TEMP 4, 3, 2 or 1 Selects a temporary program override time limit of
Time Limit TEMP 1, 2, 3 or 4 hours.
8 Thermostat Lock Code 000 0-9 Select a 3 digit lock code of 0-9 for each digit.
120, 180, 365
thermostat will ash a Service Filter reminder
Selects a temporary temperature adjustment limit of
9 User Manual
10
10
10
10
10
11
11
11
Detailed Explanation of User Options:
Audible Tone
User Option 1
The Audible Tone feature turns on or turns off a tone you will hear when you touch any of the TouchPads™ or
press the SpeedBar®. Select between on and off.
Service Monitors
(Filter, UV and Humidifier Pad)
User Options 2, 3 and 4
There are three user selectable service monitors that will display
reminders for a required air lter, UV bulb or humidier pad
replacement. The SERVICE segment ashes in the display
along with FILTER, UV or HUMID. When the service interval
has been reached, and required cleaning or replacement has
been performed, touch the RETURN TouchPad™ to reset the
timer. Select OFF or a set number of days before the reminder
will appear.
Extended Hold Period
User Option 5
The Extended Hold Period lets you select the period your thermostat will hold the temperature when the HOLD
mode is activated (See Setting the Temperature, page 23). When LONG is selected the thermostat will hold your
temperature indenitely. When 24HR is selected, the thermostat will hold your temperature for 24 hours and
then return to the current program at that time. Not available in non-programmable mode.
User Manual 10
Service
Reminders
Temporary Override Adjustment Limit
User Option 6
The Temporary Override Adjustment Limit will limit how
much the temperature can be adjusted from the current set point
when the thermostat is used in the programmable mode. This
setting will not allow the user to override the temperature past
the selected limit amount of 1, 2 or 3 degrees
set point. When the user reaches the adjustment
will ash ADJ. A setting of 0 disables the adjustment limit.
The Temporary Override Adjustment Limit can also be used in
the non-programmable mode if the keypad lockout security
level is set to level 1 (See Installer Manual).
from the current
limit the screen
Program Override Time Limit
User Option 7
The Program Override Time Limit allows you to set a maximum time limit (in hours) that the thermostat will
return to the program after a temporary temperature adjustment has been made (See Setting the Temperature,
page 23).
You may select 1, 2, 3 or 4 hours. Not available in non-programmable mode.
Thermostat Lock Code
User Option 8
The Thermostat Lock Code sets a 3-digit code that you may use at any time to lock or unlock the thermostat.
Setting the code in the user options mode does not activate the lock feature (See Locking/Unlocking Thermostat ,
page 29). You may choose a 3-digit code with each digit being 0-9. (continued)
11 User Manual
