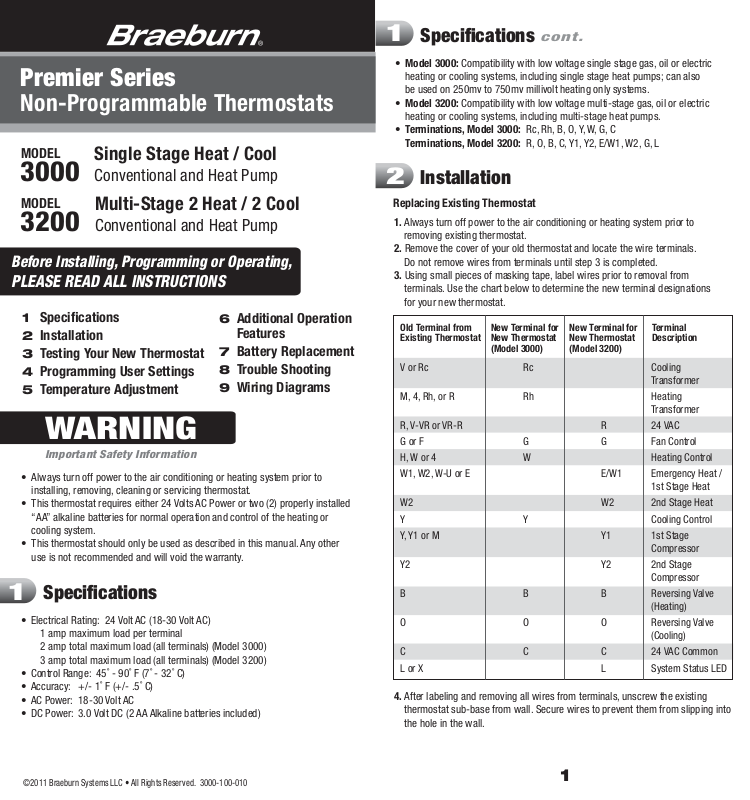

Braeburn 3200 User Manual

Premier Series

Non-Programmable Thermostats

MODEL

3000

MODEL

Single Stage Heat / Cool

Conventional and Heat Pump

3200

Before Installing, Programming or Operating,

PLEASE READ ALL INSTRUCTIONS

Speciﬁcations

Installation

Testing Your New Thermostat

Programming User Settings

Temperature Adjustment

Additional Operation

Features Battery Replacement

Trouble Shooting

Wiring Diagrams

WARNING

Important Safety Information

• Always turn off power to the air conditioning or heating system prior to installing, removing, cleaning or servicing thermostat.

• This thermostat requires either 24 Volts AC Power or two (2) properly installed “AA” alkaline batteries for normal operation and control of the heating or cooling system.

• This thermostat should only be used as described in this manual. Any other use is not recommended and will void the warranty.

Speciﬁcations

• Electrical Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 2 amp total maximum load (all terminals) (Model 3000) 3 amp total maximum load (all terminals) (Model 3200)

• Control Range: 45˚ - 90˚ F (7˚ - 32˚ C)

• Accuracy: +/- 1˚ F (+/- .5˚ C)

• AC Power: 18-30 Volt AC

• DC Power: 3.0 Volt DC (2 AA Alkaline batteries included)

Speciﬁcations

• Model 3000: Compatibility with low voltage single stage gas, oil or electric heating or cooling systems, including single stage heat pumps; can also be used on 250mv to 750mv millivolt heating only systems.

• Model 3200: Compatibility with low voltage multi-stage gas, oil or electric heating or cooling systems, including multi-stage heat pumps.

• Terminations, Model 3000: Rc, Rh, B, O, Y, W, G, C Terminations, Model 3200: R, O, B, C, Y1, Y2, E/W1, W2, G, L

Installation

Replacing Existing Thermostat

1. Always turn off power to the air conditioning or heating system prior to

removing existing thermostat.

2. Remove the cover of your old thermostat and locate the wire terminals. Do not remove wires from terminals until step 3 is completed.

3. Using small pieces of masking tape, label wires prior to removal from terminals. Use the chart below to determine the new terminal designations for your new thermostat.

Old Terminal from Existing Thermostat

V or Rc Rc Cooling Transformer

M, 4, Rh, or R Rh Heating Transformer

R, V-VR or VR-R R 24 VAC G or F G G Fan Control H, W or 4 W Heating Control W1, W2, W-U or E E/W1 Emergency Heat /

1st Stage Heat W2 W2 2nd Stage Heat Y Y Cooling Control Y, Y1 or M Y1 1st Stage

Compressor Y2 Y2 2nd Stage

Compressor B B B Reversing Valve

(Heating) O O O Reversing Valve

(Cooling) C C C 24 VAC Common L or X L System Status LED

4. After labeling and removing all wires from terminals, unscrew the existing thermostat sub-base from wall. Secure wires to prevent them from slipping into the hole in the wall.

New Terminal for New Thermostat (Model 3000)

cont.

New Terminal for New Thermostat (Model 3200)

Terminal Description

Installation

cont.

Installation

cont.

NOTE–MODEL 3000: This thermostat is designed for use with 24 Volt-AC low voltage single stage gas, oil or electric heating or cooling systems, including single stage heat pumps and can also be used on 250mv to 750mv millivolt heating only systems. Do not use this thermostat on applications with voltages above 30 Volts AC. NOTE–MODEL 3200: This thermostat is designed for use with 24 Volt-AC low voltage multi-stage gas, oil or electric heating or cooling systems, including multi-stage heat pump systems. Do not use this thermostat on applications with voltages above 30 Volts AC.

Installing Your New Thermostat

NOTE: If installing this thermostat in a new installation, locate the thermostat 4 to 5 feet above the ﬂoor in accordance with applicable building codes. Install the thermostat in a location that provides good airﬂow characteristics and avoid areas behind doors, near corners, air vents, direct sunlight or heat generating devices. Installation in these areas could impact thermostat performance. Wiring must conform to all building codes and ordinances as required by local and national code authorities having jurisdiction.

Turn off power to the air conditioning or heating system prior to installing thermostat.

2. Place system switch on front of thermostat to OFF position.

3. Place fan control switch on front of thermostat to AUTO position.

4. Remove front of thermostat body from sub-base by pressing release latch.

5. Place the thermostat sub-base against wall in the desired thermostat location.

6. Guide thermostat wires through hole in sub-base. Continue to hold against wall.

7. Mark placement of mounting holes and drill using a 3/16" drill bit.

8. Gently tap supplied plastic anchors into the holes in the wall.

9. Place the thermostat sub-base against the wall in the desired location, making

sure the mounting holes are aligned and the thermostat wires are inserted through opening in sub-base.

10. Fasten sub-base to wall using supplied screws into the plastic wall anchors.

11. Connect wires to quick wiring terminal block as appropriate using the new

terminal designations. See Section 7.

12. Make sure all of the wire connections are secure and are not touching any other terminal to prevent electrical shorts and potential damage to the thermostat.

13. Turn the front thermostat body over, exposing the rear view of the circuit board.

14. Locate the internal ˚F / ˚C switch on the circuit board. Using your ﬁngers, ﬂip the switch toward the preferred temperature ˚F / ˚C scale.

15. Locate the internal fan option switch, HG (Gas) / HE (Elec) on the circuit board.

This switch controls the heating system fan delay. Select gas for gas or oil ﬁred systems. This will allow the furnace to run for a few seconds before initiating the fan. Select electric for systems with electric furnace elements that require the fan to come on immediately. Using your ﬁnger, ﬂip the switch toward the HG (Gas) or HE (Elec).

16. Locate the internal NORM / HP switch on the circuit board. This switch conﬁgures the thermostat for conventional (NORM) heating and cooling systems or heat pump (HP) systems. Using your ﬁngers, ﬂip the switch toward the NORM or HP.

17. MODEL 3200 ONLY: Locate the auxiliary heat option switch, AE-AG, on the circuit board. For electric auxiliary heat units, the switch should be set to the AE position. For units with gas or oil auxiliary heat, move the switch to the AG position. This will lock out the compressor stage 1 minute after a second stage heat call for maximum efﬁciency.

2 3

18. Attach front body of thermostat to sub-base of thermostat, being careful to align the terminal pins on the front body with the terminal block on the sub-base.

19. Open front thermostat door and open battery compartment door.

20. Install two new "AA" alkaline batteries. Locate the positive (+) ends of the

batteries and match them with the positive (+) terminals located in the battery compartment. Close battery compartment.

21. Restore system power so you can test installation.

NOTE: If batteries were installed prior to accomplishing steps 14 through 16, you will need to reset the thermostat to register thermostat switch conﬁgurations prior to programming any user settings. Gently press the RESET button on the front of the thermostat using a paper clip or a small pencil tip.

NOTE–MODEL 3200: If the thermostat is conﬁgured for a conventional system and the system switch is in the EM HEAT position, the unit will still function in a conventional 2 stage

HEAT mode, but the display will ﬂash NO EM HEAT SET.

Testing Your New Thermostat

WARNING!

• Do not short (or jumper) across terminals on the gas valve or at the heating or cooling system control board to test the thermostat installation. This could damage the thermostat and void the warranty.

• Do not select COOL mode if the outside temperature is below 50˚ F (10˚ C). This could damage the controlled cooling system and may cause personal injury.

• This thermostat includes an automatic compressor protection feature to avoid potential damage to the cooling system from short cycling. This thermostat automatically provides a 5-minute delay after turning off the cooling or heating system output to protect the compressor.

NOTE: Test your thermostat prior to programming any user settings. Pressing the RESET button will erase any user entries previously programmed and return them

to their default values.

1. Place the system switch in the HEAT position.

2. Press the button on the keypad until the set point temperature setting is a

minimum of 3 degrees higher than the current room temperature. The heating system should start within several seconds. The fan may not turn on immediately due to the heating system built-in fan delay.

3. Place the system switch in the OFF position. The heating system should stop within several seconds on conventional heating or cooling systems. On heat pump systems, you must wait 5 minutes for the automatic compressor short cycle protection period to expire, or press the RESET button to bypass this feature for initial testing purposes. Pressing the RESET button will erase any user program settings.

4. Place the system switch in the COOL position.

5. Press the button on the keypad until the set point temperature is a minimum

of 3 degrees lower than the current room temperature.

Read BEFORE Testing

Testing Your New Thermostat

cont.

Programming User Settings

cont.

6. The cooling system should start within several seconds. Place the system switch in the OFF position. The cooling system should stop within a few seconds.

7. Place the fan switch in the ON position. The system blower should start.

8. Place the fan switch in the AUTO position. The system blower should stop.

Programming User Settings

Default Thermostat Settings

Function Status After Reset

Operation Mode Normal Operating Mode Room Temperature 70˚ F (21.0˚ C), to be

renewed within 5 seconds Set Point Temperature According to system switch

Heat or Off: 62˚ F (17.0˚ C) Emergency Heat (model 3200 only):

62˚ F (17.0˚ C) Cool: 85˚ F (29.0˚ C) Temperature Scale ˚F or ˚C dependent on switch setting Low Battery Warning Off, to be renewed within 5 seconds

Off if 24V is present 1st Stage Differential 0.5˚ F (0.3˚C) 2nd Stage Differential 2˚ F (1.0˚ C) (model 3200 only) Short Cycle Protection Timer Reset Output Relays Off Residual Cooling Fan Delay 60 Seconds Keypad Lock Unlocked

Setting Temperature Differentials

The default settings for the ﬁrst and second stage differentials are compatible with most systems and applications. This is normally set at time of installation and usually does not require any modiﬁcation under normal operating conditions. If you feel that your system is turning on too often, simply follow the instructions below.

NOTE: The temperature differential settings are the same for both the heating and cooling systems.

Setting First Stage Differential

The default setting is 0.5˚ F (0.25˚ C). The room temperature must change .5˚ F (0.25˚ C) from the set point temperature before the thermostat will initiate the system in heating or cooling.

1. In normal operating mode, press and hold the and buttons at the same time for 3 seconds. LCD display will show "SET D1 X˚", where "X" equals the ˚F / ˚C differential setting. This is the current ﬁrst stage differential setting.

2. Press the or buttons to set the ﬁrst stage differential to your desired setting of .5˚, 1˚, or 2˚ F (.25––displayed as .3˚, .5˚ or 1˚ C).

Setting First Stage Differential (continued from page 4)

3. Press both the and buttons at the same time again to change the next

setting. For the model 3200, the next setting is the Second Stage Differential. For the model 3000, the next setting is the Residual Cooling Fan Delay, or wait 5 seconds for the thermostat to return to the normal operating mode.

Setting Second Stage Differential (Model 3200 Only)

The default setting is 2˚ F (1.0˚ C). The room temperature must change 2˚ F (1.0˚ C) in addition to the ﬁrst stage differential setting before the thermostat will initiate the second stage of the system in heating.

4. Press and hold the and buttons at the same time again and the LCD display will show "SET D2 X˚", where "X" equals the ˚F / ˚C differential setting. This is the current second stage differential setting.

5. Press the or buttons to set the second stage differential to your desired setting of 2˚, 3˚, 4˚, 5˚or 6˚ F (1˚, 1.5˚, 2˚, 2.5˚ or 3˚ C).

6. Press and hold the and buttons at the same time to change the residual cooling fan delay, or wait 5 seconds for the thermostat to return to the normal operating mode.

Setting Residual Cooling Fan Delay

The default setting is 60 seconds. During the COOL mode of operation, the fan will stay on for 60 seconds after the cooling system has reached the set point temperature and has turned off the compressor. This improves system efﬁciency during cooling operation.

1. The display will show "FAN SET XX", where "XX" is the fan delay time in seconds.

2. Press the or button to change the Residual Cooling Fan Delay (0, 30, 60, or 90 seconds).

3. Press both the and buttons at the same time again to return to normal operating mode or wait 5 seconds for the thermostat to return to normal operating mode automatically.

NOTE: To erase all user program settings, gently press the RESET button using a paper clip or a small pencil tip. This will return all thermostat settings to their default values, erasing all program settings entered by the user.

Temperature Adjustment

NOTE: This thermostat has separate heating and cooling set points, which can be reviewed or changed by selecting either HEAT or COOL with the system switch.

Review Set Temperature

1. Press and hold the or button. The current

set point temperature will be displayed in place of the current room temperature, and the indicator SET will be displayed.
