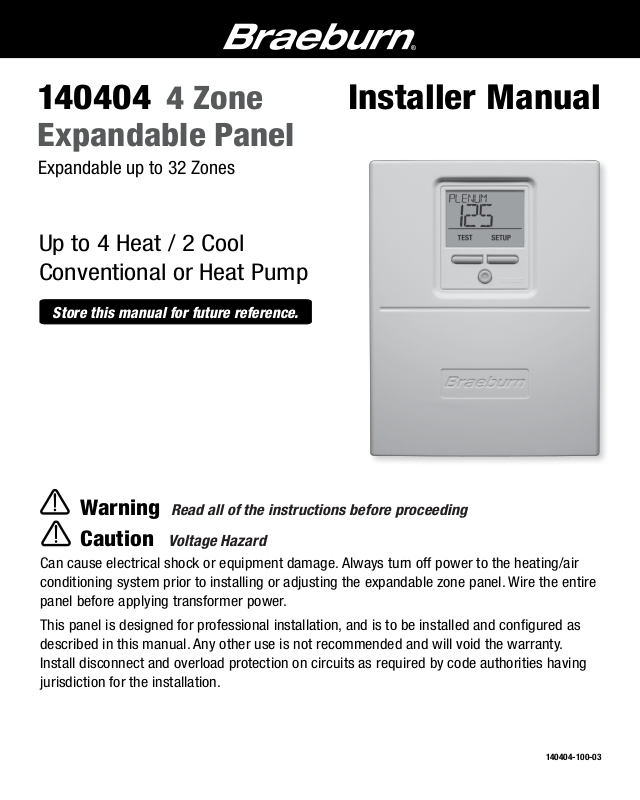

Braeburn 140404 User Manual
®
140404
4 Zone
Expandable Panel
Expandable up to 32 Zones
Up to 4 Heat / 2 Cool
Conventional or Heat Pump
Store this manual for future reference.
Installer Manual
Warning
Caution
Can cause electrical shock or equipment damage. Always turn off power to the heating/air
conditioning system prior to installing or adjusting the expandable zone panel. Wire the entire
panel before applying transformer power.
This panel is designed for professional installation, and is to be installed and configured as
described in this manual. Any other use is not recommended and will void the warranty.
Install disconnect and overload protection on circuits as required by code authorities having
jurisdiction for the installation.
Read all of the instructions before proceeding
Voltage Hazard
140404-100-03
Table of Contents
1
Specifications
.....................................................................................................................2
Suitable Mounting Locations
2
Wiring
3
4
Configuration
5
System Check-Out
6
Operation
7
Error Conditions
8
Adding More Zones
9
Warranty
Specifications
1
Storage temperature:
-40˚–167˚F (-40˚–75˚C)
Operating temperature:
-22˚–167˚F (-30˚–75˚C)
Voltage:
24 VAC, Nominal 60Hz
18-30 VAC Maximum
Operating humidity:
5–95% RH
Panel Power:
6 VA @ 24 VAC
Current Draw Max:
100 VA @ 24 VAC
Current Draw Per Zone:
50 VA Max
.............................................................................................................................4-9
....................................................................................................................10
...............................................................................................................................14
.................................................................................................................17
..........................................................................................................................22
...............................................................................................3
............................................................................................................13
...........................................................................................................19
Figure 1
Protection:
Electronic self resetting current
limiting for panel power and
damper zones
Configuration:
Conventional and Heat Pump
equipment up to 4 Heating Stages
and 2 Cooling Stages
Maximum Zones:
4 Zones Main Panel + 14 Two
Zone Expanders = 32 Total
Zones Maximum
Dimensions:
See Figure 1
8”
10.2”
2.1”
2
8”
2
Suitable Mounting Locations
Mount the Zone Panel near the HVAC equipment. The panel can be mounted in any orientation on a wall,
stud, roof truss, or the return-air plenum. For appearance, mount the panel level. Remove the panel cover
and use the base as a template to drill mounting holes (see Figure 2). Attach the panel with appropriate
screws. Use mounting anchors as needed for drywall or plaster installations.
drill holes
Y1
ONE 1
Y2
W1/E/AX1
Z
W2/AX2
O/B/W3
G
L
HERMOSTAT
C
T
ZONE 1
DAMPER
Y1
ONE 2
Y2
W1/E/AX1
Z
W2/AX2
O/B/W3
G
L
HERMOSTAT
C
T
ZONE 2
DAMPER
Y1
ONE 3
Y2
W1/E/AX1
Z
W2/AX2
O/B/W3
G
L
HERMOSTAT
C
T
ZONE 3
DAMPER
24 VAC
POWER
COMM
PC
COMM
PC
COMM
PC
24V
24C
R
PO
R
EM HEAT
PO
R
PO
COM1
COM2
GND
COM3
COM4
R
Y1
Y2
W1/E/AX1
W2/AX2
O/B/W3
G
L
C
PO
COMM
PC
DAMPER
Rh
Rc
Y1
Y2
G
G2
W1/E/AX1
W2/AX2
W3/O/B
L
C
SA1
SA2
ODT1
ODT2
FA1
FA2
COM1
COM2
GND
COM3
COM4
EXPANSION
ONE 4
Z
HERMOSTAT
T
ZONE 4
QUIPMENT
E
SENSORS
SENSORS
FIRE
ALARM
EXPANSION
drill holes
Figure 2
3
3
Wiring the Panel
Always turn off power to the heating/air conditioning system prior to installing or adjusting the Zone Panel. Wire the
entire panel before applying transformer power. Use the following general wiring instructions for all systems. Specific
wiring will vary depending on the equipment and type of system (conventional or heat pump). NOTE: Up to 2 wires
can be inserted into each terminal. To release wires, press down on top of wiring terminal and gently pull out wire(s).
R
Y1
ONE 1
Y2
8
2
8
2
8
2
1
W1/E/AX1
Z
W2/AX2
O/B/W3
G
L
HERMOSTAT
C
T
COMM
ZONE 1
PC
DAMPER
Y1
ONE 2
Y2
W1/E/AX1
Z
W2/AX2
O/B/W3
G
L
HERMOSTAT
C
T
COMM
PC
ZONE 2
DAMPER
Y1
ONE 3
Y2
W1/E/AX1
Z
W2/AX2
O/B/W3
G
L
HERMOSTAT
C
T
COMM
ZONE 3
PC
DAMPER
24C
24 VAC
POWER
PO
R
EM HEAT
PO
R
PO
24V
COM1
COM2
GND
COM3
COM4
R
Y1
Y2
W1/E/AX1
W2/AX2
O/B/W3
G
L
C
PO
COMM
PC
DAMPER
Rh
Rc
Y1
Y2
G
G2
W1/E/AX1
W2/AX2
W3/O/B
L
C
SA1
SA2
ODT1
ODT2
FA1
FIRE
FA2
COM1
COM2
GND
COM3
COM4
EXPANSION
ONE 4
Z
HERMOSTAT
T
ZONE 4
QUIPMENT
E
SENSORS
SENSORS
ALARM
EXPANSION
6
8
2
7
3
4
5
6
11
9
4
10
Figure 3
EXPANDABLE ZONE PANEL WIRING TERMINALS
Terminal Qty. Function Description
PANEL 24V 1 INPUT 24 VAC Transformer Power 100 VA Maximum
POWER 24C 1 INPUT 24 VAC Transformer Common
DAMPERS PO 4 OUTPUT 24 VAC Power Open Zone Damper Terminal
COMM 4 OUTPUT Zone Damper Common Terminal
PC 4 OUTPUT 24 VAC Power Close Zone Damper Terminal
SUPPLY SA1 1 INPUT Plenum Supply Air Sensor Terminal 1 (No Polarity)
AIR SA2 1 INPUT Plenum Supply Air Sensor Terminal 2 (No Polarity)
OUTDOOR ODT1 1 INPUT Outdoor Air Sensor Terminal 1 (No Polarity)
AIR ODT2 1 INPUT Outdoor Air Sensor Terminal 2 (No Polarity)
FIRE FA1 1 INPUT Normally Closed or Open Dry Pair (No Polarity)
ALARM FA2 1 INPUT Normally Closed or Open Dry Pair (No Polarity)
EXPANSION COM1 2 PANEL Expander Panel Communication
COM2 2 PANEL Expander Panel Communication
GND 2 PANEL Expander Panel Communication Ground
COM3 2 PANEL Expander Panel Communication
COM4 2 PANEL Expander Panel Communication
EQUIPMENT Rh 1 INPUT 24 VAC Equipment Transformer Power Connection
Rc 1 INPUT
Y1 1 OUTPUT 1st Stage Compressor
Y2 1 OUTPUT 2nd Stage Compressor
G 1 OUTPUT 1st Stage Fan Control
G2 1 OUTPUT 2nd Stage Fan Control
W1/E/AX1 1 OUTPUT
W2/AX2 1 OUTPUT [W2] 2nd Stage Conventional Heat [AX2] 2nd Stage Auxiliary Heat
W3/O/B 1 OUTPUT [W3] 3rd Stage Conventional Heat [O] Cool Active Reversing Valve
[B] Heat Active Reversing Valve
L 1 INPUT System Malfunction Indicator
C 1 INPUT 24 VAC Transformer Common
THERMOSTAT R 4 OUTPUT 24 VAC Thermostat Power
Y1 4 INPUT 1st Stage Compressor Call
Y2 4 INPUT 2nd Stage Compressor Call
W1/E/AX1 4 INPUT [W1] 1st Stage Conventional Heat Call [E] Emergency Heat Call
[AX1] 1st Stage Auxiliary Heat Call
W2/AX2 4 INPUT [W2] 2nd Stage Conventional Heat Call [AX2] 2nd Stage Auxiliary Heat Call
O/B/W3 4 INPUT [O] Cool Active Reversing Valve Call [B] Heat Active Reversing Valve Call
[W3] 3rd Stage Conventional Heat Call
G 4 INPUT Fan Call
L 4 OUTPUT System Malfunction Indicator
C 4 OUTPUT 24 VAC Transformer Common
RESET BUTTON Press once to restart panel
Hold for 5 seconds to reset panel and restore all factory defaults
Rc/Rh TERMINAL JUMPER (J1) Open jumper for dual transformer installations
WIRE STRIP GUIDE Wires should be stripped 3/8 inch minimum
1
2
3
4
5
6
24 VAC Cooling Equipment Transformer (Dual Transformer Systems Only)
7
[W1] 1st Stage Conventional Heat [E] Emergency Heat [AX1] 1st Stage Auxiliary Heat
8
9
10
11
5
3.1
Damper Wiring
Always turn off power to the heating/air conditioning system prior to installing or adjusting the zone panel. Wire
the entire panel before applying transformer power.
Use the following general wiring instructions for all systems. Specific wiring will vary depending on the equipment
and type of system (conventional or heat pump).
Install the system dampers using the instructions provided by the manufacturer. Connect the dampers to the zone
panel as shown for either a 2-wire or 3-wire damper. The sum of all dampers powered by the zone panel should
not exceed 100 VA at 24 VAC. Use a slave relay if additional damper power is required.
ALWAYS PROVIDE DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED
Max. damper VA per Zone 50 VA @ 24 VAC
PO
COM
PC
Zone Panel 2-Wire Damper
3.2
Thermostat Wiring
M
M
PO
COM
PC
Zone Panel 3-Wire Damper
PO
C
PC
Install the system thermostats using the instructions provided by the manufacturer. Connect the thermostats to
the zone panel as shown. Do not mix conventional and heat pump thermostats on the same system. You can mix
single stage and multi-stage thermostats as long as they are all conventional or heat pump.
ALWAYS PROVIDE DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED
CONVENTIONAL THERMOSTATS
1 HEAT / 1 COOL
R
W1 Heat Call
Y1 Cooling Call
G Fan Call
C 24 VAC Transformer Common
24 VAC Power
(for use on conventional or heat pump systems)
2 HEAT / 2 COOL
R
W1 Heat Call Stage 1
W2 Heat Call Stage 2
Y1 Cooling Call Stage 1
Y2 Cooling Call Stage 2
G Fan Call
C 24 VAC Transformer Common
24 VAC Power
3 HEAT / 2 COOL
R
W1 Heat Call Stage 1
W2 Heat Call Stage 2
W3 Heat Call Stage 3
Y1 Cooling Call Stage 1
Y2 Cooling Call Stage 2
G Fan Call
C 24 VAC Transformer Common
24 VAC Power
6
3.2
Thermostat Wiring
HEAT PUMP THERMOSTATS
1 HEAT / 1 COOL -
R
O/B Changeover Valve [Note 2]
Y1 Compressor Call (1st Stage Heating/Cooling)
G Fan Call
C 24 VAC Transformer Common [Note 1]
24 VAC Power
No Auxiliary Heat
(for use on heat pump systems only)
2 HEAT / 2 COOL - No Auxiliary Heat
R
O/B Changeover Valve [Note 2]
L Optional System Fault Monitor
Y1 Compressor Call Stage 1 (1st Stage Heating/Cooling)
Y2
G Fan Call
C 24 VAC Transformer Common [Note 1]
24 VAC Power
Compressor Call Stage 2 (2nd Stage Heating/Cooling)
2 HEAT / 1 COOL - With Auxiliary Heat
R
O/B Changeover Valve [Note 2]
L Optional System Fault Monitor
W2 Auxiliary Heat Relay (2nd Stage Heating)
Y1 Compressor Call (1st Stage Heating/Cooling)
E Emergency Heat Call
G Fan Call
C 24 VAC Transformer Common [Note 1]
24 VAC Power
3 HEAT / 2 COOL - With Auxiliary Heat
R
O/B Changeover Valve [Note 2]
L Optional System Fault Monitor
AX1 Auxiliary Heat Relay (3rd Stage Heating)
Y1 Compressor Call (1st Stage Heating/Cooling)
Y2 Compressor Call (2nd Stage Heating/Cooling)
E Emergency Heat Call
G Fan Call
C 24 VAC Transformer Common [Note 1]
24 VAC Power
4 HEAT / 2 COOL - With Auxiliary Heat
R
O/B Changeover Valve [Note 2]
L Optional System Fault Monitor
AX1 Auxiliary Heat Relay (3rd Stage Heating)
AX2 Auxiliary Heat Relay (4th Stage Heating)
Y1 Compressor Call (1st Stage Heating/Cooling)
Y2 Compressor Call (2nd Stage Heating/Cooling)
E Emergency Heat Call
G Fan Call
C 24 VAC Transformer Common [Note 1]
NOTES
[1] Wiring to the C terminal is required only for thermostat power.
[2] O (Cool active) or B (Heat active) must match the zone panel
installer settings.
24 VAC Power
