Bplus PE3 User Manual

PCI-E and USB to ExpressCard Adapter

User’s Manual

Preliminary

Model: PE3

Bplus Technology Co., Ltd
5F,NO.63,ZHOU-TZYY ST.,
NEI-HU,TAIPEI,TAIWAN,R.O.C
([phone] TEL
([phone] FAX
http://www.bplus.com.tw

FAE2009PE3_01

March 2009

PCI-E and USB to ExpressCard Adapter User’s Manual

Page 1

CONTENTS

Introduction .............................................................................................................. 2

Interface ..................................................................................................................... 2

Features ..................................................................................................................... 3

Working mode ....................................................................................................... 3

System requirement .......................................................................................... 3

Installation procedure ...................................................................................... 4

Caution ....................................................................................................................... 7

Maintenance ........................................................................................................... 7

FAE2009PE3_01 ©2009 Bplus Technology Co., Ltd

PCI-E and USB to ExpressCard Adapter User’s Manual

ExpressCard CONN

PCI-E Slot

USB Slot

J2 (GND/+12V)
For PCI-E test

J1 (GND/+5V)
For USB test

12V

J 2

+12V

J 1 5 V

Page 2

1.0 Introduction

The PCI-E 1x and USB to ExpressCard /34 passive adaptor is a Debug tool for
PCI-E interface card and USB 2.0 devices.
This adapter allows you to use your existing PCI-Express Add-in-Card in the
ExpressCard slot
It's especially designed to save valuable labor and time in the production
environment.
As a powerful tool for engineers, the PCI-E 1x and USB To ExpressCard is
constructed of high Quality components for years of trouble free Service.

2.0 Interface

PCI-E and USB to ExpressCard Adapter as shown,

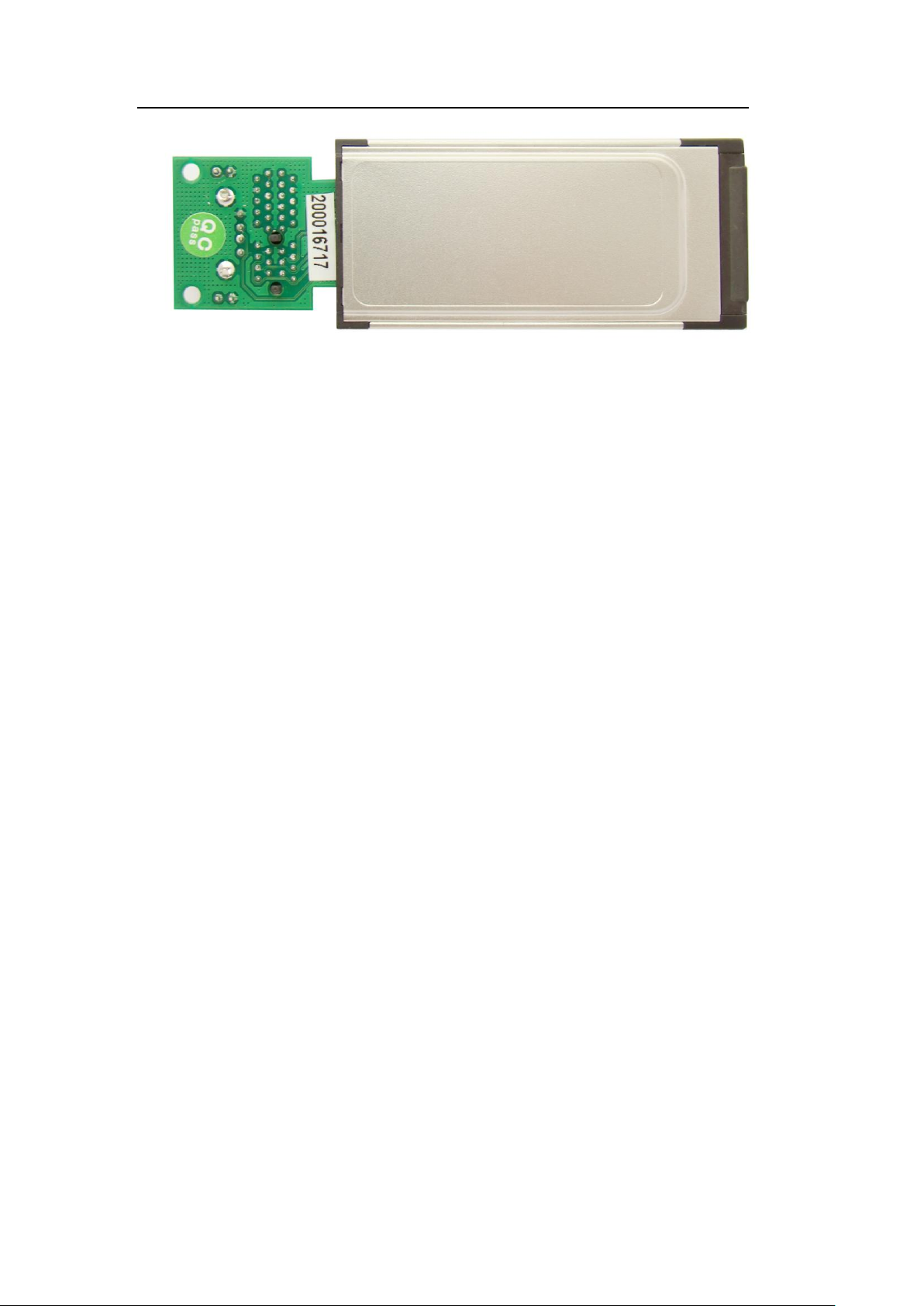

Figure-1 PCI-E and USB to ExpressCard Adapter (heads)

Jump Interface Profile
J1 (GND/+5V) for USB test +5V 600mA Max.

+5V
GND

J2 (GND/+12V) for PCI-E test +12V 200mA Max.

GND
