BOXLIGHT XP-56d User Manual

Micro Portable LCD Projector

USER’S MANUAL

MAIN PAGE

CONTENTS

Overview

Features & Warnings ............................................................................. 1

Checking the Accessories

Standard and Optional Accessories ....................................................... 2

Definitions of Keys and Indicators

Remote Controller and Keys of Control Panel ...................................... 3

Definitions of Indicators and Definitions of key functions ................... 4

Setting Up

Location for Setting Up ......................................................................... 5

Zoom , Focus and Height Adjustment ................................................... 6

External Connections

Connecting to PC ................................................................................... 7

Connecting to Video Signals ................................................................. 8

OSD (On Screen Display) Menu

Display/Exit OSD Menu ........................................................................ 9

Image Quality Adjustment ..................................................................... 9

Advanced Setting Adjustment ............................................................... 10

Advanced Scale Adjustment (Digital Zoom) ........................................ 11

Options .................................................................................................. 12

Audio Adjustment ................................................................................. 13

PIP Adjustment ...................................................................................... 13

Maintenance

Handling of Abnormality ...................................................................... 14

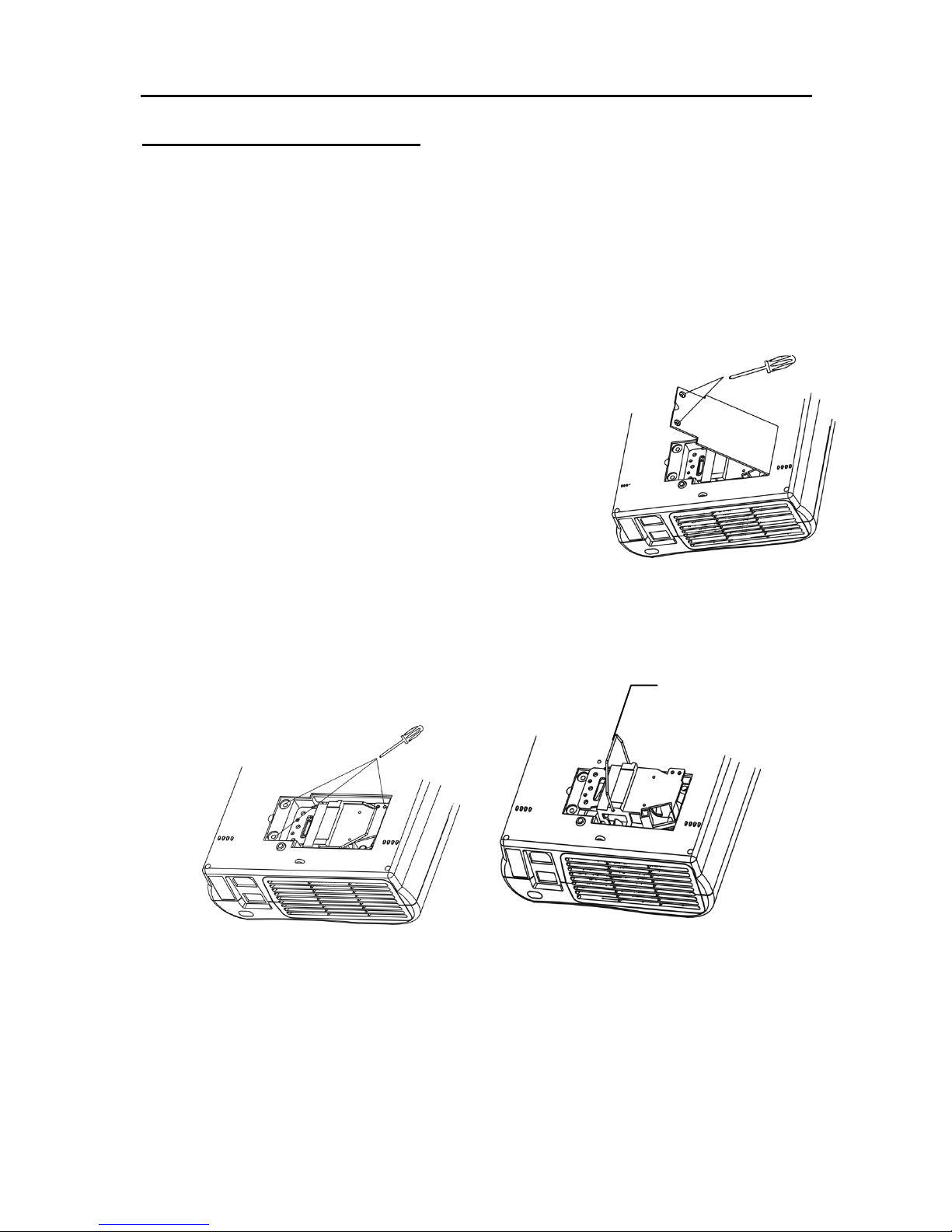

Replacing Main Lamp ........................................................................... 15

Appendix....................................................................................................... 16

1

Overview

Features

!2.7kgs Micro-Portable projector.
!High Brightness with high Contrast ratio, total power consumption 220 W.
!A wide variety of External Connections available for D-Sub 15 pin, S-Video,

RCA composite signal and DVI Input（XGA Type）.

!Good Compatibility：horizontal scanning frequency from 15 to 90KHz, and

vertical scanning frequency from 43 to 85Hz , VGA to SXGA Signals.

!Short projection distance for Big image size.

Projection distance 1.33m〜8.33m with screen size from 40”to 200”.

!Powerful functions：Keystone correction function、freeze and blank function

、Digital zoom adjustment and PIP(Picture In Picture) function.

!Remote controller with Track Ball Mouse function and Laser Pointer

function.

Warnings

!While projector is working, don’t look into the lens to avoid harm of eyes.
!Do not use projector near heater or water.
!While projector is working, make sure that there is no barrier to the heat

dissipation holes of the front and rear side of projector.

!Do not use multiplex socket, to avoid overload or short circuit.
!The lamp of the projector is high voltage mercury lamp, which needs

specific driving circuit. Please use the specific lamp provided by your dealer.

!Never let water or other things splash into the heat dissipation holes.
!To shut down the projector, when you press the Power key, a message will

show on the image asking if you’re sure you’d like to shut down, press
Power key again to proceed the heat dissipation and shut down procedure.

!Do not turn off the power without using the heat dissipation and shut down

procedure. You must wait until the cooling fun stop. If the machine is not to
be used for a long time, the power plug must be pulled off to avoid danger.

!No further dismantle of the projector except listing in the operation manual.
!When cleaning filter sponge, please use vacuum cleaner than water to avoid

moisture entering the projector.

!When replacing the lamp module, please wait for the lamp cool down.
!When changing the lamp module, do not touch the glass in front of the lamp.

It will effect the lamp life.

2

Checking the Accessories

Standard Accessories

! Projector ! D-Sub 15pin Cable
! Lens Cover ! Audio Wire-RCA Jack
! Power Cord

!

DVI Interface connecting wire

（XGA Type）

! Remote Controller ! Video Wire-RCA Jack
! No.4 AAA Battery x 2 ! PS/2 Mouse connecting wire
! Audio Wire-Phone Jack ! User’s Manual
! S-Video Wire

!

Carrying bag for projector and accessories

（XGA Type）

Optional Accessories

!Spare Lamp
!Sponge for air filter

You can perchance these spare accessories from your dealer.

XGA Type

3

Definitions of Keys and Indicators

Remote Controller

Keys of Control Panel

4

Definitions of Indicators

◎Red ◎Green ◎Orange

Meaning

Off On Off Standby Mode

Off Off On Normal Working Mode

Normal

Indicator

Off

Alternate Flash per second

Heat Dissipating

Flash Off On

Abnormal Fan

（Heat Dissipating）

Flash Off Off Abnormal Fan

Abnormal

Indicator

Off Off Off No Power

Definitions of key functions

Key Function (Under normal working mode)
Power

! Press Power button to turn on the projector.
! Press Power button twice to shut down the projector.

Menu ! Press Menu button to bring up the OSD menu.
Exit ! Press Exit button to leave OSD menu.
Input

! Select input signal of VGA、S-Video、AV or DVI（XGA Type）

in sequence.

Keystone

! Adjust Shape of Image from keystone to square.

Volume

! Adjust the volume.
Laser ! Laser Pointer.
Auto ! Auto adjust the image quality (Only on VGA mode).
L/R ! L : Left click of the mouse. R : Right click of the mouse.
Track ball ! Use the track ball to move the cursor, press the track ball to active

the drag function.

Mute

! Press Mute key for Sound Off，sound On when you press again.
Black ! Press Black key to let the image blank, press again when you want

the image show again.

Freeze

! Press the Freeze Key to let the image freeze(stop) in a picture, press

again when you want to continue.

Enlarge ! Press the Enlarge Key and press +/- key to enlarge or reduce the

Image press " #$ % to move the image.
Source ! Switch the sub picture as AV input or S-Video input.
PIP ! Picture in Picture Function.

5

Setting Up

Locations for Setting Up

! Projector shall be placed on steady desktop or use specific tooling to hand

on solid ceiling.

! Adjust projector so the lens is perpendicular to screen, otherwise, the image

on screen will have trapezoidal shape.

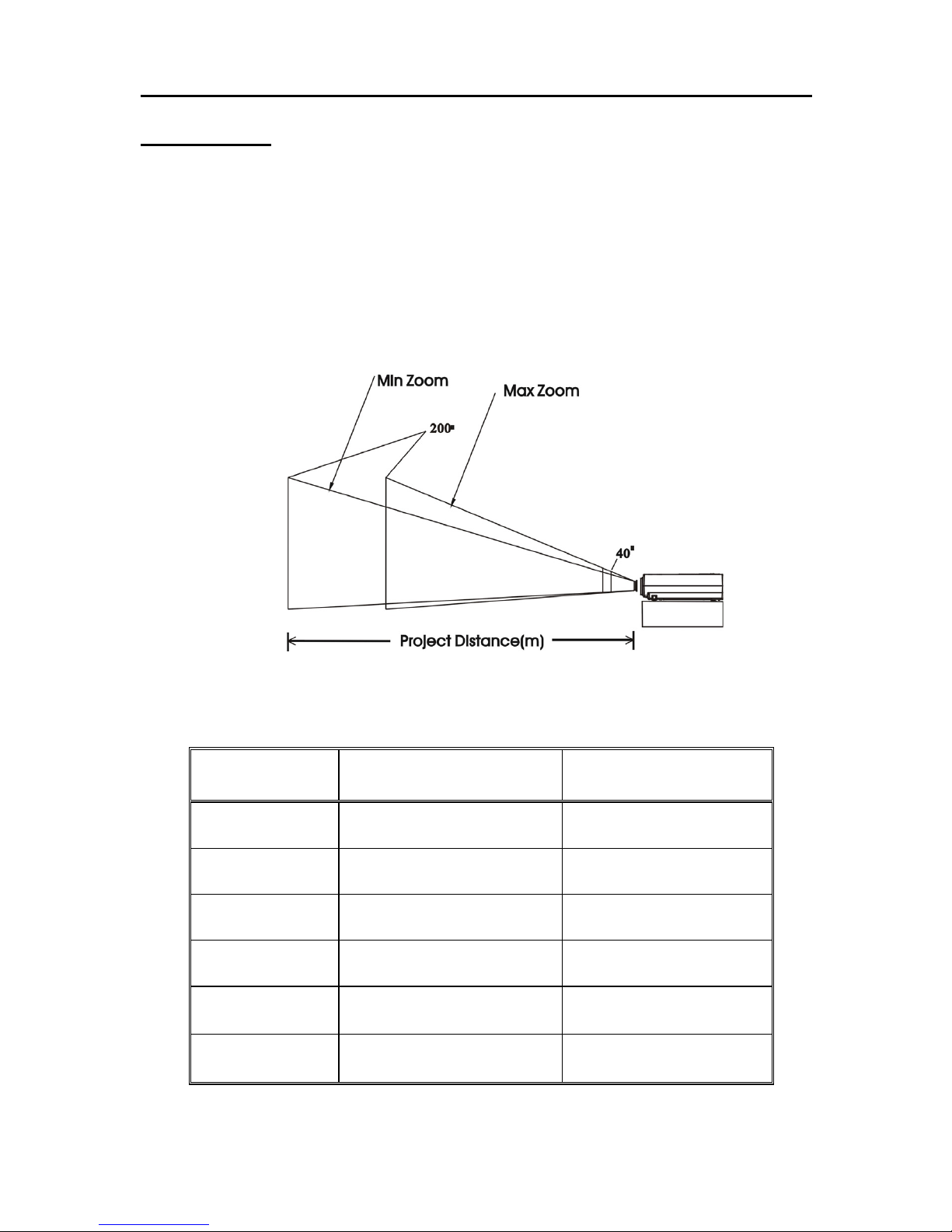

Projection Distance /Size Table

Projection

Size/inch

Project Distance /m

Max Zoom

Project Distance/m

Min Zoom

40” 1.33 1.67

50” 1.67 2.08

60” 2.00 2.50

100” 3.33 4.17

150 5.00 6.25

200” 6.67 8.33

6

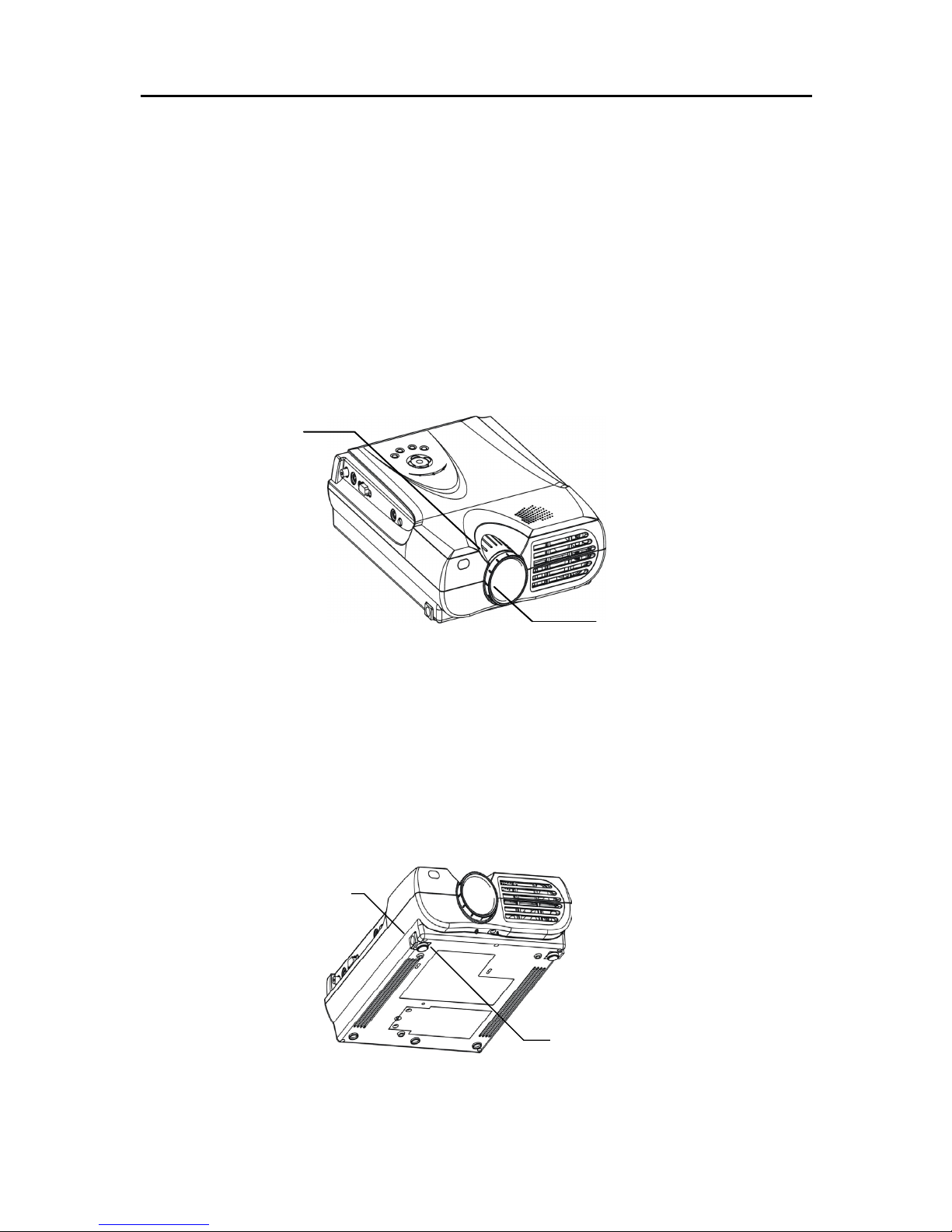

Zoom, Focus and Height Adjustment

Focus , Magnitude Adjustment

!When the image appears on the screen, use these functions to focus and

adjust screen alignment.

!Actual projected display size depends on the distance between the projector

and the screen, as well as the magnitude of projector lens.

!Focus adjustment：Turn the focusing ring of the lens, which is the outer ring

at the lens in front side of projector.

!Size adjustment：Turn the inner side zoom ring, increase when clockwise.

Adjustment for Height and Deformation of Projection

!Stand behind the projector and raise up the forward projector with both

hands, then press the release button to lower the elevating feet.

!Free the release button to lock the

sustaining foot and set the projector down

carefully.

!Be careful when operating and keep the projector from dropping.

Release Button

Sustaining Foot

Focus

Zoom

7

External Connections

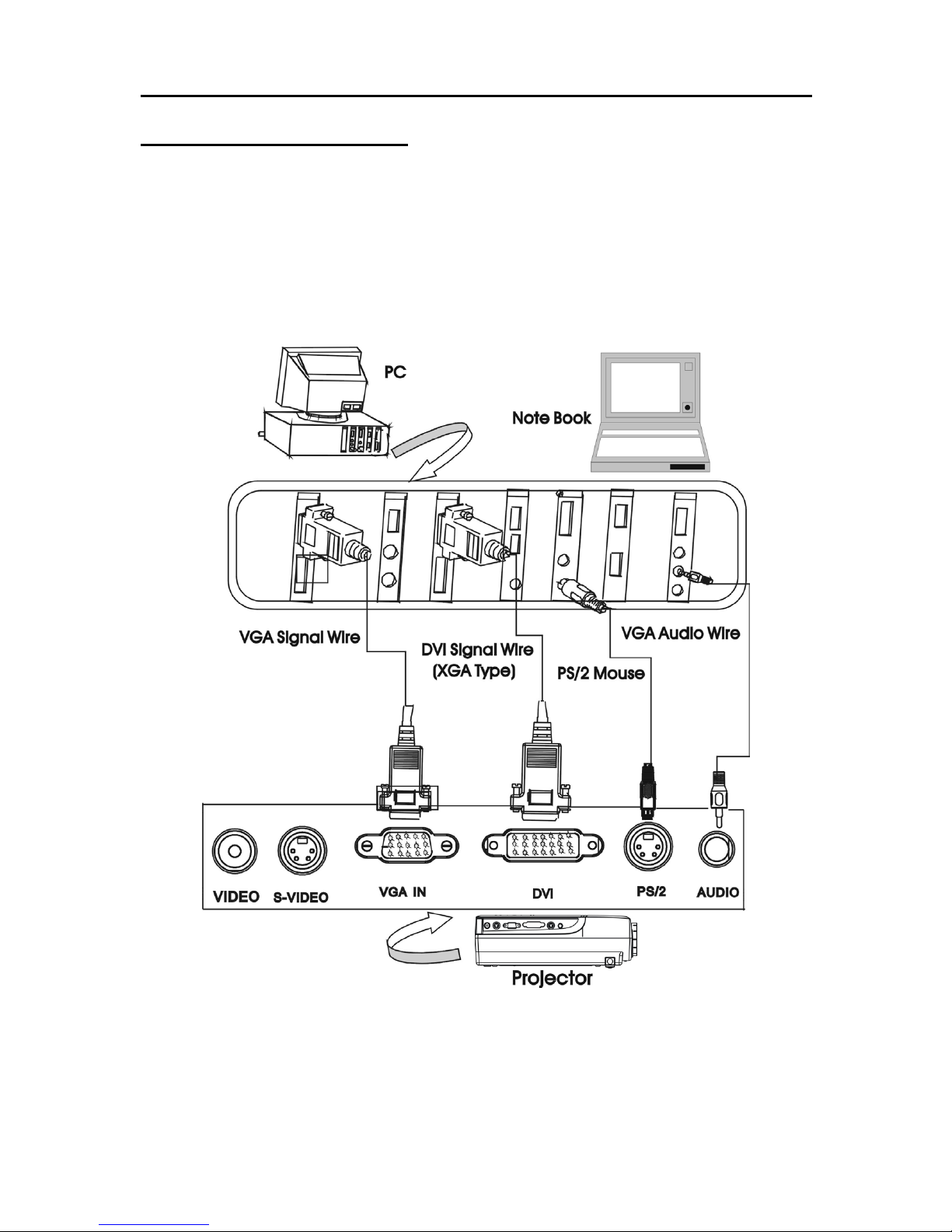

Connecting to PC

! Connect the D-Sub 15 pin cable

from

the VGA card of the computer into the

VGA IN

terminal of the projector .

! Mark sure that both parts have a good connection.
! Turn on projector first then computer.

8

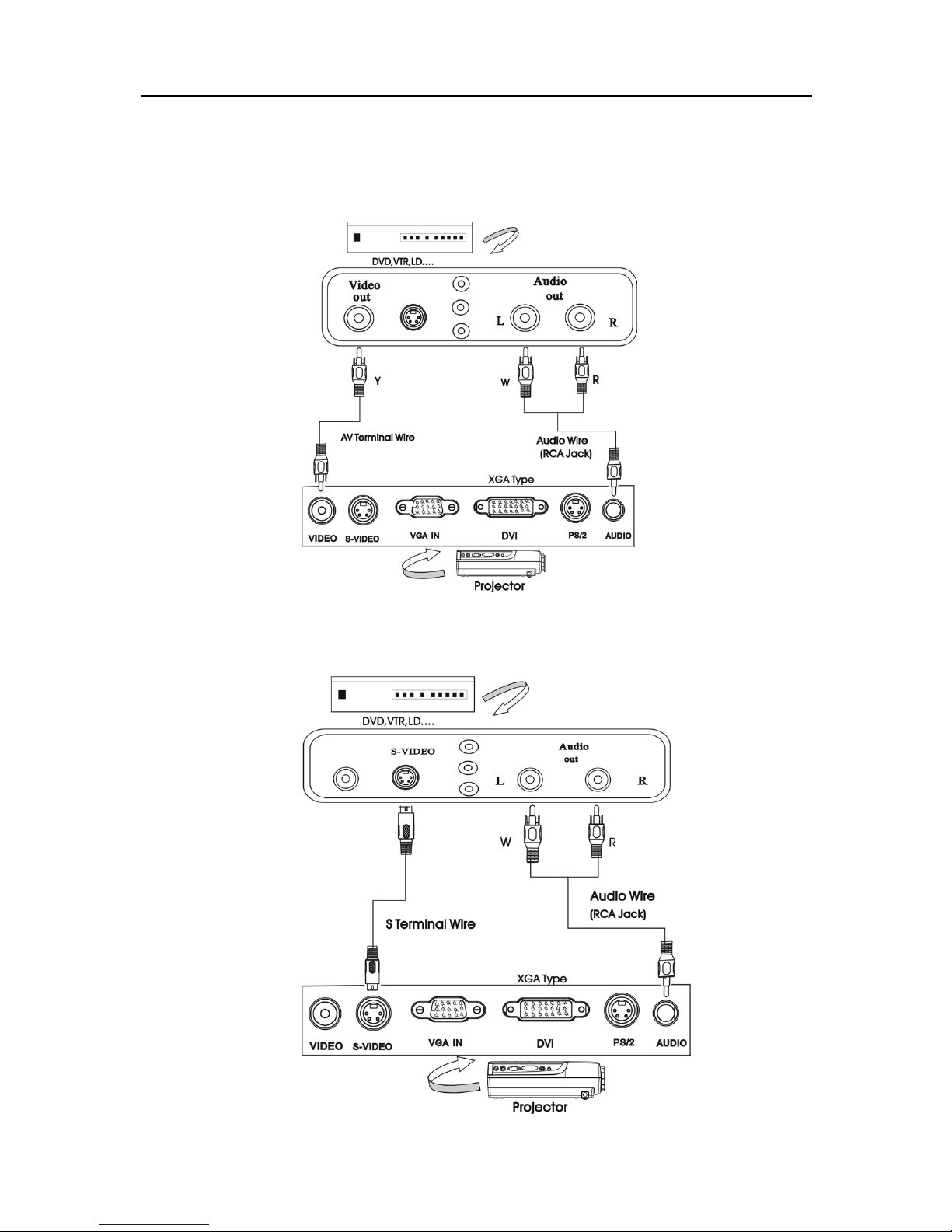

Connecting to Video Signals

!Connecting to video signal sources such as VTR , DVD or LD.
!The method for connecting

RCA jack AV wire is shown below

!The method for connecting S-Video Wire is shown below

9

OSD (On Screen Display) Manu

Display/Exit OSD Menu

!Press MENU key to display the main menu.
!The contents of main menu are different according to various input signals

which are shown as the following：

!Press EXIT key to Exit the main menu.

Input signals of

VGA or DVI

（XGAType）

Input signals of AV or S -VIDEO

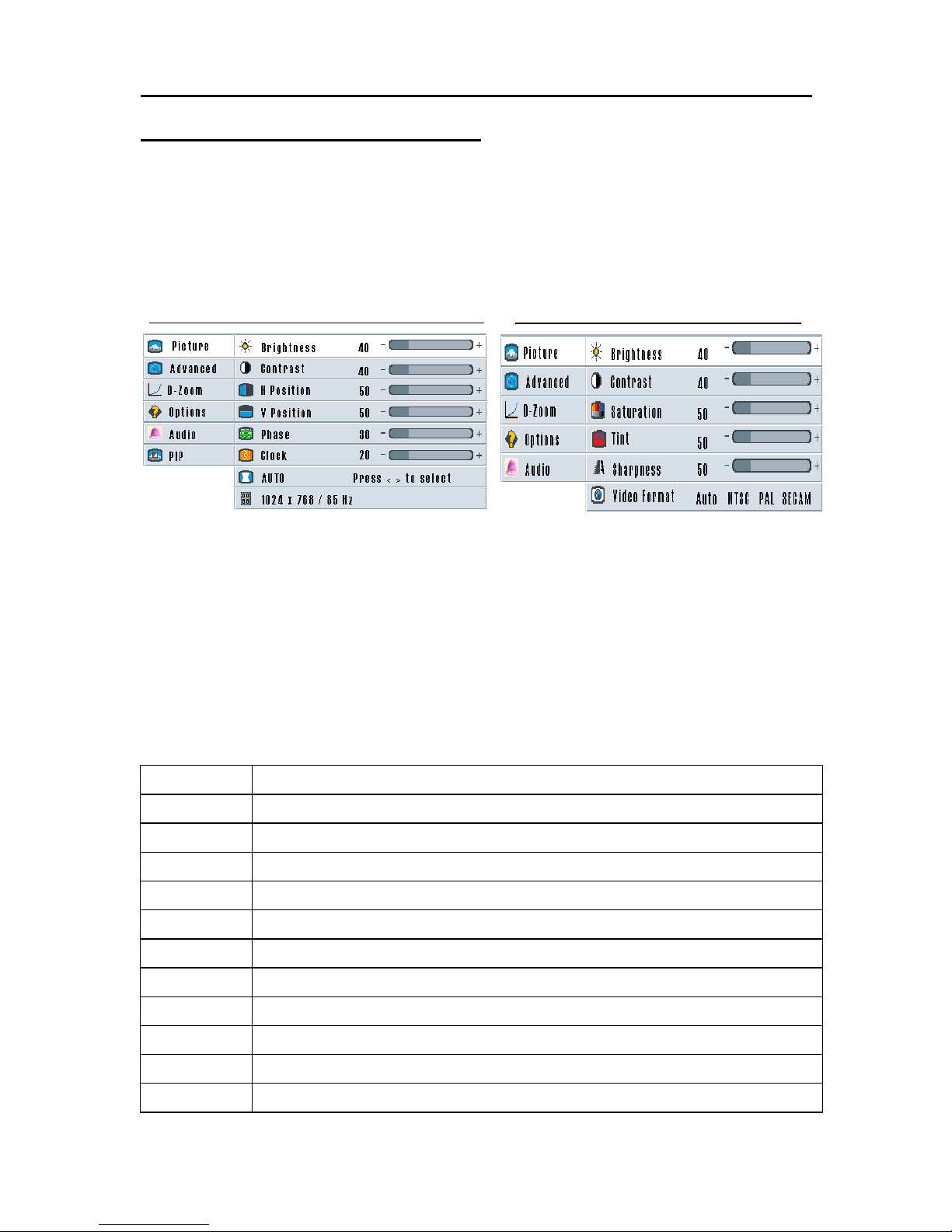

Image Quality Adjustment

!After displaying main menu, press

" #

key to move Bar to “Picture ”

!Press $ key to enter sub menu.
!Press " # key to move Bar to the option which needs to be adjusted .
!Press $ % key to set the value and press MENU key to return to main

menu.

!Press EXIT key to exit the menu and save the setting.
!The “Adjust Option” is different according to various input signals which

are shown as the following：

Options The instruction

Brightness To adjust the brightness value of the image .

Contrast To adjust the contrast of image (higher value means high contrast)

H position

To adjust the horizontal position

V position

To adjust the vertical position

Phase

To adjust the Phase value of the image.

Clock

To adjust the Clock value of the image.

Auto Tune

To adjust the Phase and Clock Automatically.

Saturation

To adjust color saturation

Tint

To adjust the Tint

Sharpness

To adjust the Sharpness of the image.

Video

To select input signal as

Auto、NTSC、PAL or SECAM

format.

10

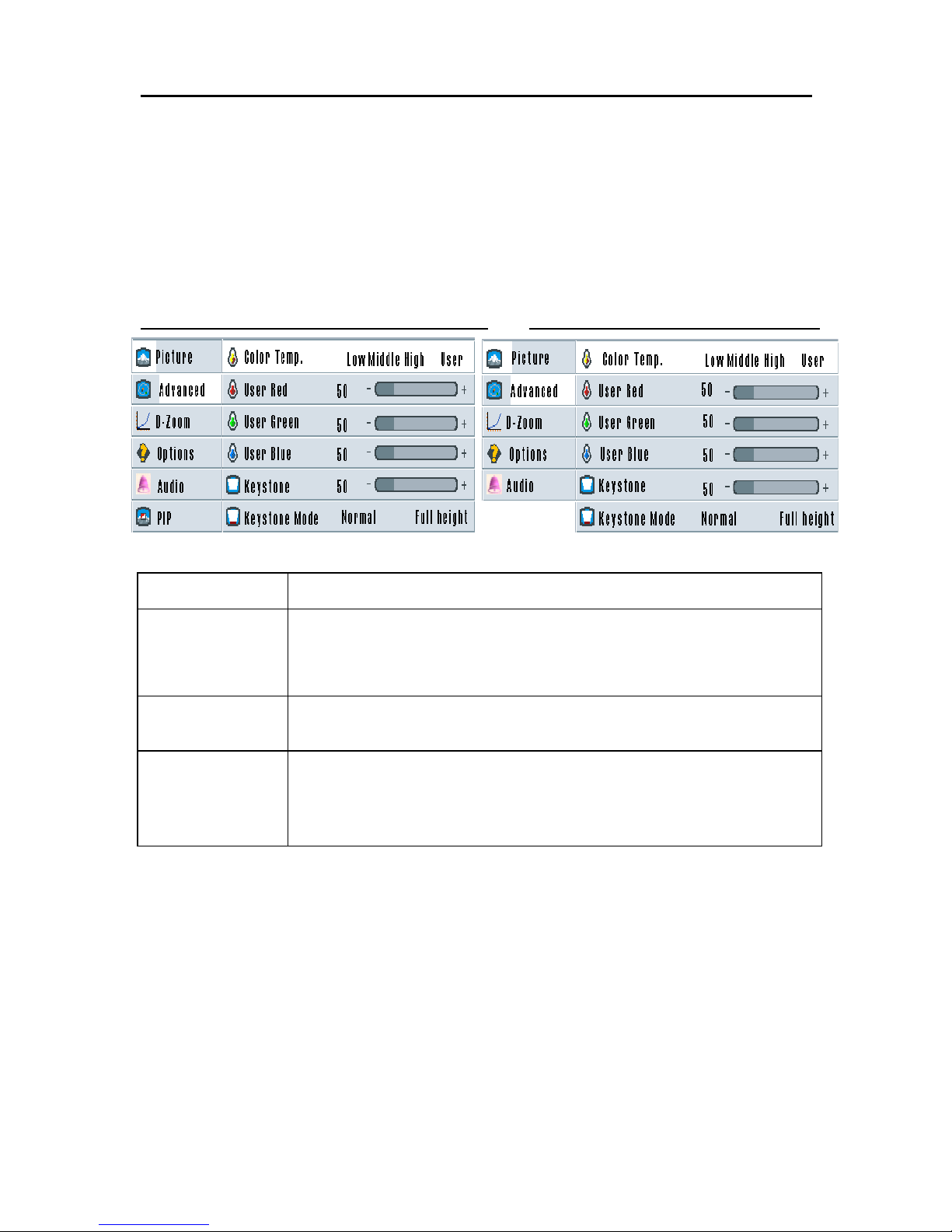

Advanced Setting Adjustment

!After displaying OSD menu, press

" #

key to move the Bar to “Advanced ”

!Press

$

key to enter sub menu.

!Press

" #

key to move Bar to the option which needs to be adjusted .

!Press

$ %

key to set the value and press

MENU

key to return to main menu.

!Press EXIT key to exit the menu and save the setting.
!The adjustment option are shown below：

Input signals of

VGA or DVI

（XGAType） Input signals of AV or S-VIDEO

Options

The instruction

Color Temp

To adjust color temperature of image to personal performance.
(Normal temp value is Middle) For cool color, select higher
Color Temperature, for warm color, select lower Color Temp.

Keystone

Compensating the trapezoid distorted images up to ± 15
degrees. (Normal value is 50)

Keystone Mode

To select to Normal or Full Height mode.
Under Full Height mode, only the horizontal size of

keystone will accompany keystone adjustment.

11

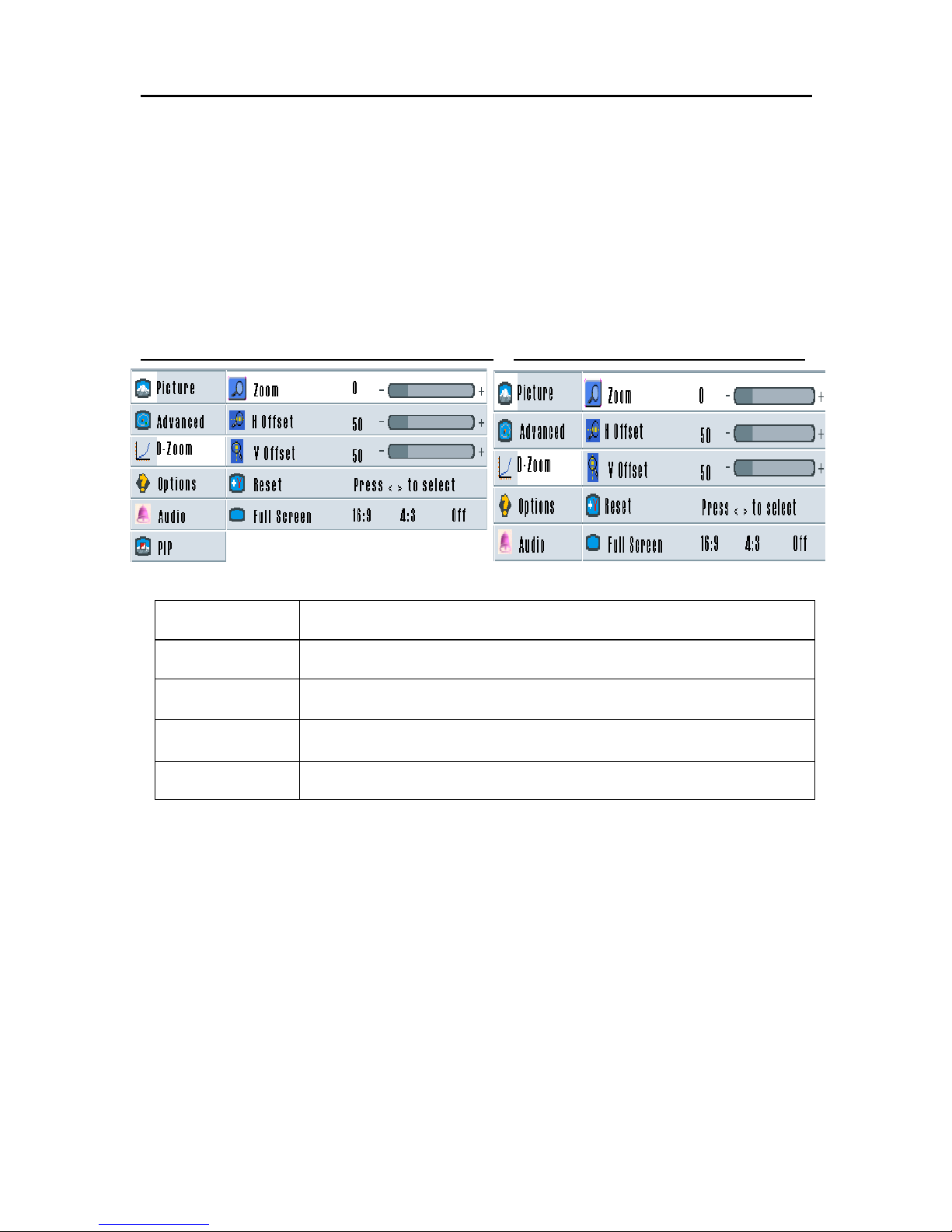

Advanced Scale Adjustment (Digital Zoom)

!After displaying OSD menu, press

" #

key to move the Bar to “Adv.

Scale ”.

!Press

$

key to enter sub menu.

!Press

" #

key to move Bar to the option which needs to be adjusted.

!Press

$ %

key to set the value and press MENU key to return to main menu.

!Press EXIT key to exit the menu and save the value.
!The options to be adjusted are shown as the following：

Input signals of VGA

or DVI

（XGAType） Input signals of AV or S-VIDEO

Adjust options The instruction

Zoom Digital zoom

H offset After zooming, display screen can be moved horizontally.

V offset After zooming, display screen can be moved vertically

Full Screen To adjust the image into full screen or 16:9 or 4:3

12

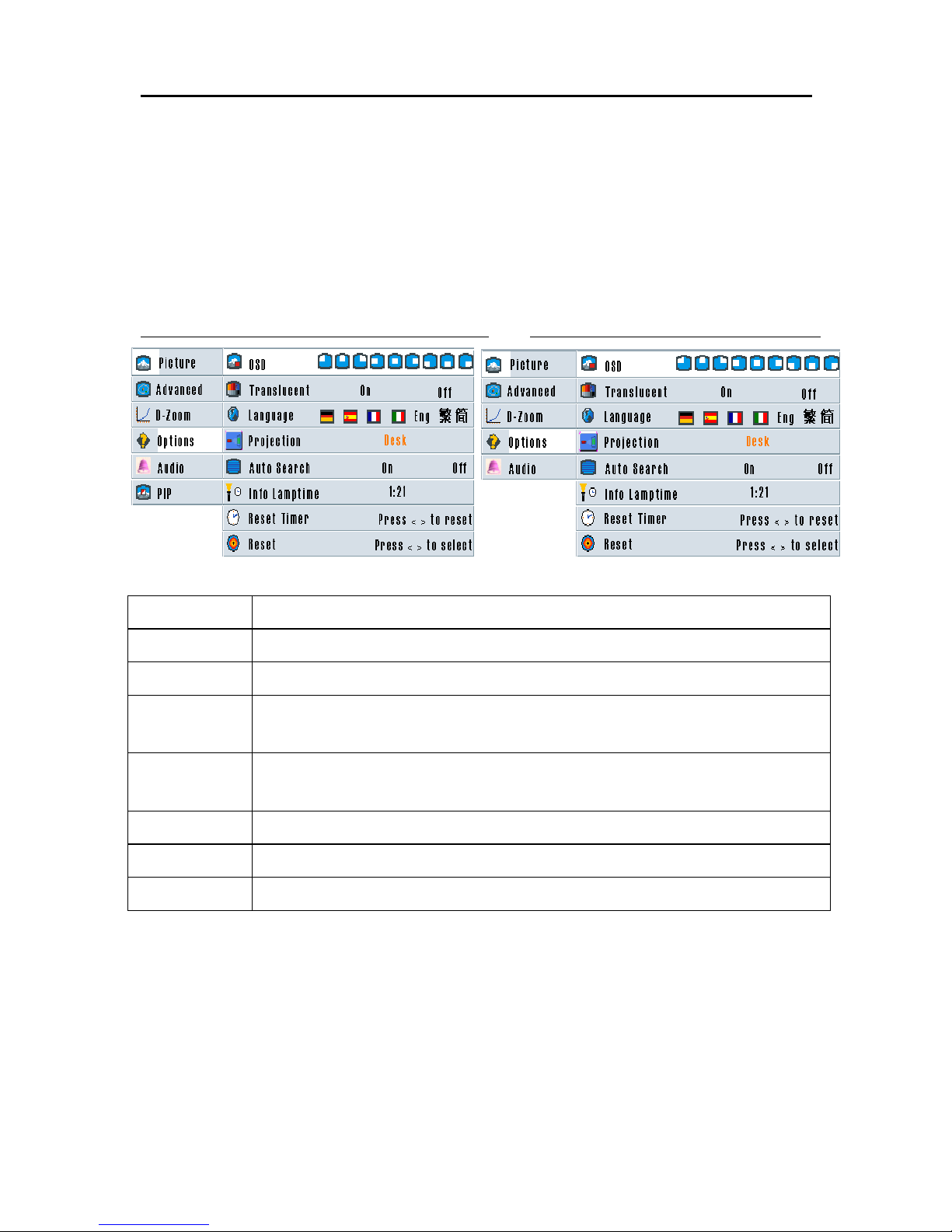

Options

!After display Main-menu，press

" #

key to move Bar to “Options ”

!Press

$

key to enter sub-Menu.

!Press

" #

key to move Bar to the option which needs to be adjusted.

!Press

$ %

key to set value and press MENU key to return to main menu.

!Press EXIT key to exit the menu and save the value.
!The option to be adjusted as the following：

Input signals of

VGA or DVI

（XGAType）

Input signals of AV or S-VIDEO

Options

The instruction

OSD To select OSD position on screen.

Translucent To select OSD Translucent function for on or off.

Language

To select language for English、French、German、Italian、
Esperanto、簡体、繁體.

Projection

Press $ % key to select Projection for Desk、Ceiling、Rear or
Rear Ceiling.

Auto Search To select Auto Input Signal Search for on or off.

Factory Reset To return all parameters to factory default value

Lamp Timer To show the accumulation of the working time for lamp module

13

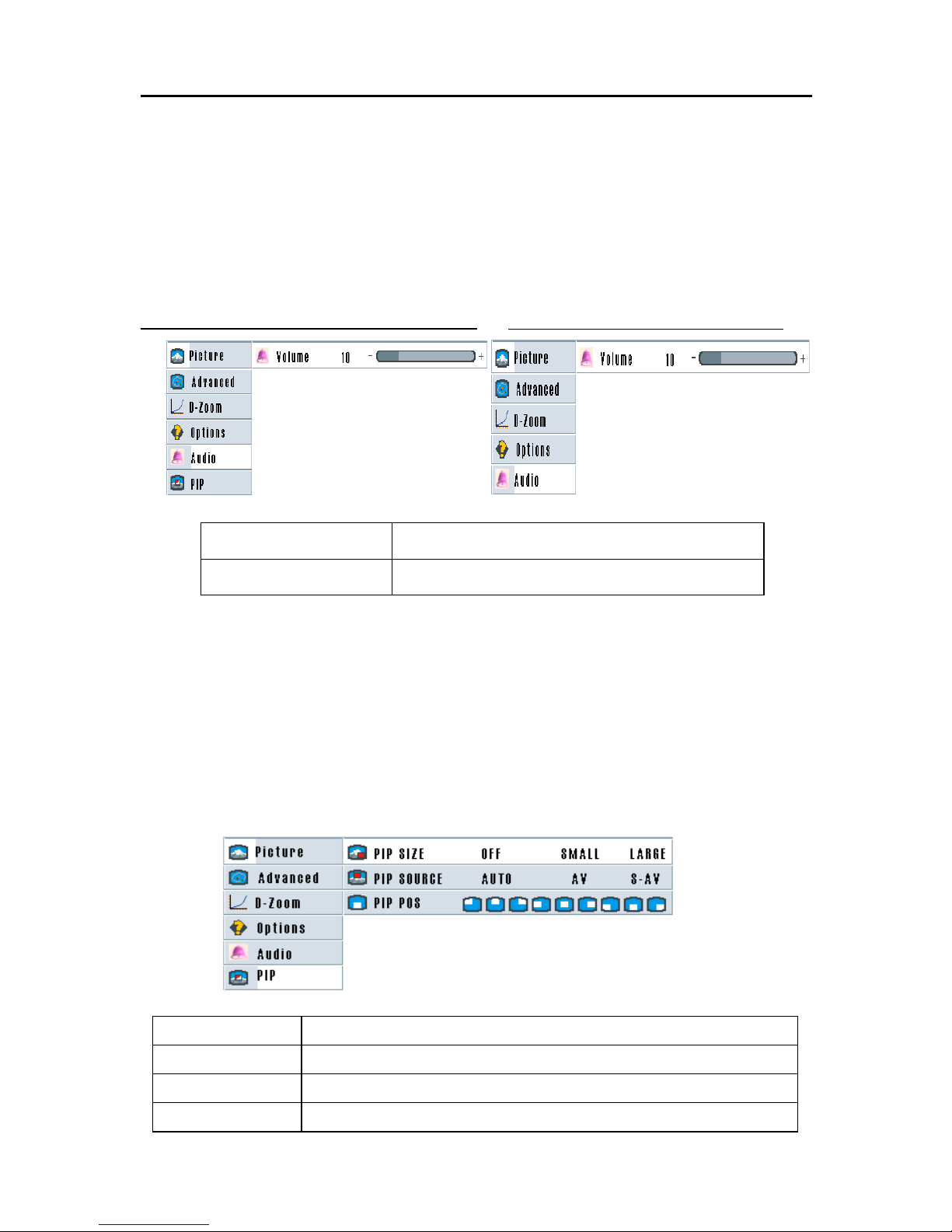

Audio Adjustment

!After displaying main menu，press

" #

key to move Bar to “Audio ” .

!Press

$

key to enter sub menu.

!Press

" #

key to move Bar to the option which is about adjusted.

!Press

$ %

key to set the value and press

MENU

key to return to main menu.

!Press EXIT key to hide the menu and save the set value.
!The options to be adjusted are shown as the following：

Input signals of

VGA or DVI（XGAType）

Input signals of AV or S-VIDEO

Adjust options The instruction

Volume To adjust the volume of speaker

PIP Adjustment

!After displaying main menu，press

" #

key to move Bar to “PIP ” .

!Press $ key to enter sub menu.
!Press " # key to move Bar to the option which is about adjusted.
!Press $ % key to set the value and press MENU key to return to main

menu.

!Press EXIT key to hide the menu and save the set value.
!The options to be adjusted are shown as the following：

Adjust options The instruction
PIP SIZE To adjust the size of sub picture.

PIP SOURCE To choose the signal source with AV or S-Video

PIP POS To choose the position of sub picture

14

Maintenance

Handling of Abnormality

Abnormality of Indicators

!When Red indicator is on, it means the heat dissipation or fan is at fault,

please contact with your dealer.

!If there is No indicator on, please check whether the power cord connect

properly. If it still doesn’t work, please contact with your dealer.

Abnormality of Lighting-up Lamp

!When the red indicator is flashing and orange indicator is on , it’s abnormal

and possibly due to damaged lamp or unstable voltage , just turn off
Projector and restart again. If it still doesn’t work, please contact with your
dealer.

Cleaning the Projector

! Un-plug the power of projector before cleaning. Clean with a non-cotton

dry cloth or with slight water and neutral detergent if necessary.

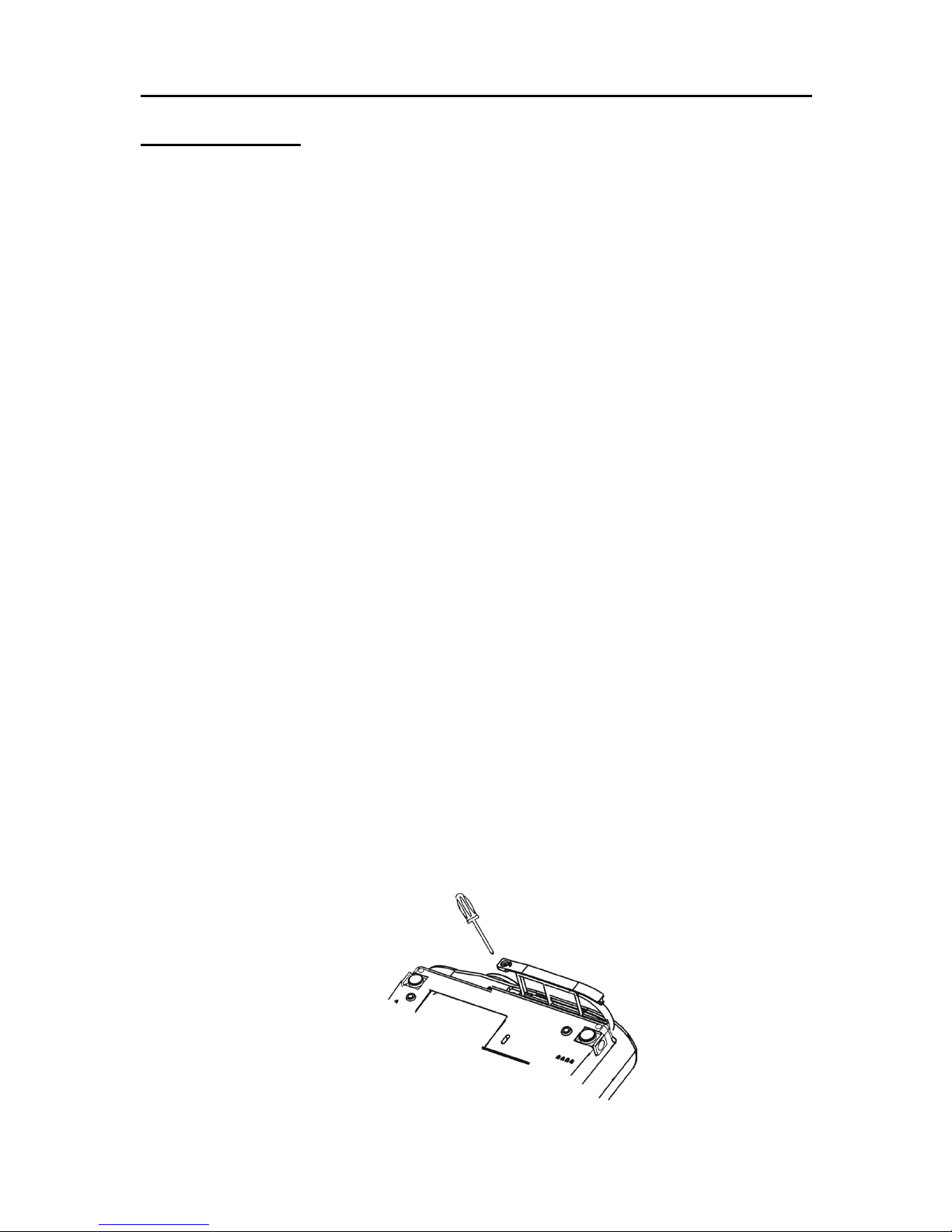

Cleaning of Air Filter

!Turn off the projector and un-plug the power.
!Use star type screwdriver to loosen the screw and take the filter out.
!Clean the filter
!If the filter is hard to clean and need to replace a new one, please contact

with your dealer.

! When cleaning filter sponge , please use vacuum cleaner than water to avoid

moisture entering the projector. We recommend you to clean Projector
every 100 working hours.

15

Replacing Main Lamp

Replacing Lamp Module

!When the red indicator is flashing and the lamp doesn’t lighting up, the lamp

source might abnormal or burn out.

!When the projection image is too dark, or the projection image is unstable

and flashing , please change the lamp.

!Please use specific lamp module provided by your local dealer.

!Turn off projector and unplug power cord.
!Loosen the 2 screws of the cap of lamp module.
!You need to find a special star type screwdriver.

!When screws are loosed, take off the cap of lamp module.
!Loosen the 3 screws placed on the lamp module.
!Pull up the handle of the lamp module and pull the lamp module out of

projector

!Install the new lamp module provided by your dealer into the projector.
!Fasten the 3 screws of the lamp module.
!Install the cap of lamp module then fasten 2 screws of the cap.

Lamp Module

16

Appendix

Compatible Modes

Resolution

V. Frequency H. Frequency

Resolution

V. Frequency H. Frequency

720 × 420

70Hz 31.5KHz

1152 ×864

60Hz 54.3KHz

640 × 350

70Hz 31.5KHz

1152 ×864

70Hz 63.9KHz

720 × 400

85Hz 37.9KHz

1152 ×864

70Hz 64KHz

640 × 350

85Hz 37.9KHz

1152 ×864

75Hz 67.5KHz

640 × 480

60Hz 31.5KHz

1152 ×864

85Hz 77.1KHz

640 × 480

67Hz 35KHz

1280 ×960

60Hz 60KHz

640 × 480

72Hz 37.9KHz

1280 ×960

75Hz 75.93KHz

640 × 480

75Hz 37.5KHz

1280 ×960

85Hz 85.93KHz

640 × 480

85Hz 43.3KHz

1280 ×1024

43Hz 46.6KHz

640 × 400

70Hz 31.5KHz

1280 ×1024

60Hz 64KHz

640 × 400

85Hz 37.9KHz

1280 ×1024

74Hz 78.8KHz

800 × 600

56Hz 35.2KHz

1280 ×1024

75Hz 79KHz

800 × 600

60Hz 37.9KHz MAC-13LC 67Hz 35KHz

800 × 600

72Hz 48.1KHz MAC-15 75Hz 68.7KHz

800 × 600

75Hz 46.9KHz MAC-16 75Hz 49.1KHz

800 × 600

85Hz 53.7KHz MAC-19 75Hz 60.2KHz

832 × 624

75Hz 49.7KHz MAC-1960 60Hz 48.2KHz

1024 ×768

43Hz 35.5KHz

1024 ×768

60Hz 48.4KHz

1024 ×768

70Hz 56.5KHz

1024 ×768

72Hz 57.8KHz

1024 ×768

75Hz 60.0KHz

1024 ×768

85Hz 68.7KHz
