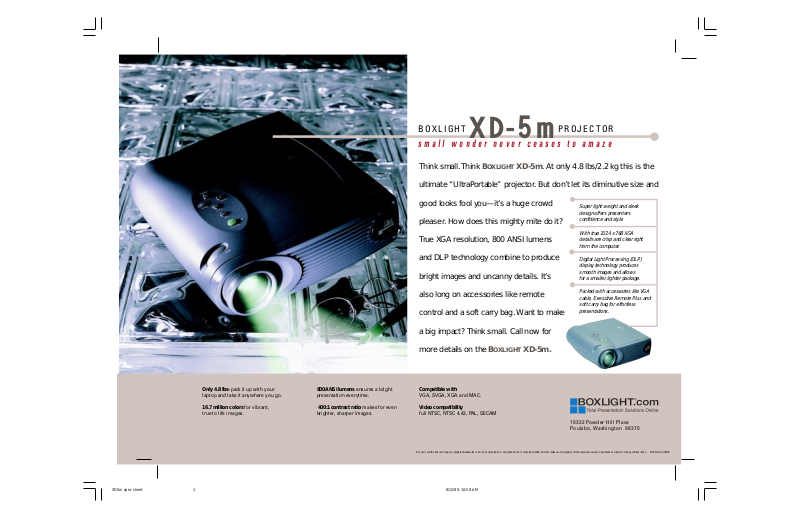

Boxlight XD-5m Product Sheet

BOXLIGHT

PROJECTOR

XD-5m

small wonder never ceases to amaze

Think small. Think BOXLIGHT XD-5m. At only 4.8 lbs/2.2 kg this is the
ultimate “UltraPortable” projector. But don’t let its diminutive size and

Only 4.8 lbs–pack it up with your
laptop and take it anywhere you go.

800 ANSI lumens ensures a bright
presentation everytime.

good looks fool you—it’s a huge crowd
pleaser. How does this mighty mite do it?
True XGA resolution, 800 ANSI lumens
and DLP technology combine to produce
bright images and uncanny details. It’s
also long on accessories like remote
control and a soft carry bag. Want to make
a big impact? Think small. Call now for
more details on the BOXLIGHT XD-5m.

Compatible with

VGA, SVGA, XGA and MAC.

Super light weight and sleek
design offers presenters
confidence and style.

With true 1024 x 768 XGA
details are crisp and clear right
from the computer.

Digital Light Processing (DLP)
display technology produces
smooth images and allows
for a smaller, lighter package.

Packed with accessories like VGA
cable, Executive Remote Plus and
soft carry bag for effortless
presentations.

16.7 million colors for vibrant,
true to life images.

400:1 contrast ratio makes for even
brighter, sharper images.

Video compatibility

full NTSC, NTSC 4.43, PAL, SECAM

B

OXLIGHT

and the B

OXLIGHT

logo are registered trademarks of B

OXLIGHT

Corporation. © Copyright B

19332 Powder Hill Place
Poulsbo, Washington 98370

OXLIGHT

Corporation,1998. All other marks are the property of their respective owners. Specifications subject to change without notice. M1-XD-5mUS-08/99

BOXLIGHT PROJECTOR

XD-5m

Resolution
Brightness
Lamp
Lamp Life
Display Type
Contrast Ratio
Colors
Aspect Ratio
Inputs

Video
Decibels

True 1024 x 768 XGA
800 ANSI lumens

120 watt high pressure mercury arc
1000 hours
DLP single -chip
400:1

16.7 million
4:3
Audio/ Video: 1-composite, 1-SVHS; 1-audio for computer audio or video
Computer: 1-15 pin, 1-mouse
Full NTSC, NTSC 4.43, PAL, SECAM
39 dB

Audio
Weight
Dimensions
Projection Lens
Diagonal Image Size
Focus Range
Keystone Correction
Adjustments
Power Supply
Compatibility
Warranty

Built-in 1x1 watt speaker

4.8 lb/2.2 kg

8.75”/22.23 cm (W) x 2.5”/6.4 cm (H) x 9.75”/24.77 cm (D)

1.25:1 manual zoom, 10° projection angle

2.5’-19.4’/0.8-5.9 m

4.9’-30’/1.5-9.1 m
Corrected at a 10° projection angle, non-adjustable
On-board and remote
100-240V at 50-60 Hz
VGA, SVGA, XGA, MAC
Two years parts and labor; 120-day lamp guarantee

To Contact B

Direct

Rental

Education

Government

Wholesale

International

Toll Free Fax

Internet

OXLIGHT

in the U.S. and Canada:

800.762.5757

800.736.6954

800.689.6676

800.497.4009

800.736.6956

360.779.7901

888.353.4242
www.boxlight.com
