Boxlight XD-17k User Manual

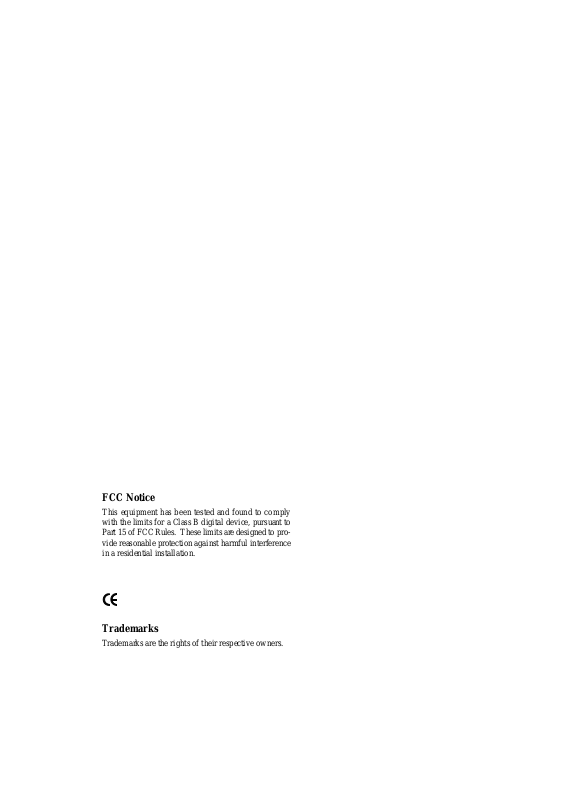

FCC Notice
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
Trademarks
Trademarks are the rights of their respective owners.
Table of Contents
Usage Notice
Precautions .......................................................................................... 2
Introduction
Product Features.................................................................................. 3
Package Overview ............................................................................... 4
Product Overview ................................................................................. 5
Installation
Connecting the Projection Display........................................................ 8
Powering On/Off the Projection Display................................................ 9
Adjusting the Projected Image.............................................................. 11
1
English
User Controls
Panel Control & Remote Control .......................................................... 13
On-Screen Display Menus ................................................................... 15
Appendices
Troubleshooting .................................................................................... 22
Changing the Lamp............................................................................... 25
Specifications ....................................................................................... 26
Compatibility Modes............................................................................. 27
2
English
Usage Notice
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When cha nging the la mp, plea se allow unit to cool down, and follow
all cha nging instructions.
Warning- This product will detect the life of the lamp itself. Please be sure to
change the lamp when it shows warning messages.
Warning- After changing a new lamp, please reset the lamp life from OSD
menu.
Warning- Before switching off the product, please keep the cooling fan
running for a few minutes.
Warning- Connecting the projector to computer, please turn on the projector
first.
Warning- T o reduce the risk of injury to the eye s, do not look directly into the
laser light on the re mote control and do not point the laser light into
anyone’s eyes. This remote control is equipped with a Class II laser
that emits radiation.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user’s manual to maximize the life of your unit.
Do:
q Turn off the product before cleaning.
q Use a soft cloth moistened with mild detergent to clean the display housing.
q Disconnect the power plug from AC outlet if the product is not being used for a
long period of time.
Don’t:
q Block the slots and openings on the unit provided for ventilation.
q Use abrasive cleaners, waxes or solvents for your cleaning.
q Use under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Introduction
Product Features
This product, is an XGA single chip 0.7” DLPä Projector. The outstanding
features of it are listed as follows:
q True XGA, 1024 x 768 addressable pixels
q 3.3 lbs (1.5 kgs) lightweight compact design
q Single chip DLPä technology
q SXGA compression and VGA, SVGA re-sizing
q 130 Watts user replaceable P-VIP lamp
q Mac/NEC PC-98/FM Towns compatible
3
English
q NTSC/NTSC4.43/PAL/P AL-M/PAL-N/SECAM and HDTV (1080i,720P,480i/P)
compatible
q Full function remote with mouse control and laser pointer
q High-tech D VI Conne ction f or digital and analog video connectivity
q High definition TV compatibility
q User friendly Multilingual on-screen display menu
q Advanced electronic keystone correction
q User friendly keypad control with backlight
q Luxurious carrying case included
4
English
Package Overview
This projection display comes with all the items shown below. Check to make
sure your unit is complete. Contact your dealer immediately if anything is
missing.
Projection Display
S-Video Cable
DVI Signal Cable for
HDTV/Component
Power Cord
RCA Audio Cable
Remote Mouse Y Cable
D-Sub RGB to DVI Cable
Composite Video Cable
Remote Control with Mouse
Function & Laser Pointer
Battery x 2
Warranty Card
User’s Guide
Carrying Case
Quick Start Card
Product Overview
Panel Control
5
English
Temperature
Warning LED
Main Unit
Remote Control
Receiver
Four Directional
Select Keys
Elevator Button
Enter /
Source
MuteVolume
(On/Off)
Resync
Power On / StandbyMenu
Lamp
Warning LED
Panel Control
Speaker
Focus Ring
Zoom Lens
Connection Ports
Remote Mouse
Input Connector
HDTV/Component Video
& Computer Input
Connector
Audio Input
Connector
Composite Video
Input Connector
Power Connector
Zoom Ring
S-video Input
Connector
Monitor Loop-
through Connector
6
English
Remote Control with Mouse Function & La ser Pointer
LED Point
Four Directional Select Keys
Power / Standby
Page Down
Laser Pointer
Volume ( + / - )
Mute
Freeze
Resync
Source
Page Up
Keystone Correction
Zoom In / Zoom Out
Menu
Caution: To reduce the risk of injury to the eyes, do not look directly
into the la ser light on the remote control and do not point the laser light into
anyone’s eyes. This remote control is equi pped with a Class II laser that
emits radiation.
Enter Key
7
English
La ser Pointer Caution
8
English
Installation
Connecting the Proje ction Display
Power Cord
DVI Signal Cable for
HDTV/Component
Digital Port
RGB Port
Digital Port
RS232
RGB Port
Remote Mouse Y Cable
USB
D-Sub RGB to
DVI Cable
*DVI Signal Cable fo r DVI
D-Sub RGB to DVI Cable
*DVI Signal Cable fo r DVI
Video Output
Audio Output
v DVI signal cable for DVI is the optional accessory.
Monitor Cable
Composite Video Cable
RCA Audio Cable
S-Video Cable
S-Video Output
v To ensure the projection display works well with your computer, please configure
the display mode of your graphic card to make it less than or equal to 1024 X 768
resolution. Make sure timimg of the display mode is compatible with the projection
display. Refer to the“Compatibility Modes”section on page 27.
