Page 1
BOXLIGHT XD-15c
User’s Guide
Page 2
Copyright
Copyright © 2002 by BOXLIGHT Corporation. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system or
translated into any language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the
prior written permission of BOXLIGHT Corporation.
Disclaimer
BOXLIGHT Corporation makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Furthermore, BOXLIGHT
Corporation reserves the right to revise this publication and to make changes from time
to time in the contents hereof without obligation of BOXLIGHT Corporation to notify
any person of such revision or changes.
Fill this in!!
In case service is needed in the future, record the information described below. The
serial number is on the back of the product.
Projector Information
Product Name: BOXLIGHT XD-15c Multimedia Digital Projector
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:
Page 3
BOXLIGHT XD-15c User’s Guide
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Shipping Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Projector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
External Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Projector Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Control Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

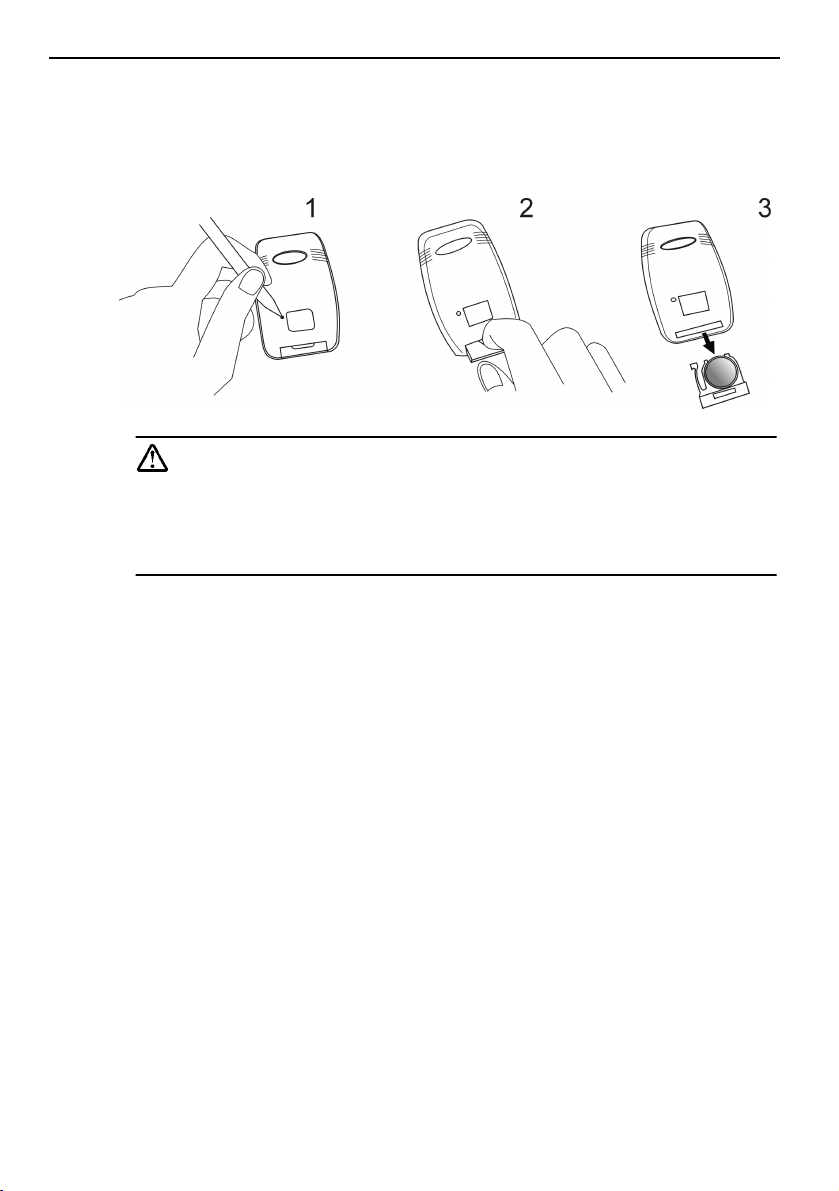

Installing or Replacing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

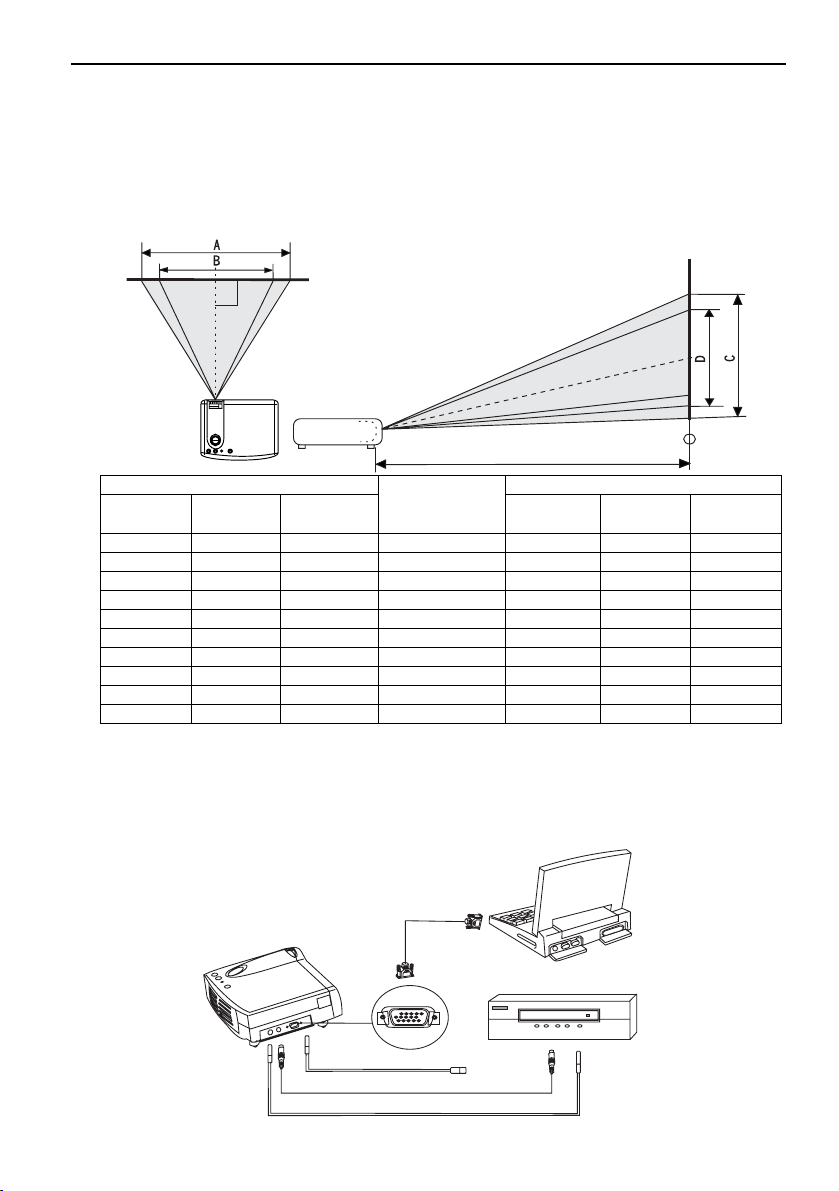

Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting to Various Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

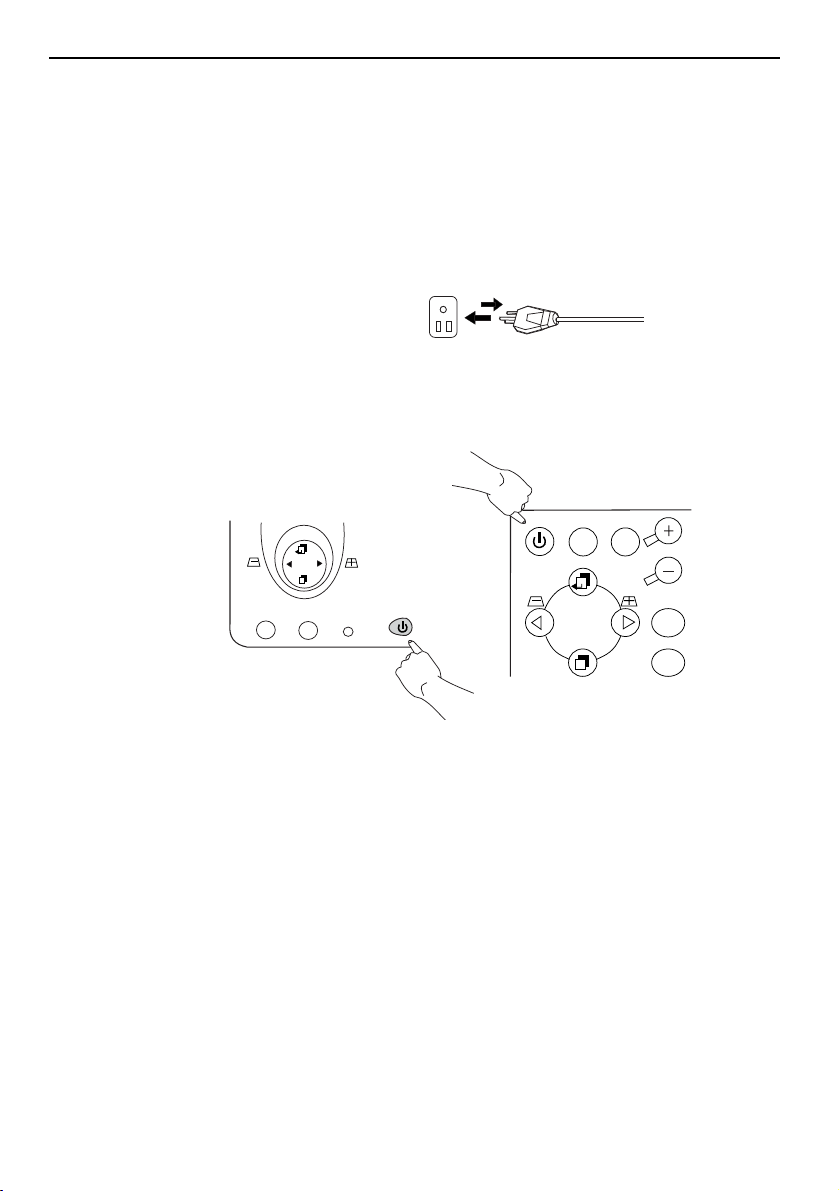

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Digital Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1. Display Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4. Control Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. PIP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

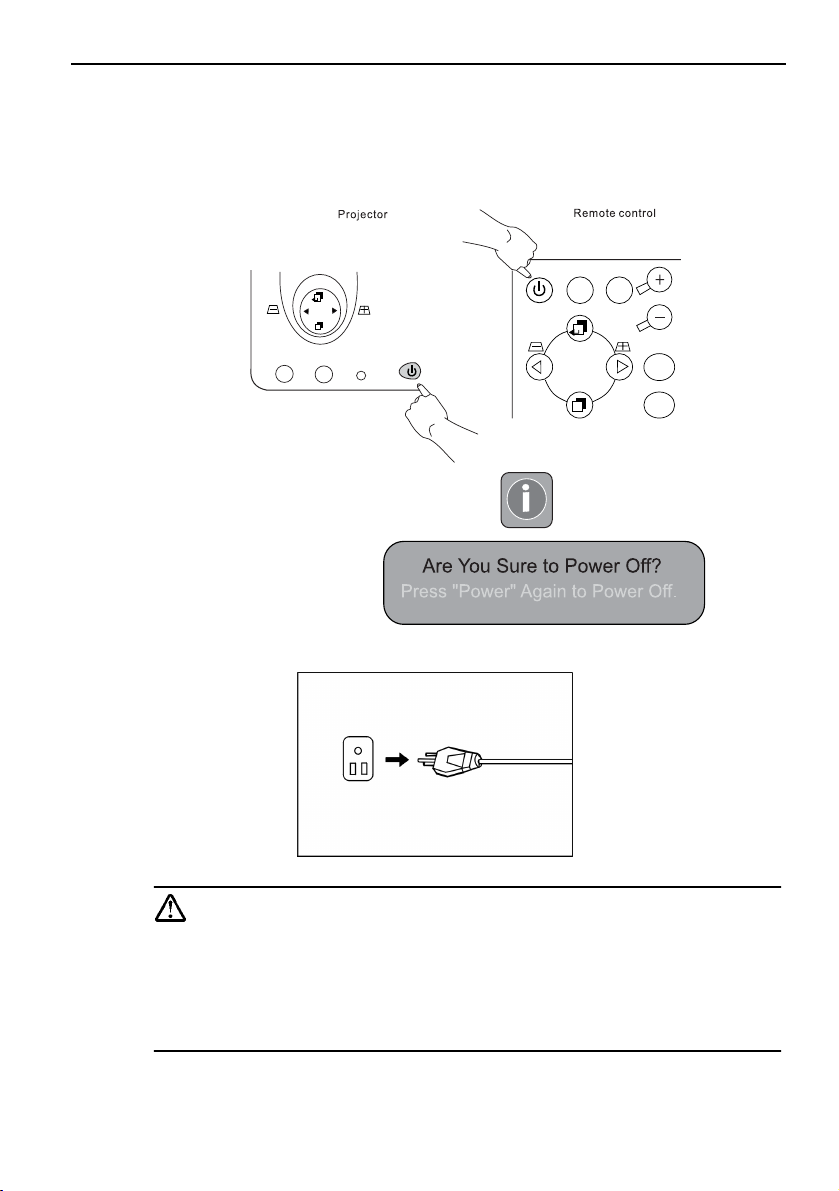

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lamp Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Use and Replacement of Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

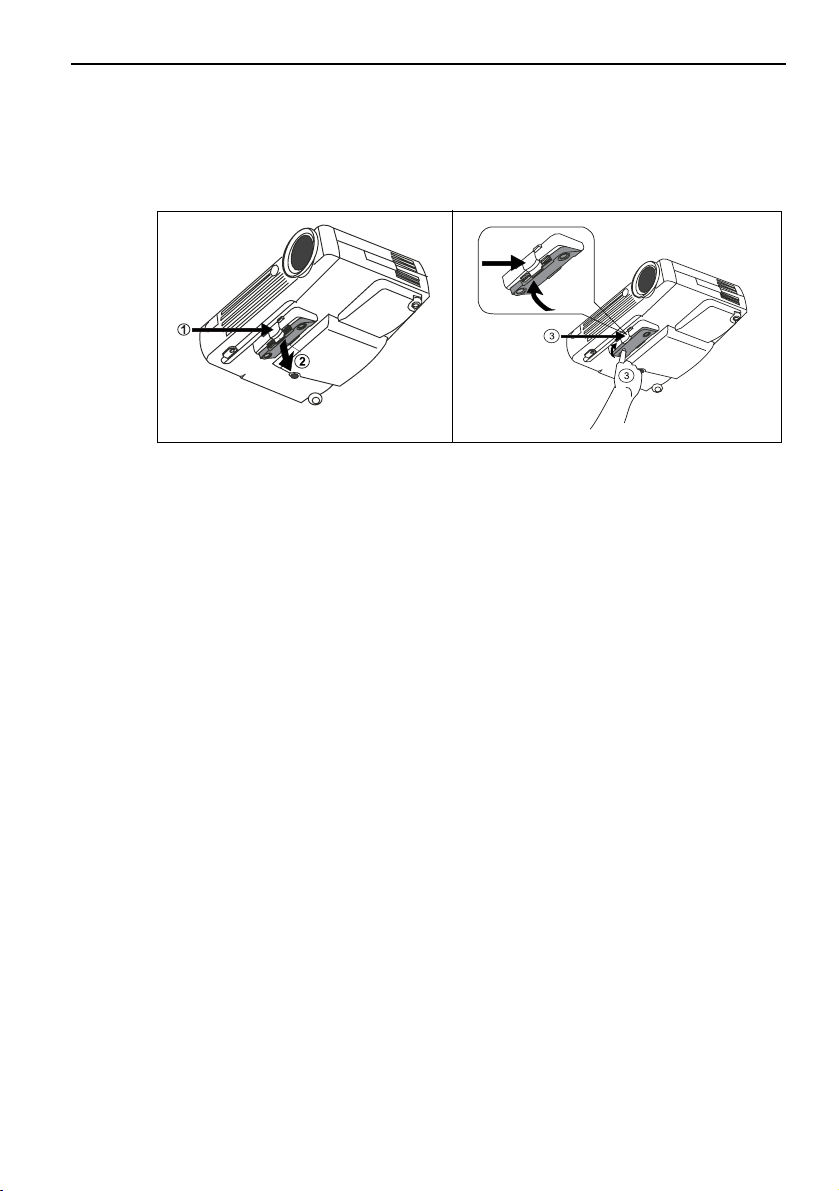

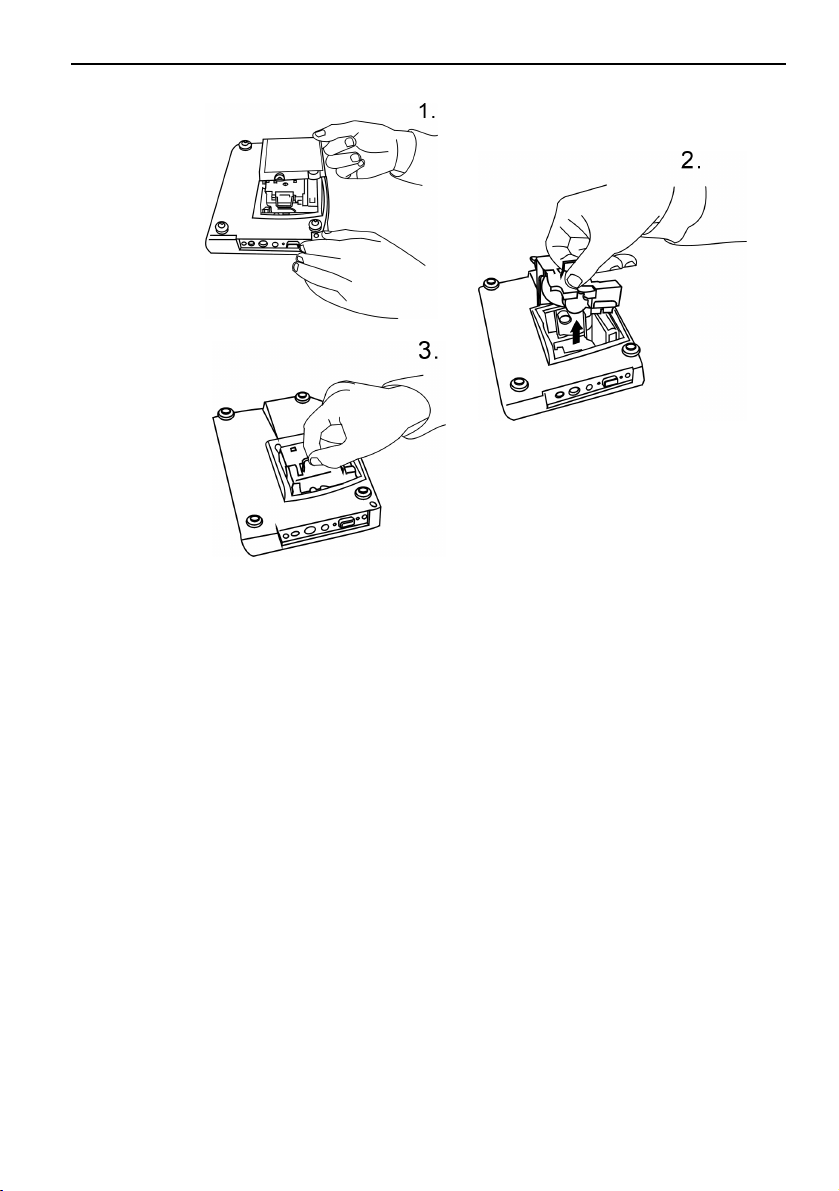

Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

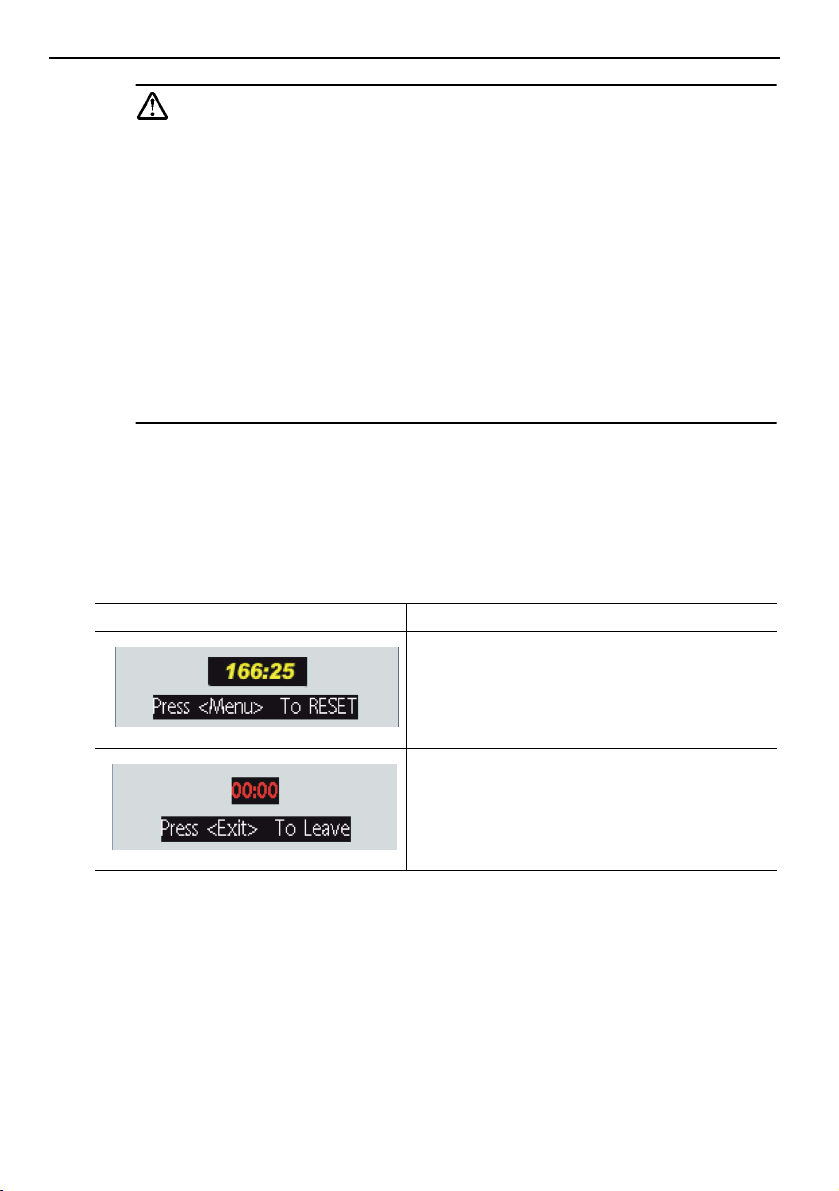

Resetting Lamp Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Accessories (Included in the Standard Package). . . . . . . . . . . . . . . . . . . . . . . 23
Table of Contents
iii
Page 4
BOXLIGHT XD-15c User’s Guide
Optional Accessories (Not Included in the Standard Package) . . . . . . . . . 23
Ordering Parts or Getting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Projector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

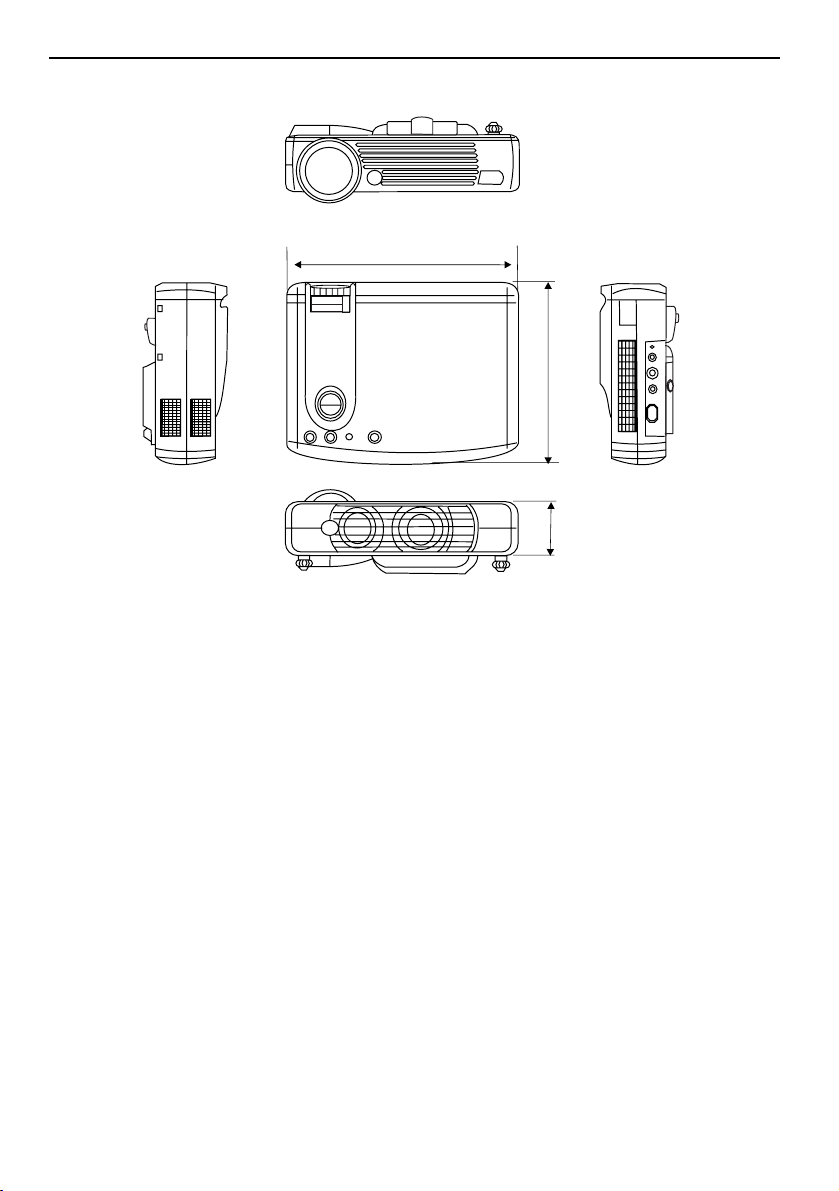

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table of Contents
iv
Page 5
INTRODUCTION
Caution
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER –SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. PLEASE READ THIS USER’S GUIDE BEFORE YOU
OPERATE YOUR PROJECTOR. SAVE THIS USER’S GUIDE FOR
FUTURE REFERENCE .
Safety Instructions
1. Read this user’s guide before you operate your projector and save it for future reference.
2. The lamp becomes extremely hot during operation. Allow the projector to cool
for approximately 45 minutes prior to removing the lamp assembly for
replacement. Do not operate lamps beyond the rated lamp life. Excessive
operation of lamps beyond the rated life could cause them to explode on rare
occasions.
3. Never replace lamp assembly or any electronic components unless the projector is unplugged.
4. To reduce the risk of electric shock, do not disassemble this appliance. Take it to
a qualified technician when service or repair is required. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
5. Do not place this product on an unstable cart, stand, or table. The product may
fall, sustaining serious damage.
6. This product is capable of displaying inverted images for ceiling mount
installation. Please use suitable equipment for mounting the unit and ensure it is
securely installed.
BOXLIGHT XD-15c User’s Guide
Caution
• Always open the lens shutter or remove the lens cap when the projec-
tor lamp is on.
• Do not look straight at the projector lens during operation. The intense
light beam may damage your eyes.
• In some countries, the line voltage is NOT stable. This projector is
designed to operate safely within a bandwidth of 110 to 240 volts, but
could fail if power cuts or surges of ±10 volts occur. In these high-risk
areas, it is recommended to install a power stabilizer unit to be used in
conjuction with this projector.
Save this user’s guide: The information contained in this manual will assist you in operating and maintaining your personal projector.
Introduction
1
Page 6
BOXLIGHT XD-15c User’s Guide
Warranty
LIMITED WARRANTY
Boxlight ("Boxlight") warrants that each XD-15c ("the Product") sold hereunder will conform to and function in accordance with the written specifications of Boxlight. Said limited
warranty shall apply only to the first person or entity that purchases the Product for personal or business use and not for the purpose of distribution or resale. Said warranty shall
continue for a period of two (2) years from the date of such purchase. The standard limited
warranty excludes the lamps in projectors after 120 days and the accessories after one year.
Boxlight does not warrant that the Product will meet the specific requirements of the first
person or entity that purchases the Product for personal or business use. Boxlight's liability
for the breach of the foregoing limited warranty is limited to the repair or replacement of
the Product or refund of the purchase price of the Product, at Boxlight's sole option.
Replacement Product may be re-furbished in "like-new" condition, at Boxlight's sole discretion. To exercise the Purchaser's rights under the foregoing warranty, the Product must be
returned at the Purchaser's sole cost and expense, to Boxlight or to any authorized Boxlight
service center provided, and the Product must be accompanied by a written letter explaining the problem and which includes (i) proof of date of purchase; (ii) the dealer's name; and
(iii) the model and serial number of the Product. When sending your unit in for repair,
please ship your unit in its original packing material or a Boxlight approved ATA Shipping
Case, or have a professional packaging company pack the unit. Please insure your shipment
for its full value. A return authorization number, issued by the Boxlight customer service
department, must also be clearly displayed on the outside of the shipping carton containing
the Product.
Introduction
2
WARRANTY LIMITATION AND EXCLUSION
Boxlight shall have no further obligation under the foregoing limited warranty if the Product
has been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical
stress (unusual physical and electrical stress includes unusually long operation, exposure to
smoke and other airborne contaminants), unauthorized modifications, tampering, alterations, or service other than by Boxlight or its authorized agents, causes other than from
ordinary use or failure to properly use the Product in the application for which said Product
is intended.
DISCLAIMER OF UNSTATED WARRANTIES
THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS
PURCHASE. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES
THAT EXTEND BEYOND THE FACE HEREOF AND THE FOREGOING WARRANTY
SHALL NOT BE EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY BOXLIGHT. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT
APPLY TO YOU.
Page 7
BOXLIGHT XD-15c User’s Guide
LIMITATION OF LIABILITY
IT IS UNDERSTOOD AND AGREED THAT BOXLIGHT'S LIABILITY WHETHER IN
CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE
PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL BOXLIGHT
BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE STATED FOR
THE PRODUCT IS A CONSIDERATION IN LIMITING BOXLIGHT'S LIABILITY. NO
ACTION, REGARDLESS OF FORM, ARISING OUT OF THE AGREEMENT TO PURCHASE THE PRODUCT MAY BE BROUGHT BY PURCHASER MORE THAN ONE
YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
FCC Statement
FCC STATEMENT - CLASS A: This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual,
may cause interference to radio communications. It has been tested and found to comply
with the limits for a Class “A” computing device pursuant to Subpart B of Part 15 of the
FCC Rules, which are designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a residential
area is likely to cause interference, in which case the user at his/her own expense will be
required to take whatever measures may be required to correct the interference.
FCC STATEMENT - CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the distance between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.
Introduction
3
Page 8
BOXLIGHT XD-15c User’s Guide
Shipping Contents
The projector is shipped with the cables required for connection to standard PC or
laptop computers. Carefully unpack and verify that you have all the items shown below.
If any of these items are missing, please contact BOXLIGHT.
Optional Accessories
Introduction
4
1. Mac adapter (switchable)
2. Spare lamp module
Page 9
Projector Description
Projector
BOXLIGHT XD-15c User’s Guide
1. External control panel (see next page)
2. Projection lens
3. Front adjustment feet
4. IR remote sensor
5. Ventilation grill
6. Kensington lock
7. AC power cord input
8. S-video connector
9. Video connector
10. D-sub connector (for computer/ HDTV input)
11. Audio input
12. Rear adjustment feet
13. Lamp access door (underneath unit)
12
5
Introduction
5
Page 10
BOXLIGHT XD-15c User’s Guide
External Control Panel
Keystone/ Left
Menu
Exit
Keystone/ Right
Auto Source
Lamp status
indicator
Power
• The Infrared Remote Receiver (Front and Rear) allows the projector to
accept signals from the remote control. For best results, be sure to aim the control
toward the sensor without any obstructions between the two, and at a distance no
greater than 6 meters (20 feet).
• Menu will display the menu system on screen. Press Menu again to access the
sub-menus. Left and Right help you navigate among choices and settings in the
menus and sub-menus. However, when the on screen menu is not activated, the
Left and Right buttons will function as Keystone +/- hot keys.
•Press the Exit button to go back to the main menu. Press Exit again to leave the
menu system.
•The Status Indicator will blink or light up when the lamp needs service, cooling
or replacement. See “Lamp Information” on page 20 for more detailed information.
• When the projector is on, Back-lit Power will blink during warm-up and turn to
solid green to indicate the projector is ready for use.
• Press and hold Power for 1 second to turn the projector on or off.
• Auto key: Automatically sense the best picture quality for current received signals.
• Source key: Select signal sources, PC, Video, S-video and YPbPr.
Introduction
6
Page 11
BOXLIGHT XD-15c User’s Guide
Adjuster
The projector is equipped with a quick-release adjuster foot and button for adjusting
its tilt angle.
1. Lift the projector up and press the adjuster button to release the adjuster.
2. The adjuster will drop into position and be locked.
Projector Features
The projector integrates high performance optical engine projection and user-friendly
design to deliver high reliability and ease of use.
The Projector offers the following features:
• Compact and portable unit
• Full-function remote control
• Manual zoom lens
• One key auto-adjustment to display the best picture quality
• Easy digital keystone correction through hot keys to correct distorted images
• Adjustable color balance control for data/video
• Ultra-high brightness projection lamp
• Ability to display high quality 16.7 million colors
• On screen menus in 7 languages: English, French, German, Italian, Spanish,
Simplified Chinese, and Traditional Chinese.
• Powerful AV function to provide high AV picture
BPR
• HDTV compatibility (YP
Note: The brightness of your machine will vary depending on the ambient
room conditions and contrast/brightness settings.
)
Introduction
7
Page 12
BOXLIGHT XD-15c User’s Guide

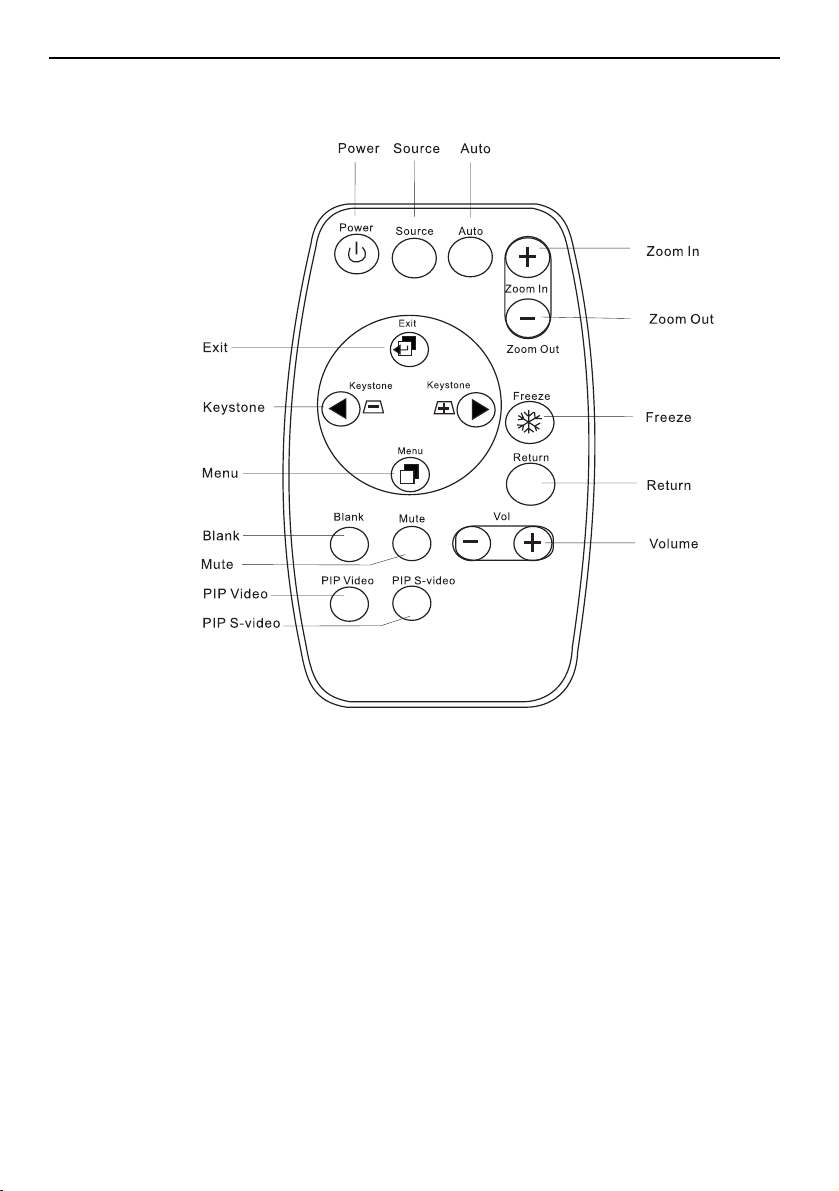

Remote Control Description
Remote Control Features
The remote control sensors are located in the front/ back of the projector. The
distance between the sensor and the remote control should not exceed 6 meters (20
feet).
Introduction
8
Page 13
BOXLIGHT XD-15c User’s Guide

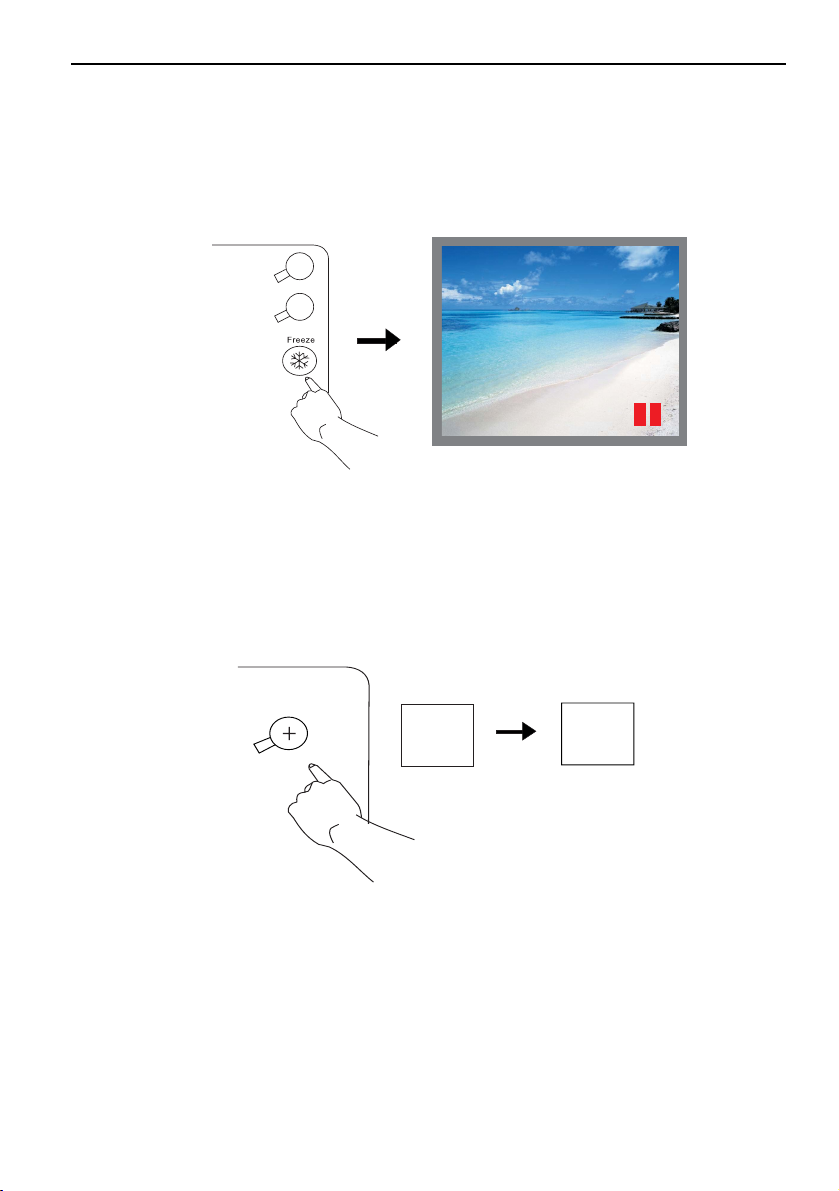

FREEZE
The image can be frozen when FREEZE is pressed. A “Pause” icon will appear in the
lower right corner of the screen for three seconds. To release the freeze function,
press the FREEZE button, RETURN button or SOURCE button (when the input
source is switched over during display) again. A “Play” icon will appear in the lower
right corner of the screen for three seconds when the freeze function is released.
ZOOM IN/OUT
By pressing ZOOM IN +, the center of the picture will be magnified. When the +
button is pressed again, the picture is further magnified, up to four times the original
size. By pressing ZOOM OUT -, the size of the image is reduced. When the - button
is pressed again, the picture is further reduced until it is restored to its original size.
To return to the normal display mode, press the RETURN button. (This function can
be used in combination with FREEZE. )
Zoom In
A
A
Introduction
9
Page 14
BOXLIGHT XD-15c User’s Guide
Installing or Replacing Batteries
• Push and slide the battery compartment lid in the direction shown.
• Install batteries as indicated by the diagram inside the compartment.
• Position the lid over the compartment and snap it back into place.
Caution
Avoid excessive heat and humidity. There may be danger of an explosion if
batteries are incorrectly replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
10
Introduction
Page 15
INSTALLATION
Screen Size
Place the projector at the required distance from the screen according to the desired
picture size (see the table below).
BOXLIGHT XD-15c User’s Guide
L Projection Distance
Diagonal
154/60.8 123.65/49 92.7/36 200/79 127/49.9 101.3/40 76.0/30
232/91.2 185.3/73 138.9/55 300/118 190/74.7 151.9/60 113.9/45
309/121.5 247.0/97 185.2/73 400/157 253/99.7 202.5/80 151.9/60
386/151.9 308.7/122 231.6/91 500/197 316/124.6 253.2/100 189.9/75
463/182.3 370.5/146 277.9/109 600/236 380/149.5 303.8/120 227.9/90
541/213.1 432.2/170 324.18/128 700/276 443/174.6 354.4/140 266.2/105
617/243.1 494.0/194 370.5/146 800/315 506/199.4 405.1/160 303.8/120
695/273.5 555.7/219 416.7/164 900/354 570/224.3 455.7/180 341.8/135
772/303.9 617.5/243 463.11/182 1000/394 633/249.2 506.3/200 379.8/150
Screen Size (Max.)
(cm/in)
77/30.4 61.8/24 46.3/18 100/39 63/24.9 50.7/20 38.0/15
A. Width
(cm/in)
C. Height
(cm/in)
L. Projection
distance (cm/in)
Diagonal
(cm/in)
Screen Size (Min.)
B. Width
(cm/in)
D. Height
(cm/in)
Connecting to Various Equipment
It only takes a few seconds to connect your projector to your computer/notebook,
VCR or other systems. However, a Mac adapter (an optional accessory) is needed for
connection for Macintosh users.
Audio
Video
S-Video
Computer/
HDTV
S-Video/
Video
Installation
11
Page 16
BOXLIGHT XD-15c User’s Guide
OPERATION
Start Up
1. Plug the power cord into a wall socket.
2. Press POWER for 1 second.
Projector
Power
Remote Control
Power
• The back-lit POWER key blinks green and stays green when the power is turned
on.
(When the power is turned off, there is a 60-second cooling period before the
projector can be re-started.)
3. Switch on all connected equipment.
12
Operation
Page 17
BOXLIGHT XD-15c User’s Guide

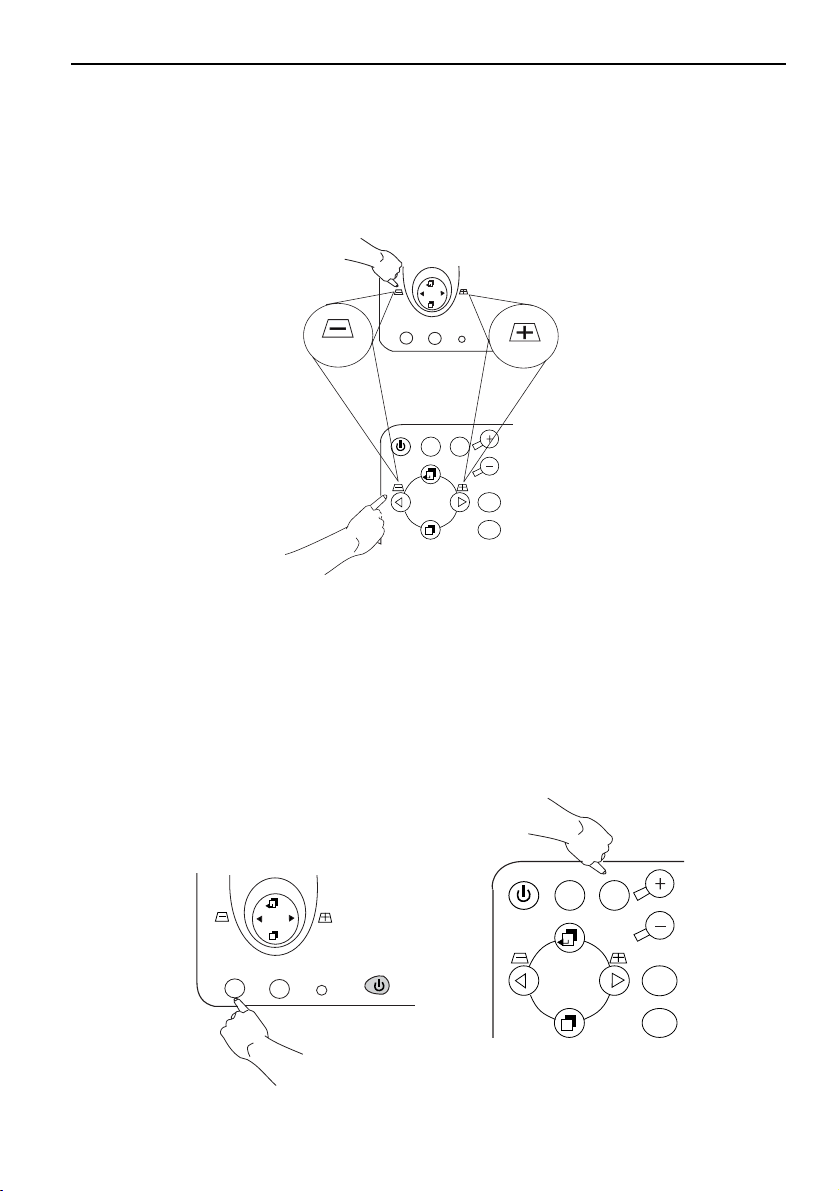

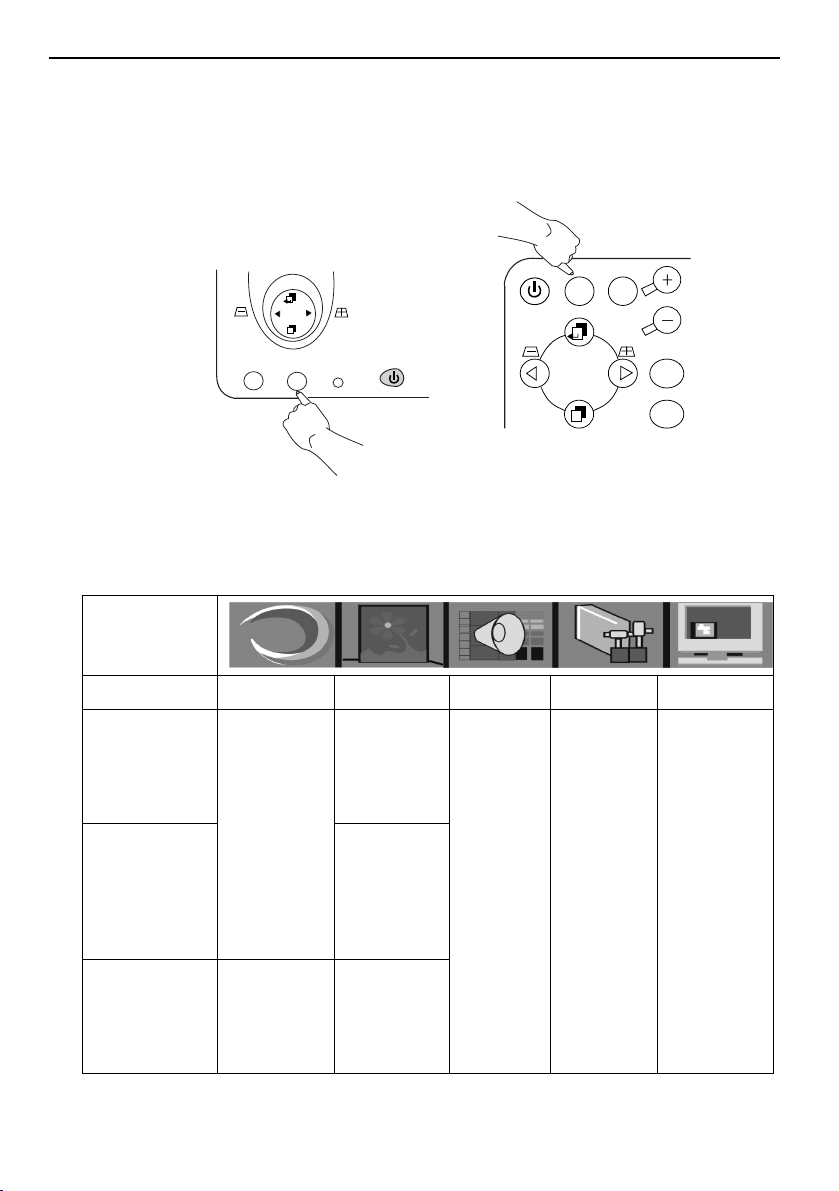

Digital Keystone Correction
Keystoning refers to the situation where the projected image is noticeably wider at
either the top or bottom. To correct this, press KEYSTONE +/- (hot key) on the
control panel of the projector or on the remote control, then adjust the sliding bar
labeled Keystone, as needed. Press + to correct keystoning at the top of the image.
Press - to correct keystoning at the bottom of the image.
Projector
Auto Source
Remote control
Auto Adjustment
In some cases, you may have to optimize the picture quality manually. To do this,
press the AUTO key on the control panel of the projector or on the remote control.
Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust to
the best picture quality.
Projector
Auto Source
Remote control
Auto
Operation
13
Page 18
BOXLIGHT XD-15c User’s Guide
Source Selection
When several input sources are available, press the SOURCE key to make a selection
from the control panel of the projector or the remote control.
Projector
Remote control
Source
Power
Auto Source
Power
Menu System
Press Menu for the main menu and press 3or
again to select items in the sub-menu.
Menu Bar
Sub-menu Display Image Source Control PIP
PC
Keysto ne
Brightness
Contrast
Phase
H.Size
Auto resize
H-position
V-position
Color Temp
Information
Auto resize
H-position
Y/Pb/Pr
V-position
Color
Tint
Color Temp
Video
Keysto ne
Brightness
Contrast
Color
Tint
Ratio
Syste m
Sharpness
Color Temp
Information
4 to
Mirror
Source
Vo lu me
Tr e b l e
Bass
Mute
select a sub-menu. Press Menu
Langauge
OSD
OSD Time
Auto Off
Res et
Lamp hour
Main page:
PIP Source
PIP Size
PIP Pos.
H. Position
V.Posit ion
More
Options
Sub Page:
Brightness
Contrast
Color
Tint
Sharpness
Syst em
14
Operation
Page 19

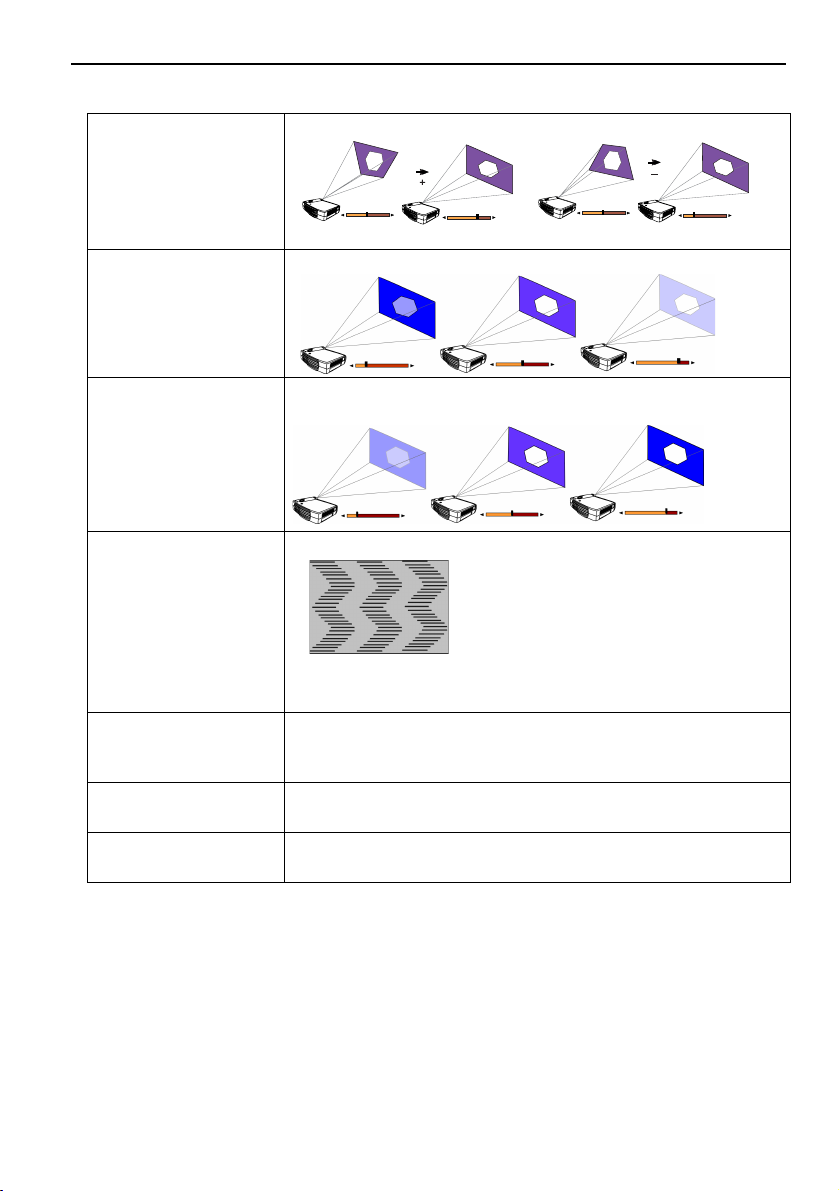

1. Display Menu
Keystone
Brightness
Contrast
Phase
BOXLIGHT XD-15c User’s Guide
Corrects any keystoning of the image.
Adjusts the brightness of the image.
Adjusts the degree of difference between darkness and lightness of
the image.
Adjusts to avoid the occurrence of flicker.
H.Size
Color
Tint
*This function is not available when the input modes are Video, SVideo.
Adjusts to fit in the desired image size.
*This function is not available when the input modes are Video, SVideo.
Increases or decreases the color range (R, G, B) of the image.
*This function is not available when the input mode is PC.
Adjusts the image to make it appear more red or blue.
*This function is not available when the input mode is PC.
Operation
15
Page 20
BOXLIGHT XD-15c User’s Guide

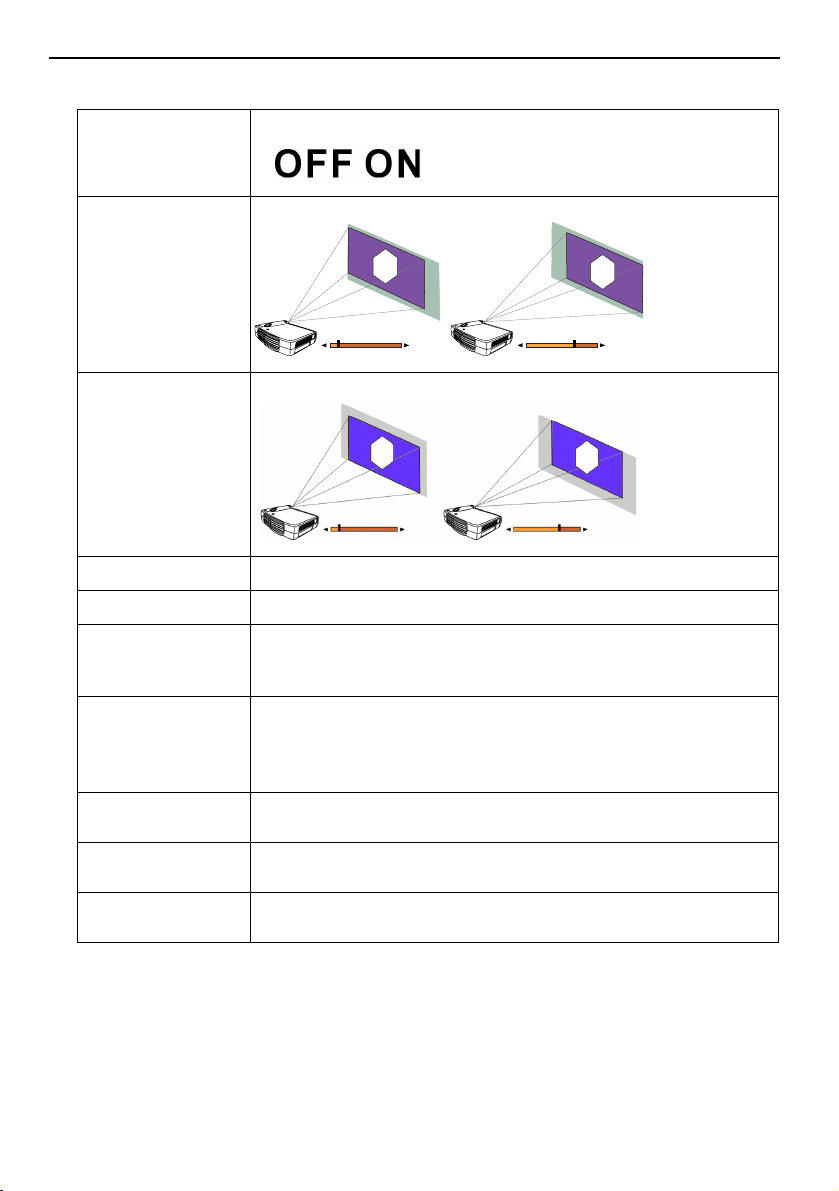

2. Image Menu
Auto resize
H-position
V-position
Makes the best fit of the image to the screen,
Adjusts the horizontal position of the projected image.
Adjusts the vertical positon of the projected image.
16
Operation
Color Temp.
Information
Ratio
System
Sharpness
Color
Tint
Adjusts the color temperature to fit your preference.
Shows the current resolution.
Users have 2 options for the image ratio.
1. 4:3 (Normal) 2. 16:9 (Wide)
*This function is not available when the input modes are PC, YPbPr.
4 modes can be selected.
1. Auto 2. PAL-M 3. PAL-N 4.SECAM
*The default setting of System is Auto.
*This function is not available when the input modes are PC, YPbPr.
Adjusts the image to make it look sharper or softer.
*This function is not available when the input modes are PC, YPbPr.
Increases or decreases the color range (R, G, B) of the image.
*This function is not available when the input mode is PC.
Adjusts the image to make it appear more red or blue.
*This function is not available when the input mode is PC.
Page 21

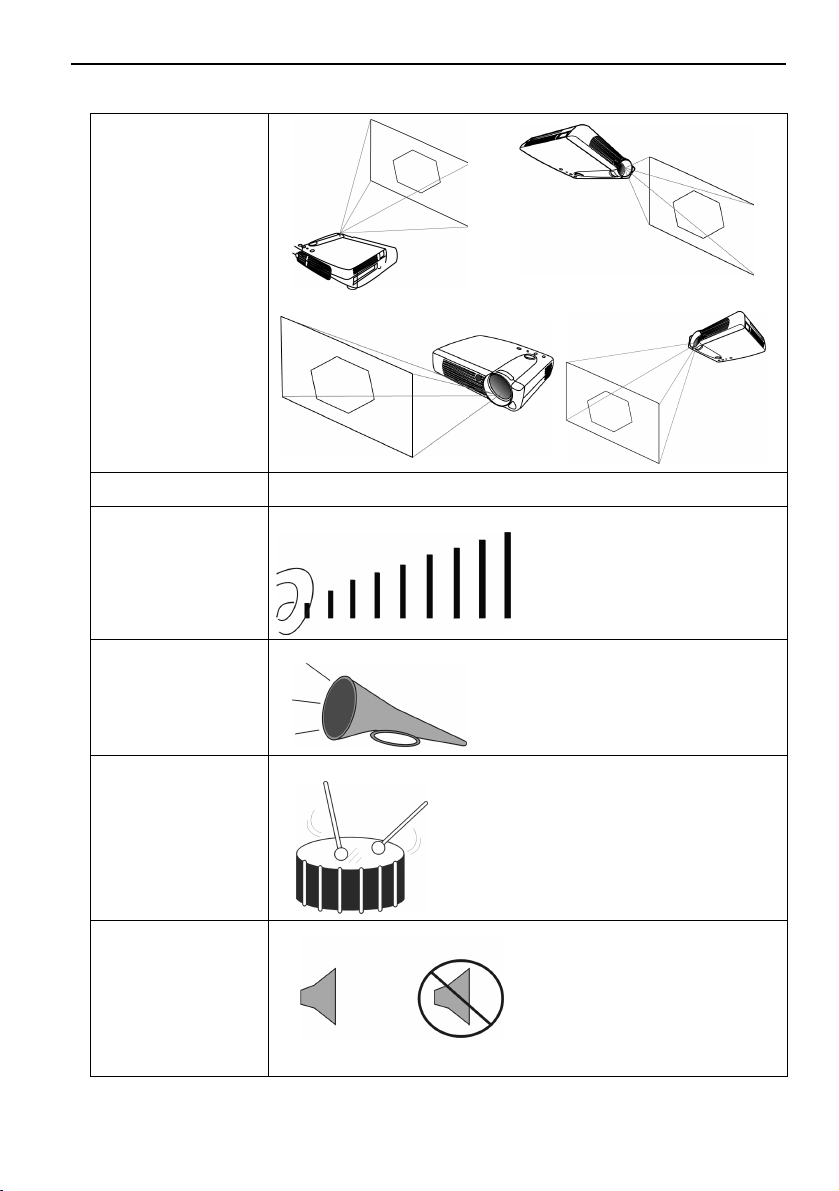

3. Source Menu
BOXLIGHT XD-15c User’s Guide
Mirror
1. Default
2. Ceiling mounted
projection
3. Rear screen projection
4. Ceiling mounted and
rear screen
projection
Source
Volume
Treble
1.
3.
Selects sources between PC, Video, S-Video, and YPbPr.
Adjusts the volume level.
Adjusts the treble level.
2.
4.
Bass
Mute
Adjusts the bass level.
Off
On
Operation
17
Page 22
BOXLIGHT XD-15c User’s Guide
4. Control Menu
Language
OSD
OSD Time
Auto Off
Reset
Lamp Hour
5. PIP Menu
These functions are valid only when the input mode is PC and the PIP source is Video or
S-Video.
PIP Source
PIP Size
PIP Position
H Position
V Position
More Options
Brightness
Contrast
Color
Tint
Sharpness
System
Language sets the OSD to display in one of 7 languages.
Use 3 / 4 key to select the languages: English, French, German, Italian, Spanish, Simplified Chinese and Traditional Chinese.
Selects a desired OSD position.
Sets the length of time the OSD will remain active after the last
time you pressed the button. The range is from 5 to 60 seconds in 5-second increments.
Sets the length of time to shut off the system when no input is
detected.
Returns all settings to the time of manufacturing.
Shows lamp usage time.
Selects the source for the PIP.
Uses 3 / 4 key to scroll through the 4 alternatives: Off,
Small, Medium, Large.
Selects a desired position for the PIP.
Adjusts the horizontal position of the PIP image.
Adjusts the vertical position of the PIP image.
Uses 3 / 4 key to select more PIP functions including Brightness, Contrast, Color, Tint, Sharpness and System.
Adjusts the brightness of the PIP image.
Adjusts the degree of difference between dark and light for the
PIP image.
Increases or decreases the color range (R, G, B) of the image.
Adjusts the image to make it appear more red or blue.
Adjusts the image to make it appear sharper or softer
Selects PIP image systems: Auto, NTSC, PAL, SECAM
18
Operation
Page 23
BOXLIGHT XD-15c User’s Guide
Shutdown
1. Press POWER and a warning message will prompt up. To turn off the projector, Press POWER again.
2. The fan will continue to run for approximately 60 seconds.
Power
Power
3. Disconnect the power cord from the wall socket.
Caution
Please do not unplug the power cord before POWER is shut down or during the 60-second cooling process.
If the projector is not properly shut down, to protect the lamp, the system
will detect this and cool the lamp for two minutes automatically before
turning on again.
Operation
19
Page 24
BOXLIGHT XD-15c User’s Guide
MAINTENANCE
Lamp Information
Use and Replacement of Lamp
When the Lamp Indicator lights up red or a message appears suggesting the time of lamp
replacement, please install a new lamp or consult your dealer. An old lamp could cause a
malfunction in the projector and in rare instances may even explode.
LED Status Indicators
Lamp Life Indicators When this LED shows red continuously, it is warning you that
the lamp usage has exceeded 15 0 0 hours. Replace the projection lamp with a new one immediately.
CHANGE THE LAMP, AND
RESET THE LAMP TIMER
CHANGE THE LAMP. THE
POWER WILL TURN OFF
AFTER 20 HOURS
CHANGE THE LAMP! The lamp has been in operation for over 1500 hours. The
Lamp is not properly attached LED blinks rapidly.
Temperature is too high When the projector’s internal temperature is too high to
The lamp has been in operation for 1400 hours. Change a
new lamp for optimal performance.
The lamp has been in operation for 1480 hours, and the
power will turn off after 20 hours.
warning message will display for 30 seconds every 5 minutes
after you turn on the projector and the power will turn off
automatically in 10 minutes.
operate safely, the LED blinks slowly for one minute and the
lamp turns off automatically.
If the LED light is off, the projector’s lamp and temperature
are operating under normal conditions.
Caution
The LAMP indicator will light up if the lamp becomes too hot. Turn off the
power and let the projector cool for 45 minutes. If the LAMP indicator is still
red when turning the power on, please contact BOXLIGHT Technical Support at 1-800-762-5757 or +1-360-779-7901.
Lamp Replacement
Caution
To reduce the risk of electrical shock, always turn off the projector and disconnect the power cord before changing the lamp.
Maintenance
20
Page 25
BOXLIGHT XD-15c User’s Guide
1. Press the POWER button to switch off the projector. Disconnect the power
cord from the outlet and the projector.
2. Loosen the screw and remove the lamp cover. If the lamp is hot, avoid burns by
waiting 45 minutes until the lamp has cooled.
3. Loosen the 3 screws. (It is strongly recommended you use a magnetic-headed
screwdriver.) Pull the handle to remove the lamp housing. If the screws are not
loosened completely, they could injure your fingers. Do not insert your hand into
the box after the lamp is removed. If you touch the optical parts inside, this could
cause color unevenness.
4. Replace the lamp with a new one. Insert it into the projector, and tighten the
screws firmly. Loose screws may cause a bad connection, which may result in
malfunction.
5. Re-install the lamp cover and tighten the screw. Do not turn on the power
with the lamp cover removed. Whenever the lamp is replaced, reset the
total lamp operation time. Do not reset if the lamp is not replaced as this
could cause breakage.
Maintenance
21
Page 26
BOXLIGHT XD-15c User’s Guide
Caution
To reduce the risk of severe burns, allow the projector to cool for at least 45
minutes before replacing the lamp.
To reduce the risk of injuries to fingers and damage to internal components,
use caution when removing lamp glass that has shattered into sharp pieces.
Please call BOXLIGHT Technial Support if your lamp has exploded.
To reduce the risk of injuries to fingers and/or decreasing image quality by
touching the lens, do not touch the empty lamp compartment when the
lamp is removed.
This lamp contains mercury. Consult your local hazardous waste regulations
to dispose of this lamp in a proper manner.
Resetting Lamp Hours
If you replace the lamp after 1500 hours of operation, please follow the instructions
below within 10 minutes of power on.
OSD FUNCTION
Press the Exit button on the projector for 3
seconds to display the total used lamp time.
22
• Press the MENU button on the projector
during the lamp hour message. An
adjustment message will appear.
• Press W or X to rest lamp hours or press
EXIT to leave.
Maintenance
Page 27
BOXLIGHT XD-15c User’s Guide
Service Information
Accessories (Included in the Standard Package)
Power cord (EU)
Power cord (US)
Power cord (UK)
VGA signal cable
Video cable
S-Video cable
Audio cable
Audio - PC audio cable
Soft carrying case
Lens cover
Remote control
3-2 converter
Optional Accessories (Not Included in the Standard Package)
Mac adapter (switchable)
Spare lamp module
Ordering Parts or Getting Information
For product information, product assistance, service information, or to order
accessories, please contact BOXLIGHT Corporation at 1-800-762-5757 or +1-360779-7901 or visit the web site at www.boxlight.com
.
Maintenance
23
Page 28
BOXLIGHT XD-15c User’s Guide
TROUBLESHOOTING
Common Problems & Solutions
PROBLEMS TRY THESE SOLUTIONS
• Plug the power cord into the AC inlet.
NO POWER
NO PICTURE
TRAPEZOID
IMAGE ON
THE SCREEN
POOR COLOR
BLURRED
REMOTE
CONTROL
DOES NOT
WORK
• Plug the power cord into the power inlet.
• Wait two minutes after the projector is turned off before turning
the projector back on.
• Check for the proper input source.
• Ensure all cables are connected properly.
• Adjust the brightness and contrast.
• Remove the lens cap.
• Reposition the unit to improve its angle on the screen.
•Use the Keystone correction key on the control panel of the
projector or the remote control unit.
• Select the correct video system.
• Adjust brightness, contrast, or saturation.
•Press Auto on the control panel of the projector or the remote
control unit to get better picture quality.
• Adjust the focus.
• Reposition the unit to improve its projection angle.
• Ensure the distance between the unit and screen is within the
adjustment range of the lens.
• Replace the batteries with new ones.
• Make sure there is no obstacle between the remote control and
the projector.
• Stand within 6 meters (20 feet) of the unit.
• Make sure nothing is blocking the front and rear receivers.
Troubleshooting
24
Page 29
Status Messages
On Screen Messages Description
SEARCHING
INPUT SIGNAL
DETECTED,
ACTIVATING AUTO
SYNC IS OUT OF
RANGE
CHANGE THE LAMP,
AND RESET THE LAMP
TIMER
CHANGE THE LAMP,
THE POWER WILL
TURN OFF AFTER 20
HOURS
CHANGE THE LAMP!
Projector is searching for input.
Projector has identified the input signal and is running the auto
image adjustment function.
Input signal frequency exceeds the projector’s range.
The lamp has been in operation for 1400 hours. Lamp replacement is recommended.
The lamp has been in operation for 1480 hours, and the power
will turn off after 20 more hours. Replace the lamp as soon as
possible.
The lamp has been in operation for over 1500 hours, and the
power will turn off automatically in 10 minutes. Replace the
lamp immediately.
BOXLIGHT XD-15c User’s Guide
Troubleshooting
25
Page 30
BOXLIGHT XD-15c User’s Guide
SPECIFICATIONS
Projector Specifications
Technical Specifications
Note: All specifications are subject to change without notice.
General
Product name Personal Projector
Model name BOXLIGHT XD-15c
Optical
Display system 1-CHIP DMD
Lens F/Number F/2.6
Lamp 120W VIP lamp
Electrical
Power supply AC100 ~ 240V, 2.3A, 50/60 Hz (Automatic)
Power consumption 185 W (Max)
Mechanical
Dimensions 220mm/8.7in(W) x 52mm/2.1in(H) x 175mm/6.9in(D)
Operating Temperature
range
Weight 3.85 lbs (1.69 Kg)
Input terminal
Computer Input
RGB/ HDTV Input D-sub 15-pin (female)
Video Signal Input
S VIDEO Mini DIN 4-pin terminal
VIDEO RCA Jack terminal
Audio Signal Input
Audio Mini Jack Stero Terminal
Output
Speaker 1 Watt x 1
1024X768 XGA
10°C ~ 40°C
Specifications
26
Page 31
BOXLIGHT XD-15c User’s Guide
Timing Chart
Resolution H Sync (kHz) V Sync (Hz) Remark
640x350 31.5 70.1
640x400 37.9 85.1 VESA
720x400 31.5 70.0
720x400 37.9 85.1 VESA
640x480 31.5 60.0 VESA
640x480 37.9 72.8 VESA
640x480 35.0 66.7 Macintosh
640x480 43.3 85.0 VESA
800x600 35.2 56.3 VESA
800x600 37.9 60.3 VESA
800x600 46.9 75.0 VESA
800x600 48.1 72.2 VESA
800x600 53.7 85.1 VESA
832x624 49.7 74.5 Macintosh
1024x768 48.4 60.0 VESA
1024x768 56.5 70.1 VESA
1024x768 60.0 75.0 VESA
1024x768 68.7 85.0 VESA
1280x1024 64.0 60.0 VESA
Specifications
27
Page 32
BOXLIGHT XD-15c User’s Guide
DIMENSIONS
220mm
175 mm
52mm
28
Dimensions
