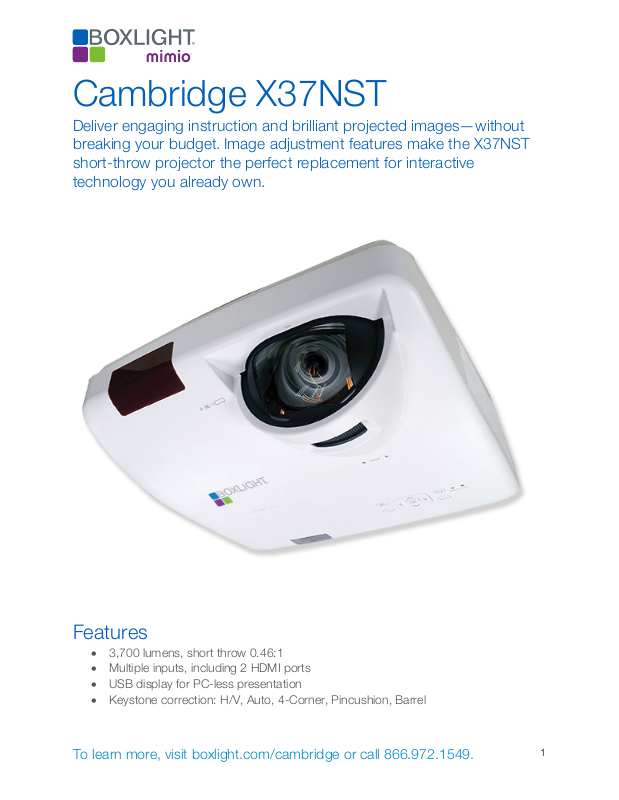

Cambridge X37NST
Deliver engaging instruction and brilliant projected images—without
breaking your budget. Image adjustment features make the X37NST
short-throw projector the perfect replacement for interactive
technology you already own.
Features
• 3,700 lumens, short throw 0.46:1
• Multiple inputs, including 2 HDMI ports
• USB display for PC-less presentation
• Keystone correction: H/V, Auto, 4-Corner, Pincushion, Barrel
Page 2
To learn more, visit boxlight.com/cambridge or call 866.972.1549.
2
Specifications
Display
Brightness
3,700 lumens (2,600 eco)
Light Source
218W Phillips, low-pressure mercury vapor
Lamp Life (typical)
4,000 hrs. (standard); 10,000 hrs. (eco)
Native Aspect Ratio
4:3 (standard); 16:10 (compatible)
Native Resolution
XGA 1,024 x 768
Supported Resolution
Up to WUXGA 1,920 x 1,200
Image Size (diagonal)
50 in. ~ 100 in. / .455 m ~ .943 m
Keystone Correction
V: ±15°（auto and manual）
H: ±15°（manual）
Pincushion/Barrel Correction
Corner Keystone
Contrast Ratio (typical)
10,000:1 (with IRIS and eco mode)
Color Reproduction
1.07 billion
Color Uniformity
80%
Projection Lens
f=1.8
Projection Lens
f=6.08mm
Zoom Ratio
N/A
Throw Ratio
0.46:1
Focus Type
Manual
Projection Technology
3 x 0.63 in. LCD (Liquid Crystal Display)
Page 3
To learn more, visit boxlight.com/cambridge or call 866.972.1549.
3
Closed Captioning
CC1, CC2, CC3, CC4
Audio/Video Connections
Digital A/V Inputs
- HDMI x 2 (1 x MHL) Mobile High-Definition Link
- USB-A
1. Memory card viewer
2. Wi-Fi dongle (optional accessory)
- USB-B
- LAN x 1 (also control)
Video Analog Inputs
- VGA x 1 (also YCbCr/component, S-Video)
- VGA x 1 (switched in/out)
- Video x 1
Video Analog Outputs
- VGA x 1 (switched in/out)
Audio Analog Inputs
- RCA L/R (mono) x 1
- 3.5mm x 1
Audio Analog Outputs
- 3.5mm x 1
Speaker
10 W x 1
Control
Control
- RJ45 x 1 (shared with video)
- RS-232C
LAN Control Protocols
- Crestron RoomView
- AMX Discovery
- PJ Link
Service/Network
USB-B x 1 (shared with video)
Mechanical
Mounting
Table/ceiling, front/rear
Security
- Security bar
- Password
- Control panel lock
- Kensington lock
General
Power Supply
100~240V @ 50/60Hz
Power Consumption
- 270 W (typical)
- <0.5 W (eco standby)
- <3 W (network standby)
Page 4
To learn more, visit boxlight.com/cambridge or call 866.972.1549.
4
Fan Noise Max
34.9dB (eco)
38.9dB (normal)
Lamp Access
Top
Filter Access
Side
Environmental
Operating Temperature
0°C ~ 40°C (35°C ~ eco)
Storage Temperature
-20°C ~ 60°C
Operating Humidity
20% ~ 85%
Storage Humidity
10% ~ 85%
Dimensions and Weight
Product Dimensions
347 mm x 341 mm x 142 mm
(13.66 in. x 10.43 in. x 5.6 in.)
Net Weight
4 kg
(8.8 lbs.)
Packaged Dimensions
463 mm x 458 mm x 211 mm
(18.2 in. x 18.1 in. x 8.3 in.)
Gross Weight
5 kg
(12.1 lbs.)
Safety
Certifications
TUV, CE, CB, FCC
Accessories
Included Accessories
- CD user manual
- Quick Start Guide
- 2 M Power cord
- 3 M HDMI
- Remote (with batteries)
Page 5
To learn more, visit boxlight.com/cambridge or call 866.972.1549.
5
What’s in the box
Hardware
• Remote control with batteries
Documentation
• Warranty card
• QuickStart Guide
• CD User manual
Cables
• HDMI cable (2 m)
• US power cord (3 m)
Options
• Lamps for Life
• ALLIN1-980 universal ceiling mount
• USB-Wi-Fi wireless USB adapter
Specifications are subject to change without notice.
