Boxlight X30N-W Product Sheet

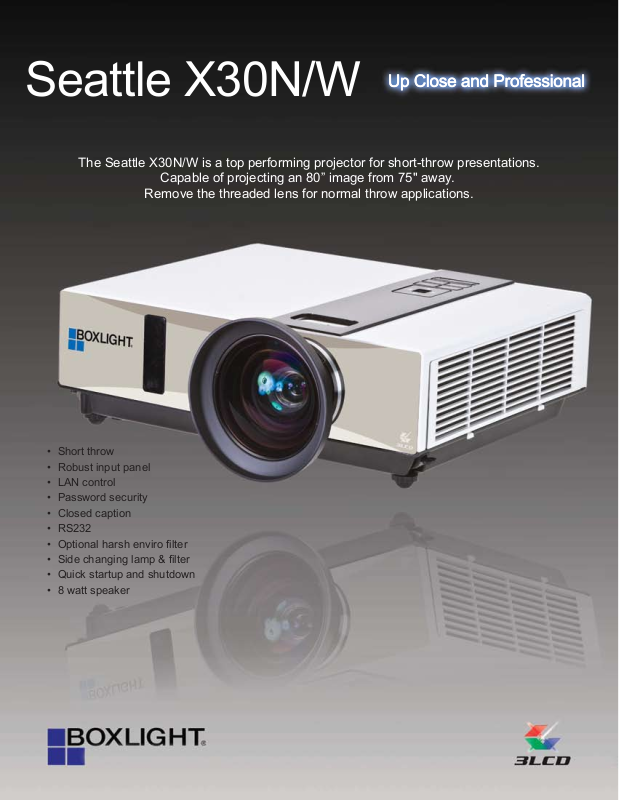

Seattle X30N/W

The Seattle X30N/W is a top performing projector for short-throw presentations.

Capable of projecting an 80” image from 75" away.

Remove the threaded lens for normal throw applications.

Up Close and Professional

• Short throw

• Robust input panel

• LAN control

• Password security

• Closed caption

• RS232

• Optional harsh enviro filter

• Side changing lamp & filter

• Quick startup and shutdown

• 8 watt speaker

Seattle X30N/W

Specications

BRIGHTNESS

3000 Lumens (Standard)
1950 Lumens (Economy)

RESOLUTION

1024 x 768 XGA (Native)
1600 x 1200 UXGA (Compatible)

DISPLAY TYPE

0.63” LCD x 3

CONTRAST RATIO

500 :1

ASPECT RATIO

4:3 Native
16:9 Compatible

THROW RATIO

1.0 ~ 1.2 (x screen width)

PROJECTION LENS

Manual Zoom & Focus

ZOOM RATIO

1.2:1

DIAGONAL IMAGE SIZE

40” - 300”

101.6cm - 762cm

THROW DISTANCE

3.33’ - 25’

1.01cm - 7.62cm

KEYSTONE

+/- 30º Vertical

LAMP

230 watt UHP

LAMP LIFE

2000 (Standard)
3000 (Economy)

INPUTS

VGA
DVI-I
Composite
S-Video
Component
Audio x 2 (3.5mm)

OUTPUTS

VGA
Audio (3.5mm)

PROJECTOR CONTROLS

USB
RS232 (9-pin)
RJ45 LAN Connection

COMPATIBILITY

VGA, SVGA, XGA, SXGA, UXGA,
Mac

EDTV / SDTV / HDTV

480i/p, 576i/p, 720p, 1080i

FCC CERTIFICATION

FCC-B, UL, cUL, TUV, CD, CE, CCC

VIDEO COMPATIBILITY

NTSC, NTSC 4.43, PAL M/N 60, SECAM

AUDIO

1 x 8w Mono Speaker

DECIBEL RATING

33 dB (Standard) / 30 dB (Economy)

H-REFRESH RATE

31-92 kHz

V-REFRESH RATE

48-120 Hz

POWER SUPPLY

AC 100 ~ 240 Volts
50-60Hz (Auto ranging)

POWER CONSUMPTION

310 Watts (Standard)
<5w standby

DIMENSIONS (WxDxH)

12.8” x 10.24” x 3.8”

32.5cm x 26cm x 9.7cm

WEIGHT

7.3 lbs

3.3 kg

WARRANTY

3 year parts & labor / 90 day lamp

Special features of the
Seattle X

Short Throw Lens – Ideal for small
rooms or short throws.

LAN Connectivity– For network
installation. Manage your projectors
through a web-based platform.

Quick Start Up and Shut Down –

Set up and present quickly, and only
a 10 second cool down cycle when
you finish.

Side Changing Lamp and Filter –

Easy lamp installation and projector
maintenance. No need to remove the
projector from ceiling mount position.

30N/W include:

Throw Distance (Ft)

4.0’ - 4.8’

2.7’ - 3.2’

40

Diagonal Image Size (Inches)

5.3’ - 6.4’

60

6.7’ - 8.0’

10.0’ - 12.0’

80

20.0’ - 24.0’

13.3’ - 16.0’

300

200

150

100

www.boxlight.com

360.464.2119

©2009 BOXLIGHT, Inc. Specications subject to change without notice.
