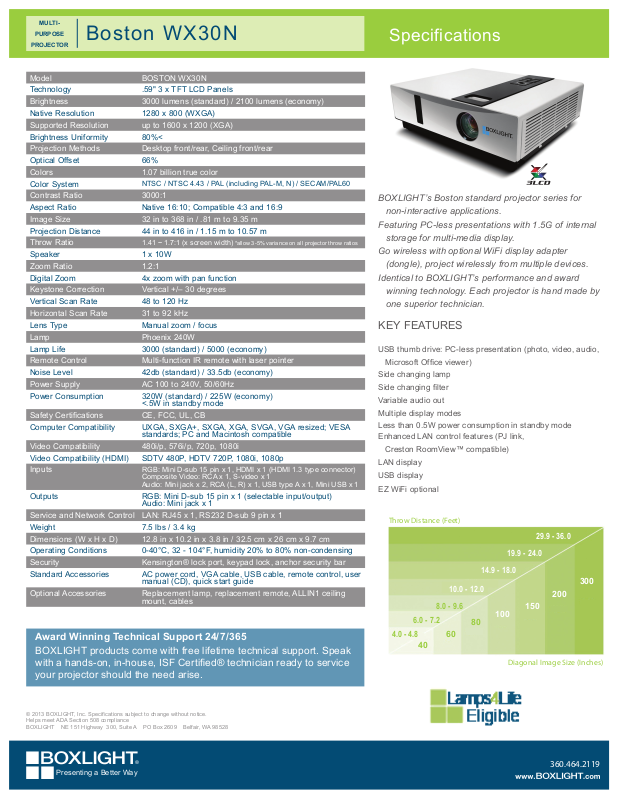

Boxlight WX30N Product Sheet
MULTI-
PURPOSE
PROJECTOR
Model BOSTON WX30N
Technology .59" 3 x TFT LCD Panels
Brightness 3000 lumens (standard) / 2100 lumens (economy)
Native Resolution 1280 x 800 (WXGA)
Supported Resolution up to 1600 x 1200 (XGA)
Brightness Uniformity 80%<
Projection Methods Desktop front/rear, Ceiling front/rear
Optical Offset 66%
Colors 1.07 billion true color
Color System
Contrast Ratio 3000:1
Aspect Ratio Native 16:10; Compatible 4:3 and 16:9
Image Size 32 in to 368 in / .81 m to 9.35 m
Projection Distance 44 in to 416 in / 1.15 m to 10.57 m
Throw Ratio
Speaker 1 x 10W
Zoom Ratio 1.2:1
Digital Zoom 4x zoom with pan function
Keystone Correction Vertical +/– 30 degrees
Vertical Scan Rate 48 to 120 Hz
Horizontal Scan Rate 31 to 92 kHz
Lens Type Manual zoom / focus
Lamp Phoenix 240W
Lamp Life 3000 (standard) / 5000 (economy)
Remote Control Multi-function IR remote with laser pointer
Noise Level 42db (standard) / 33.5db (economy)
Power Supply AC 100 to 240V, 50/60Hz
Power Consumption 320W (standard) / 225W (economy)
Safety Certications CE, FCC, UL, CB
Computer Compatibility UXGA, SXGA+, SXGA, XGA, SVGA, VGA resized; VESA
Video Compatibility 480i/p, 576i/p, 720p, 1080i
Video Compatibility (HDMI) SDTV 480P, HDTV 720P, 1080i, 1080p
Inputs
Outputs RGB: Mini D-sub 15 pin x 1 (selectable input/output)
Service and Network Control LAN: RJ45 x 1, RS232 D-sub 9 pin x 1
Weight 7.5 lbs / 3.4 kg
Dimensions (W x H x D) 12.8 in x 10.2 in x 3.8 in / 32.5 cm x 26 cm x 9.7 cm
Operating Conditions 0-40°C, 32 - 104°F, humidity 20% to 80% non-condensing
Security Kensington® lock port, keypad lock, anchor security bar
Standard Accessories AC power cord, VGA cable, USB cable, remote control, user
Optional Accessories Replacement lamp, replacement remote, ALLIN1 ceiling
Boston WX30N
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM/PAL60
1.41 ~ 1.7:1 (x screen width) *allow 3-5% variance on all projector throw ratios
<.5W in standby mode
standards; PC and Macintosh compatible
RGB: Mini D-sub 15 pin x 1, HDMI x 1 (HDMI 1.3 type connector)
Composite Video: RCA x 1, S-video x 1
Audio: Mini jack x 2, RCA (L, R) x 1, USB type A x 1, Mini USB x 1
Audio: Mini jack x 1
manual (CD), quick start guide
mount, cables
Award Winning Technical Support 24/7/365
BOXLIGHT products come with free lifetime technical support. Speak
with a hands-on, in-house, ISF Certied® technician ready to service
your projector should the need arise.
Specifications
BOXLIGHT’s Boston standard projector series for
non-interactive applications.
Featuring PC-less presentations with 1.5G of internal
storage for multi-media display.
Go wireless with optional WiFi display adapter
(dongle), project wirelessly from multiple devices.
Identical to BOXLIGHT’s performance and award
winning technology. Each projector is hand made by
one superior technician.
KEY FEATURES
USB thumb drive: PC-less presentation (photo, video, audio,
Microsoft Ofce viewer)
Side changing lamp
Side changing lter
Variable audio out
Multiple display modes
Less than 0.5W power consumption in standby mode
Enhanced LAN control features (PJ link,
Creston RoomView™ compatible)
LAN display
USB display
EZ WiFi optional
Throw Distance (Feet)
29.9 - 36.0
19.9 - 24.0
14.9 - 18.0
300
200
4.0 - 4.8
6.0 - 7.2
40
10.0 - 12.0
8.0 - 9.6
60
80
150
100
Diagonal Image Size (Inches)
© 2013 BOXLIGHT, Inc. Specications subject to change without notice.
Helps meet ADA Section 508 compliance
BOXLIGHT NE 151 Highway 300, Suite A PO Box 2609 Belfair, WA 98528
Presenting a Better Way
360.464.2119
