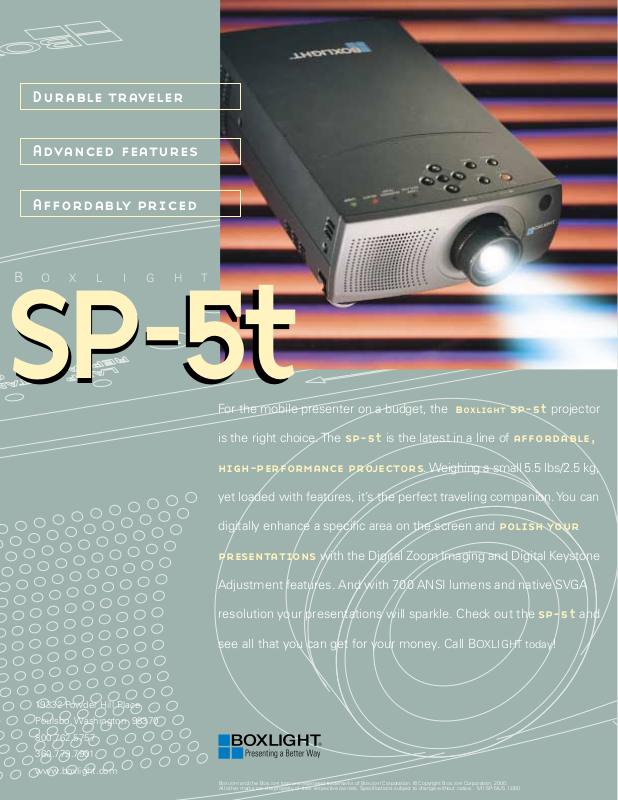

Boxlight SP-5t Product Sheet

Durable traveler

Advanced features

Affordably priced

B OXLIGHT

-

SP

SP

-

5t

5t

For the mobile presenter on a budget, the boxlight sp-5t projector

is the right choice. The sp-5t is the latest in a line of affordable,

high-performance projectors. Weighing a small 5.5 lbs/2.5 kg,

yet loaded with features, it’s the perfect traveling companion. You can

digitally enhance a specific area on the screen and polish your

presentations with the Digital Zoom Imaging and Digital Keystone

Adjustment features. And with 700 ANSI lumens and native SVGA

resolution your presentations will sparkle. Check out the sp-5t and

see all that you can get for your money. Call B

OXLIGHT today!

19332 Powder Hill Place

Poulsbo, Washington 98370

800.762.5757

360.779.7901

www.boxlight.com

BOXLIGHT and the BOXLIGHT logo are registered trademarks of BOXLIGHT Corporation. © Copyright BOXLIGHT Corporation, 2000.
All other marks are the property of their respective owners. Specifications subject to change without notice. M1-SP-5tUS 12/00

B OXLIGHT

SP

-

5t

projector

• Super light at only 5.5 lbs/2.5 kg,
you can easily carry it on the
plane while traveling.

• With a bright 700 ANSI lumens,
clear images can be achieved in
most lighting conditions.

• Digital keystone squares up an
image to accommodate varying
room environments.

• Manual zoom and focus lends to
ease of set-up.

• HDTV compatibility and
component video input create
superior images.

Resolution

Brightness

Lamp

Display Type

Contrast Ratio

Colors

Aspect Ratio

Inputs

Outputs

Audible Noise

Audio

Video

800 x 600 true SVGA and compressed 1024 x 768 XGA

700 ANSI lumens

120 watt UHP

(3) 0.7”/1.778 cm TFT polysilicon LCDs

250:1

16.7 million

4:3

Computer: (1) 15 pin RGB computer, (1) computer mini jack audio

Audio/Video: (1) component video, (1) S-video, (1) A/V mini jack audio

Audio: (1) external mini jack

Control port: (1) control port for mouse operation

39 dB

(1) built-in 1 watt speaker

NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM

Weight

Dimensions

Projection Lens

Diagonal Image Size

Throw Distance

Keystone

Adjustments

Power Supply

Power Consumption

Compatibility

Warranty

Accessories included

Accessories optional

To contact BOXLIGHT
Direct 800.762.5757
Rental 800.736.6954
Education 800.689.6676
Government 800.497.4009
Wholesale 800.736.6956
International 360.779.7901
Toll Free Fax [phone]
Internet www.boxlight.com

5.5 lbs/2.5 kg

7.5”/18.9 cm (W) x 2.9”/7.45 cm (H) x 11.4”/29.0 cm (D)

Manual zoom and focus 1:1.2 zoom ratio, F/2.0-2.3

30”-200”/0.76-5.08 m

4.6’-26.3’/1.4-8.0 m

Digital adjustment of +/- 15º

On-board and a remote

100/240V AC, 50/60 Hz auto change

200 Watts

VGA, SVGA, XGA, MAC

Two-year parts and labor (120 day lamp guarantee)

Remote control, power cord, VGA cable, PS/2 mouse cable, soft carry case

Guardian Cable Lock, MAC adapter, RS-232 control cable, ceiling mount

plate, ceiling mount suspension pole, various cases
