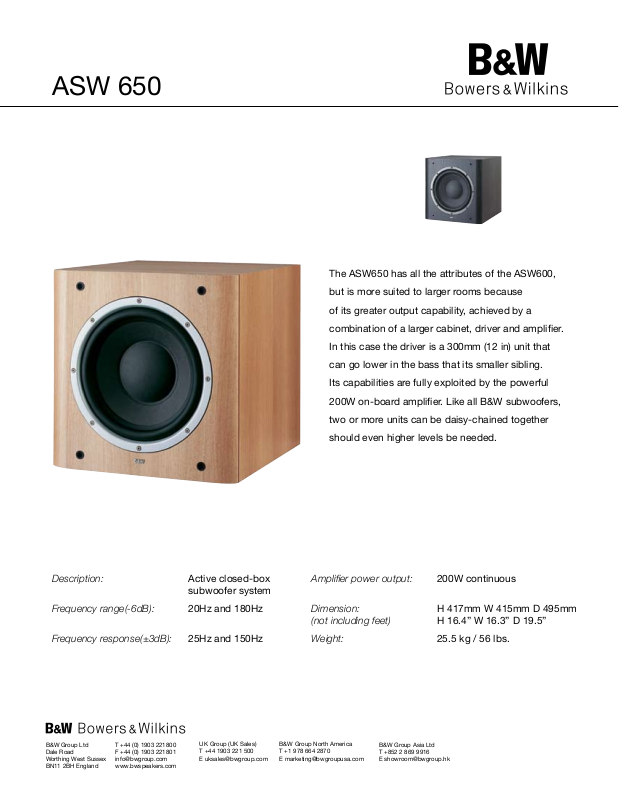

Bowers & Wilkins ASW 650 User Manual

ASW 650

The ASW650 has all the attributes of the ASW600,

but is more suited to larger rooms because

of its greater output capability, achieved by a

combination of a larger cabinet, driver and amplier.

In this case the driver is a 300mm (12 in) unit that

can go lower in the bass that its smaller sibling.

Its capabilities are fully exploited by the powerful

Description:

Frequency range(-6dB):

Frequency response(±3dB):

Active closed-box
subwoofer system

20Hz and 180Hz

25Hz and 150Hz

200W on-board amplier. Like all B&W subwoofers,

two or more units can be daisy-chained together

should even higher levels be needed.

Amplier power output:

Dimension:
(not including feet)

Weight:

200W continuous

H 417mm W 415mm D 495mm
H 16.4” W 16.3” D 19.5”

25.5 kg / 56 lbs.
