Boston Acoustics Neo Type-S Specifications
1 7/16"
36 mm
6 21/32"
169 mm
3 5/16"
85 mm
1 1/16"
27 mm
3/4"
18 mm
1 3/4"
45
mm
38 mm
1 1
/2"
Boston Acoustics, Inc. 300 Jubilee Drive, Peabody, MA 01960 USA T: 978.538.5000 F: 978.538.5100 W: bostonacoustics.com
Bos
ton, Boston Acoustics, the Boston Acoustics logo, and Kortec are registered trademarks of Boston Acoustics, Inc.
Spec
ifications are subject to change without notice.
© 2004 Boston Acoustics, Inc. All rights reserved. Covered by patents issued and/or pending. 042-002059-0

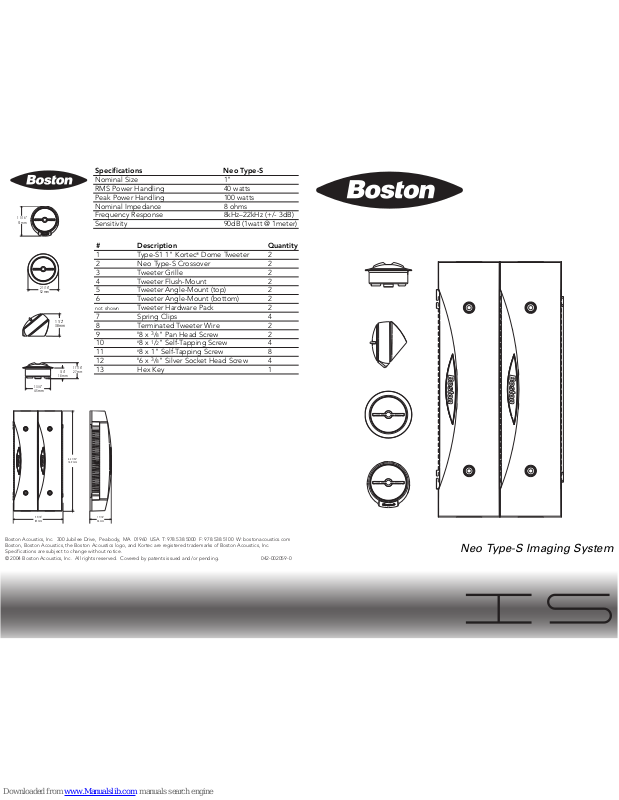

Neo Type-S Imaging System
Specifications Neo Type-S
Nominal Size 1"
RMS Power Handling 40 watts
Peak Power Handling 100 watts
Nominal Impedance 8 ohms
Frequency Response 8kHz–22kHz (+/- 3dB)
Sensitivity 90dB (1watt @ 1meter)
# Description Quantity
1 Type-S1 1" Kortec®Dome Tweeter 2
2 Neo Type-S Crossover 2
3 Tweeter Grille 2
4 Tweeter Flush-Mount 2
5 Tweeter Angle-Mount (top) 2
6 Tweeter Angle-Mount (bottom) 2
not shown
Tweeter Hardware Pack 2
7 Spring Clips 4
8 Terminated Tweeter Wire 2
9
#
8 x 3/8" Pan Head Screw 2
10
#
8 x 1/2" Self-Tapping Screw 4
11
#
8 x 1" Self-Tapping Screw 8
12
#
6 x 3/8" Silver Socket Head Screw 4
13 Hex Key 1
2 1/16"
52 mm
51 mm
1 1/16"
Key on Back Page
B C D E
Angle-Mount
8
9
5
10
6
1
3
8
7
4
9
1
3
Flush-Mount
Twe eter Attenuation
Twe eter Installation
A
Wire ConnectionsSecure CrossoversConnect CrossoversRemove Covers
Connecting Crossover Cases
Re-Install Covers
2
Application - Dash Mount Application - Door Mount Wiring - Parallel With Front Speakers Wiring - Separate Amplification
2
2
12
11
Separate
or
Coaxial
Speakers
13
