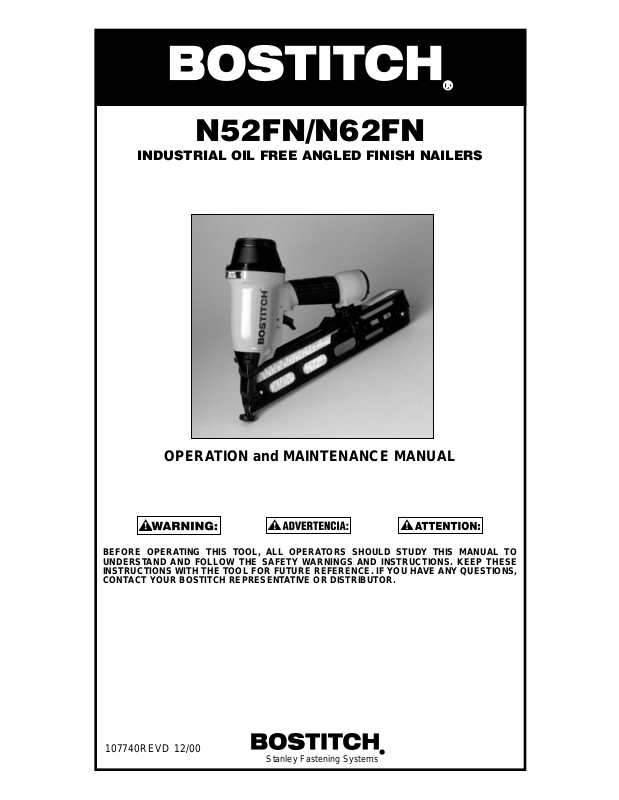

Bostitch N52FN, N62FN User guide

N52FN/N62FN

INDUSTRIAL OIL FREE ANGLED FINISH NAILERS

CLAVADORA INDUSTRIAL EN BARRA ANGULA LIBRE DE LUBRICACIÓN

CLOUEURS INDUSTRIEL DE FINITION EN BANDES SANS HUILE

107740REVD 12/00

BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR BOSTITCH REPRESENTATIVE OR DISTRIBUTOR.

ANTES DE OPERAR ESTA HERRAMIENTA, TODOS LOS OPERADORES DEBERÁN ESTUDIAR ESTE MANUAL PARAPODER COMPRENDER Y SEGUIR LAS ADVERTENCIAS SOBRE SEGURI-

Y LAS INSTRUCCIONES. MANTENGA ESTAS INSTRUCCIONES CON LA HERRAMIENTA

PARA FUTURA REFERENCIA, SI TIENE ALGUNA DUDA, COMUNÍQUESE CON SU REPRESEN-

DE BOSTITCH O CON SU DISTRIBUIDOR.

LIRE ATTENTIVEMENT LE PRÉSENT MANUEL AVANT D’UTILISER L’APPAREIL. PRÉTER UNE ATTENTION TOUTE PARTICULIÈRE AUX CONSIGNES DE SÉCURITÉ ET AUX AVERTISSE-

GARDER CE MANUEL AVEC L’OUTIL POUR FUTUR RÉFÉRENCE. SI VOUS AVEZ DES

QUESTIONS, CONT ACTEZ VOTRE REPRÉSENTANT OU VOTRE CONCESSIONNAIRE BOSTITCH.

OPERATION and MAINTENANCE MANUAL

MANUAL DE OPERACIÓN Y DE MANTENIMIENTO

MANUEL D’INSTRUCTIONS ET D’ENTRETIEN

Stanley Fastening Systems

-2-

INTRODUCTION

The Bostitch N52FN/N62FN series nailers are precision-built tools, designed for precise high volume nailing.These tools will deliver efficient, dependable service when used correctly and with care. As with any fine power tool, for best performance the manufacturer’s instructions must be followed. Please study this manual before operating the tool and understand the safety warnings and cautions. The instructions on installation, operation and maintenance should be read carefully, and the manuals kept for reference. NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your Bostitch representative or distributor with any questions concerning the tool and its use. Bostitch, Inc., East Greenwich, Rhode Island 02818.

INDEX

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Air Supply: Fittings, Hoses, Filters, Air Consumption, Regulators,

Operating Pressure, Setting Correct Pressure . . . . . . . . . . . . . . 5

Loading the Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tool Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8 & 9

Maintaining the Pneumatic Tool. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Dial-A-Depth™ Fastener Control Adjustment . . . . . . . . . . . . . . . 11

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

NOTE:

Bostitch tools have been engineered to provide excellent customer satisfaction and are designed to achieve maximum performance when used with precision Bostitch fasteners

engineered to the same exacting standards.

Bostitch cannot assume responsibility for product performance if our tools are used with fasteners or accessories not meeting the specific requirements established for genuine Bostitch nails, staples and accessories.

LIMITED WARRANTY

Bostitch, Inc., warrants to the original retail purchaser that this product is free from defects in material and workmanship, and agrees to repair or replace, at Bostitch's option, any defective product within 1 year from the date of purchase. This warranty is not transferable. It only covers damage resulting from defects in material or workmanship, and it does not cover conditions or malfunctions resulting from normal wear, neglect, abuse, accident or repairs attempted or made by other than our regional repair center or authorized warranty service center. Driver blades, bumpers and o-rings are considered normally wearing parts.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE DURATION OF THIS WARRANTY. BOSTITCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.

This warranty is limited to sales in the United States and Canada.. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To obtain warranty service, return the product at your expense together with proof of purchase to a Bostitch Regional or authorized warranty repair center. You may call us at 1-800-556-6696 for the location of authorized warranty service centers in your area.

-3-

SAFETY INSTRUCTIONS

EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

The employer and/or user must ensure that proper eye protection is worn. Eye protection equipment must conform to the requirements of the American National Standards Institute, ANSI Z87.1-1989 and provide both frontal and side protection. NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection.

CAUTION: ADDITIONAL SAFETY PROTECTION will be required in some environments. For example, the working area may include exposure to noise level which can lead to hearing damage. The employer and user must ensure that any necessary hearing protection is provided and used by the operator and others in the work area. Some environments will require the use of head protection equipment. When required, the employer and user must ensure that head protection conforming to

ANSI Z89.1 1986 is used.

AIR SUPPLY AND CONNECTIONS

Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

Do not use supply sources which can potentially exceed 200 P.S.I.G. as tool may burst, possibly causing injury.

The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected possibly causing injury.

Do not pull trigger or depress contact arm while connected to the air supply as the tool may cycle, possibly causing injury.

Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work area, as accidental actuation may occur, possibly causing injury.

LOADING TOOL

When loading tool: 1.) Never place a hand or any part of body in fastener discharge area of tool; 2.) Never point tool at anyone; 3.) Do not pull the trigger or depress the trip as accidental actuation may occur, possibly causing injury.

OPERATION

Always handle the tool with care: 1.) Never engage in horseplay; 2.) Never pull the trigger unless nose is directed toward the work; 3.) Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury.

The operator must not hold the trigger pulled on contact arm tools except during fastening operation as serious injury could result if the trip accidentally contacted someone or something, causing the tool to cycle.

Keep hands and body away from the discharge area of the tool. Acontact arm tool may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven possibly causing injury.

Check operation of the contact arm mechanism frequently. Do not use the tool if the arm is not working correctly as accidental driving of a fastener may result. Do not interfere with the proper operation of the contact arm mechanism.

Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury.

Do not drive fasteners close to the edge of the work piece as the wood may split, allowing the fastener to be deflected possibly causing injury.

MAINTAINING THE TOOL

When working on air tools note the warnings in this manual and use extra care when evaluating problem tools.

All screws and nuts are metric.

FASTENER SPECIFICATIONS:

TOOL AIR FITTING:

This tool uses a 1/4” N.P.T. male plug. The inside diameter should be .200” (5mm) or larger. The fitting must be capable of discharging tool air pressure when disconnected from the air supply.

OPERATING PRESSURE:

70 to 120 p.s.i.g. (4.9 to 8.4 kg/cm2). Select the operating pressure within this range for best fastener performance. DO NOT EXCEED THIS RECOMMENDED OPERATING

PRESSURE.

AIR CONSUMPTION:

Model N52FN requires 4.0 cubic feet per minute and Model N62FN requires 5.3 cubic feet per minute of free air to operate at the rate of 60 fasteners per minute, at 80 p.s.i.g. To calculate the actual rate at which the tool will be run to determine the amount of air required, for example; if your usage averages 30 fasteners per minute, you need 50% of the 4.0 c.f.m. or 5.3 c.f.m. which is required for running at 60 fasteners per minute.

BOSTITCH OFFERS THREE TYPES OF OPERATION FOR THIS SERIES TOOL.

CONTACT TRIP

The common operating procedure on “Contact Trip” tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted. This will allow rapid fastener placement on many jobs, such as sheathing, decking and pallet assembly. All pneumatic tools are subject to recoil when driving fasteners. The tool may bounce, releasing the trip, and if unintentionally allowed to recontact the work surface with the trigger still actuated (finger still holding trigger pulled) an unwanted second fastener will be driven.

SEQUENTIAL TRIP

The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”. The Sequential Trip Tool has a positive safety advantage because it will not accidentally drive a fastener if the tool is contacted against the work – or anything else – while the operator is holding the trigger pulled.

TRIGGER OPERATED

The Trigger Operated model is cycled by actuation of the trigger only. This model does not have a Contact Arm and is intended for use only where a Contact Arm CANNOT be used to satisfy the requirements of the application. The Trigger Operated tool will cycle each time the trigger is actuated.

MODEL

IDENTIFICATION:

Refer to Operation Instructions on page 4 before proceeding to use this tool.

CONTACT TRIP SEQUENTIAL TRIP TRIGGER OPERATED

Identified by: Identified by: Identified by:

BLACK TRIGGER GRAY TRIGGER BLACK TRIGGER

-4-

N52FN/N62FN TOOL SPECIFICATIONS

OPERATION

MODEL LENGTH HEIGHT WIDTH WEIGHT

N52FN 14-11/16” (373mm) 10” (254mm) 3-1/4” (83mm) 3.7lbs (1.69kg) N62FN 14-11/16” (373mm) 11-5/8” (295mm) 3-1/4” (83mm) 3.8lbs (1.75kg)

TOOL MODEL NAIL SERIES GAUGE WIRE SIZE FASTENER RANGE

N52FN FN1600 16 .060 (1.52mm) 1”-2” (25mm-50mm) N62FN FN1500 15 .072 (1.82mm) 1” - 2-1/2” (25mm-63mm)

AIR SUPPLY AND CONNECTIONS

Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.

FITTINGS:

Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

HOSES:

Air hoses should have a minimum of 150 p.s.i. (10.6 kg/cm2) working pressure rating or 150 percent of the maximum pressure that could be produced in the air system. The supply hose should contain a fitting that will provide “quick disconnecting” from the male plug on the tool.

SUPPLY SOURCE:

Use only clean regulated compressed air as a power source for this tool. NEVER USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES, AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE.

REGULATOR:

A pressure regulator with an operating pressure of 0 - 125 p.s.i. (0 - 8.79 KG/CM2) is required to control the operatiing pressure for safe operation of this tool. Do not connect this tool to air pressure which can potentially exceed 200 p.s.i. (14 KG/CM2)as tool may fracture or burst, possibly causing injury.

OPERATING PRESSURE:

Do not exceed recommended maximum operating pressure as tool wear will be greatly increased. The air supply must be capable of maintaining the operating pressure at the tool. Pressure drops in the air supply can reduce the tool’s driving power. Refer to “TOOL SPECIFICATIONS” for setting the correct operating pressure for the tool.

FILTER:

Dirt and water in the air supply are major causes of wear in pneumatic tools. Afilter will help to get the best performance and minimum wear from the tool. The filter must have adequate flow capacity for the specific installation. The filter has to be kept clean to be effective in providing clean compressed air to the tool. Consult the manufacturer’s instructions on proper maintenance of your filter. A dirty and clogged filter will cause a pressure drop which will reduce the tool’s performance.

-5-

-6-

TO PREVENT ACCIDENTAL INJURIES:

• Never place a hand or any other part of the body in nail discharge area of tool while the air supply is connected.

• Never point the tool at anyone else.

• Never engage in horseplay.

• Never pull the trigger unless nose is directed at the work.

• Always handle the tool with care.

• Do not pull the trigger or depress the trip mechanism while loading the tool.

LOADING THE N52FN/N62FN

ADJUSTING THE MULTI-DIRECTIONAL EXHAUST

To adjust the multi-directional exhaust simply rotate the exhaust deflector in a desired position as illustrated arrows 1 & 2

Location for loading

strips of nails

1. Loading Nails

Insert strip of nails into rear of magazine Note: Strip of nails should pass spring (approximately 3/16" (4.76mm) before engaging pusher

Pusher Guide

2. Engaging Pusher

Pull pusher guide to the rear of tool to engage pusher to strip of nails Note: Do not touch pusher tab while pulling pusher guide to the rear of tool

3. Removing Fasteners

Depress the pusher tab slightly to disengage from the nails and slowly slide pusher forward to the nose piece. Replace fasteners. Pull pusher guide to rear of tool and re-engage fasteners

Pusher Guide

nail stop

TOOL OPERATION

OPERATION

BEFORE HANDLING OR OPERATING THIS TOOL:

I. READ AND UNDERSTAND THE WARNINGS CONTAINED IN

THIS MANUAL.

II. REFER TO “TOOL SPECIFICATIONS” IN THIS MANUAL TO

IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL.

1. TRIGGER OPERATION

A TRIGGER OPERATED tool requires a single action to drive a fastener. Each time the trigger is pulled the tool will drive a fastener. The trigger operated model is intended for use only when a contact trip or sequential trip cannot be used due to the requirements of the application.

2. CONTACT TRIP OPERATION

The CONTACT TRIP MODEL tool contains a contact trip that operates in conjunction with the trigger to drive a fastener. There are two methods of operation to drive fasteners with a contact trip tool.

A. SINGLE FASTENER PLACEMENT: To operate the tool in this manner, first

position the contact trip on the work surface, WITHOUT PULLING THE TRIGGER. Depress the contact trip until the nose touches the work surface and then pull the trigger to drive a fastener. Do not press the tool against the work with extra force. Instead, allow the tool to recoil off the work surface to avoid a second unwanted fastener. Remove your finger from the trigger after each operation.

B. RAPID FASTENER OPERATION: To operate the tool in this manner, hold the

tool with the contact trip pointing towards but not touching the work surface. Pull the trigger and then tap the contact trip against the work surface using a bouncing motion. Each depression of the contact trip will cause a fastener to be driven.

There are three available systems on BOSTITCH pneumatic tools. They are:

1. TRIGGER OPERATION 2. CONTACT TRIP OPERATION 3. SEQUENTIAL TRIP OPERATION

The operator must not hold the trigger pulled on contact trip tools except during fastening operation, as serious injury could result if the trip accidentally contacted someone or something, causing the tool to cycle.

Keep hands and body away from the discharge area of the tool. A contact trip tool may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven, possibly causing injury.

3. SEQUENTIAL TRIP OPERATION:

The SEQUENTIAL TRIP MODEL contains a contact trip that operates in conjunction with the trigger to drive a fastener. To operate a sequential trip tool, first position the contact trip on the work surface WITHOUT PULLING THE TRIGGER. Depress the contact trip and then pull the trigger to drive a fastener. As long as the contact trip is contacting the work and is held depressed, the tool will drive a fastener each time the trigger is depressed. If the contact trip is allowed to leave the work surface, the sequence described above must be repeated to drive another fastener.

-7-

TOOL OPERATION CHECK:

CAUTION: Remove all fasteners from tool before performing tool operation check.

1. TRIGGER OPERATED TOOL:

A. With finger off the trigger, hold the tool with a firm grip on the handle. B. Place the nose of the tool against the work surface. C. Pull the trigger to drive. Release the trigger and cycle is complete. CAUTION: THE TOOL WILL CYCLE EACH TIME THE TRIGGER IS PULLED!

2. CONTACT TRIP OPERATION:

A. With finger off the trigger, press the contact trip against the work surface.

THE TOOL MUST NOT CYCLE.

B. Hold the tool off the work surface, and pull the trigger.

THE TOOL MUST NOT CYCLE.

With the tool off the work surface, pull the trigger.

Press the contact trip against the work surface.

THE TOOL MUST CYCLE.

D. Without touching the trigger, press the contact trip against the work surface,

then pull the trigger.

THE TOOL MUST CYCLE.

3. SEQUENTIAL TRIP OPERATION:

A. Press the contact trip against the work surface, without touching the trigger.

THE TOOL MUST NOT CYCLE.

B. Hold the tool off the work surface and pull the trigger.

THE TOOL MUST NOT CYCLE.

Release the trigger. The trigger must return to the trigger stop on the frame.

C. Pull the trigger and press the contact trip against the work surface.

THE TOOL MUST NOT CYCLE.

D. With finger off the trigger, press the contact trip against the work surface. Pull the trigger.

THE TOOL MUST CYCLE.

IN ADDITION TO THE OTHER WARNINGS CONTAINED IN THIS MANUAL OBSERVE THE FOLLOWING FOR SAFE OPERATION

• Use the BOSTITCH pneumatic tool only for the purpose for which it was designed.

• Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area.

• Do not use the tool as a hammer.

• Always carry the tool by the handle. Never carry the tool by the air hose.

• Do not alter or modify this tool from the original design or function without approval from

BOSTITCH, INC.

• Always be aware that misuse and improper handling of this tool can cause injury to yourself and others.

• Never clamp or tape the trigger or contact trip in an actuated position.

• Never leave a tool unattended with the air hose attached.

• Do not operate this tool if it does not contain a legible WARNING LABEL.

• Do not continue to use a tool that leaks air or does not function properly. Notify your

nearest Bostitch representative if your tool continues to experience functional problems.

-8-

-9-

MAINTAINING THE PNEUMATIC TOOL

When working on air tools, note the warnings in this manual and use extra care evaluating problem tools.

CAUTION:

Pusher spring (constant force spring). Caution must be used when working with the spring assembly. The spring is wrapped around, but not attached to, a roller. If the spring is extended beyond its length, the end will come off the roller and the spring will roll up with a snap, with a chance of pinching your hand. Also the edges of the spring are very thin and could cut. Care must also be taken to insure no permanent kinks are put in the spring as this will reduce the springs force.

REPLACEMENT PARTS:

BOSTITCH replacement parts are recommended. Do not use modified parts or parts which will not give equivalent performance to the original equipment.

AIR SUPPLY-PRESSURE AND VOLUME:

Air volume is as important as air pressure. The air volume supplied to the tool may be inadequate because of undersize fittings and hoses, or from the effects of dirt and water in the system. Restricted air flow will prevent the tool from receiving an adequate volume of air, even though the pressure reading is high. The results will be slow operation, misfeeds or reduced driving power. Before evaluating tool problems for these symptoms, trace the air supply from the tool to the supply source for restrictive connectors, swivel fittings, low points containing water and anything else that would prevent full volume flow of air to the tool.

Trigger valve housing leaks air O-ring cut or cracked . . . . . . . . . . . . . .Replace O-ring

Trigger valve stem leaks air O-ring/seals cut or cracked . . . . . . . . .Replace trigger valve assembly

Frame/nose leaks air Loose nose screws . . . . . . . . . . . . . . .Tighten and recheck

O-ring or Gasket is cut or cracked . . . .Replace O-ring or gasket

Bumper cracked/worn . . . . . . . . . . . . .Replace bumper

Frame/cap leaks air Damaged gasket or seal . . . . . . . . . . .Replace gasket or seal

Cracked/worn head valve bumper . . . .Replace bumper

Loose cap screws . . . . . . . . . . . . . . . .Tighten and recheck

Failure to cycle Air supply restriction . . . . . . . . . . . . . . .Check air supply equipment

Worn head valve O-rings . . . . . . . . . . .Replace O-rings

Broken cylinder cap spring . . . . . . . . . .Replace cylinder cap spring

Lack of power; slow to cycle Broken cylinder cap spring . . . . . . . . . .Replace cap spring

O-rings/seals cut or cracked . . . . . . . . .Replace O-rings/seals

Exhaust blocked . . . . . . . . . . . . . . . . .Check bumper, head valve spring, muffler

Trigger assembly worn/leaks . . . . . . . .Replace trigger assembly

Dirt/tar build up on driver . . . . . . . . . . .Disassemble nose/driver to clean

Cylinder sleeve not seated correctly

on bottom bumper . . . . . . . . . . . . . . . .Disassemble to correct

Head valve dry . . . . . . . . . . . . . . . . . . .Disassemble/lubricate

Air pressure too low . . . . . . . . . . . . . . .Check air supply equipment

Skipping fasteners; intermittent feed Worn bumper . . . . . . . . . . . . . . . . . . . .Replace bumper

Tar/dirt in driver channel . . . . . . . . . . . .Disassemble and clean nose and driver

Air restriction/inadequate air flow through

quick disconnect socket and plug . . . . .Replace quick disconnect fittings

Worn piston O-ring . . . . . . . . . . . . . . . .Replace O-ring, check driver

Damaged pusher spring . . . . . . . . . . . .Replace spring

Low air pressure . . . . . . . . . . . . . . . . .Check air supply system to tool

Loose magazine nose screws . . . . . . .Tighten all screws

Fasteners too short for tool . . . . . . . . .Use only recommended fasteners

Bent fasteners . . . . . . . . . . . . . . . . . . .Discontinue using these fasteners

Wrong size fasteners . . . . . . . . . . . . . .Use only recommended fasteners

Leaking head cap gasket . . . . . . . . . . .Tighten screws/replace gasket

Trigger valve O-ring cut/worn . . . . . . . .Replace O-ring

Broken/chipped driver . . . . . . . . . . . . .Replace driver (check piston O-ring)

Worn magazine . . . . . . . . . . . . . . . . . .Replace magazine

Fasteners jam in tool Driver channel worn . . . . . . . . . . . . . . .Replace nose/check door

Wrong size fasteners . . . . . . . . . . . . . .Use only recommended fasteners

Bent fasteners . . . . . . . . . . . . . . . . . . .Discontinue using these fasteners

Loose magazine/nose screws . . . . . . .Tighten all screws

Broken/chipped driver . . . . . . . . . . . . .Replace driver

-10-

TROUBLE SHOOTING

PROBLEM CAUSE CORRECTION

-11-

The DIAL-A-DEPTH

™

Fastener Control adjustment feature provides close control of the fastener drive depth; from flush with the work surface to shallow or deep countersink. First, set the air pressure for consistent drive in the specific work as described on page 5, then use the DIAL-A-DEPTH™Fastener Control adjustment to give the desired depth of drive.

TO ADJUST DIAL-A DEPTH

FASTENER

CONTROL ADJUSTMENT:

Models N52FN and N62FN, contain a Jam Release feature.

ALWAYS DISCONNECT AIR SUPPLY BEFORE CLEARING A JAMMED FASTENER.

JAM RELEASE

Always disconnect air supply: 1. Before making adjustments; 2. When servicing the tool; 3. When clearing a jam; 4. When tool is not in use; 5. When moving to a different work area, as accidental actuation may occur, possibly causing injury.

Partial Release Of Magazine

3: Slide magazine to rear of tool 4: Clear Jam

Jam Clearing

Disconnect air supply from tool. Relieve fasteners from pusher.

1: Depress latch button

2: With the latch button depressed, rotate latch assembly upward & forward until latch is on upward position

Full Release Of Magazine

5: Pull latch upward 6: Rotate latch assembly to forward direction

Magazine Assembly Removal

7: Slide the magazine assembly to the rear of tool to disengage To re-assemble the magazine assembly back on the tool Reverse the procedures and re-engage the latch to lock the magazine assembly in place

“DIAL-A-DEPTH™” FASTENER CONTROL ADJUSTMENT

TRIP ADJUSTMENT

NUT

Shallow

Deep

-12-

ACCESSORIES AVAILABLE:

IMPORTANT NOTE: Steel finish nails are made from galvanized steel

wire and not treated after nails are manufactured. As such, we do not guarantee or warranty product against corrosion for any specified time.

N80K2 Remote Cycle Kit N62-MAGKIT N62 Magazine Assembly Kit

Bostitch N52FN, N62FN User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
