INSTRUCTION MANUAL

CAR RADIO RECEIVER / MP3 PLAYER

WITH BULETOOTH HAND FREE SYSTEM

BUTTON

CANCEL/

SRC

BUTTON

INFO

BUTTON

BAND

BUTTON

POWER

BUTTON

MUTE

BUTTON

AMS

BUTTON

AUDIO

BUTTON

DSP

LOUD

LOC

TUNING /

SEEK

UP/DOWN

NEXT/BACK

BUTTON

DSP

LOUD

LOC

PLAY/

PAUS E

BUTTON

DISPLAY

INTRO

SCAN

BUTTON

LCD

REPEAT BUTTON

RANDOM

BUTTON

10+/- FOLDER

UP / DOWN

BUTTONS

LOUD

BUTTON

TALK

BUTTON

ENCODER

VOLUME

KNOB

INFRARED

REMOTE SENSOR

PRESET MEMORY STATION BUTTONS

(M1-M6)

INSTALLATION

Before final installation, connect the wiring temporarily and make sure it is all working properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. This item must be installed by an authorized dealer in order to keep the warranty vaild. Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop. If installation angle exceeds 30 degrees, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as direct sunlight, or hot air, heater or where it would be subject to dust dirt or excessive vibration. Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from Front (conventional DIN Front-mount) or Rear (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods A and B.

- DIN FRONT-MOUNT (Method A) Installation the unit

182

1. Dashboard

2. Holder After inserting the half sleeve into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place.

Removing the unit

a. Frame b. Insert fingers into the groove in the

front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove

down wards and attach it.)

c. Insert the levers supplied with the

unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.

E - 1

- DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket.

2. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

PANEL RELEASE BUTTON

Attaching the DCP

3. Remove the D.C.P.

1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P. (As shown on the diagram).

2. Then press the left side of D.C.P. onto the main unit until a click sound is heard.

1. Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are fitted) and tighten the screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring, and half-sleeve are not used for method B installation.

CAUTION

DO NOT insert the D.C.P from the left side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent damage to the D.C.P, always store it in a protective case after detaching it. The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note: If the D.C.P is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl

Socket

alcohol to clean the socket on the back of the D.C.P.

E - 2

DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

RELEASE BUTTON

D.C.P.

Attaching the Detachable Control panel (D.C.P.)

1. Turn the Power off.

2. Press the Panel Release Button.

3. Remove the D.C.P.

1. Insert the right side of the D.C.P. Into the main unit. NOTE: The D.C.P. Must be attached into the T-Joint.

2. Press the D.C.P. On to the left side of middle of D.C.P. Until a click sound is heard.

PUSH

CAUTION

Note:

If the D.C.P is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the

Socket

back of the D.C.P.

E - 3

ELECTRICAL CONNECTION

a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a converter will be necessary). b. Before starting wiring connections, disconnect the power supply by removing the fuse from the fuse box. c. Connect the power wire to one of the extra terminals of the fuse box. d. Connect the black ground wire to a metal part of the car. It is important to make good contact. e. Make other wiring connections as shown. f. If your car does not have ISO connector, you can procure it from any car accessory shop.

Notes: INCORRECT WIRING OR OPERATION WILL AVOID THE WARRANTY OF THIS UNIT.

(CAR UNIT BACK SIDE)

FUSE

Fuse Replacement:

To replace the fuse, pull out the blown fuse from the socket. Insert a new one with same rating

GENERAL OPERATION

POWER ON/OFF BUTTON ( )

Press POWER button or any other button on the front of the radio to turn the unit on. Press POWER button again to turn the unit off.

MUTE BUTTON

Press the mute button momentarily to mute the audio volume, and "Mute" will in the display. Press the mute button again to restore volume to the previous setting.

AUDIO SELECT BUTTON

Press this button to select desired audio function. VOLUME (VOL)->BASS (BAS)-> TREBLE (TRE)-> BALANCE (BAL)-> FADER (FAD) Rotate Volume Control to adjust desired level within 3 seconds.

MENU BUTTON

Press MENU Button to navigate through the menu items, while the desired menu item is displayed, use Volume control to adjust the selected function:

- LOC/ DX MODE

Use this mode to change between Local and Distant (DX) tuning mode. Local mode improves reception in some areas where the signal is too strong.

- BEEP MODE (BEEP ON / OFF)

BEEP OFF: disable audible beep tone when any function is accessed. BEEP ON: enable audible beep tone.

- CLOCK ADJUST

Under clock display mode.press MENU button until the LCD flashes. Rotate the volume knob in clockwise direction to adjust hour, other direction to adjust minute.

E - 4

EQ BUTTON (PRESET EQUALIZER)

DSP OFF->CLASSIC->POP->ROCK

At DSP off mode preset equalizer will be controlled by Bass / Treble setting.

LOUDNESS BUTTON

Use this LOUDNESS control to increase bass output.

ENCODER VOLUME KNOB

When the Menu function is not activated, rotate this knob to change the volume level. When Menu function is activated, rotate this knob to navigate through different menu items.

SRC BUTTON

Press this button to select different sources , sequence as follow: A) Tuner mode (Radio)

B) USB (only if a USB drive is inserted) C) SD / MMC (only if a SD or MMC card is inserted)) D) AUX IN E) BT MODE (only if unit is paired to a mobile phone)

SOURCES PRIORITY

Whenever a USB or SD/MMC is being inserted, unit will automatically switch to USB or SD/MMC mode, does not matter the unit is currently in what mode.

When in USB or SD / MMC mode, if the USB or SD / MMC is being removed, unit will automatically switch to radio mode.

FRONT AUX INPUT

Connect the external signal to the front 3.5mm earphone jack on front panel, then press Mode button to select Aux mode. Press Mode button again to cancel Aux Mode and return to previous mode.

INFO BUTTON

At Radio mode Press this button to view frequency of the station in listening and clock time .

E - 5

AUTO MEMORY STORE/PRESET SCAN BUTTON (AMS)

1.PRESET SCAN: Press AMS button briefly enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that will stay on each station for about 10 seconds.

2.AUTO MEMORY STORE: Press AMS button long to enter Auto Store mode, this feature will automatically scan the current band and enter up to 6 strongest stations into the 6 preset memories. To stop Auto Store & Scan, press the AMS button again.

TUNING UP / DOWN BUTTON ( )

Press this button to search for radio stations.

BAND BUTTON

Press this button to change between bands FM1,FM2,FM3, MW1,MW2(AM).

RESET BUTTON

The RESET button is located on the front panel (as shown on the diagram). To press it vertically with a ballpoint pen or metal object will activate it. The reset button is to be activated for the following reasons:

Initial installation of the unit when all wiring is completed. All the function buttons do not operate. Error symbol on the display.

Note: If the unit cannot function normally after reseting, please use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

LIQUID CRYSTAL DISPLAY PANEL (LCD)

The LCD panel display the frequency, time and activated functions.

NOTE:

It is a characteristic of LCD panel that if subjected to cold temperatures for an extended period of time, they will take longer time to illuminate than under normal conditions, in addition, the visibility of the numbers on the LCD may slightly decrease. The LCD read-out will return to normal when temperatures increase to a normal range.

STATION PRESET BUTTONS (M1-M6)

You can store & recall six preset radio stations by pressing M1-M6 buttons

TO STORE A STATION: 1) select a band (if needed)

2) select a station by tuning up / down button

3) hold a preset button which you want store the station for at least 2

TO RECALL A STATION: 1) select a band (if needed)

2) press a preset button briefly to recall the stored station.

seconds. The preset number will appear on the display accompanied by a beeps sound.

E - 6

MP3/SD/USB OPERATIONS

M1)PLAY/PAUSE AND FIRST TRACK BUTTON

Press this button briefly to pause MP3 play, press again to release pause.

M2)

INTRO SCAN BUTTON

Press this button to select Intro Scan function, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track.

M3)REPEAT BUTTON

Pressing this button will activate Repeat Function in the following order : Repeat On Repeat Off

M4)RANDOM PLAY BUTTON

When random play mode is selected, the tracks will be played in random order, press this key one more time to cancel random play mode.

TRACK UP AND TRACK DOWN BUT TON ( )

Under normal play mode, press the Track Up Button for less than 1 second to skip the playback to the next track, or press the Track Down Button for less than 1 seconds to return to the beginning of the current track, press this button one more time to skip to the previous track.

When any of these buttons is pressed for more than 1 second, the Mp3 player will enter Cue/Review mode, this is indicated by the flashing track number on the LCD. When the key is released, normal play will resume.

E - 7

MMC/SD CARD & USB DEVICE OPERATIONS

START THE USB DEVICE MODE

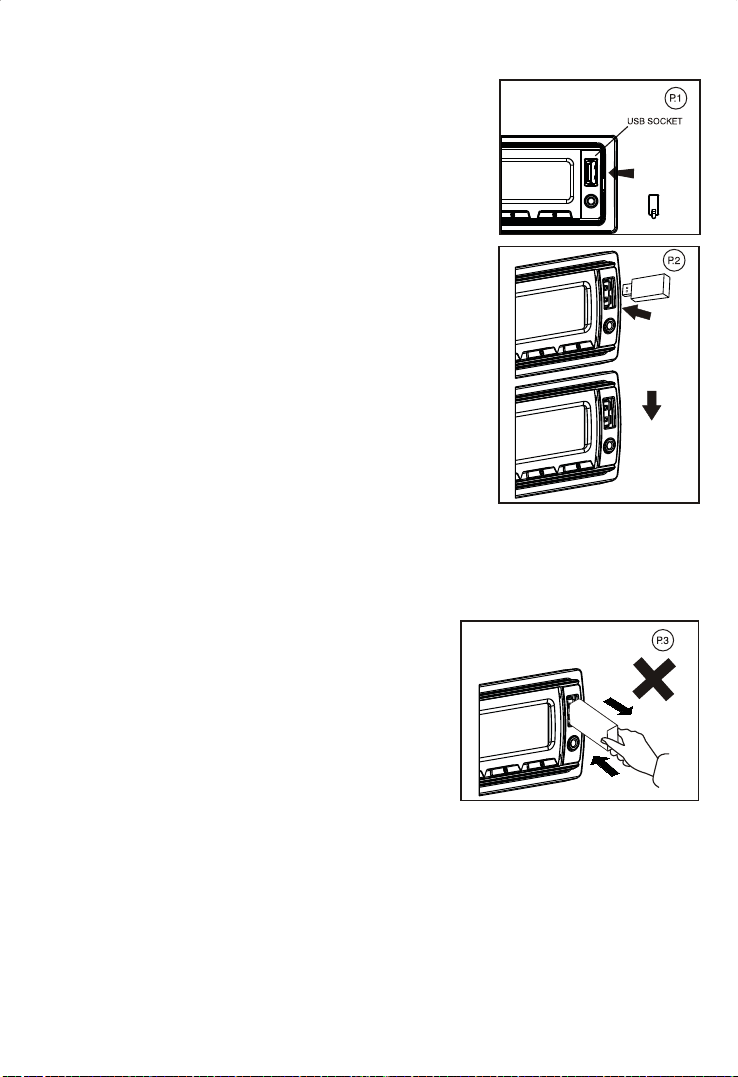

1.The USB socket is accessible as indicated in picture

1.(P.1)

2.Plug in the USB drive / device completely as indicated in picture 2(P.2) and display will show USB-LOAD to indicate that the USB drive / device is being plugged in correctly & the download has begun.

3.Does not matter which source the unit is in (TUNER,SD/MMC,AUX,BT,etc), once a USB drive / device is being plugged into the unit, unit will automatically switch to USB mode.

4.All the USB files playback function is same as normal MP3 files playback.

Warning: Excessive weight or size USB drive/device may cause permanent & serious damage to the unit and may cause access to the buttons on the front panel impossible. User must use an extension cable (provide by USB device manufacturer) to connect with USB socket to prevent any damage cause.

TO STOP USB PLAYBACK

1.If the USB drive / device is unplugged, the unit will automatically switch to radio mode. Or user can use SRC button to switch to other mode.

2.User can use the SRC button to choose USB mode (only if USB drive / device is inserted in the unit ) or any other modes, when they are in any mode.

USB SPECIFICATION * SUPPORT MAX 32G USB FLASH MEMORY * SUPPORT MAX 9999 SONGS * USB 1.1 DEVICE SUPPORT * USB 2.0 DEVICE SUPPORT (TRANSFER SPEED SAME AS VER 1.1) * FILE MANAGER: FAT12/FAT16/FAT32 * CURRENT SUPPLY: MAX 500mA

CAUTION

1.Always unplugged the USB gently from the unit, excessive force used will cause permanent & serious damage to the unit & the USB drive / device.

COMPATIBILITY

Due to the fast changing technology world, this unit may or may not be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver. Always choose a compatible USB drive / device which is compatible with this unit.

NOTE:

This unit is not compatible with portable Hard-Disc.

E - 8

START THE SD/MMC MODE

P. 4

1.The SD/MMC card slot is located on top of the front panel as indicated in (P.4).

2. Insert the SD/MMC card into the card slot in the correct direction until a CLICK sound is heard.

3. The display will show SD-MMC to indicate that the SD or MMC card is correctly inserted. Once the SD or MMC card is inserted, the MP3 file will automatically loaded & playback will also start.

4. Does not matter the unit is in what sources (Tuner,USB,AUX,BT,et , once a SD or MMC card is being inserted in the unit, unit will automatically switch to SD / MMC mode.

5. All the SD / MMC files playback function is same as normal MP3 files playback.

TO STOP SD/MMC CARD PLAYBACK

1.Push on the end of the SD or MMC card to eject the sd or MMC card. Once the SD or MMC card is taken out, the unit will automatically switch to previous mode.

2.User can use the SRC button to choose SD / MMC mode (only if SD or MMC is inserted in the unit ) or any other modes, when they are in any mode.

SD/MMC SPECIFICATION * SUPPORT MAX 32G SD/MMC CARD * SUPPORT MAX 9999 SONGS * FILE MANAGER FAT12, FAT16, FAT32 SUPPORTED

CAUTION

2.Please make sure to insert the SD or MMC card in the correct direction / orientation as indicated in picture 6(P.5). Wrong insert will cause permanent & serious damage to the unit & the SD or MMC card.

P. 5

E - 9

Front side

Back side

MP3 OPERATIONS(MP3/SD/MMC/USB FILES)

Loading MP3 File ( MMC/SD/USB Drive)

During MP3 play, Current Track Number & Time Elapse of current track will be shown on the LCD. If the disc is ID3 compatible, press BAND button to show the following messages:

1. Music Name SONG .

2. Album Name ALBUM .

3. Artist Name ARTIST .

Navigating Through Folders and Tracks

There are Four ways to select your favourite folder/tracks.

1.By Track Up/Down Button ( )

Press track up/down button to skip the current tracks.

2.10-Track Up/Down Button

Press Folder up (M6)/F+ or Folder down Button (M5)/F- for more than 1seconds skip10 tracks.

3.Folder UP/Down

Press Folder up (M6)/F+ or Folder down Button (M5)/F- briefly to skip Folder.

4.NAVIGATING THROUGH DIRECTORIES AND TRACKS

Under MP3 play modes, press AMS Menu button once, the display shows TRK-SCH, then turn the Encoder Volume knob to selet desired track number directly,

Then press mp3 enter(AUDIO)button to confirm.

E -10

BLUETOOTH MODE OPERATION

INSTRUCTION FOR HANDSFREE FUNCTION

1. PAIR IT WITH YOUR PHONE (PAIRING)

Before you use your Car HANDSFREE System, you need to pair it with your mobile phone.

1. The Bluetooth set system on the head unit will automatically go into pairing mode when the POWER turned on .

2. Set your Bluetooth phone to discover the CAR_AUDIO_HF.

3. Your phone will find the CAR_AUDIO_HF. Your phone then asks if you want to pair with it. Accept by pressing Yes or OK on the phone and confirm with the passkey or PIN=0000 (4 zeros). Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3 .

2. OPERATION

Call Accept: Single click TALK button during an incoming call to accept the call. Call Reject: Click CANCEL (SRC ) or (STOP) on the remote during an incoming call will reject the call. Call End: Single click SRC button when communication or dialling an outgoing call to hang up. Call Disconnect: No BT mode Click TALK button about 1.5 seconds when it is not in communication mode. And Disconnect and BT OFF will showed on the display. Call Re-connect,Click TALK button again at the Disconnect Status. The connection will be reconnected and CONNECT & BT ON will showed on the display. Call Transfer (Private mode): Click TALK button about 1.5 seconds at communicating time, transfer the call to phone, click talk button once again, transfer the call to Bluetooth. Auto Answer (Depend on mobile phone feature): Pls refer to your own mobile phone manual for handsfree auto answer setting. Volume Adjust: User can use the volume up/down to adjust the volume level.

3. WHAT DISPLAY CAN SHOW DURING THE INCOMING/OUTGOING CALL MODE INCOMING CALL

When there is an incoming call, the display will display the incoming caller telephone number If the incoming call has no caller number, the LCD will display 00000000 user can short press the TALK button answer / accept the call and the Talking display will be showed when the call is answered. To end the conversation, press the CANCEL(SRC or (STOP) at the Remote control and the Hang up will showed on display. The unit and the display on the LCD will switch back to the previous mode automatically.

OUTGOING CALL

User can use his / her Mobile Phone or remote control to dial and make an outgoing call . Once the user start dialling, the display should show DIALING. The audio output of the present mode will ONLY be muted after pressing the TALK button as a confirmation to dial the outgoing call. During talking mode, the LCD Display will display talking time. To end the conversation, press the CANCEL (SRC ) button or (STOP) at the Remote control and the Hang up will showed on display. The unit and the display on the LCD will switch back to the previous mode automatically. The mute of the previous mode will be released at the same time.

E -11

4. BLUETOOTH NOTICE

Before you start to use our Bluetooth HEAD UNIT , Please pair the unit with your mobile phone completely. Please refer to the section of PAIRING To ensure the best reception for Pairing & Re-connection, please make sure the phone Battery is fully charged when making the pairing or Re-connection. Every time you turn the power on, the unit will automatically re-connect with the mobile phone.

By pressing the TALK button the unit will start the Auto-Reconnection . In some conditions, the user will need to reconnect manually. For example like the following.

If the mobile phone is out of range. (2 meters away from the head unit) the unit will be disconnected from the mobile phone. If user wants to re-connect, it will have to be done manually.

The Bluetooth symbol (...) and the connected symbol (< / >) on the mobile phone will be different from one to another. Please refer lo the corresponding specification. When you hang up the phone, the main unit will return to previous mode (radio, SD or other mode). Some mobile phone brands like Sony Ericsson may have "Power Saving Mode" selection when Blue Tooth mode is switched on. PLEASE DO NOT Switch ON Power saving Mode when operating with this Head Unit, . As some abnormal communication behavior will happen Power Saving Mode is switched on. To ensure the best conversation quality / performance, please always keep talking within 1 meters of the Head Unit. Some Mobile Phones can support IN BAND RING TONE, such as Motorola, Nokia. In such case, the Incoming Ringing Tone will be same as the original Ring-tone of the Mobile Phone. But some Mobile Phones like Sony Ericsson do not support this feature. The Ringtone will be using the standard Ring-tone of the Head unit. Using voice dialing, please make sure the phone and the head unit within 3 meters of each other. Also please make sure your mobile phone support voice dialing function. And please consult with your mobile phone supplier if you want to know the operation further about voice dialing.

If user wants to disconnect the head unit with the Mobile Phone, please click talk button long once or switch "OFF" Blue Tooth connectivity on the Mobile Phone.

LISTENING TO MUSIC USING CAR-AUDIO-HF ON THE BT AUDIO MODE

CAR-AUDIO-HF is capable of streaming music over Bluetooth from a mobile phone supporting A2DP. Press the SRC button to select Bluetooth BT audio mode, once you have paired your Car Handsfree with your mobile phone, use your phone to play, pause, stop, skip forward and backward. When you receive a call, the music will be automatically paused and you will be able to answer or reject a call through the headset. Once you end a call, the music will continue. On some phones you may have to press play to start the music again. And you can also make an outgoing call (This function is compatible with some phones which can make outgoing calls during the A2DP mode.)

E -12

Specifications for Blue tooth

BLUE TOOTH

Power Consumption Output Power Frequency Band Range Standard

Specifications subject to change without notice.

200mA Max. 0 dBm (Class II)

2.4GHz ~ 2.4835GHz ISM Band 3 meters (free space) Bluetooth 2.0 specification

Remark:

Our Bluetooth Handsfree System adapts to the Bluetooth spec V2.0 and higher. It is compatible with profiles such as Handsfree profile and Head Set profile. However the functionality may be limited due to some phones dedicated interfacing specifications, even with phones of which the actual Bluetooth specifications and used profiles apply to our Bluetooth Handsfree System specifications. Please check the compatibility list or try it out in practice your phone at the local dealer in case it is not mentioned in the list.

Note:

Compatibility and connectivity with all Bluetooth mobile phones is not guaranteed.

Warning:

Many jurisdictions have laws regarding the use of a phone in a vehicle. Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

E -13

SPECIFICATIONS

RADIO SECTION FM

Frequency Range

Usable Sensitivity Stereo Separation S/N Ratio

AM (MW)

Frequency Range

Usable Sensitivity S/N Ratio

GENERAL

Power Supply Polarity Speaker impedance Power Output

REMARK : Specifications subject to change without notice.

87.5 -108 MHz (EURO)

87.5 -107.9 MHz (USA) Better than 15dB at S/N 30 dB 25 dB at 1KHz 50 dB

522 -1620 KHz (EURO) 530 -1710 KHz (USA) Better than 45dB 40 dB

DC 11 -14V Negative Ground 4 ohms 50W x 4

E - 14
